sensor TOYOTA AURIS HYBRID 2017 User Guide

185
4Driving
AURIS Touring Sports_EE (12L13E)4-1. Before driving
Driving the vehicle ............. 186
Cargo and luggage ............ 197
Trailer towing ..................... 200
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a
smart entry &
start system) .................... 209
Engine (ignition) switch
(vehicles with a
smart entry &
start system) .................... 213
Multidrive ........................... 223
Manual transmission .......... 230
Turn signal lever ................ 233
Parking brake .................... 234
4-3. Operating the lights
and wipers
Headlight switch ................ 235
Fog light switch .................. 241
Windshield wipers
and washer ...................... 243
Rear window wiper
and washer ...................... 247
4-4. Refueling
Opening the fuel tank
cap ................................... 2494-5. Toyota Safety Sense
Toyota Safety Sense ......... 252
PCS
(Pre-Crash Safety
system) ............................ 258
LDA
(Lane Departure
Alert) ................................ 271
Automatic High Beam ........ 276
RSA (Road Sign Assist)..... 280
4-6. Using the driving
support systems
Stop & Start system
(Smart Stop) .................... 286
Cruise control..................... 299
Speed limiter ...................... 304
Toyota parking
assist-sensor ................... 308
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 315
Diesel particulate
filter system ..................... 329
Driving assist systems ....... 331
4-7. Driving tips
Winter driving tips .............. 337
AURIS Touring Sports_OM_Europe_OM12L13E.book 185 ページ ２０１６年６月２７日　月曜日　午後５時２１分

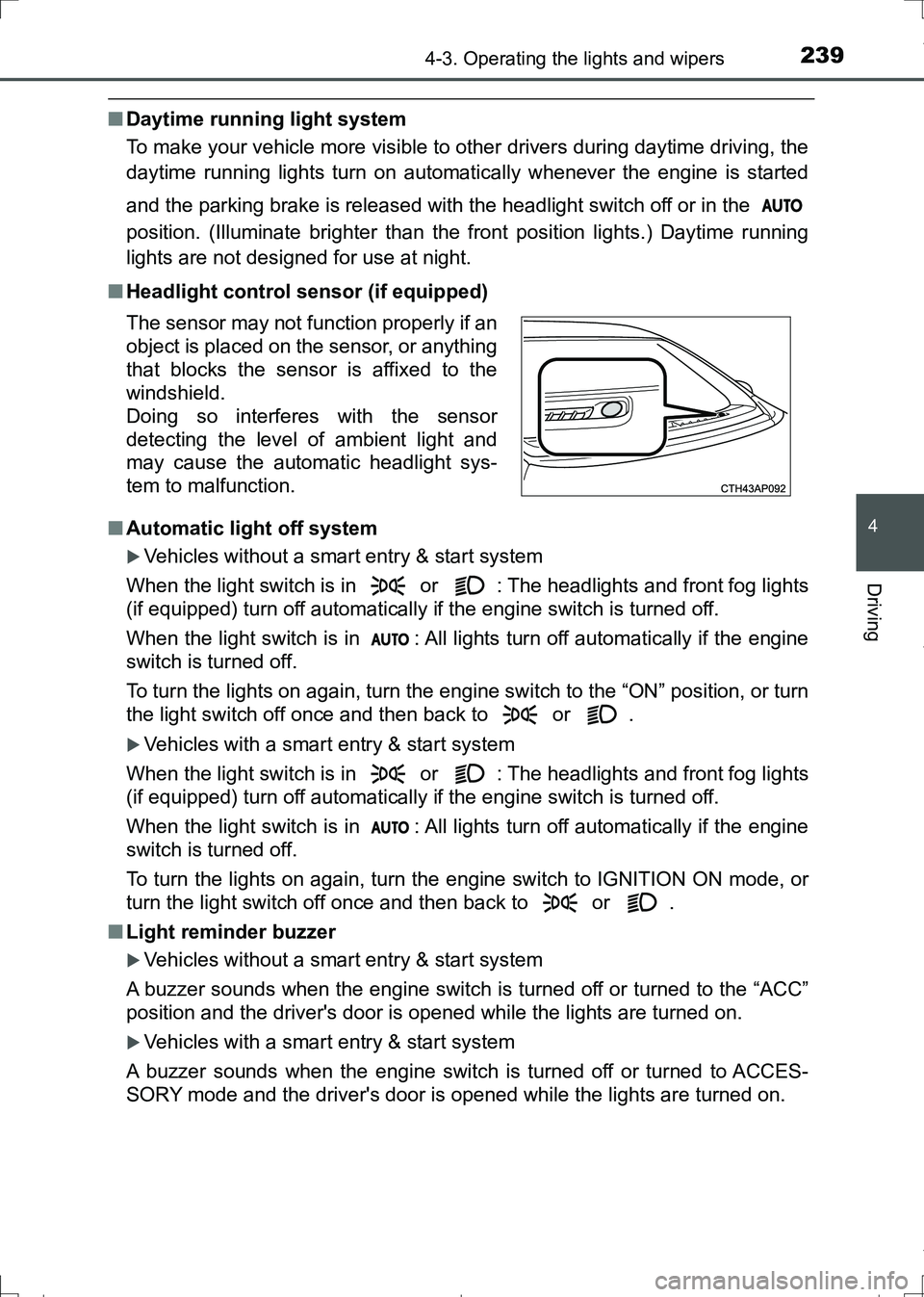

2394-3. Operating the lights and wipers
AURIS Touring Sports_EE (12L13E)
4
Driving
■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch off or in the
position. (Illuminate brighter than the front position lights.) Daytime running
lights are not designed for use at night.
■Headlight control sensor (if equipped)
■Automatic light off system
Vehicles without a smart entry & start system
When the light switch is in or : The headlights and front fog lights
(if equipped) turn off automatically if the engine switch is turned off.
When the light switch is in : All lights turn off automatically if the engine
switch is turned off.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the light switch off once and then back to or .
Vehicles with a smart entry & start system
When the light switch is in or : The headlights and front fog lights
(if equipped) turn off automatically if the engine switch is turned off.
When the light switch is in : All lights turn off automatically if the engine
switch is turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch off once and then back to or .
■Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds when the engine switch is turned off or turned to the “ACC”
position and the driver's door is opened while the lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds when the engine switch is turned off or turned to ACCES-
SORY mode and the driver's door is opened while the lights are turned on. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
AURIS Touring Sports_OM_Europe_OM12L13E.book 239 ページ ２０１６年６月２７日　月曜日　午後５時２１分

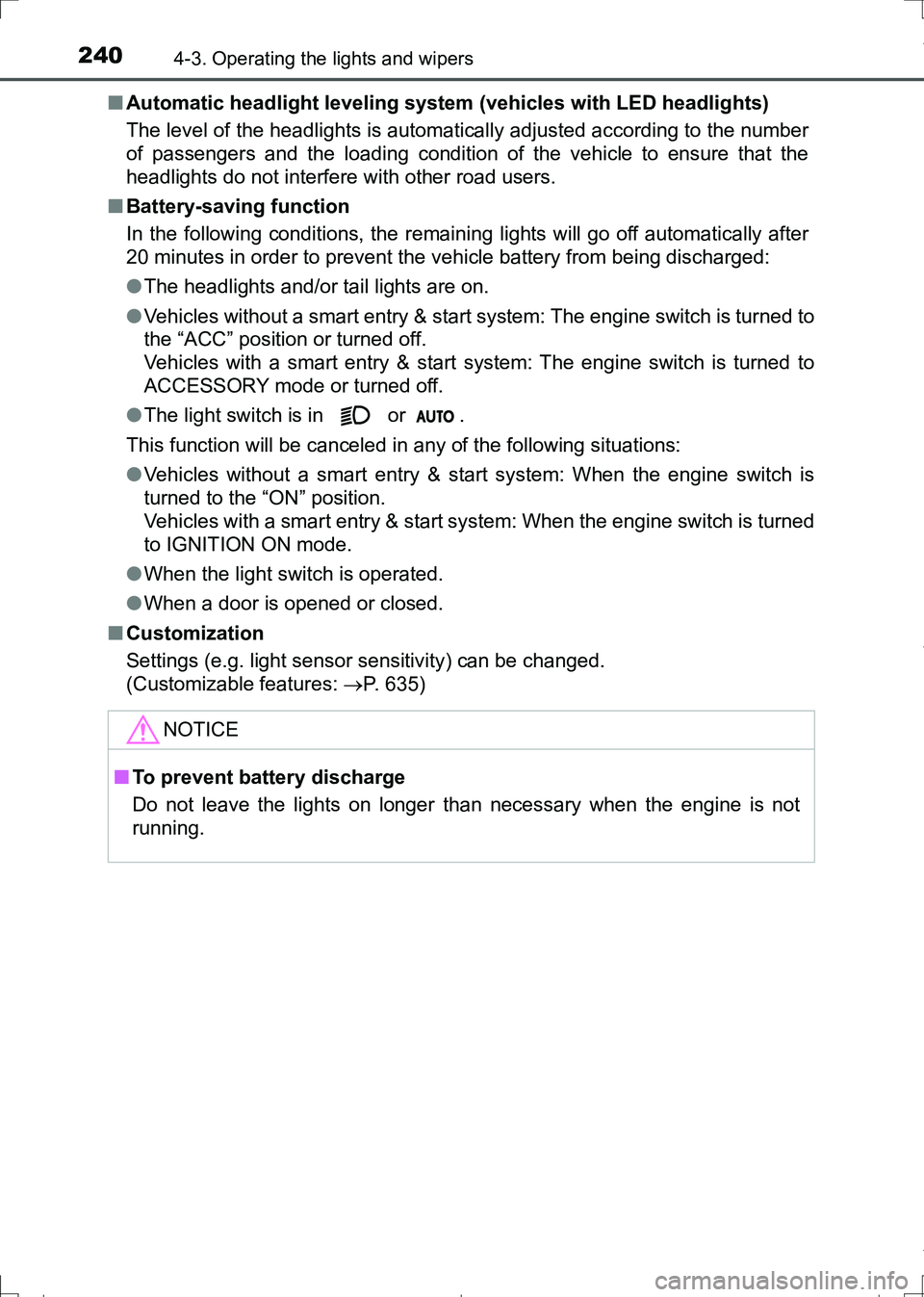

2404-3. Operating the lights and wipers
AURIS Touring Sports_EE (12L13E)■Automatic headlight leveling system (vehicles with LED headlights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■Battery-saving function
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
●The headlights and/or tail lights are on.
●Vehicles without a smart entry & start system: The engine switch is turned to
the “ACC” position or turned off.
Vehicles with a smart entry & start system: The engine switch is turned to
ACCESSORY mode or turned off.
●The light switch is in or .
This function will be canceled in any of the following situations:
●Vehicles without a smart entry & start system: When the engine switch is
turned to the “ON” position.
Vehicles with a smart entry & start system: When the engine switch is turned
to IGNITION ON mode.
●When the light switch is operated.
●When a door is opened or closed.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 635)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
AURIS Touring Sports_OM_Europe_OM12L13E.book 240 ページ ２０１６年６月２７日　月曜日　午後５時２１分

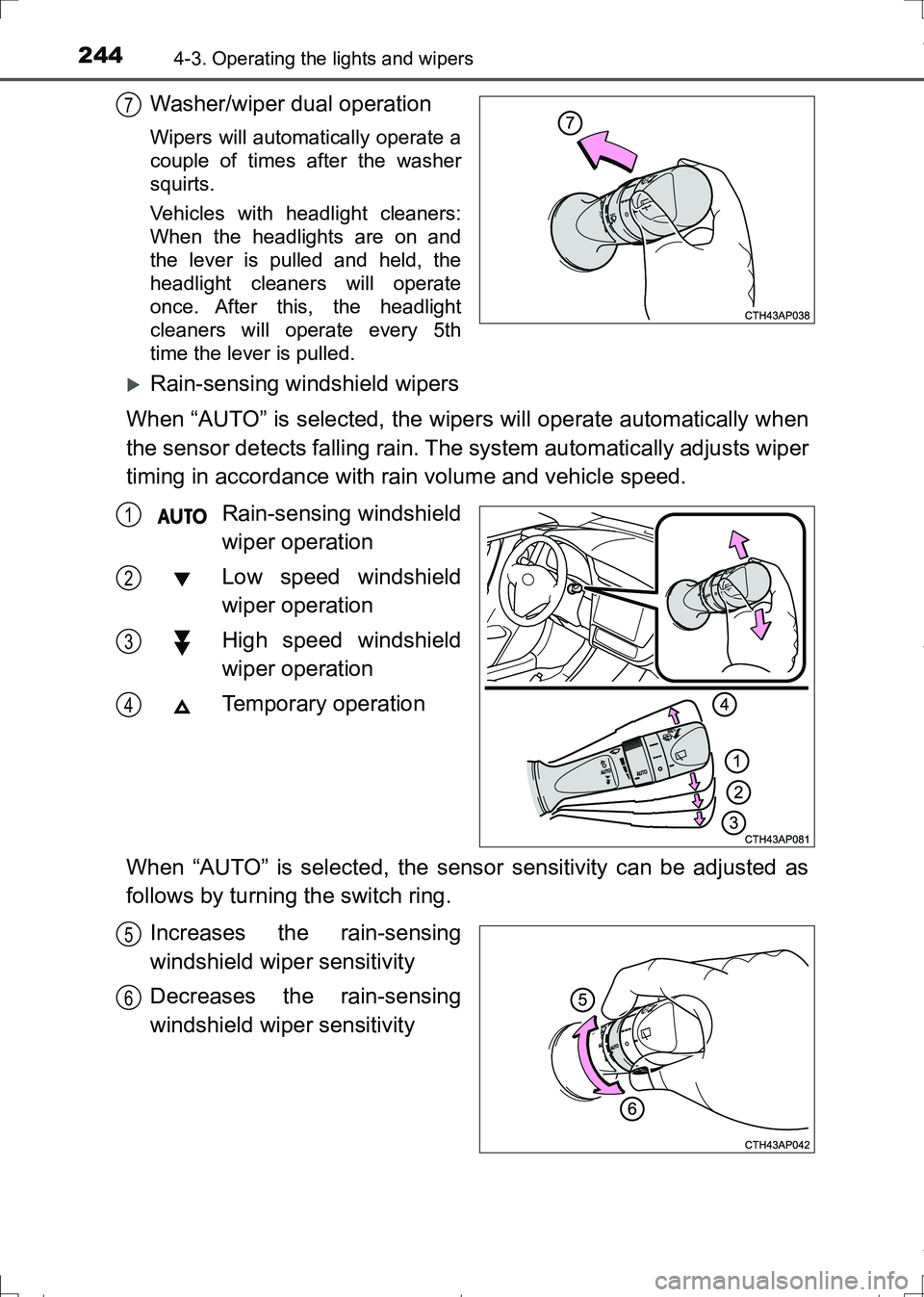

2444-3. Operating the lights and wipers
AURIS Touring Sports_EE (12L13E)
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners:
When the headlights are on and
the lever is pulled and held, the
headlight cleaners will operate
once. After this, the headlight
cleaners will operate every 5th
time the lever is pulled.
Rain-sensing windshield wipers
When “AUTO” is selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts wiper
timing in accordance with rain volume and vehicle speed.
Rain-sensing windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
When “AUTO” is selected, the sensor sensitivity can be adjusted as
follows by turning the switch ring.
Increases the rain-sensing
windshield wiper sensitivity
Decreases the rain-sensing
windshield wiper sensitivity
7
1
2
3
4
5
6
AURIS Touring Sports_OM_Europe_OM12L13E.book 244 ページ ２０１６年６月２７日　月曜日　午後５時２１分

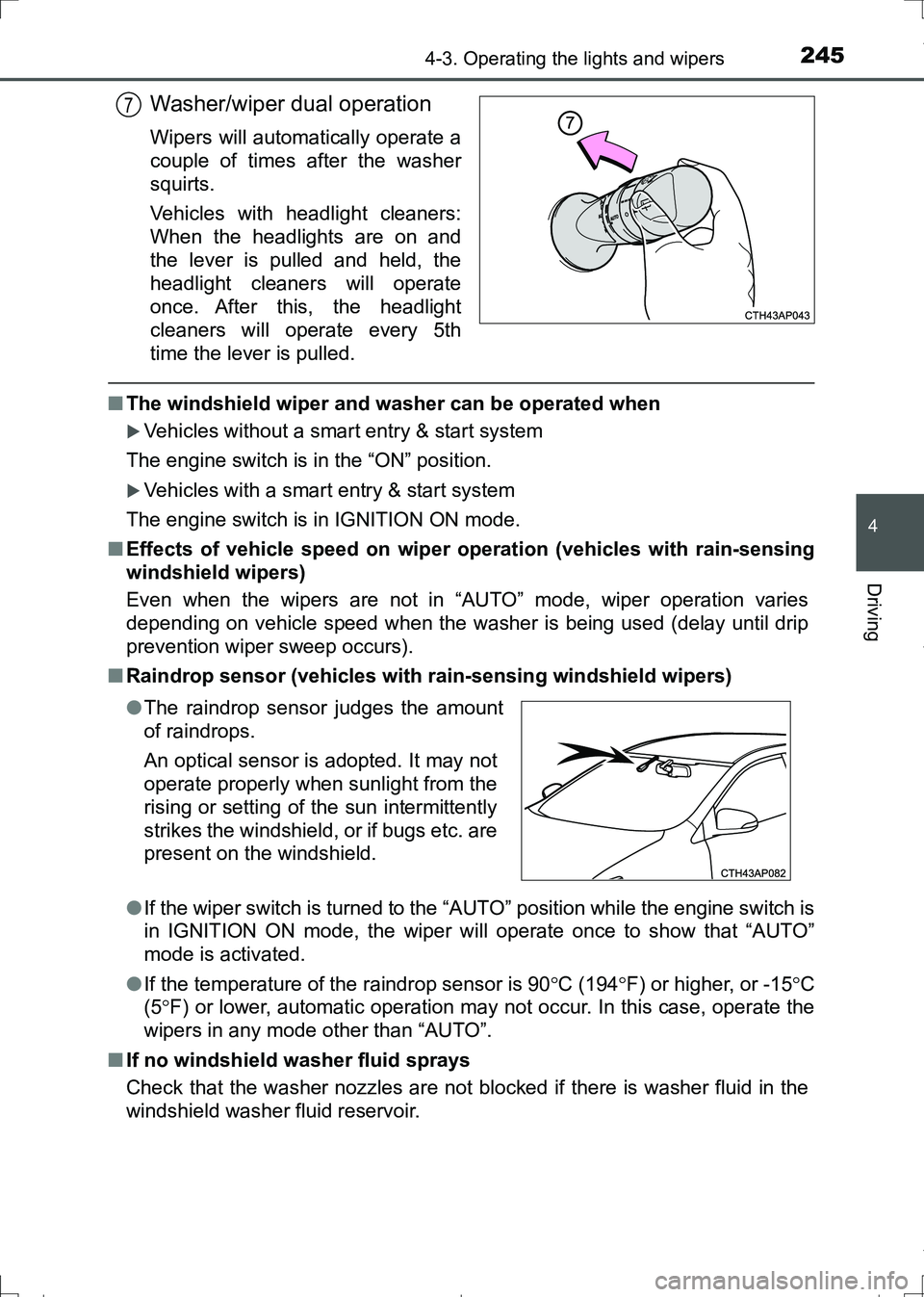

2454-3. Operating the lights and wipers
AURIS Touring Sports_EE (12L13E)
4
Driving
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners:
When the headlights are on and
the lever is pulled and held, the
headlight cleaners will operate
once. After this, the headlight
cleaners will operate every 5th
time the lever is pulled.
■The windshield wiper and washer can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
Even when the wipers are not in “AUTO” mode, wiper operation varies
depending on vehicle speed when the washer is being used (delay until drip
prevention wiper sweep occurs).
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the engine switch is
in IGNITION ON mode, the wiper will operate once to show that “AUTO”
mode is activated.
●If the temperature of the raindrop sensor is 90C (194F) or higher, or -15C
(5F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than “AUTO”.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
AURIS Touring Sports_OM_Europe_OM12L13E.book 245 ページ ２０１６年６月２７日　月曜日　午後５時２１分

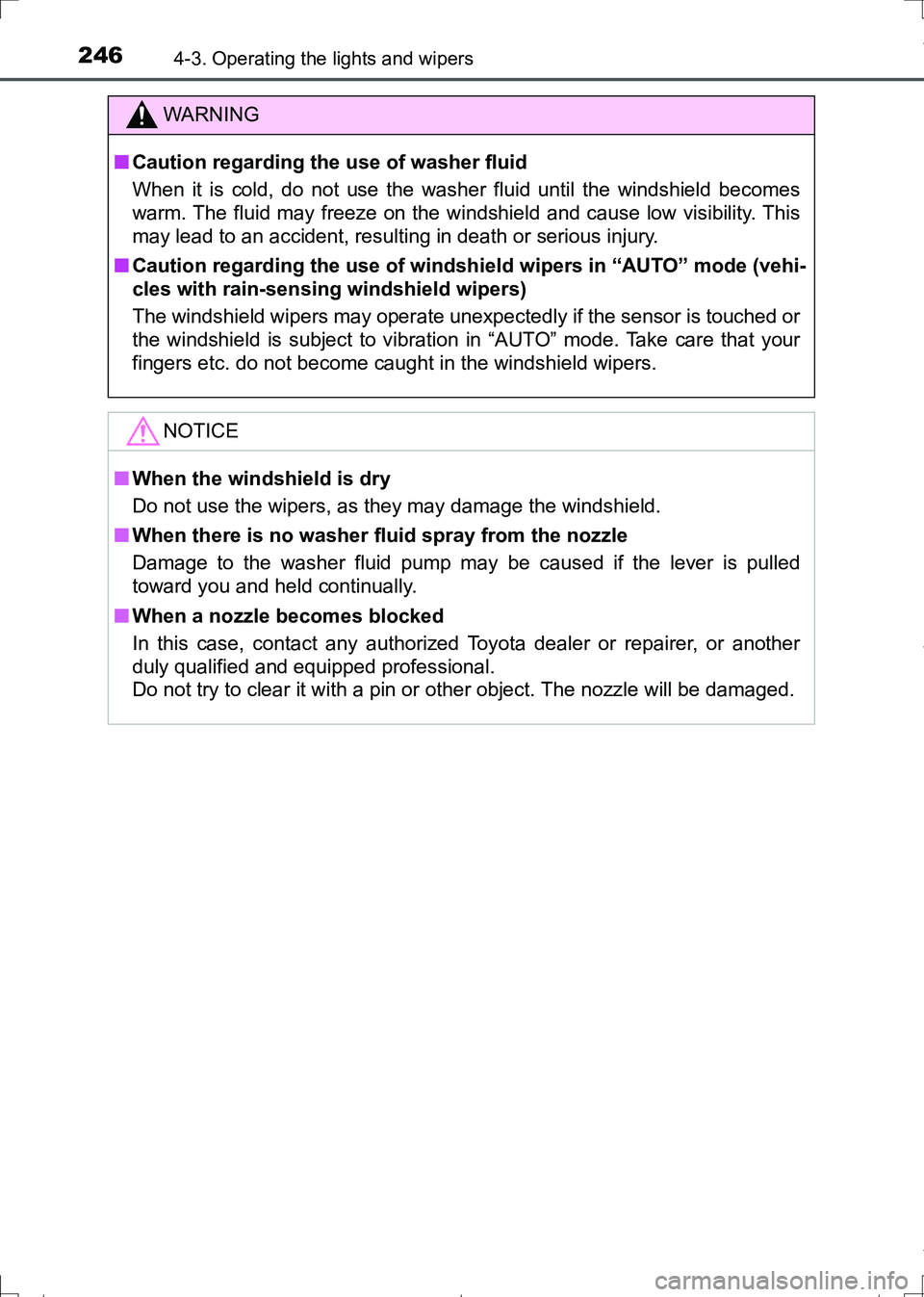

2464-3. Operating the lights and wipers
AURIS Touring Sports_EE (12L13E)
WARNING
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
■Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
AURIS Touring Sports_OM_Europe_OM12L13E.book 246 ページ ２０１６年６月２７日　月曜日　午後５時２１分

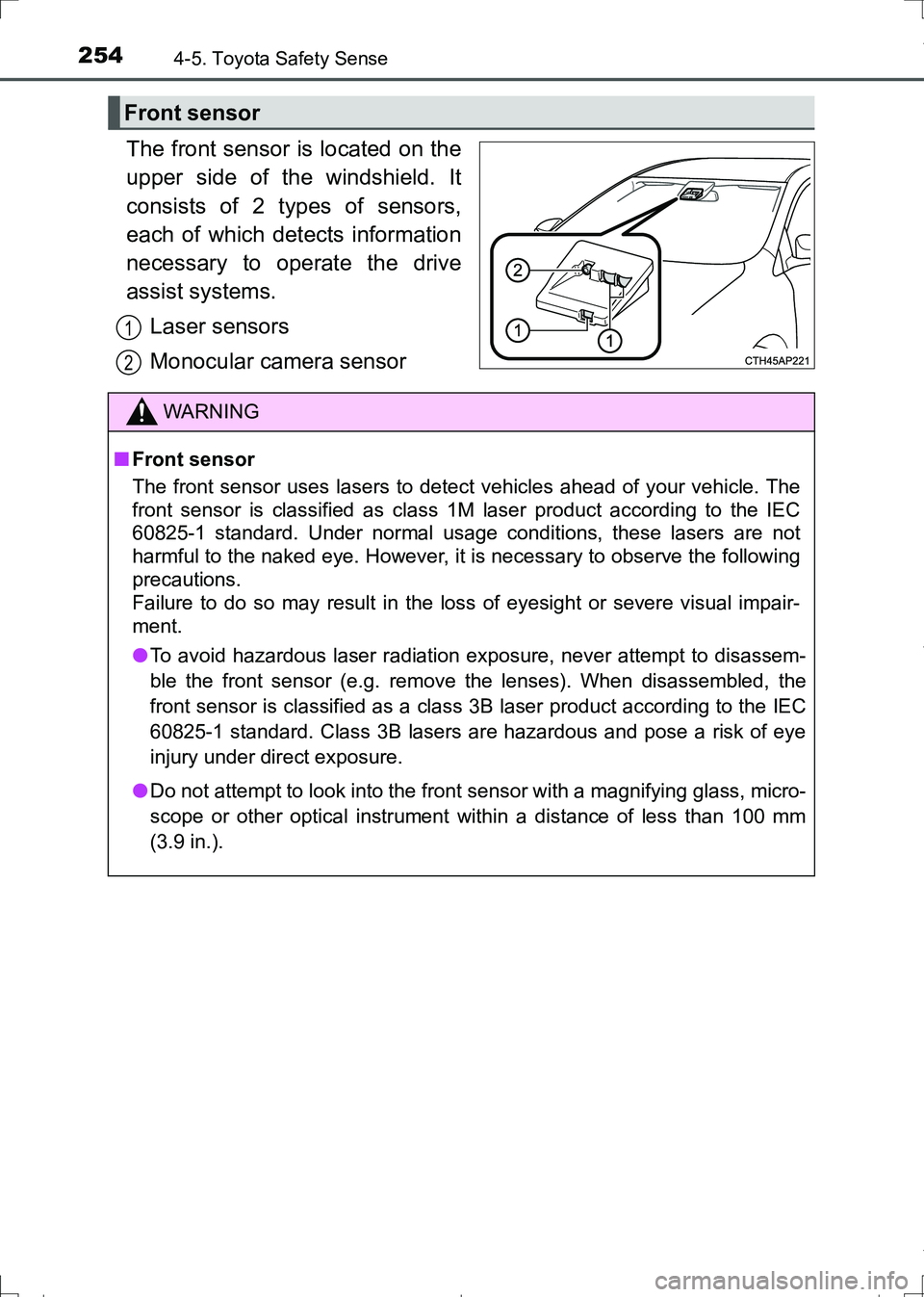

2544-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)
The front sensor is located on the
upper side of the windshield. It
consists of 2 types of sensors,
each of which detects information
necessary to operate the drive
assist systems.
Laser sensors
Monocular camera sensor
Front sensor
1
2
WARNING
■Front sensor
The front sensor uses lasers to detect vehicles ahead of your vehicle. The
front sensor is classified as class 1M laser product according to the IEC
60825-1 standard. Under normal usage conditions, these lasers are not
harmful to the naked eye. However, it is necessary to observe the following
precautions.
Failure to do so may result in the loss of eyesight or severe visual impair-
ment.
●To avoid hazardous laser radiation exposure, never attempt to disassem-
ble the front sensor (e.g. remove the lenses). When disassembled, the
front sensor is classified as a class 3B laser product according to the IEC
60825-1 standard. Class 3B lasers are hazardous and pose a risk of eye
injury under direct exposure.
●Do not attempt to look into the front sensor with a magnifying glass, micro-
scope or other optical instrument within a distance of less than 100 mm
(3.9 in.).
AURIS Touring Sports_OM_Europe_OM12L13E.book 254 ページ ２０１６年６月２７日　月曜日　午後５時２１分

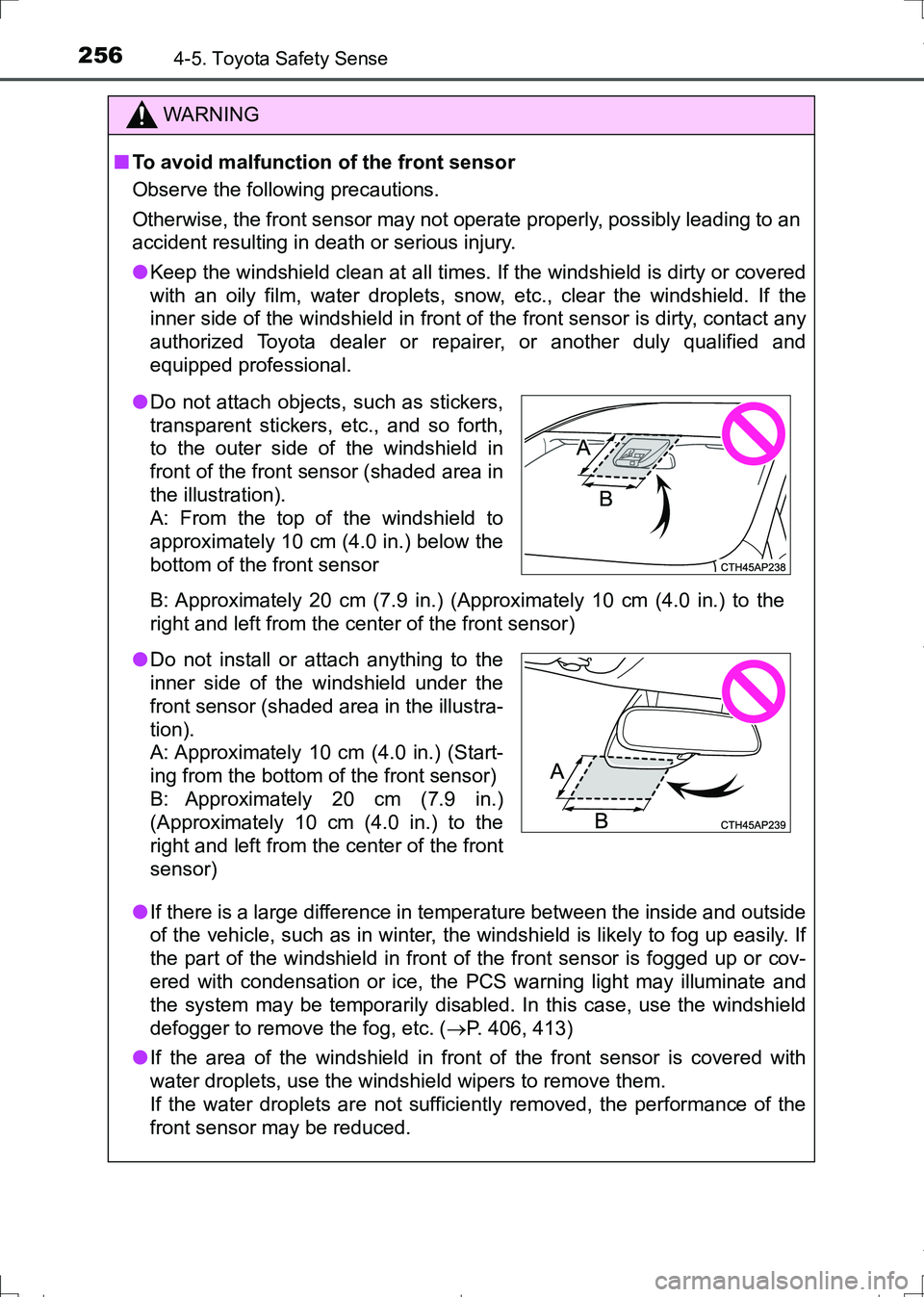

2564-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)
WARNING
■To avoid malfunction of the front sensor
Observe the following precautions.
Otherwise, the front sensor may not operate properly, possibly leading to an
accident resulting in death or serious injury.
●Keep the windshield clean at all times. If the windshield is dirty or covered
with an oily film, water droplets, snow, etc., clear the windshield. If the
inner side of the windshield in front of the front sensor is dirty, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
●If there is a large difference in temperature between the inside and outside
of the vehicle, such as in winter, the windshield is likely to fog up easily. If
the part of the windshield in front of the front sensor is fogged up or cov-
ered with condensation or ice, the PCS warning light may illuminate and
the system may be temporarily disabled. In this case, use the windshield
defogger to remove the fog, etc. (P. 406, 413)
●If the area of the windshield in front of the front sensor is covered with
water droplets, use the windshield wipers to remove them.
If the water droplets are not sufficiently removed, the performance of the
front sensor may be reduced.
●Do not attach objects, such as stickers,
transparent stickers, etc., and so forth,
to the outer side of the windshield in
front of the front sensor (shaded area in
the illustration).
A: From the top of the windshield to
approximately 10 cm (4.0 in.) below the
bottom of the front sensor
B: Approximately 20 cm (7.9 in.) (Approximately 10 cm (4.0 in.) to the
right and left from the center of the front sensor)
●Do not install or attach anything to the
inner side of the windshield under the
front sensor (shaded area in the illustra-
tion).
A: Approximately 10 cm (4.0 in.) (Start-
ing from the bottom of the front sensor)
B: Approximately 20 cm (7.9 in.)
(Approximately 10 cm (4.0 in.) to the
right and left from the center of the front
sensor)
AURIS Touring Sports_OM_Europe_OM12L13E.book 256 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2574-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)
4
Driving

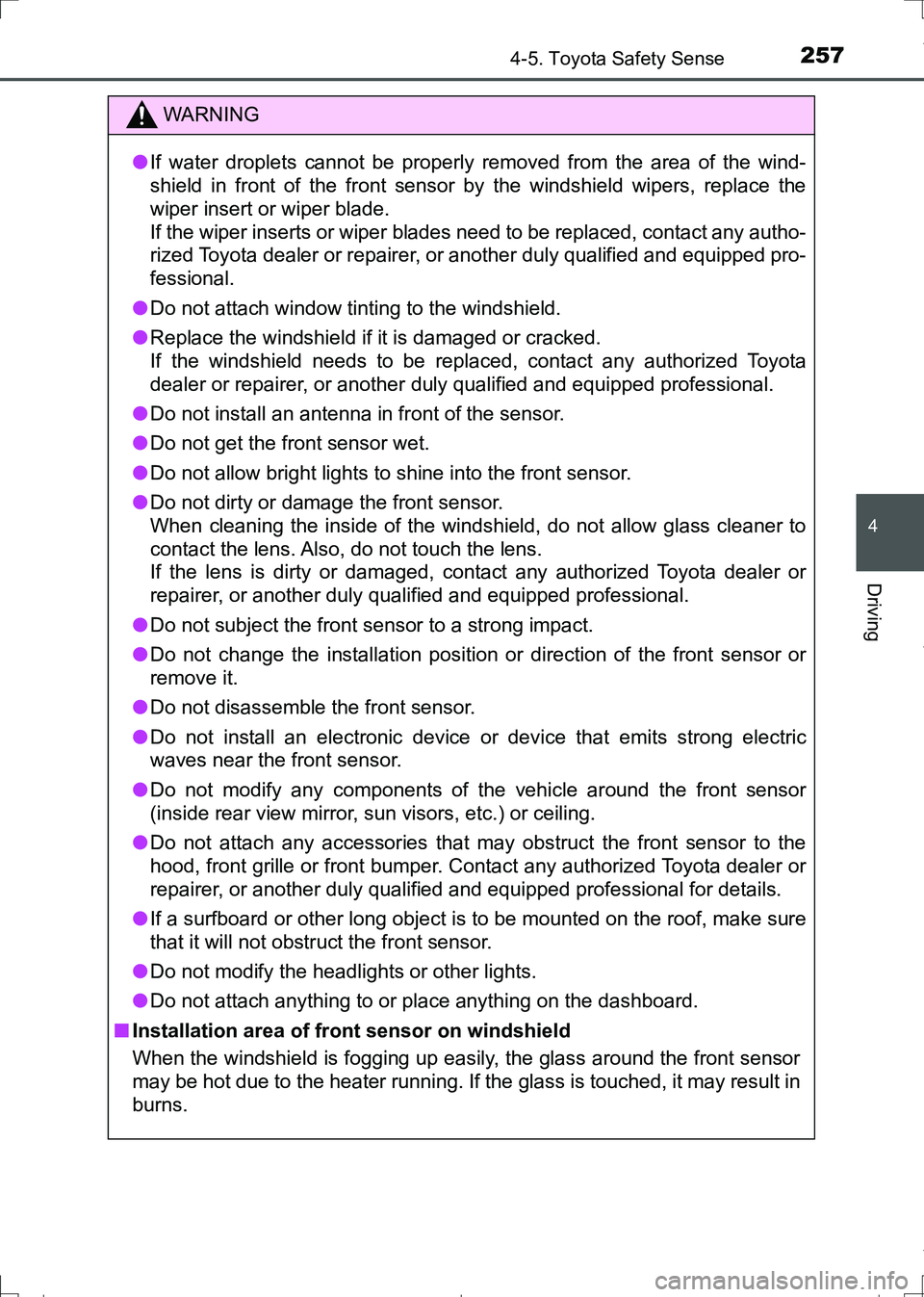

WARNING
●If water droplets cannot be properly removed from the area of the wind-
shield in front of the front sensor by the windshield wipers, replace the
wiper insert or wiper blade.
If the wiper inserts or wiper blades need to be replaced, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
●Do not attach window tinting to the windshield.
●Replace the windshield if it is damaged or cracked.
If the windshield needs to be replaced, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●Do not install an antenna in front of the sensor.
●Do not get the front sensor wet.
●Do not allow bright lights to shine into the front sensor.
●Do not dirty or damage the front sensor.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens. Also, do not touch the lens.
If the lens is dirty or damaged, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Do not subject the front sensor to a strong impact.
●Do not change the installation position or direction of the front sensor or
remove it.
●Do not disassemble the front sensor.
●Do not install an electronic device or device that emits strong electric
waves near the front sensor.
●Do not modify any components of the vehicle around the front sensor
(inside rear view mirror, sun visors, etc.) or ceiling.
●Do not attach any accessories that may obstruct the front sensor to the
hood, front grille or front bumper. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details.
●If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the front sensor.
●Do not modify the headlights or other lights.
●Do not attach anything to or place anything on the dashboard.
■Installation area of front sensor on windshield
When the windshield is fogging up easily, the glass around the front sensor
may be hot due to the heater running. If the glass is touched, it may result in
burns.
AURIS Touring Sports_OM_Europe_OM12L13E.book 257 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2584-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)

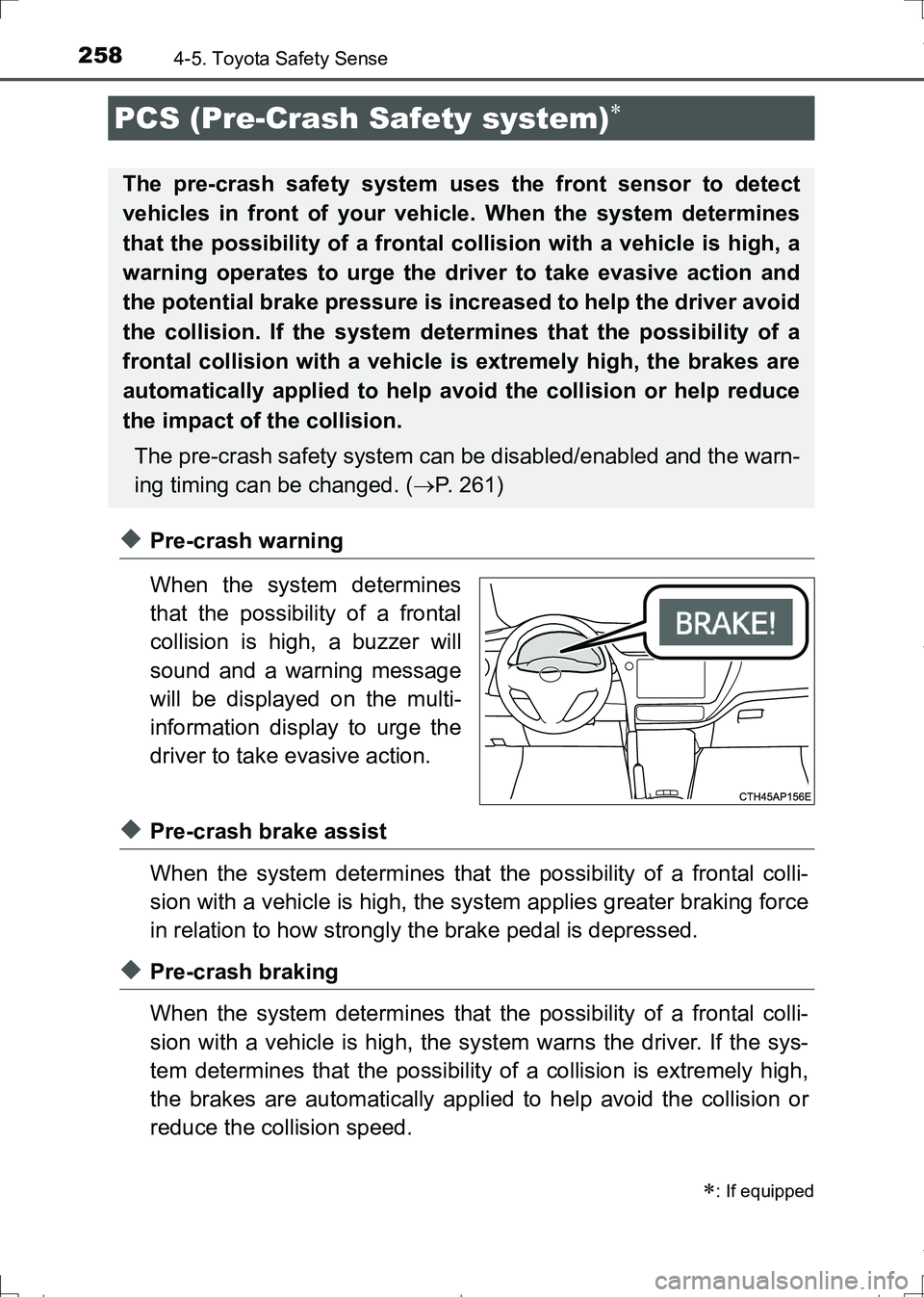

◆Pre-crash warning
When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.
◆Pre-crash brake assist
When the system determines that the possibility of a frontal colli-
sion with a vehicle is high, the system applies greater braking force
in relation to how strongly the brake pedal is depressed.
◆Pre-crash braking
When the system determines that the possibility of a frontal colli-
sion with a vehicle is high, the system warns the driver. If the sys-
tem determines that the possibility of a collision is extremely high,
the brakes are automatically applied to help avoid the collision or
reduce the collision speed.
PCS (Pre-Crash Safety system)
: If equipped
The pre-crash safety system uses the front sensor to detect
vehicles in front of your vehicle. When the system determines
that the possibility of a frontal collision with a vehicle is high, a
warning operates to urge the driver to take evasive action and
the potential brake pressure is increased to help the driver avoid
the collision. If the system determines that the possibility of a
frontal collision with a vehicle is extremely high, the brakes are
automatically applied to help avoid the collision or help reduce
the impact of the collision.
The pre-crash safety system can be disabled/enabled and the warn-
ing timing can be changed. (P. 261)
AURIS Touring Sports_OM_Europe_OM12L13E.book 258 ページ ２０１６年６月２７日　月曜日　午後５時２１分
