TOYOTA AURIS HYBRID 2017 Owners Manual

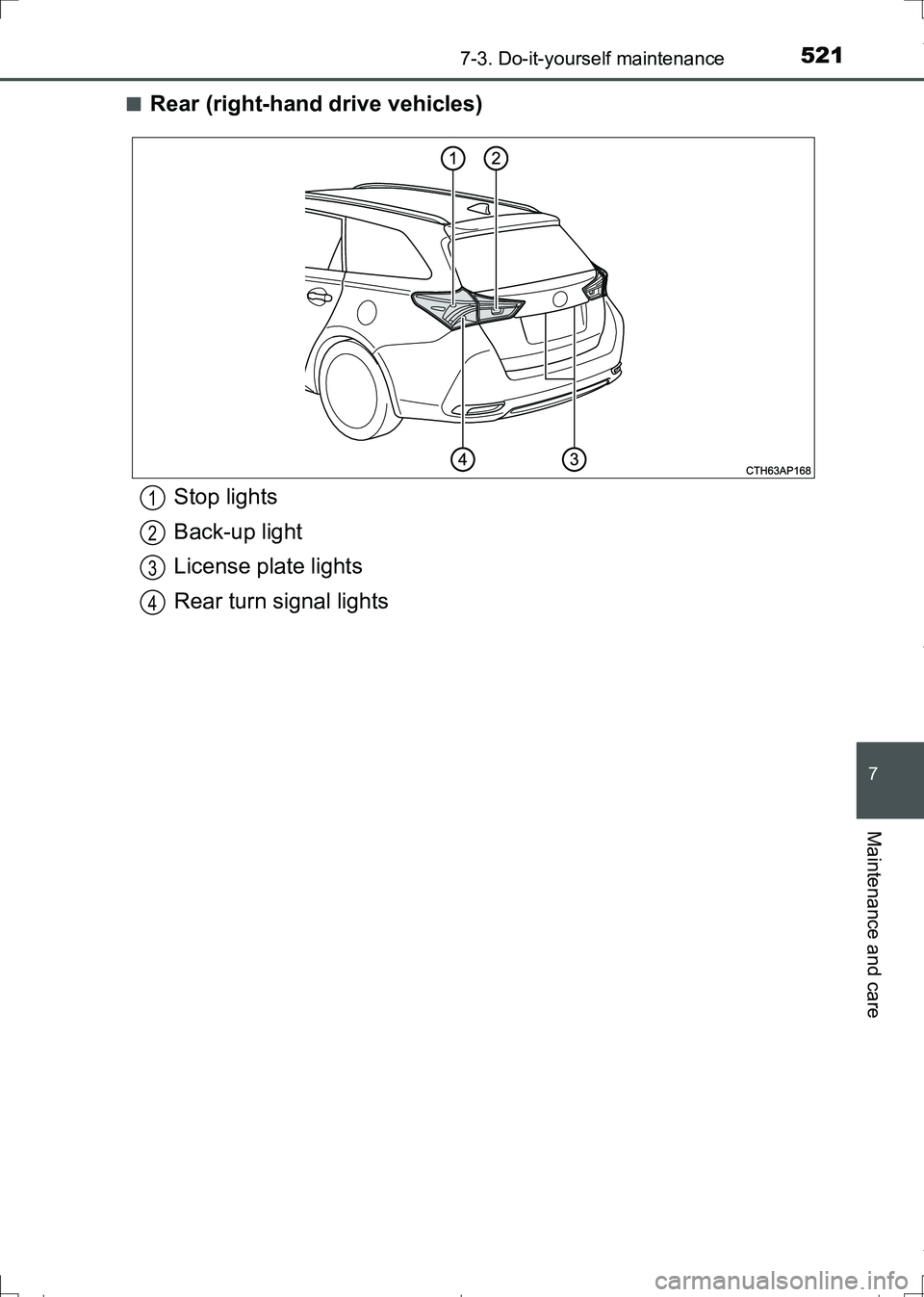

5217-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
■Rear (right-hand drive vehicles)
Stop lights
Back-up light
License plate lights
Rear turn signal lights1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 521 ページ ２０１６年６月２７日　月曜日　午後５時２１分

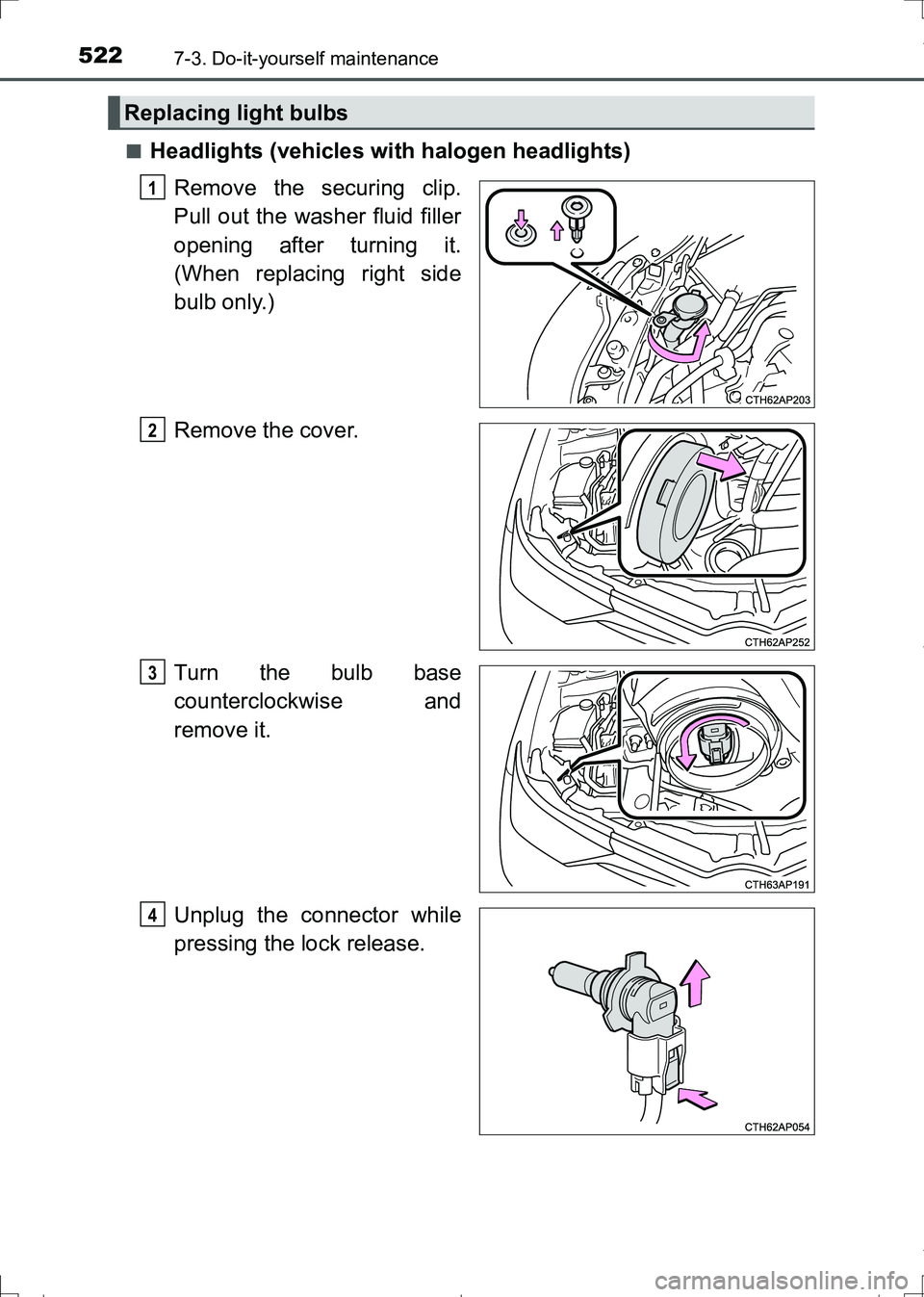

5227-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
Headlights (vehicles with halogen headlights)
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
Turn the bulb base
counterclockwise and
remove it.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 522 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5237-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
To make sure the cover is
installed securely, align the pro-
truding part (A) with the center
of the area (B) shown in the
illustration and push the perime-
ter of the cover firmly.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
5
6
A
B
7
8
AURIS Touring Sports_OM_Europe_OM12L13E.book 523 ページ ２０１６年６月２７日　月曜日　午後５時２１分

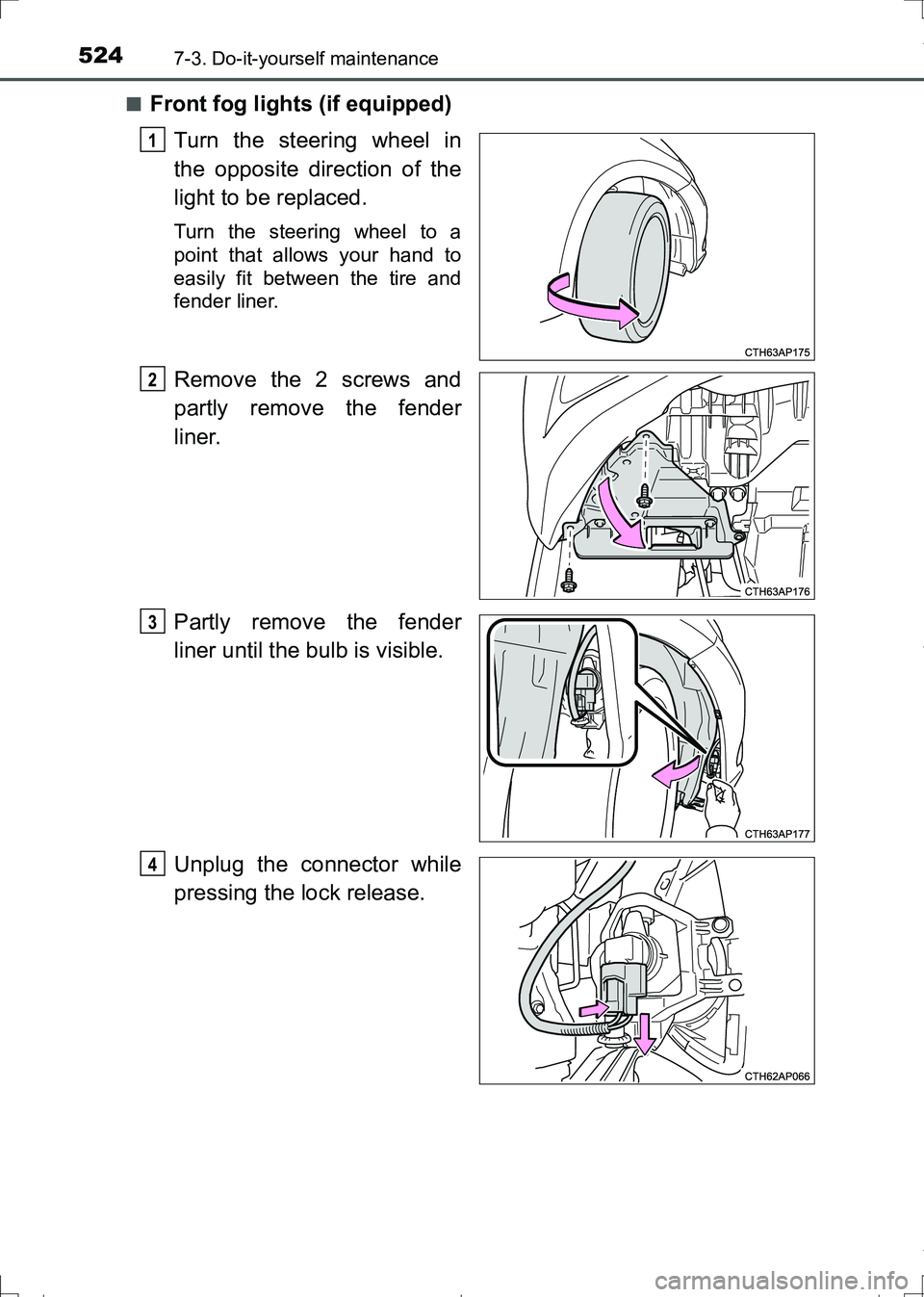

5247-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
partly remove the fender
liner.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 524 ページ ２０１６年６月２７日　月曜日　午後５時２１分

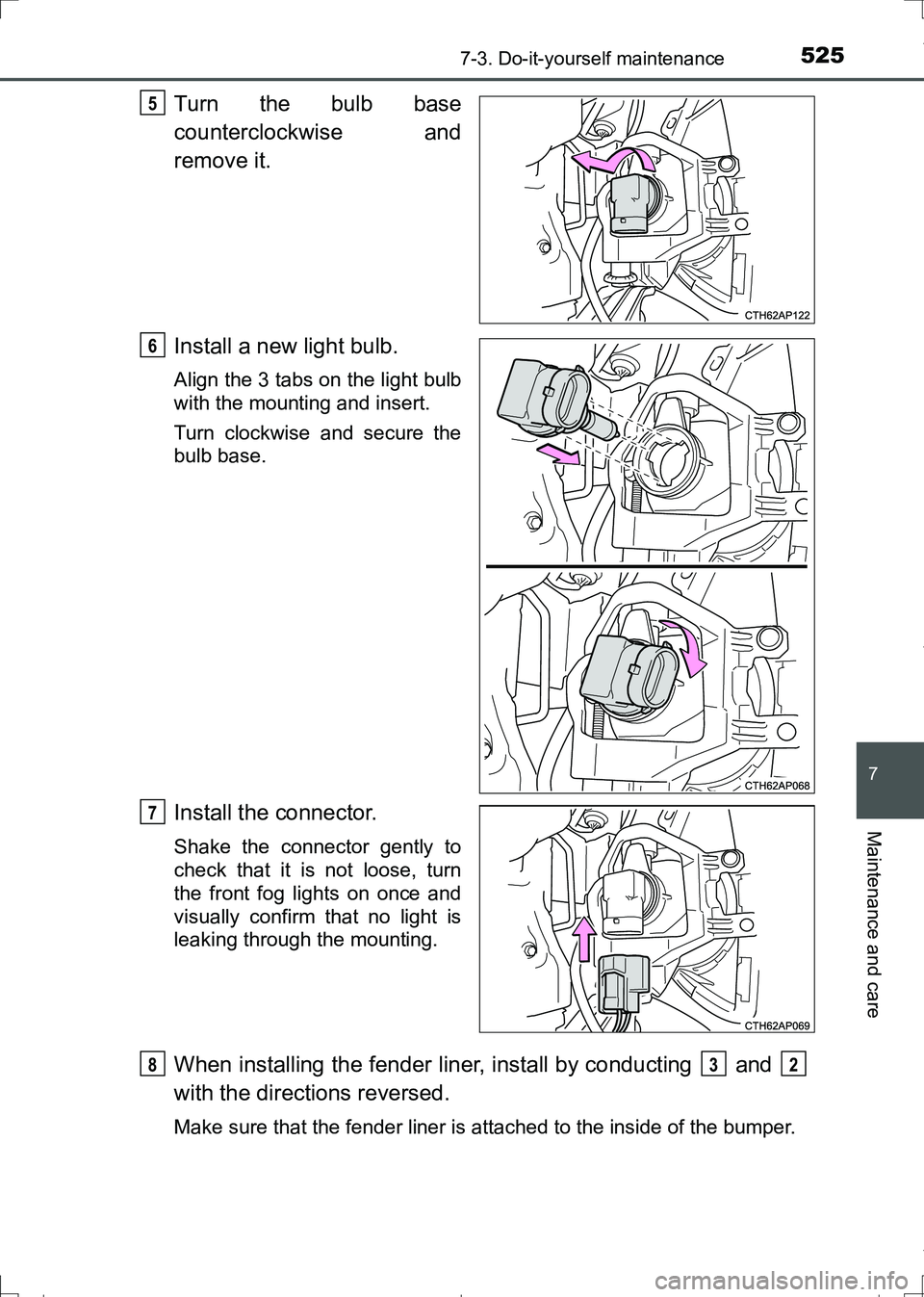

5257-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
Turn the bulb base
counterclockwise and
remove it.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
5
6
7
832
AURIS Touring Sports_OM_Europe_OM12L13E.book 525 ページ ２０１６年６月２７日　月曜日　午後５時２１分

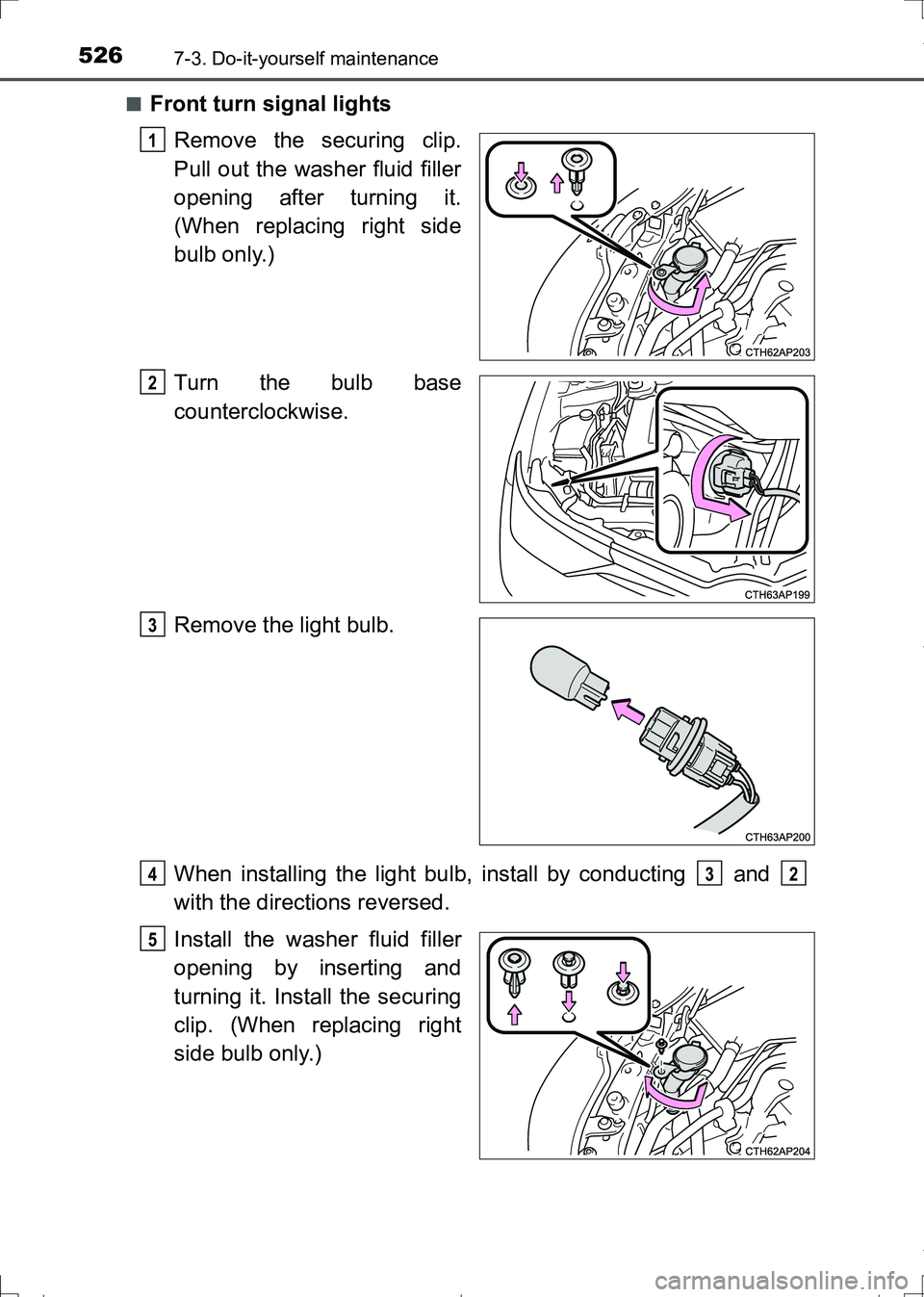

5267-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
Front turn signal lights
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Turn the bulb base
counterclockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
1
2
3
432
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 526 ページ ２０１６年６月２７日　月曜日　午後５時２１分

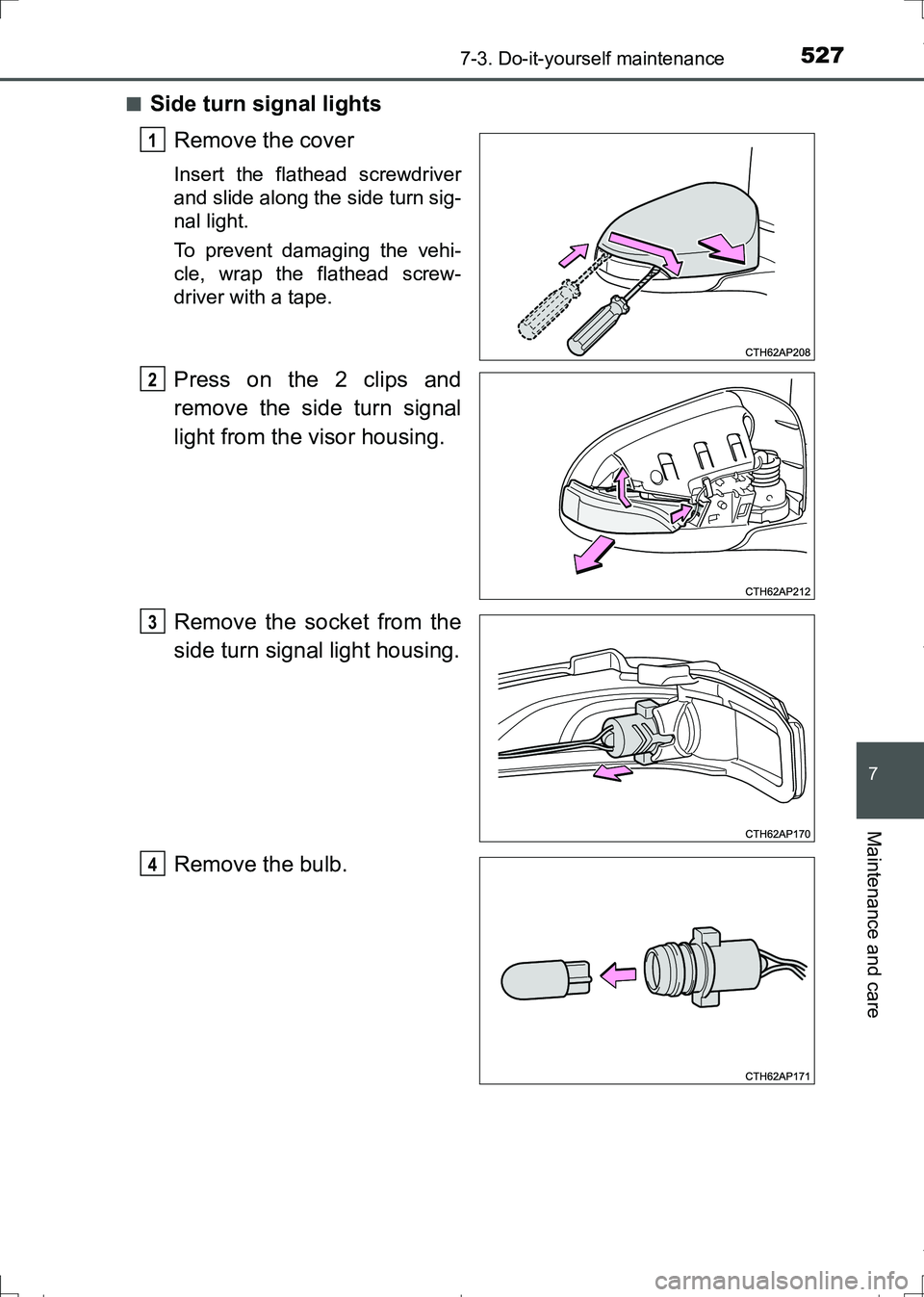

5277-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
■Side turn signal lights
Remove the cover
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
Remove the socket from the
side turn signal light housing.
Remove the bulb.
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 527 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5287-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
5
6
7
AURIS Touring Sports_OM_Europe_OM12L13E.book 528 ページ ２０１６年６月２７日　月曜日　午後５時２１分

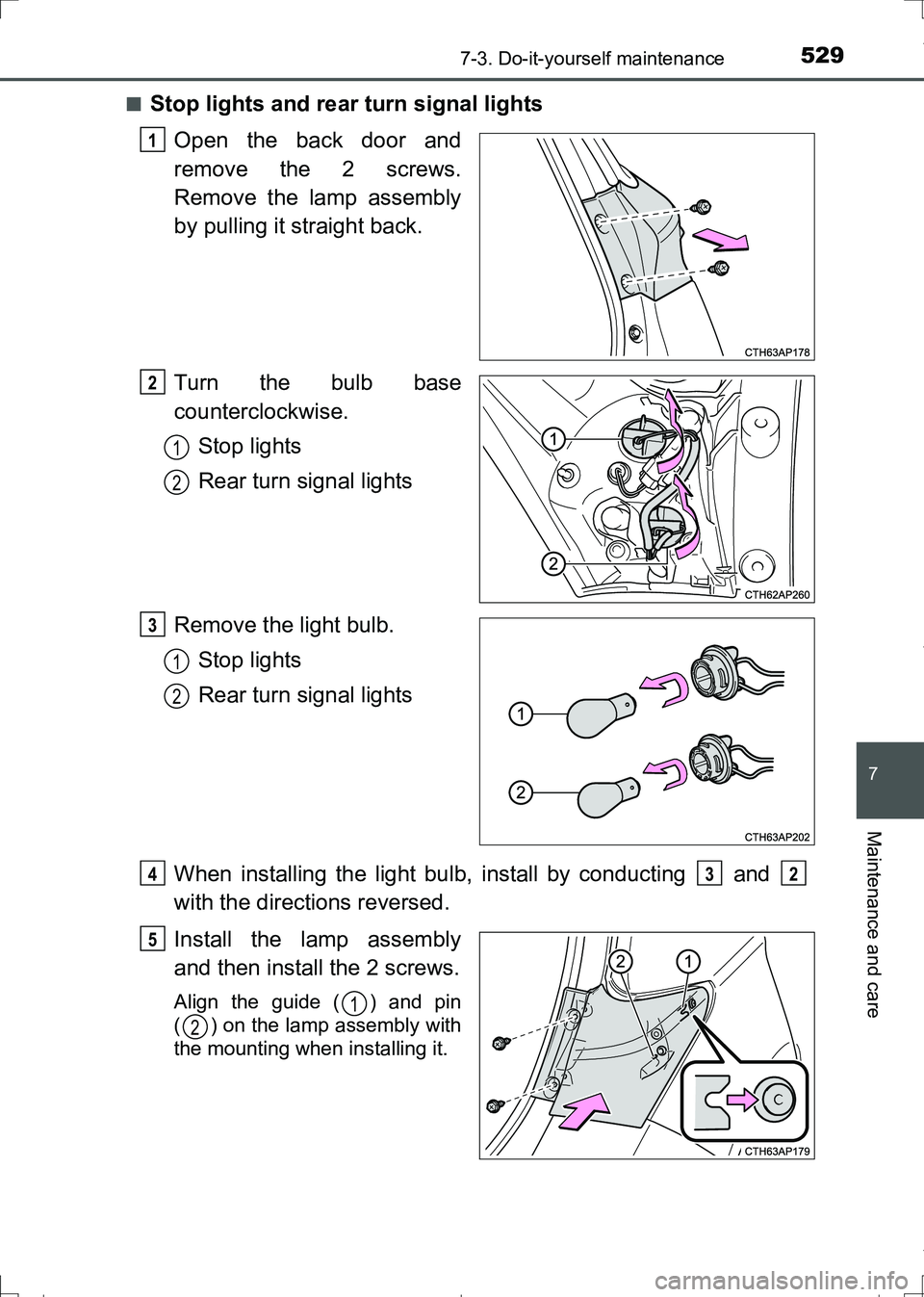

5297-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
■Stop lights and rear turn signal lights
Open the back door and
remove the 2 screws.
Remove the lamp assembly
by pulling it straight back.
Turn the bulb base
counterclockwise.
Stop lights
Rear turn signal lights
Remove the light bulb.
Stop lights
Rear turn signal lights
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
1
2
1
2
3
1
2
432
5
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 529 ページ ２０１６年６月２７日　月曜日　午後５時２１分

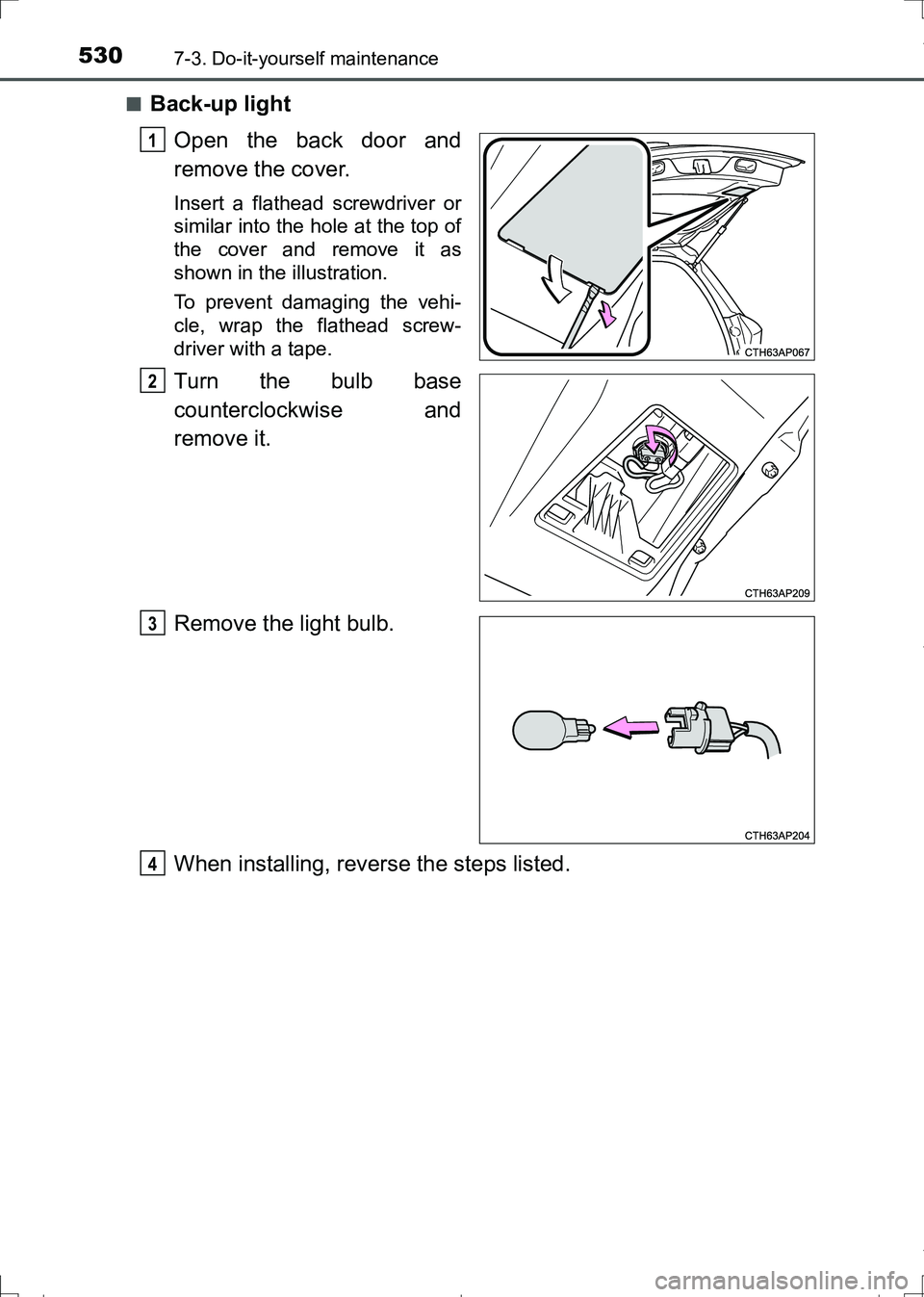

5307-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
Back-up light
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base
counterclockwise and
remove it.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
