TOYOTA AURIS HYBRID 2017 Owners Manual

5518-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

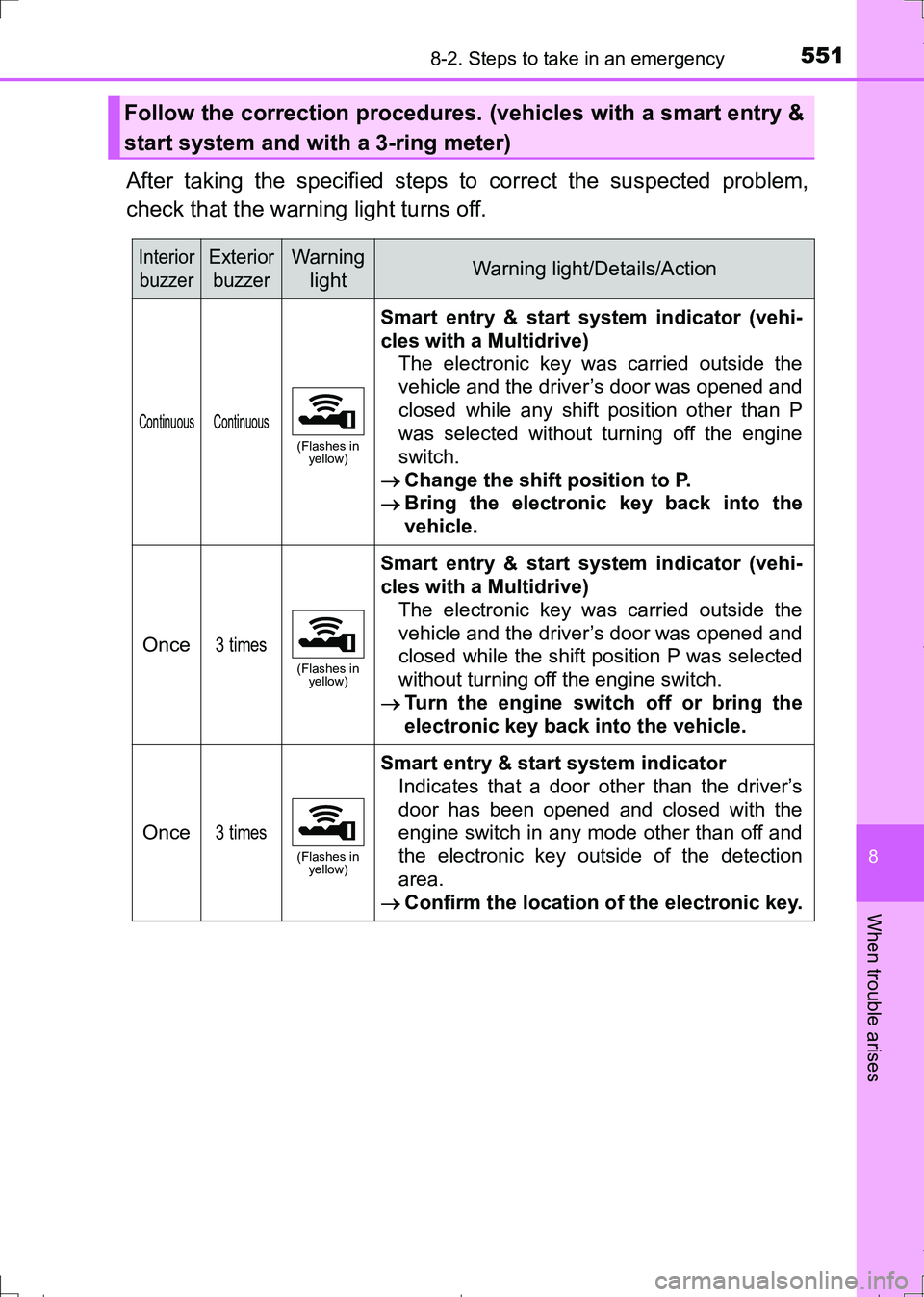

After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart entry &
start system and with a 3-ring meter)
Interior
buzzerExterior
buzzerWarning
lightWarning light/Details/Action
Continuous Continuous
(Flashes in
yellow)
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while any shift position other than P
was selected without turning off the engine
switch.
Change the shift position to P.
Bring the electronic key back into the
vehicle.
Once3 times
(Flashes in
yellow)
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while the shift position P was selected
without turning off the engine switch.
Turn the engine switch off or bring the
electronic key back into the vehicle.
Once3 times
(Flashes in
yellow)
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off and
the electronic key outside of the detection
area.
Confirm the location of the electronic key.
AURIS Touring Sports_OM_Europe_OM12L13E.book 551 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5528-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

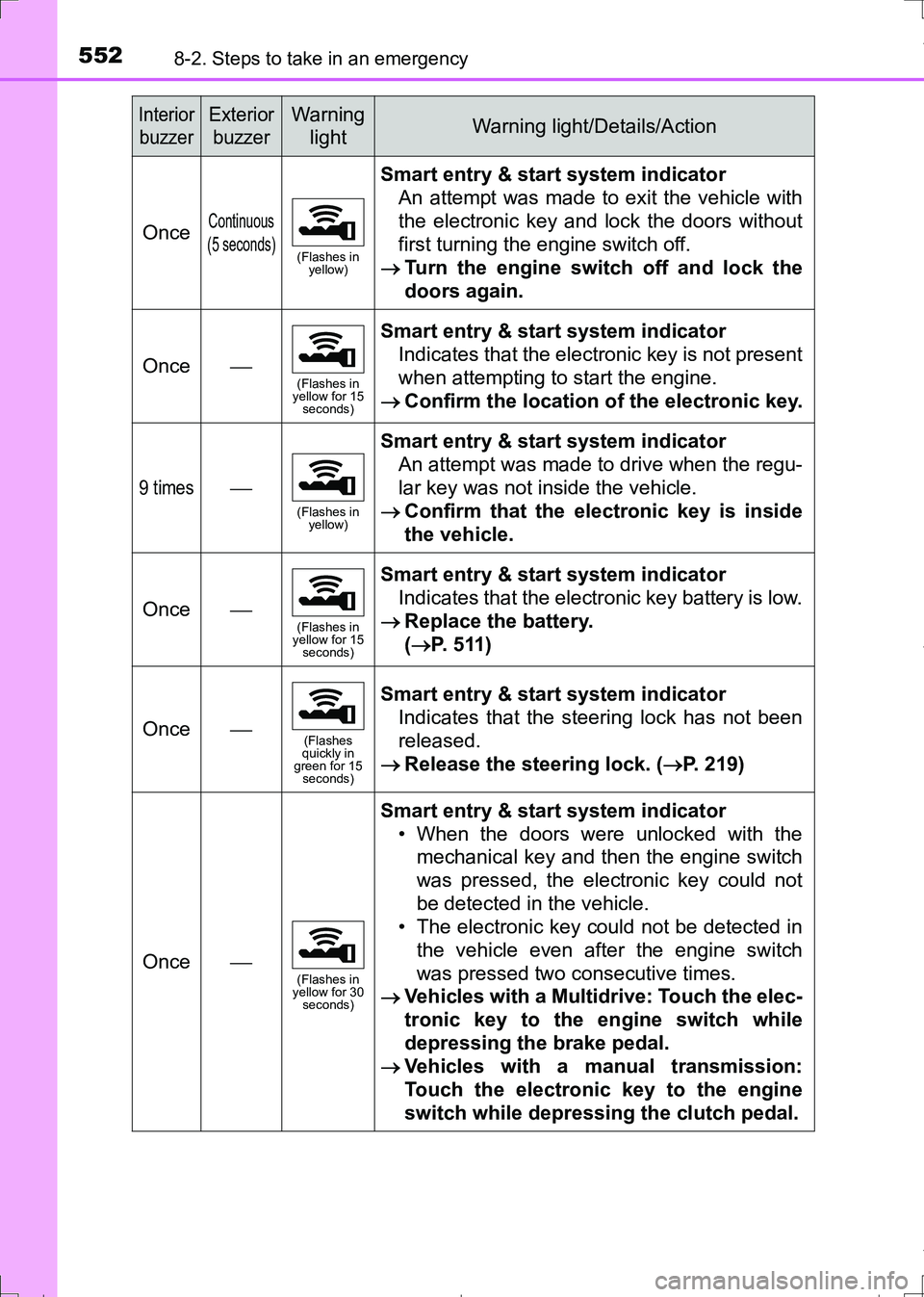

OnceContinuous
(5 seconds)
(Flashes in
yellow)
Smart entry & start system indicator
An attempt was made to exit the vehicle with
the electronic key and lock the doors without
first turning the engine switch off.
Turn the engine switch off and lock the
doors again.
Once
(Flashes in
yellow for 15
seconds)
Smart entry & start system indicator
Indicates that the electronic key is not present
when attempting to start the engine.
Confirm the location of the electronic key.
9 times
(Flashes in
yellow)
Smart entry & start system indicator
An attempt was made to drive when the regu-
lar key was not inside the vehicle.
Confirm that the electronic key is inside
the vehicle.
Once(Flashes in
yellow for 15
seconds)
Smart entry & start system indicator
Indicates that the electronic key battery is low.
Replace the battery.
(P. 511)
Once(Flashes
quickly in
green for 15
seconds)
Smart entry & start system indicator
Indicates that the steering lock has not been
released.
Release the steering lock. (P. 219)
Once(Flashes in
yellow for 30
seconds)
Smart entry & start system indicator
• When the doors were unlocked with the
mechanical key and then the engine switch
was pressed, the electronic key could not
be detected in the vehicle.
• The electronic key could not be detected in
the vehicle even after the engine switch
was pressed two consecutive times.
Vehicles with a Multidrive: Touch the elec-
tronic key to the engine switch while
depressing the brake pedal.
Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/Details/Action
AURIS Touring Sports_OM_Europe_OM12L13E.book 552 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5538-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises
■Front passenger detection sensor, seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
●Check the tire inflation pressure and adjust it to the appropriate level.
●If the warning light does not go out after several minutes, check that the tire
inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace the
spare tire with the repaired tire and adjust the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
■Conditions that the tire pressure warning system may not function prop-
erly (vehicles with a tire pressure warning system)
P. 494
AURIS Touring Sports_OM_Europe_OM12L13E.book 553 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5548-2. Steps to take in an emergency

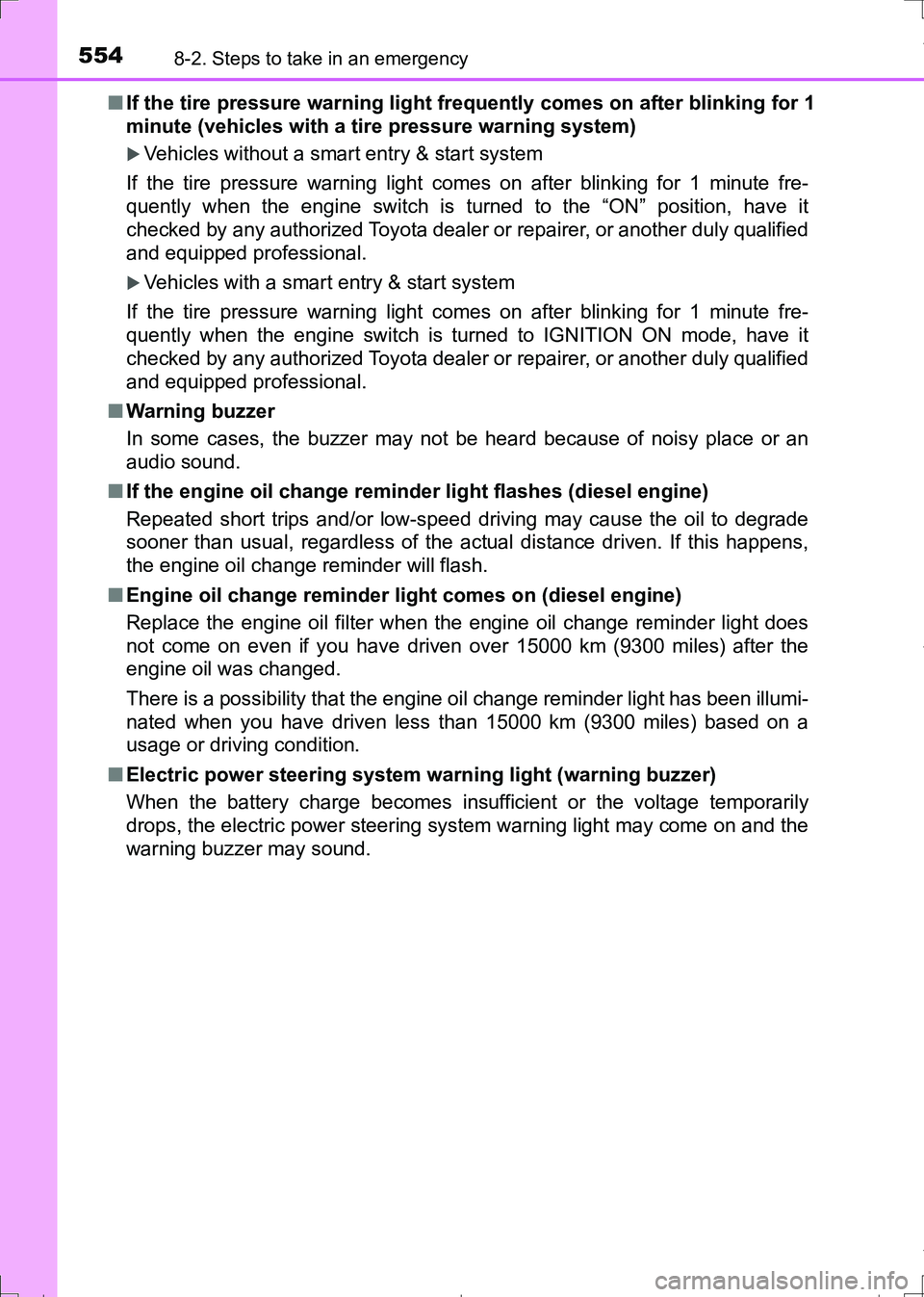

AURIS Touring Sports_EE (12L13E)■If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
Vehicles without a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the “ON” position, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Vehicles with a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to IGNITION ON mode, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■If the engine oil change reminder light flashes (diesel engine)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
■Engine oil change reminder light comes on (diesel engine)
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
AURIS Touring Sports_OM_Europe_OM12L13E.book 554 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5558-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

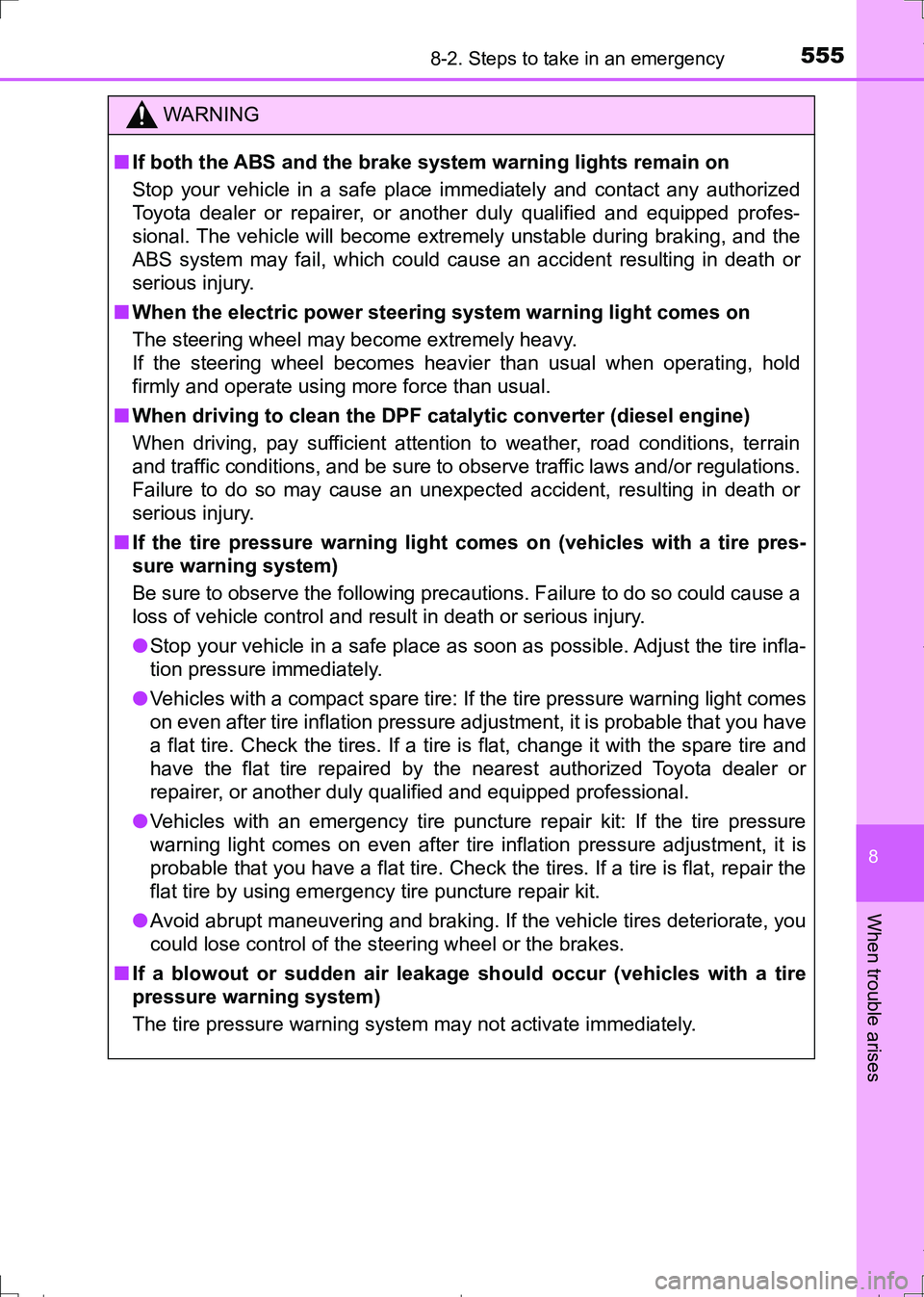

WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
■If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
●Vehicles with a compact spare tire: If the tire pressure warning light comes
on even after tire inflation pressure adjustment, it is probable that you have
a flat tire. Check the tires. If a tire is flat, change it with the spare tire and
have the flat tire repaired by the nearest authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
AURIS Touring Sports_OM_Europe_OM12L13E.book 555 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5568-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

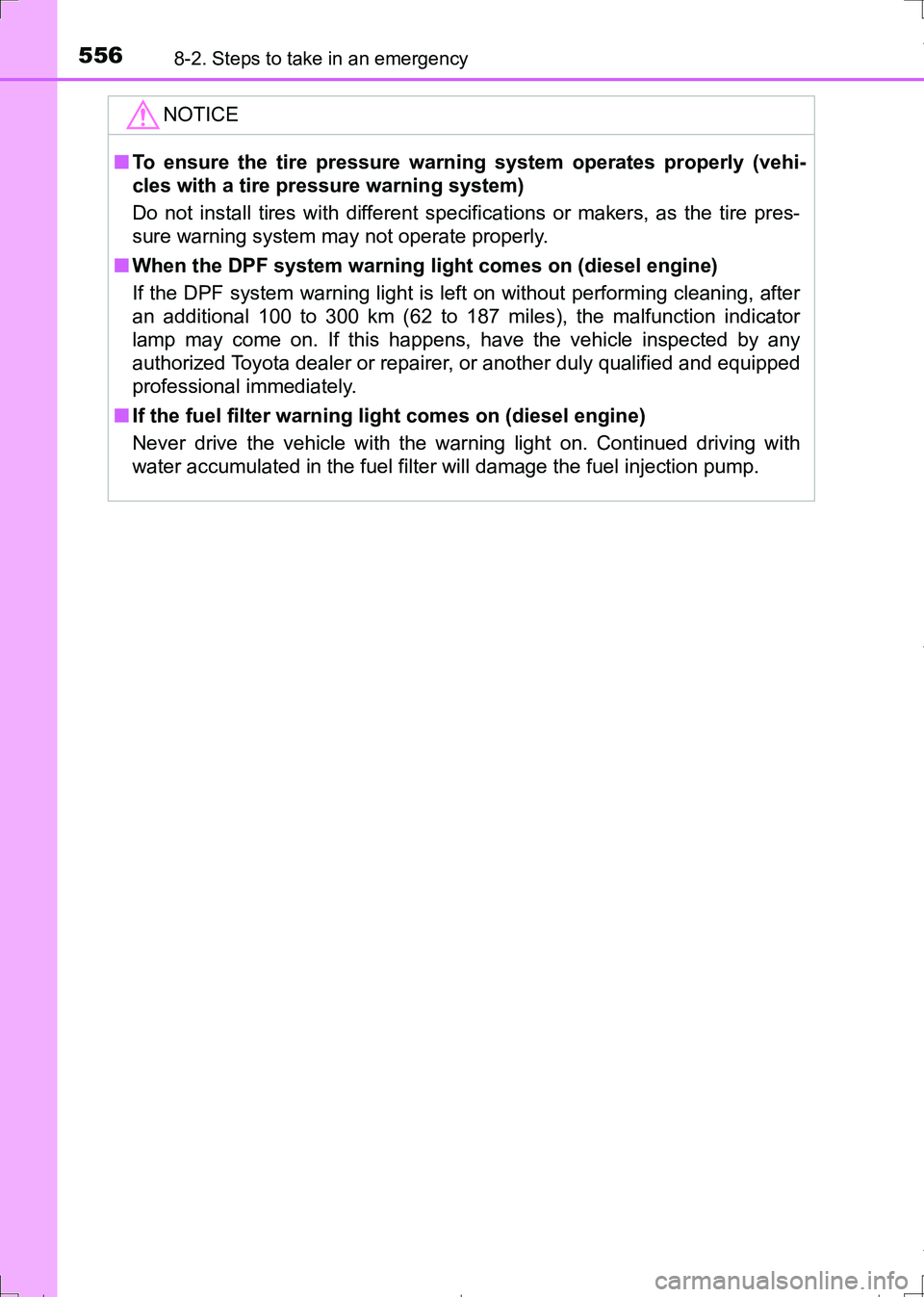

NOTICE
■To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
■When the DPF system warning light comes on (diesel engine)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■If the fuel filter warning light comes on (diesel engine)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
AURIS Touring Sports_OM_Europe_OM12L13E.book 556 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5578-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

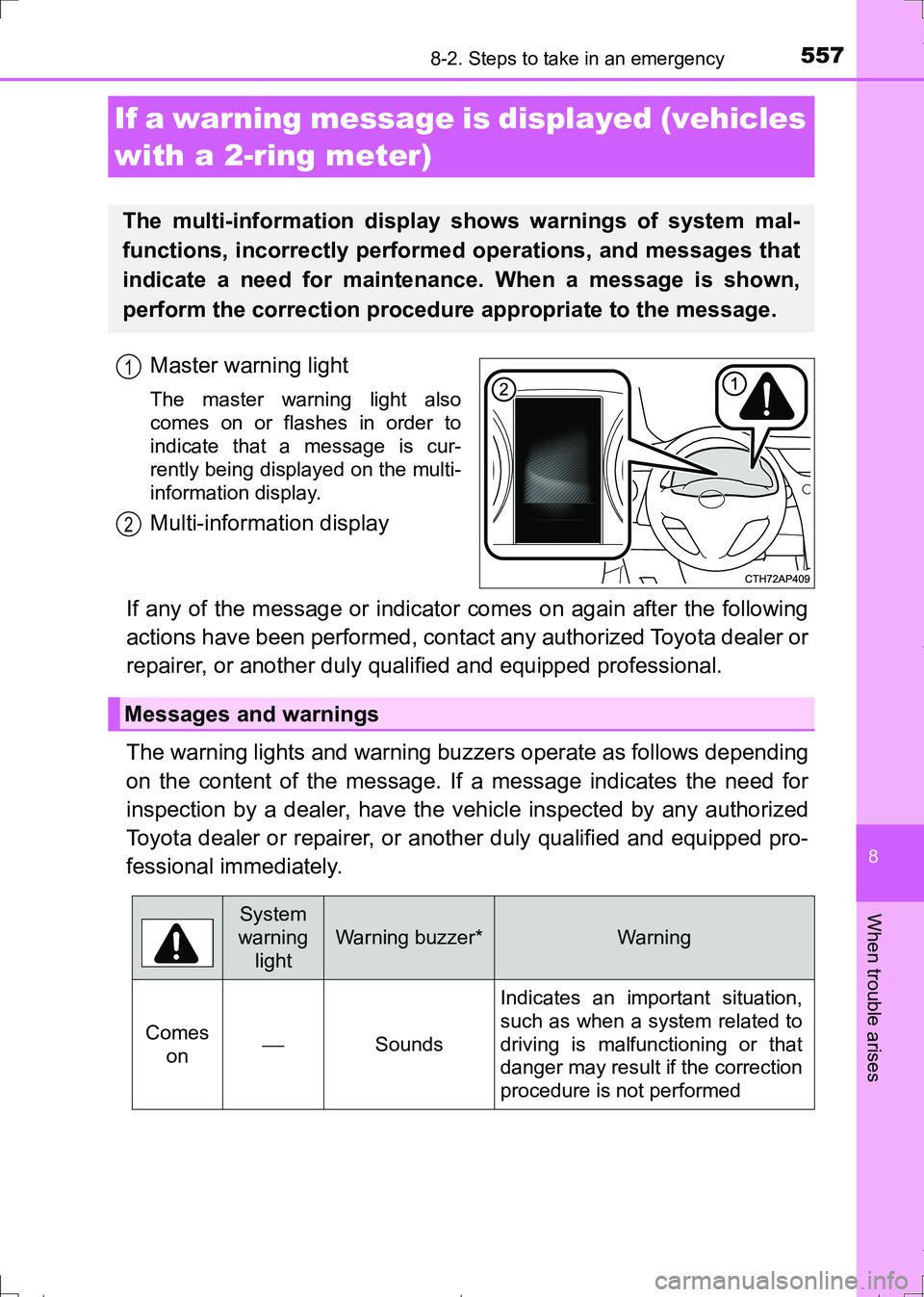

Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the message or indicator comes on again after the following
actions have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional immediately.
If a warning message is displayed (vehicles
with a 2-ring meter)
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2
Messages and warnings
System
warning
light
Warning buzzer*Warning
Comes
onSoundsIndicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed
AURIS Touring Sports_OM_Europe_OM12L13E.book 557 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5588-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

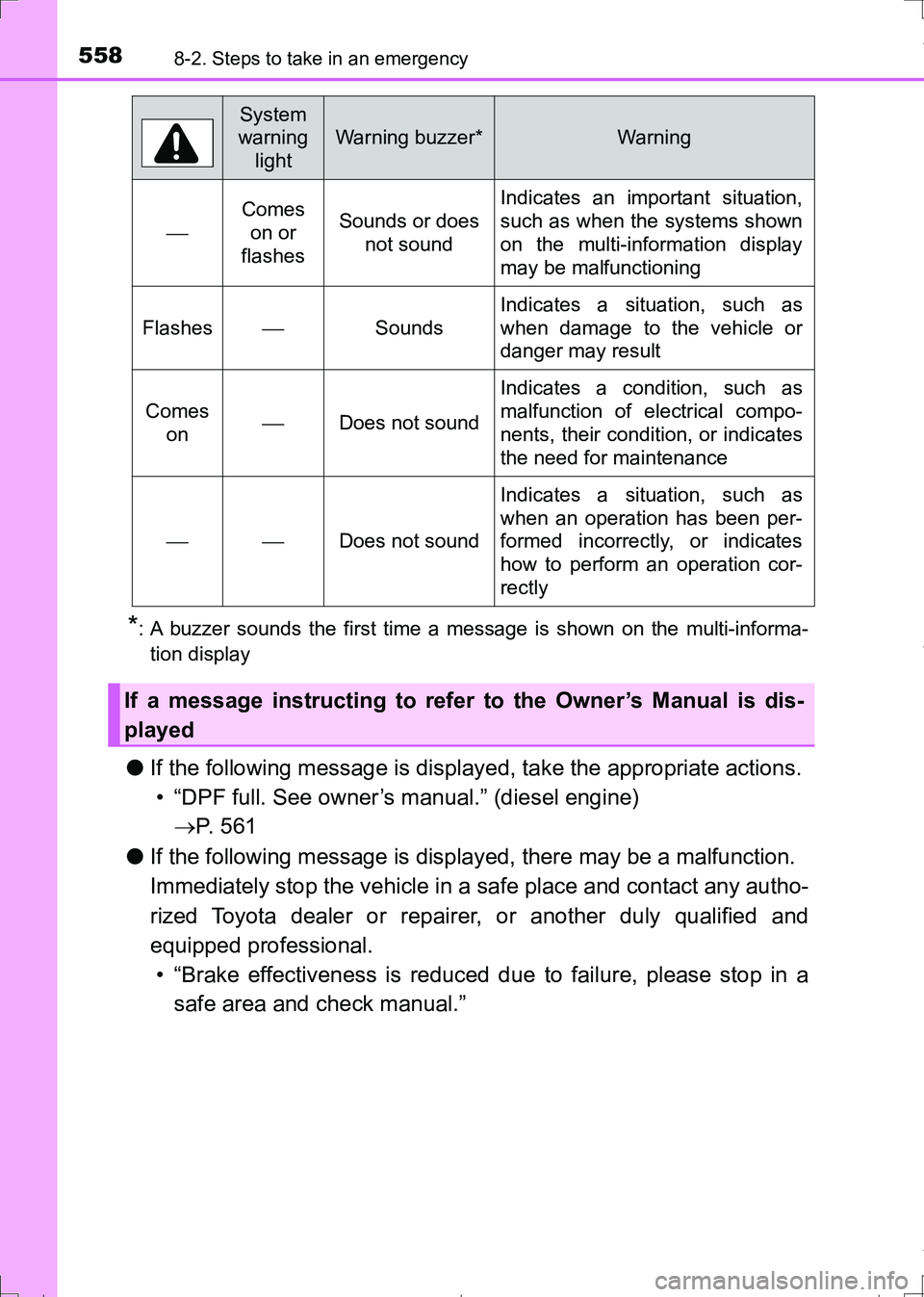

*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display
●If the following message is displayed, take the appropriate actions.
• “DPF full. See owner’s manual.” (diesel engine)
P. 5 6 1
●If the following message is displayed, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
• “Brake effectiveness is reduced due to failure, please stop in a
safe area and check manual.”

Comes
on or
flashesSounds or does
not sound
Indicates an important situation,
such as when the systems shown
on the multi-information display
may be malfunctioning
FlashesSounds
Indicates a situation, such as
when damage to the vehicle or
danger may result
Comes
onDoes not sound
Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance
Does not sound
Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly
If a message instructing to refer to the Owner’s Manual is dis-
played
System
warning
light
Warning buzzer*Warning
AURIS Touring Sports_OM_Europe_OM12L13E.book 558 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5598-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■If “Check charging system.” is displayed
Indicates a malfunction in the vehicle's charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
●The LED headlight system
●The automatic headlight leveling system
●Automatic High Beam
■If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
Blocked Clean and Demist Windshield.” is displayed (if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
●PCS (Pre-Crash Safety system)
●LDA (Lane Departure Alert)
●Automatic High Beam
●RSA (Road Sign Assist)
Other messages displayed on the multi-information display
AURIS Touring Sports_OM_Europe_OM12L13E.book 559 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5608-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)■

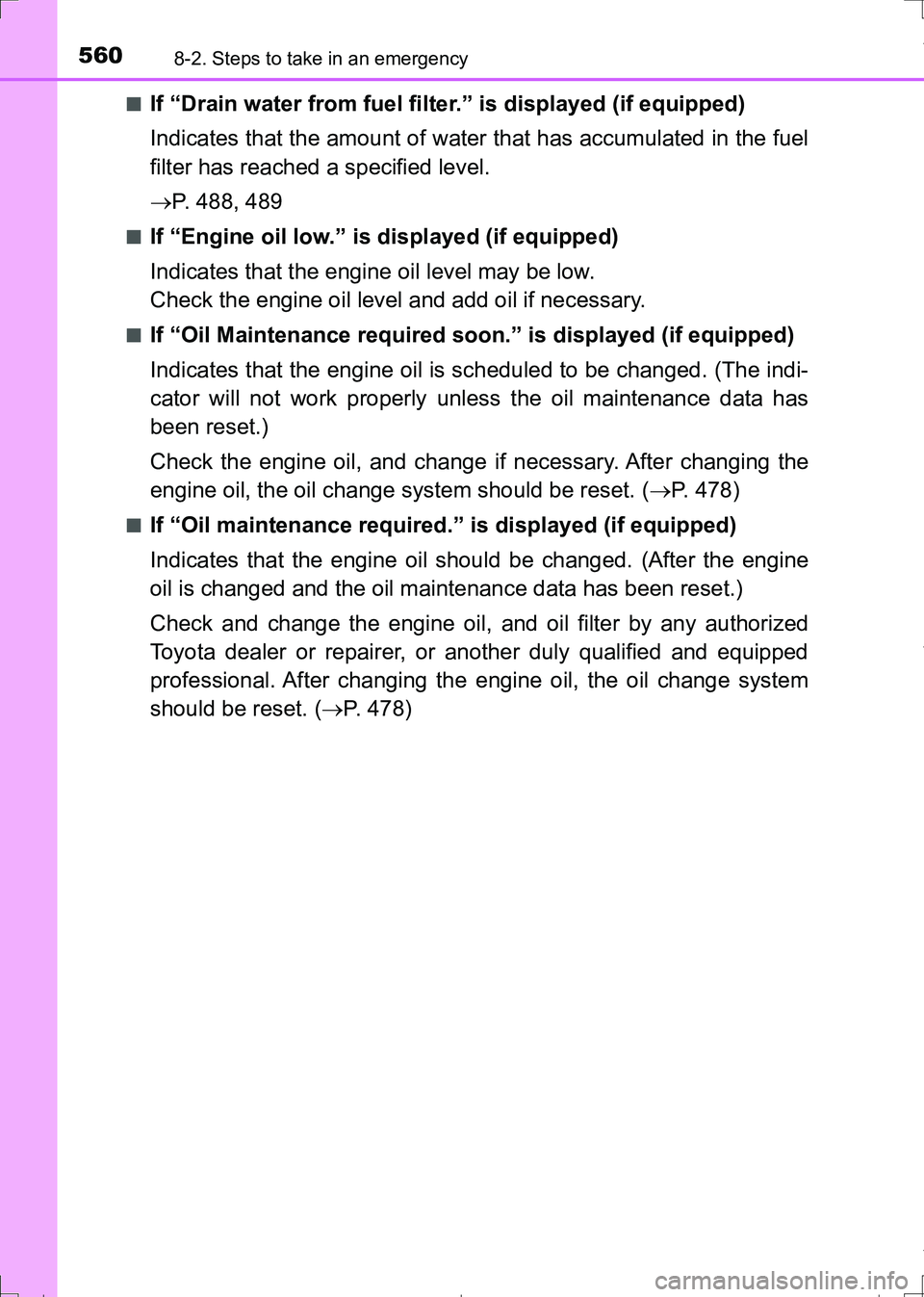

If “Drain water from fuel filter.” is displayed (if equipped)
Indicates that the amount of water that has accumulated in the fuel
filter has reached a specified level.
P. 488, 489
■If “Engine oil low.” is displayed (if equipped)
Indicates that the engine oil level may be low.
Check the engine oil level and add oil if necessary.
■If “Oil Maintenance required soon.” is displayed (if equipped)
Indicates that the engine oil is scheduled to be changed. (The indi-
cator will not work properly unless the oil maintenance data has
been reset.)
Check the engine oil, and change if necessary. After changing the
engine oil, the oil change system should be reset. (P. 478)
■If “Oil maintenance required.” is displayed (if equipped)
Indicates that the engine oil should be changed. (After the engine
oil is changed and the oil maintenance data has been reset.)
Check and change the engine oil, and oil filter by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional. After changing the engine oil, the oil change system
should be reset. (P. 478)
AURIS Touring Sports_OM_Europe_OM12L13E.book 560 ページ ２０１６年６月２７日　月曜日　午後５時２１分
