2114-2. Driving procedures
Auris Touring Sports_EE (OM12G12E)
4
Driving

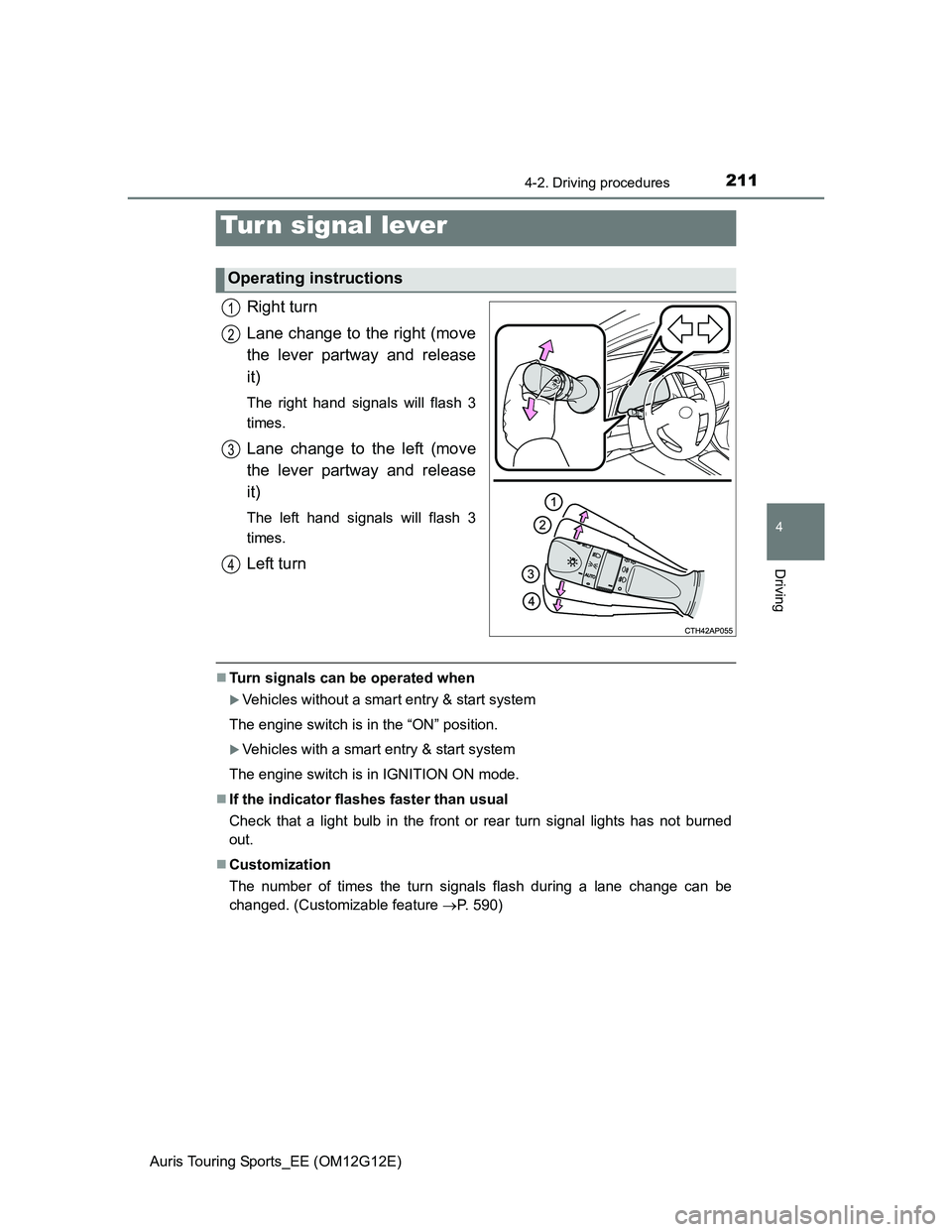

Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 590)
Tur n signal lever
Operating instructions
1
2
3
4

2124-2. Driving procedures
Auris Touring Sports_EE (OM12G12E)

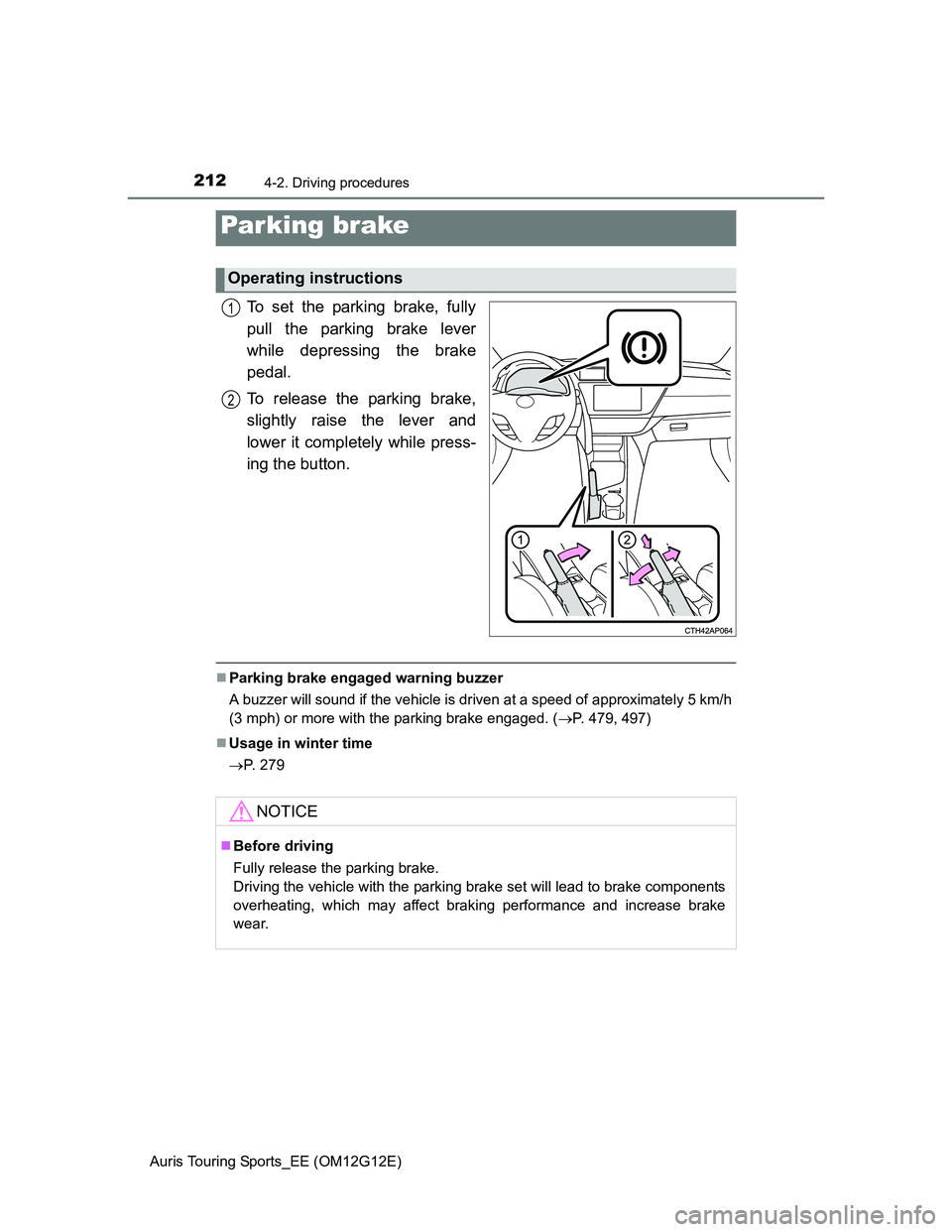

To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven at a speed of approximately 5 km/h
(3 mph) or more with the parking brake engaged. (P. 479, 497)
Usage in winter time
P. 279
Parking brake
Operating instructions
1
2
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

2134-2. Driving procedures
Auris Touring Sports_EE (OM12G12E)
4
Driving

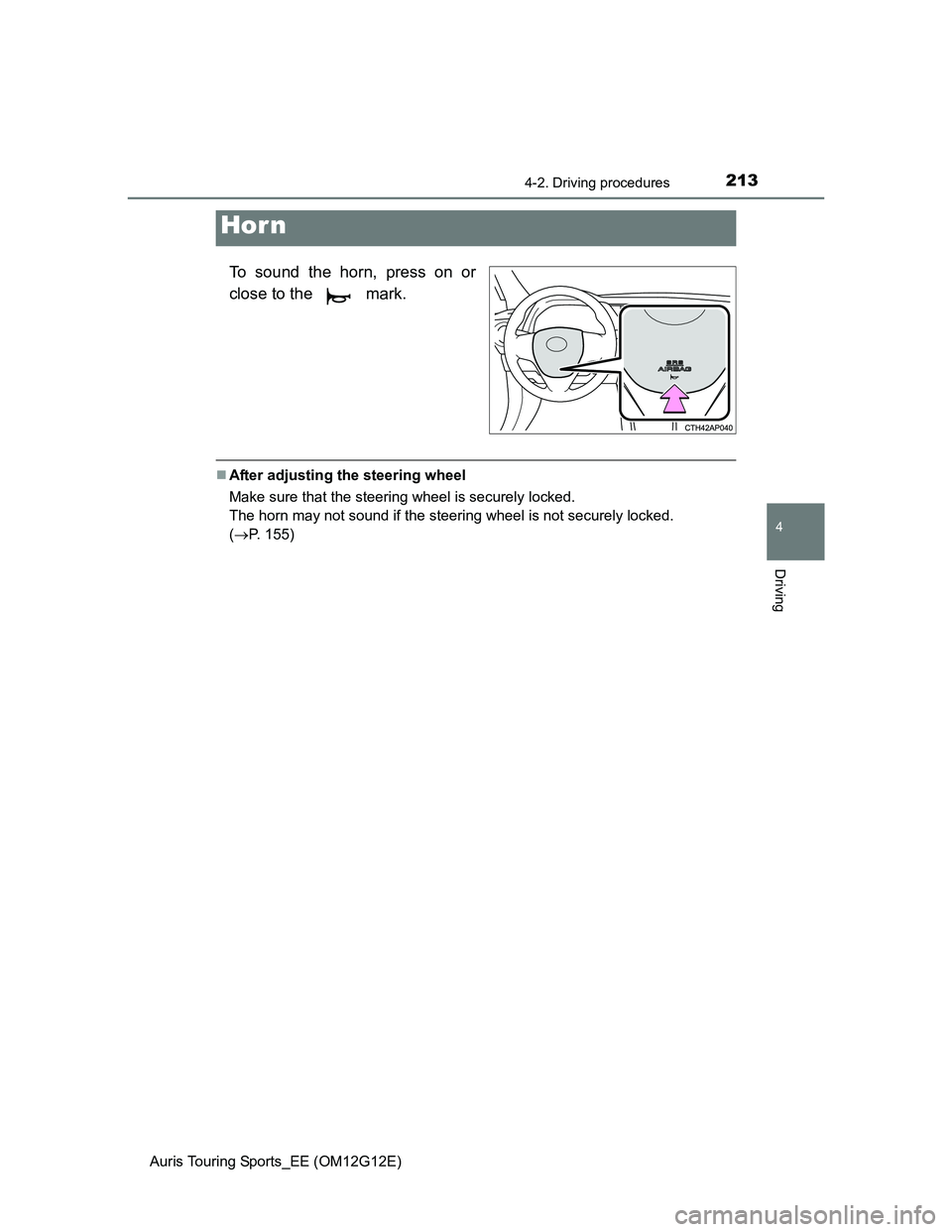

To sound the horn, press on or
close to the mark.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 155)
Hor n

214
Auris Touring Sports_EE (OM12G12E)
4-3. Operating the lights and wipers

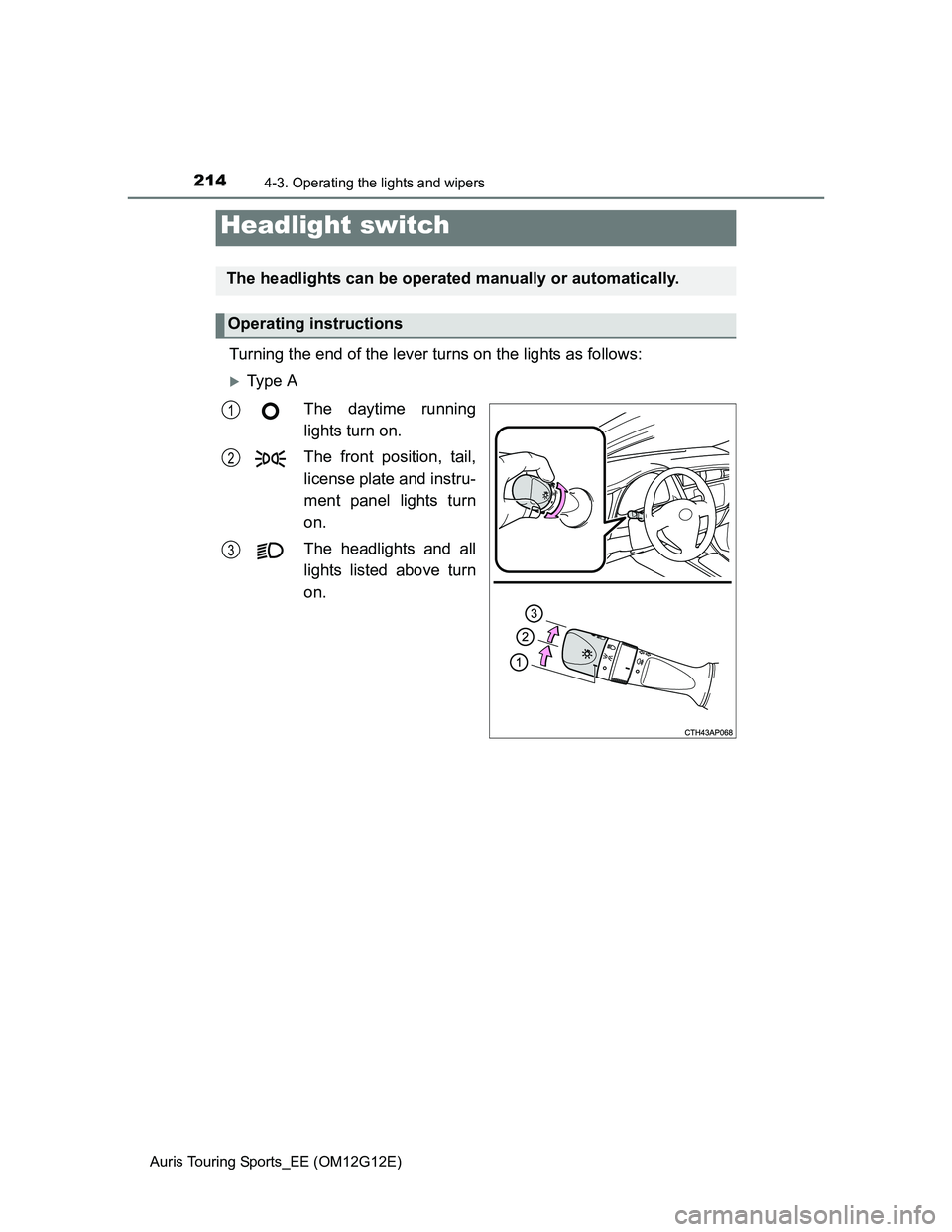

Turning the end of the lever turns on the lights as follows:
Ty p e A
The daytime running
lights turn on.
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
Headlight switch
The headlights can be operated manually or automatically.
Operating instructions
1
2
3

2154-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)
4
Driving

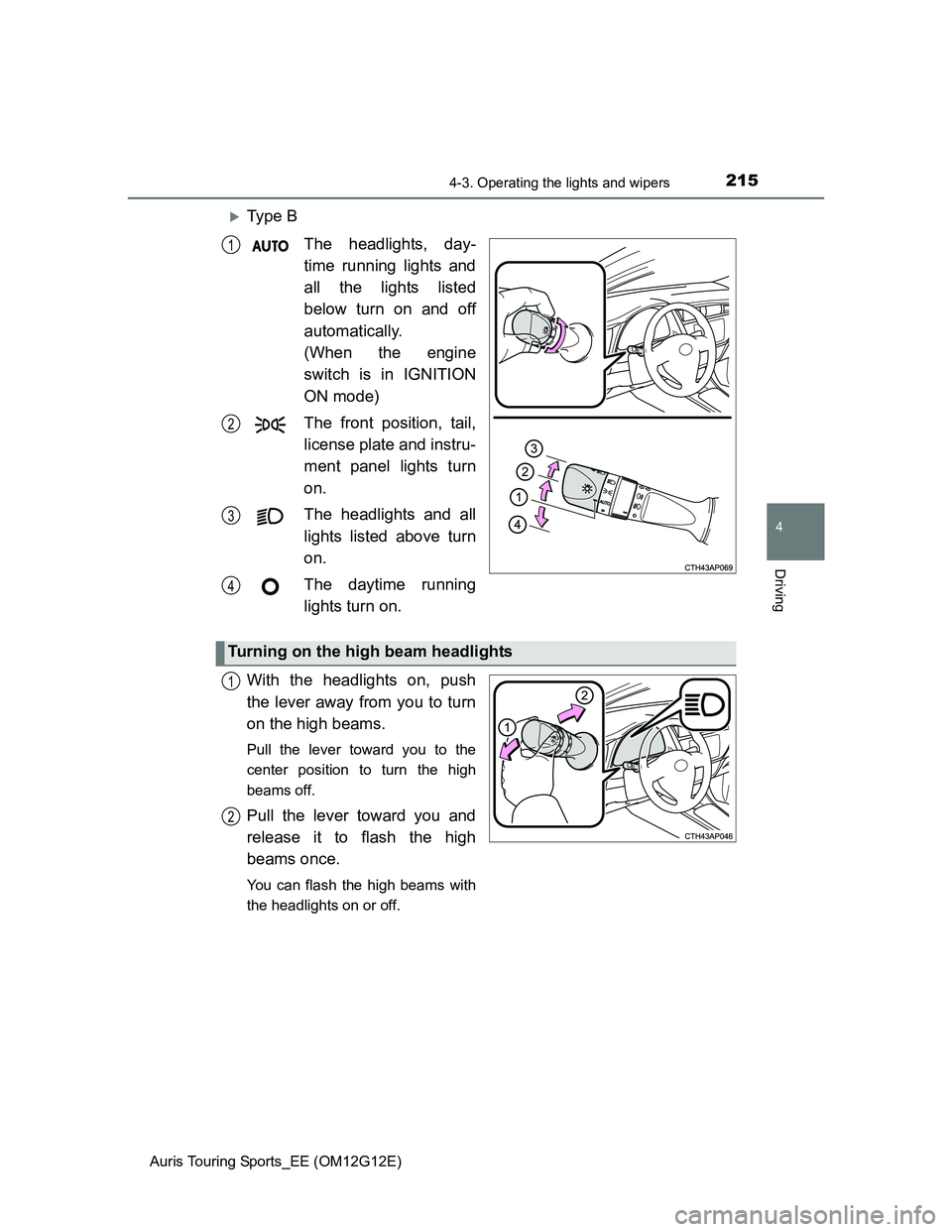

Ty p e B
The headlights, day-
time running lights and
all the lights listed
below turn on and off
automatically.
(When the engine
switch is in IGNITION
ON mode)
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
The daytime running
lights turn on.
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with
the headlights on or off.
1
2
3
4
Turning on the high beam headlights
1
2

2164-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)

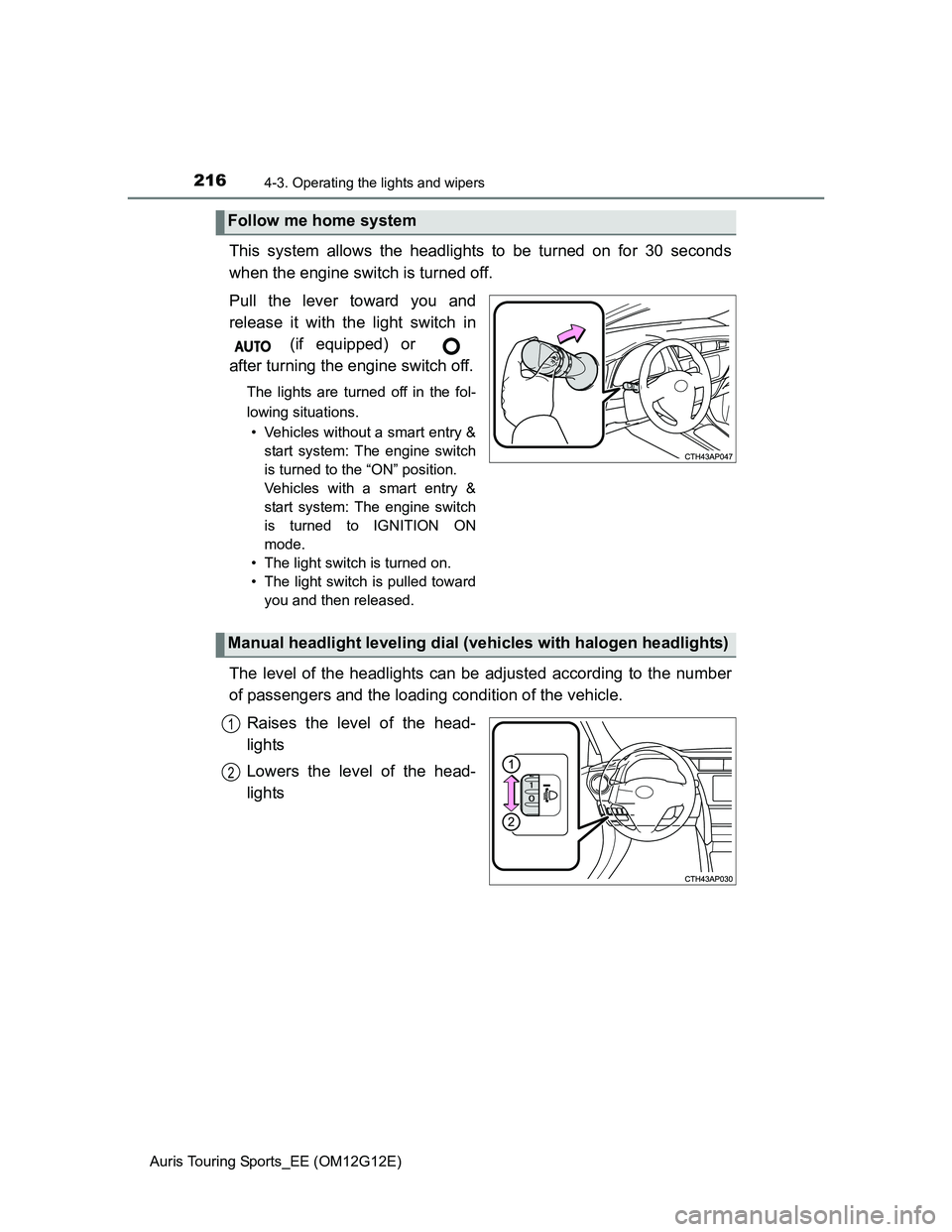

This system allows the headlights to be turned on for 30 seconds
when the engine switch is turned off.
Pull the lever toward you and
release it with the light switch in
(if equipped) or
after turning the engine switch off.
The lights are turned off in the fol-
lowing situations.
• Vehicles without a smart entry &
start system: The engine switch
is turned to the “ON” position.
Vehicles with a smart entry &
start system: The engine switch
is turned to IGNITION ON
mode.
• The light switch is turned on.
• The light switch is pulled toward
you and then released.
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
Follow me home system
Manual headlight leveling dial (vehicles with halogen headlights)
1
2

2174-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)
4
Driving

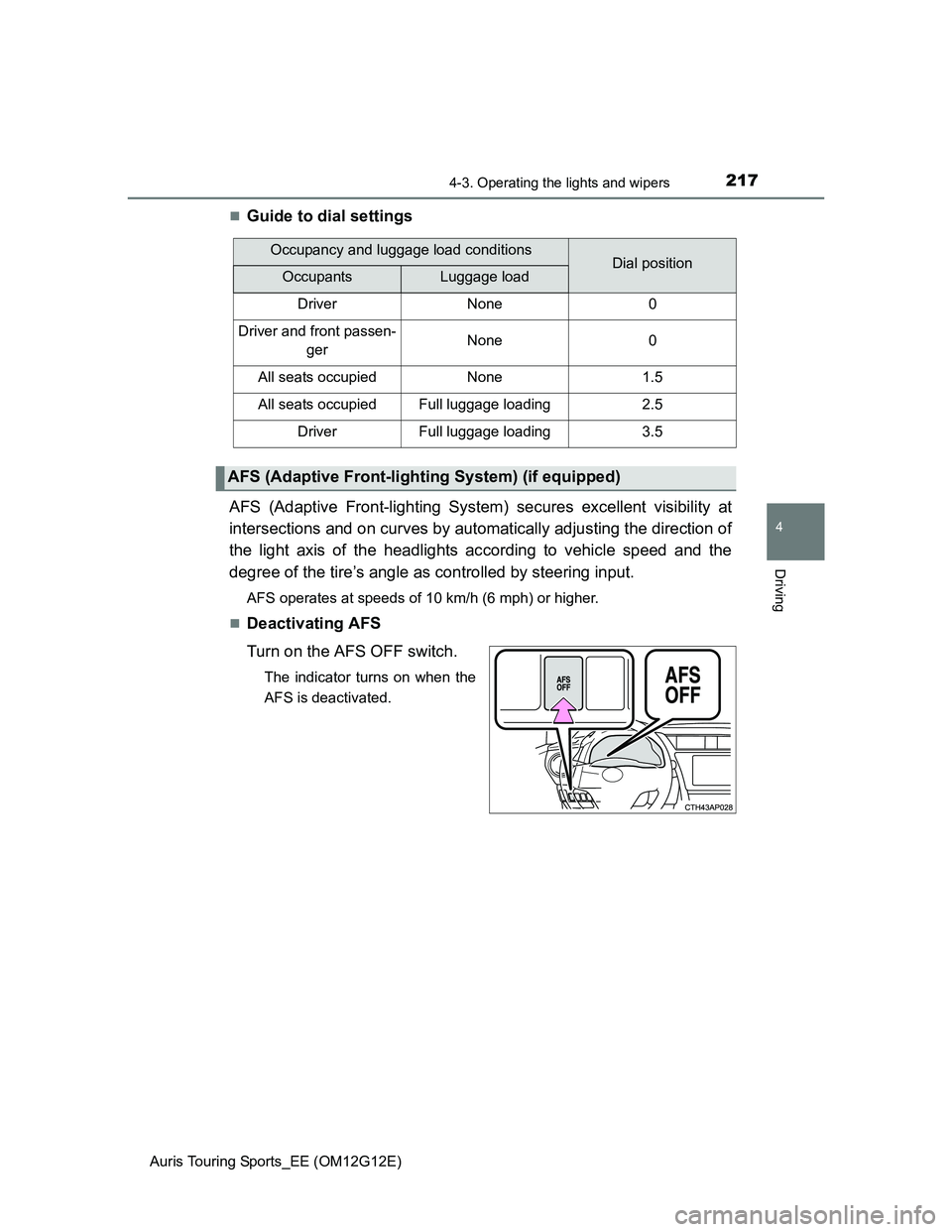

Guide to dial settings
AFS (Adaptive Front-lighting System) secures excellent visibility at
intersections and on curves by automatically adjusting the direction of
the light axis of the headlights according to vehicle speed and the
degree of the tire’s angle as controlled by steering input.
AFS operates at speeds of 10 km/h (6 mph) or higher.

Deactivating AFS
Turn on the AFS OFF switch.
The indicator turns on when the
AFS is deactivated.
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
DriverNone0
Driver and front passen-
gerNone0
All seats occupiedNone1.5
All seats occupiedFull luggage loading2.5
DriverFull luggage loading3.5
AFS (Adaptive Front-lighting System) (if equipped)

2184-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)

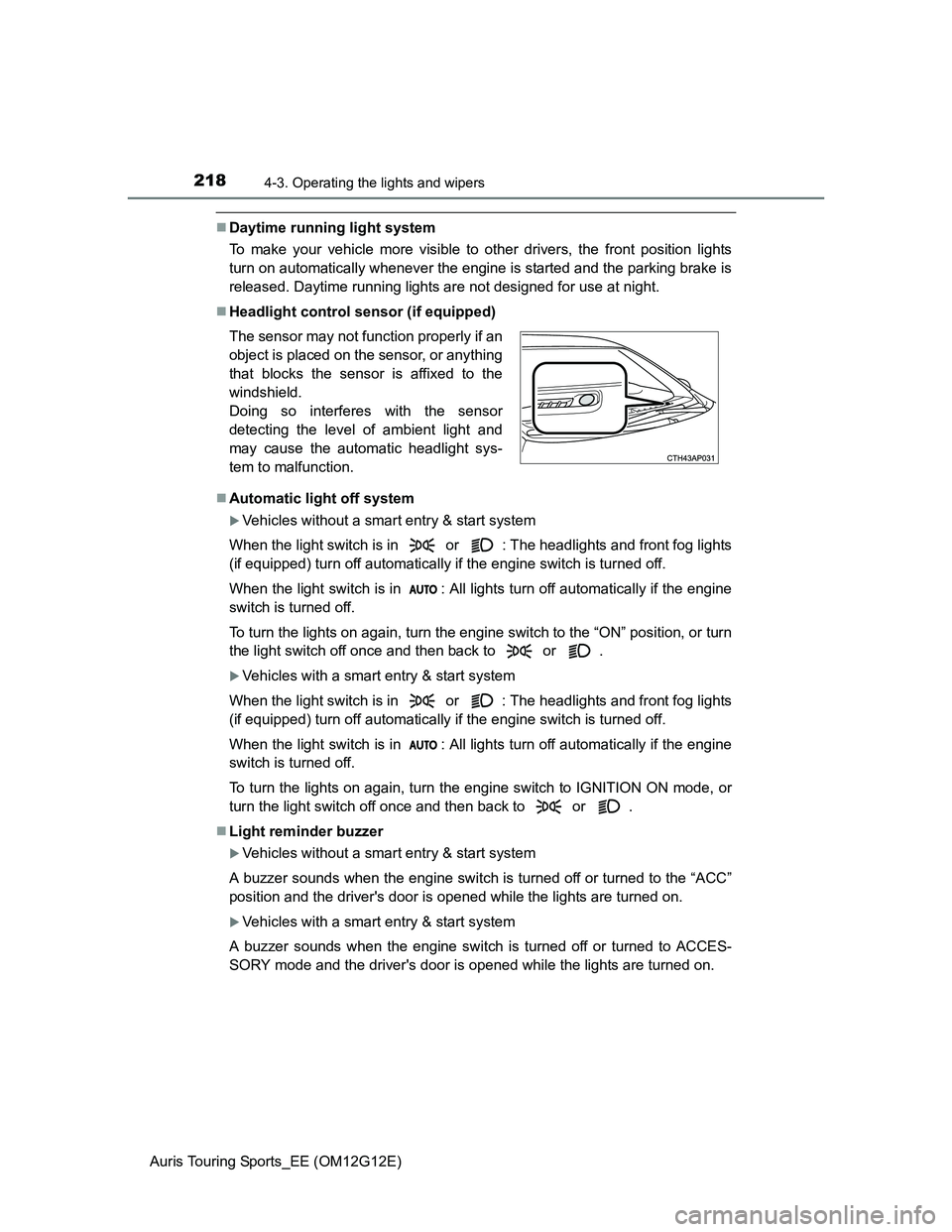

Daytime running light system
To make your vehicle more visible to other drivers, the front position lights
turn on automatically whenever the engine is started and the parking brake is
released. Daytime running lights are not designed for use at night.
Headlight control sensor (if equipped)
Automatic light off system
Vehicles without a smart entry & start system
When the light switch is in or : The headlights and front fog lights
(if equipped) turn off automatically if the engine switch is turned off.
When the light switch is in : All lights turn off automatically if the engine
switch is turned off.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the light switch off once and then back to or .
Vehicles with a smart entry & start system
When the light switch is in or : The headlights and front fog lights
(if equipped) turn off automatically if the engine switch is turned off.
When the light switch is in : All lights turn off automatically if the engine
switch is turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch off once and then back to or .
Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds when the engine switch is turned off or turned to the “ACC”
position and the driver's door is opened while the lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds when the engine switch is turned off or turned to ACCES-
SORY mode and the driver's door is opened while the lights are turned on. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2194-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)
4
Driving

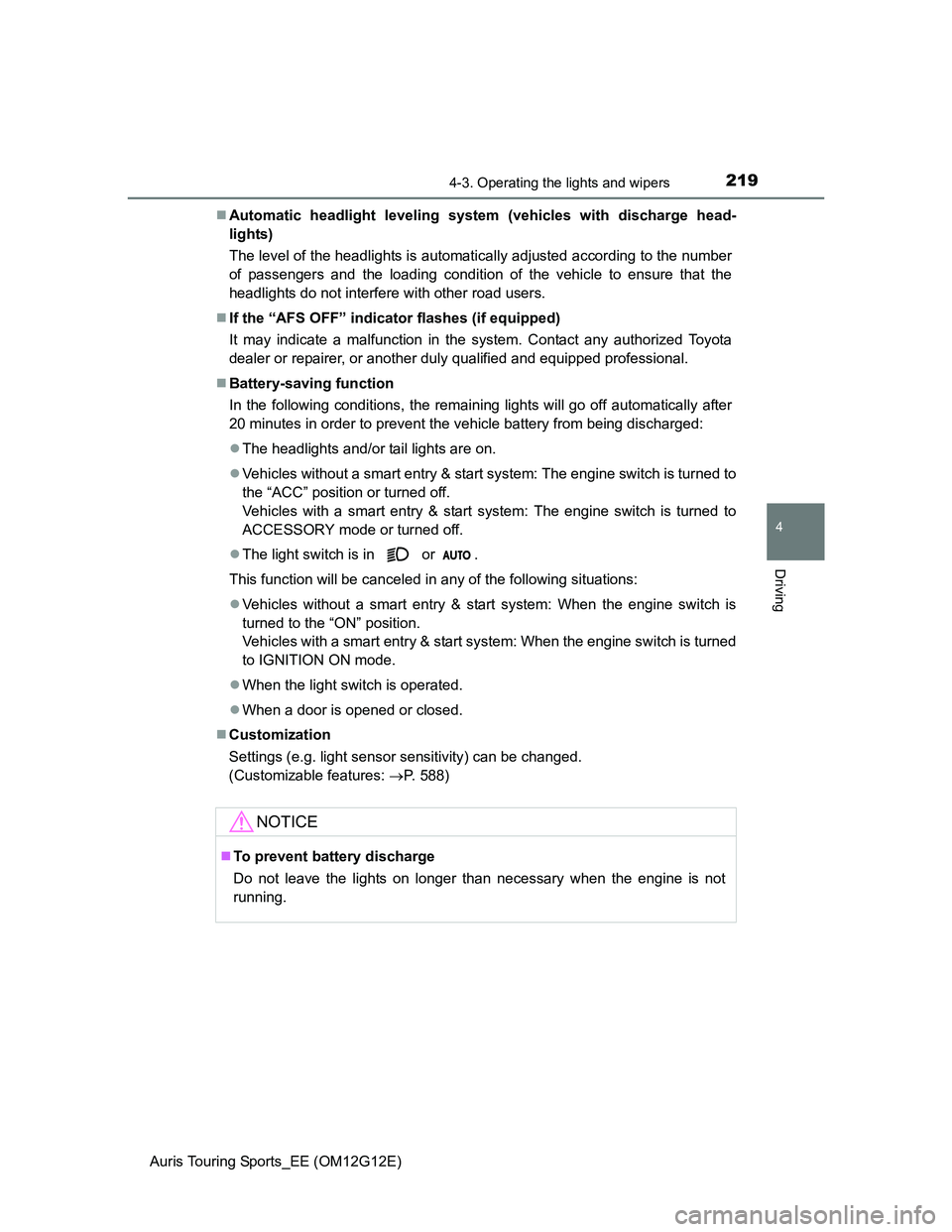

Automatic headlight leveling system (vehicles with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
If the “AFS OFF” indicator flashes (if equipped)
It may indicate a malfunction in the system. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Battery-saving function
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
The headlights and/or tail lights are on.
Vehicles without a smart entry & start system: The engine switch is turned to
the “ACC” position or turned off.
Vehicles with a smart entry & start system: The engine switch is turned to
ACCESSORY mode or turned off.
The light switch is in or .
This function will be canceled in any of the following situations:
Vehicles without a smart entry & start system: When the engine switch is
turned to the “ON” position.
Vehicles with a smart entry & start system: When the engine switch is turned
to IGNITION ON mode.
When the light switch is operated.
When a door is opened or closed.
Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 588)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

2204-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)
Push the lever away from you with
the headlight switch in
position.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
Vehicle speed is above approximately 40 km/h (25 mph).
The area ahead of the vehicle is dark.
There are no oncoming or preceding vehicles with headlights or tail
lights turned on.
There are few streetlights on the road ahead.
If any of the following conditions are fulfilled, high beam will be auto-
matically turned off:
Vehicle speed drops below approximately 30 km/h (19 mph).
The area ahead of the vehicle is not dark.
Oncoming or preceding vehicles have headlights or tail lights
turned on.
There are many streetlights on the road ahead.

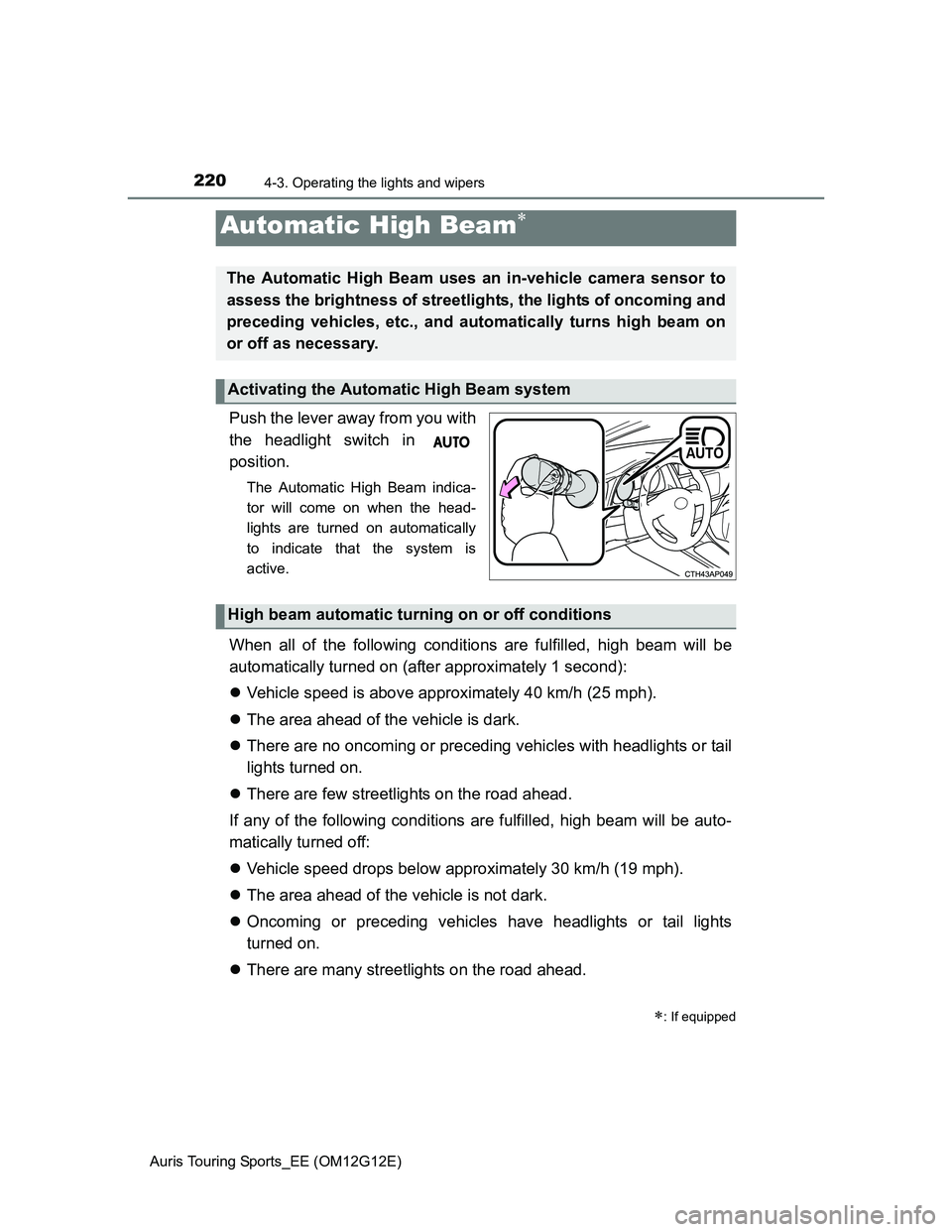

Automatic High Beam
: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of oncoming and
preceding vehicles, etc., and automatically turns high beam on
or off as necessary.
Activating the Automatic High Beam system
High beam automatic turning on or off conditions
