TOYOTA AURIS TOURING SPORTS 2013 Owners Manual

2514-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving
Operate Simple-IPA according to the multi-information display and the
buzzer.
The system detects parking spaces on the front passenger’s side of the
vehicle and assists with parking in a detected space.
When parking in a space on the driver’s side of the vehicle, move the turn
signal lever to indicate turning on the driver’s seat side. Leave the turn sig-
nal lever in that position until automatic steering begins.
Turn the Simple-IPA switch on
with the vehicle driving at 30
km/h (18 mph) or less.
The multi-information display
changes to the parking space
detection screen when the system
is operating.
Drive the vehicle while main-
taining a distance of approxi-
mately 1 m (3 ft.) from the
parked vehicles.
Drive the vehicle as parallel to the
parked vehicles and curb as possi-
ble.
Lower vehicle speeds allow the
system to assist in parking the
vehicle more parallel to the parked
vehicles and curb, and in a more
proper position between vehicles
at the front and rear of a parking
space.
The required length for a parking
space to be detected is the total
vehicle length plus approximately 1
m (3 ft.).
Maintain a vehicle speed of 30
km/h (18 mph) or less.

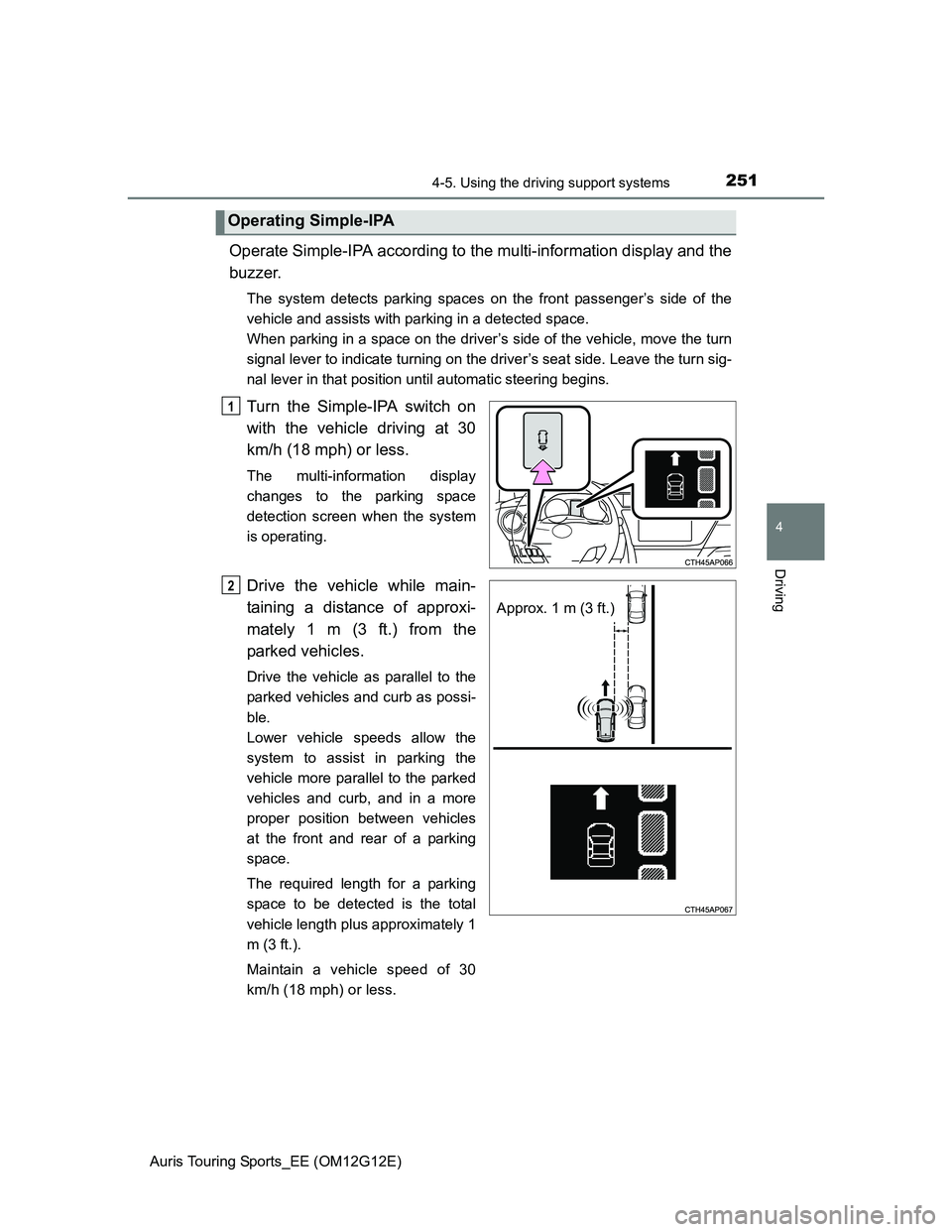

Operating Simple-IPA
1
Approx. 1 m (3 ft.)
2

2524-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)

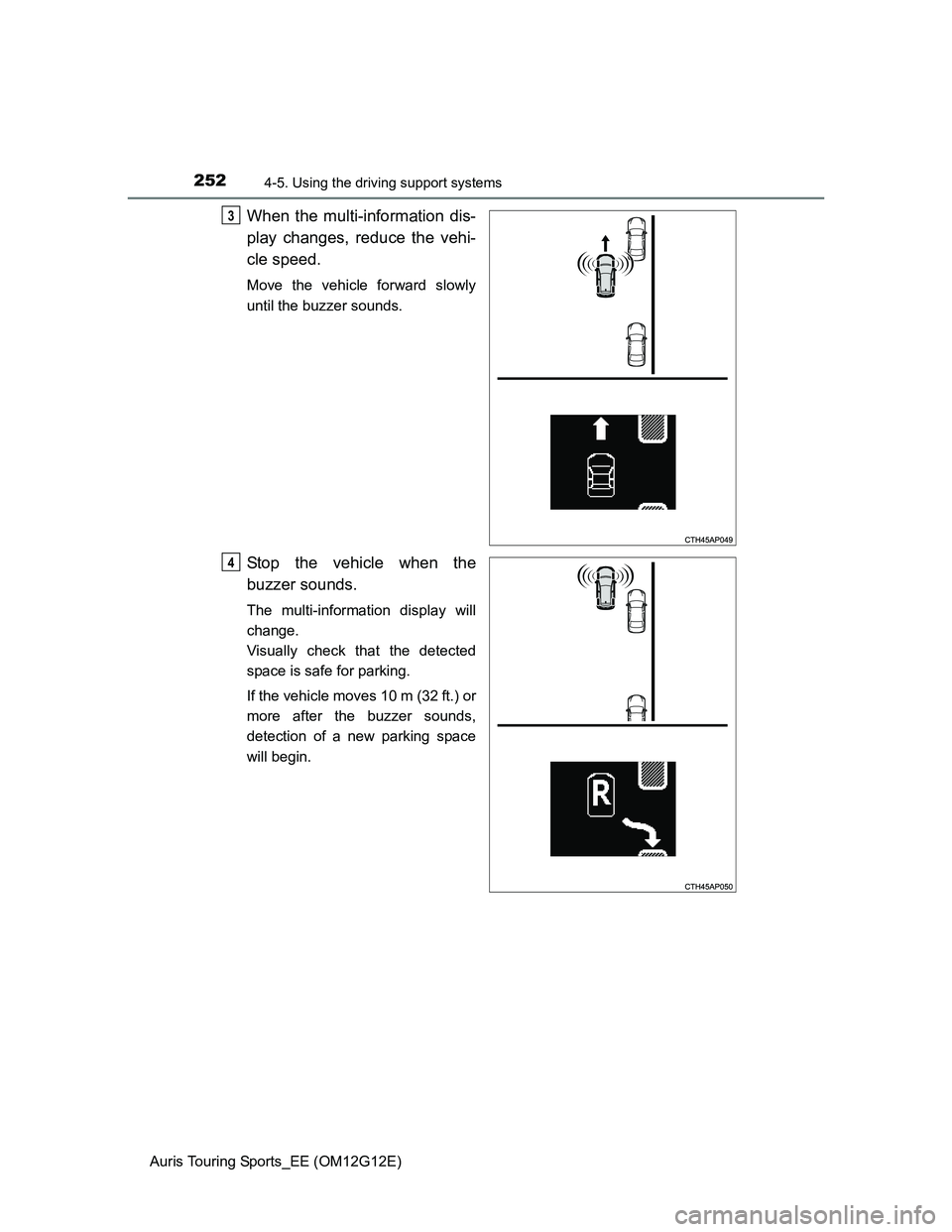

When the multi-information dis-
play changes, reduce the vehi-
cle speed.
Move the vehicle forward slowly
until the buzzer sounds.
Stop the vehicle when the
buzzer sounds.
The multi-information display will
change.
Visually check that the detected
space is safe for parking.
If the vehicle moves 10 m (32 ft.) or
more after the buzzer sounds,
detection of a new parking space
will begin.
3
4

2534-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving
Shift the shift lever to R.
The multi-information display will
change and automatic steering will
begin. While taking care not to
catch your hands on the steering
wheel and checking the safety of
the surrounding area, reverse the
vehicle slowly by operating the
accelerator and brake pedals.
During automatic steering, main-
tain a vehicle speed of 6 km/h (3
mph) or less.
When the multi-information dis-
play changes, reduce the vehi-
cle speed.
While checking the safety of the
area behind the vehicle, reverse
the vehicle slowly.
5
6

2544-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)

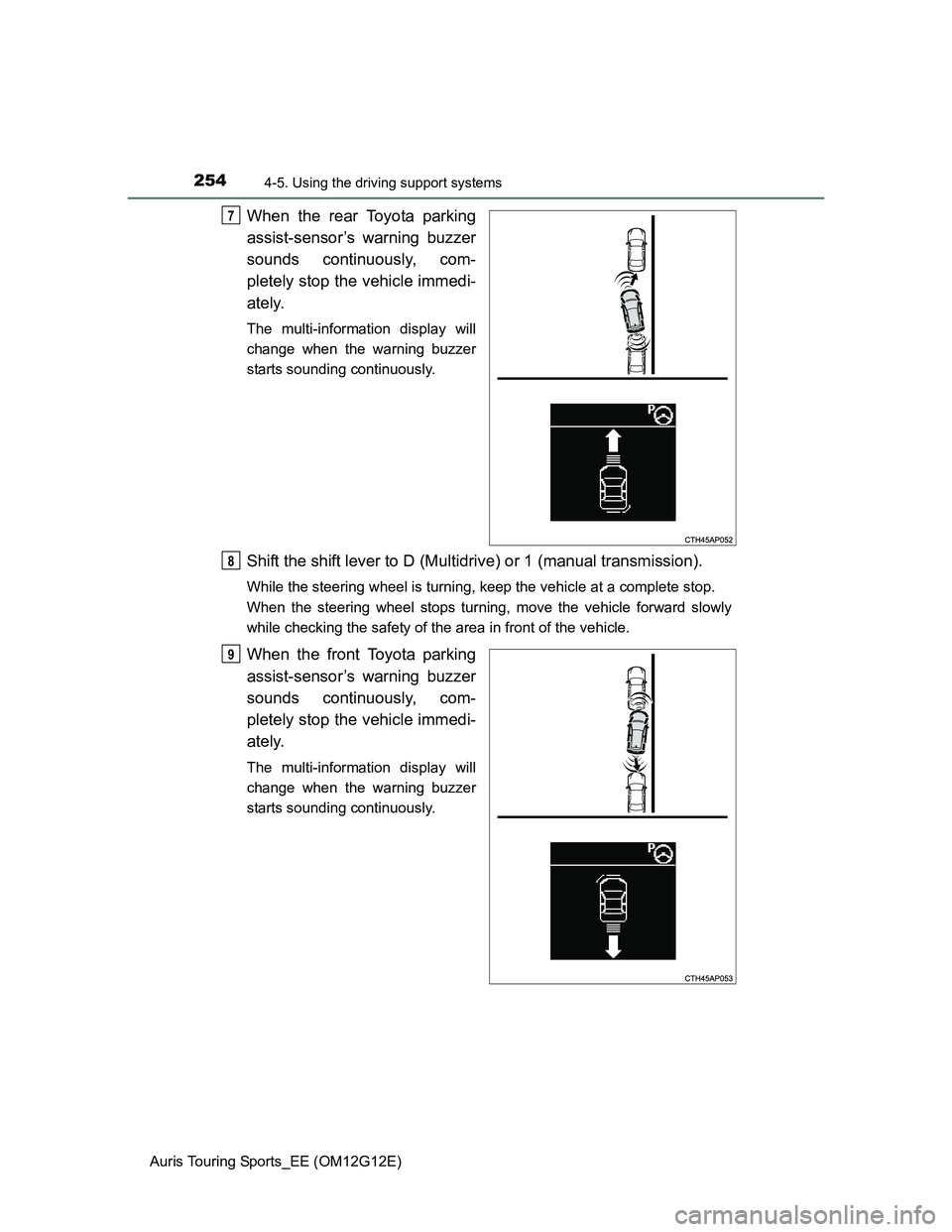

When the rear Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
Shift the shift lever to D (Multidrive) or 1 (manual transmission).
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, move the vehicle forward slowly
while checking the safety of the area in front of the vehicle.
When the front Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
7
8
9

2554-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving
Shift the shift lever to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle.
Repeat steps through
until the parking assist opera-
tion has completed.

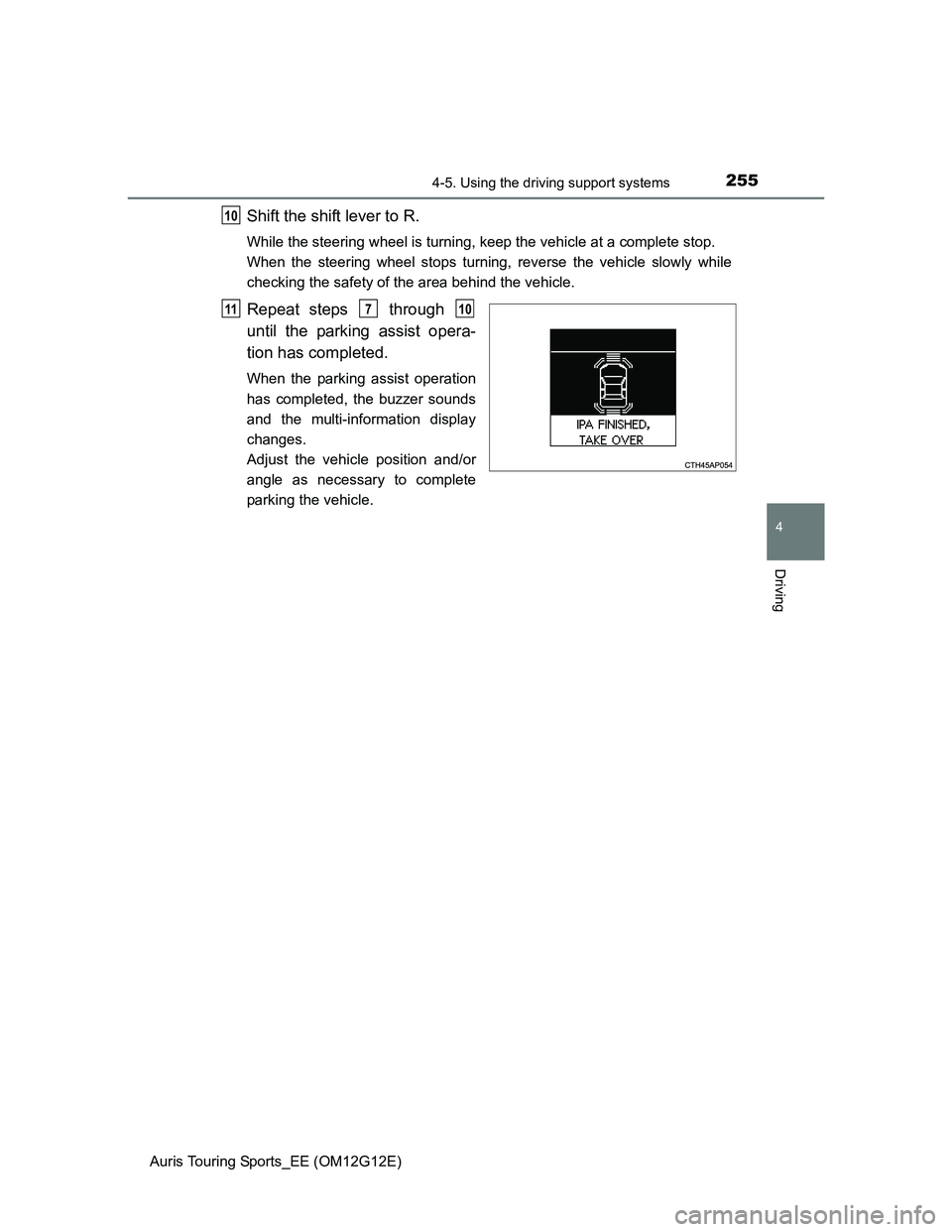

When the parking assist operation
has completed, the buzzer sounds
and the multi-information display
changes.
Adjust the vehicle position and/or
angle as necessary to complete
parking the vehicle.
10
11710

2564-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)

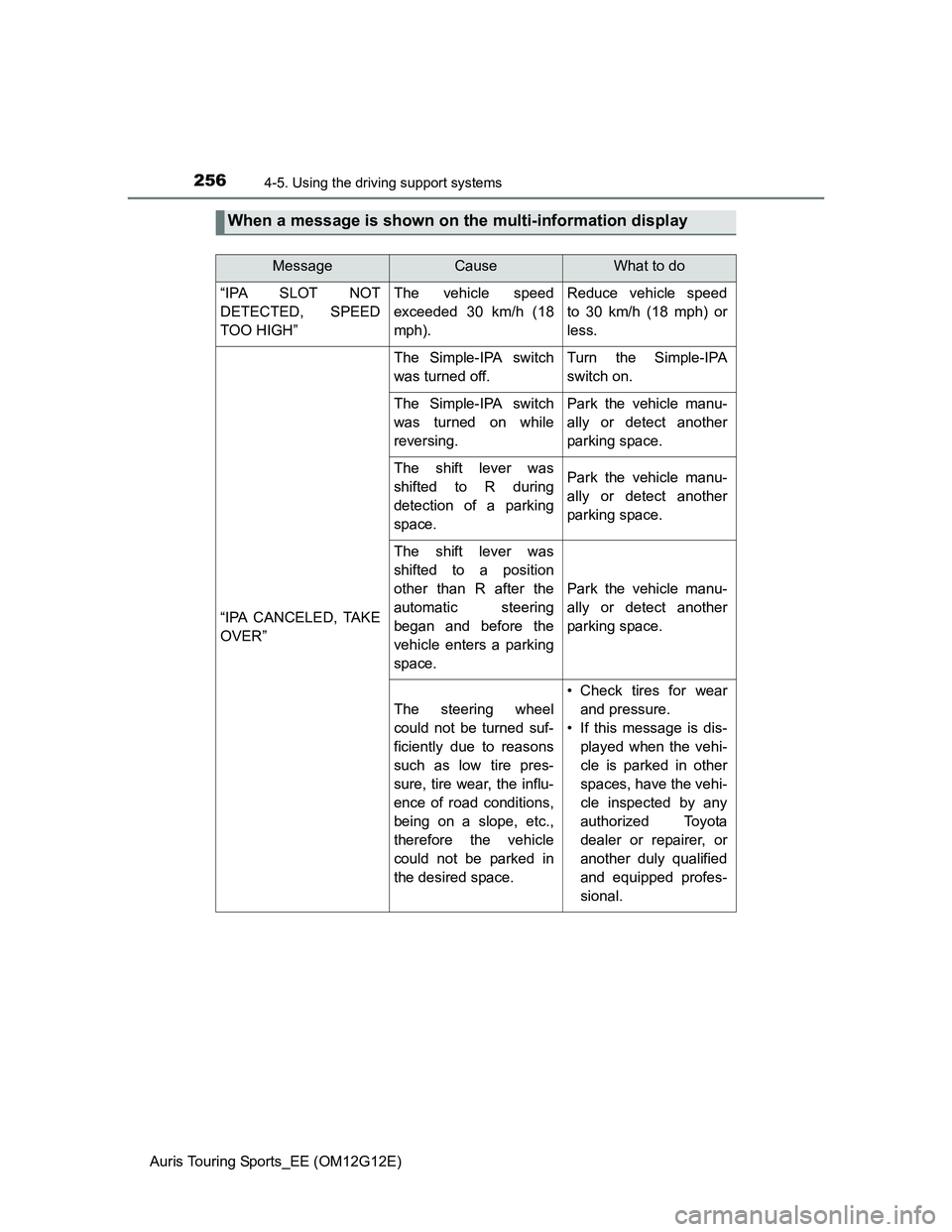

When a message is shown on the multi-information display
MessageCauseWhat to do
“IPA SLOT NOT
DETECTED, SPEED
TOO HIGH”The vehicle speed
exceeded 30 km/h (18
mph).Reduce vehicle speed
to 30 km/h (18 mph) or
less.
“IPA CANCELED, TAKE
OVER”
The Simple-IPA switch
was turned off.Turn the Simple-IPA
switch on.
The Simple-IPA switch
was turned on while
reversing.Park the vehicle manu-
ally or detect another
parking space.
The shift lever was
shifted to R during
detection of a parking
space.Park the vehicle manu-
ally or detect another
parking space.
The shift lever was
shifted to a position
other than R after the
automatic steering
began and before the
vehicle enters a parking
space.
Park the vehicle manu-
ally or detect another
parking space.
The steering wheel
could not be turned suf-
ficiently due to reasons
such as low tire pres-
sure, tire wear, the influ-
ence of road conditions,
being on a slope, etc.,
therefore the vehicle
could not be parked in
the desired space.
• Check tires for wear
and pressure.
• If this message is dis-
played when the vehi-
cle is parked in other
spaces, have the vehi-
cle inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.

2574-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving

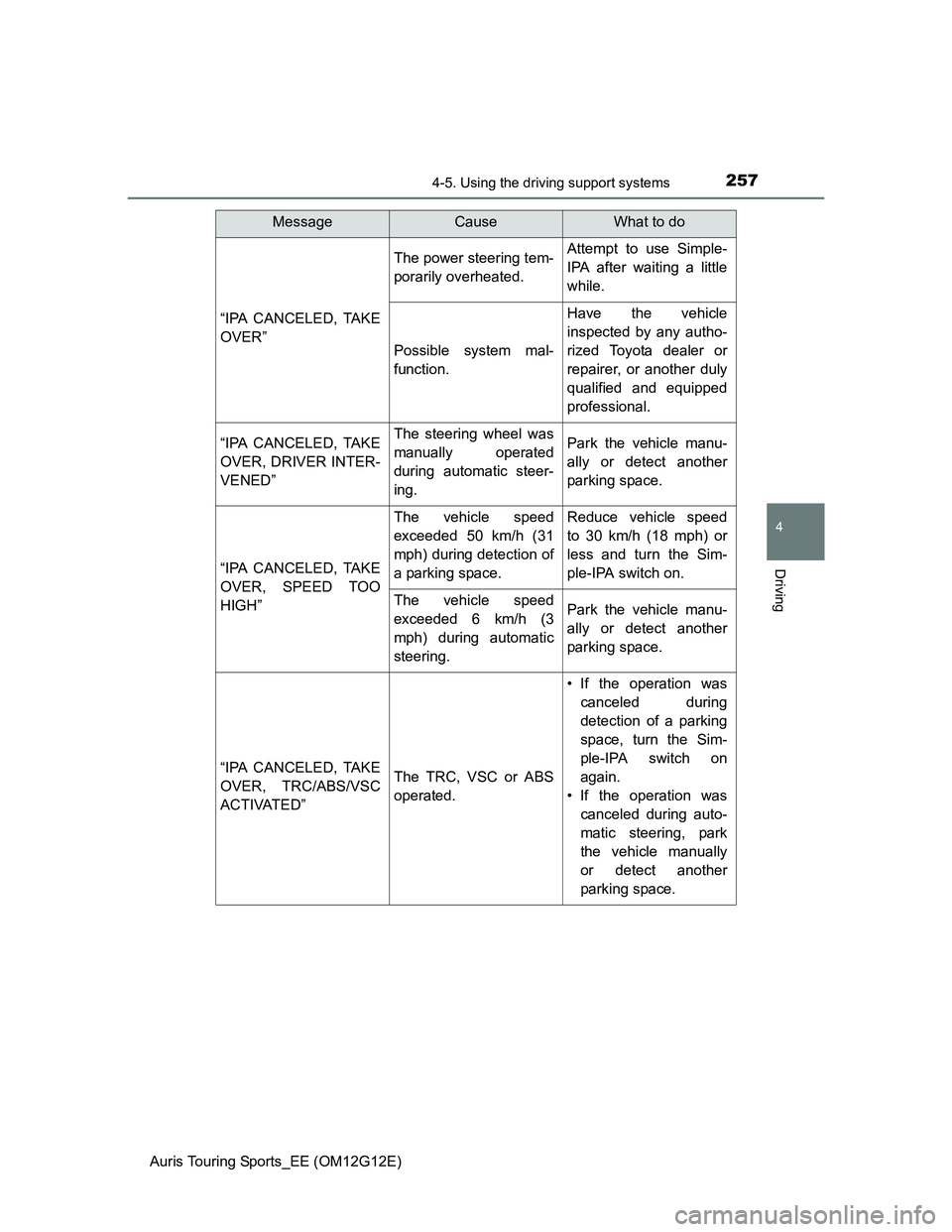

“IPA CANCELED, TAKE
OVER”
The power steering tem-
porarily overheated.Attempt to use Simple-
IPA after waiting a little
while.
Possible system mal-
function.
Have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
“IPA CANCELED, TAKE
OVER, DRIVER INTER-
VENED”The steering wheel was
manually operated
during automatic steer-
ing.Park the vehicle manu-
ally or detect another
parking space.
“IPA CANCELED, TAKE
OVER, SPEED TOO
HIGH”
The vehicle speed
exceeded 50 km/h (31
mph) during detection of
a parking space.Reduce vehicle speed
to 30 km/h (18 mph) or
less and turn the Sim-
ple-IPA switch on.
The vehicle speed
exceeded 6 km/h (3
mph) during automatic
steering.Park the vehicle manu-
ally or detect another
parking space.
“IPA CANCELED, TAKE
OVER, TRC/ABS/VSC
A C T I VAT E D ”The TRC, VSC or ABS
operated.
• If the operation was
canceled during
detection of a parking
space, turn the Sim-
ple-IPA switch on
again.
• If the operation was
canceled during auto-
matic steering, park
the vehicle manually
or detect another
parking space.
MessageCauseWhat to do

2584-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)

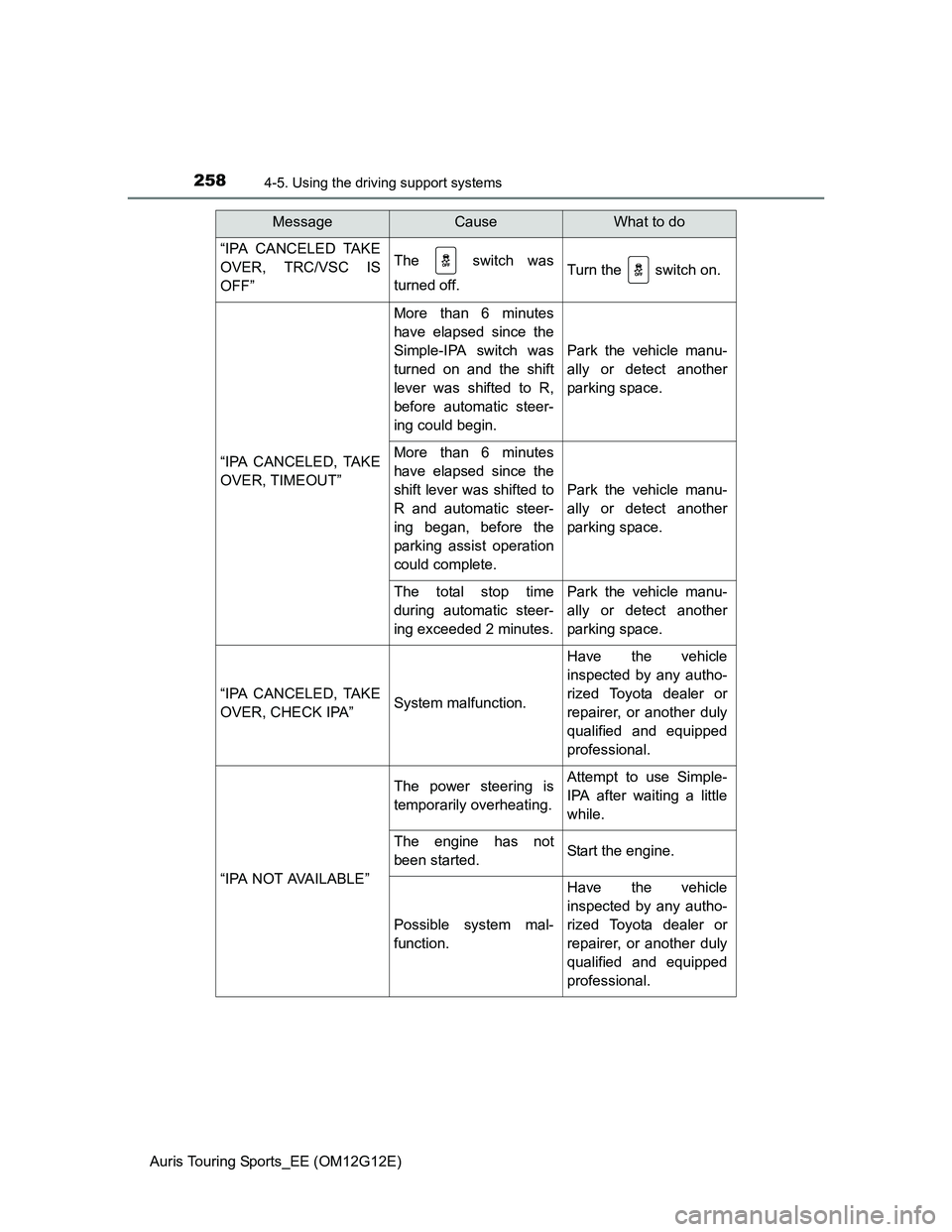

“IPA CANCELED TAKE
OVER, TRC/VSC IS
OFF”The switch was
turned off.Turn the switch on.
“IPA CANCELED, TAKE
OVER, TIMEOUT”
More than 6 minutes
have elapsed since the
Simple-IPA switch was
turned on and the shift
lever was shifted to R,
before automatic steer-
ing could begin.
Park the vehicle manu-
ally or detect another
parking space.
More than 6 minutes
have elapsed since the
shift lever was shifted to
R and automatic steer-
ing began, before the
parking assist operation
could complete.
Park the vehicle manu-
ally or detect another
parking space.
The total stop time
during automatic steer-
ing exceeded 2 minutes.Park the vehicle manu-
ally or detect another
parking space.
“IPA CANCELED, TAKE
OVER, CHECK IPA”System malfunction.
Have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
“IPA NOT AVAILABLE”
The power steering is
temporarily overheating.Attempt to use Simple-
IPA after waiting a little
while.
The engine has not
been started.Start the engine.
Possible system mal-
function.
Have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
MessageCauseWhat to do

2594-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving

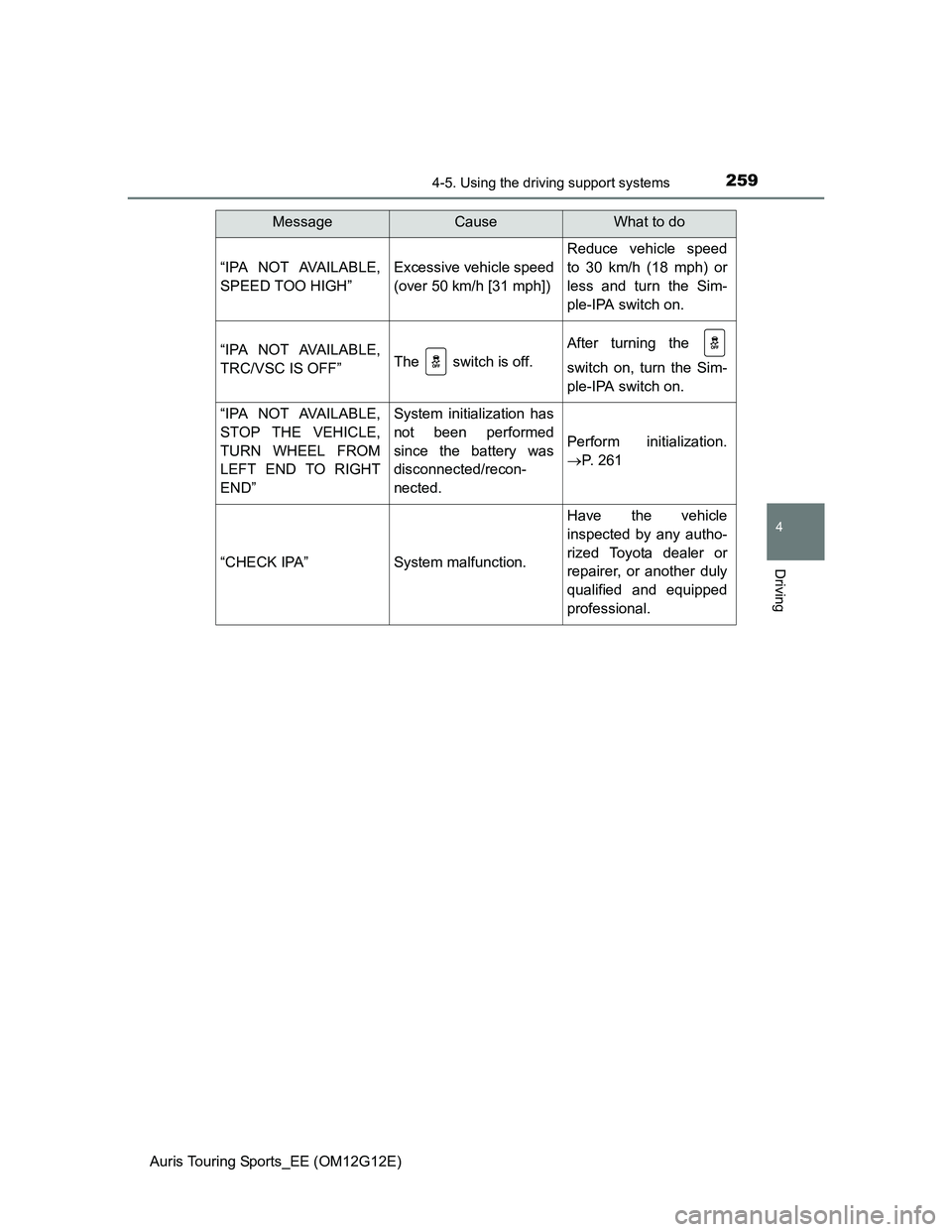

“ I PA N O T AVA I L A B L E ,
SPEED TOO HIGH”Excessive vehicle speed
(over 50 km/h [31 mph])
Reduce vehicle speed
to 30 km/h (18 mph) or
less and turn the Sim-
ple-IPA switch on.
“ I PA N O T AVA I L A B L E ,
TRC/VSC IS OFF”The switch is off.
After turning the
switch on, turn the Sim-
ple-IPA switch on.
“ I PA N O T AVA I L A B L E ,
STOP THE VEHICLE,
TURN WHEEL FROM
LEFT END TO RIGHT
END”System initialization has
not been performed
since the battery was
disconnected/recon-
nected.
Perform initialization.
P. 2 6 1
“CHECK IPA”System malfunction.
Have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
MessageCauseWhat to do

2604-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)

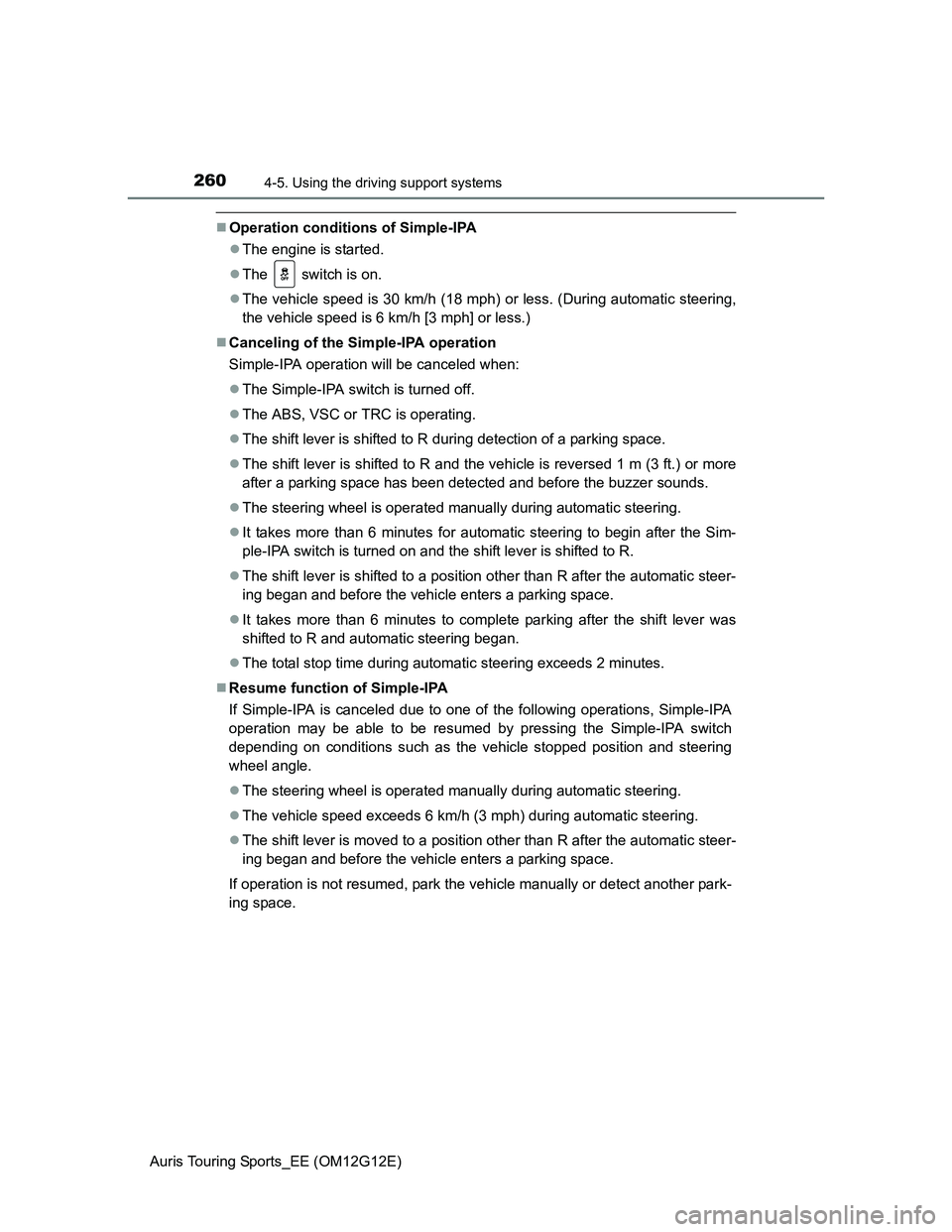

Operation conditions of Simple-IPA
The engine is started.
The switch is on.
The vehicle speed is 30 km/h (18 mph) or less. (During automatic steering,
the vehicle speed is 6 km/h [3 mph] or less.)
Canceling of the Simple-IPA operation
Simple-IPA operation will be canceled when:
The Simple-IPA switch is turned off.
The ABS, VSC or TRC is operating.
The shift lever is shifted to R during detection of a parking space.
The shift lever is shifted to R and the vehicle is reversed 1 m (3 ft.) or more
after a parking space has been detected and before the buzzer sounds.
The steering wheel is operated manually during automatic steering.
It takes more than 6 minutes for automatic steering to begin after the Sim-
ple-IPA switch is turned on and the shift lever is shifted to R.
The shift lever is shifted to a position other than R after the automatic steer-
ing began and before the vehicle enters a parking space.
It takes more than 6 minutes to complete parking after the shift lever was
shifted to R and automatic steering began.
The total stop time during automatic steering exceeds 2 minutes.
Resume function of Simple-IPA
If Simple-IPA is canceled due to one of the following operations, Simple-IPA
operation may be able to be resumed by pressing the Simple-IPA switch
depending on conditions such as the vehicle stopped position and steering
wheel angle.
The steering wheel is operated manually during automatic steering.
The vehicle speed exceeds 6 km/h (3 mph) during automatic steering.
The shift lever is moved to a position other than R after the automatic steer-
ing began and before the vehicle enters a parking space.
If operation is not resumed, park the vehicle manually or detect another park-
ing space.
