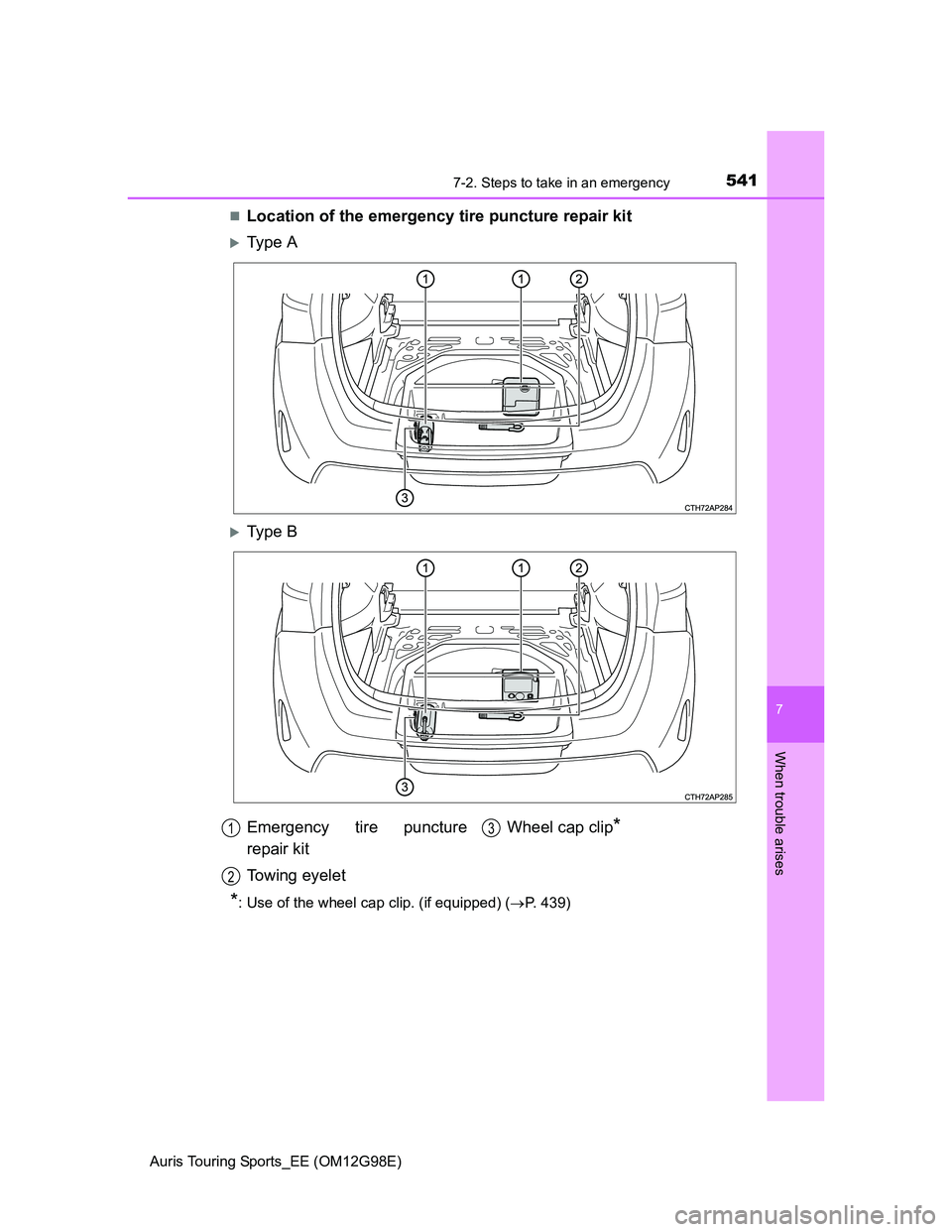

Location of the emergency tire puncture repair kit
Ty p e A
Ty p e B
*: Use of the wheel cap clip. (if equipped) (P. 439)
Emergency tire puncture
repair kit
Towing eyeletWheel cap clip*1
2
3

5427-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)

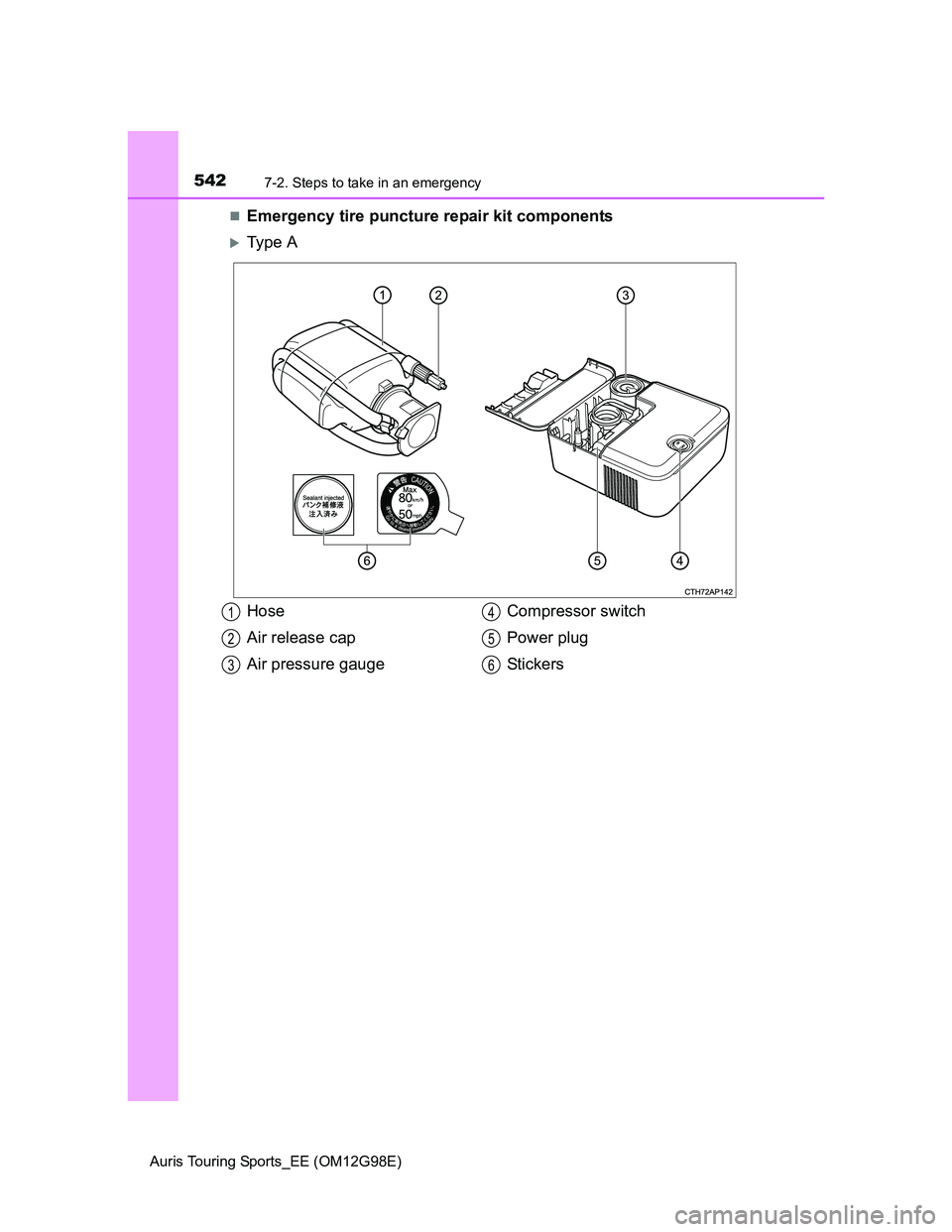

Emergency tire puncture repair kit components
Ty p e A
Hose
Air release cap
Air pressure gaugeCompressor switch
Power plug
St ic ke rs1
2
3
4
5
6

5437-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises

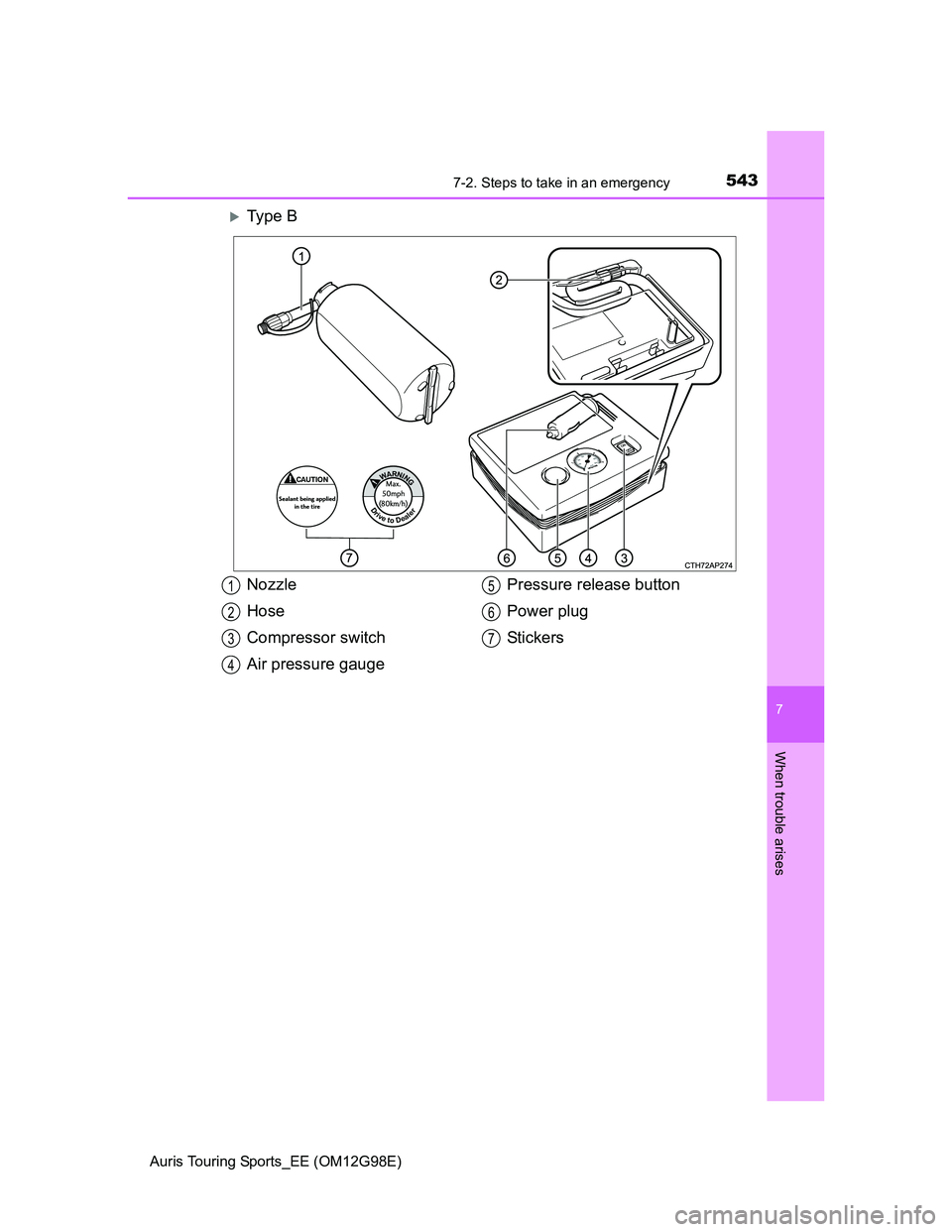

Ty p e B
Nozzle
Hose
Compressor switch
Air pressure gaugePressure release button
Power plug
St ic ke rs1
2
3
4
5
6
7

5447-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)

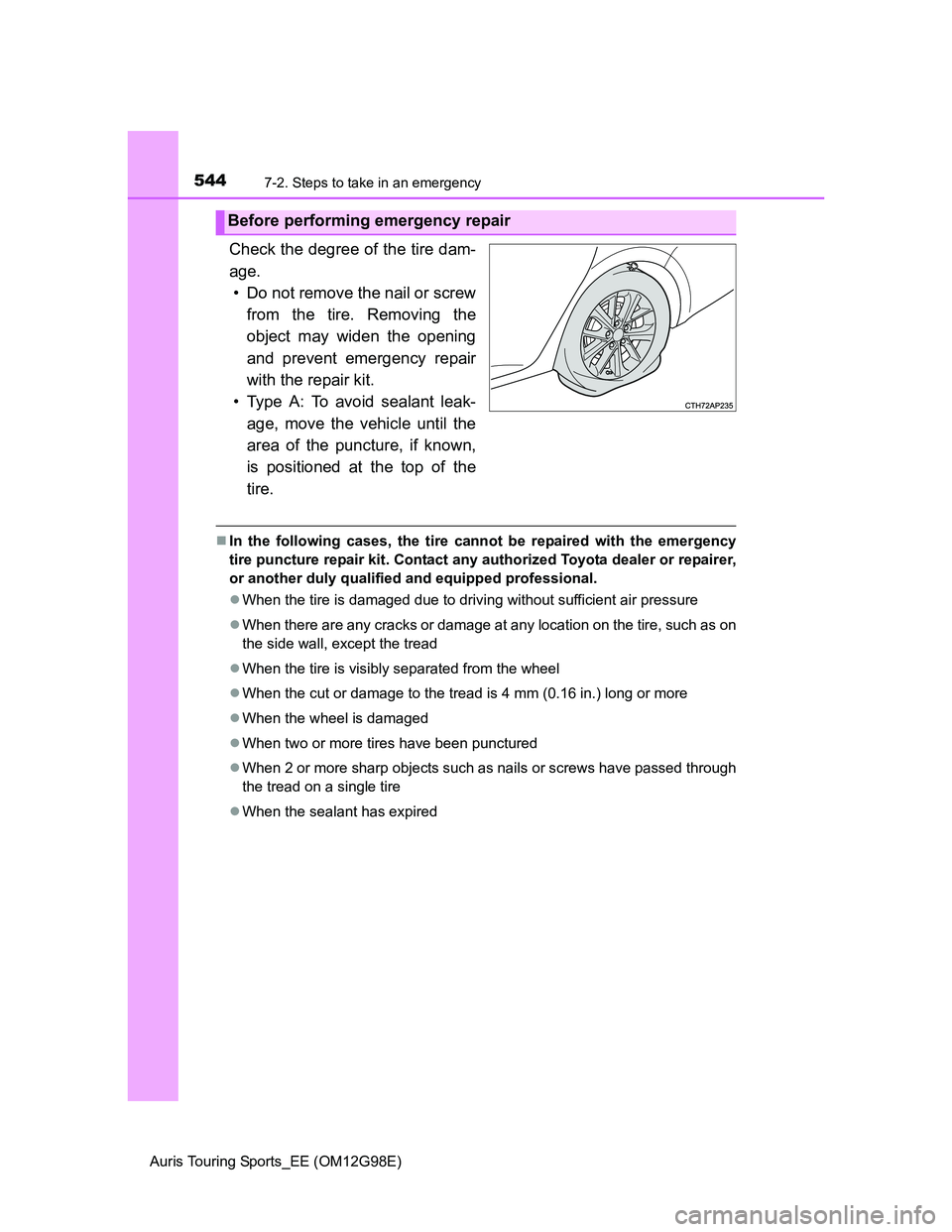

Check the degree of the tire dam-
age.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and prevent emergency repair
with the repair kit.
• Type A: To avoid sealant leak-
age, move the vehicle until the
area of the puncture, if known,
is positioned at the top of the
tire.
In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
When the sealant has expired
Before performing emergency repair

5457-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
Vehicles with deck boards: Remove the deck center boards and the
storage box. (P. 367)
Remove the luggage floor
cover.
Take out the emergency tire puncture repair kit. (P. 541)
Take out the repair kit.
Remove the valve cap from the
valve of the punctured tire.
Remove the protective film from
the bottle and extend the hose.
Remove the air release cap
from the hose.
Attach the stickers enclosed with
the bottle on the specified loca-
tions. (See step 9.)
You will use the air release cap
again. Therefore keep it in a safe
place.

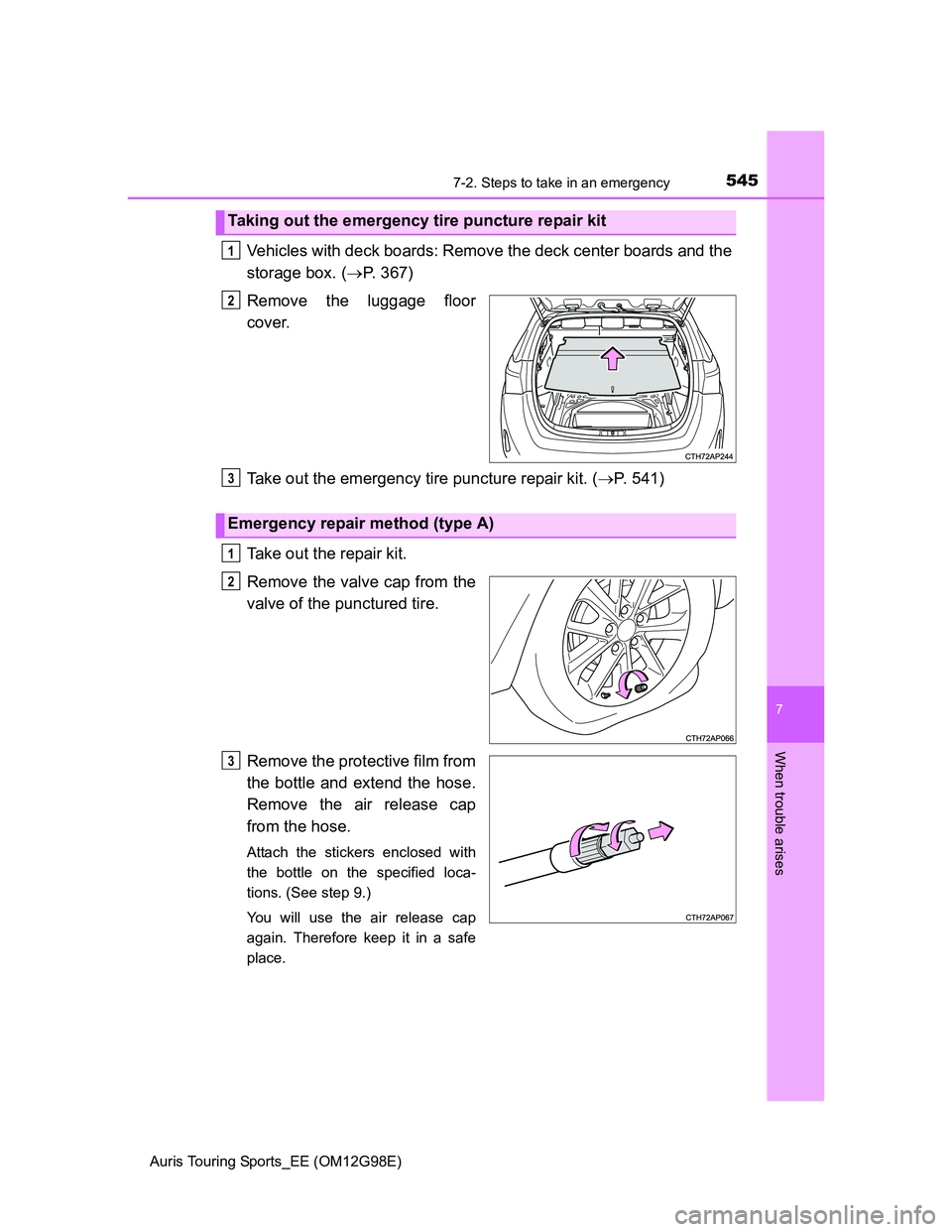

Taking out the emergency tire puncture repair kit
1
2
Emergency repair method (type A)
3
1
2
3

5467-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)

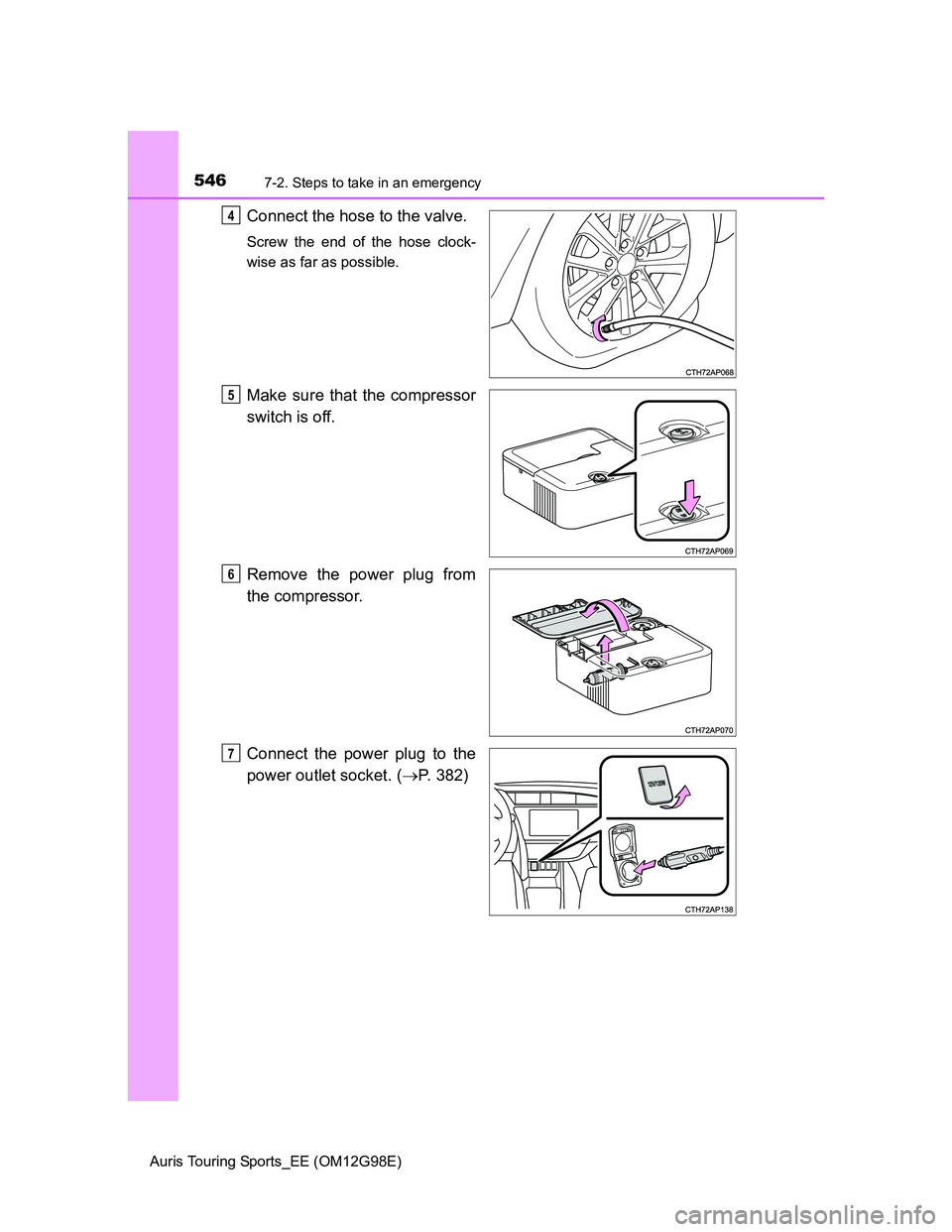

Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (P. 382)
4
5
6
7

5477-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises

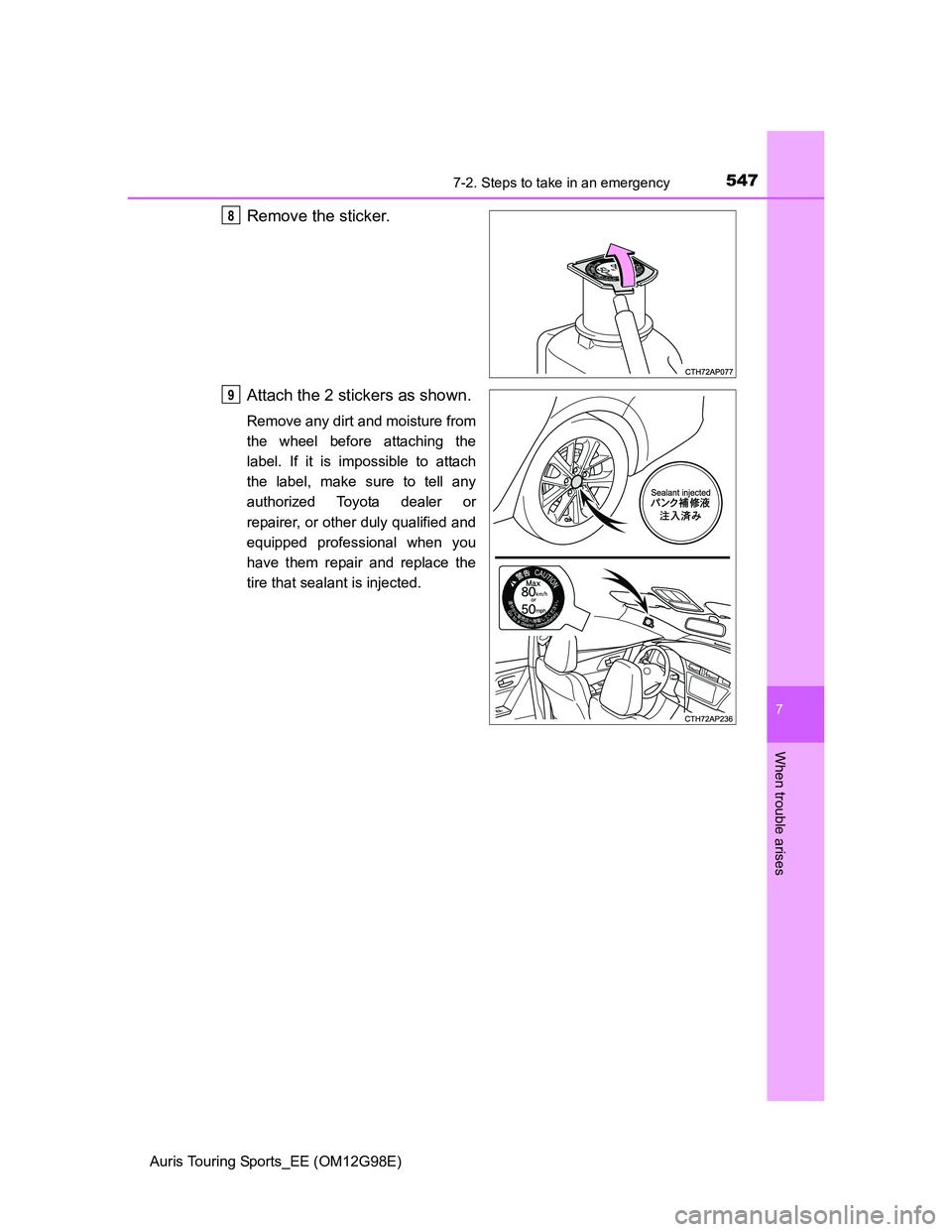

Remove the sticker.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
8
9

5487-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)

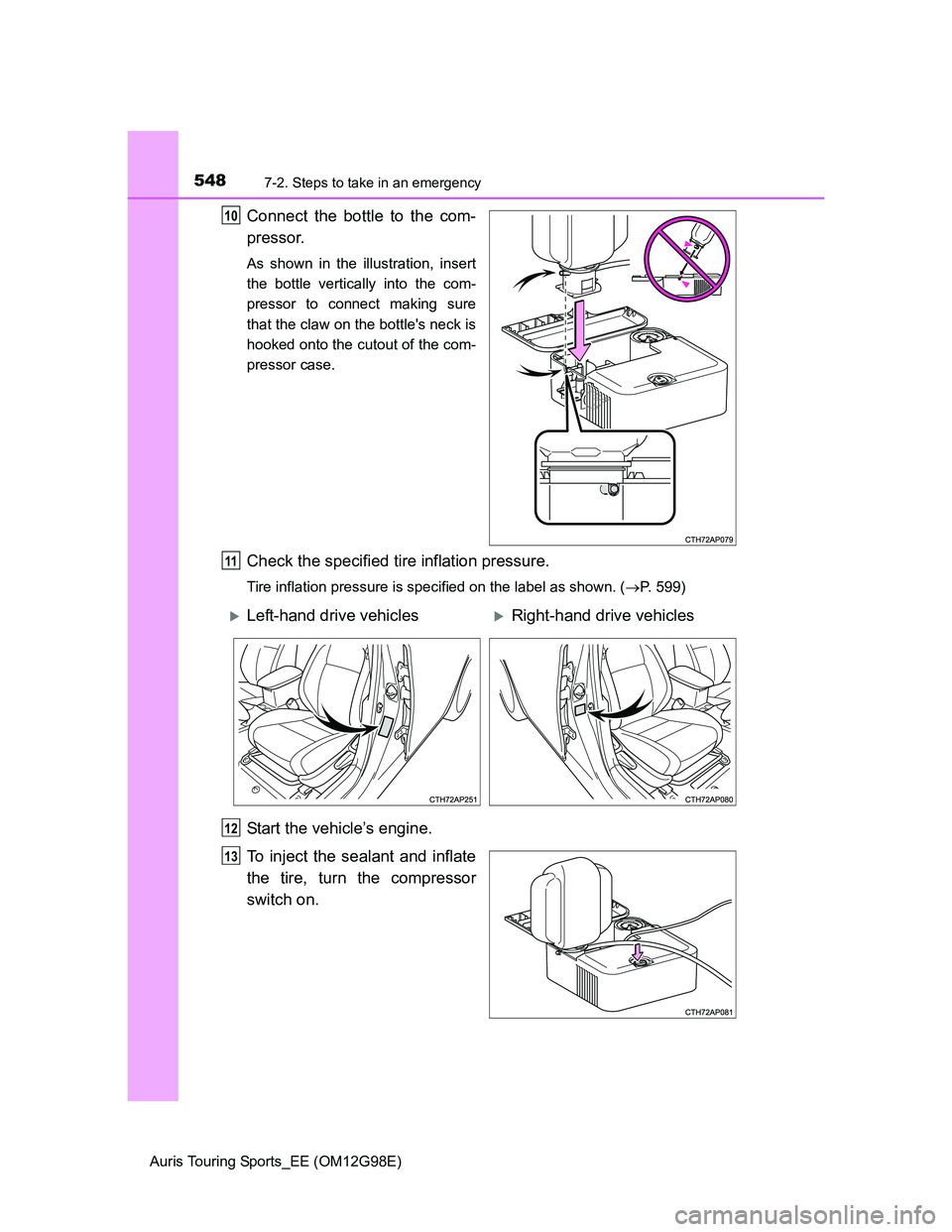

Connect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle vertically into the com-
pressor to connect making sure
that the claw on the bottle's neck is
hooked onto the cutout of the com-
pressor case.
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 599)
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
10
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

5497-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises

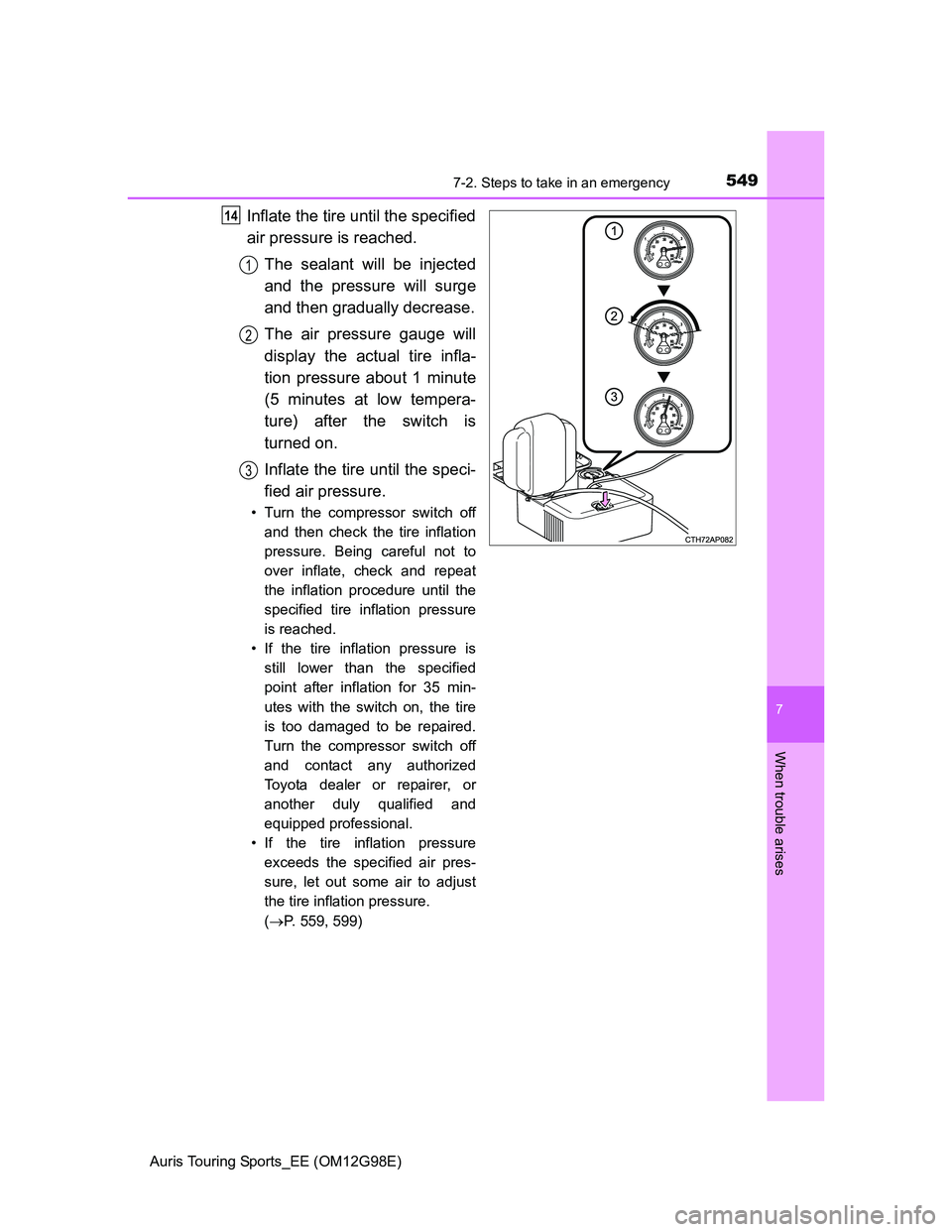

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• Turn the compressor switch off
and then check the tire inflation
pressure. Being careful not to
over inflate, check and repeat
the inflation procedure until the
specified tire inflation pressure
is reached.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure
exceeds the specified air pres-
sure, let out some air to adjust
the tire inflation pressure.
(P. 559, 599)
14
1
2
3

5507-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)

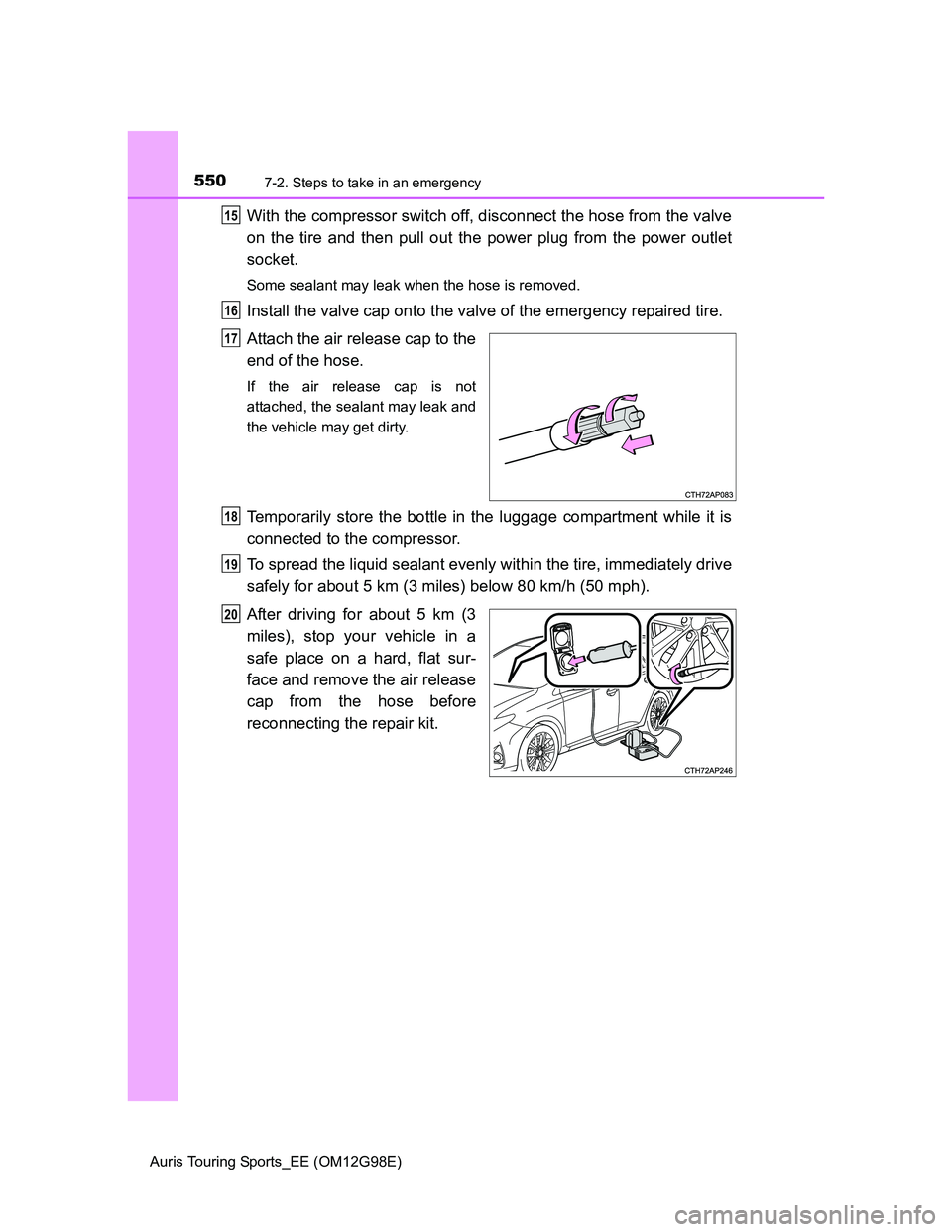

With the compressor switch off, disconnect the hose from the valve
on the tire and then pull out the power plug from the power outlet
socket.
Some sealant may leak when the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
Attach the air release cap to the
end of the hose.
If the air release cap is not
attached, the sealant may leak and
the vehicle may get dirty.
Temporarily store the bottle in the luggage compartment while it is
connected to the compressor.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in a
safe place on a hard, flat sur-
face and remove the air release
cap from the hose before
reconnecting the repair kit.
15
16
17
18
19
20
