5817-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
transmission), and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
When it is difficult to free the vehicle

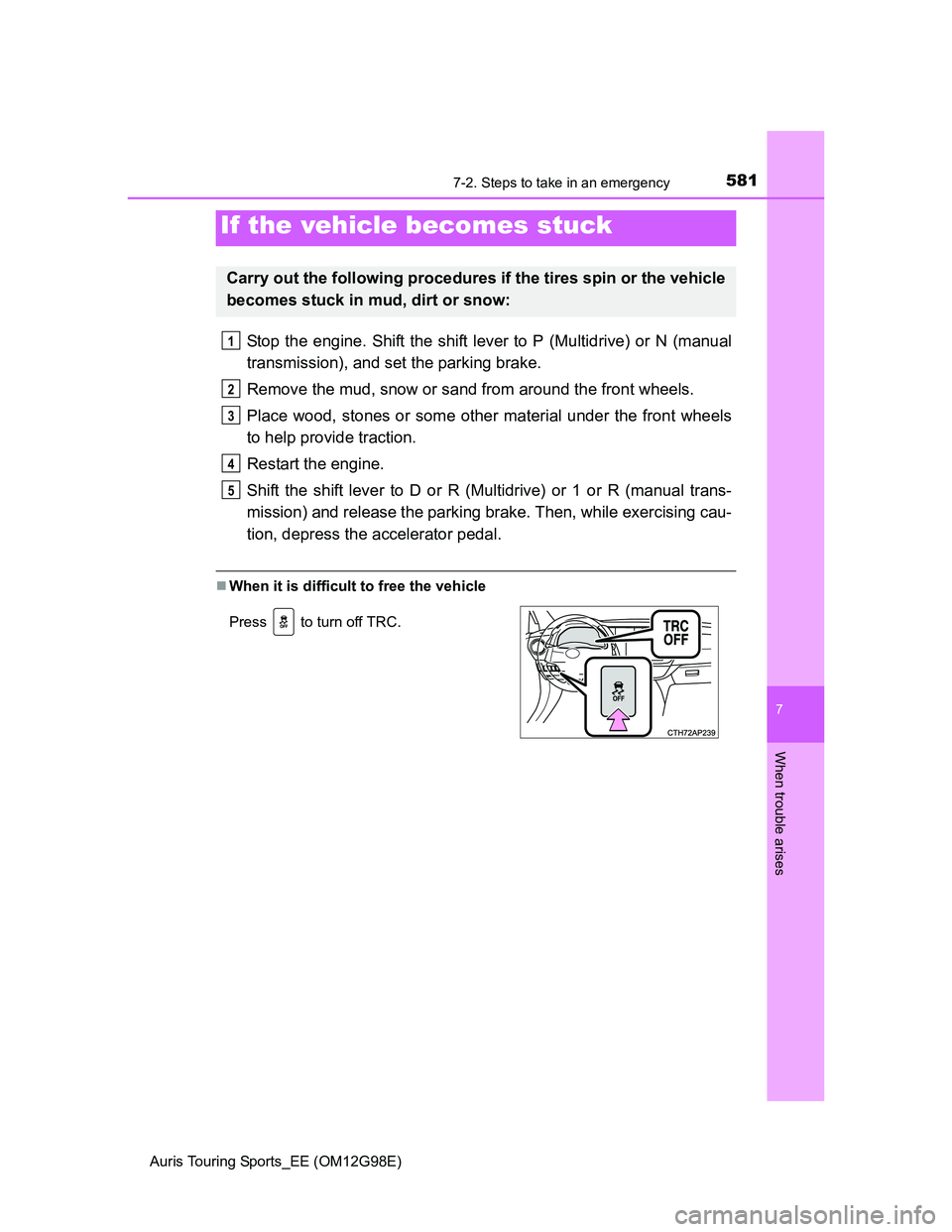

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

5827-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)

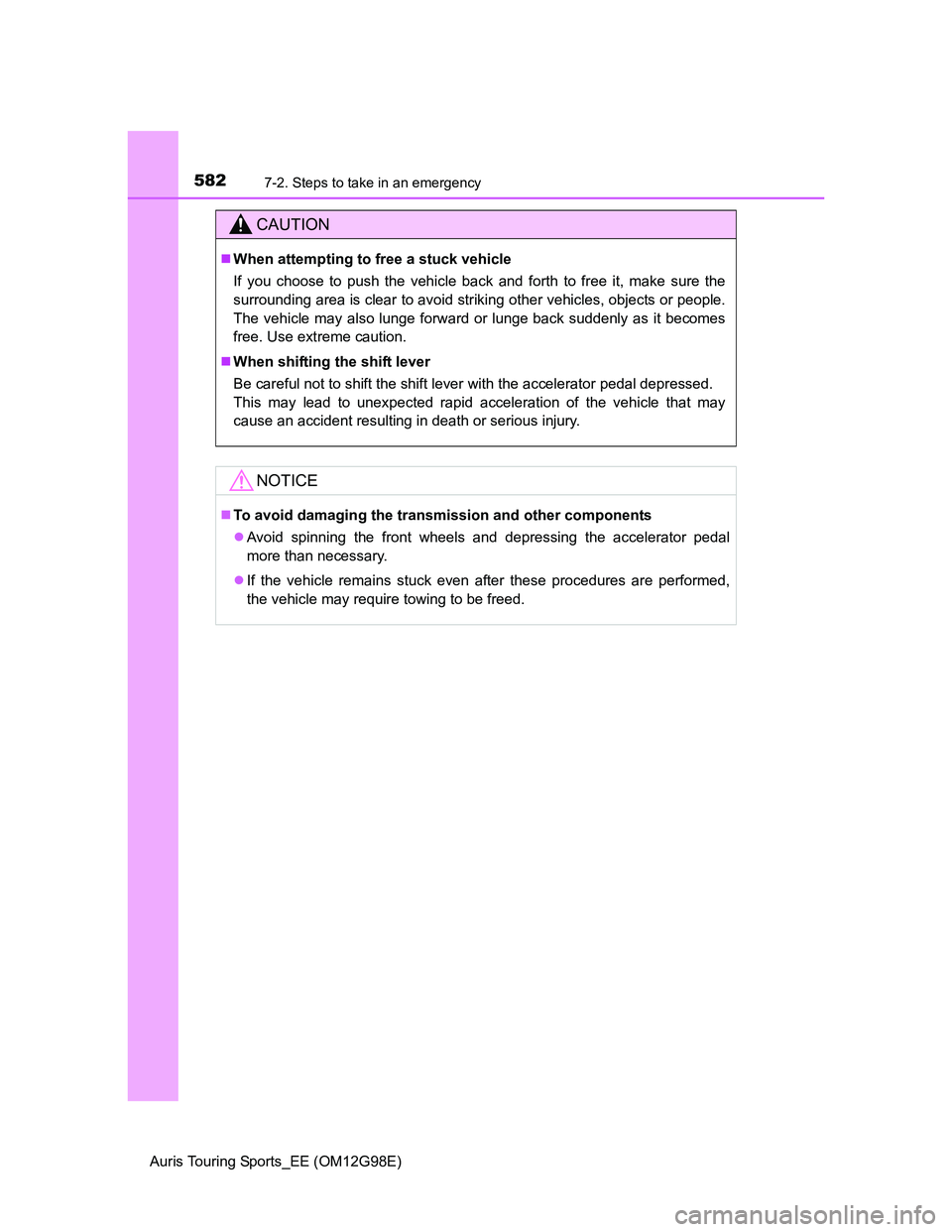

CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

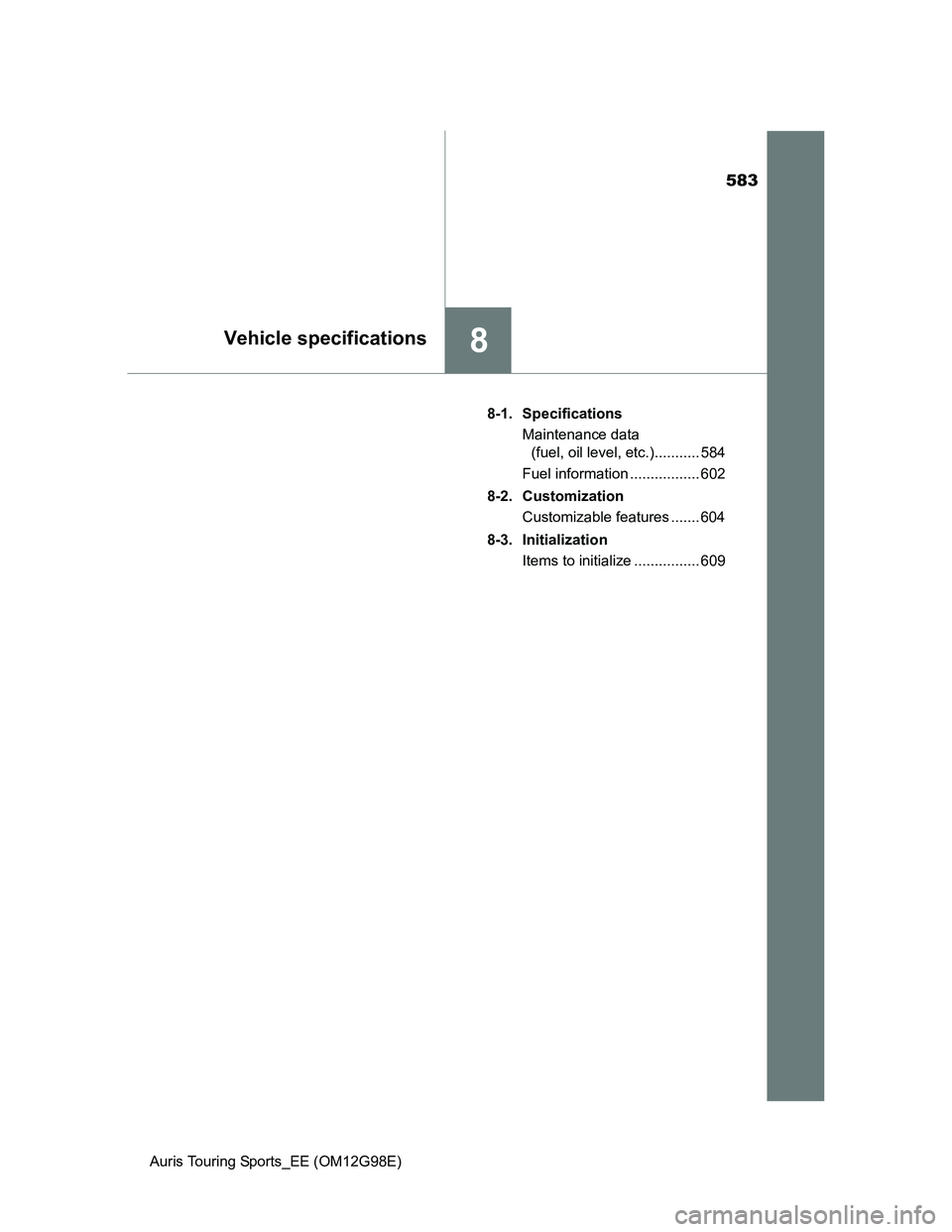

583
8Vehicle specifications
Auris Touring Sports_EE (OM12G98E)8-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 584
Fuel information ................. 602
8-2. Customization
Customizable features ....... 604
8-3. Initialization
Items to initialize ................ 609

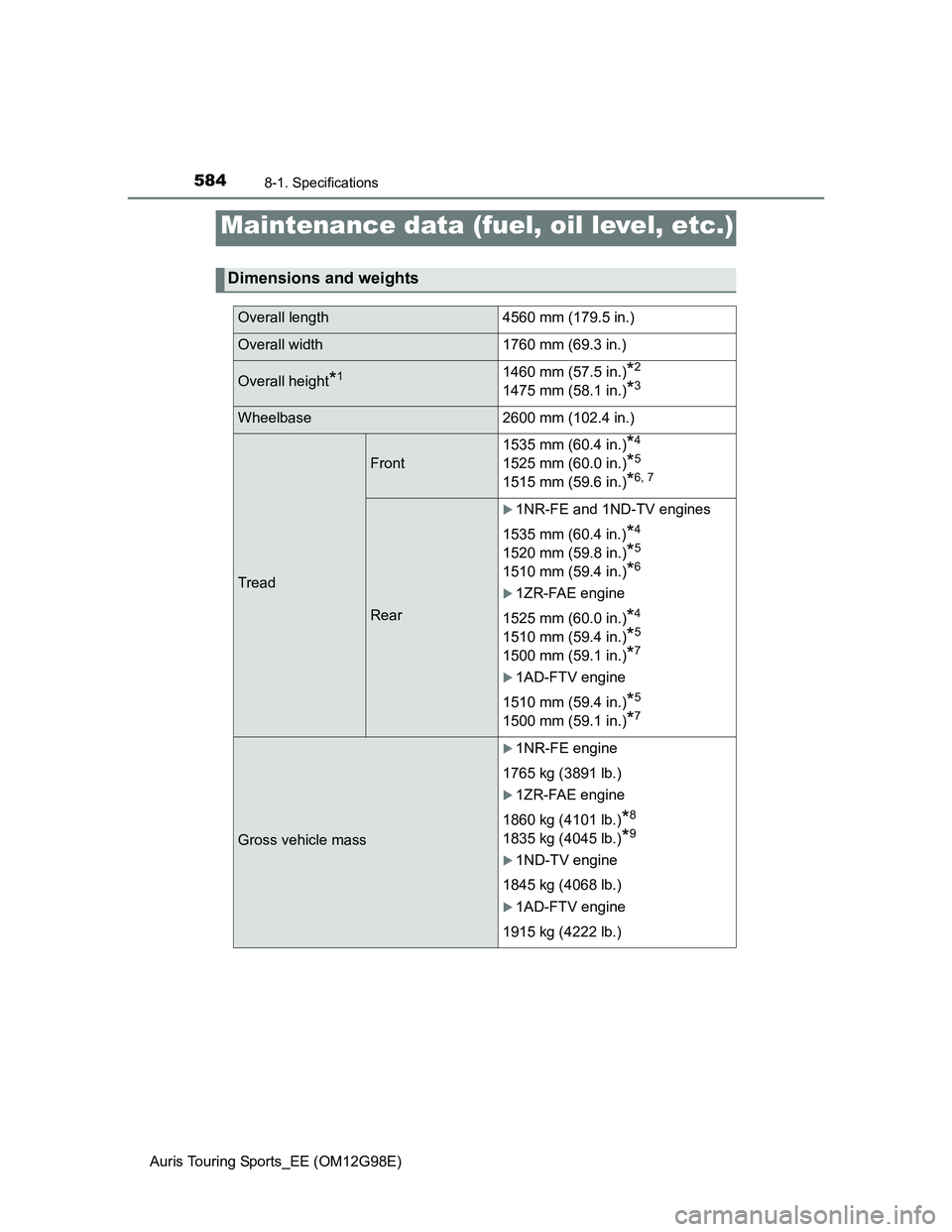

584
Auris Touring Sports_EE (OM12G98E)
8-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4560 mm (179.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)*2
1475 mm (58.1 in.)
*3
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*4
1525 mm (60.0 in.)*5
1515 mm (59.6 in.)*6, 7
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*4
1520 mm (59.8 in.)*5
1510 mm (59.4 in.)*6
1ZR-FAE engine
1525 mm (60.0 in.)
*4
1510 mm (59.4 in.)*5
1500 mm (59.1 in.)*7
1AD-FTV engine
1510 mm (59.4 in.)
*5
1500 mm (59.1 in.)*7
Gross vehicle mass
1NR-FE engine
1765 kg (3891 lb.)
1ZR-FAE engine
1860 kg (4101 lb.)
*8
1835 kg (4045 lb.)*9
1ND-TV engine
1845 kg (4068 lb.)
1AD-FTV engine
1915 kg (4222 lb.)

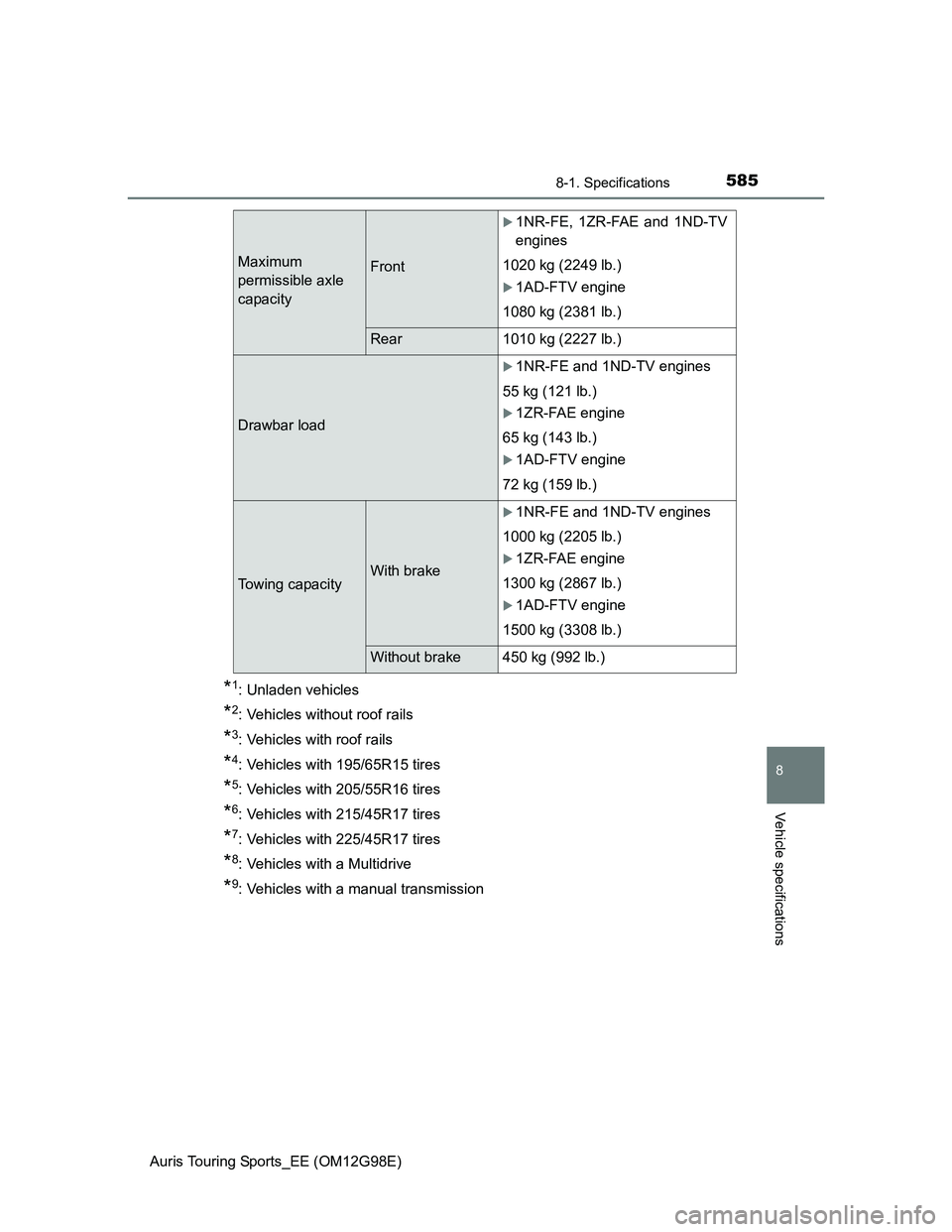

5858-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles without roof rails
*3: Vehicles with roof rails
*4: Vehicles with 195/65R15 tires
*5: Vehicles with 205/55R16 tires
*6: Vehicles with 215/45R17 tires
*7: Vehicles with 225/45R17 tires
*8: Vehicles with a Multidrive
*9: Vehicles with a manual transmission
Maximum
permissible axle
capacityFront
1NR-FE, 1ZR-FAE and 1ND-TV
engines
1020 kg (2249 lb.)
1AD-FTV engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
1ZR-FAE engine
65 kg (143 lb.)
1AD-FTV engine
72 kg (159 lb.)
Towing capacityWith brake
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
1ZR-FAE engine
1300 kg (2867 lb.)
1AD-FTV engine
1500 kg (3308 lb.)
Without brake 450 kg (992 lb.)

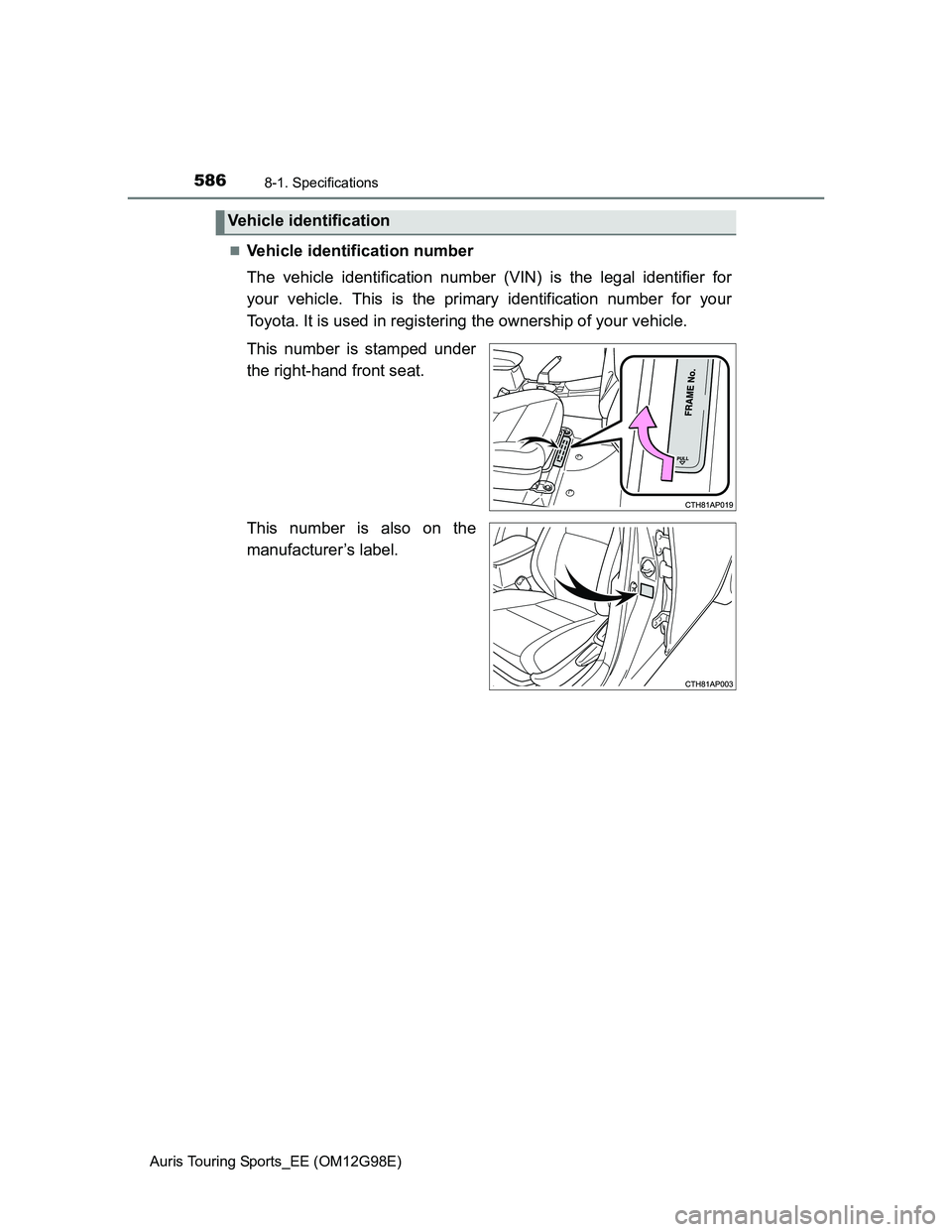

5868-1. Specifications
Auris Touring Sports_EE (OM12G98E)
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

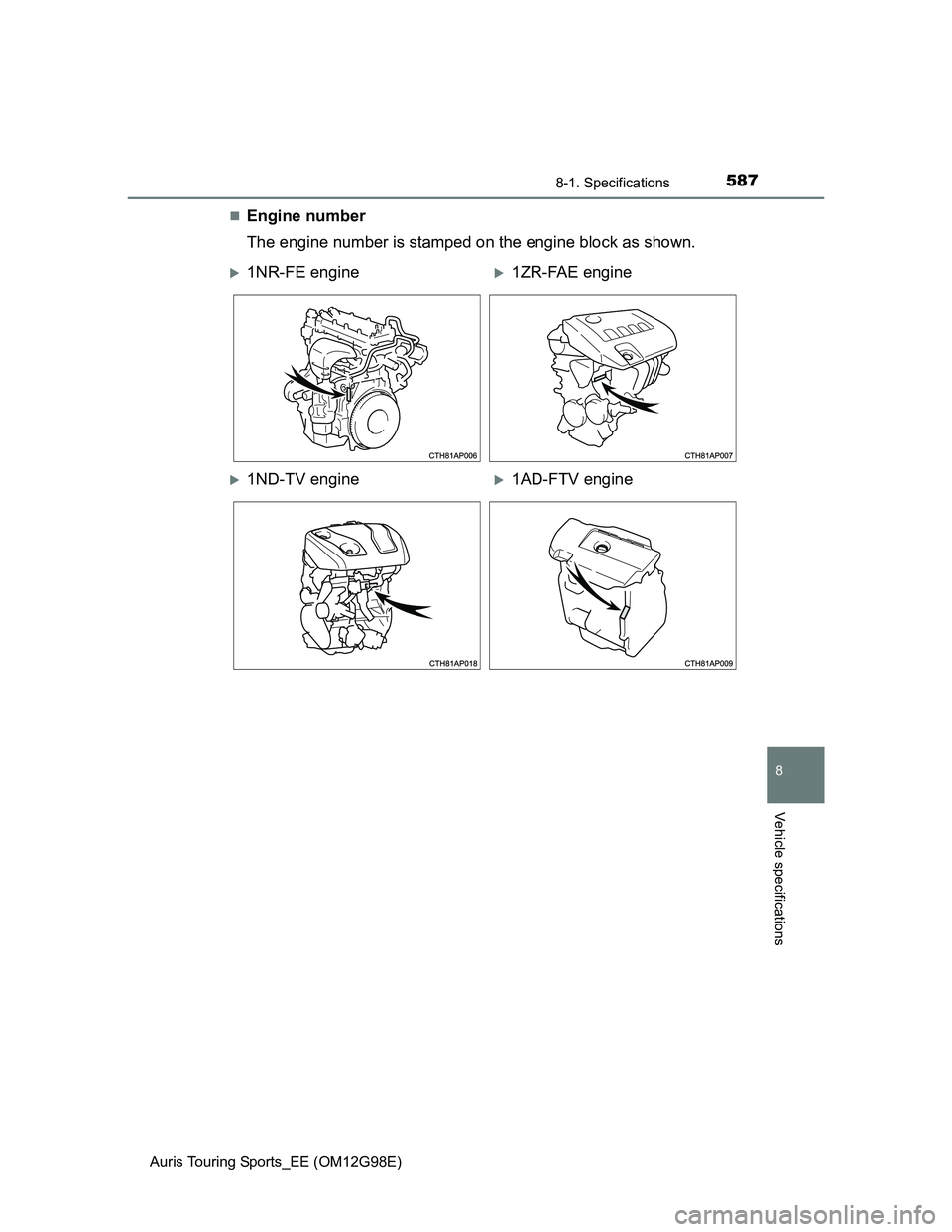

5878-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
Engine number
The engine number is stamped on the engine block as shown.
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine

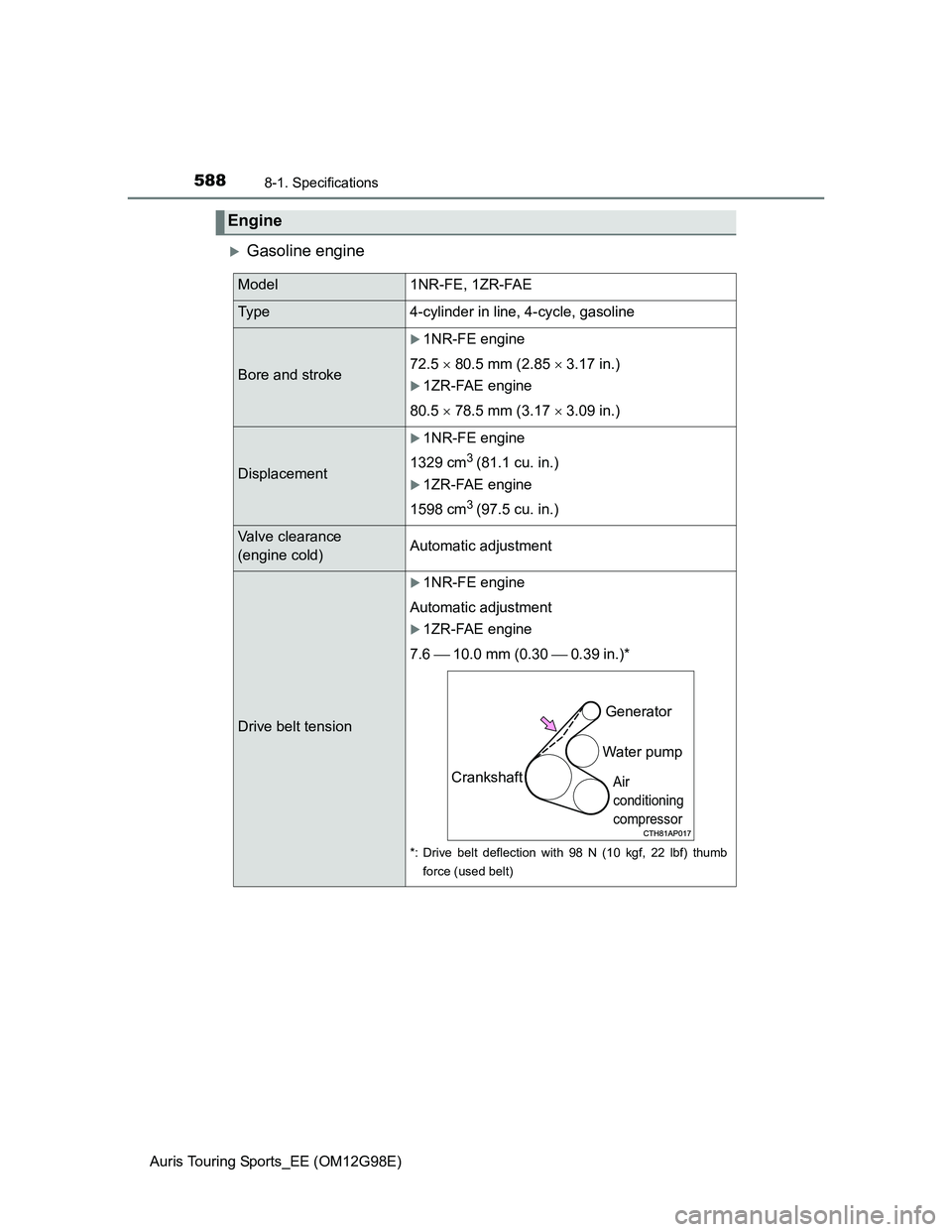

5888-1. Specifications
Auris Touring Sports_EE (OM12G98E)
Gasoline engine
Engine
Model1NR-FE, 1ZR-FAE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
Displacement
1NR-FE engine
1329 cm
3 (81.1 cu. in.)
1ZR-FAE engine
1598 cm
3 (97.5 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft

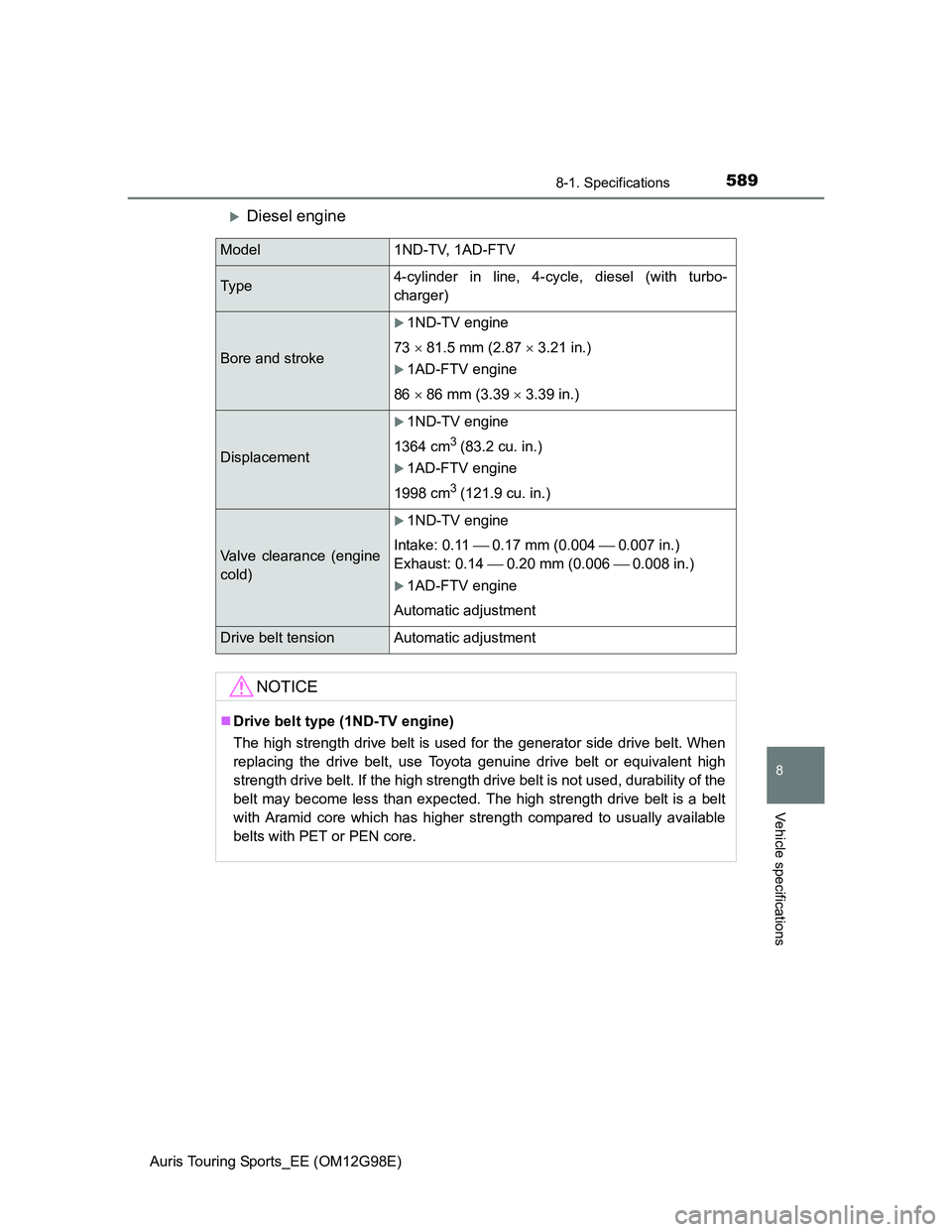

5898-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
Diesel engine
Model 1ND-TV, 1AD-FTV
Ty p e4-cylinder in line, 4-cycle, diesel (with turbo-
charger)
Bore and stroke
1ND-TV engine
73  81.5 mm (2.87  3.21 in.)
1AD-FTV engine
86  86 mm (3.39  3.39 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu. in.)
1AD-FTV engine
1998 cm
3 (121.9 cu. in.)
Valve clearance (engine
cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1AD-FTV engine
Automatic adjustment
Drive belt tension Automatic adjustment
NOTICE
Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

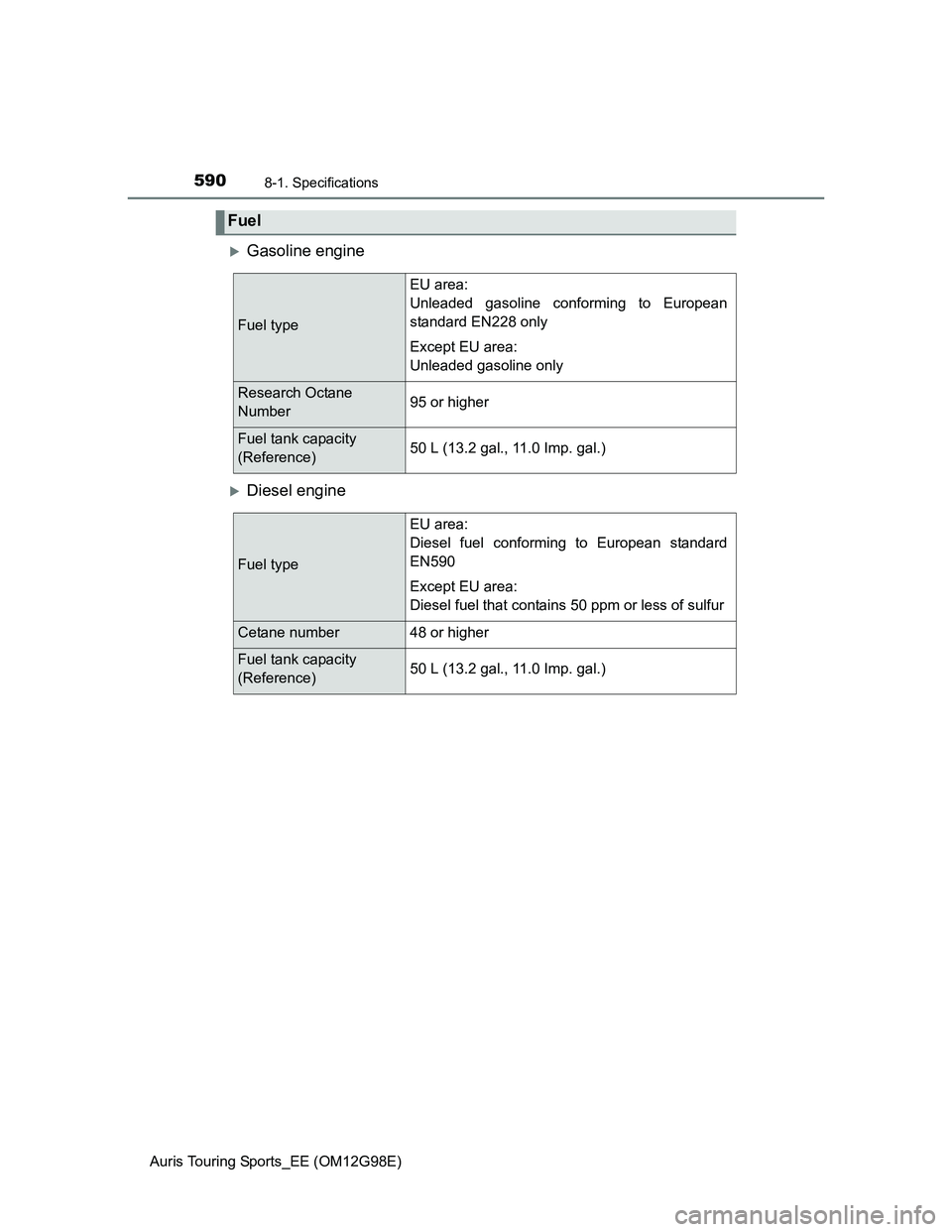

5908-1. Specifications
Auris Touring Sports_EE (OM12G98E)
Gasoline engine
Diesel engine
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
