TOYOTA AURIS TOURING SPORTS 2014 Owners Manual

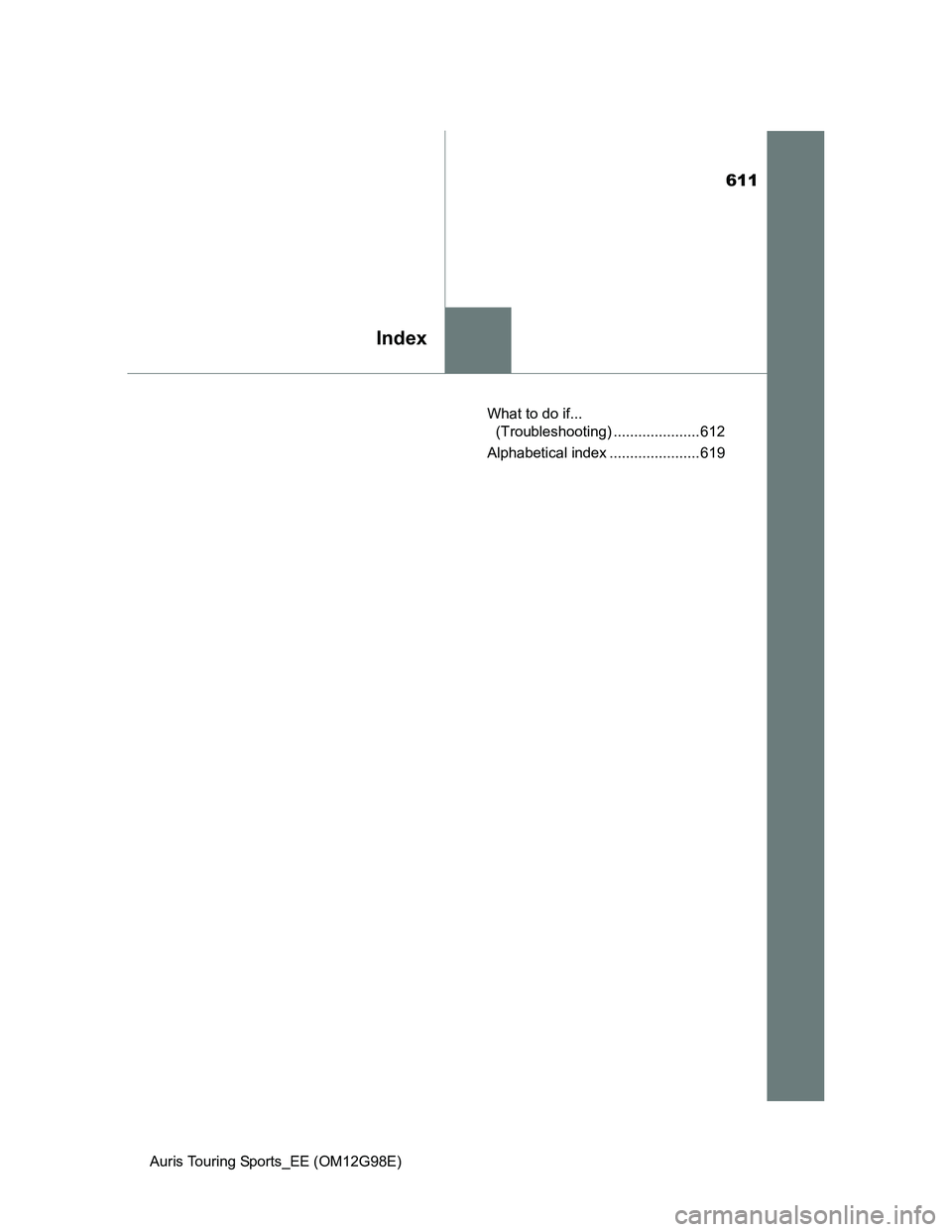

611
Index
Auris Touring Sports_EE (OM12G98E)What to do if...
(Troubleshooting) ..................... 612
Alphabetical index ...................... 619

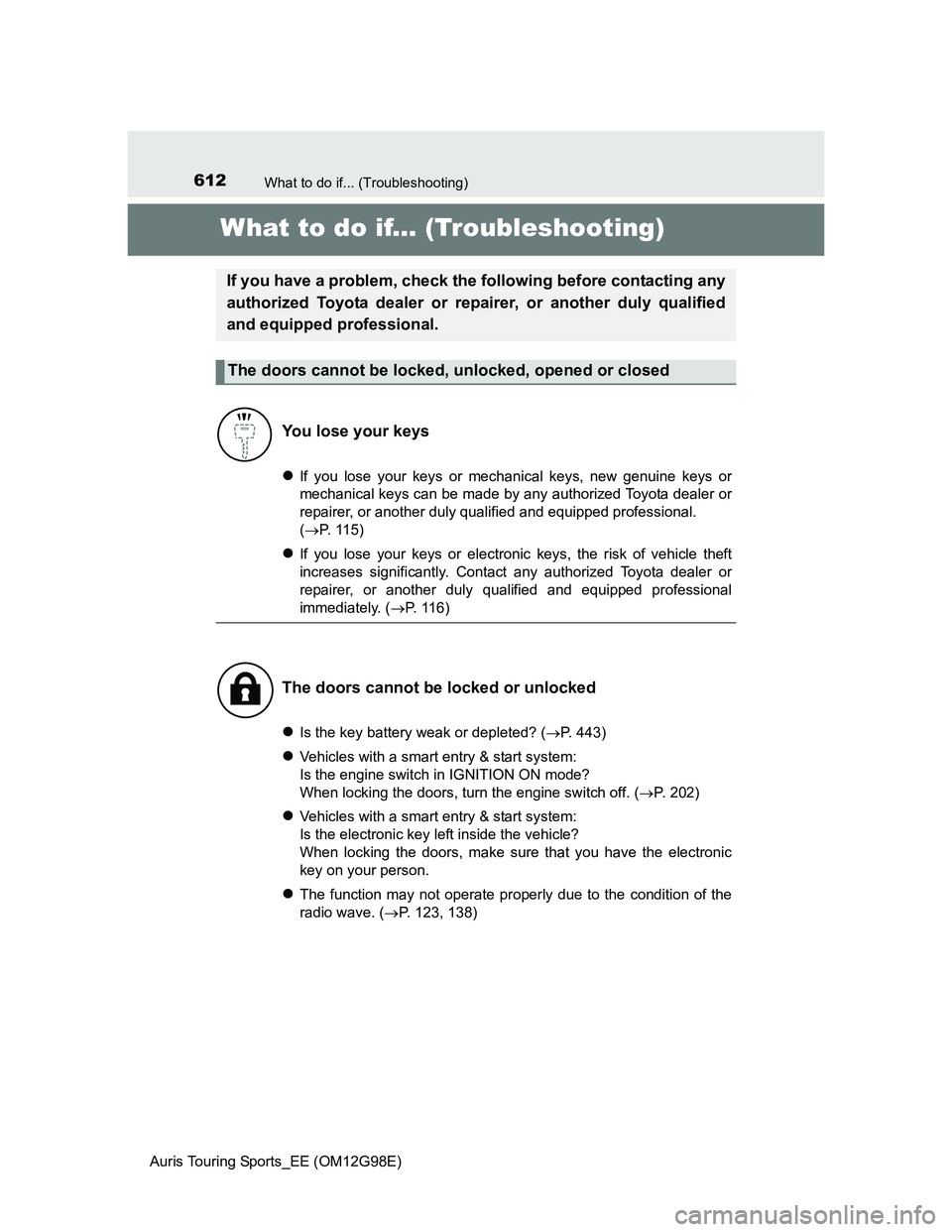

612
Auris Touring Sports_EE (OM12G98E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you lose your keys or mechanical keys, new genuine keys or
mechanical keys can be made by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
(P. 115)
If you lose your keys or electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately. (P. 116)
Is the key battery weak or depleted? (P. 443)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 202)
Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic
key on your person.
The function may not operate properly due to the condition of the
radio wave. (P. 123, 138)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

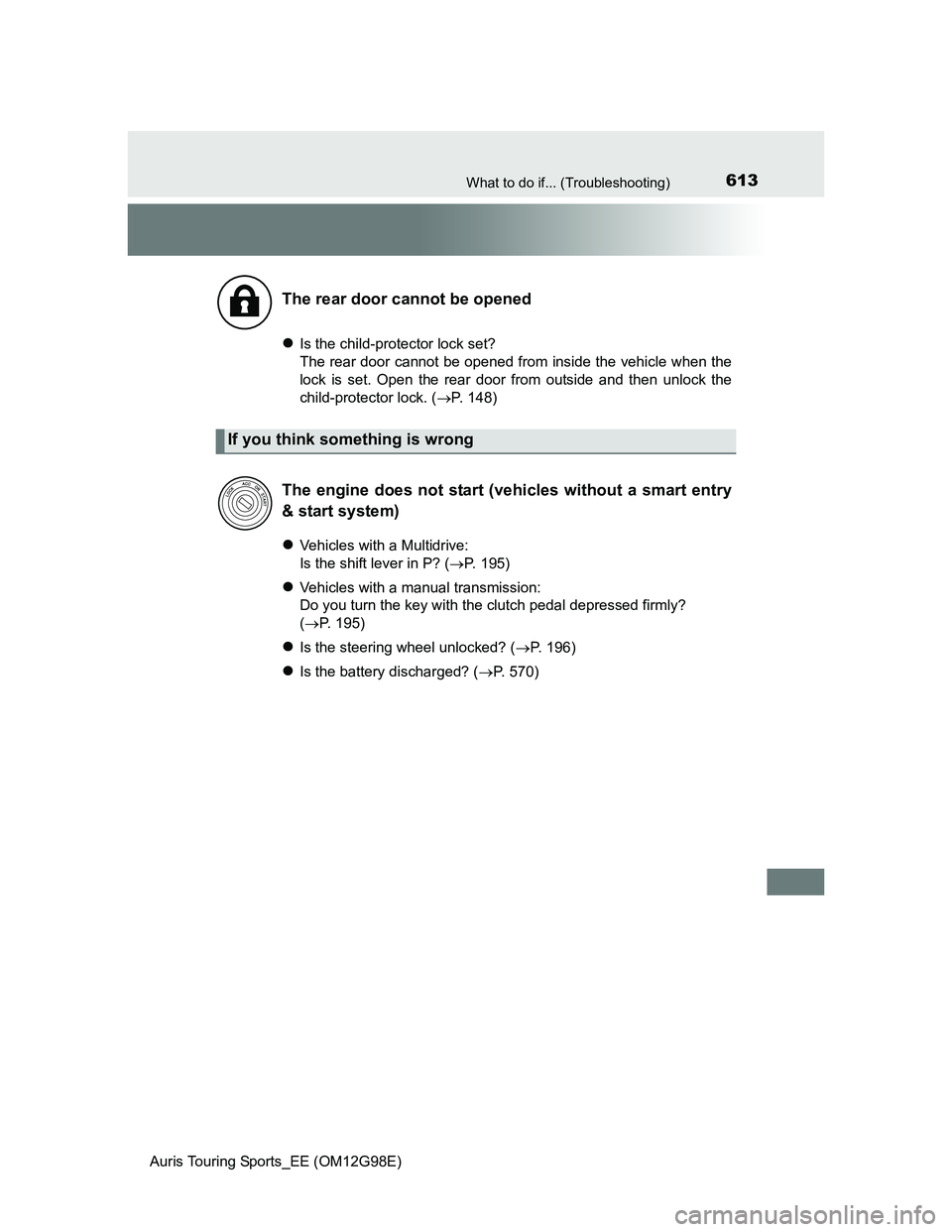

613What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 148)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 195)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 195)
Is the steering wheel unlocked? (P. 196)
Is the battery discharged? (P. 570)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without a smart entry
& start system)

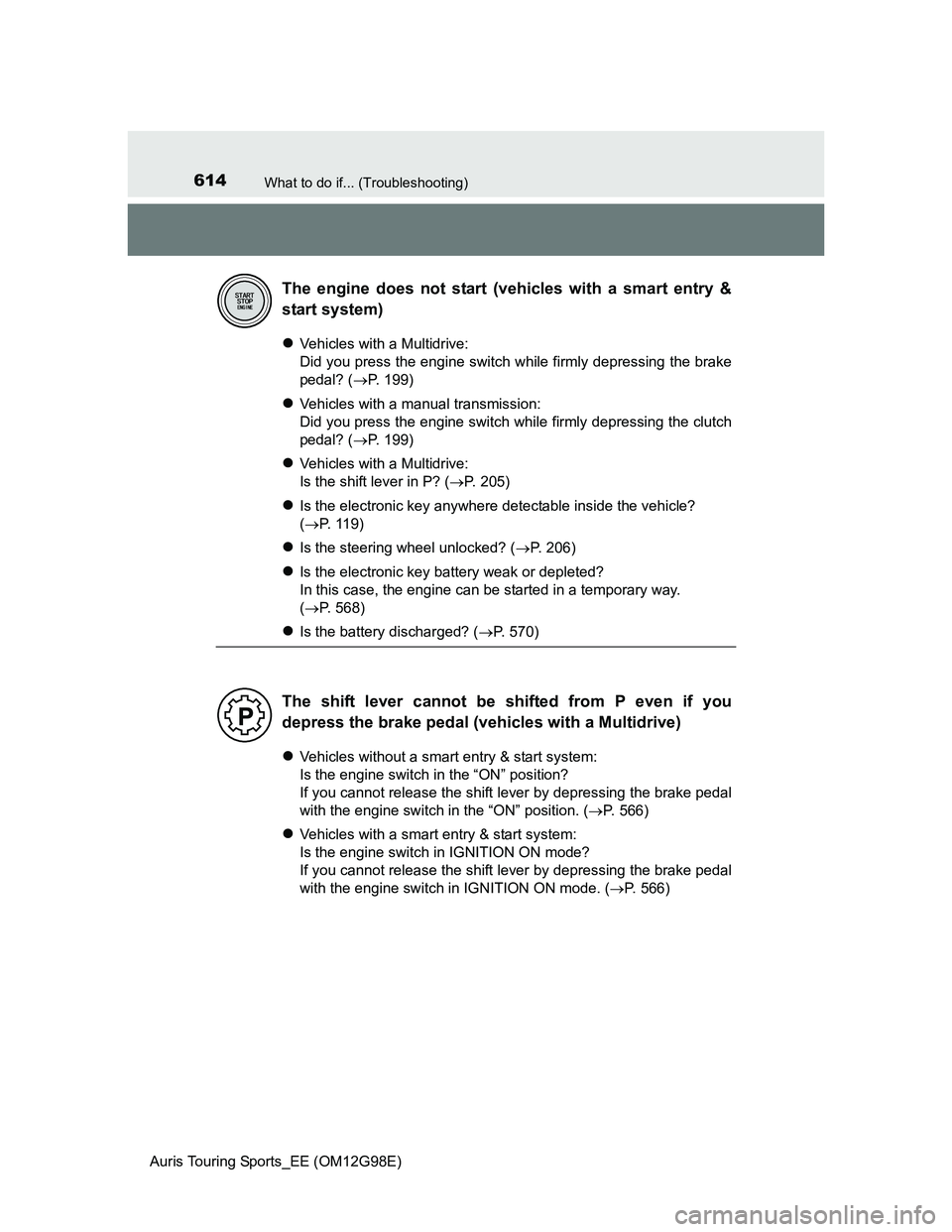

614What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
Vehicles with a Multidrive:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 199)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 199)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 205)
Is the electronic key anywhere detectable inside the vehicle?
(P. 119)
Is the steering wheel unlocked? (P. 206)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 568)
Is the battery discharged? (P. 570)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 566)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 566)
The engine does not start (vehicles with a smart entry &
start system)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a Multidrive)

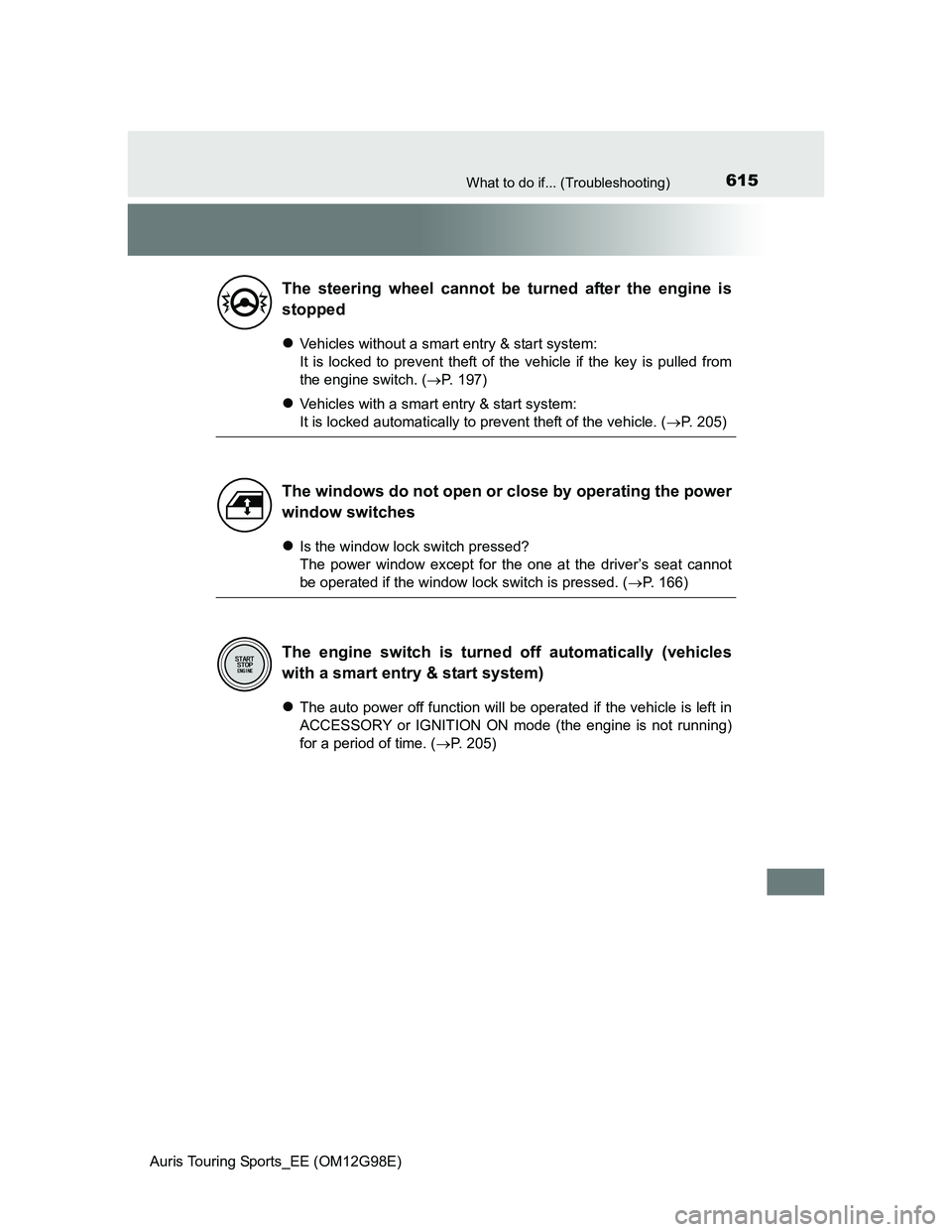

615What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 197)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 205)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 166)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 205)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically (vehicles
with a smart entry & start system)

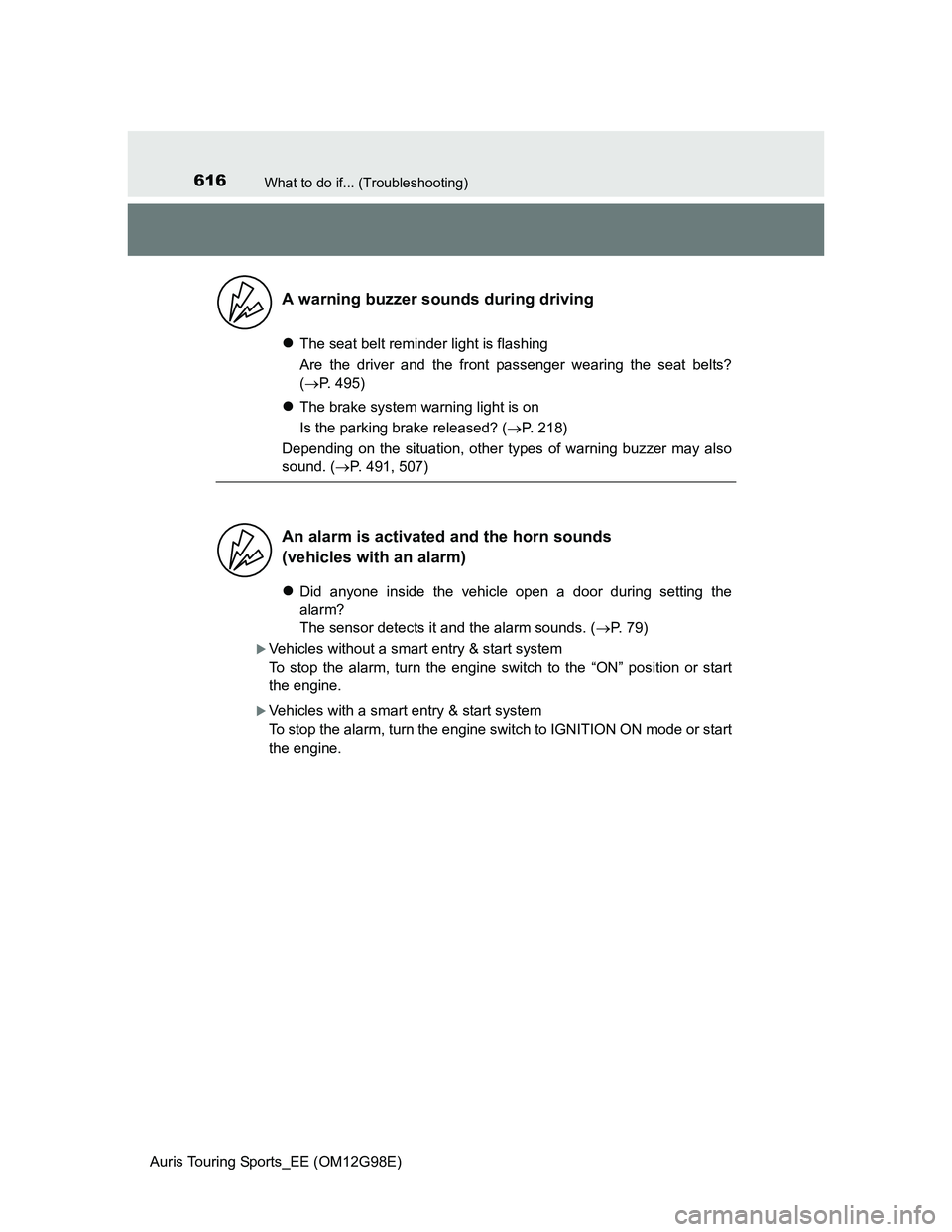

616What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 495)
The brake system warning light is on
Is the parking brake released? (P. 218)
Depending on the situation, other types of warning buzzer may also
sound. (P. 491, 507)

Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. (P. 79)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)

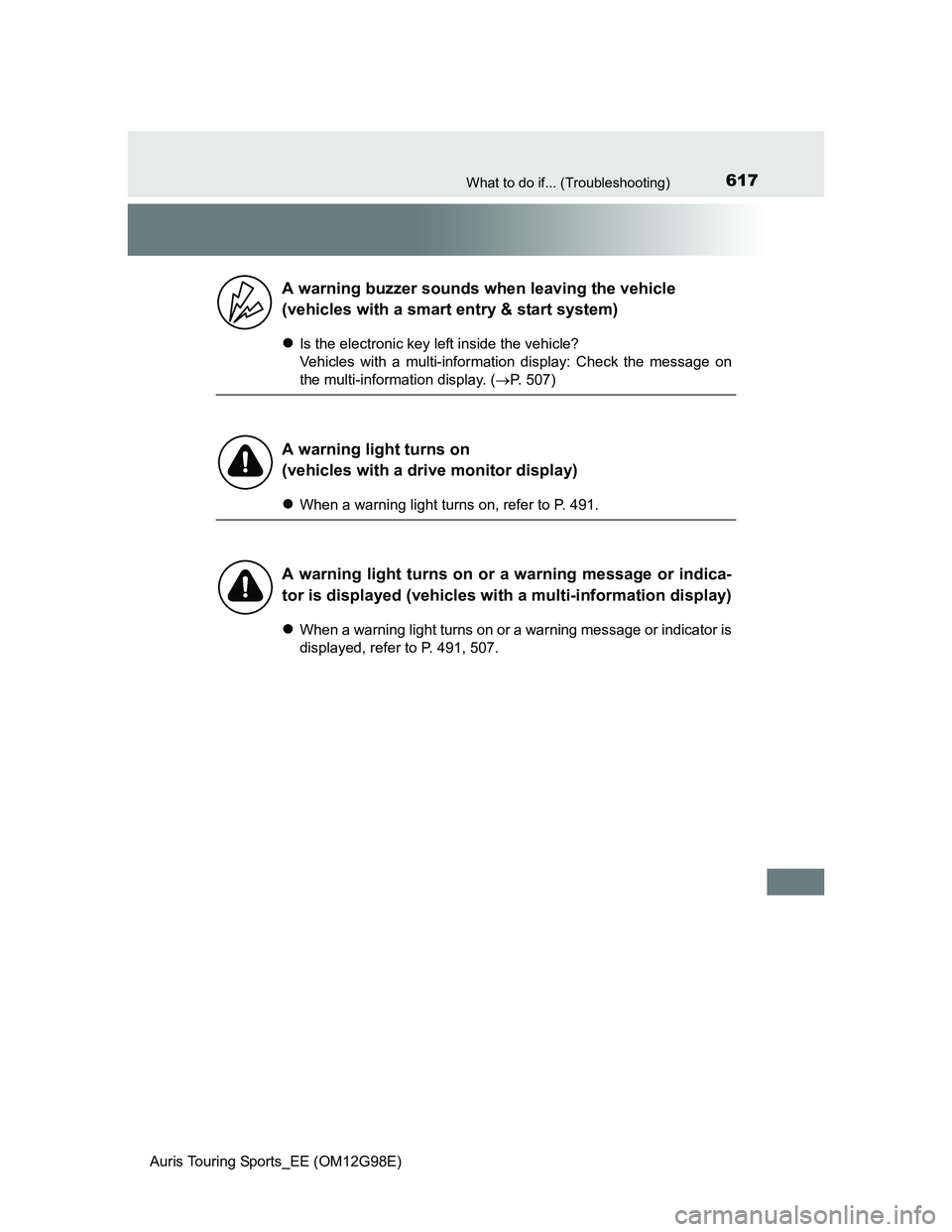

617What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 507)
When a warning light turns on, refer to P. 491.
When a warning light turns on or a warning message or indicator is
displayed, refer to P. 491, 507.
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)
A warning light turns on or a warning message or indica-
tor is displayed (vehicles with a multi-information display)

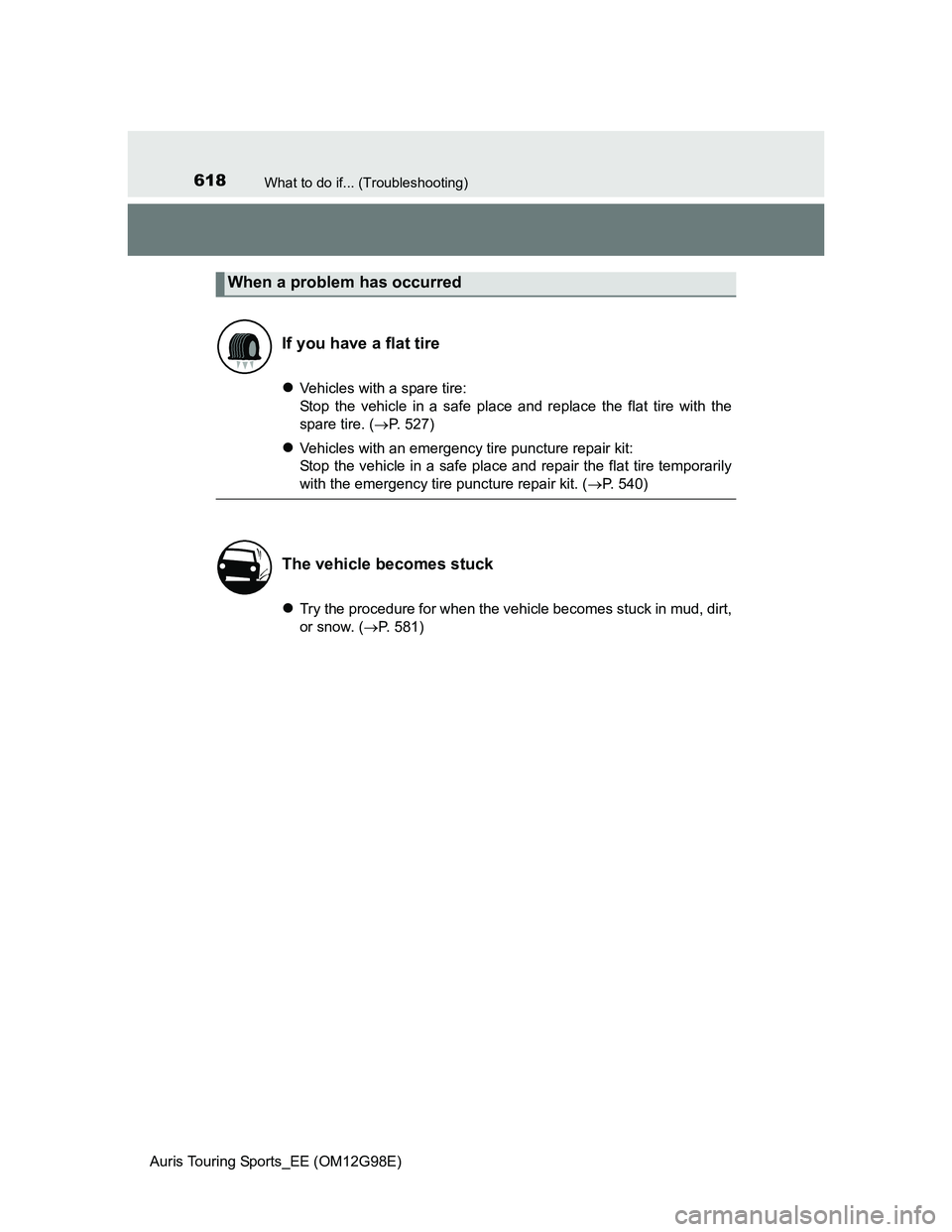

618What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the
spare tire. (P. 527)
Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily
with the emergency tire puncture repair kit. (P. 540)
Try the procedure for when the vehicle becomes stuck in mud, dirt,
or snow. (P. 581)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

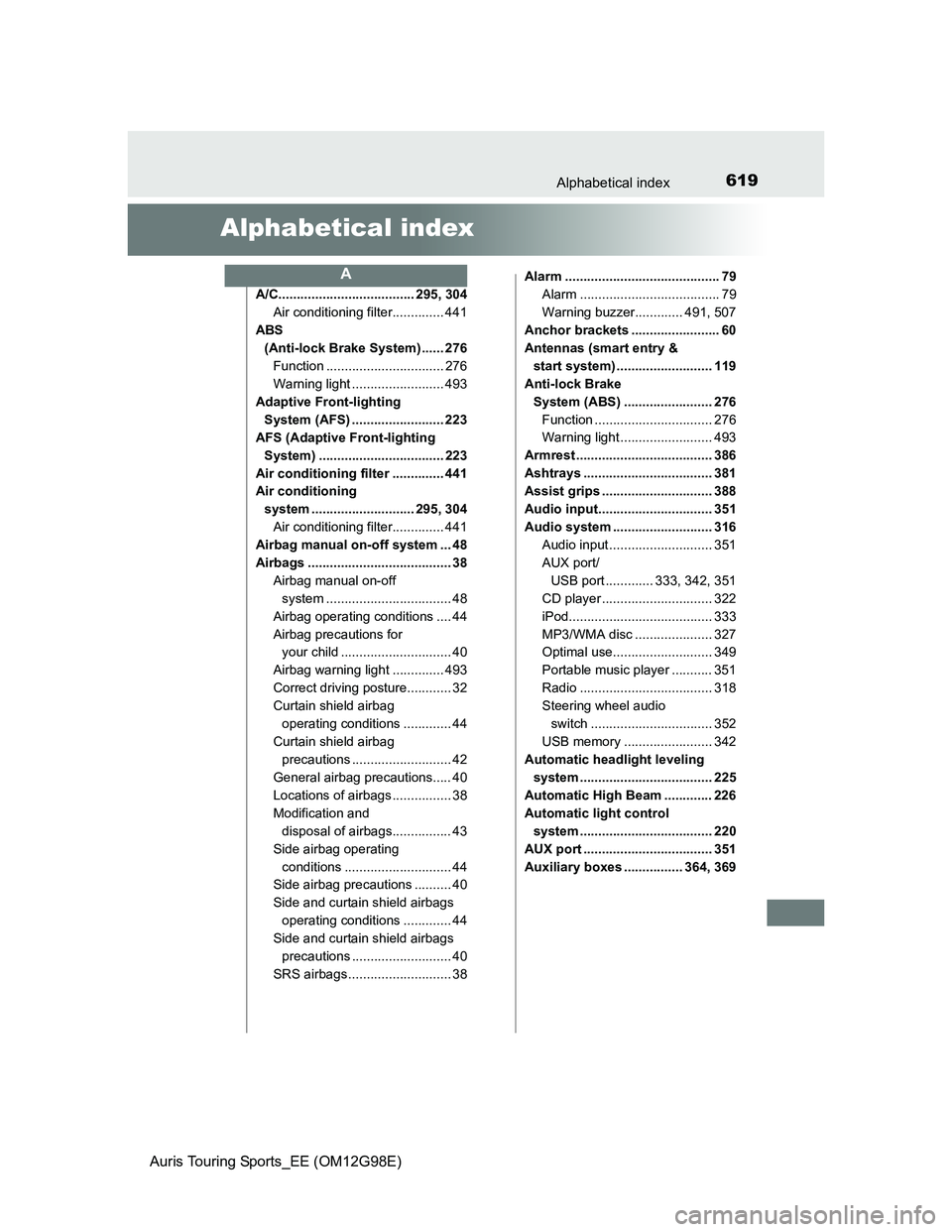

619
Auris Touring Sports_EE (OM12G98E)
Alphabetical index
Alphabetical index
A/C..................................... 295, 304
Air conditioning filter.............. 441
ABS
(Anti-lock Brake System) ...... 276
Function ................................ 276
Warning light ......................... 493
Adaptive Front-lighting
System (AFS) ......................... 223
AFS (Adaptive Front-lighting
System) .................................. 223
Air conditioning filter .............. 441
Air conditioning
system ............................ 295, 304
Air conditioning filter.............. 441
Airbag manual on-off system ... 48
Airbags ....................................... 38
Airbag manual on-off
system .................................. 48
Airbag operating conditions .... 44
Airbag precautions for
your child .............................. 40
Airbag warning light .............. 493
Correct driving posture............ 32
Curtain shield airbag
operating conditions ............. 44
Curtain shield airbag
precautions ........................... 42
General airbag precautions..... 40
Locations of airbags ................ 38
Modification and
disposal of airbags................ 43
Side airbag operating
conditions ............................. 44
Side airbag precautions .......... 40
Side and curtain shield airbags
operating conditions ............. 44
Side and curtain shield airbags
precautions ........................... 40
SRS airbags ............................ 38Alarm .......................................... 79
Alarm ...................................... 79
Warning buzzer............. 491, 507
Anchor brackets ........................ 60
Antennas (smart entry &
start system) .......................... 119
Anti-lock Brake
System (ABS) ........................ 276
Function ................................ 276
Warning light ......................... 493
Armrest ..................................... 386
Ashtrays ................................... 381
Assist grips .............................. 388
Audio input............................... 351
Audio system ........................... 316
Audio input ............................ 351
AUX port/
USB port ............. 333, 342, 351
CD player .............................. 322
iPod....................................... 333
MP3/WMA disc ..................... 327
Optimal use........................... 349
Portable music player ........... 351
Radio .................................... 318
Steering wheel audio
switch ................................. 352
USB memory ........................ 342
Automatic headlight leveling
system .................................... 225
Automatic High Beam ............. 226
Automatic light control
system .................................... 220
AUX port ................................... 351
Auxiliary boxes ................ 364, 369
A

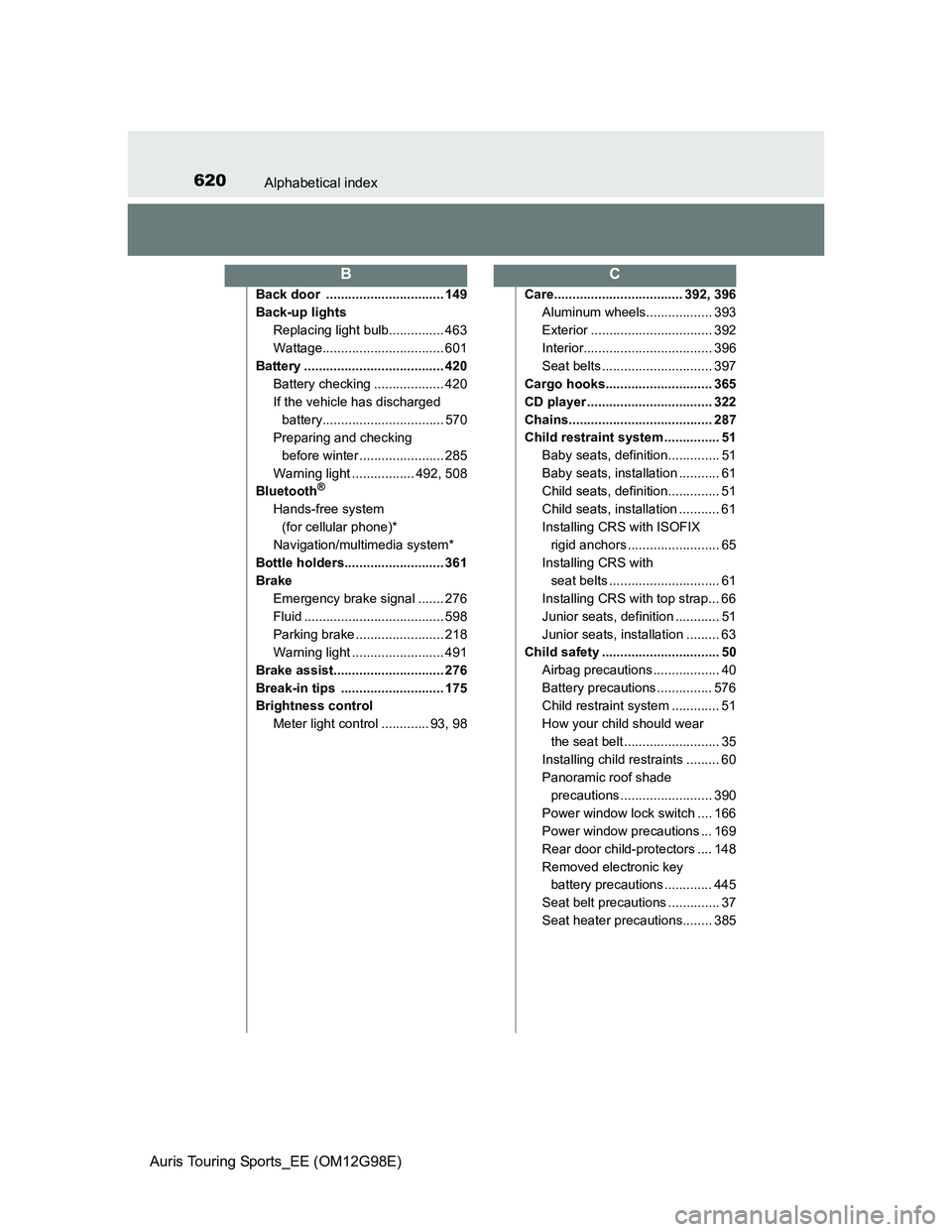

620Alphabetical index
Auris Touring Sports_EE (OM12G98E)
Back door ................................ 149
Back-up lights
Replacing light bulb............... 463
Wattage................................. 601
Battery ...................................... 420
Battery checking ................... 420
If the vehicle has discharged
battery................................. 570
Preparing and checking
before winter ....................... 285
Warning light ................. 492, 508
Bluetooth
®
Hands-free system
(for cellular phone)*
Navigation/multimedia system*
Bottle holders........................... 361
Brake
Emergency brake signal ....... 276
Fluid ...................................... 598
Parking brake ........................ 218
Warning light ......................... 491
Brake assist.............................. 276
Break-in tips ............................ 175
Brightness control
Meter light control ............. 93, 98Care................................... 392, 396
Aluminum wheels.................. 393
Exterior ................................. 392
Interior................................... 396
Seat belts .............................. 397
Cargo hooks............................. 365
CD player .................................. 322
Chains....................................... 287
Child restraint system ............... 51
Baby seats, definition.............. 51
Baby seats, installation ........... 61
Child seats, definition.............. 51
Child seats, installation ........... 61
Installing CRS with ISOFIX
rigid anchors ......................... 65
Installing CRS with
seat belts .............................. 61
Installing CRS with top strap... 66
Junior seats, definition ............ 51
Junior seats, installation ......... 63
Child safety ................................ 50
Airbag precautions .................. 40
Battery precautions ............... 576
Child restraint system ............. 51
How your child should wear
the seat belt .......................... 35
Installing child restraints ......... 60
Panoramic roof shade
precautions ......................... 390
Power window lock switch .... 166
Power window precautions ... 169
Rear door child-protectors .... 148
Removed electronic key
battery precautions ............. 445
Seat belt precautions .............. 37
Seat heater precautions........ 385
BC
