TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

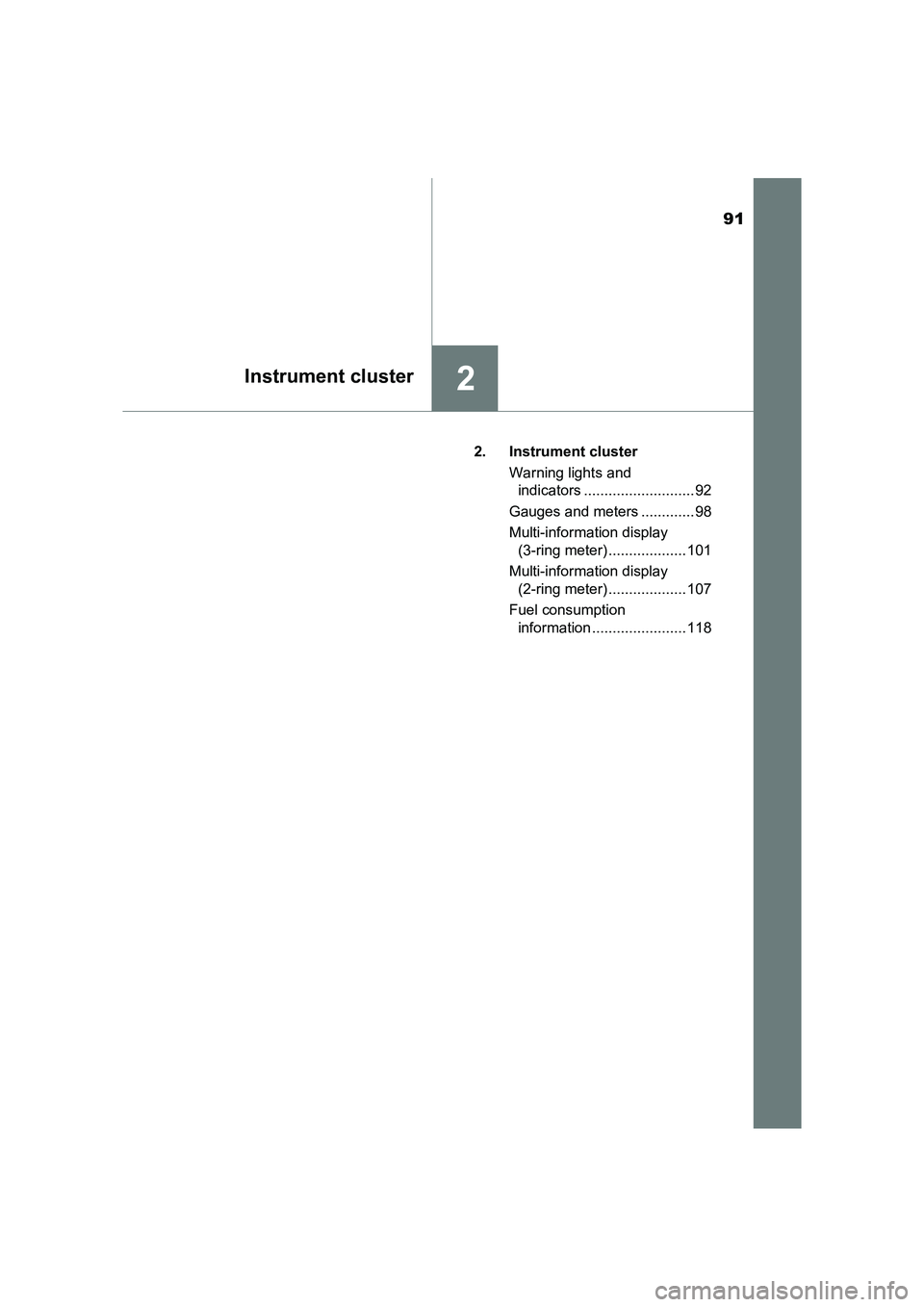

91
2Instrument cluster
AURIS Touring Sports_EE (12K53E)2. Instrument cluster
Warning lights and indicators ........................... 92
Gauges and meters ............. 98
Multi-information display (3-ring meter) ................... 101
Multi-information display (2-ring meter) ................... 107
Fuel consumption information ....................... 118

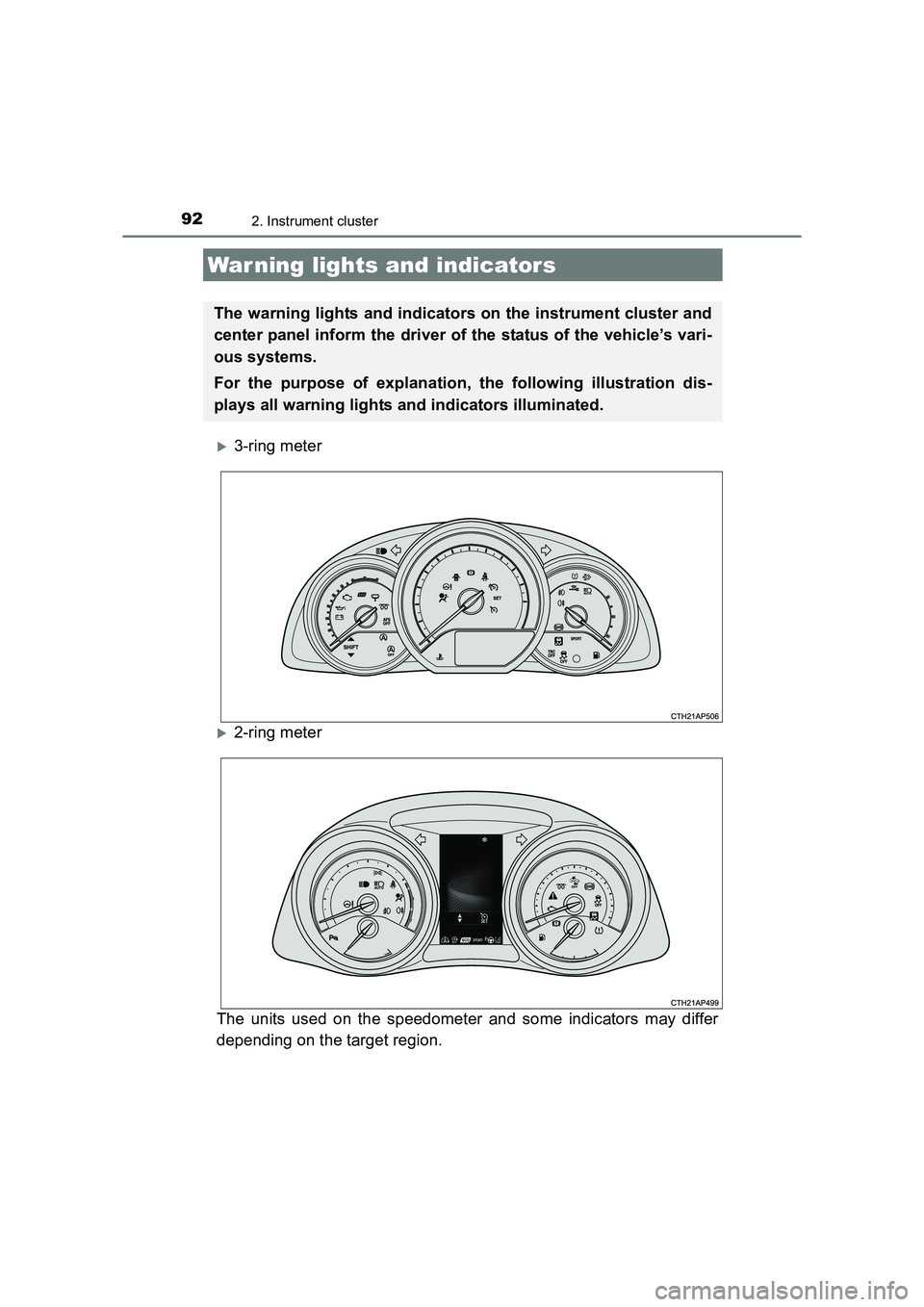

92
AURIS Touring Sports_EE (12K53E)
2. Instrument cluster
X3-ring meter
X2-ring meter
The units used on the speedometer and some indicators may differ
depending on the target region.
War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

932. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light (→P. 541)
(Yellow)
(if equipped)
Speed limiter indicator
(→ P. 542)
*1
(if equipped)
Charging system warn-
ing light ( →P. 541)*1
Slip indicator ( →P. 543)
*1
(if equipped)
Low engine oil pressure
warning light ( →P. 541)*1, 2
(if equipped)
PCS warning light
(→ P. 543)
*1
(if equipped)
High engine coolant
temperature warning
light ( →P. 541)*1, 2
(if equipped)
Stop & Start cancel indi-
cator ( →P. 543)
*1
Malfunction indicator
lamp ( →P. 542)*1
(if equipped)
Fuel filter warning light
(→ P. 544)
*1
SRS warning light
(→ P. 542)*1
(if equipped)
Low engine oil level
warning light ( →P. 544)
*1
ABS warning light
(→ P. 542)*1
(if equipped)
Engine oil change
reminder light
(→ P. 544)
*1Electric power steering
system warning light
(→ P. 542)*1
(if equipped)
DPF system warning
light ( →P. 544)
(Yellow)
(if equipped)
Cruise control indicator
(→ P. 542)
(if equipped)
Open door warning light
(→ P. 545)

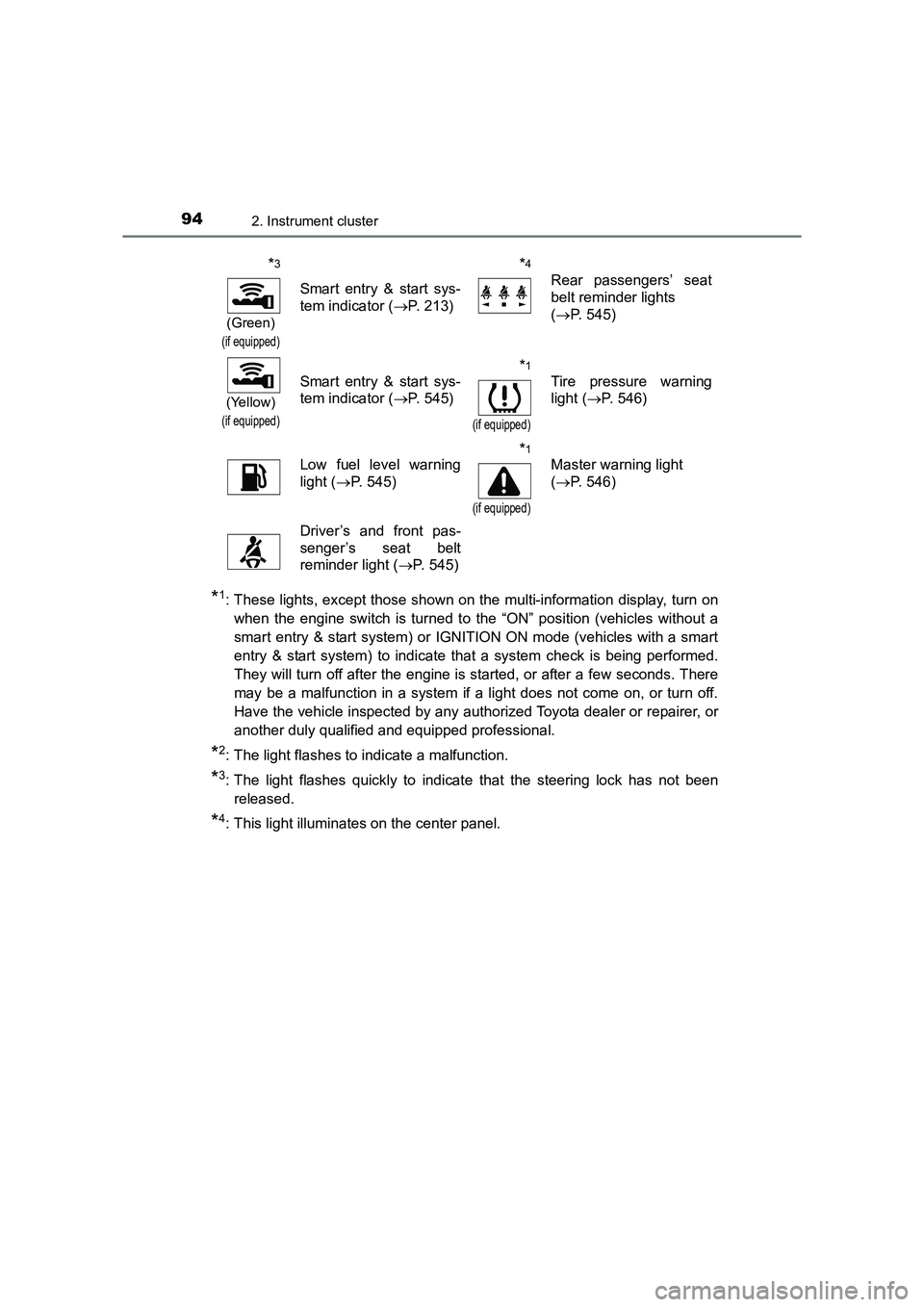

942. Instrument cluster
AURIS Touring Sports_EE (12K53E)
*1: These lights, except those shown on the multi-information display, turn onwhen the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or IGNITION ON mode (vehicles with a smart
entry & start system) to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: The light flashes quickly to indicate that the steering lock has not beenreleased.
*4: This light illuminates on the center panel.
*3
(Green)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 213)
*4
Rear passengers’ seat
belt reminder lights
(→ P. 545)
(Yellow)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 545)*1
(if equipped)
Tire pressure warning
light ( →P. 546)
Low fuel level warning
light ( →P. 545)*1
(if equipped)
Master warning light
(→ P. 546)
Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 545)

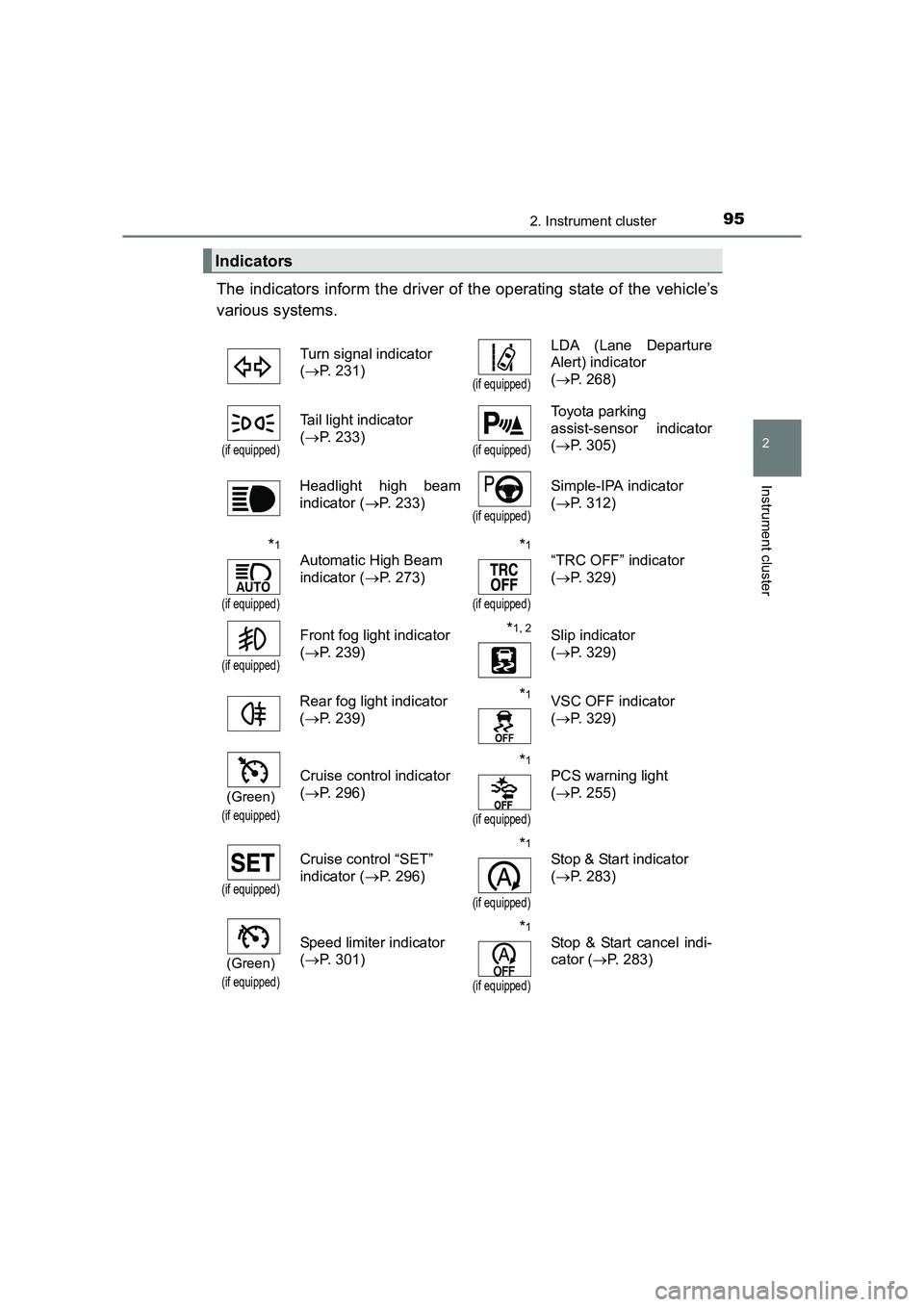

952. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 231)
(if equipped)
LDA (Lane Departure
Alert) indicator
(→ P. 268)
(if equipped)
Tail light indicator
(→ P. 233)
(if equipped)
Toyota parking
assist-sensor indicator
(→ P. 305)
Headlight high beam
indicator ( →P. 233)
(if equipped)
Simple-IPA indicator
(→ P. 312)
*1
(if equipped)
Automatic High Beam
indicator ( →P. 273)*1
(if equipped)
“TRC OFF” indicator
(→ P. 329)
(if equipped)
Front fog light indicator
(→ P. 239)*1, 2Slip indicator
(→ P. 329)
Rear fog light indicator
( → P. 239)
*1VSC OFF indicator
(→ P. 329)
(Green)
(if equipped)
Cruise control indicator
(→ P. 296)*1
(if equipped)
PCS warning light
(→ P. 255)
(if equipped)
Cruise control “SET”
indicator ( →P. 296)*1
(if equipped)
Stop & Start indicator
(→ P. 283)
(Green)
(if equipped)
Speed limiter indicator
(→ P. 301)*1
(if equipped)
Stop & Start cancel indi-
cator ( →P. 283)

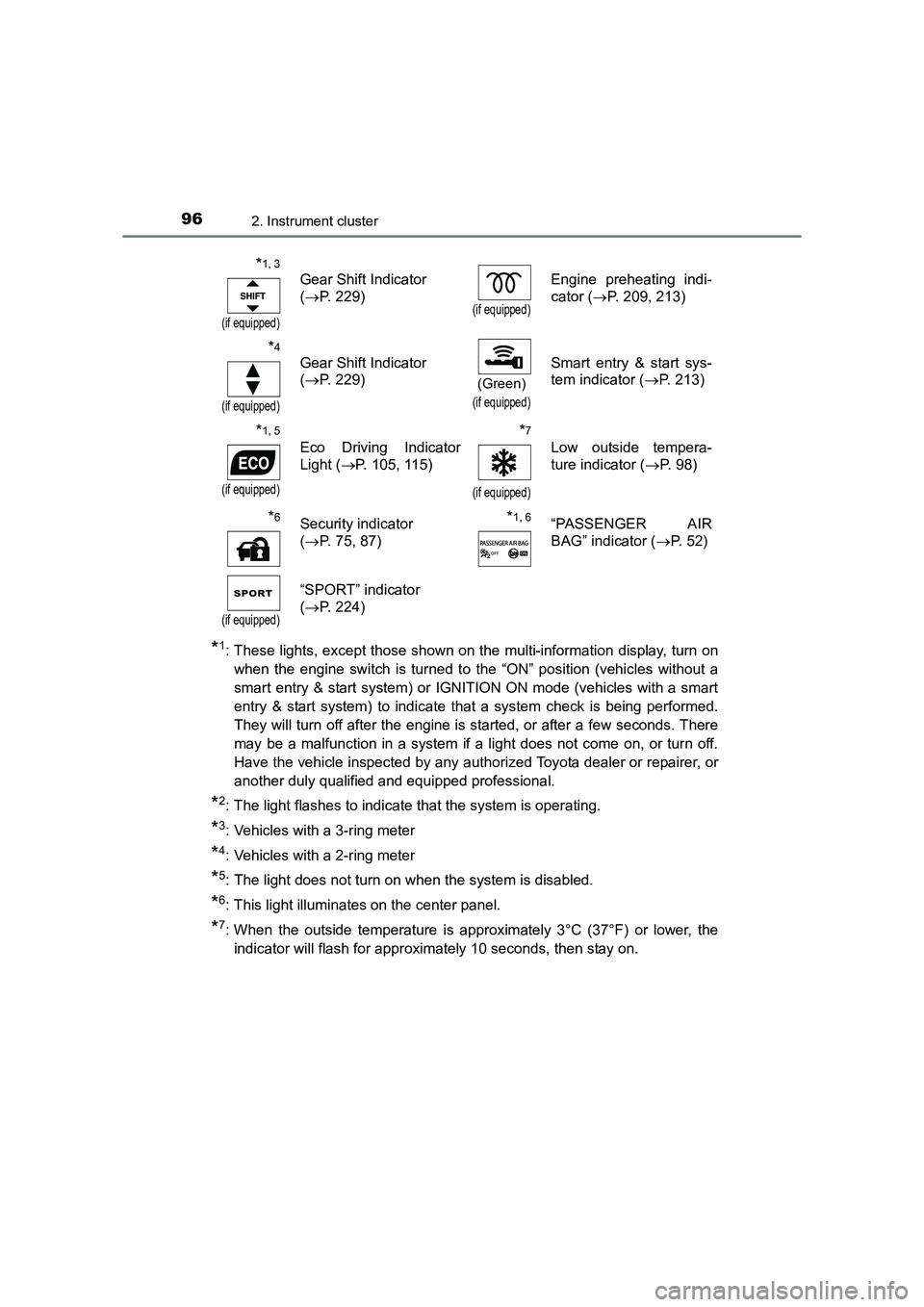

962. Instrument cluster
AURIS Touring Sports_EE (12K53E)
*1: These lights, except those shown on the multi-information display, turn onwhen the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or IGNITION ON mode (vehicles with a smart
entry & start system) to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: Vehicles with a 3-ring meter
*4: Vehicles with a 2-ring meter
*5: The light does not turn on when the system is disabled.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approxim ately 3°C (37°F) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
*1, 3
(if equipped)
Gear Shift Indicator
( → P. 229)
(if equipped)
Engine preheating indi-
cator ( →P. 209, 213)
*4
(if equipped)
Gear Shift Indicator
(→ P. 229)
(Green)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 213)
*1, 5
(if equipped)
Eco Driving Indicator
Light ( →P. 105, 115)
*7
(if equipped)
Low outside tempera-
ture indicator ( →P. 98)
*6Security indicator
(→ P. 75, 87)*1, 6“PASSENGER AIR
BAG” indicator ( →P. 5 2 )
(if equipped)
“SPORT” indicator
(→ P. 224)

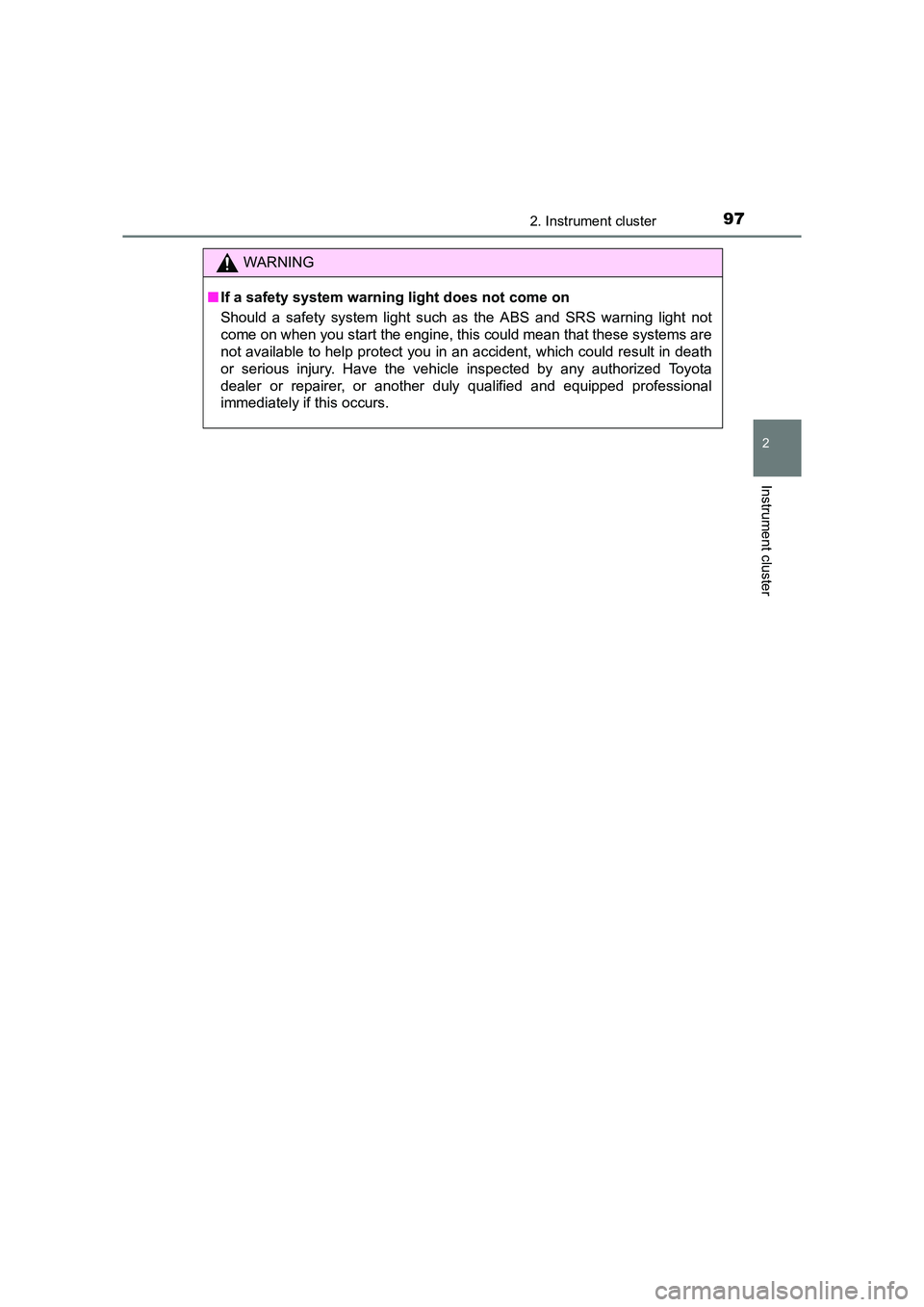

972. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.

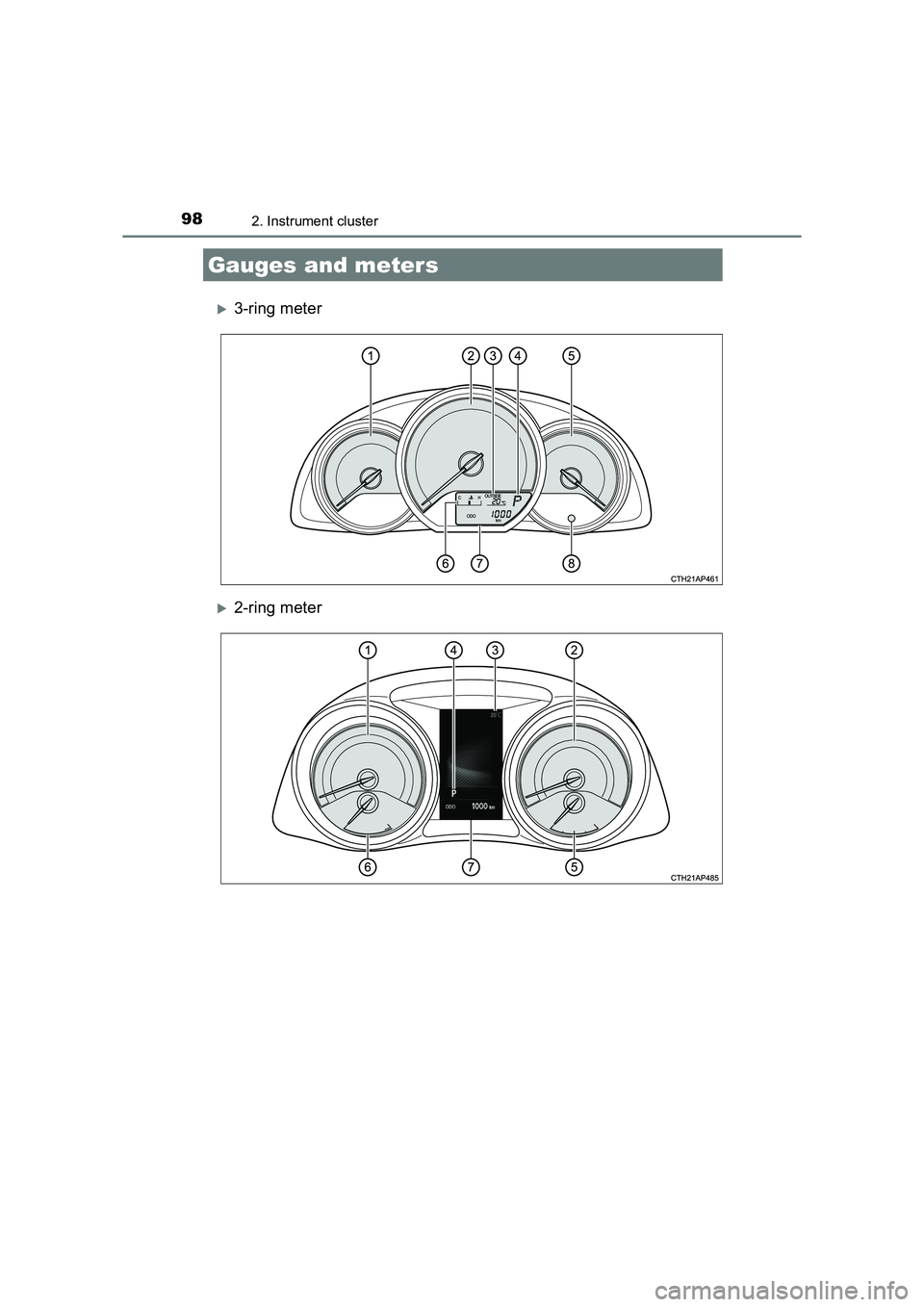

982. Instrument cluster
AURIS Touring Sports_EE (12K53E)
X3-ring meter
X2-ring meter
Gauges and meters

992. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
2-ring meter: Low outside temperature indicator comes on when the ambi-
ent temperature is 3°C (37°F) or lower.
Shift position and gear position indicator (if equipped)
→P. 223
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
3-ring meter (vehicles with a Multidrive): When the average fuel economy
is displayed, the Eco Driving Indicator zone display ( →P. 105) will be dis-
played instead of the engine coolant temperature gauge.
Multi-information display
→ P. 101, 107
Display change switch
Changes the item displayed on the multi-information display.
The “DISP” switch on the steering wheel can also be used to change the
item displayed on the multi-information display.
1
2
3
4
5
6
7
8

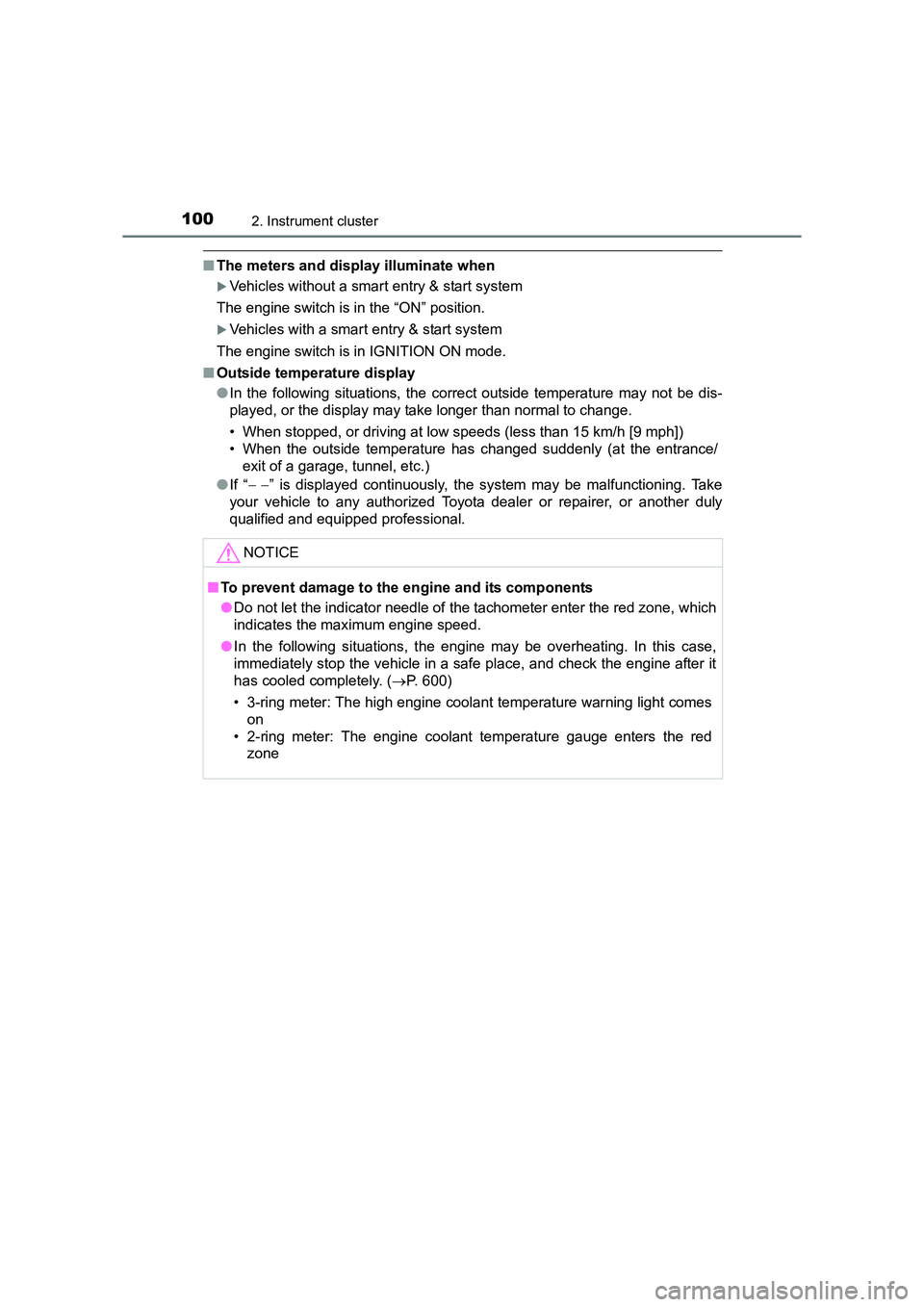

1002. Instrument cluster
AURIS Touring Sports_EE (12K53E)
■The meters and display illuminate when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 15 km/h [9 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “ − − ” is displayed continuously, the system may be malfunctioning. Take
your vehicle to any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. ( →P. 600)
• 3-ring meter: The high engine coolant temperature warning light comes on
• 2-ring meter: The engine coolant temperature gauge enters the red zone
