TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

1112. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster

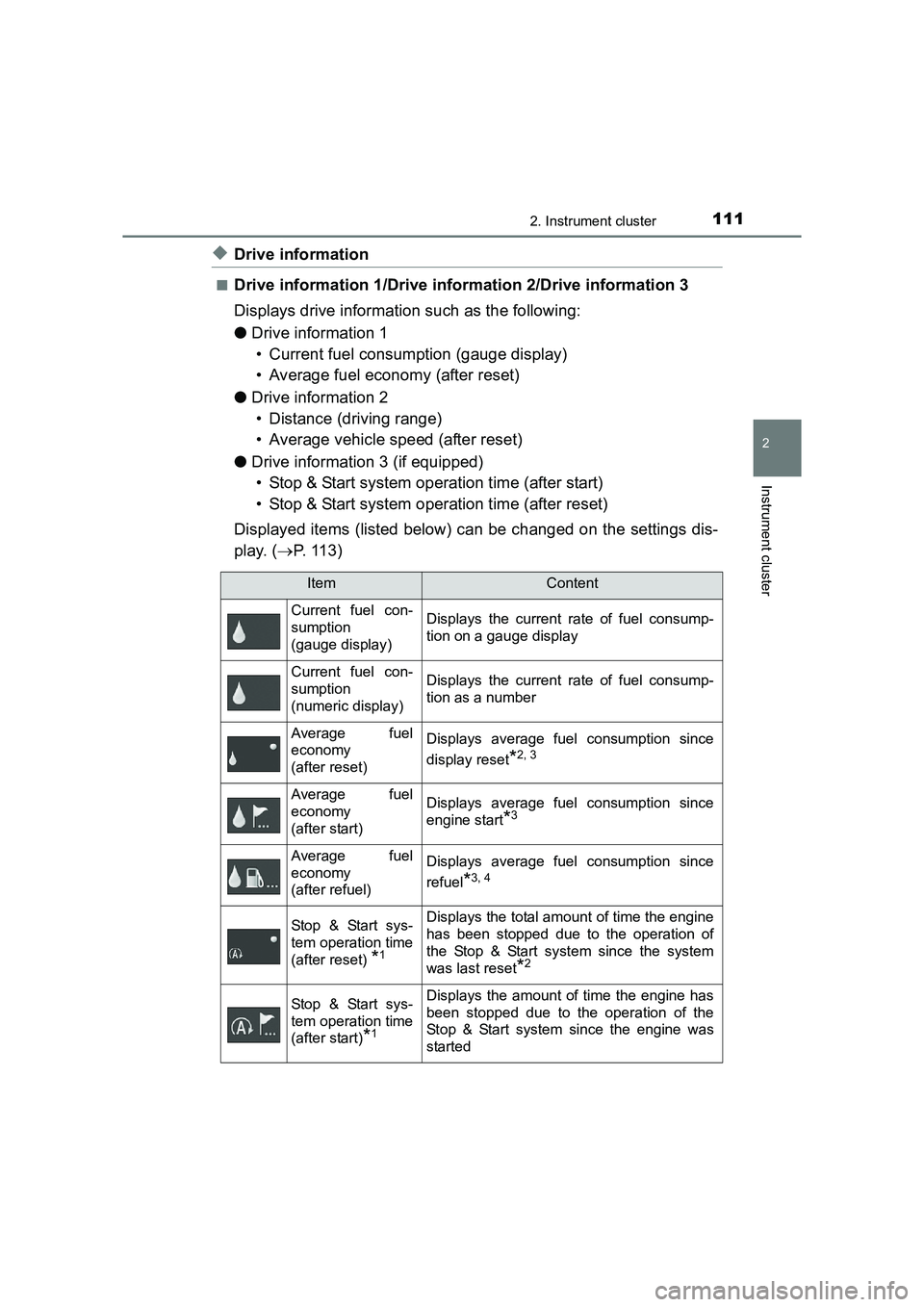

◆Drive information
■Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following:
●Drive information 1
• Current fuel consumption (gauge display)
• Average fuel economy (after reset)
● Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
● Drive information 3 (if equipped)
• Stop & Start system operation time (after start)
• Stop & Start system operation time (after reset)
Displayed items (listed below) can be changed on the settings dis-
play. ( →P. 113)
ItemContent
Current fuel con-
sumption
(gauge display) Displays the current rate of fuel consump-
tion on a gauge display
Current fuel con-
sumption
(numeric display)Displays the current rate of fuel consump-
tion as a number
Average fuel
economy
(after reset)Displays average fuel consumption since
display reset
*2, 3
Average fuel
economy
(after start)Displays average fuel consumption since
engine start
*3
Average fuel
economy
(after refuel)Displays average fuel consumption since
refuel
*3, 4
Stop & Start s ys -
tem operation time
(after reset)
*1
Displays the total amount of time the engine
has been stopped due to the operation of
the Stop & Start system since the system
was last reset
*2
Stop & Start s ys -
tem operation time
(after start)
*1
Displays the amount of time the engine has
been stopped due to the operation of the
Stop & Start system since the engine was
started

1122. Instrument cluster
AURIS Touring Sports_EE (12K53E)

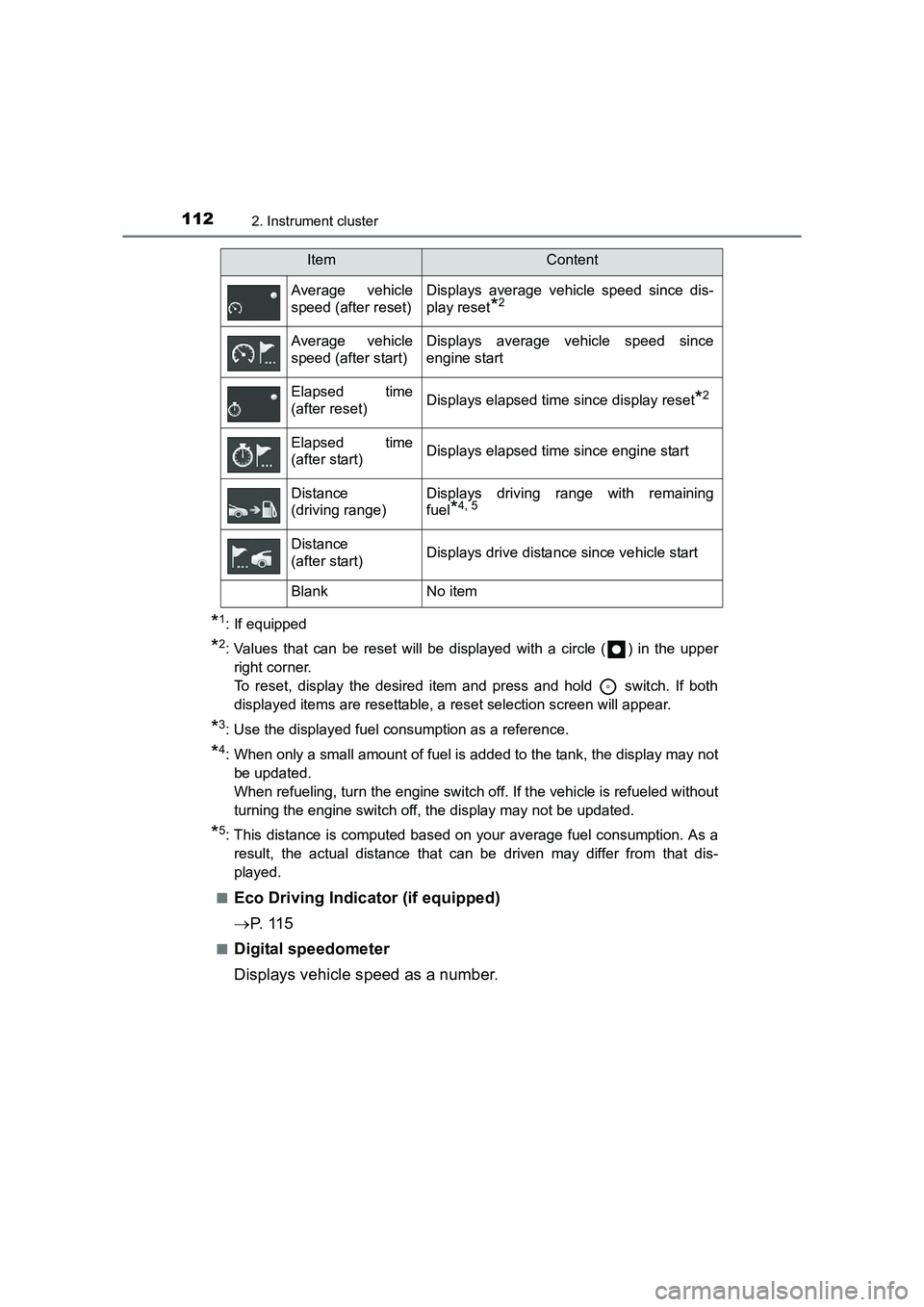

*1: If equipped
*2: Values that can be reset will be displayed with a circle ( ) in the upperright corner.
To reset, display the desired item and press and hold switch. If both
displayed items are resettable, a reset selection screen will appear.
*3: Use the displayed fuel consumption as a reference.
*4: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without
turning the engine switch off, the display may not be updated.
*5: This distance is computed based on your average fuel consumption. As aresult, the actual distance that can be driven may differ from that dis-
played.
■
Eco Driving Indicator (if equipped)
→ P. 1 1 5
■Digital speedometer
Displays vehicle speed as a number.
Average vehicle
speed (after reset)Displays average vehicle speed since dis-
play reset
*2
Average vehicle
speed (after start)Displays average vehicle speed since
engine start
Elapsed time
(after reset)Displays elapsed time since display reset*2
Elapsed time
(after start)Displays elapsed time since engine start
Distance
(driving range)Displays driving range with remaining
fuel
*4, 5
Distance
(after start)Displays drive distance since vehicle start
BlankNo item
ItemContent

1132. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster

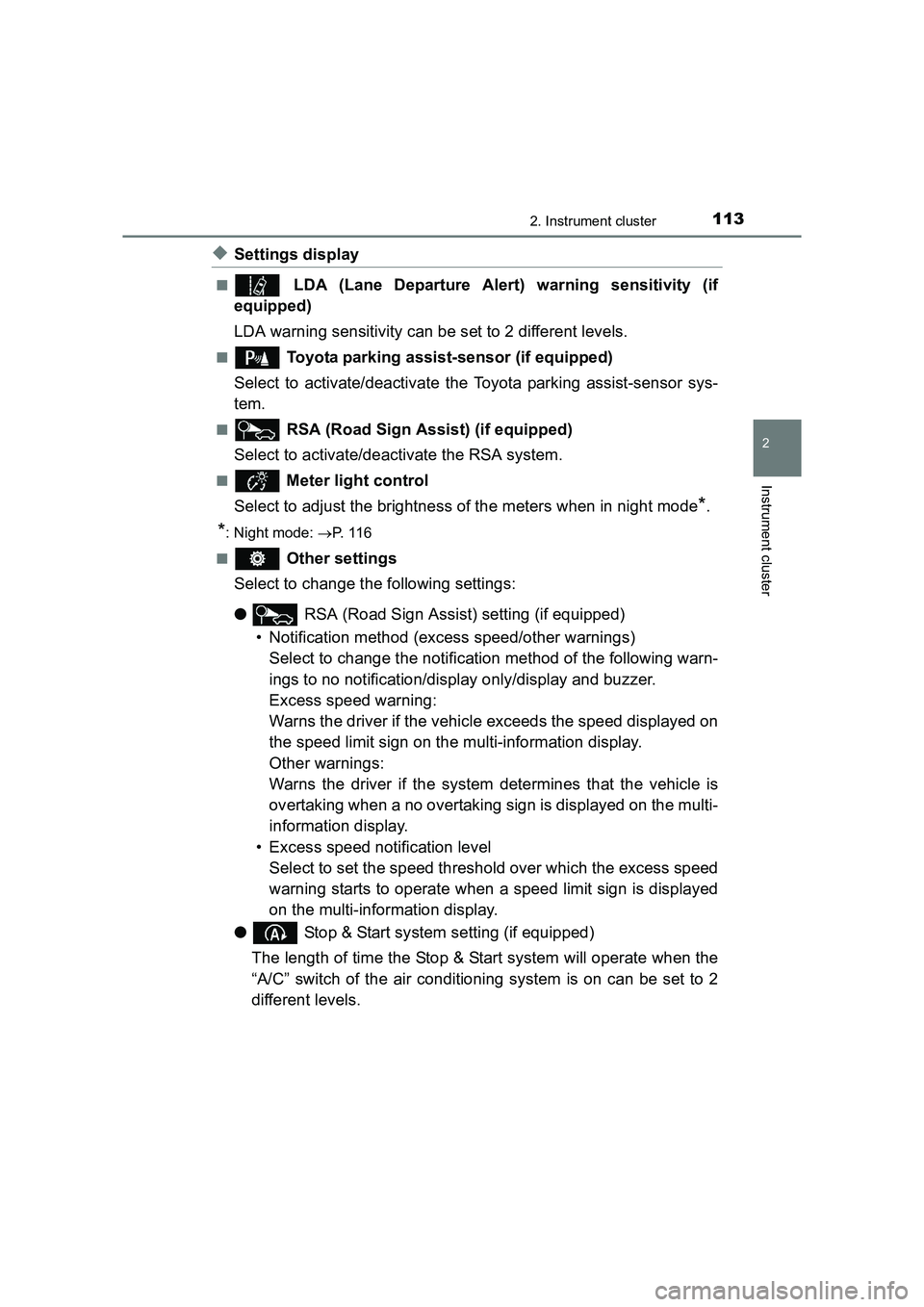

◆Settings display
■ LDA (Lane Departure Alert) warning sensitivity (if
equipped)
LDA warning sensitivity can be set to 2 different levels.
■ Toyota parking assist-sensor (if equipped)
Select to activate/deactivate the Toyota parking assist-sensor sys-
tem.
■ RSA (Road Sign Assist) (if equipped)
Select to activate/deactivate the RSA system.
■ Meter light control
Select to adjust the brightness of the meters when in night mode
*.
*: Night mode: →P. 1 1 6
■
Other settings
Select to change the following settings:
● RSA (Road Sign Assist) setting (if equipped)
• Notification method (excess speed/other warnings) Select to change the notification method of the following warn-
ings to no notification/display only/display and buzzer.
Excess speed warning:
Warns the driver if the vehicle exceeds the speed displayed on
the speed limit sign on the multi-information display.
Other warnings:
Warns the driver if the system determines that the vehicle is
overtaking when a no overtaking sign is displayed on the multi-
information display.
• Excess speed notification level Select to set the speed threshold over which the excess speed
warning starts to operate when a speed limit sign is displayed
on the multi-information display.
● Stop & Start system setting (if equipped)
The length of time the Stop & Start system will operate when the
“A/C” switch of the air conditioning system is on can be set to 2
different levels.

1142. Instrument cluster
AURIS Touring Sports_EE (12K53E)

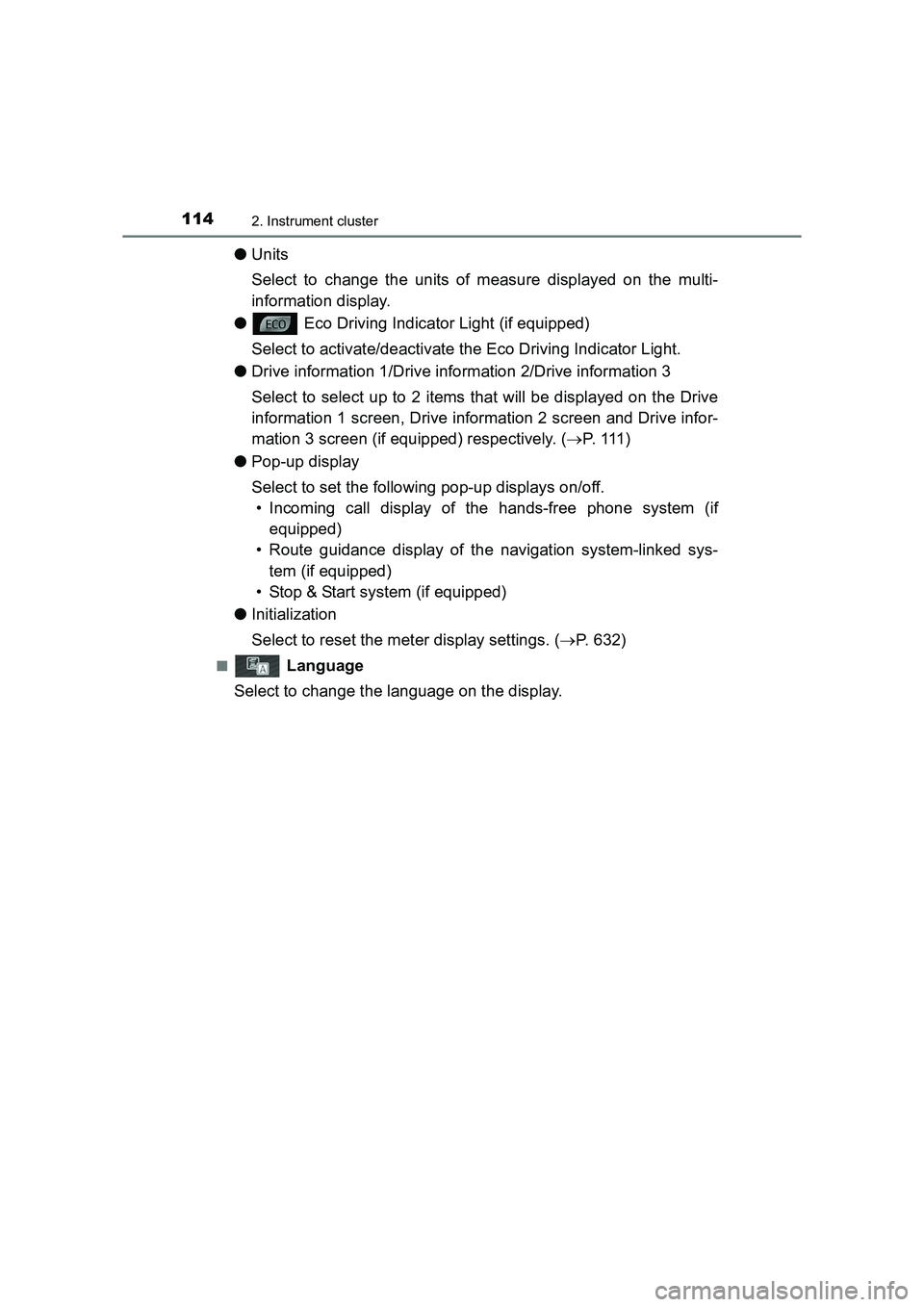

●Units
Select to change the units of measure displayed on the multi-
information display.
● Eco Driving Indicator Light (if equipped)
Select to activate/deactivate the Eco Driving Indicator Light.
● Drive information 1/Drive information 2/Drive information 3
Select to select up to 2 items that will be displayed on the Drive
information 1 screen, Drive information 2 screen and Drive infor-
mation 3 screen (if equipped) respectively. ( →P. 1 1 1 )
● Pop-up display
Select to set the following pop-up displays on/off.
• Incoming call display of the hands-free phone system (if
equipped)
• Route guidance display of the navigation system-linked sys-
tem (if equipped)
• Stop & Start system (if equipped)
● Initialization
Select to reset the meter display settings. ( →P. 632)
■ Language
Select to change the language on the display.

1152. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster

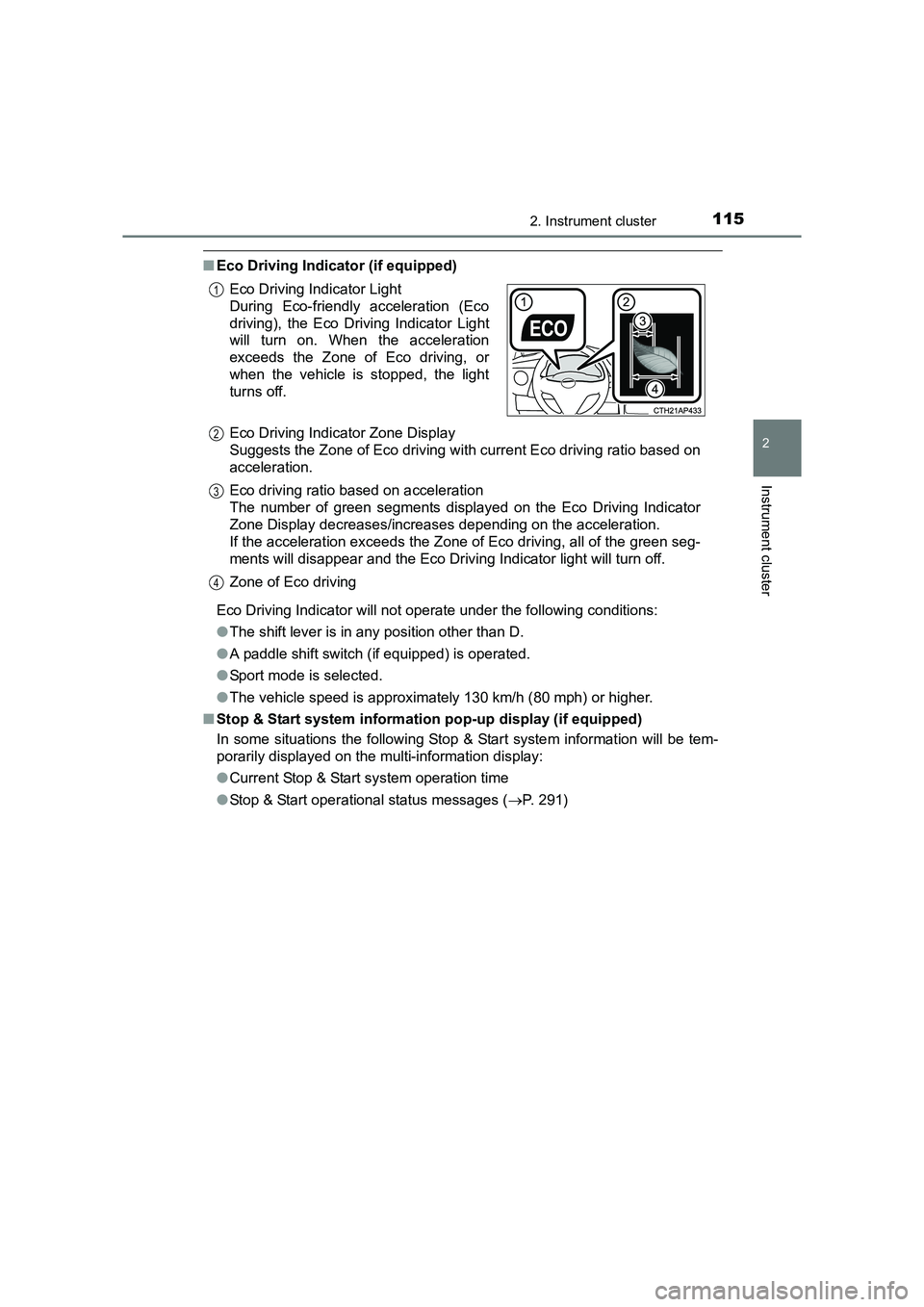

■Eco Driving Indicator (if equipped)
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
● A paddle shift switch (if equipped) is operated.
● Sport mode is selected.
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
■ Stop & Start system information pop-up display (if equipped)
In some situations the following Stop & Start system information will be tem-
porarily displayed on the multi-information display:
●Current Stop & Start system operation time
● Stop & Start operational status messages ( →P. 291)
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current Eco driving ratio based on
acceleration.
Eco driving ratio based on acceleration
The number of green segments displayed on the Eco Driving Indicator
Zone Display decreases/increases depending on the acceleration.
If the acceleration exceeds the Zone of Eco driving, all of the green seg-
ments will disappear and the Eco Driving Indicator light will turn off.
Zone of Eco driving
1
2
3
4

1162. Instrument cluster
AURIS Touring Sports_EE (12K53E)■
Brightness of the meters (day mode and night mode)
●The brightness of the meters is changed between day mode and night
mode.
XVehicles without automatic light control system
• Day mode: When the tail lights are off
• Night mode: When the tail lights are on
XVehicles with automatic light control system
• Day mode: When the tail lights are off or when the tail lights are on but the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding area is dark
● When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
■ Suspension of the settings display
●While driving, the multi-information display cannot be changed to setting
mode. Before changing the settings, stop the vehicle in a safe place.
● In the following situations, operation of some of the settings display may be
temporarily suspended.
• When a warning message appears on the multi-information display
• When the vehicle begins to move
■ When disconnecting and reconnecting battery terminals
The drive information data
* will be reset.
*: Except Stop & Start system operation time
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Ending display
When the engine switch is turned off, the following information about the cur-
rent trip will be temporarily displa yed on the multi-information display.
● Elapsed time (after start)
● Distance (after start)
● Average fuel economy (after start)

1172. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster

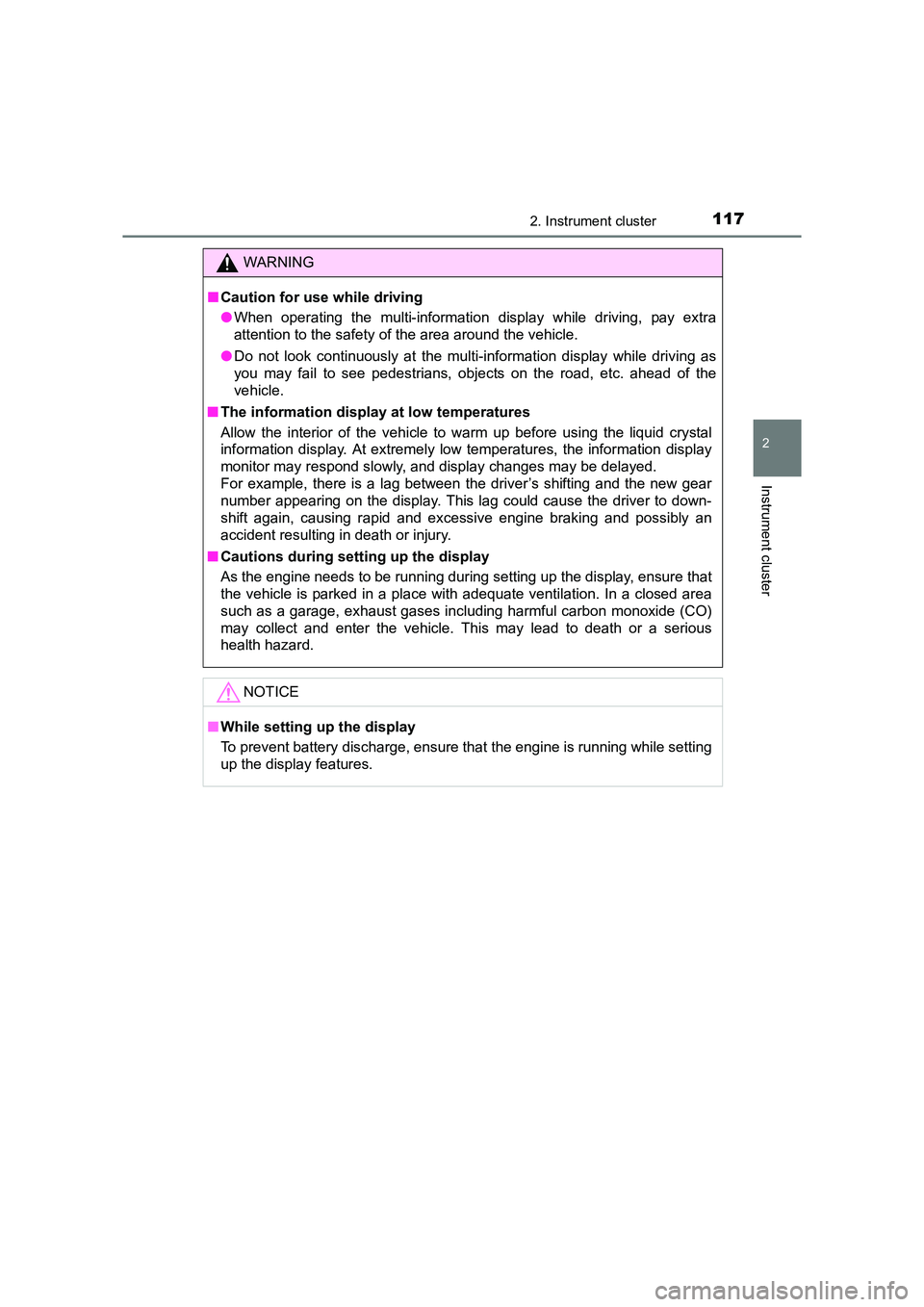

WARNING
■ Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

1182. Instrument cluster
AURIS Touring Sports_EE (12K53E)

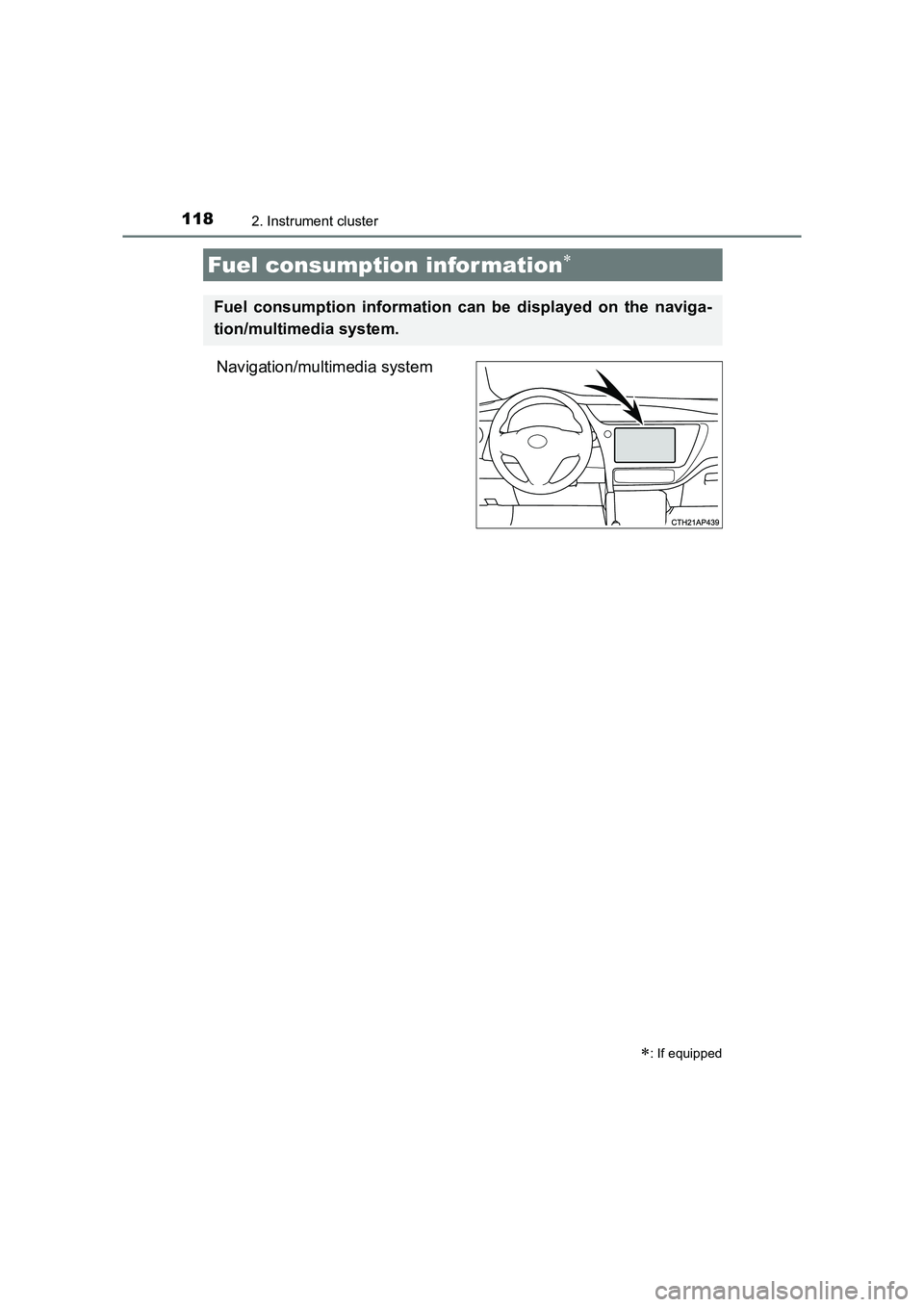

Navigation/multimedia system
Fuel consumption infor mation∗
∗: If equipped
Fuel consumption information can be displayed on the naviga-
tion/multimedia system.

1192. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster

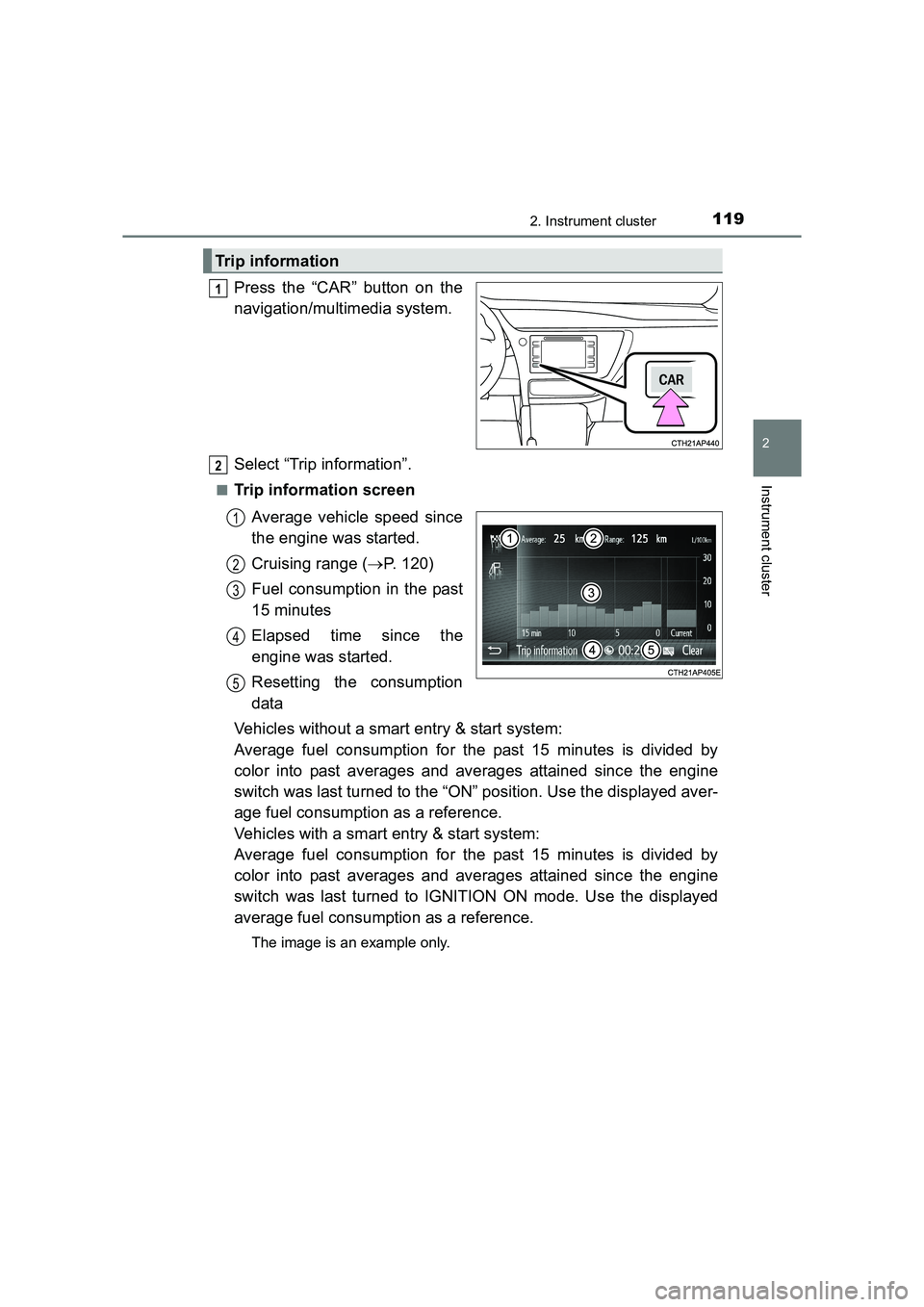

Press the “CAR” button on the
navigation/multimedia system.
Select “Trip information”.
■Trip information screenAverage vehicle speed since
the engine was started.
Cruising range ( →P. 120)
Fuel consumption in the past
15 minutes
Elapsed time since the
engine was started.
Resetting the consumption
data
Vehicles without a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position. Use the displayed aver-
age fuel consumption as a reference.
Vehicles with a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to IGNITION ON mode. Use the displayed
average fuel consumption as a reference.
The image is an example only.
Trip information
1
2
1
2
3
4
5

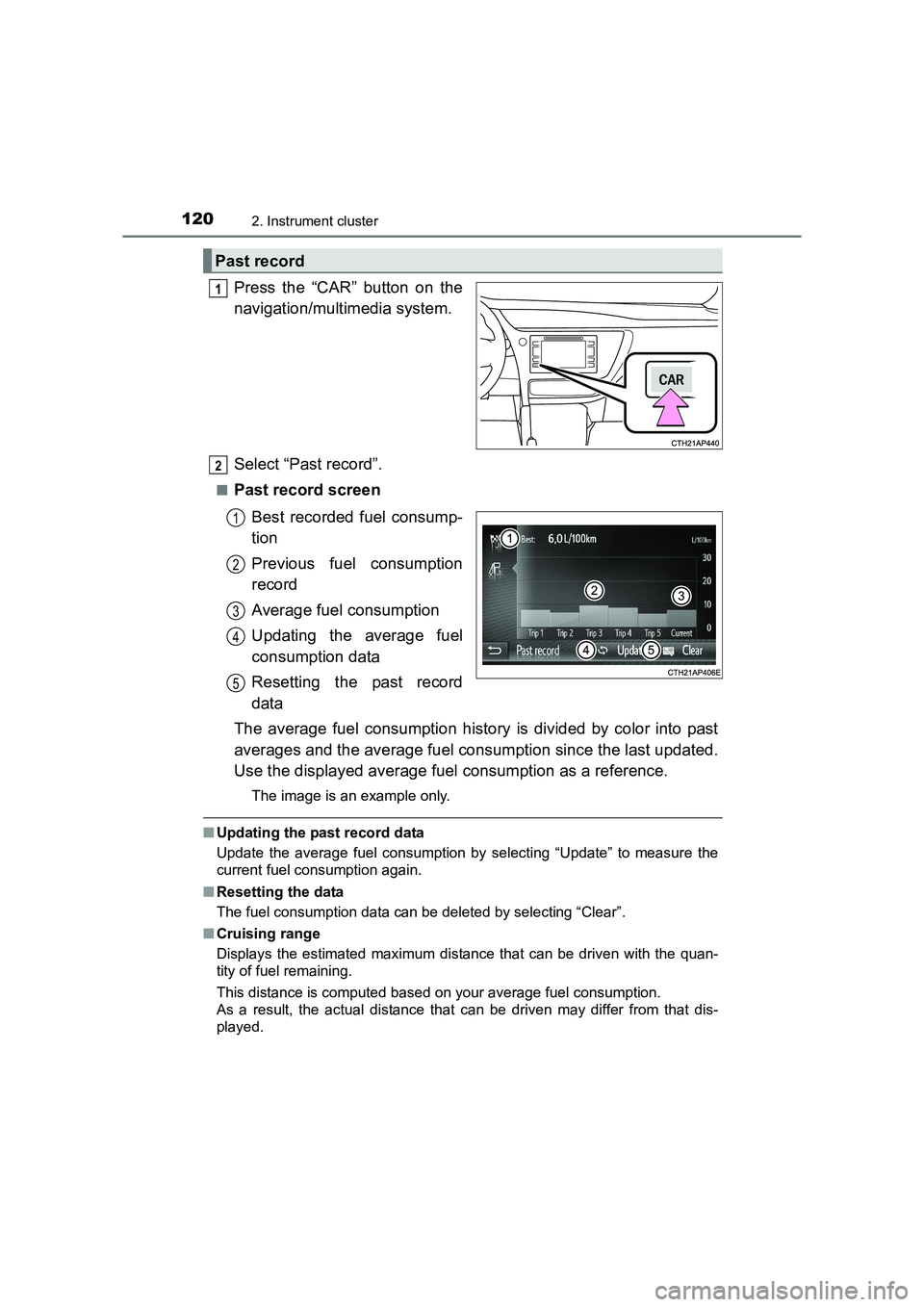

1202. Instrument cluster
AURIS Touring Sports_EE (12K53E)
Press the “CAR” button on the
navigation/multimedia system.
Select “Past record”.
■Past record screenBest recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5
