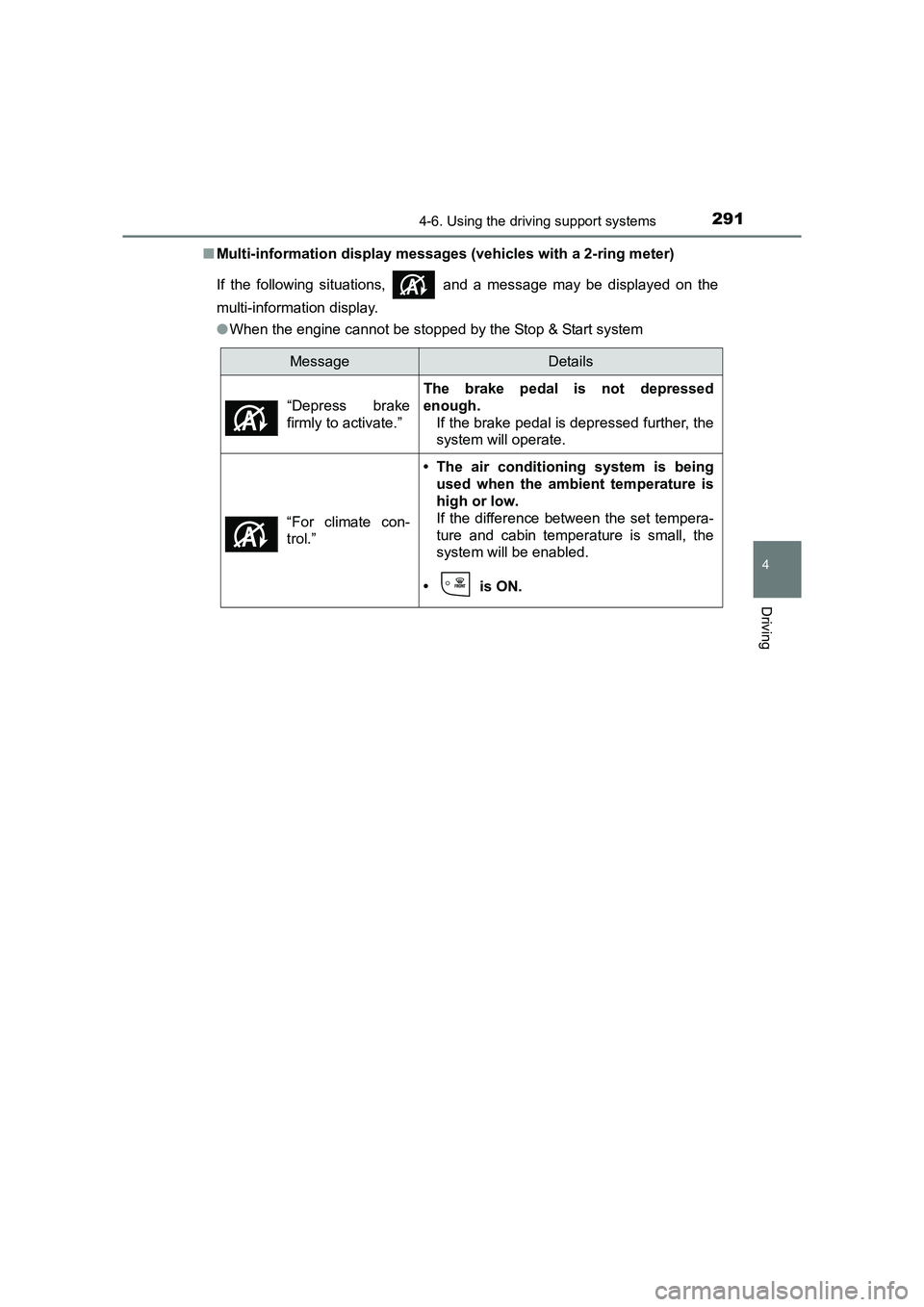

TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

2914-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
■Multi-information display messages (vehicles with a 2-ring meter)
If the following situations, and a message may be displayed on the
multi-information display.
● When the engine cannot be stopped by the Stop & Start system
MessageDetails
“Depress brake
firmly to activate.”
The brake pedal is not depressed
enough. If the brake pedal is depressed further, the
system will operate.
“For climate con-
trol.”
• The air conditioning system is being used when the ambient temperature is
high or low.
If the difference between the set tempera-
ture and cabin temperature is small, the
system will be enabled.
• is ON.

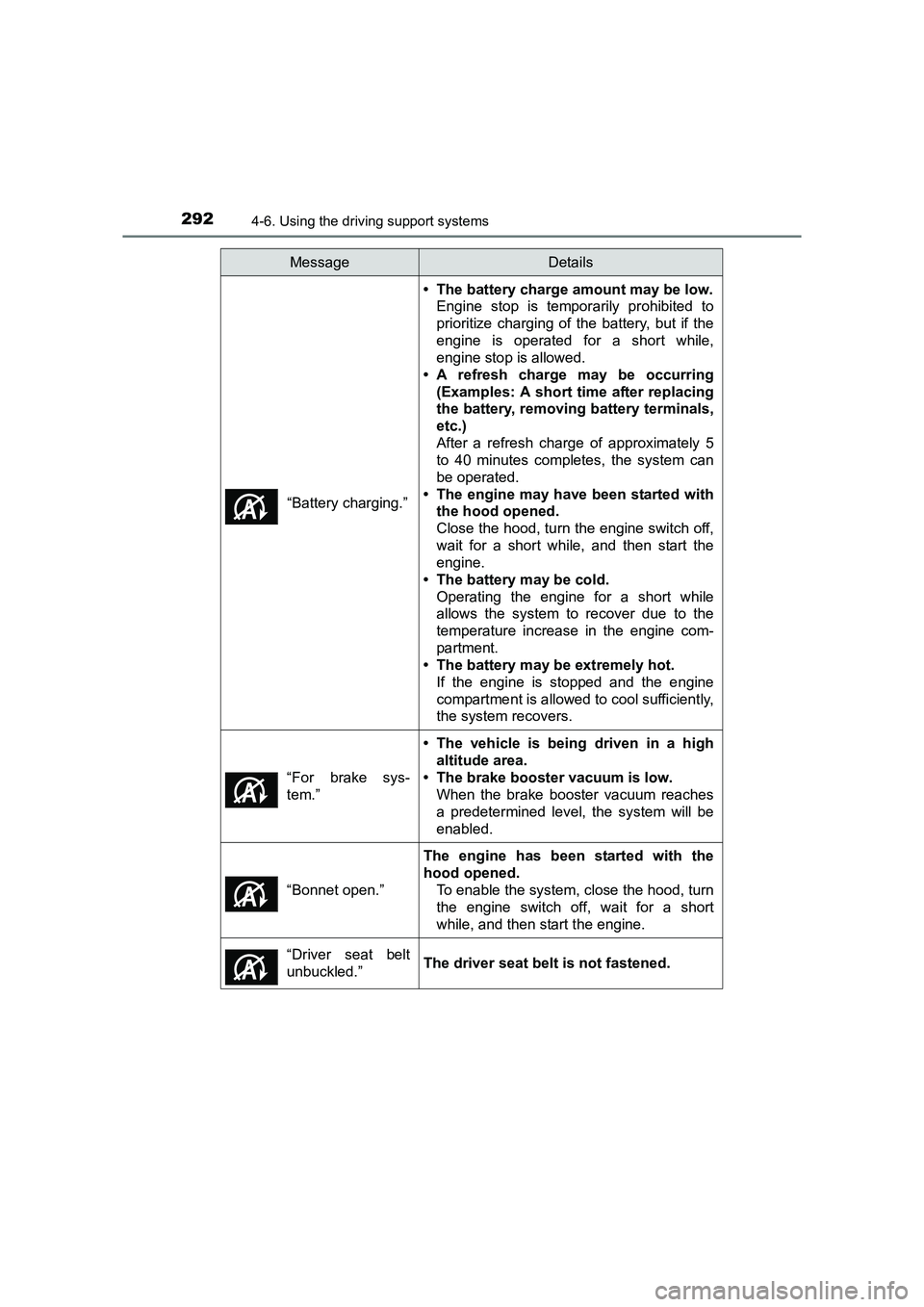

2924-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)“Battery charging.”
• The battery charge amount may be low.
Engine stop is temporarily prohibited to
prioritize charging of the battery, but if the
engine is operated for a short while,
engine stop is allowed.
• A refresh charge may be occurring (Examples: A short time after replacing
the battery, removing battery terminals,
etc.)
After a refresh charge of approximately 5
to 40 minutes completes, the system can
be operated.
• The engine may have been started with the hood opened.
Close the hood, turn the engine switch off,
wait for a short while, and then start the
engine.
• The battery may be cold. Operating the engine for a short while
allows the system to recover due to the
temperature increase in the engine com-
partment.
• The battery may be extremely hot.
If the engine is stopped and the engine
compartment is allowed to cool sufficiently,
the system recovers.
“For brake sys-
tem.”
• The vehicle is being driven in a high altitude area.
• The brake booster vacuum is low. When the brake booster vacuum reaches
a predetermined level, the system will be
enabled.
“Bonnet open.”
The engine has been started with the
hood opened. To enable the system, close the hood, turn
the engine switch off, wait for a short
while, and then start the engine.
“Driver seat belt
unbuckled.”
The driver seat belt is not fastened.
MessageDetails

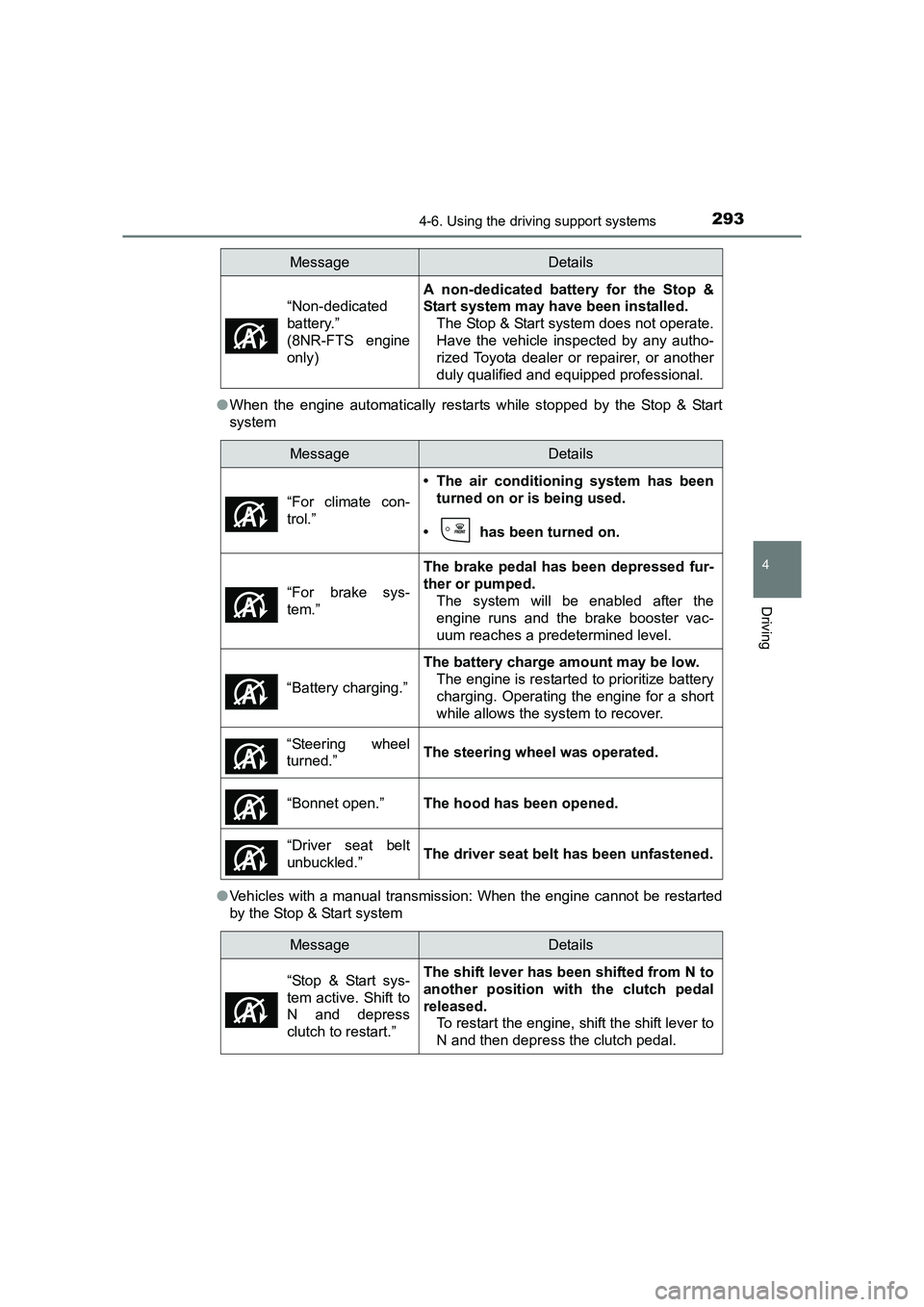

2934-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
●When the engine automatically restarts while stopped by the Stop & Start
system
● Vehicles with a manual transmission: When the engine cannot be restarted
by the Stop & Start system “Non-dedicated
battery.”
(8NR-FTS engine
only)
A non-dedicated battery for the Stop &
Start system may have been installed.
The Stop & Start system does not operate.
Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
MessageDetails
MessageDetails
“For climate con-
trol.”
• The air conditioning system has been turned on or is being used.
• has been turned on.
“For brake sys-
tem.”
The brake pedal has been depressed fur-
ther or pumped. The system will be enabled after the
engine runs and the brake booster vac-
uum reaches a predetermined level.
“Battery charging.”
The battery charge amount may be low. The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
“Steering wheel
turned.”
The steering wheel was operated.
“Bonnet open.”
The hood has been opened.
“Driver seat belt
unbuckled.”
The driver seat belt has been unfastened.
MessageDetails
“Stop & Start sys-
tem active. Shift to
N and depress
clutch to restart.”
The shift lever has been shifted from N to
another position with the clutch pedal
released. To restart the engine, shift the shift lever to
N and then depress the clutch pedal.

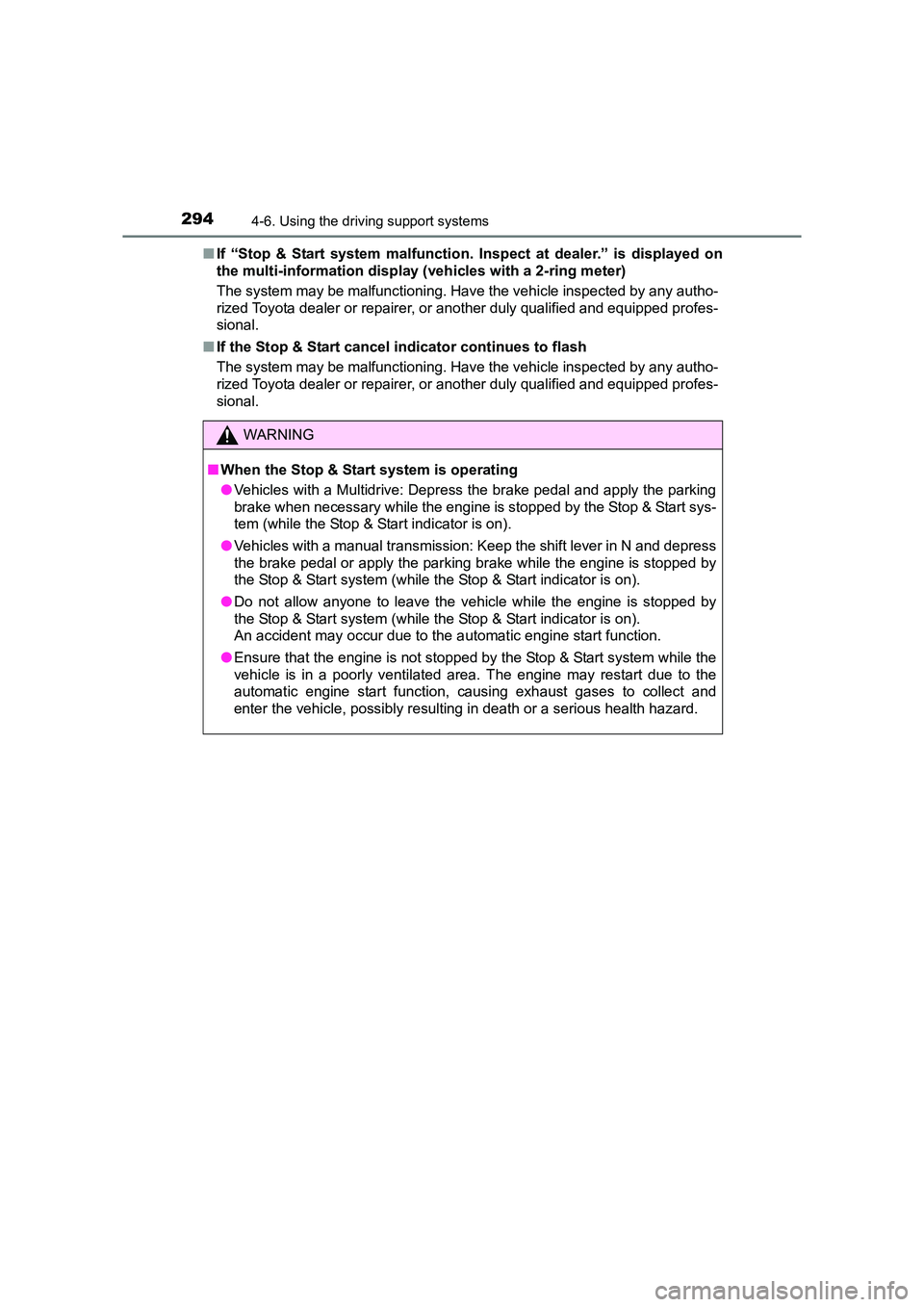

2944-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)■
If “Stop & Start system malfunction. Inspect at dealer.” is displayed on
the multi-information display ( vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
■ If the Stop & Start cancel indicator continues to flash
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the Stop & Start system is operating
●Vehicles with a Multidrive: Depress the brake pedal and apply the parking
brake when necessary while the engine is stopped by the Stop & Start sys-
tem (while the Stop & Start indicator is on).
● Vehicles with a manual transmission: Keep the shift lever in N and depress
the brake pedal or apply the parking brake while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
● Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
● Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.

2954-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

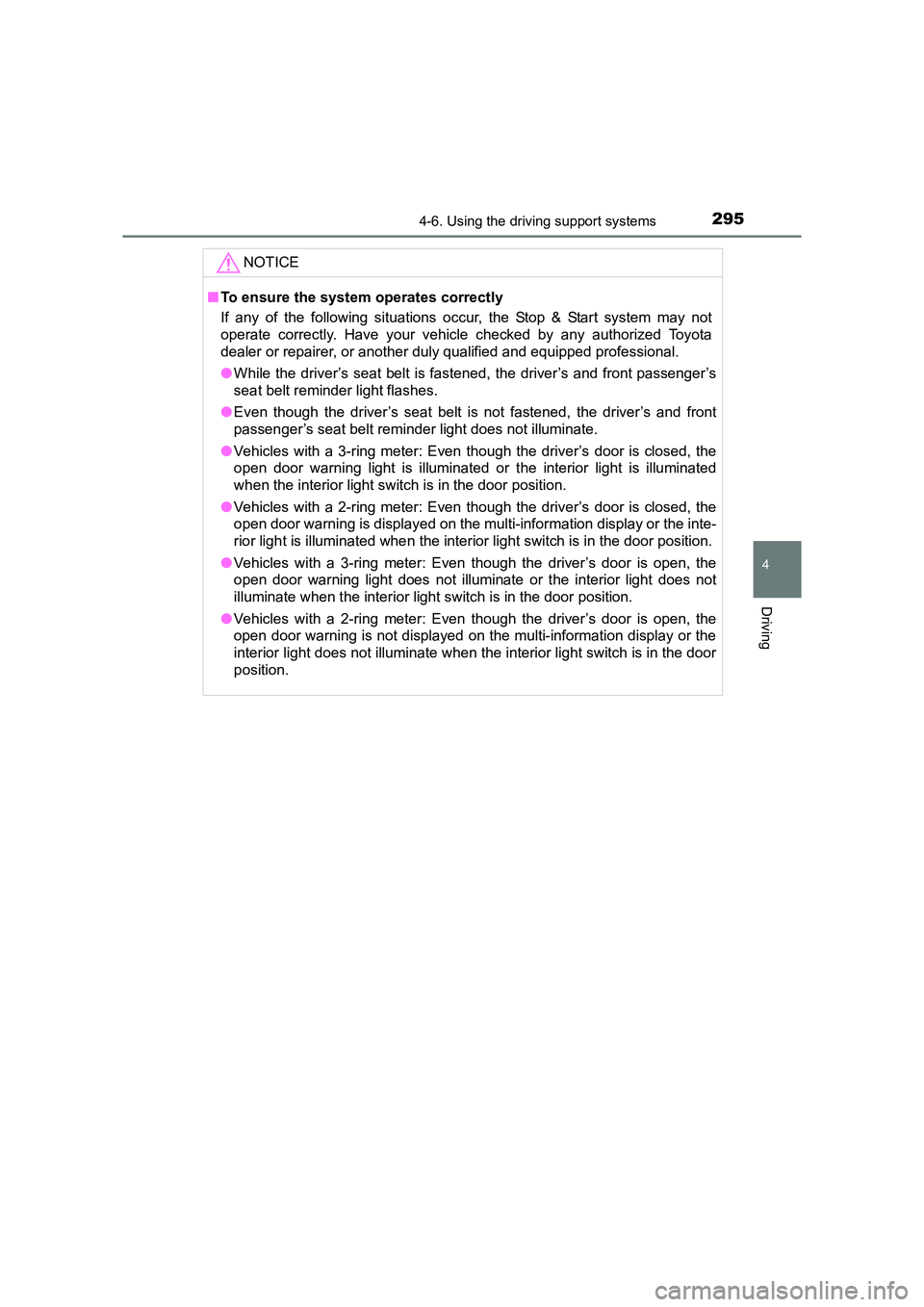

NOTICE
■To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
● Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
● Vehicles with a 3-ring meter: Even though the driver’s door is closed, the
open door warning light is illuminated or the interior light is illuminated
when the interior light switch is in the door position.
● Vehicles with a 2-ring meter: Even though the driver’s door is closed, the
open door warning is displayed on the multi-information display or the inte-
rior light is illuminated when the interior light switch is in the door position.
● Vehicles with a 3-ring meter: Even though the driver’s door is open, the
open door warning light does not illuminate or the interior light does not
illuminate when the interior light switch is in the door position.
● Vehicles with a 2-ring meter: Even though the driver’s door is open, the
open door warning is not displayed on the multi-information display or the
interior light does not illuminate when the interior light switch is in the door
position.

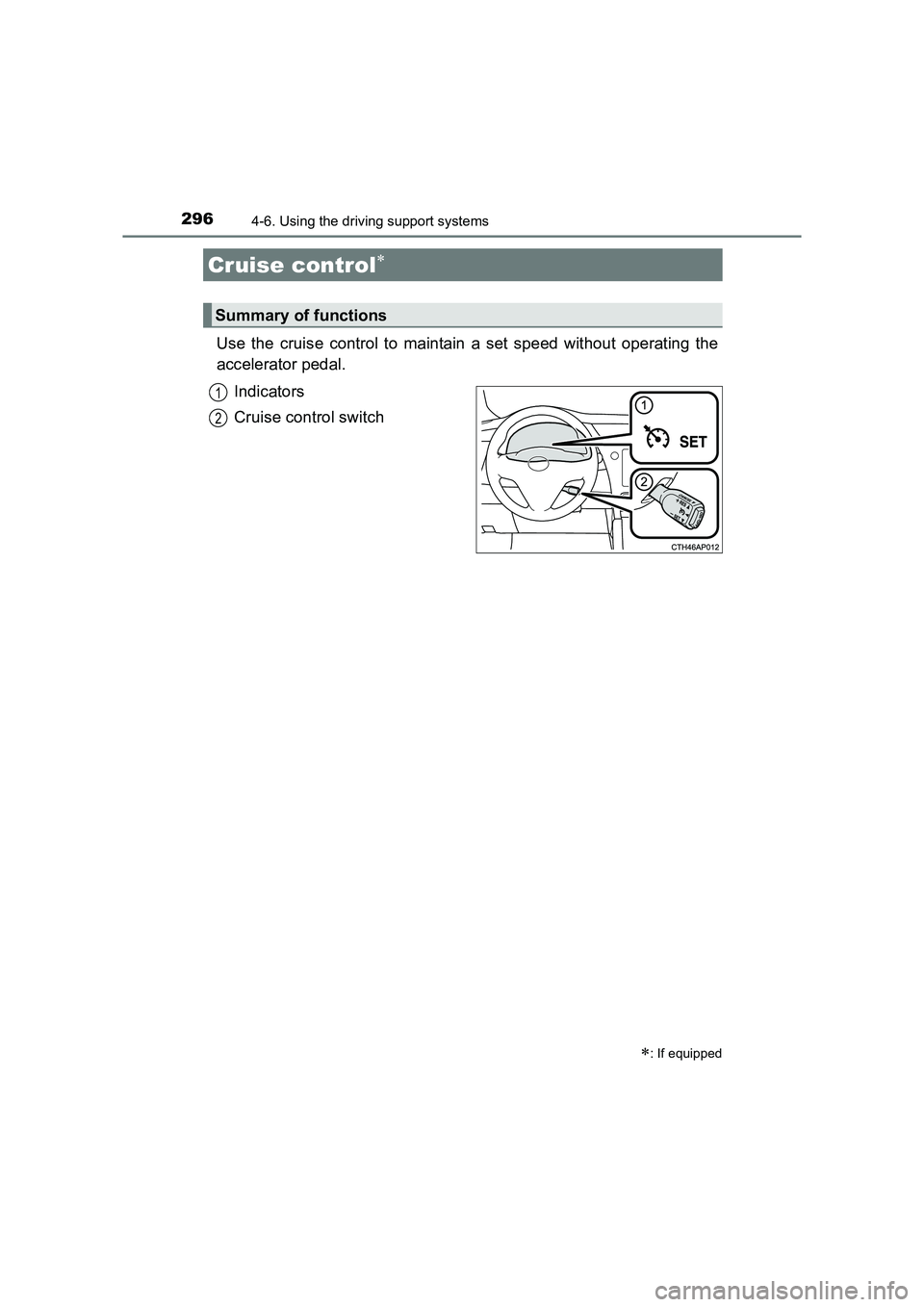

2964-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
Use the cruise control to maintain a set speed without operating the
accelerator pedal. Indicators
Cruise control switch
Cruise control∗
∗: If equipped
Summary of functions
1
2

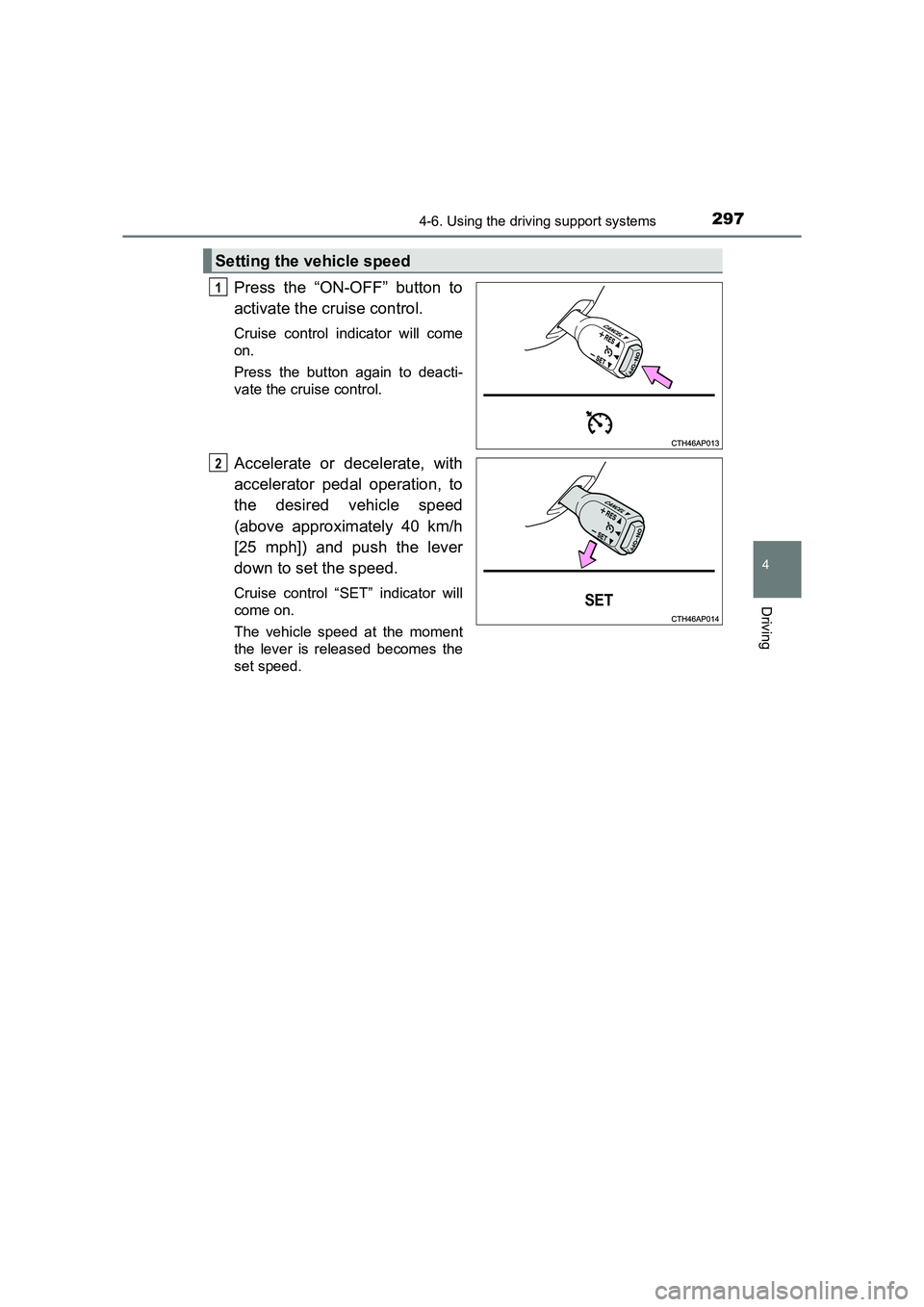

2974-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 40 km/h
[25 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Setting the vehicle speed
1
2

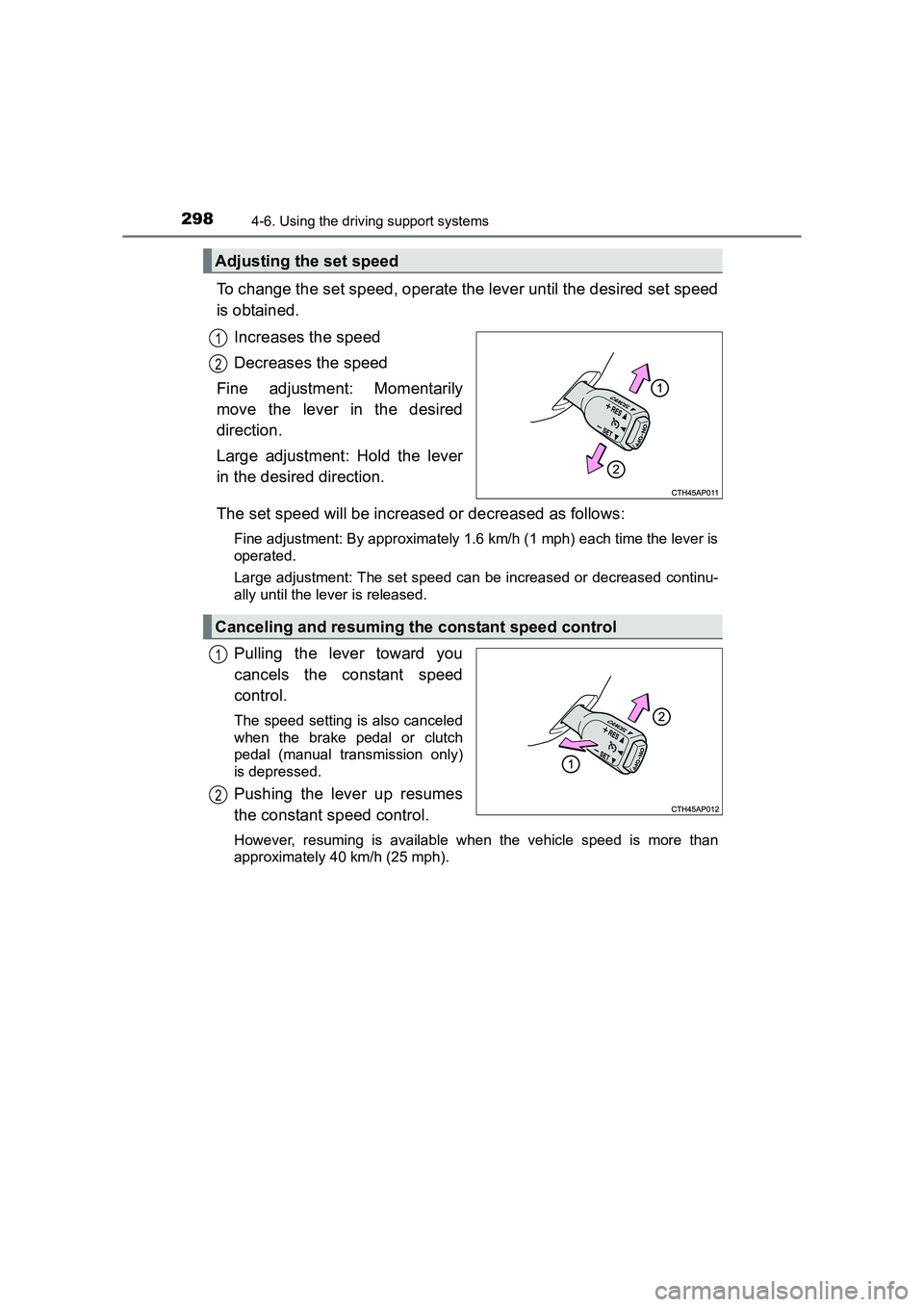

2984-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
To change the set speed, operate the lever until the desired set speed
is obtained.Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the lever is
operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brake pedal or clutch
pedal (manual transmission only)
is depressed.
Pushing the lever up resumes
the constant speed control.
However, resuming is available when the vehicle speed is more than
approximately 40 km/h (25 mph).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2

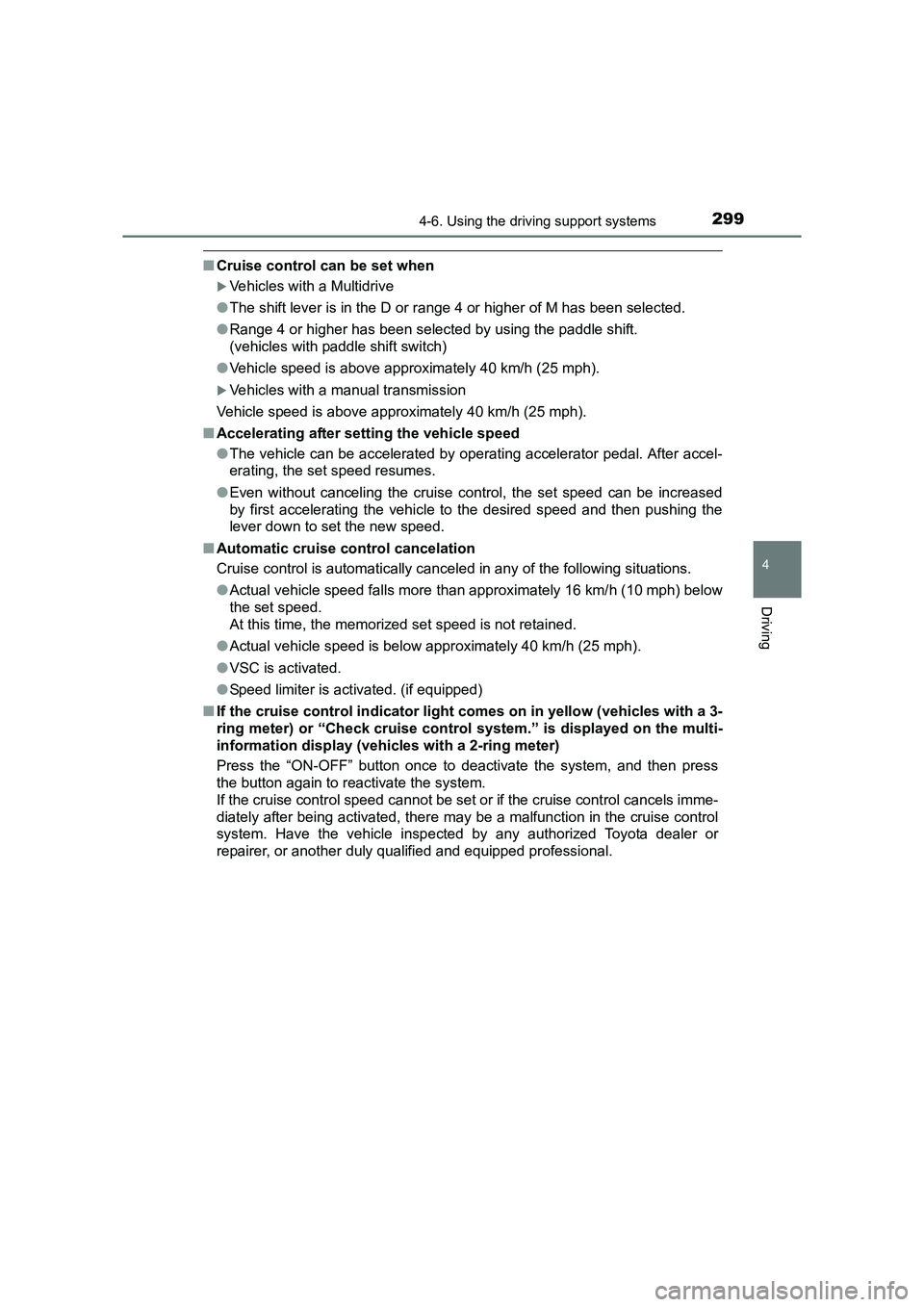

2994-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
■Cruise control can be set when
XVehicles with a Multidrive
● The shift lever is in the D or range 4 or higher of M has been selected.
● Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
● Vehicle speed is above approximately 40 km/h (25 mph).
XVehicles with a manual transmission
Vehicle speed is above approximately 40 km/h (25 mph).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 40 km/h (25 mph).
● VSC is activated.
● Speed limiter is activated. (if equipped)
■ If the cruise control indicator light co mes on in yellow (vehicles with a 3-
ring meter) or “Check cruise control system.” is displayed on the multi-
information display (vehic les with a 2-ring meter)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

3004-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
●In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing
