TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

3014-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

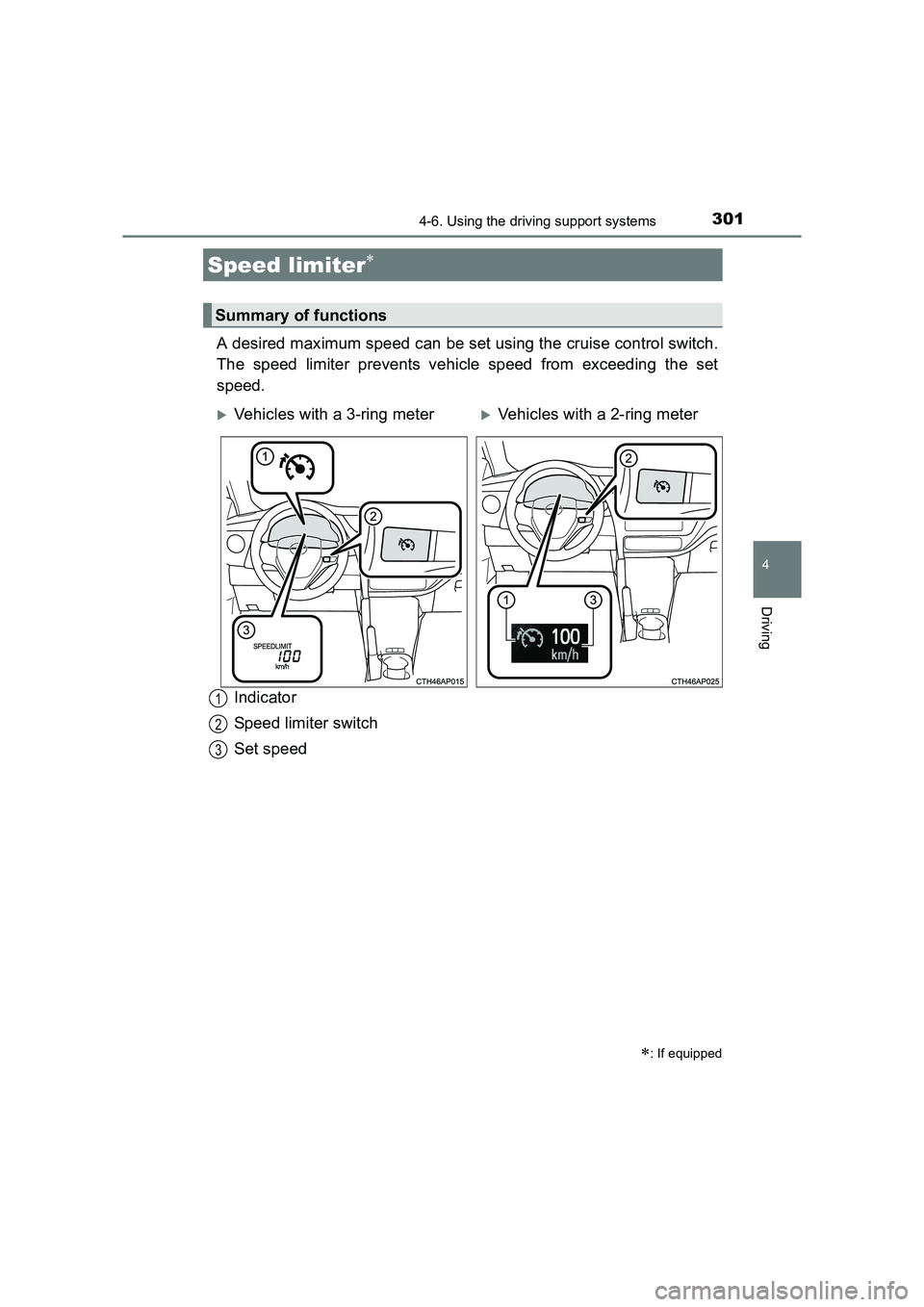

A desired maximum speed can be set using the cruise control switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.Indicator
Speed limiter switch
Set speed
Speed limiter∗
∗: If equipped
Summary of functions
XVehicles with a 3-ring meterXVehicles with a 2-ring meter
1
2
3

3024-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)

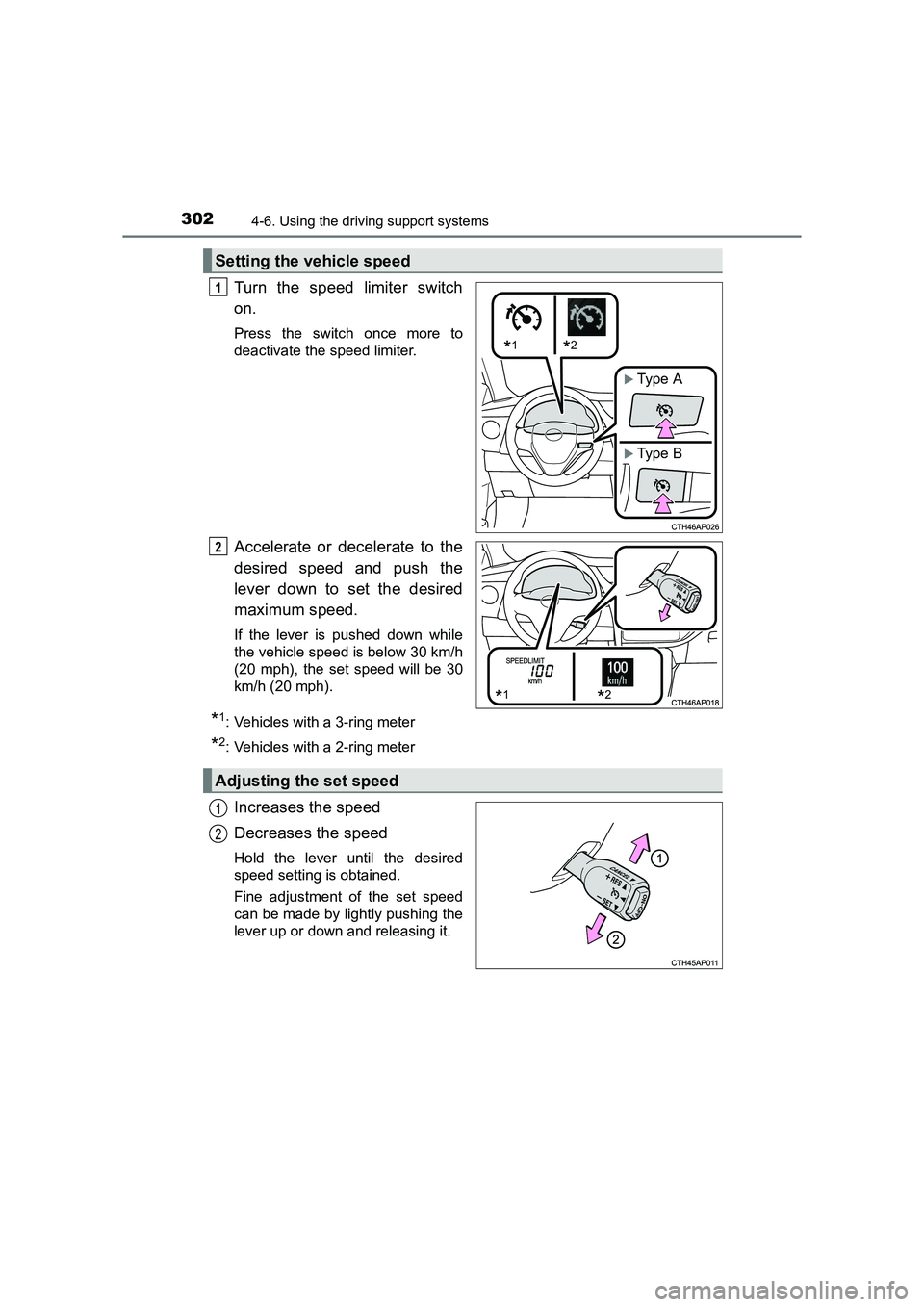

Turn the speed limiter switch
on.
Press the switch once more to
deactivate the speed limiter.
Accelerate or decelerate to the
desired speed and push the
lever down to set the desired
maximum speed.
If the lever is pushed down while
the vehicle speed is below 30 km/h
(20 mph), the set speed will be 30
km/h (20 mph).
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
Increases the speed
Decreases the speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set speed
can be made by lightly pushing the
lever up or down and releasing it.
Setting the vehicle speed
*1*2
XTy pe A
XTy pe B
1
*1*2
2
Adjusting the set speed
1
2

3034-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

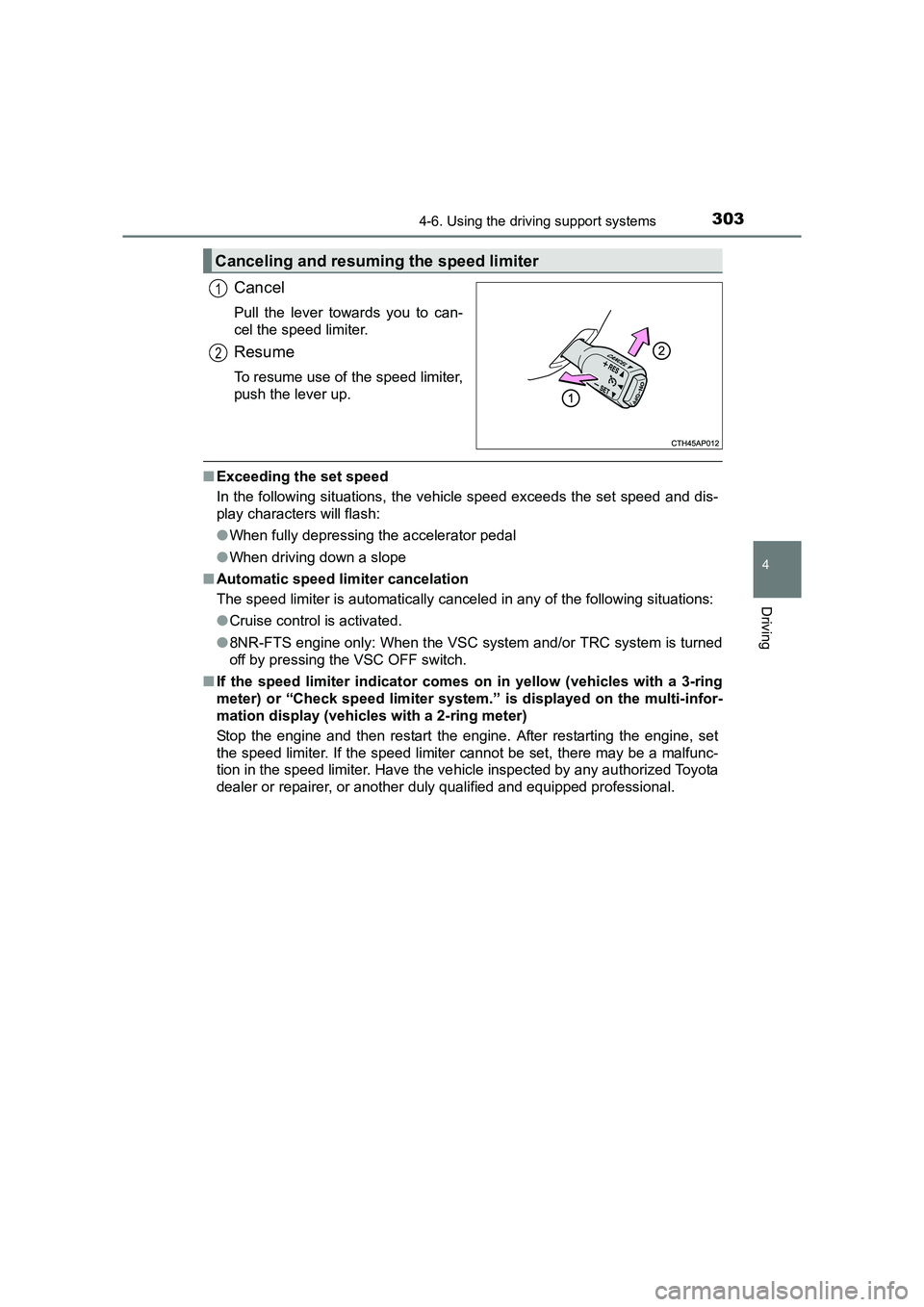

Cancel
Pull the lever towards you to can-
cel the speed limiter.
Resume
To resume use of the speed limiter,
push the lever up.
■Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will flash:
●When fully depressing the accelerator pedal
● When driving down a slope
■ Automatic speed limiter cancelation
The speed limiter is automatically canceled in any of the following situations:
●Cruise control is activated.
● 8NR-FTS engine only: When the VSC system and/or TRC system is turned
off by pressing the VSC OFF switch.
■ If the speed limiter indicator comes on in yellow (vehicles with a 3-ring
meter) or “Check speed limiter system.” is displayed on the multi-infor-
mation display (vehicles with a 2-ring meter)
Stop the engine and then restart the engine. After restarting the engine, set
the speed limiter. If the speed limiter cannot be set, there may be a malfunc-
tion in the speed limiter. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Canceling and resuming the speed limiter
1
2

3044-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)

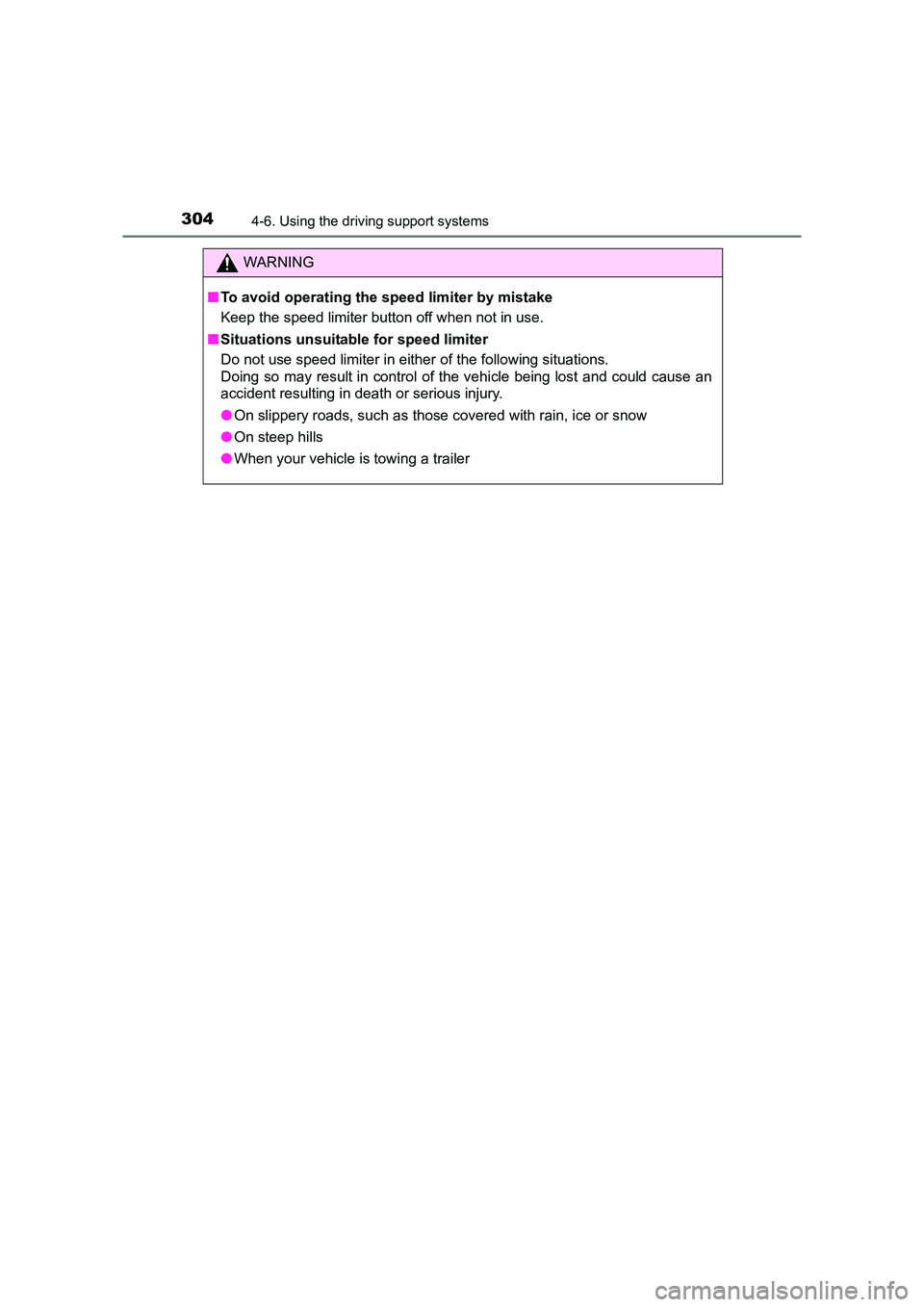

WARNING
■ To avoid operating the speed limiter by mistake
Keep the speed limiter button off when not in use.
■ Situations unsuitable for speed limiter
Do not use speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause an
accident resulting in death or serious injury.
●On slippery roads, such as those covered with rain, ice or snow
● On steep hills
● When your vehicle is towing a trailer

3054-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

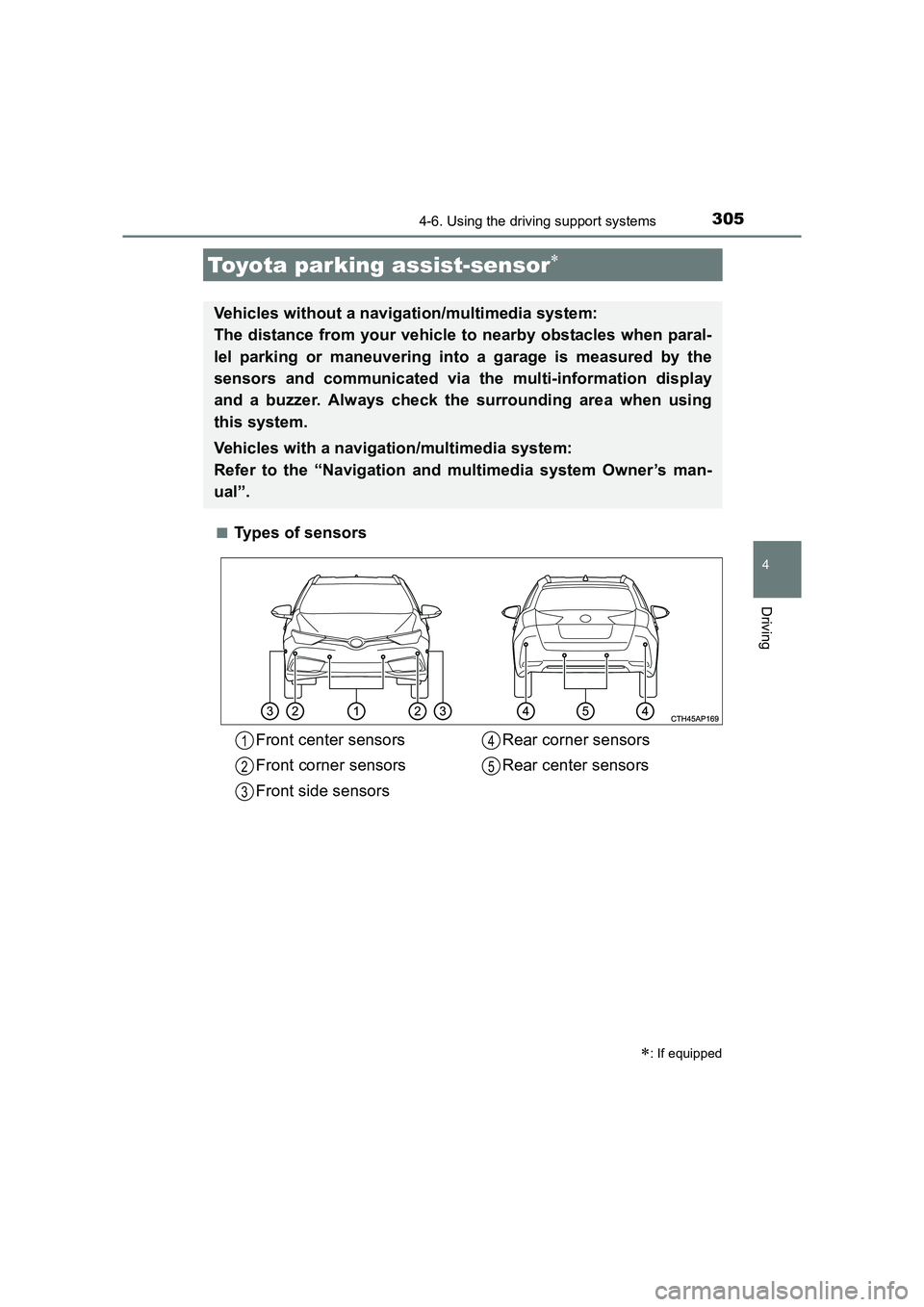

■Types of sensors
Toyota parking assist-sensor∗
∗: If equipped
Vehicles without a navigation/multimedia system:
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display
and a buzzer. Always check the surrounding area when using
this system.
Vehicles with a navigation/multimedia system:
Refer to the “Navigation and multimedia system Owner’s man-
ual”.
Front center sensors
Front corner sensors
Front side sensorsRear corner sensors
Rear center sensors1
2
3
4
5

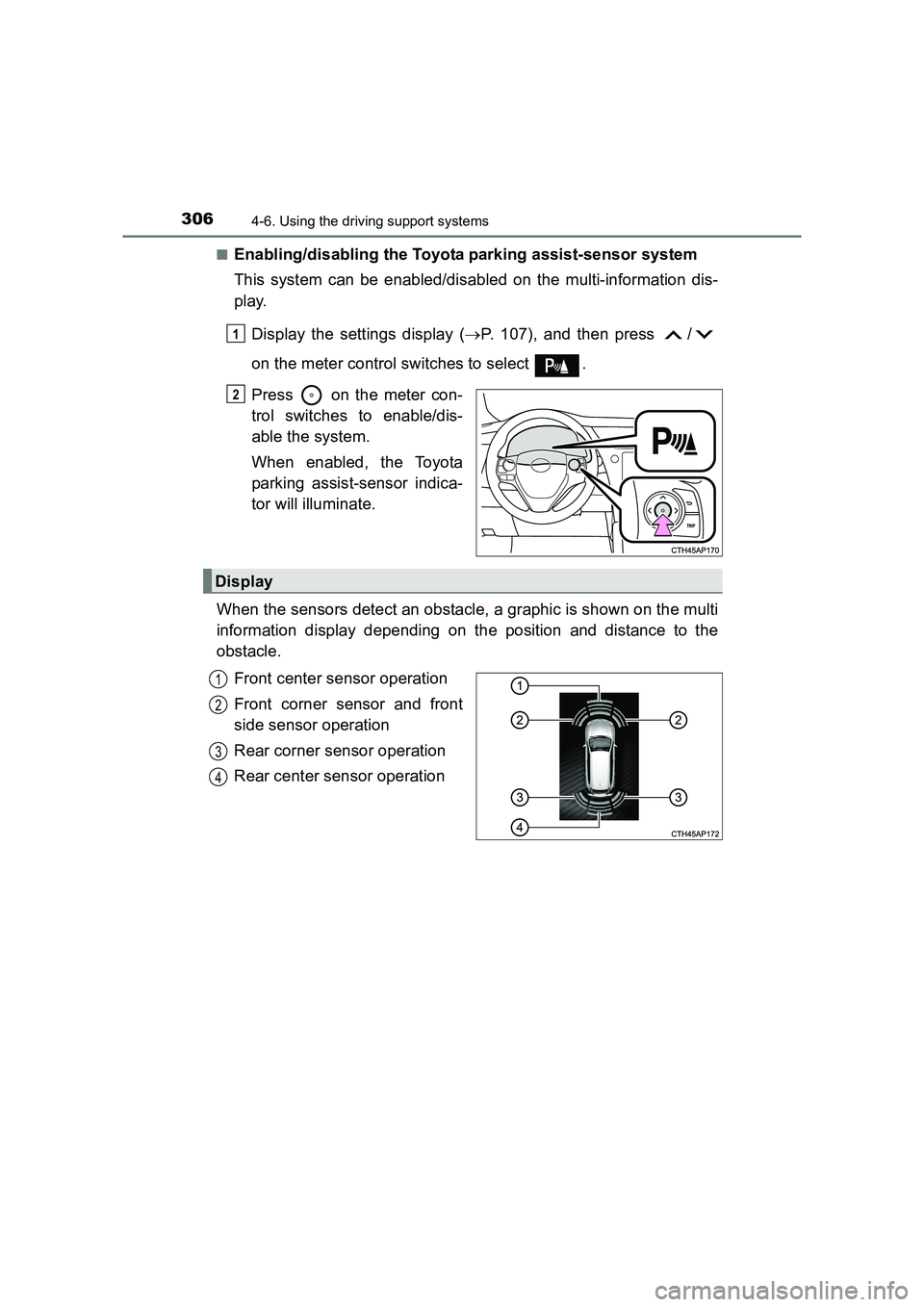

3064-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)■
Enabling/disabling the Toyota parking assist-sensor system
This system can be enabled/disabled on the multi-information dis-
play.
Display the settings display ( →P. 107), and then press /
on the meter control switches to select .
Press on the meter con-
trol switches to enable/dis-
able the system.
When enabled, the Toyota
parking assist-sensor indica-
tor will illuminate.
When the sensors detect an obstacle, a graphic is shown on the multi
information display depending on the position and distance to the
obstacle. Front center sensor operation
Front corner sensor and front
side sensor operation
Rear corner sensor operation
Rear center sensor operation
1
2
Display
1
2
3
4

3074-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

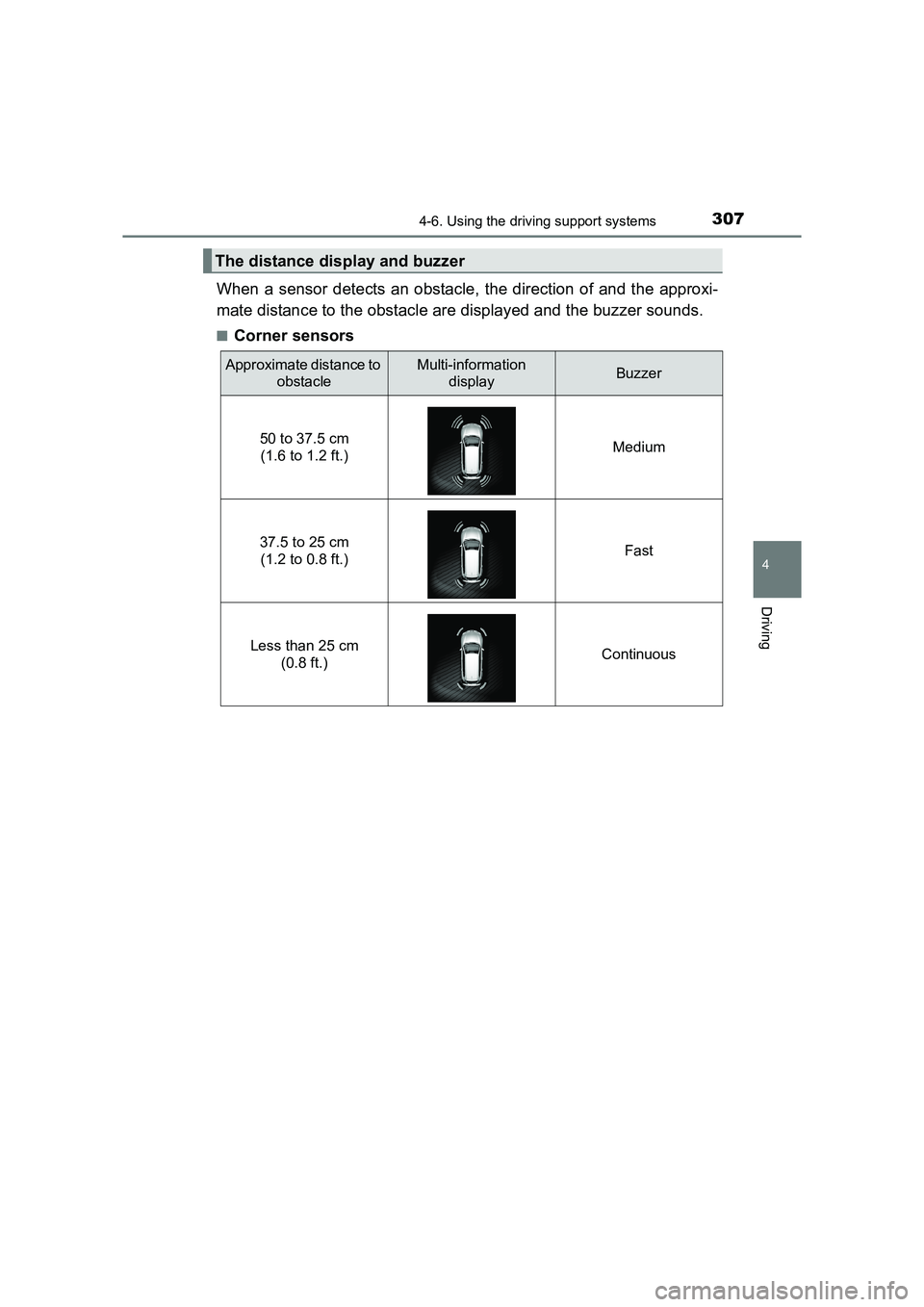

When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are displayed and the buzzer sounds.
■Corner sensors
The distance display and buzzer
Approximate distance to obstacleMulti-information displayBuzzer
50 to 37.5 cm (1.6 to 1.2 ft.) Medium
37.5 to 25 cm (1.2 to 0.8 ft.) Fast
Less than 25 cm (0.8 ft.) Continuous

3084-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)■

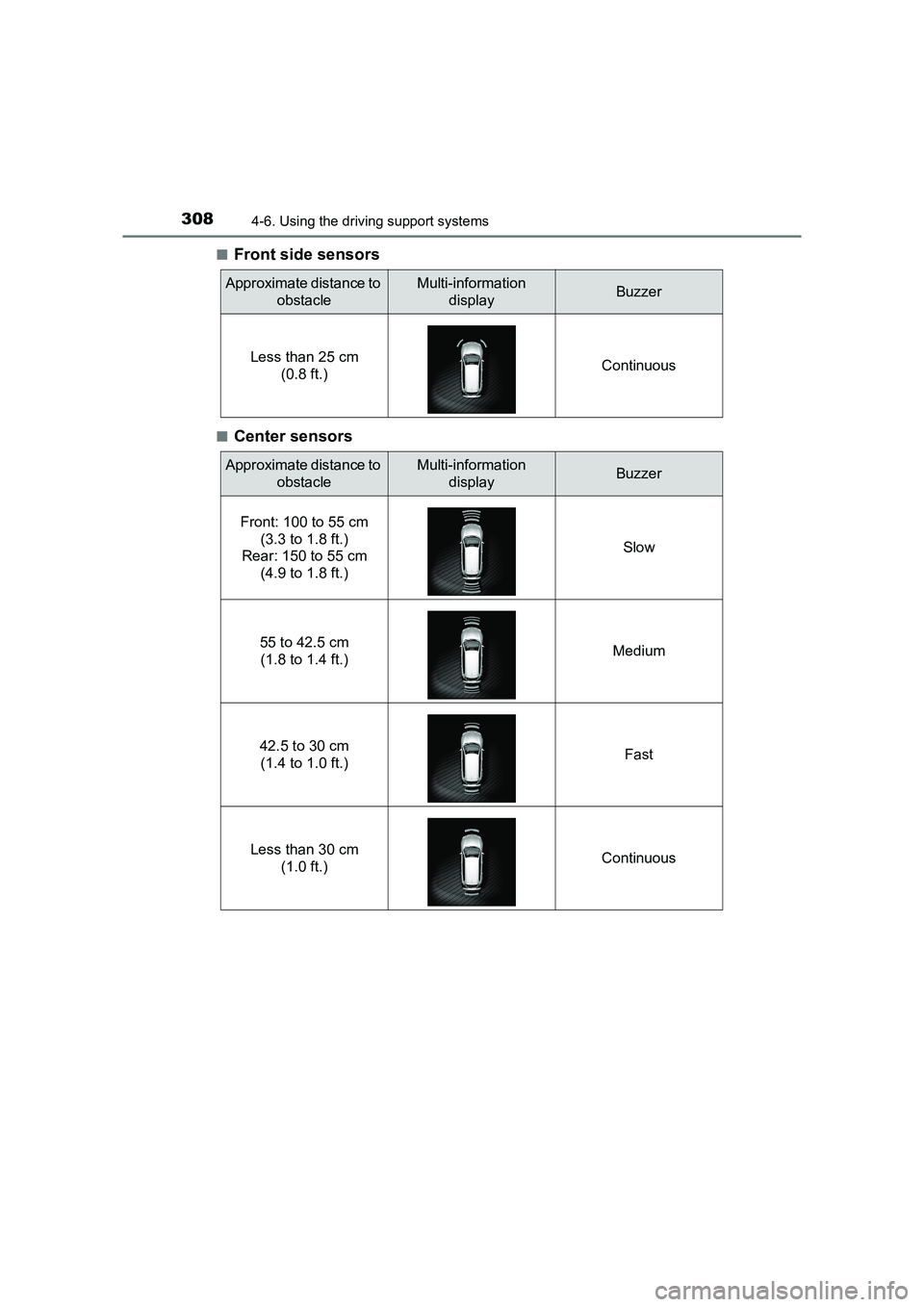

Front side sensors
■Center sensors
Approximate distance to
obstacleMulti-information displayBuzzer
Less than 25 cm (0.8 ft.) Continuous
Approximate distance to
obstacleMulti-information displayBuzzer
Front: 100 to 55 cm (3.3 to 1.8 ft.)
Rear: 150 to 55 cm
(4.9 to 1.8 ft.) Slow
55 to 42.5 cm (1.8 to 1.4 ft.) Medium
42.5 to 30 cm (1.4 to 1.0 ft.) Fast
Less than 30 cm (1.0 ft.) Continuous

3094-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving

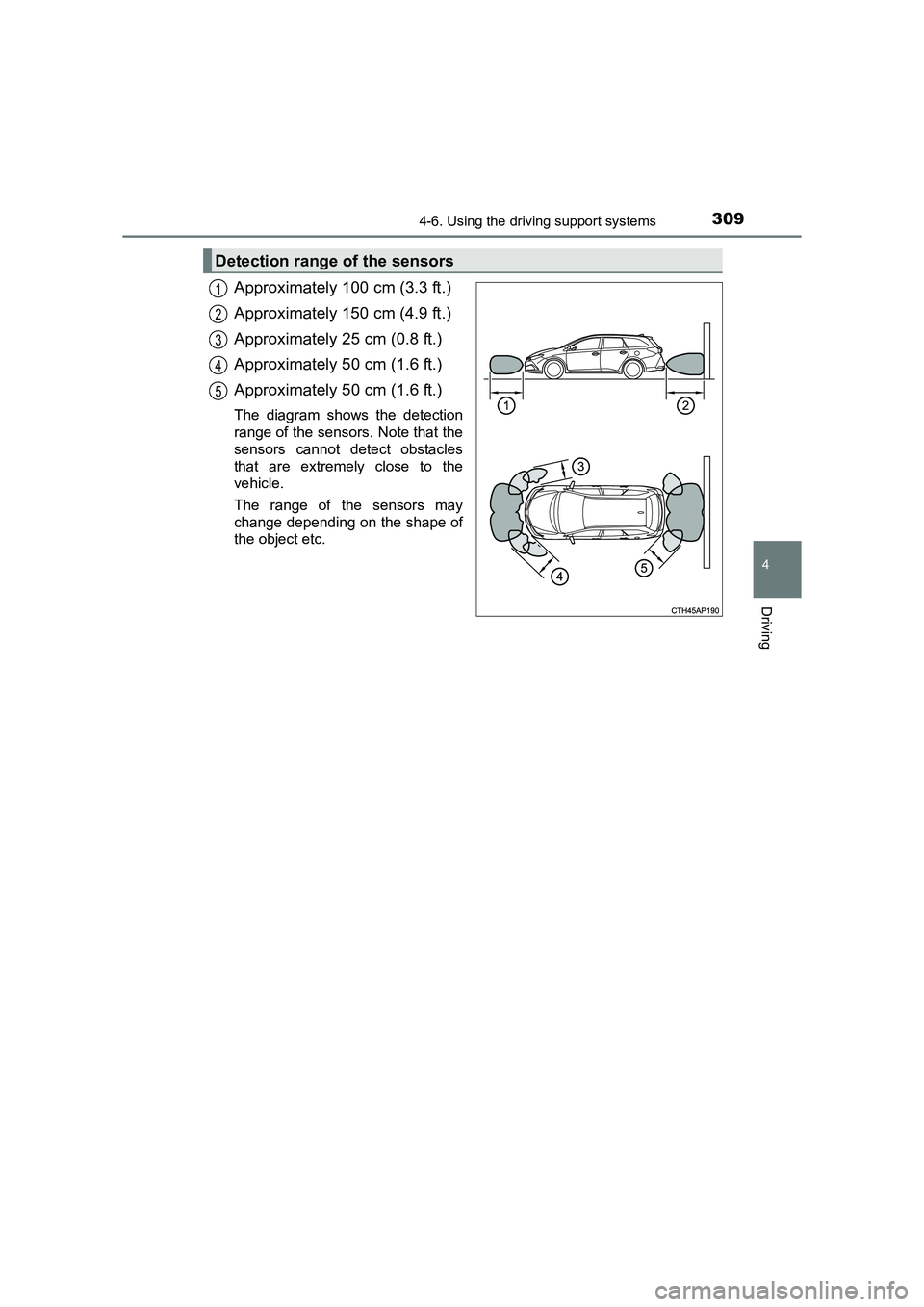

Approximately 100 cm (3.3 ft.)
Approximately 150 cm (4.9 ft.)
Approximately 25 cm (0.8 ft.)
Approximately 50 cm (1.6 ft.)
Approximately 50 cm (1.6 ft.)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
4
5

3104-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
■The Toyota parking assist-sensor can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
●Front sensors:
• Vehicles with a Multidrive:
The shift lever is in a position other than P.
• Vehicles with a manual transmission:
The parking brake is not applied.
• The vehicle speed is less than about 10 km/h (6 mph). (At any speed when the shift lever is in R)
● Rear sensors:
The shift lever is in R.
■ Sensor detection information
●Certain vehicle conditions and the su rrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the
vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelet is installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
