TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

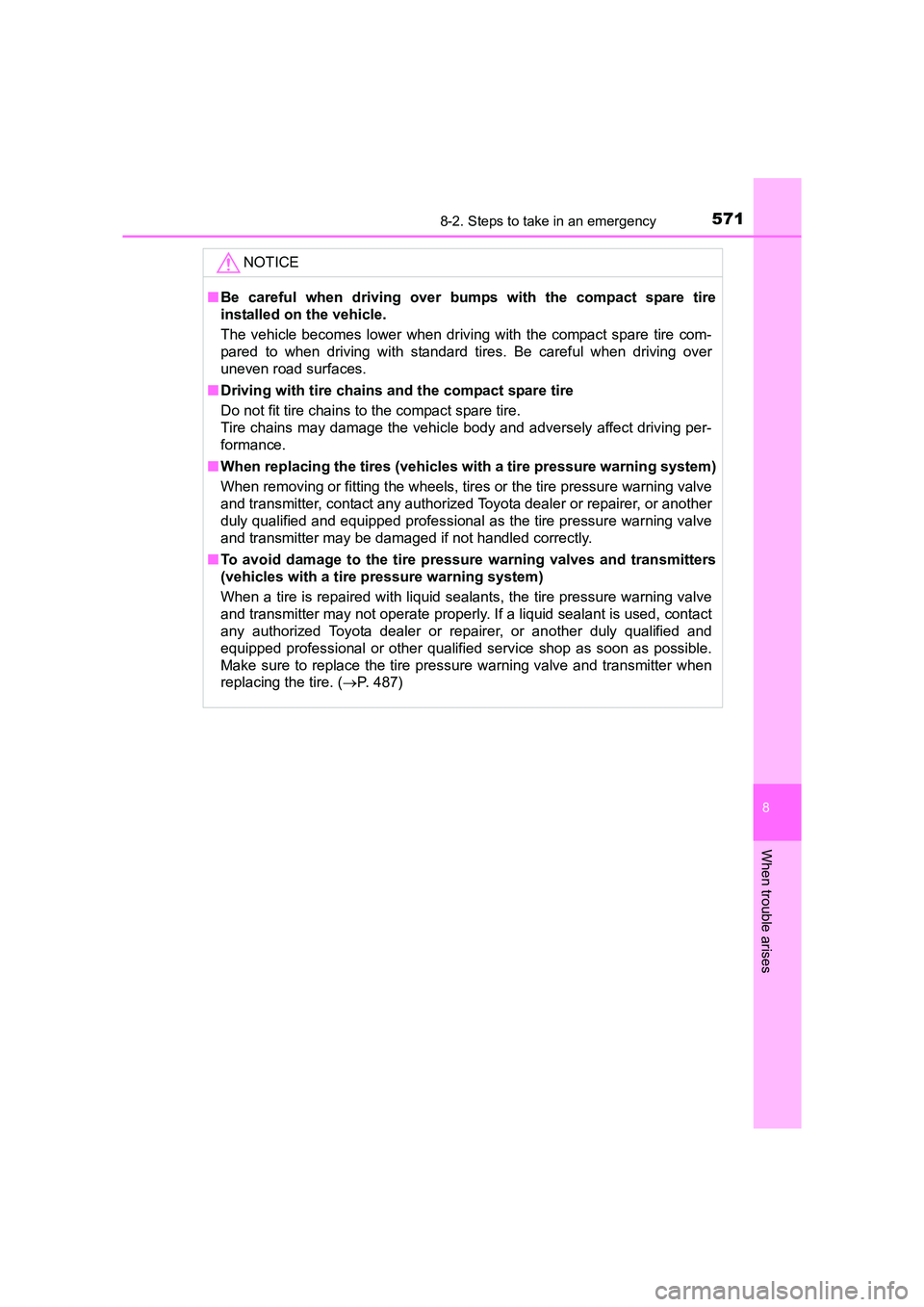

5718-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■ When replacing the tires (vehicles wi th a tire pressure warning system)
When removing or fitting the wheels, tire s or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
■ To avoid damage to the tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pres sure warning valve and transmitter when
replacing the tire. ( →P. 487)

5728-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)■

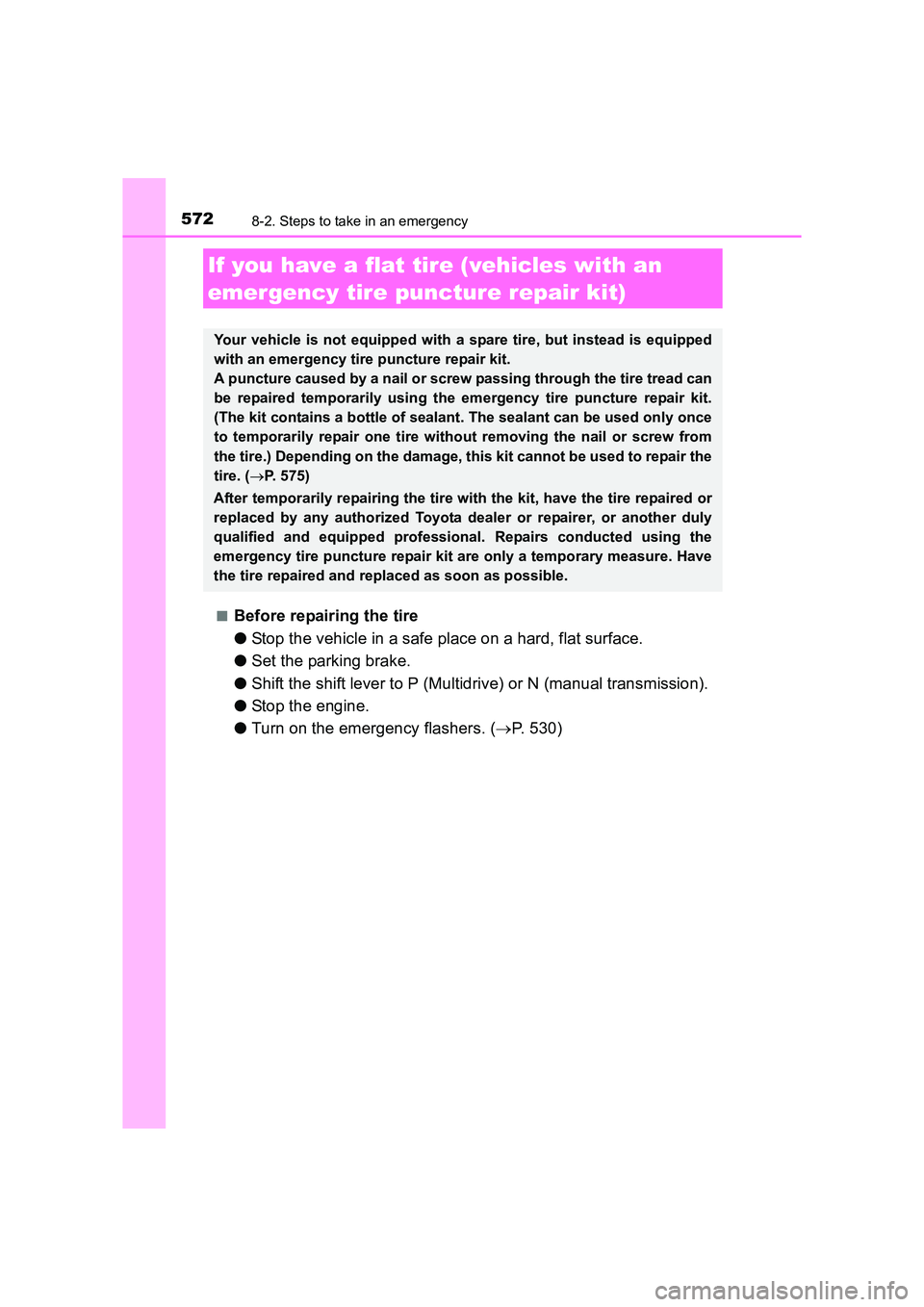

Before repairing the tire
●
Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (Multidrive) or N (manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( →P. 530)
If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped
with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) Depending on the damage, this kit cannot be used to repair the
tire. ( →P. 575)
After temporarily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Repairs conducted using the
emergency tire puncture repair kit are only a temporary measure. Have
the tire repaired and replaced as soon as possible.

5738-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises

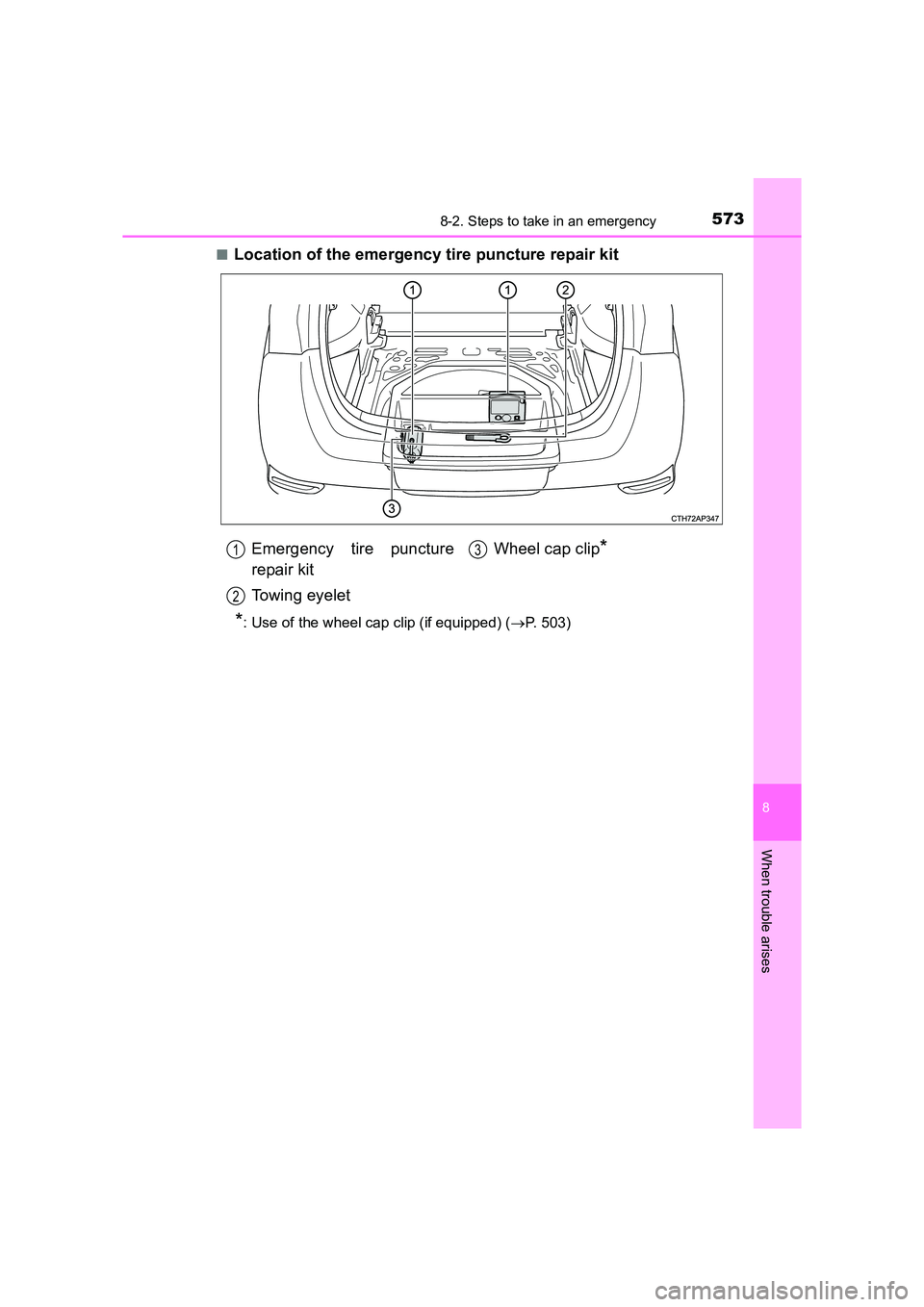

■Location of the emergency tire puncture repair kit
*: Use of the wheel cap clip (if equipped) (→P. 503)
Emergency tire puncture
repair kit
Towing eyelet Wheel cap clip*1
2
3

5748-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)■

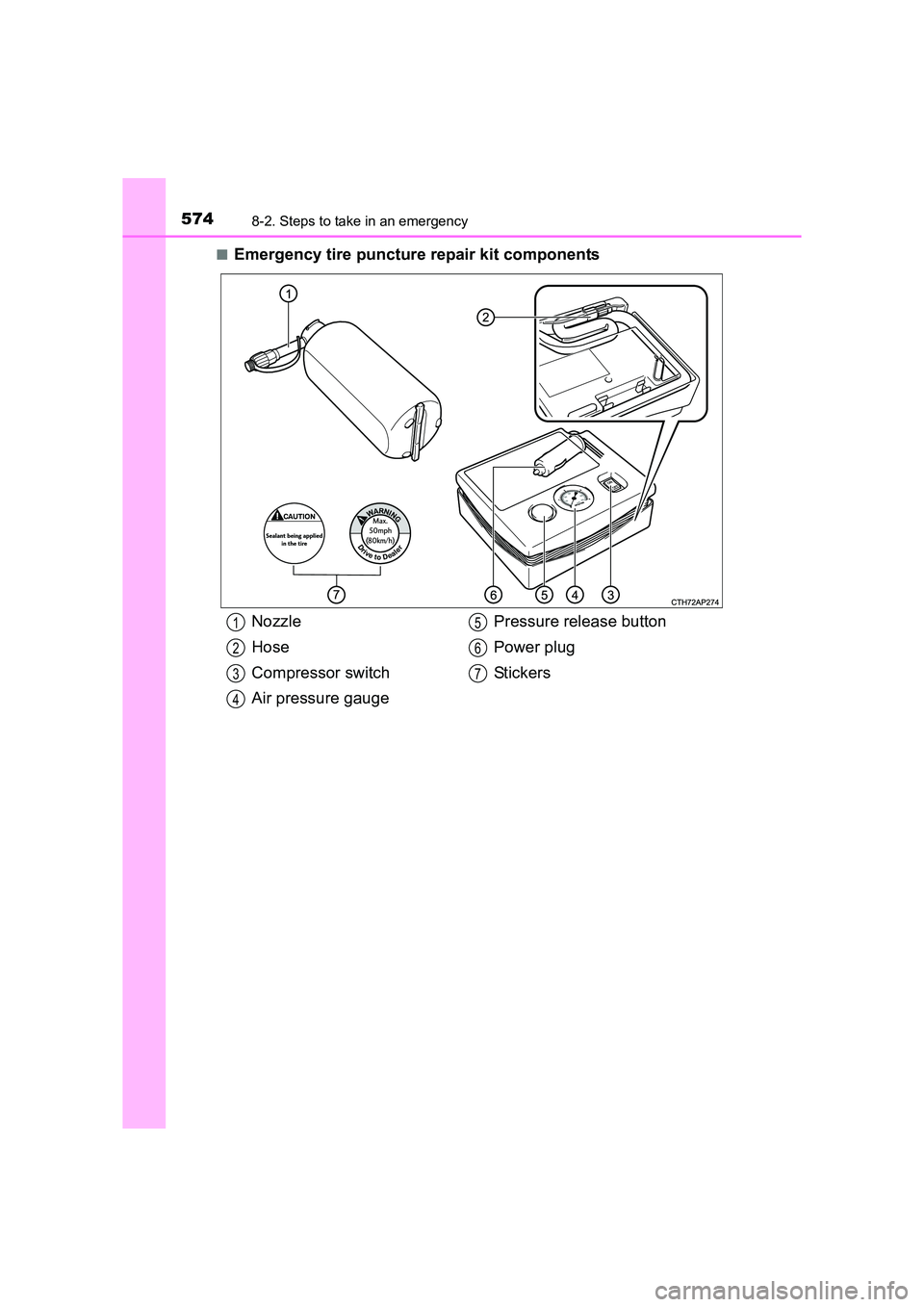

Emergency tire puncture repair kit components
Nozzle
Hose
Compressor switch
Air pressure gauge
Pressure release button
Power plug
Stickers1
2
3
4
5
6
7

5758-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises

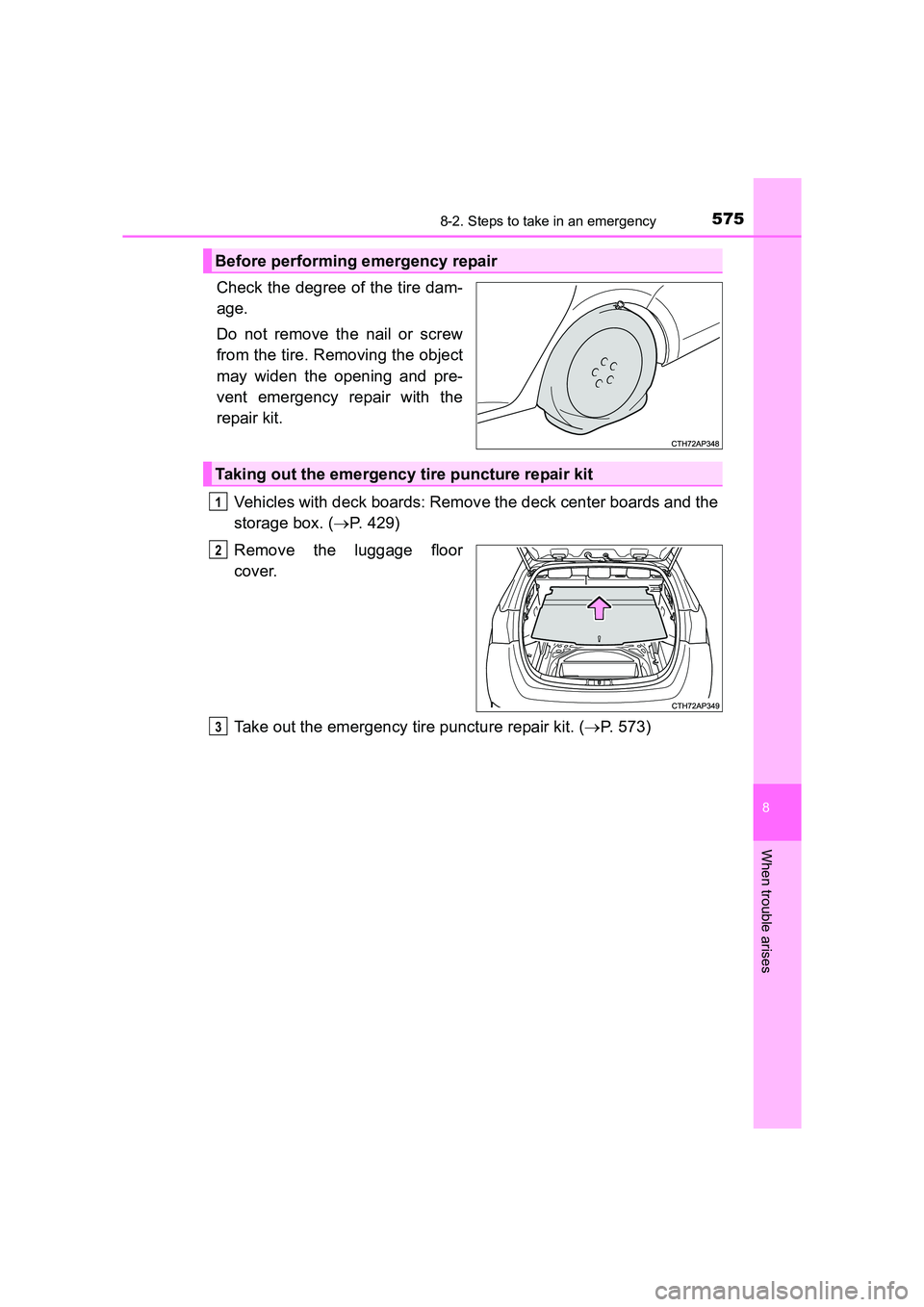

Check the degree of the tire dam-
age.
Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and pre-
vent emergency repair with the
repair kit.Vehicles with deck boards: Remove the deck center boards and the
storage box. ( →P. 429)
Remove the luggage floor
cover.
Take out the emergency tire puncture repair kit. ( →P. 573)
Before performing emergency repair
Taking out the emergency tire puncture repair kit
1
2
3

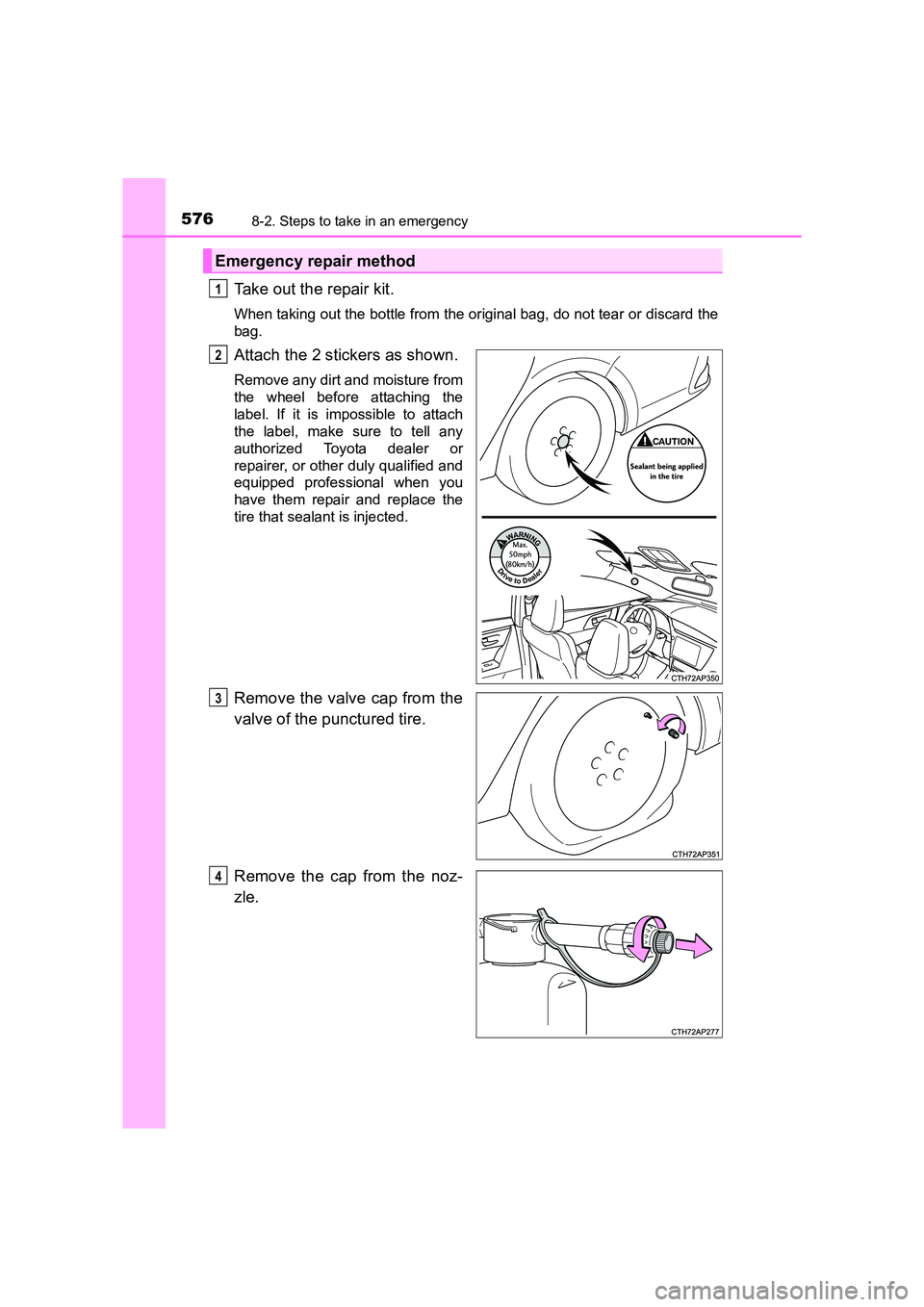

5768-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
Take out the repair kit.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
Emergency repair method
1
2
3
4

5778-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises

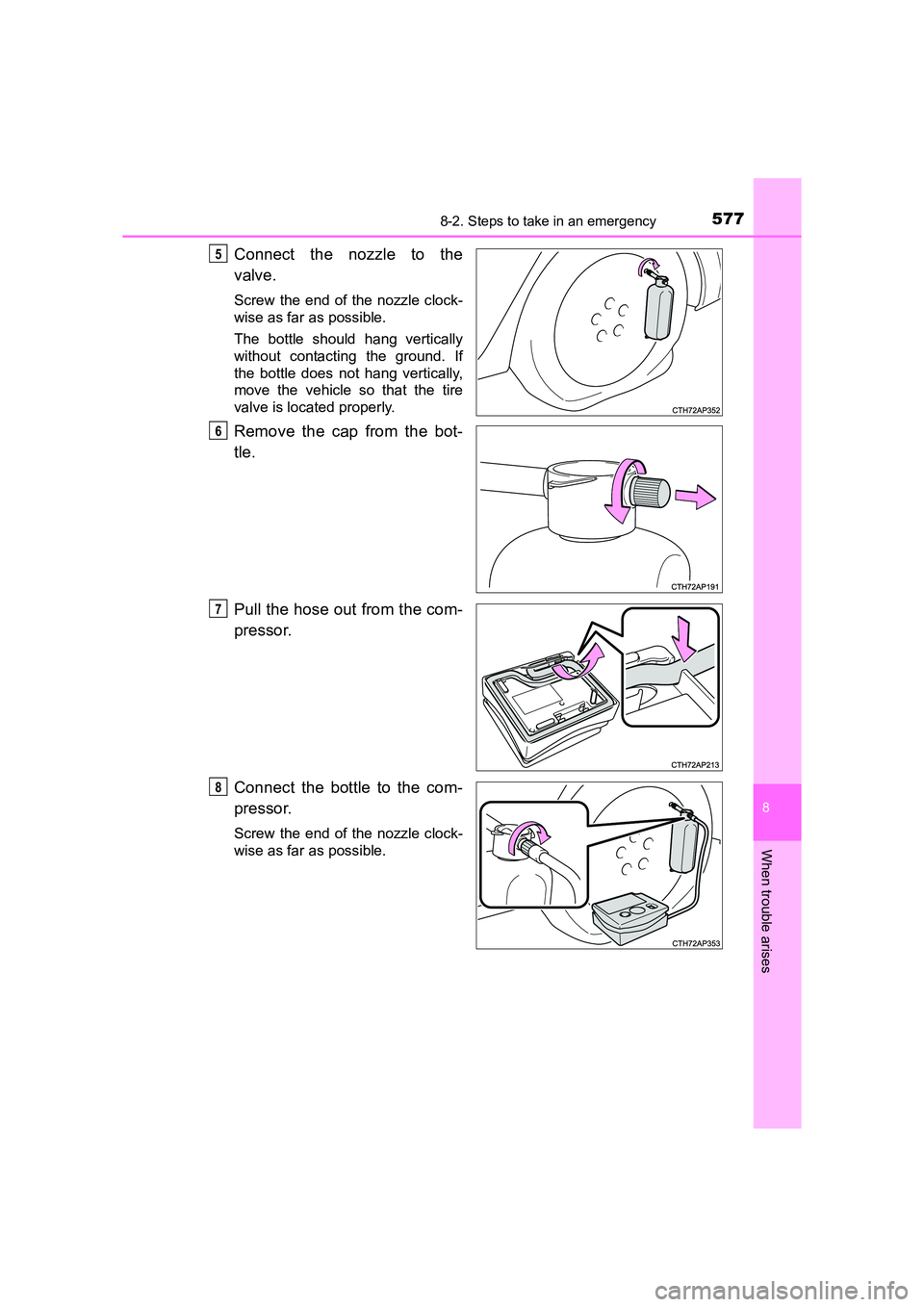

Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
5
6
7
8

5788-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)

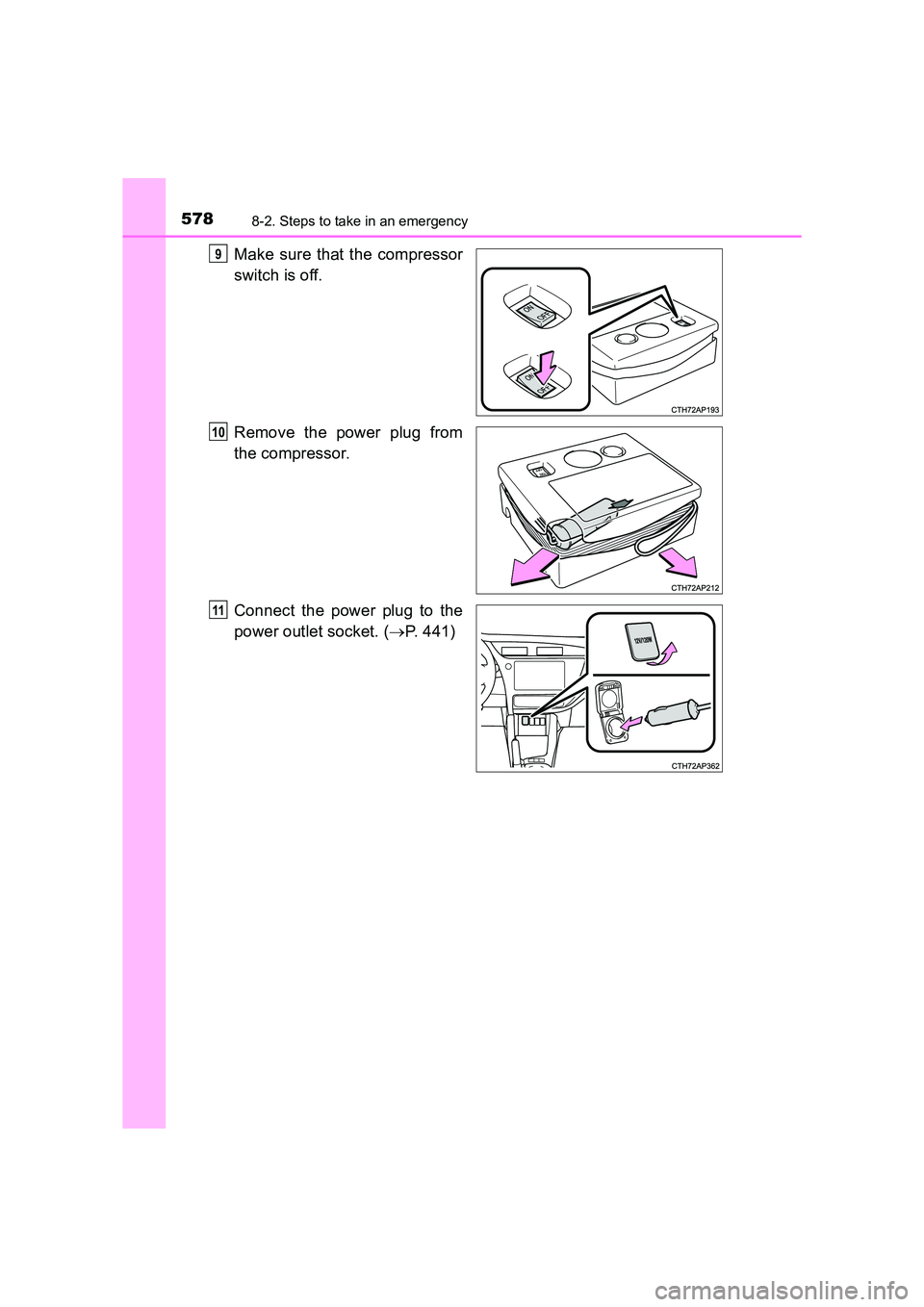

Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (→P. 441)9
10
11

5798-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises

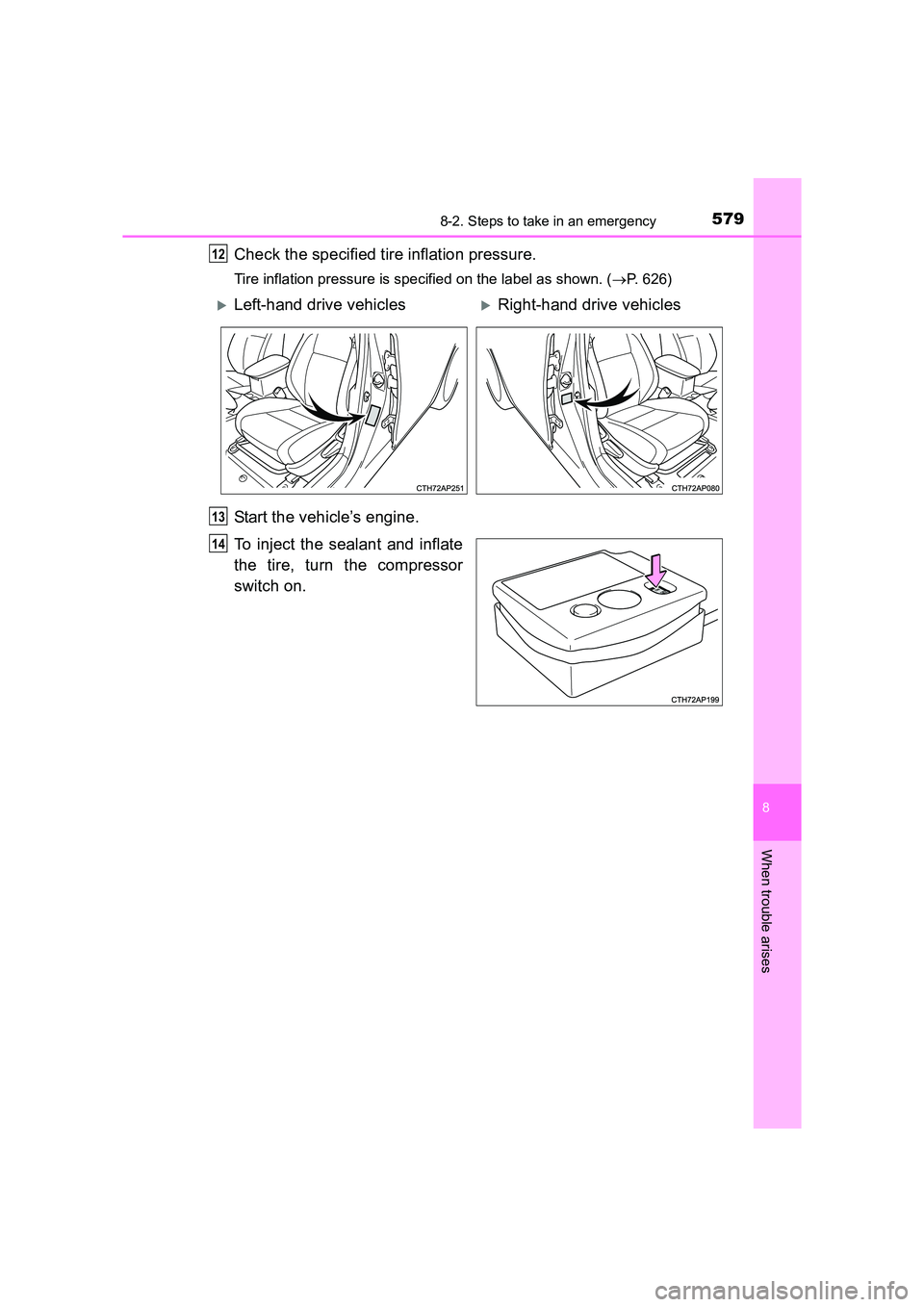

Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (→P. 626)
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
12
XLeft-hand drive vehiclesXRight-hand drive vehicles
13
14

5808-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)

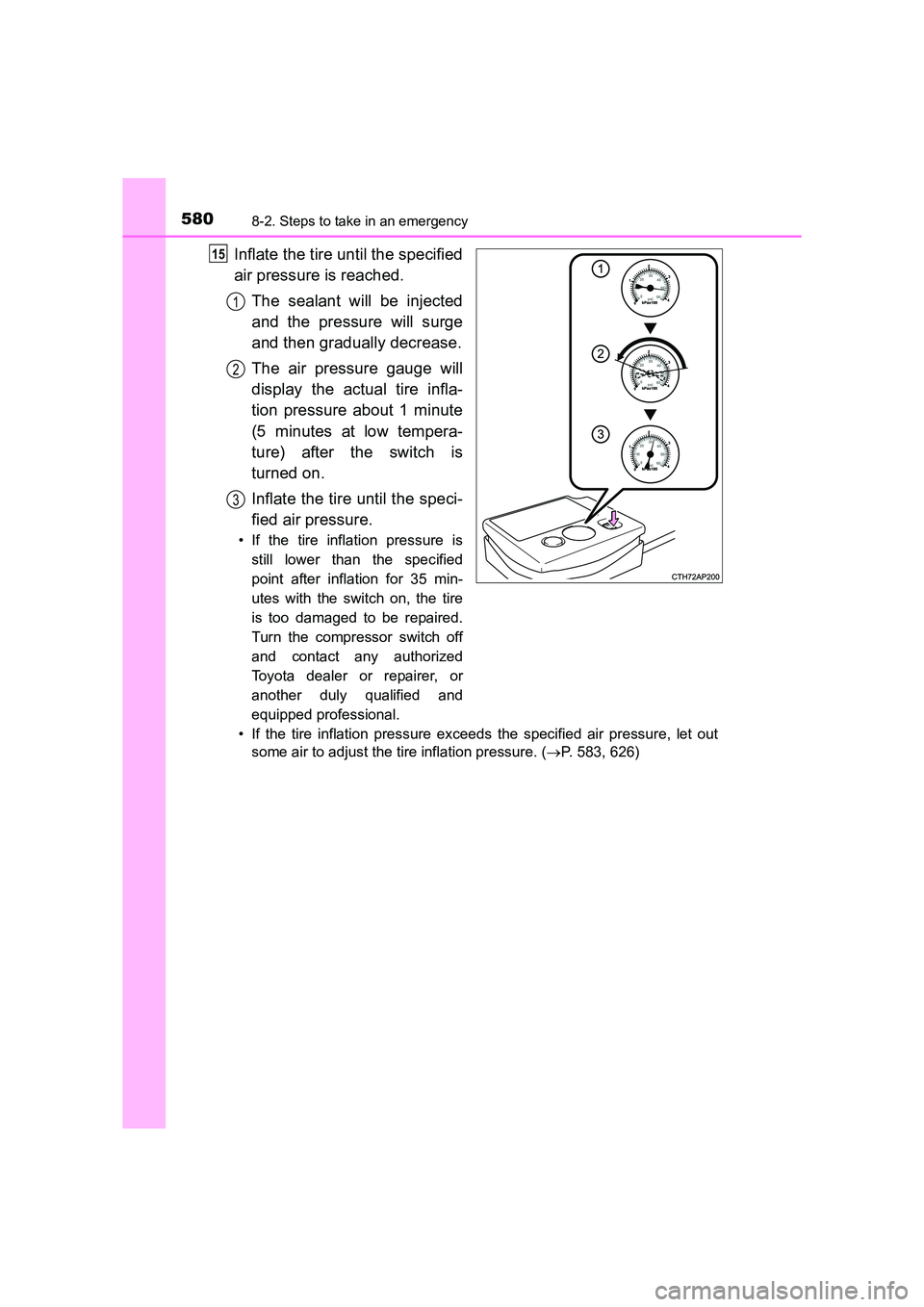

Inflate the tire until the specified
air pressure is reached.The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure isstill lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out some air to adjust the tire inflation pressure. ( →P. 583, 626)
15
1
2
3
