TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

6219-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications

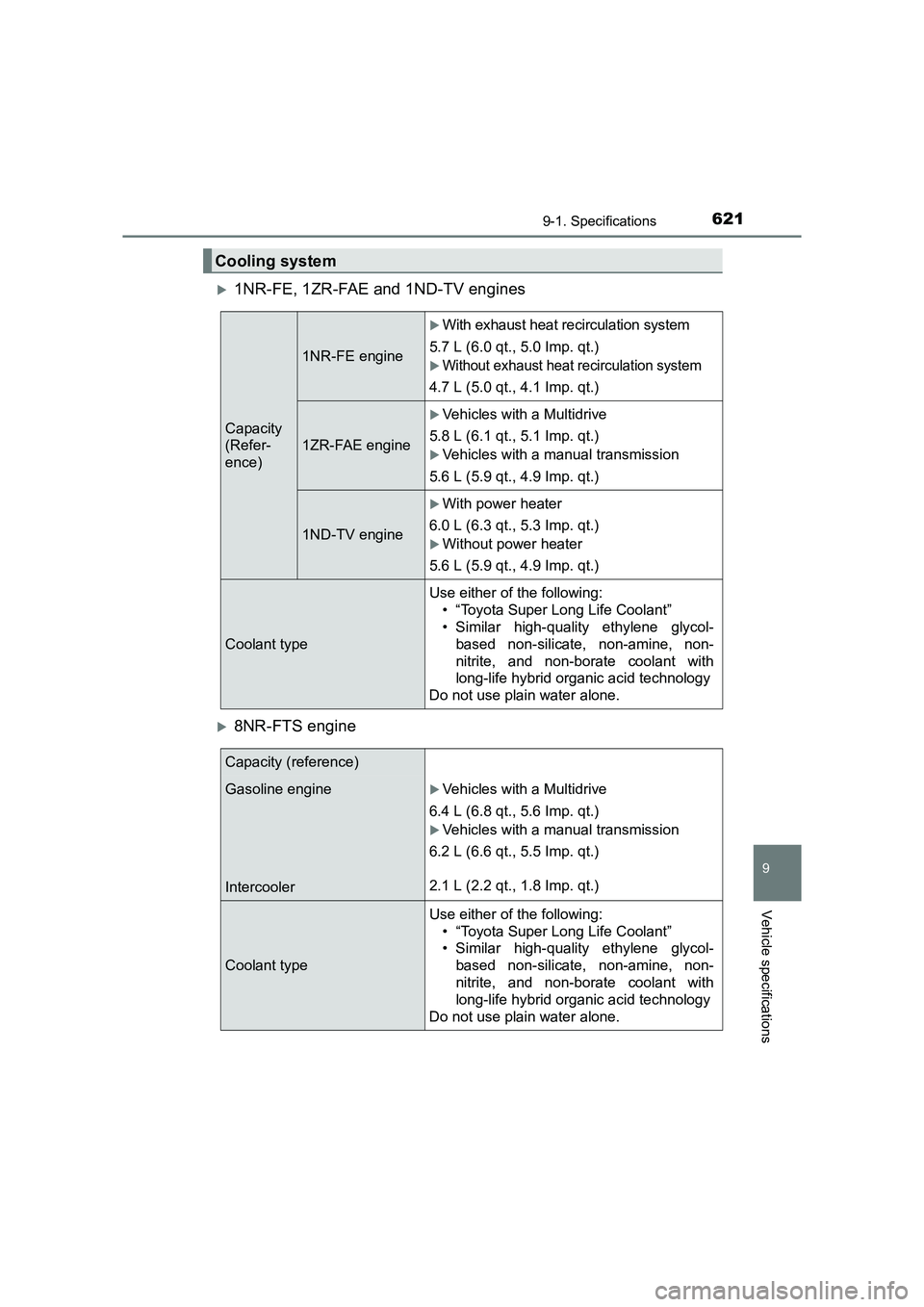

X1NR-FE, 1ZR-FAE and 1ND-TV engines
X8NR-FTS engine
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
XWith exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
XWithout exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
XVehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
XVehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
XWith power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
XWithout power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Capacity (reference)
Gasoline engine
IntercoolerXVehicles with a Multidrive
6.4 L (6.8 qt., 5.6 Imp. qt.)
XVehicles with a manual transmission
6.2 L (6.6 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.

6229-1. Specifications
AURIS Touring Sports_EE (12K53E)

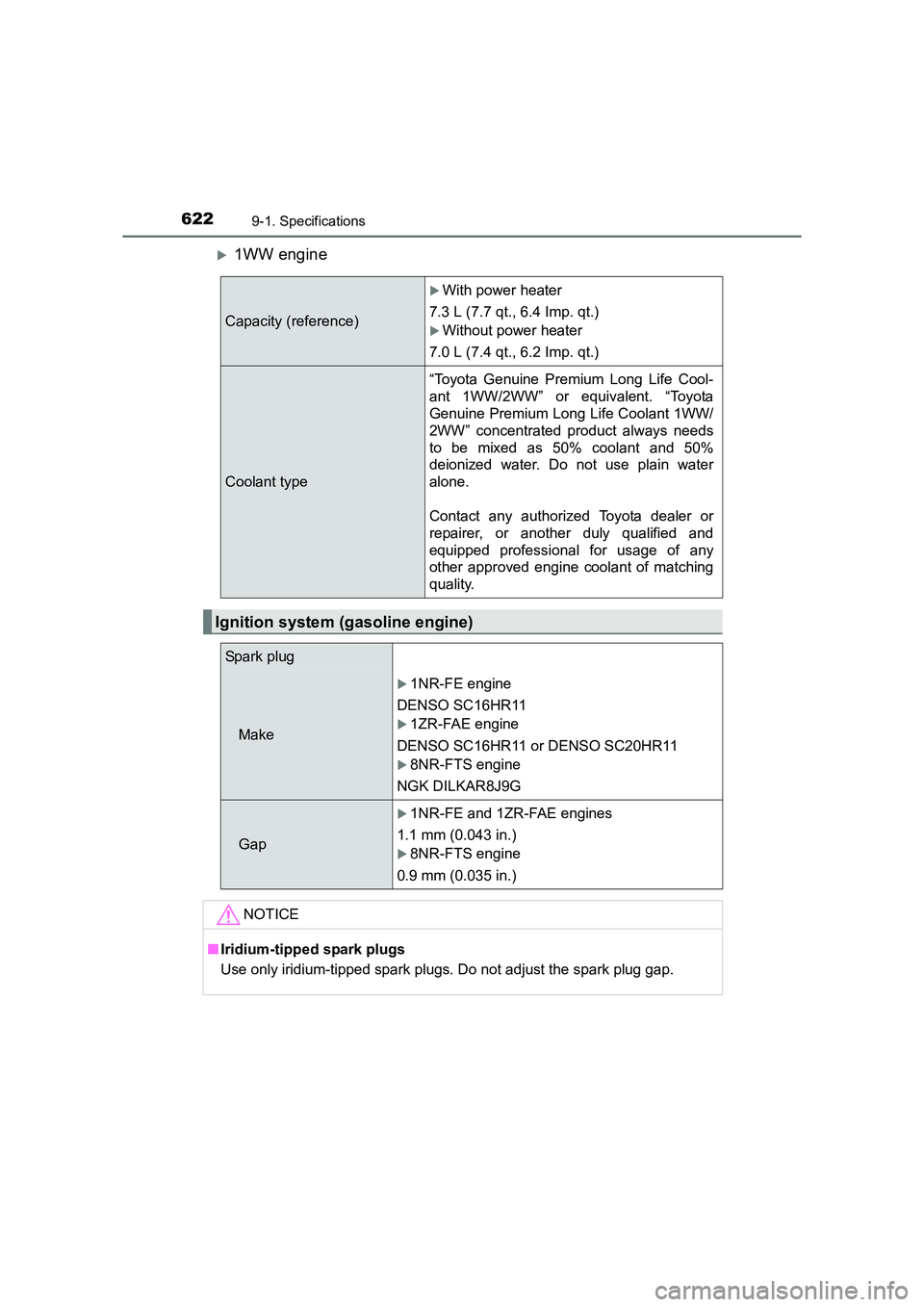

X1WW engine
Capacity (reference)
XWith power heater
7.3 L (7.7 qt., 6.4 Imp. qt.)
XWithout power heater
7.0 L (7.4 qt., 6.2 Imp. qt.)
Coolant type “Toyota Genuine Premium Long Life Cool-
ant 1WW/2WW” or equivalent. “Toyota
Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs
to be mixed as 50% coolant and 50%
deionized water. Do not use plain water
alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional for usage of any
other approved engine coolant of matching
quality.
Ignition system (gasoline engine)
Spark plug
Make
X1NR-FE engine
DENSO SC16HR11
X1ZR-FAE engine
DENSO SC16HR11 or DENSO SC20HR11
X8NR-FTS engine
NGK DILKAR8J9G
Gap
X1NR-FE and 1ZR-FAE engines
1.1 mm (0.043 in.)
X8NR-FTS engine
0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

6239-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
*: The fluid capacity is a reference quantity.If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

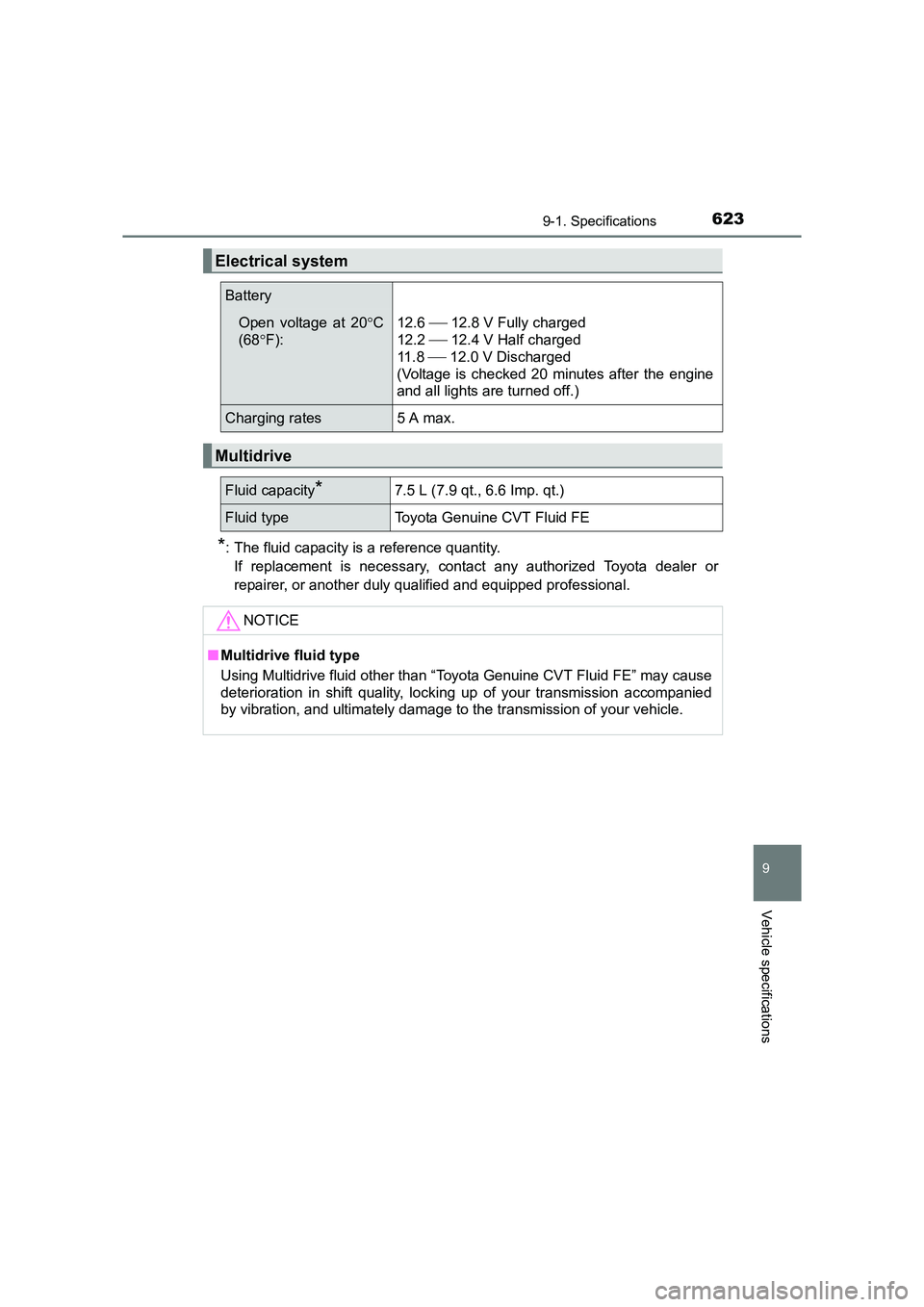

Electrical system
Battery
Open voltage at 20 °C
(68 °F): 12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.

6249-1. Specifications
AURIS Touring Sports_EE (12K53E)

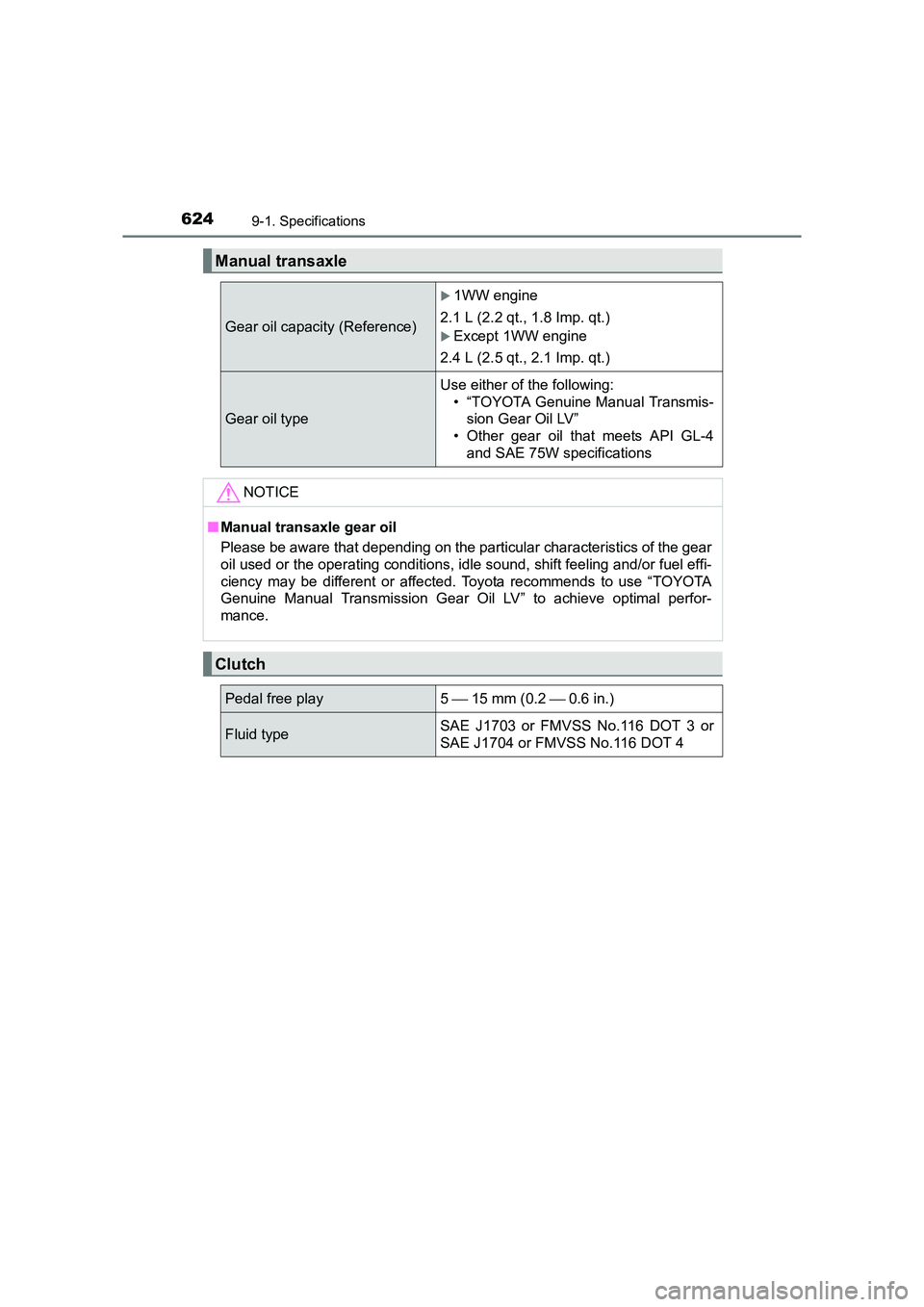

Manual transaxle
Gear oil capacity (Reference)
X1WW engine
2.1 L (2.2 qt., 1.8 Imp. qt.)
XExcept 1WW engine
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil type Use either of the following:
• “TOYOTA Genuine Manual Transmis-sion Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■ Manual transaxle gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oi l LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4

6259-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,66 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,45.0 lbf)

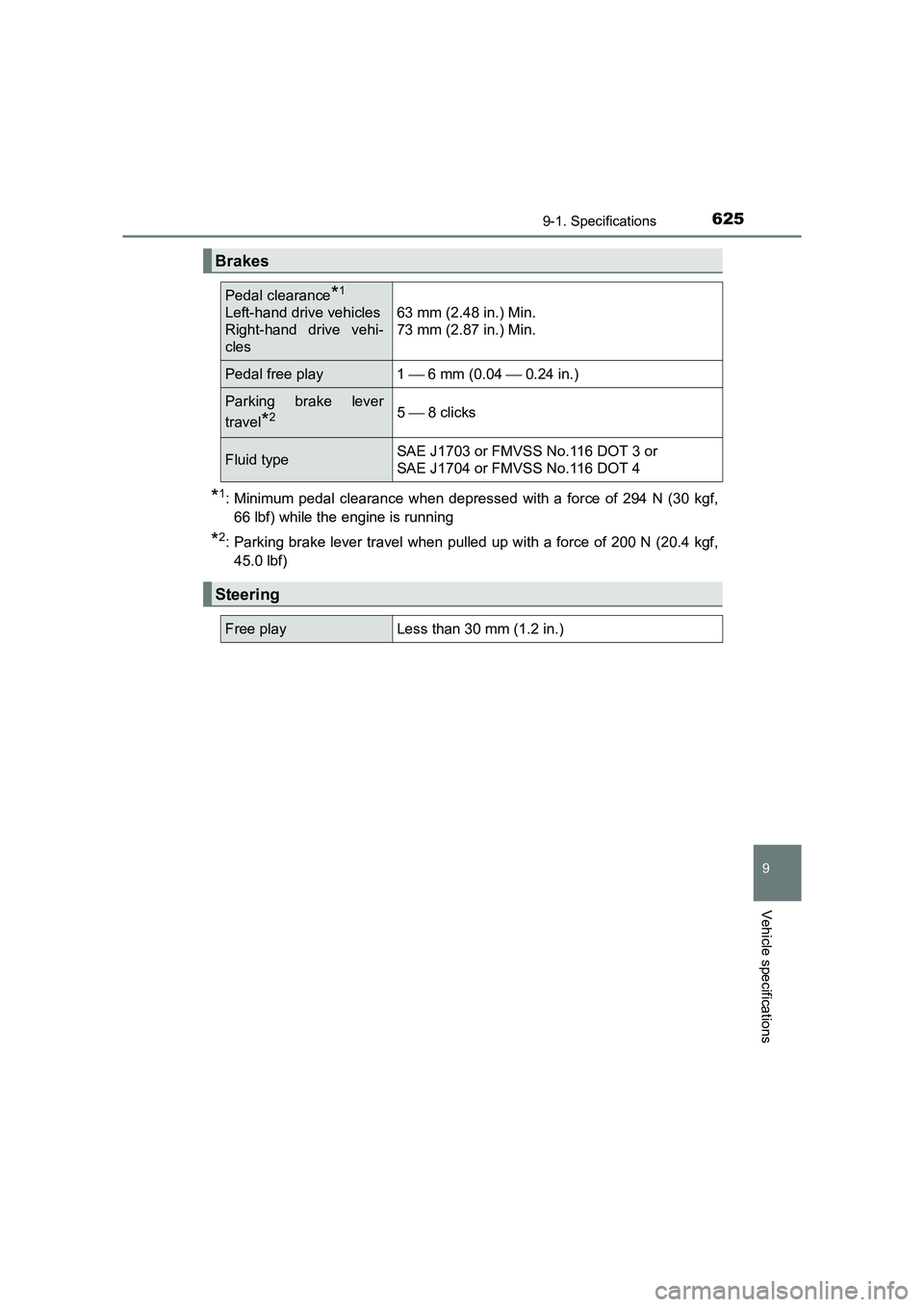

Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehi-
cles63 mm (2.48 in.) Min.
73 mm (2.87 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever
travel
*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

6269-1. Specifications
AURIS Touring Sports_EE (12K53E)
X15-inch tires
*: The tire inflation pressure is specified on the tire-loading information label.
( → P. 500)
X16-inch and 17-inch tires
Tires and wheels
Tire size195/65R15 91H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)
Type A*:
260 (2.6, 38)
Type B
*:
270 (2.7, 39)
Type A*:
260 (2.6, 38)
Type B
*:
270 (2.7, 39)
160 km/h (100
mph) or less
Type A*:
230 (2.3, 33)
Type B
*:
240 (2.4, 35)
Type A*:
230 (2.3, 33)
Type B
*:
240 (2.4, 35)
Wheel size15 × 6 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size205/55R16 91V, 215/45R17 87W, 225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size16 × 6 1/2 J (16-inch tires), 17 × 7 J (17-inch tires)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

6279-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications

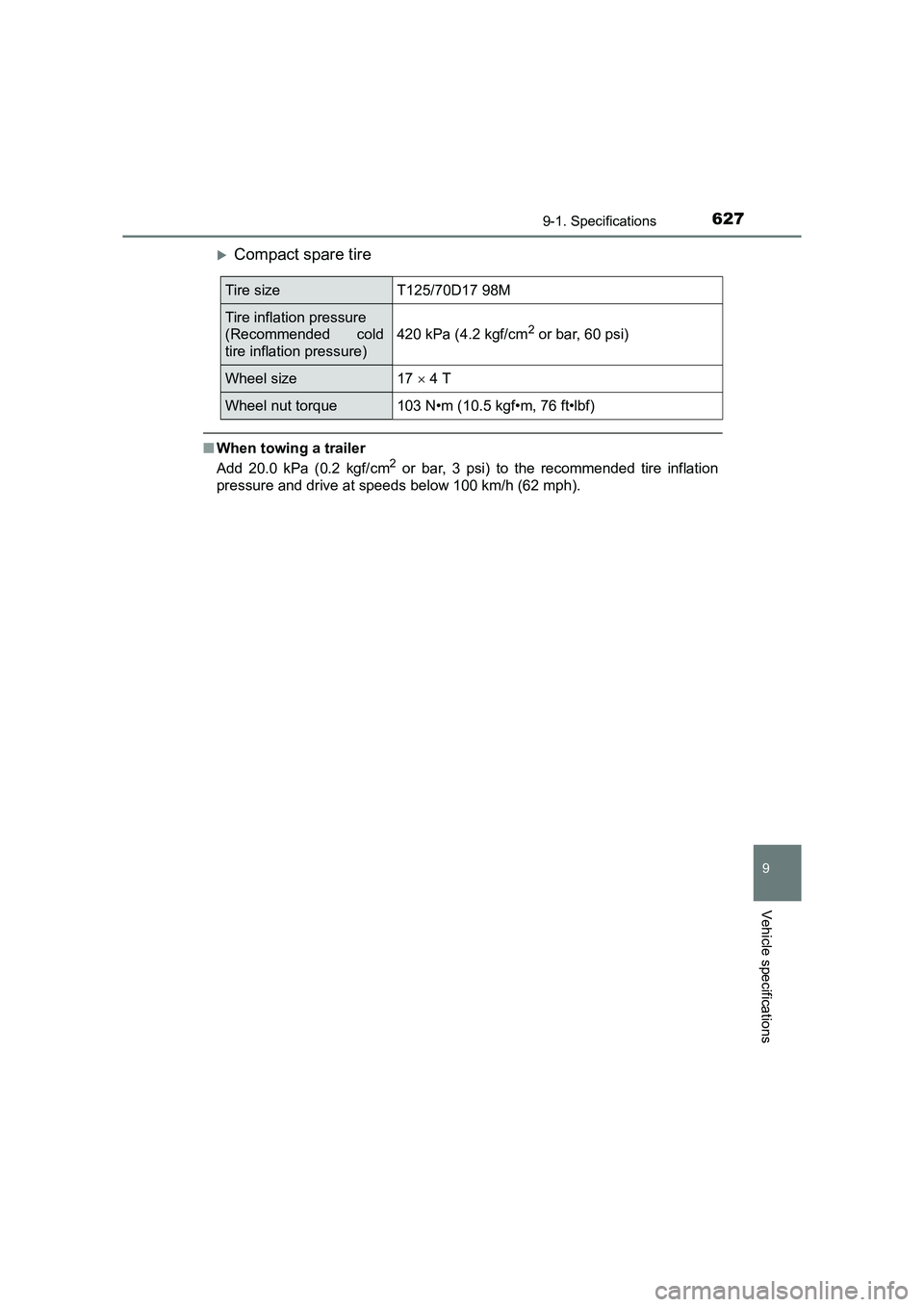

XCompact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17 × 4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

6289-1. Specifications
AURIS Touring Sports_EE (12K53E)

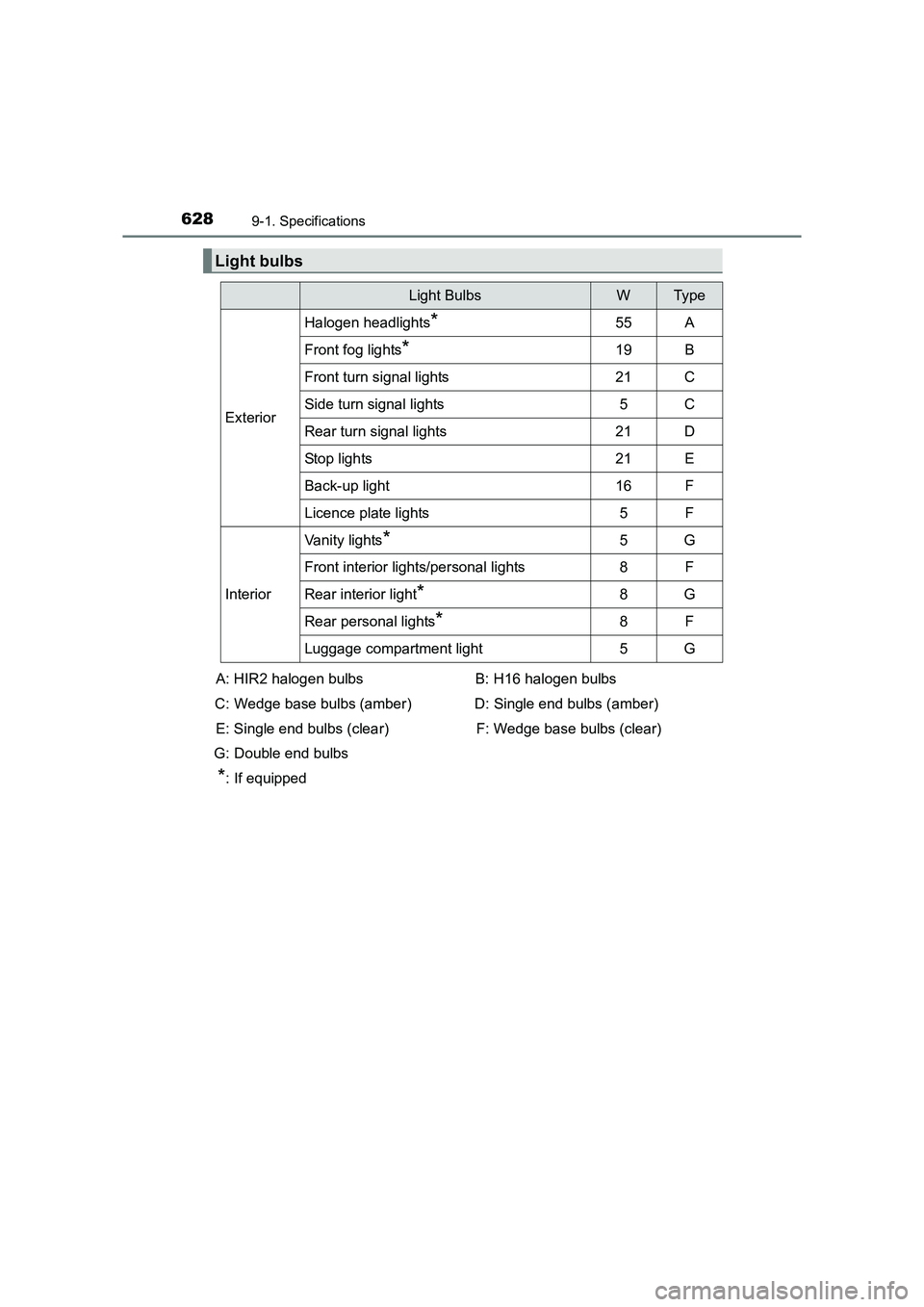

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights*55A
Front fog lights*19B
Front turn signal lights21C
Side turn signal lights5C
Rear turn signal lights21D
Stop lights21E
Back-up light16F
Licence plate lights5F
Interior
Vanity lights*5G
Front interior lights/personal lights8F
Rear interior light*8G
Rear personal lights*8F
Luggage compartment light5G
A: HIR2 halogen bulbs
C: Wedge base bulbs (amber) E: Single end bulbs (clear)
G: Double end bulbs
*: If equipped B: H16 halogen bulbs
D: Single end bulbs (amber) F: Wedge base bulbs (clear)

6299-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications

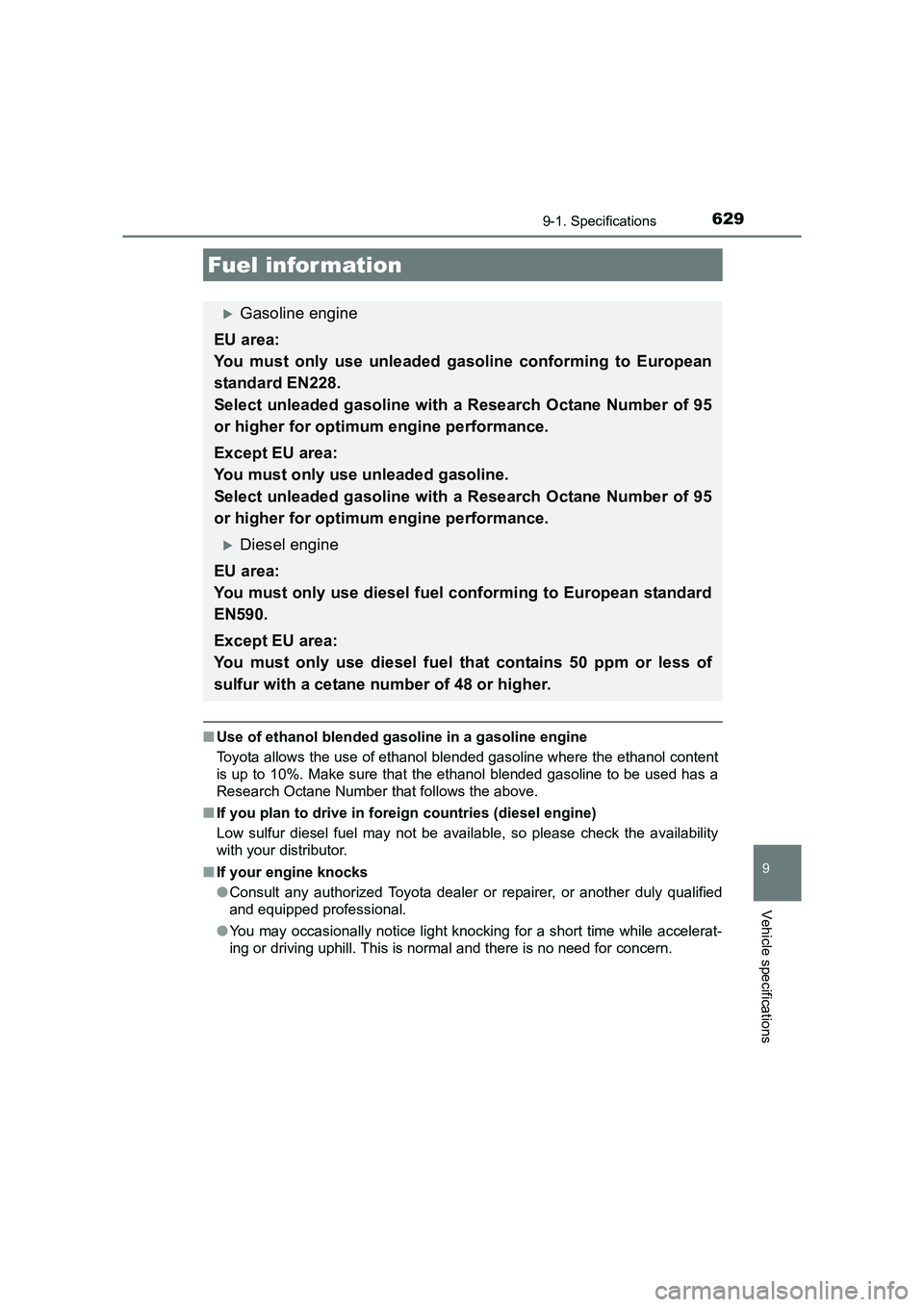

■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Fuel infor mation
XGasoline engine
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
XDiesel engine
EU area:
You must only use diesel fuel conforming to European standard
EN590.
Except EU area:
You must only use diesel fuel that contains 50 ppm or less of
sulfur with a cetane number of 48 or higher.

6309-1. Specifications

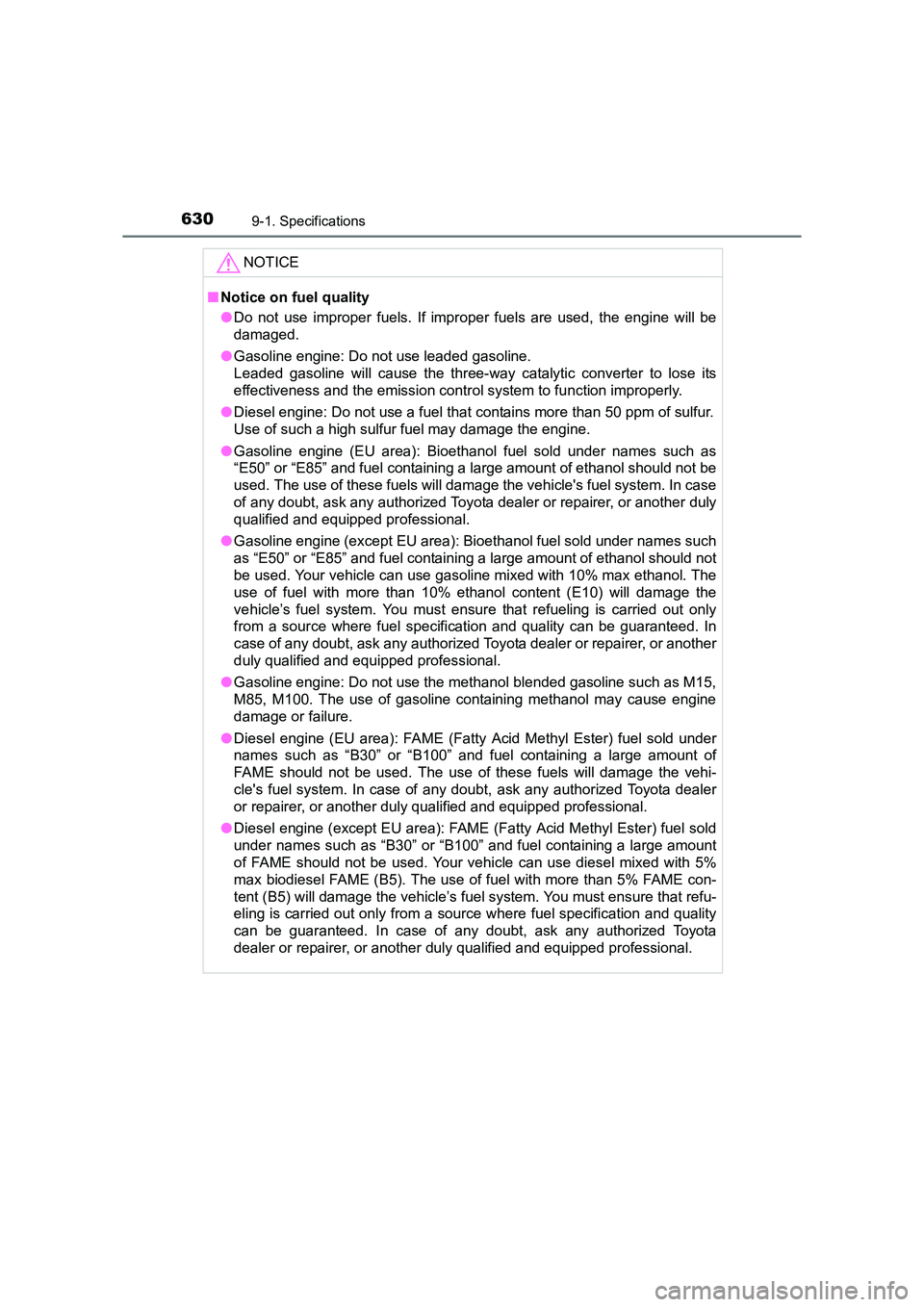

AURIS Touring Sports_EE (12K53E)NOTICE
■
Notice on fuel quality
●Do not use improper fuels. If impr oper fuels are used, the engine will be
damaged.
● Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
● Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle's fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
● Gasoline engine: Do not use the methanol blended gasoline such as M15,
M85, M100. The use of gasoline containing methanol may cause engine
damage or failure.
● Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle's fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
● Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
