'00 AVALON U (L/O 9908)
32
- Reorient or relocate the receiving an-
tenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.
Power windows
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the ONº position.
Key off operation: All windows work for
about 43 seconds even after the ignition
switch is turned off. When either front
door is opened then closed, you cannot
operate the power window.
OPERATING THE DRIVER'S WINDOW
Use the switch on the driver's door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
ProCarManuals.com

'00 AVALON U (L/O9908)
33
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION

Never try jamming any part of your
body to make the jam protection
function work intentionally.

The jam protection function may
not work if something gets caught
just before the window fully closed.
Window
lock switch
OPERATING THE PASSENGERS'
WINDOWS
Use the switches on the passengers'
doors. The driver 's door also has
switches that control the passengers'
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver 's door, the passengers' windows
cannot be operated.
ProCarManuals.com

'00 AVALON U (L/O 9908)
34
CAUTION
To avoid serious personal injury, you
must do the following.

Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.

When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Tr u n k lid (t yp e A) Ð
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See Luggage stowage precautionsº in
Section 2 for precautions to observe for
loading luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
ProCarManuals.com

'00 AVALON U (L/O9908)
35
ÐLock release lever
To open the trunk lid from the driver's
seat, pull up on the lock release lever.
ÐLuggage security system
This system deactivates the lock re-
lease switch so that things locked in
the trunk can be protected.
After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Tr u n k lid (t yp e B) Ð
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See Luggage stowage precautionsº in
Section 2 for precautions to observe for
loading luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
ProCarManuals.com

'00 AVALON U (L/O9908)
37
ÐLuggage security system
This system helps protect things locked
in the trunk by safeguarding the lock
release switch from unwanted access.
After closing the glove box lid, insert
the master key into the glove box lock
and turn it clockwise to safeguard the
lock release switch.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Hood
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
ProCarManuals.com

'00 AVALON U (L/O 9908)
38
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlight, tail lights and
interior lights. If any of the doors are
unlocked and the ignition switch is not in
the ignition switch, all the doors will be
automatically locked.SETTING THE SYSTEM1. Turn the ignition key to the LOCKº position and remove it.
The indicator light will start flashing every
1 second when the key is removed from
the ignition switch. (See Engine
immobiliser systemº for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter

If the battery terminal is disconnected
and then reconnected

Hotwire the ignition.
The indicator light will come on when the
system is activating.
If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
ProCarManuals.com

'00 AVALON U (L/O9908)
39
After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
Activating the systemº.
Stopping the alarm
The alarm will be stopped by the following
three ways:

Turn the ignition key from the LOCKº
to ONº position.

Unlock any of the doors with the key
or wireless remote control transmitter.

Open the trunk with the key or wireless
remote control transmitter.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.

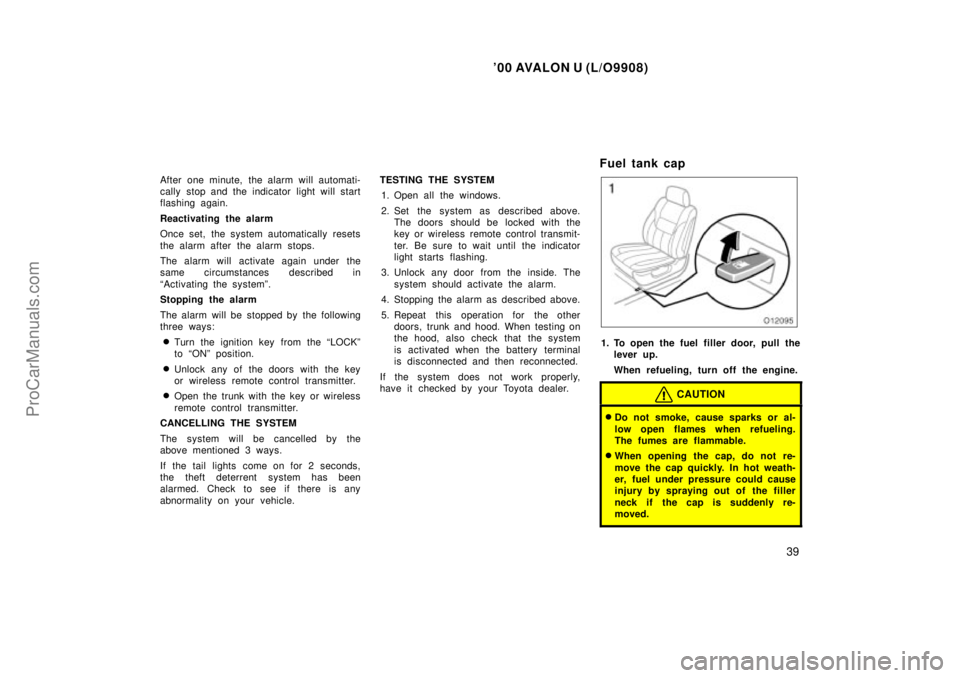

Fuel tank cap
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION

Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
ProCarManuals.com

'00 AVALON U (L/O9908)
41
To operate the moon roof, use the
switches beside the interior light.
The moon roof works when the ignition
switch is in the ONº position. However,
if all the front doors are closed, it works
for about 43 seconds even after the igni-
tion switch is turned off. It stops working
when either of the front doors is opened.
Sun shade operationÐ
The sun shade can be opened or closed
by hand.
Sliding operationÐ
To open: Push the switch on the SLIDE
OPENº side.
The roof will open and stop partway 10
mm (0.4 in.) from the fully opened posi-
tion. When you push SLIDE OPENº side
again, the moon roof will open fully. To
stop the roof partway, push the same side
or TILT UPº side while the roof is mov-
ing.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
10 mm (0.4 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.To close: Push the switch on the TILT
UPº side.
The roof will fully close. To stop the roof
partway, push the switch on either the
SLIDE OPENº or TILT UPº side briefly.
Tilting operationÐ
To tilt up: Push the switch on the TILT
UPº side.
To lower: Push the switch on the SLIDE
OPENº side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.
Jam protection function (closing opera-
tion only):
During closing operation, the
moon roof stops and opens half way if
something gets caught between the moon
roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.CAUTION
To avoid serious personal injury, you
must do the following.

While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.

Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one's neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.
ProCarManuals.com

'00 AVALON U (L/O 9908)
64
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in frontal or rear col-
lision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch on either way.
The amount of lumber support will change
as long as the switch is pushed. The micro computer can memorize the
position of the driver's seat and outside
rear view mirror. Two different driving
position profiles can be entered into
computer 's memory.
Recording a driving position in the
computer's memory can only be done
when the ignition key is in the ONº
position and the automatic transmission
selector lever is in the Pº position.
SETTING A DRIVING POSITION
1. Adjust the driver 's seat and outside rear view mirror to the desired posi-
tion.
2. While pushing the SETº button, push button 1º or 2º until the sig-
nal beeps.
The beep sound means that the positions
are recorded in the computer 's memory.
By repeating these two steps and pressing
the remaining button, the driving position
for another driver can be recorded.
To set a new memorized position, select
the desired position and perform step 2.
The previous memory will be erased and
the new position will be set.
Driving position memory
system
ProCarManuals.com

'00 AVALON U (L/O9908)
65
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
ACTIVATING A MEMORIZED POSITION
When you push button 1º or 2º, the
driving position will be automatically
adjusted to the position recorded for
that button.CONDITIONS FOR MEMORIZED
POSITION ACTIVATION

Ignition key ONº and shift lever in Pº
position
All parts of the memorized positions
can be activated. However, if the brake
pedal is being depressed, the seat
position will not change.

Key not in ignition switch and within 30
seconds of opening driver 's door
The memorized position can be acti-
vated.
If any driving position memory switch is
pushed while one of the memorized driv-
ing position profiles is being activated, the
operation will stop.
To reactivate the system, push the desired
button (1º or 2º) again.
The driving position memory control sys-
tem cannot be operated while the vehicle
is moving.
If the vehicle's battery is disconnected,
the computer's memory will be erased and
the memorized position will have to be set
again.
ProCarManuals.com
