key TOYOTA AVALON 2000 Owners Manual

'00 AVALON U (L/O9908)
11
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
SECTION 1- 2
ProCarManuals.com

'00 AVALON U (L/O 9908)
12
Keys21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
ProCarManuals.com

'00 AVALON U (L/O9908)
21

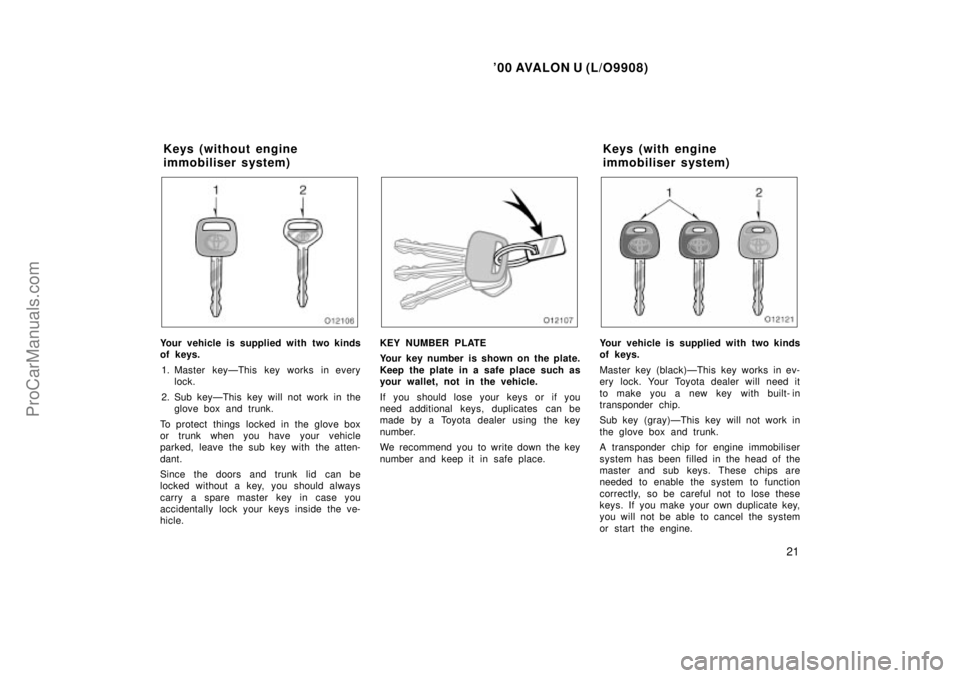

Your vehicle is supplied with two kinds
of keys.1. Master keyÐThis key works in every lock.
2. Sub keyÐThis key will not work in the glove box and trunk.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys.
Master key (black)ÐThis key works in ev-
ery lock. Your Toyota dealer will need it
to make you a new key with built- in
transponder chip.
Sub key (gray)ÐThis key will not work in
the glove box and trunk.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine
immobiliser system)
ProCarManuals.com

'00 AVALON U (L/O 9908)
22
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.

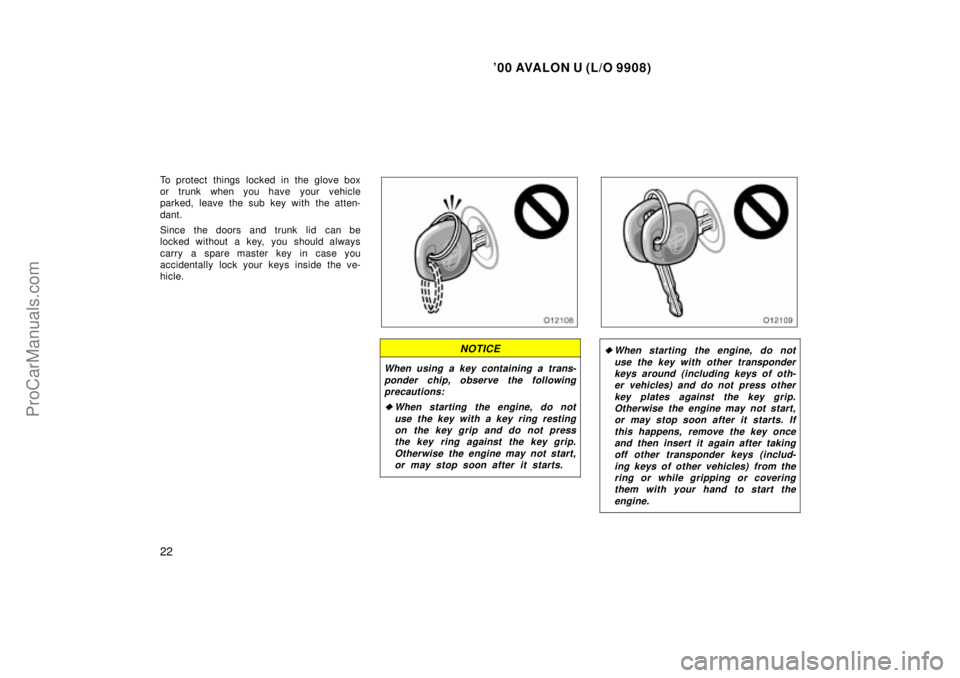

NOTICE
When using a key containing a trans-ponder chip, observe the followingprecautions:

When starting the engine, do not
use the key with a key ring restingon the key grip and do not pressthe key ring against the key grip.
Otherwise the engine may not start,or may stop soon after it starts.

When starting the engine, do not
use the key with other transponderkeys around (including keys of oth-er vehicles) and do not press other
key plates against the key grip.Otherwise the engine may not start,or may stop soon after it starts. If
this happens, remove the key onceand then insert it again after takingoff other transponder keys (includ-
ing keys of other vehicles) from thering or while gripping or coveringthem with your hand to start the
engine.
ProCarManuals.com

'00 AVALON U (L/O9908)
23

Do not bend the key grip.

Do not cover the key grip with anymaterial that cuts off electromagnet-ic waves.

Do not knock the key hard against
other objects.

Do not leave the key exposed tohigh temperatures for a long period,such as on the dashboard and hoodunder the direct sunlight.

Do not put the key in water orwash it in an ultrasonic washer.

Do not use the key with electromag-netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
ProCarManuals.com

'00 AVALON U (L/O 9908)
24

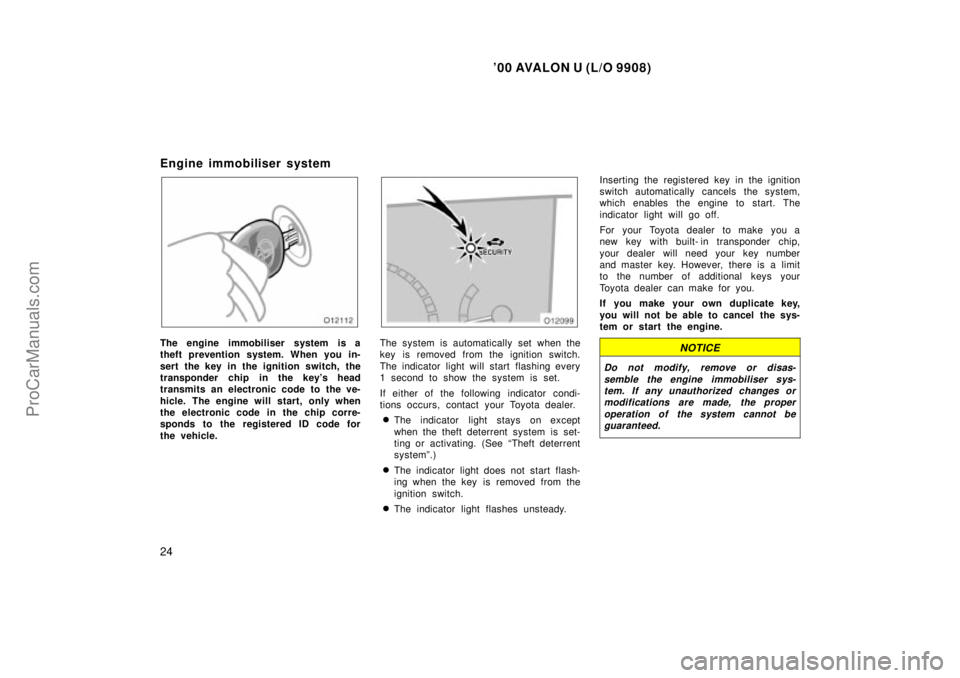

Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key's head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing every
1 second to show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.

The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See Theft deterrent
systemº.)

The indicator light does not start flash-
ing when the key is removed from the
ignition switch.

The indicator light flashes unsteady.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-tem. If any unauthorized changes ormodifications are made, the proper
operation of the system cannot beguaranteed.
ProCarManuals.com

'00 AVALON U (L/O9908)
25

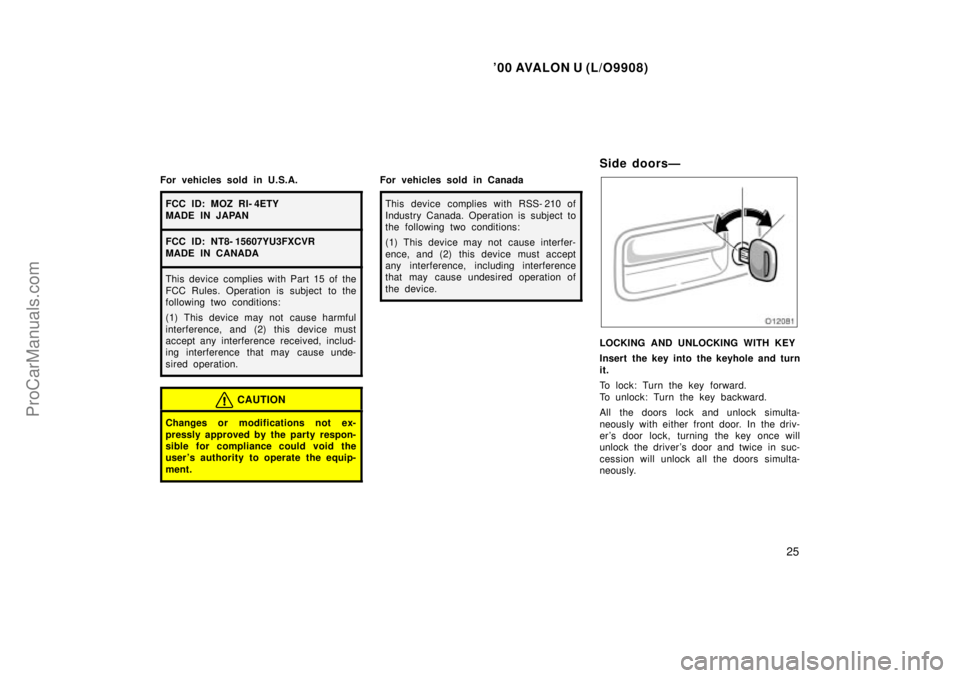

For vehicles sold in U.S.A.
FCC ID: MOZ RI- 4ETY
MADE IN JAPAN
FCC ID: NT8- 15607YU3FXCVR
MADE IN CANADA
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS- 210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Side doorsÐ
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er's door lock, turning the key once will
unlock the driver's door and twice in suc-
cession will unlock all the doors simulta-
neously.
ProCarManuals.com

'00 AVALON U (L/O 9908)
26

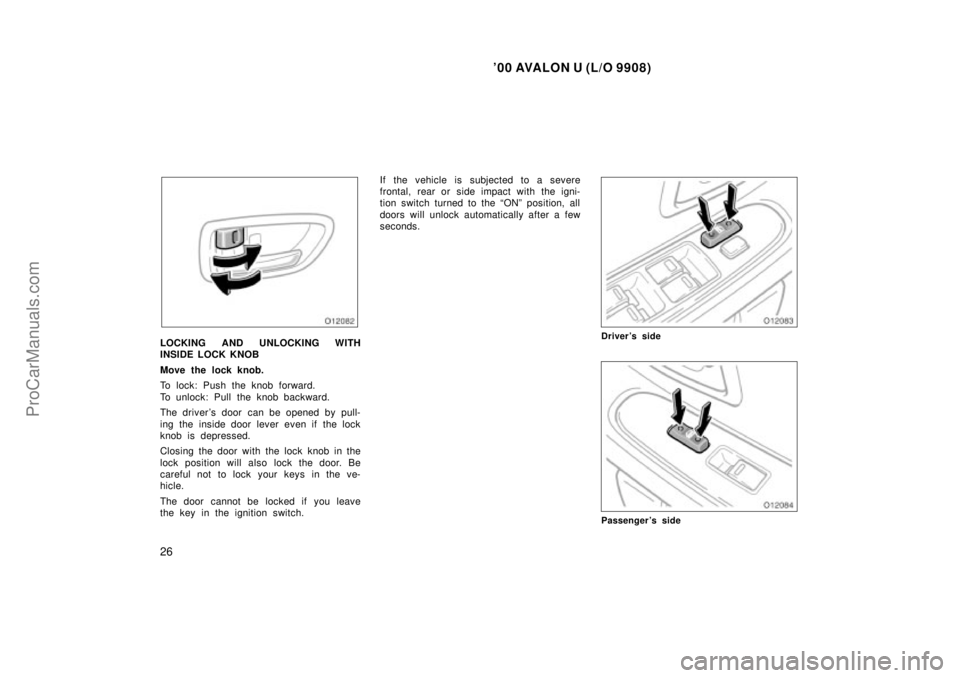

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The driver 's door can be opened by pull-
ing the inside door lever even if the lock
knob is depressed.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked if you leave
the key in the ignition switch.If the vehicle is subjected to a severe
frontal, rear or side impact with the igni-
tion switch turned to the ONº position, all
doors will unlock automatically after a few
seconds.Driver's side
Passenger's side
ProCarManuals.com

'00 AVALON U (L/O 9908)
28

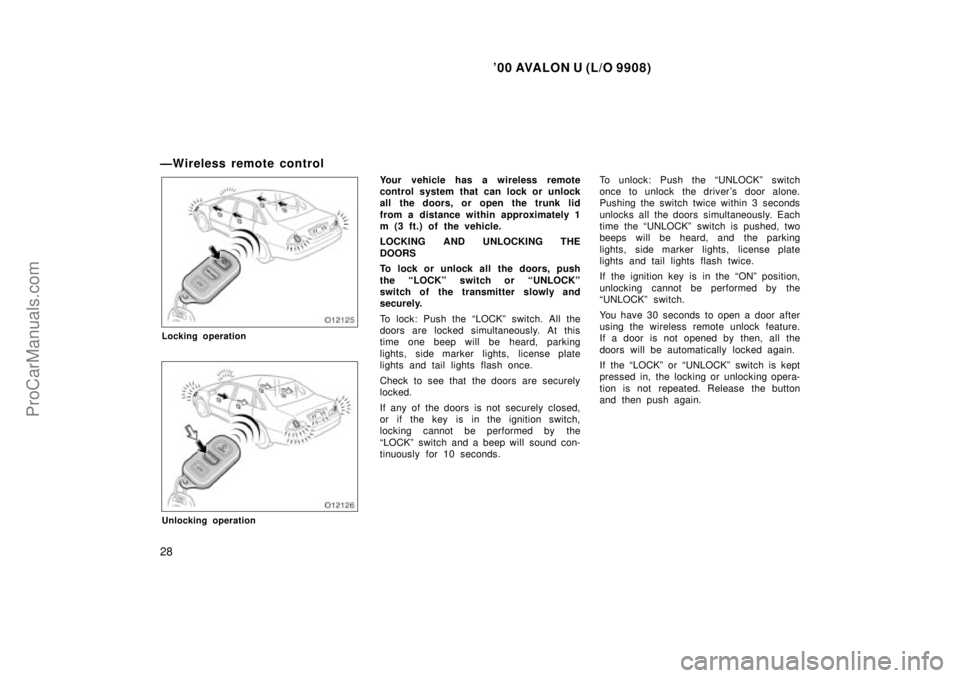

ÐWireless remote control
Locking operation
Unlocking operation
Your vehicle has a wireless remote
control system that can lock or unlock
all the doors, or open the trunk lid
from a distance within approximately 1
m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE
DOORS
To lock or unlock all the doors, push
the LOCKº switch or UNLOCKº
switch of the transmitter slowly and
securely.
To lock: Push the LOCKº switch. All the
doors are locked simultaneously. At this
time one beep will be heard, parking
lights, side marker lights, license plate
lights and tail lights flash once.
Check to see that the doors are securely
locked.
If any of the doors is not securely closed,
or if the key is in the ignition switch,
locking cannot be performed by the
LOCKº switch and a beep will sound con-
tinuously for 10 seconds.To unlock: Push the UNLOCKº switch
once to unlock the driver 's door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the UNLOCKº switch is pushed, two
beeps will be heard, and the parking
lights, side marker lights, license plate
lights and tail lights flash twice.
If the ignition key is in the ONº position,
unlocking cannot be performed by the
UNLOCKº switch.
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the LOCKº or UNLOCKº switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
ProCarManuals.com

'00 AVALON U (L/O9908)
29

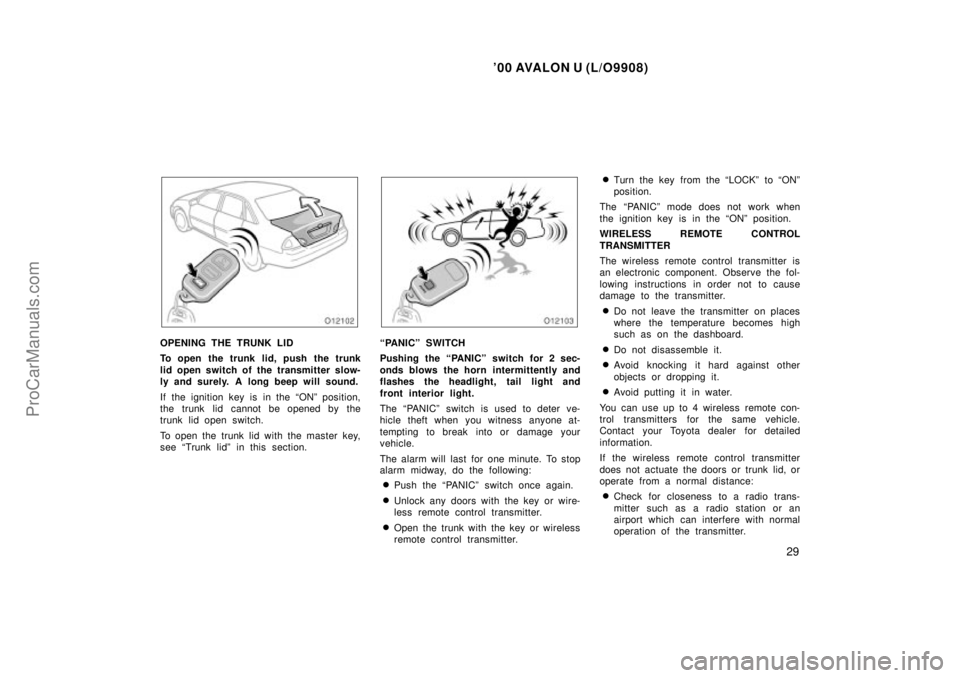

OPENING THE TRUNK LID
To open the trunk lid, push the trunk
lid open switch of the transmitter slow-
ly and surely. A long beep will sound.
If the ignition key is in the ONº position,
the trunk lid cannot be opened by the
trunk lid open switch.
To open the trunk lid with the master key,
see Trunk lidº in this section.PANICº SWITCH
Pushing the PANICº switch for 2 sec-
onds blows the horn intermittently and
flashes the headlight, tail light and
front interior light.
The PANICº switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:

Push the PANICº switch once again.

Unlock any doors with the key or wire-
less remote control transmitter.

Open the trunk with the key or wireless
remote control transmitter.

Turn the key from the LOCKº to ONº
position.
The PANICº mode does not work when
the ignition key is in the ONº position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.

Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.

Do not disassemble it.

Avoid knocking it hard against other
objects or dropping it.

Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or trunk lid, or
operate from a normal distance:

Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
