Defogging
The inside of the windshield
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

’02 AVALON U (L/O 0107)
1782002 MY AVALON_U (OM22493U)

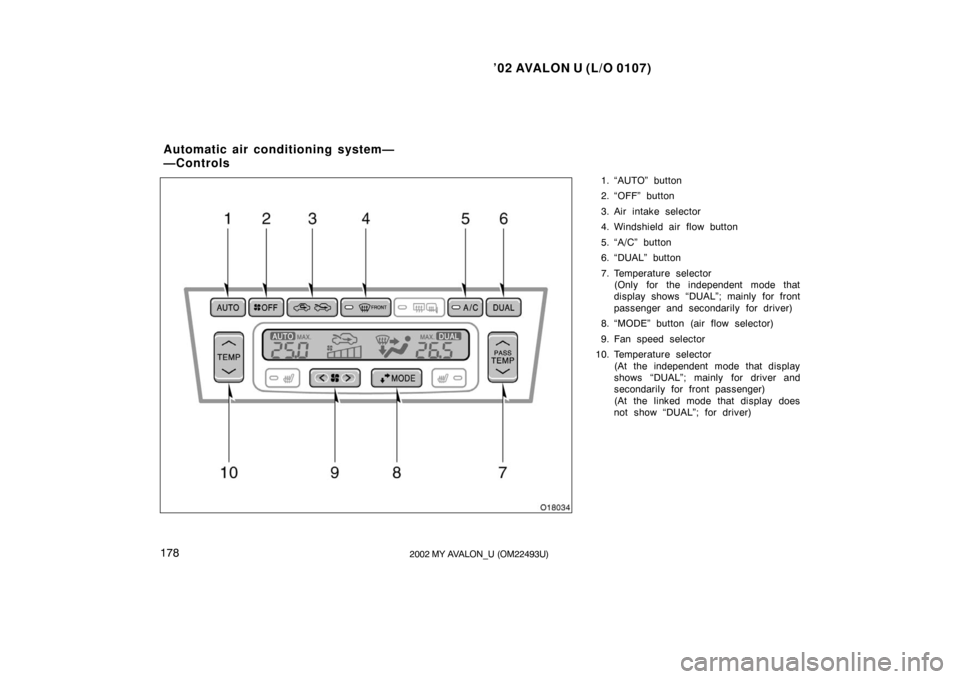

1. “AUTO” button
2. “OFF” button
3. Air intake selector
4. Windshield air flow button
5. “A/C” button
6. “DUAL” button
7. Temperature selector (Only for the independent mode that
display shows “DUAL”; mainly for front
passenger and secondarily for driver)
8. “MODE” button (air flow selector)
9. Fan speed selector
10. Temperature selector (At the independent mode that display
shows “DUAL”; mainly for driver and
secondarily for front passenger)
(At the linked mode that display does
not show “DUAL”; for driver)
Automatic air conditioning system—
—Controls

’02 AVALON U (L/O 0107)
1792002 MY AVALON_U (OM22493U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. “AUTO”
will appear on the display to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the “OFF” button.
Fan speed selector
Push the “>” (increase) or “<” (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. Temperature selector
To increase the temperature, press the
“
 ” side, to decrease it, press the “ ”
side.
“MAX COLD” appears when you adjust to
maximum cooling, and “MAX HOT” when
you adjust to maximum warming.
The temperature display changes between
“  C” and “ F” when the unit of the outside
temperature gauge is changed.
“DUAL” button
This switch is used to set the tempera-
tures independently for the driver ’s seat
and front passenger seat.
Pushing the button changes the mode
from independent and linked.
Independent mode: Temperatures can be
set independently for the driver ’s seat and
front passenger ’s seat. “DUAL” will appear
on the display to show that the indepen-
dent mode has been selected.
Linked mode: The same temperature is
set for the driver’s seat and front passen-
ger ’s seat.
When the temperature for the front pas-
senger ’s seat is changed in linked mode,
the mode is changed automatically to in-
dependent mode. Knowledge for the twotemperature se-
lector operation
This air conditioning system has two inde-
pendent temperature selectors: left and
right (for the use of driver and front pas-
senger respectively).
There are cases where the temperature
of the airflow may not accurately corre-
late on the driver and front passenger
side according to circumstances, even
if the left and right temperature selec-
tors are set at the same temperature.
If this situation occurs, use the fine
tune operation to adjust the air temper-
ature on one side.
There are cases where one or both of
the airflow temperatures may not accu-
rately correlate with the set tempera-
ture according to circumstances, when
the airflow temperature settings on the
left and right are substantially different.
For example, if the left controller is set
at central or neutral temperature while
the right one is set at maximum heat-
ing or maximum cooling, or vice versa.
If this situation occurs, use the fine
tune operation to adjust the air temper-
ature on each side.
“OFF” button
Push the “OFF” button to turn off the air
conditioning system.

’02 AVALON U (L/O 0107)
1802002 MY AVALON_U (OM22493U)

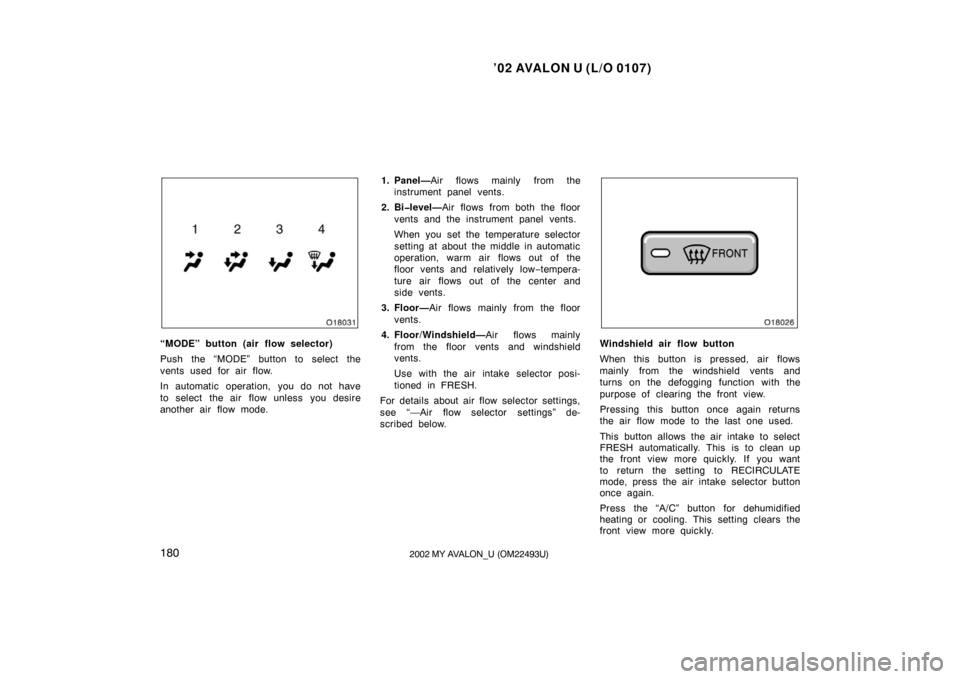

“MODE” button (air flow selector)
Push the “MODE” button to select the
vents used for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.1. Panel—
Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
When you set the temperature selector
setting at about the middle in automatic
operation, warm air flows out of the
floor vents and relatively low −tempera-
ture air flows out of the center and
side vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and
turns on the defogging function with the
purpose of clearing the front view.
Pressing this button once again returns
the air flow mode to the last one used.
This button allows the air intake to select
FRESH automatically. This is to clean up
the front view more quickly. If you want
to return the setting to RECIRCULATE
mode, press the air intake selector button
once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

’02 AVALON U (L/O 0107)
1812002 MY AVALON_U (OM22493U)
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
Air intake selector
Press the button to select the air source.
The air intake mode which is being se-
lected is shown on the display.1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
For example, when the ambient tempera-
ture is low, the air intake mode may
change automatically to FRESH. This is
not a malfunction. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to your Toyota dealer for service.

’02 AVALON U (L/O 0107)
1822002 MY AVALON_U (OM22493U)

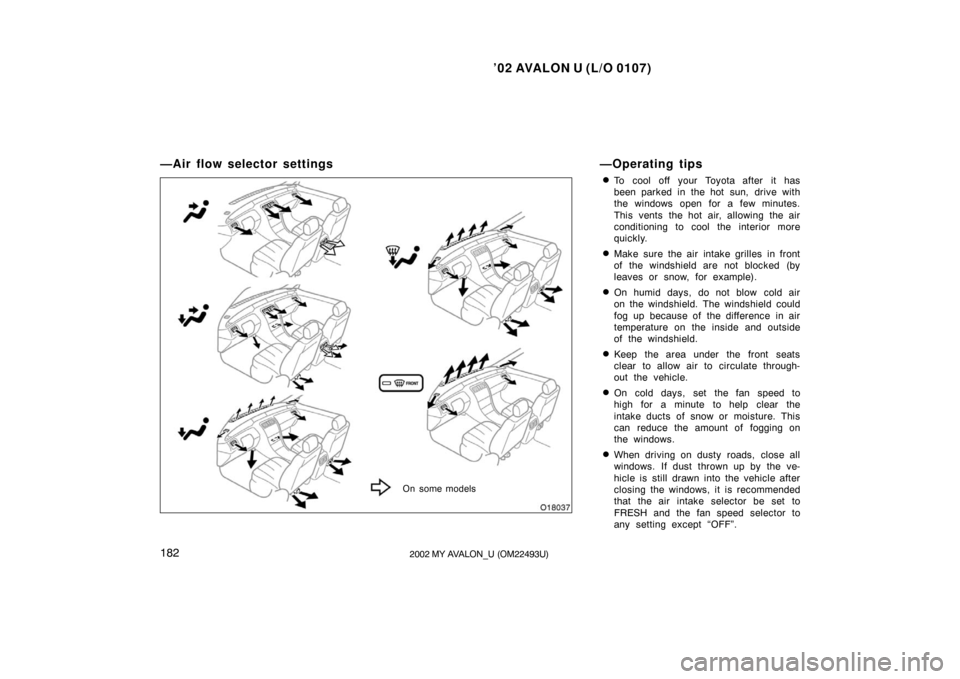

—Air flow selector settings—Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
On some models

’02 AVALON U (L/O 0107)
1832002 MY AVALON_U (OM22493U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
—For automatic operation
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s high temperature
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
—For automatic operation
Press in the “AUTO” button .
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—ON
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.

’02 AVALON U (L/O 0107)
1842002 MY AVALON_U (OM22493U)
Ventilation
For best results, set controls to:
—For automatic operationPress in the “AUTO” button .
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
—The inside of the windshield
For best results, set controls to:
—For automatic operation
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls to:
—For automatic operation
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.

’02 AVALON U (L/O 0107)
1852002 MY AVALON_U (OM22493U)
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

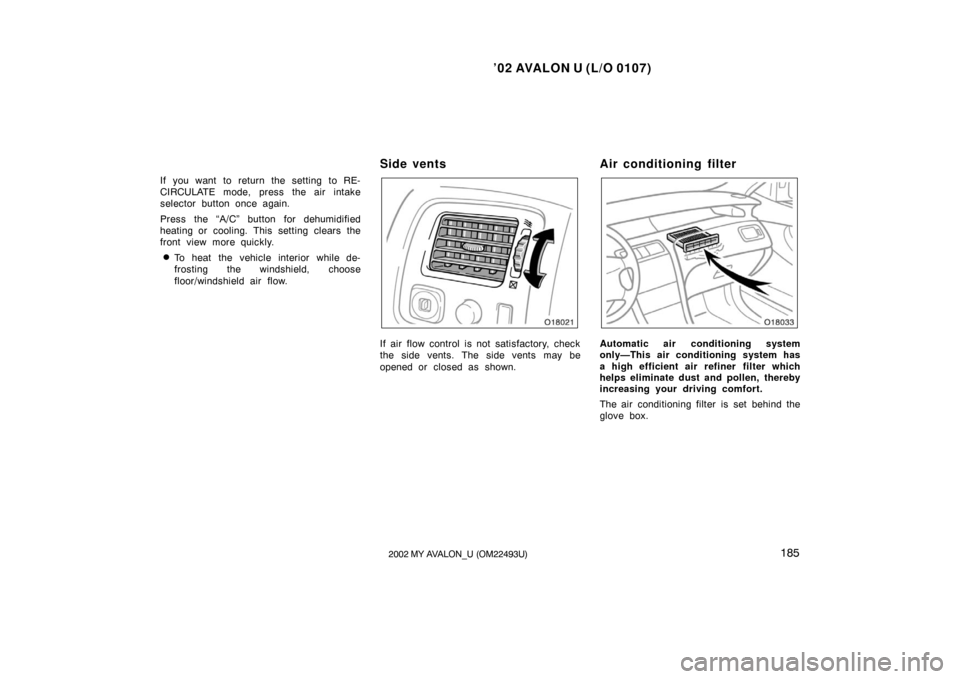

Side vents
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
Air conditioning filter
Automatic air conditioning system
only—This air conditioning system has
a high efficient air refiner filter which
helps eliminate dust and pollen, thereby
increasing your driving comfort.
The air conditioning filter is set behind the
glove box.

’02 AVALON U (L/O 0107)
1862002 MY AVALON_U (OM22493U)

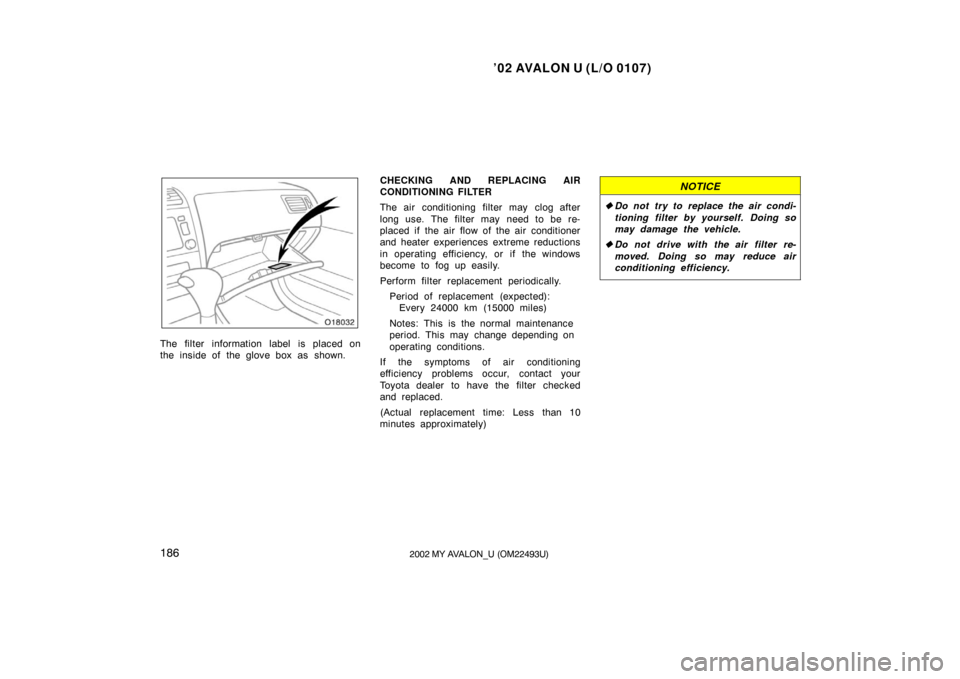

The filter information label is placed on
the inside of the glove box as shown.CHECKING AND REPLACING AIR
CONDITIONING FILTER
The air conditioning filter may clog after
long use. The filter may need to be re-
placed if the air flow of the air conditioner
and heater experiences extreme reductions
in operating efficiency, or if the windows
become to fog up easily.
Perform filter replacement periodically.
Period of replacement (expected):Every 24000 km (15000 miles)
Notes: This is the normal maintenance
period. This may change depending on
operating conditions.
If the symptoms of air conditioning
efficiency problems occur, contact your
Toyota dealer to have the filter checked
and replaced.
(Actual replacement time: Less than 10
minutes approximately)
NOTICE
 Do not try to replace the air condi-
tioning filter by yourself. Doing so
may damage the vehicle.
 Do not drive with the air filter re-
moved. Doing so may reduce air
conditioning efficiency.
