TOYOTA AVALON 2002 XX20 / 2.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2002, Model line: AVALON, Model: TOYOTA AVALON 2002 XX20 / 2.GPages: 311, PDF Size: 5.63 MB
Page 1 of 311
’02 AVALON U (L/O 0107)
i2002 MY AVALON_U (OM22493U)
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner ’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS: Toyota Customer Assistance Center Toll free:1 800 331 4331
CANADIAN OWNERS:Toyota Canada Customer Interaction Centre Toll free:1 888 TOYOTA 8 (1 888 869 6828)
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
©2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyo ta
Motor Corporation.
Page 2 of 311
’02 AVALON U (L/O 0107)
ii2002 MY AVALON_U (OM22493U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.
Page 3 of 311
’02 AVALON U (L/O 0107)
iii2002 MY AVALON_U (OM22493U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties: New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner ’s Manual
Supplement”.
Your responsibility for maintenance
It is the owner ’s responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included in
Section 6 is general maintenance. For scheduled mainte-
nance information, please refer to the “Scheduled Main-
tenance Guide” or “Owner ’s Manual Supplement”.
Accessories, spare parts andmodification of your Toyota
A wide variety of non −genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on, your
Toyota vehicle.
This vehicle should not be modified with non −genuine
Toyota products. Modification with non −genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
Page 4 of 311
’02 AVALON U (L/O 0107)
iv2002 MY AVALON_U (OM22493U)
Spark ignition system ofyour Toyota
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference −Causing Equip-
ment Standard.
Installation of a mobile two way radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti −lock brake
system, traction control system, vehicle skid control sys-
tem, SRS airbag system and front seat belt pretensioner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by the quali-
fied service shop or by your Toyota dealer before you
dispose of your vehicle.
Page 5 of 311
’02 AVALON U (L/O 0107)
12002 MY AVALON_U (OM22493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 6 of 311
’02 AVALON U (L/O 0107)
22002 MY AVALON_U (OM22493U)

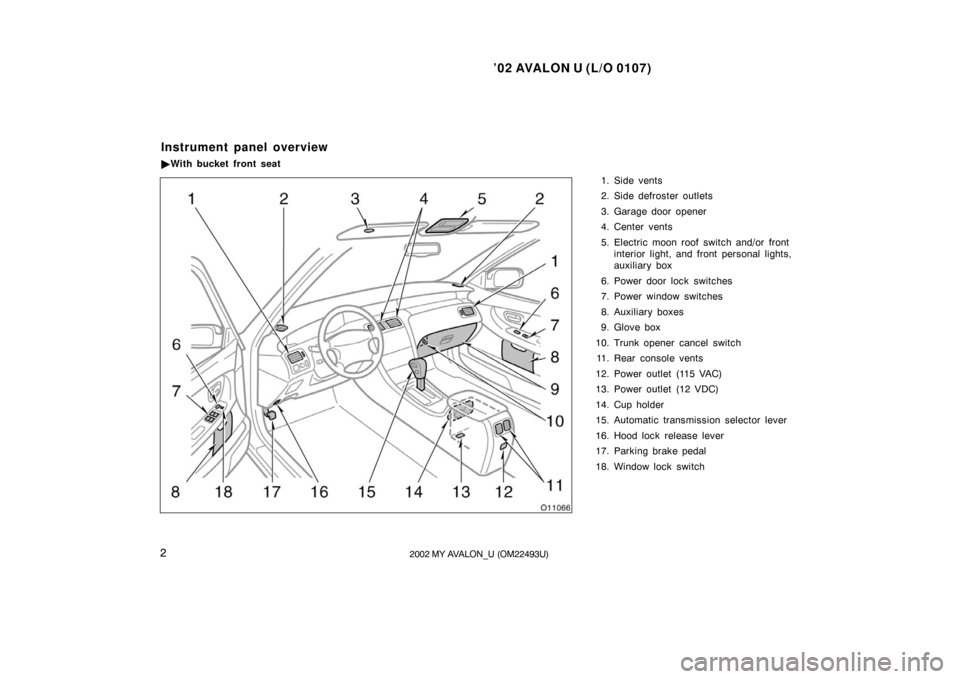

1. Side vents
2. Side defroster outlets
3. Garage door opener
4. Center vents
5. Electric moon roof switch and/or frontinterior light, and front personal lights,
auxiliary box
6. Power door lock switches
7. Power window switches
8. Auxiliary boxes
9. Glove box
10. Trunk opener cancel switch 11. Rear console vents
12. Power outlet (115 VAC)
13. Power outlet (12 VDC)
14. Cup holder
15. Automatic transmission selector lever
16. Hood lock release lever
17. Parking brake pedal
18. Window lock switch
Instrument panel overview
With bucket front seat
Page 7 of 311
’02 AVALON U (L/O 0107)
32002 MY AVALON_U (OM22493U)

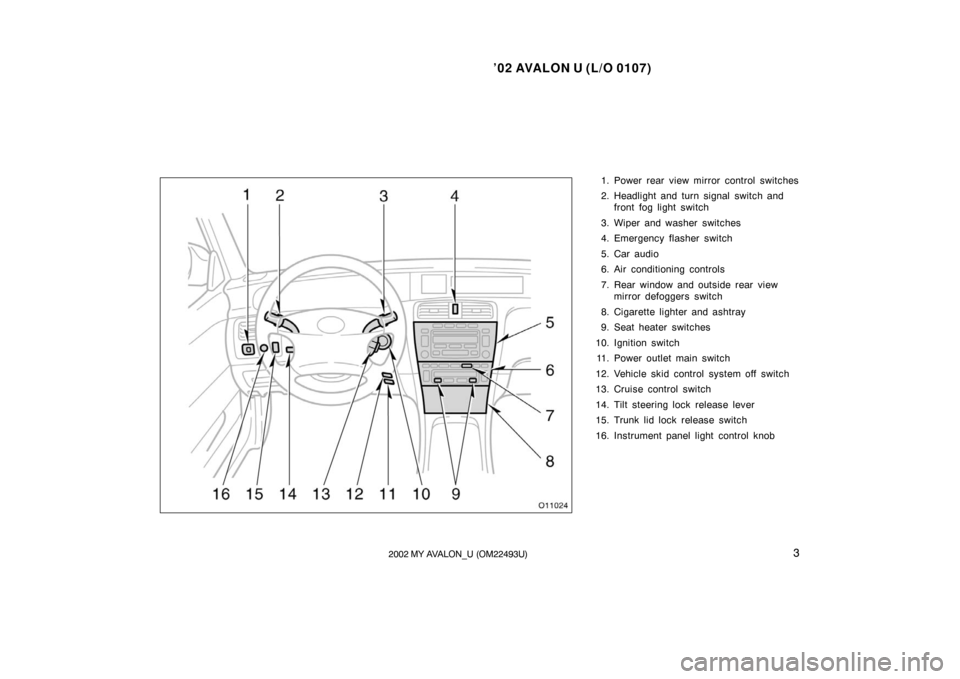

1. Power rear view mirror control switches
2. Headlight and turn signal switch andfront fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view mirror defoggers switch
8. Cigarette lighter and ashtray
9. Seat heater switches
10. Ignition switch 11. Power outlet main switch
12. Vehicle skid control system off switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Trunk lid lock release switch
16. Instrument panel light control knob
Page 8 of 311
’02 AVALON U (L/O 0107)
42002 MY AVALON_U (OM22493U)

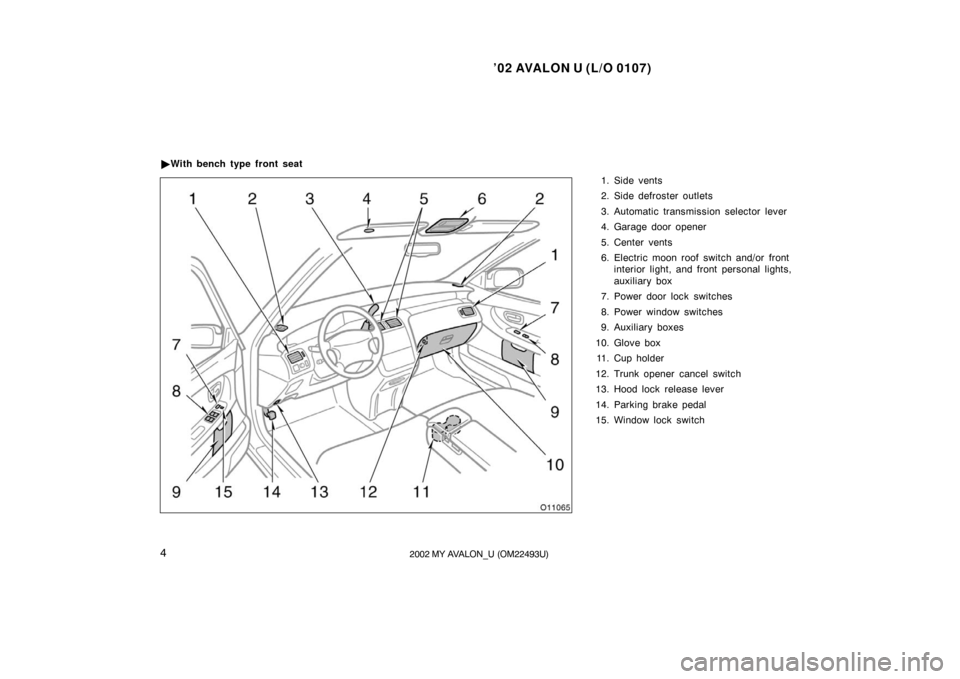

1. Side vents
2. Side defroster outlets
3. Automatic transmission selector lever
4. Garage door opener
5. Center vents
6. Electric moon roof switch and/or frontinterior light, and front personal lights,
auxiliary box
7. Power door lock switches
8. Power window switches
9. Auxiliary boxes
10. Glove box 11. Cup holder
12. Trunk opener cancel switch
13. Hood lock release lever
14. Parking brake pedal
15. Window lock switch
With bench type front seat
Page 9 of 311
’02 AVALON U (L/O 0107)
52002 MY AVALON_U (OM22493U)

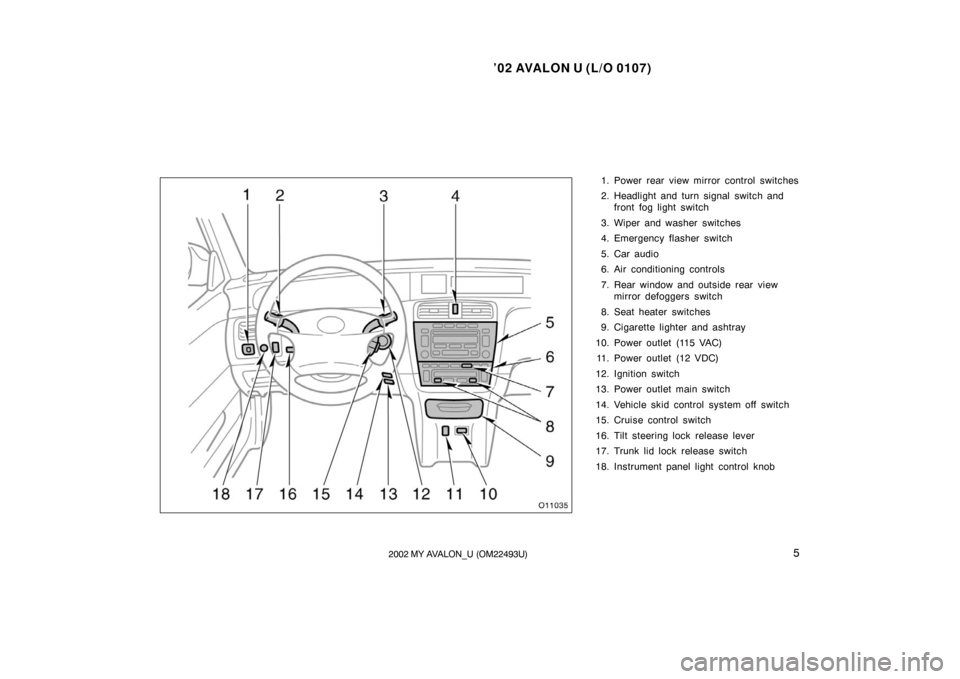

1. Power rear view mirror control switches
2. Headlight and turn signal switch andfront fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view mirror defoggers switch
8. Seat heater switches
9. Cigarette lighter and ashtray
10. Power outlet (115 VAC) 11. Power outlet (12 VDC)
12. Ignition switch
13. Power outlet main switch
14. Vehicle skid control system off switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Trunk lid lock release switch
18. Instrument panel light control knob
Page 10 of 311
’02 AVALON U (L/O 0107)
62002 MY AVALON_U (OM22493U)

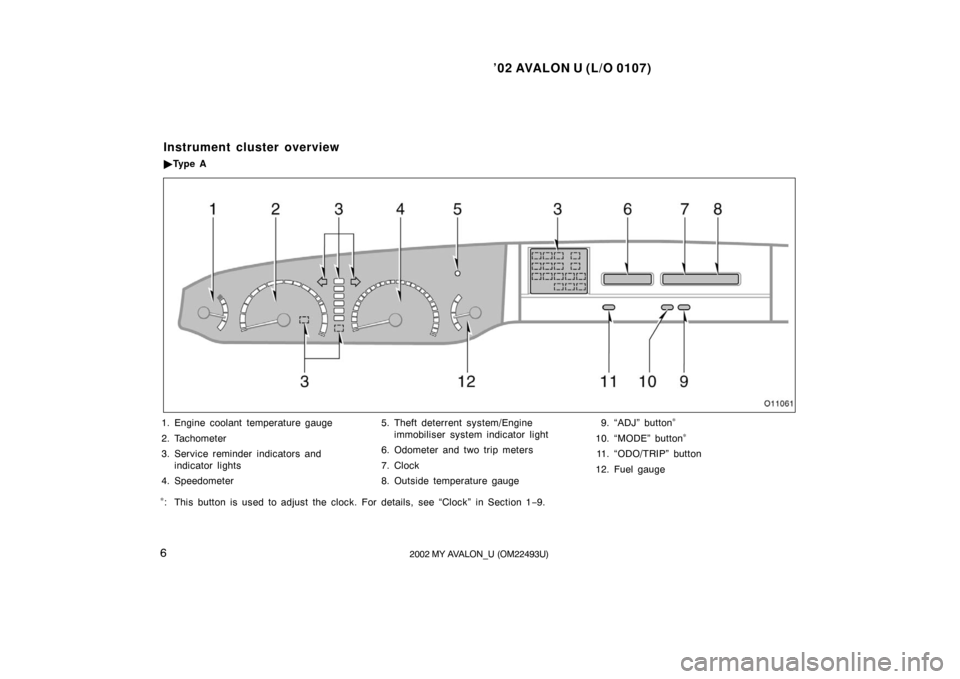

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators andindicator lights
4. Speedometer 5. Theft deterrent system/Engine
immobiliser system indicator light
6. Odometer and two trip meters
7. Clock
8. Outside temperature gauge 9. “ADJ” button∗
10. “MODE” button∗
11. “ODO/TRIP” button
12. Fuel gauge
∗: This button is used to adjust the clock. For details, see “Clock” in Section 1 −9.
Instrument cluster overview
Ty p e A
