TOYOTA AVALON 2002 XX20 / 2.G User Guide

’02 AVALON U (L/O 0107)
72002 MY AVALON_U (OM22493U)

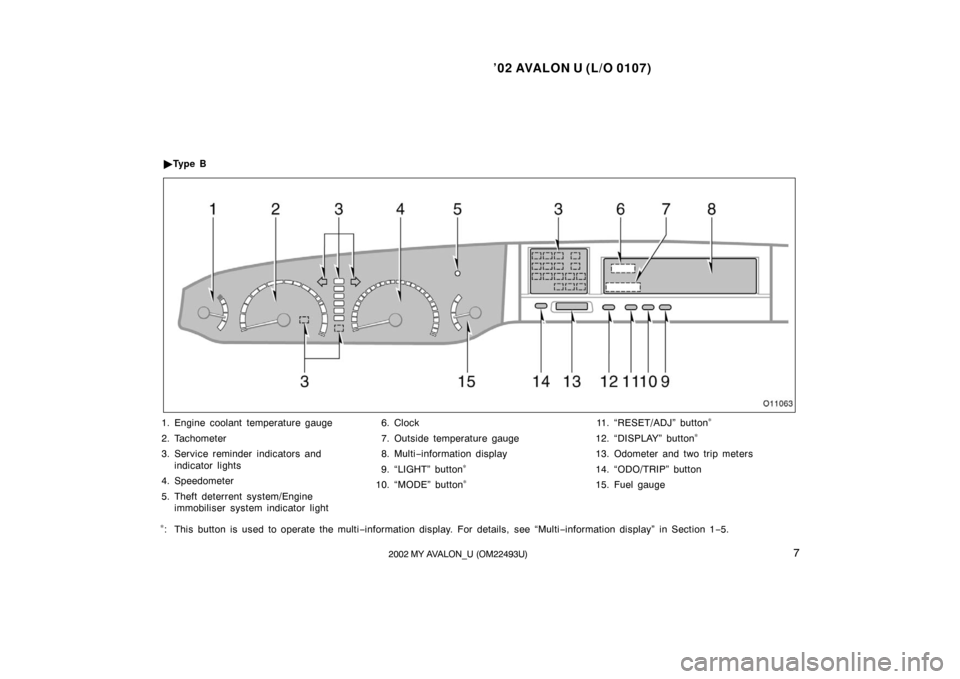

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators andindicator lights
4. Speedometer
5. Theft deterrent system/Engine immobiliser system indicator light 6. Clock
7. Outside temperature gauge
8. Multi
−information display
9. “LIGHT” button
∗
10. “MODE” button∗
11. “RESET/ADJ” button∗
12. “DISPLAY” button∗
13. Odometer and two trip meters
14. “ODO/TRIP” button
15. Fuel gauge
∗: This button is used to operate the multi −information display. For details, see “Multi −information display” in Section 1 −5.

Ty p e B

’02 AVALON U (L/O 0107)
82002 MY AVALON_U (OM22493U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Low fuel level warning light
∗1
Anti −lock brake system warning light∗
1or
Open door warning light∗1
Rear light failure warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle skid control system warning light∗1
Vehicle skid control system off indicator light

’02 AVALON U (L/O 0107)
92002 MY AVALON_U (OM22493U)
Cruise control indicator light∗2
Automatic transmission indicator lights
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1 −5.
∗
2: If this light flashes, see “Cruise control” in Section 1 −6.
Overdrive −off indicator light
Headlight high beam indicator light
Turn signal indicator lights

’02 AVALON U (L/O 0107)
102002 MY AVALON_U (OM22493U)

’02 AVALON U (L/O 0107)
112002 MY AVALON_U (OM22493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobiliser system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’02 AVALON U (L/O 0107)
122002 MY AVALON_U (OM22493U)
Your vehicle is supplied with two kinds

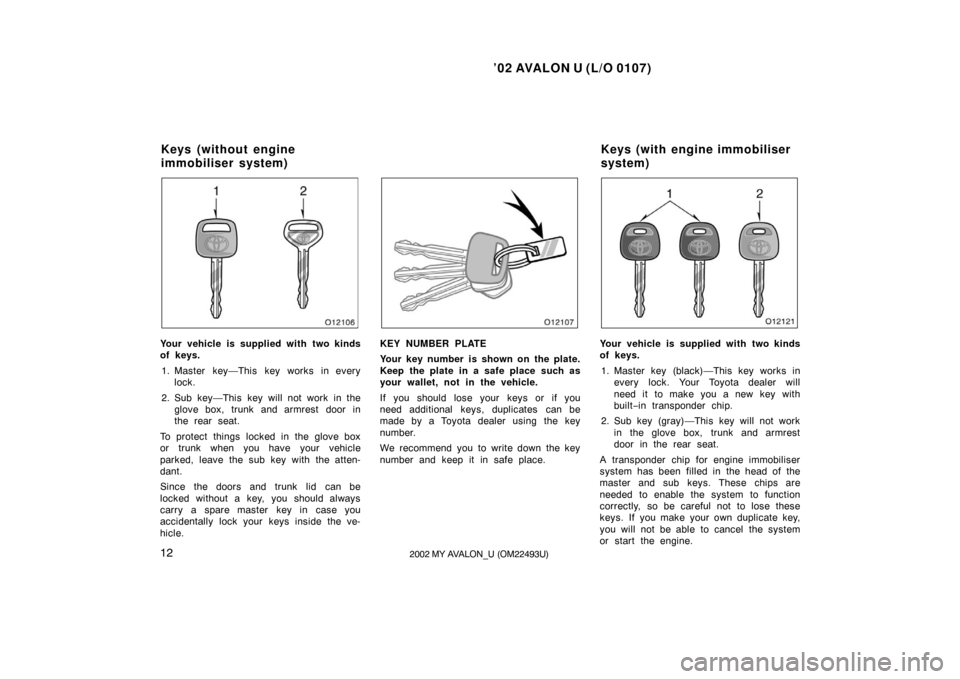

of keys.1. Master key—This key works in every lock.
2. Sub key—This key will not work in the glove box, trunk and armrest door in
the rear seat.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys. 1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box, trunk and armrest
door in the rear seat.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine immobiliser
system)

’02 AVALON U (L/O 0107)
132002 MY AVALON_U (OM22493U)
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’02 AVALON U (L/O 0107)
142002 MY AVALON_U (OM22493U)

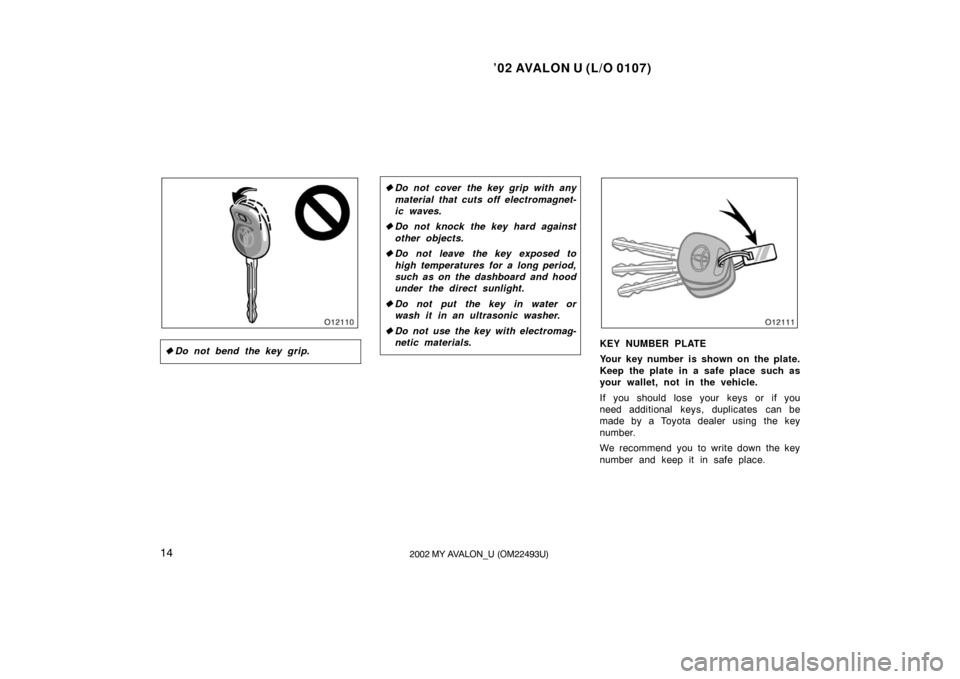

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.

’02 AVALON U (L/O 0107)
152002 MY AVALON_U (OM22493U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.

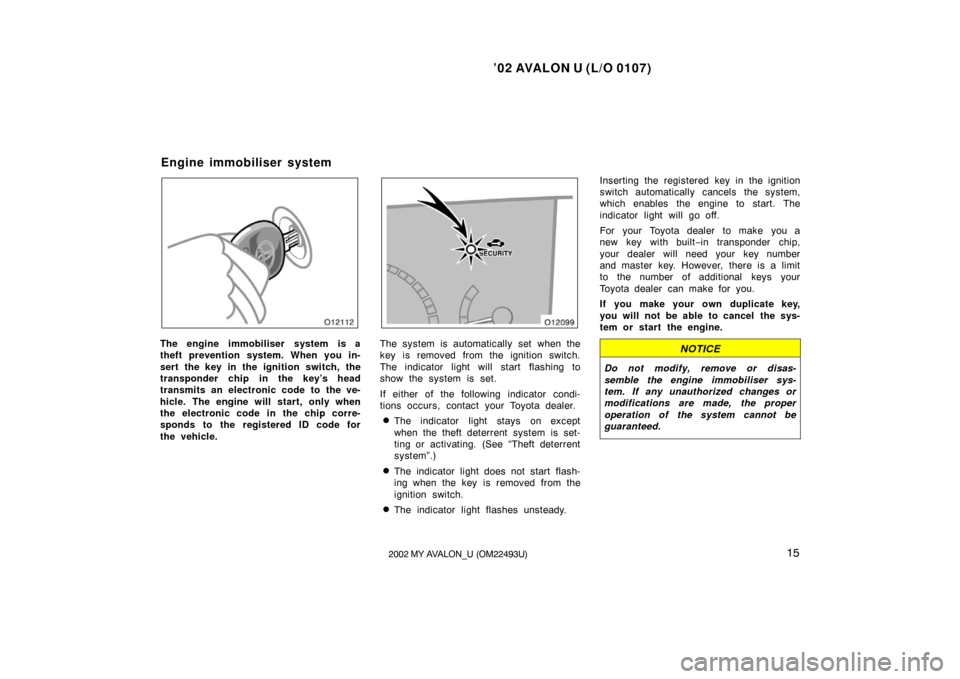

The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built
−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

’02 AVALON U (L/O 0107)
162002 MY AVALON_U (OM22493U)
For vehicles sold in U.S.A.
FCC ID: MOZ RI4ETY
MADE IN JAPAN
FCC ID: NT815607YU3FXCVR
MADE IN CANADA
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY

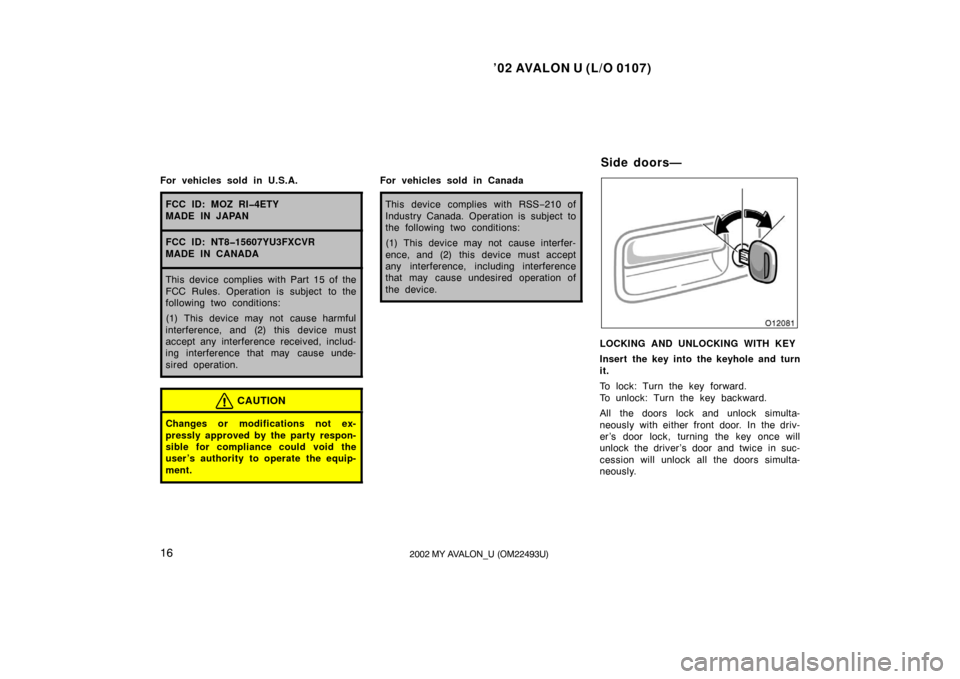

Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
Side doors—
