Page 287 of 311
’02 AVALON U (L/O 0107)
2832002 MY AVALON_U (OM22493U)

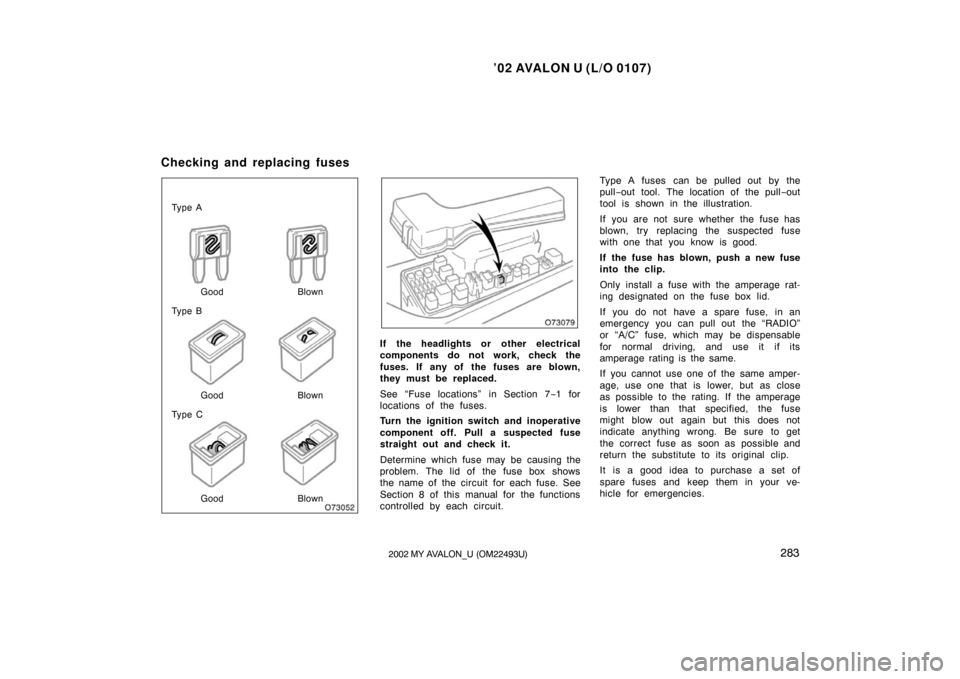

Ty p e AGood Blown
Ty p e B
Good
Good Blown
Blown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 7
−1 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit. Type A fuses can be pulled out by the
pull
−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RADIO”
or “A/C” fuse, which may be dispensable
for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses
Page 303 of 311
’02 AVALON U (L/O 0107)
2992002 MY AVALON_U (OM22493U)
36. TURN 7.5 A: Turn signal lights
37. A/C 10 A: Air conditioning system
38. RADIO 15 A: Audio system, multi −in-
formation display
39. PANEL 5 A: Gauges and meters, audio
system, cigarette lighter, air condition-
ing system, emergency flasher, elec-
tronically controlled automatic transmis-
sion system, power rear view mirrors,
multi −information display, glove box
light, instrument panel lights, instrument
panel light control, power outlet
40. FL P/W 25 A: Power window (for driv-
er)
41. PWR OUTLET NO.1 15 A: Power out-
let (ACC)
42. ECU ACC 5 A: Audio system, power
rear view mirrors, multi −information dis-
play, shift lock system, multiplex com-
munication system
43. SRS ACC 10 A: SRS airbag system
44. MIR HTR 10 A: Outside rear view mir-
ror defoggers, engine control system
45. PWR OUTLET NO.2 15 A: Power out-
let (IG)
46. GAUGE NO.2 10 A: Back−up lights
47. OBD II 7.5 A: On−board diagnosis sys-
tem 48. STOP 15 A:
Stop lights, high mounted
stoplight, anti −lock brake system, shift
lock system, cruise control system, ve-
hicle skid control system, engine con-
trol system
49. DOME 7.5 A: Interior light, front per-
sonal lights, door courtesy lights, igni-
tion switch light, vanity lights, garage
door opener, open door warning light,
illuminated entry system, rear personal
lights, automatic light control system,
trunk light, wireless remote control sys-
tem, multiplex communication system
50. OPNER 5 A: No circuit
51. RL P/W 20 A: Power window (for rear
left passenger)
52. RR P/W 20 A: Power window (for rear
right passenger)
53. WIP 25 A: Windshield wipers and
washer
54. ECU IG NO.2 10 A: Anti−lock brake
system, cruise control system, multi −in-
formation display, theft deterrent sys-
tem, vehicle skid control system, me-
ters, multiplex communication system
55. CIG 15 A: Cigarette lighter
56. DOOR NO.1 25 A: Theft deterrent sys-
tem, trunk opener, multiplex commu-
nication system 57. SUN ROOF 30 A:
Electric moon roof
Fuses (type B)
58. AM1 40 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
59. HTR 50 A: Air conditioning system
60. CDS 30 A: Electric cooling fans
61. RDI 30 A: Electric cooling fans
62. MAIN 40 A: St
arter system
63. DEF 40 A: Rear window defogger,
noise filter
64. PWR SEAT 30 A: Power seats
Fuses (type C)
65. ABS 60 A: Anti−lock brake system,
“ABS NO.4” fuse
66. ALT 120 A: “HTR”, “A/C”, “ABS NO.2”,
“ABS NO.3”, “RDI”, “CDS”, “AM1”,
“ABS” and “ABS NO.4” fuses
