ESP TOYOTA AVALON 2002 XX20 / 2.G Scheduled Maintenance Guide

General Maintenance Information16

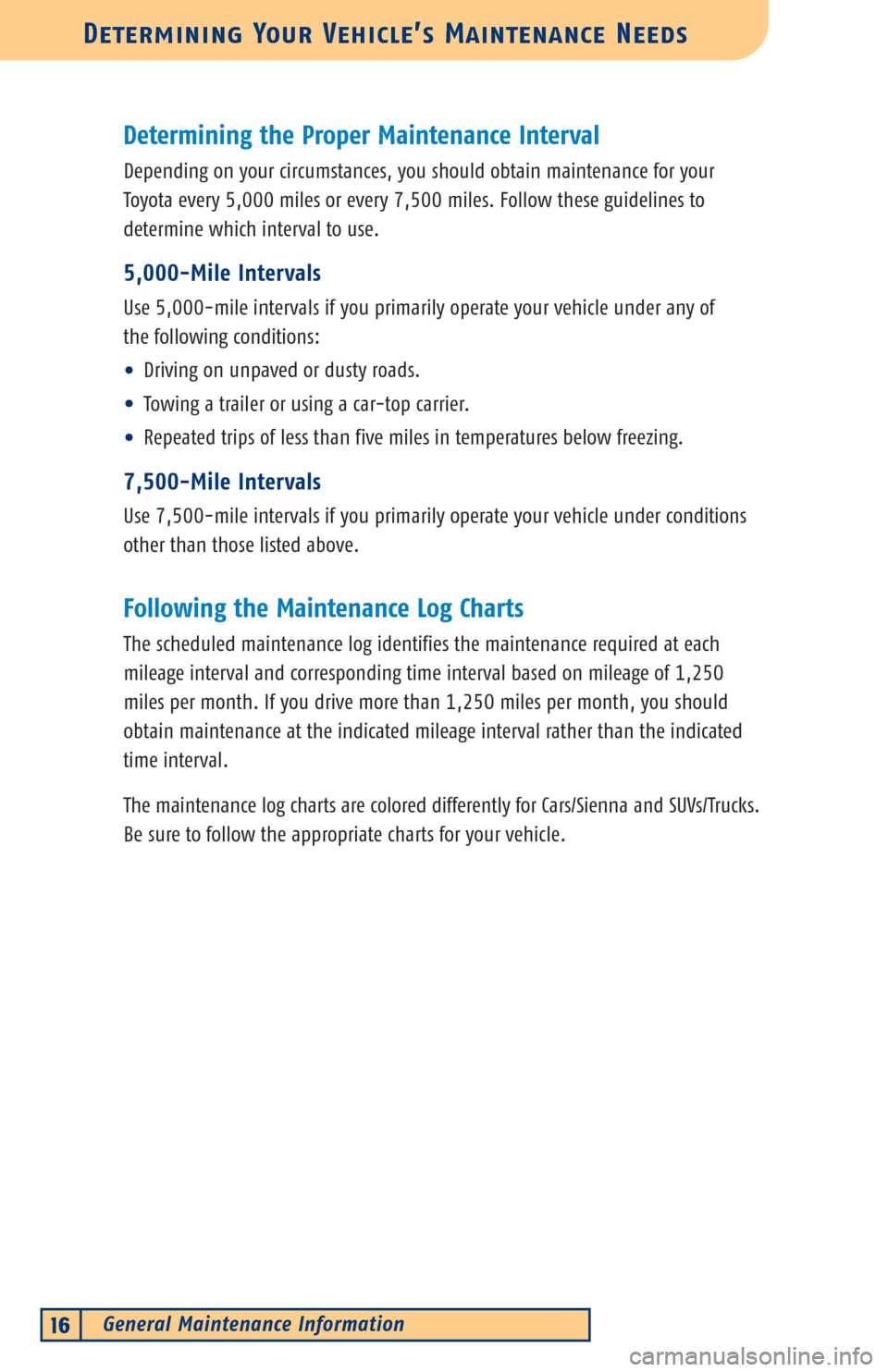

Determining Your Vehicle’s Maintenance Needs
Determining the Proper Maintenance Interval
Depending on your circumstances, you should obtain maintenance for your
Toyota every 5,000 miles or every 7,500 miles. Follow these guidelines to
determine which interval to use.
5,000-Mile Intervals
Use 5,000-mile intervals if you primarily operate your vehicle under any of
the following conditions:
•Driving on unpaved or dusty roads.
•Towing a trailer or using a car-top carrier.
•Repeated trips of less than five miles in temperatures below freezing.
7,500-Mile Intervals
Use 7,500-mile intervals if you primarily operate your vehicle under conditions
other than those listed above.
Following the Maintenance Log Charts
The scheduled maintenance log identifies the maintenance required at each
mileage interval and corresponding time interval based on mileage of 1,250
miles per month. If you drive more than 1,250 miles per month, you should
obtain maintenance at the indicated mileage interval rather than the indicated
time interval.
The maintenance log charts are colored differently for Cars/Sienna and SUVs/Trucks.
Be sure to follow the appropriate charts for your vehicle.

General Maintenance Information18
Determining Your Vehicle’s Maintenance Needs
Special Operating Conditions
In addition to standard maintenance items, the scheduled maintenance log
indicates services that should be performed on vehicles that are driven under
especially demanding conditions. Specific conditions require specific services,
as indicated below. The scheduled maintenance log indicates at which mileage/
time intervals each service should be performed.
You should perform these additional maintenance services if you drive primarily
under any of the conditions noted. If you drive only occasionally under these
conditions, it is not necessary to perform the additional services.
Driving on Rough, Muddy or Snow-Melted Roads
•Inspect ball joints and dust cover
•Inspect brake linings/drums and brake pads/discs
•Inspect drive shaft boots
•Inspect nuts and bolts on chassis and body
•Inspect steering linkage and boots
•Lubricate propeller shaft and re-torque bolt*
•Re-torque drive shaft bolt*
•Rotate tires
Driving on Salt-Covered Roads
•Lubricate propeller shaft and re-torque bolt*
Driving on Unpaved or Dusty Roads
•Inspect brake linings/drums and brake pads/discs
•Inspect or change engine air filter
•Lubricate propeller shaft and re-torque bolt*
•Replace air conditioning filter*
Extensive Idling or Low-Speed Driving for Long Distances
•Inspect brake linings/drums and brake pads/discs
