TOYOTA AVALON 2003 XX20 / 2.G User Guide

’03 AVALON U (L/O 0206)
72003 AVALON (OM41401U)

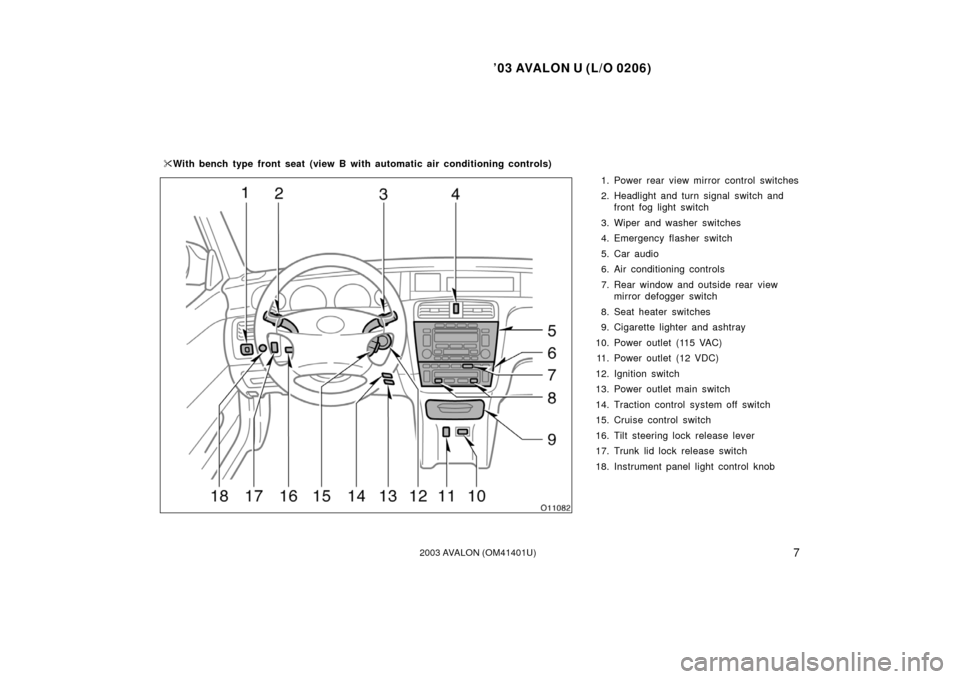

1. Power rear view mirror control switches
2. Headlight and turn signal switch and
front fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defogger switch
8. Seat heater switches
9. Cigarette lighter and ashtray
10. Power outlet (115 VAC)
11. Power outlet (12 VDC)
12. Ignition switch
13. Power outlet main switch
14. Traction control system off switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Trunk lid lock release switch
18. Instrument panel light control knob With bench type front seat (view B with automatic air conditioning controls)

’03 AVALON U (L/O 0206)
82003 AVALON (OM41401U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer5. Engine immobiliser system indicator
light
6. Odometer and two trip meters
7. Clock
8. Outside temperature display9. “ADJ” button∗
10. “MODE” button∗
11. “ODO/TRIP” button
12. Fuel gauge
∗: This button is used to adjust the clock. For details, see “Clock” in Section 19.

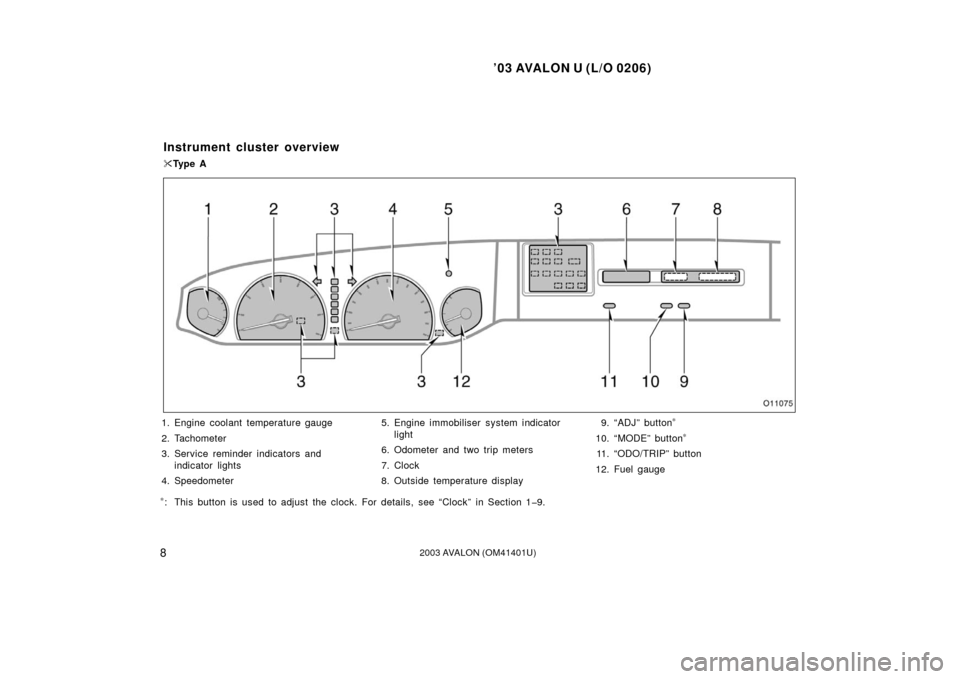

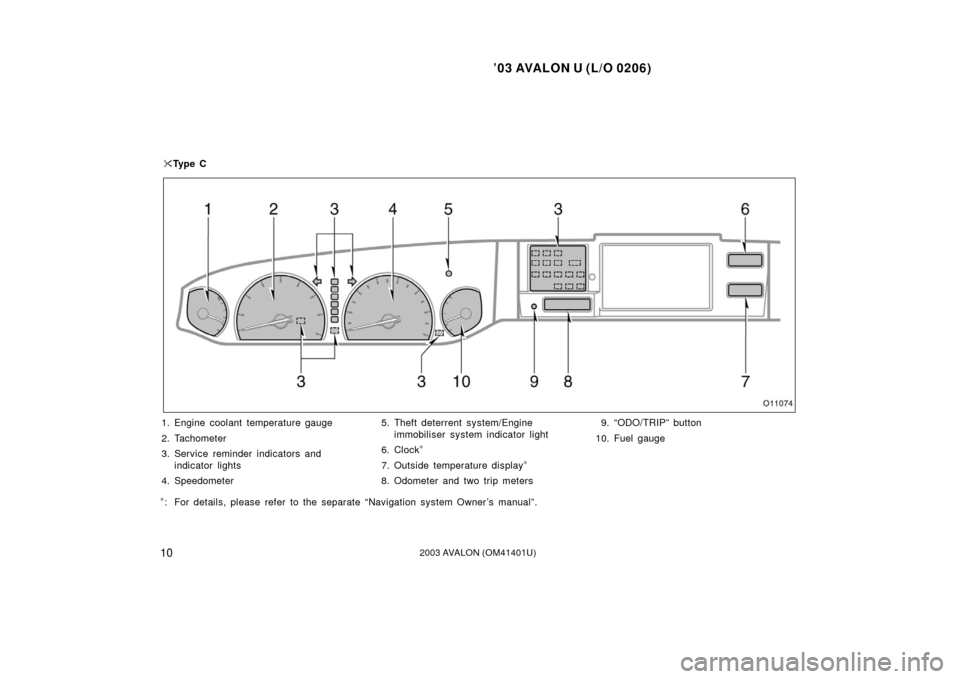

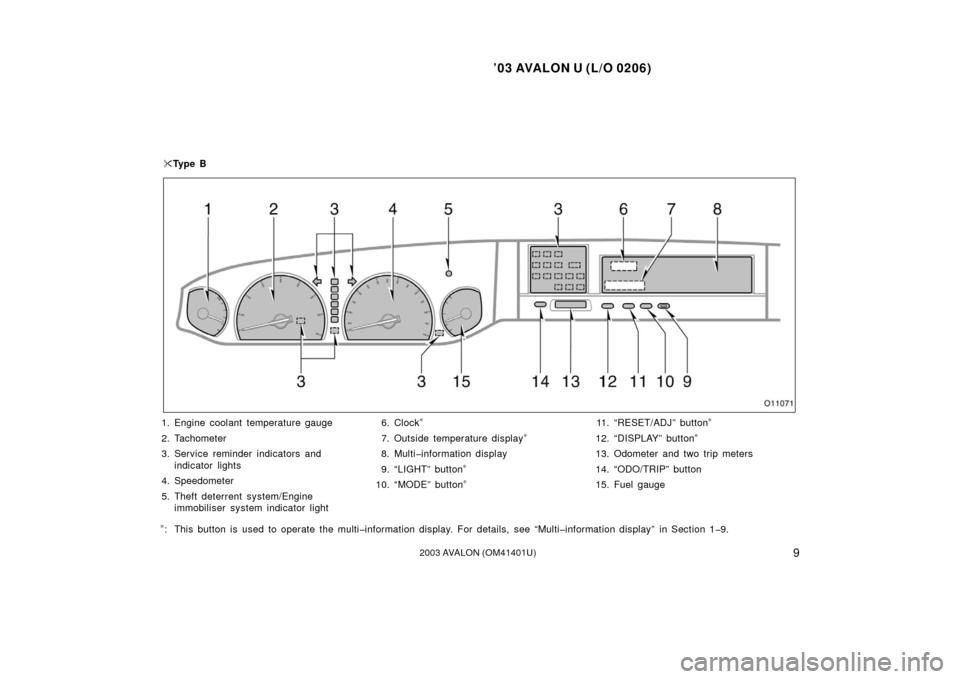

Instrument cluster overview
Ty p e A

’03 AVALON U (L/O 0206)
92003 AVALON (OM41401U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Theft deterrent system/Engine
immobiliser system indicator light6. Clock∗
7. Outside temperature display∗
8. Multiinformation display
9. “LIGHT” button
∗
10. “MODE” button∗
11. “RESET/ADJ” button∗
12. “DISPLAY” button∗
13. Odometer and two trip meters
14. “ODO/TRIP” button
15. Fuel gauge
∗: This button is used to operate the multiinformation display. For details, see “Multiinformation display” in Section 19. Ty p e B

’03 AVALON U (L/O 0206)
102003 AVALON (OM41401U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer5. Theft deterrent system/Engine
immobiliser system indicator light
6. Clock
∗
7. Outside temperature display∗
8. Odometer and two trip meters9. “ODO/TRIP” button
10. Fuel gauge
∗: For details, please refer to the separate “Navigation system Owner ’s manual”. Ty p e C

’03 AVALON U (L/O 0206)
112003 AVALON (OM41401U)
Brake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Discharge warning light∗
1
Malfunction indicator lamp∗
1
Low engine oil pressure warning light∗
1
or
Low fuel level warning light
∗
1
Antilock brake system warning light∗
1or
Open door warning light∗
1
Rear light failure warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning light∗
1
Front outside passenger ’s seat belt reminder
light∗
1
Vehicle skid control system and traction control
system warning light∗
1
Headlight high beam indicator light
Indicator symbols on the instrument panel

’03 AVALON U (L/O 0206)
122003 AVALON (OM41401U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 15.
∗
2: If this light flashes, see “Cruise control” in Section 16.
Turn signal indicator lights
Slip indicator light
Cruise control indicator light∗
2
Overdriveoff indicator light Automatic transmission indicator lights
Traction control system off indicator light

’03 AVALON U (L/O 0206)
132003 AVALON (OM41401U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 2

’03 AVALON U (L/O 0206)
142003 AVALON (OM41401U)

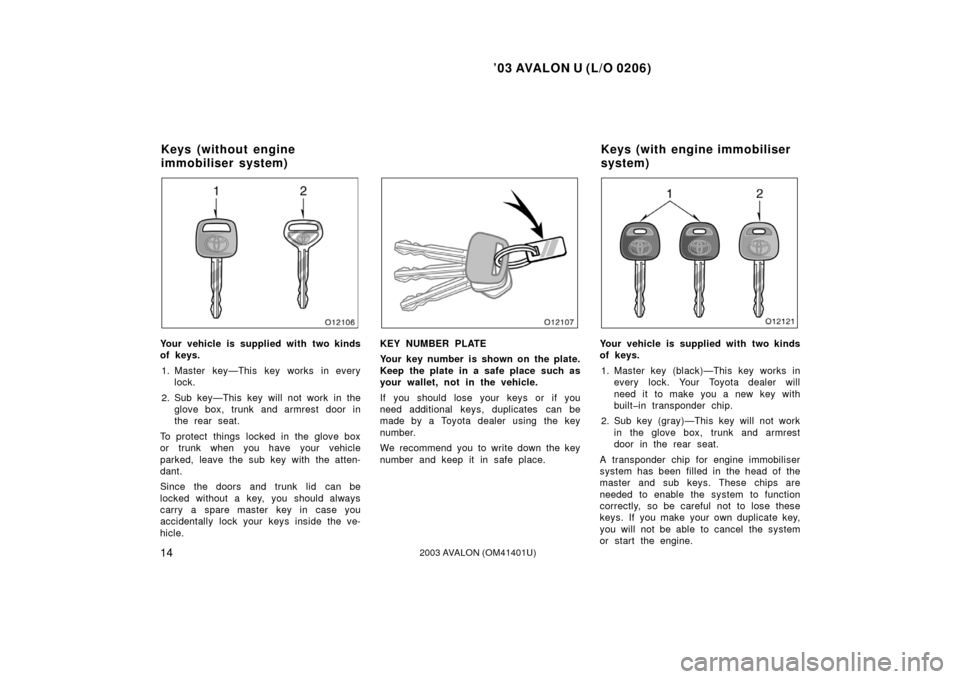

Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box, trunk and armrest door in
the rear seat.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
builtin transponder chip.
2. Sub key (gray)—This key will not work
in the glove box, trunk and armrest
door in the rear seat.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system)Keys (with engine immobiliser
system)

’03 AVALON U (L/O 0206)
152003 AVALON (OM41401U)
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’03 AVALON U (L/O 0206)
162003 AVALON (OM41401U)

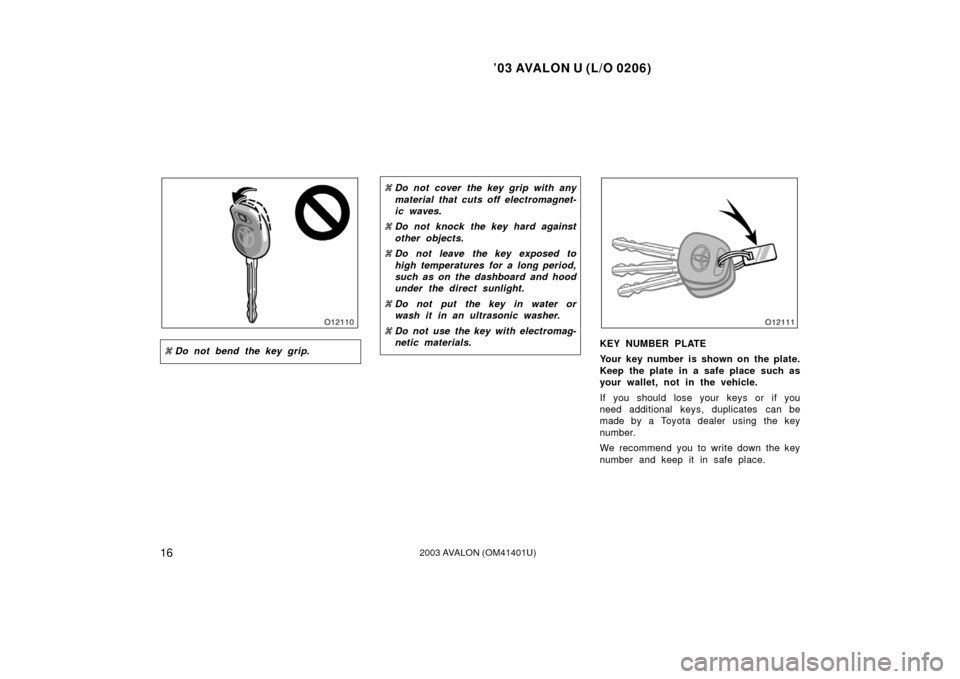

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
