’03 AVALON U (L/O 0206)
272003 AVALON (OM41401U)
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: All windows work for
about 43 seconds even after the ignition
switch is turned off. They stop working
when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Power windows
Page 32 of 315
’03 AVALON U (L/O 0206)
282003 AVALON (OM41401U)
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Window
lock switch

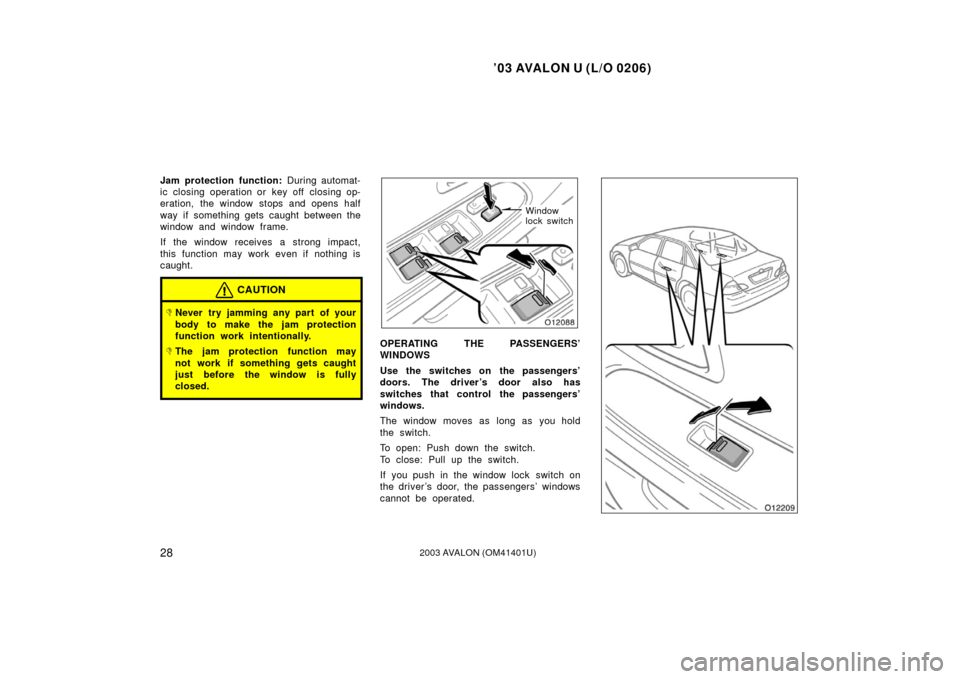

OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Page 33 of 315
’03 AVALON U (L/O 0206)
292003 AVALON (OM41401U)

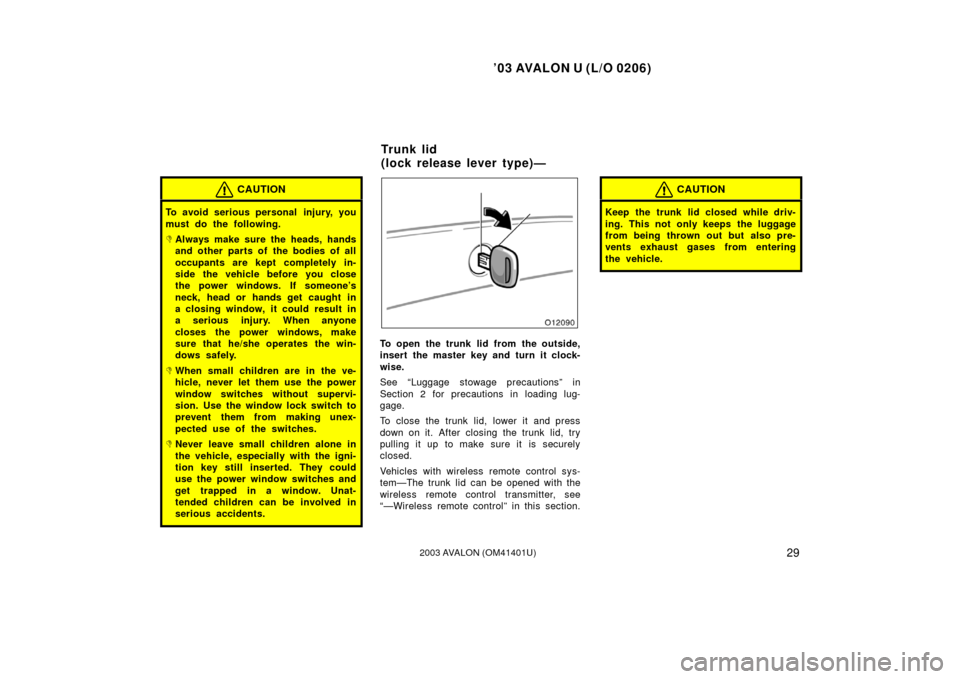

CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands get caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.

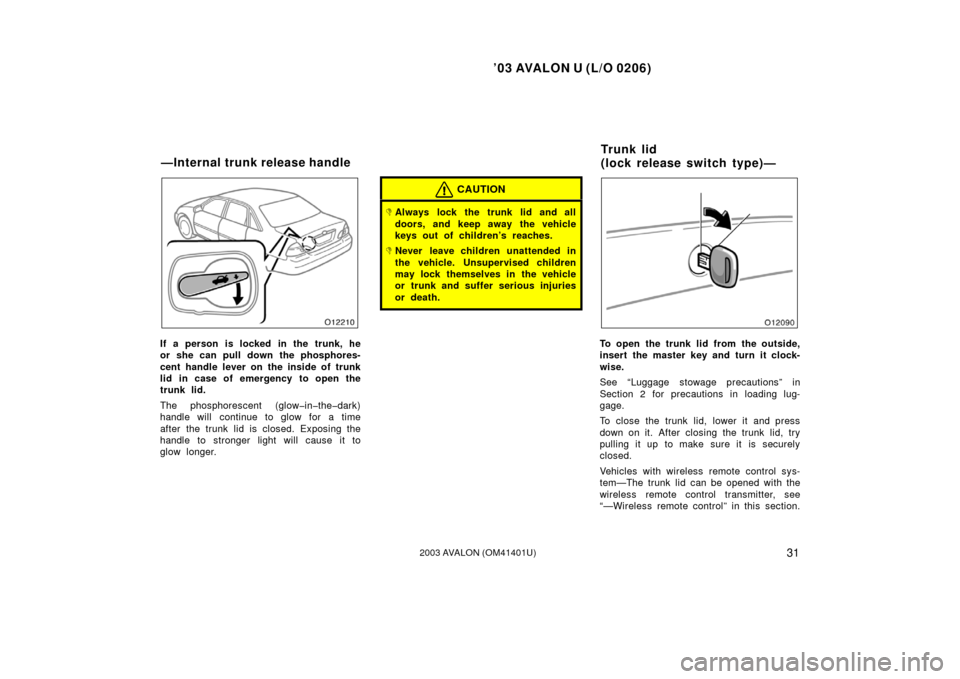

To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
Vehicles with wireless remote control sys-
tem—The trunk lid can be opened with the
wireless remote control transmitter, see
“—Wireless remote control” in this section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Tr u n k lid
(lock release lever type)—
Page 34 of 315
’03 AVALON U (L/O 0206)
302003 AVALON (OM41401U)

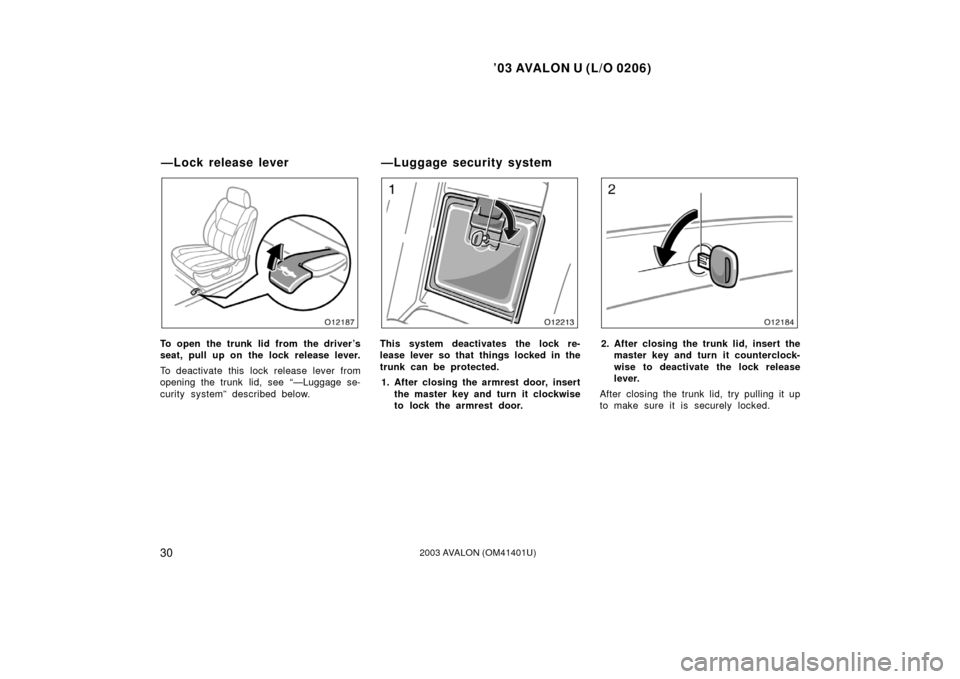

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. After closing the armrest door, insert
the master key and turn it clockwise
to lock the armrest door.2. After closing the trunk lid, insert the
master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
—Lock release lever —Luggage security system
Page 35 of 315
’03 AVALON U (L/O 0206)
312003 AVALON (OM41401U)
If a person is locked in the trunk, he
or she can pull down the phosphores-
cent handle lever on the inside of trunk
lid in case of emergency to open the
trunk lid.
The phosphorescent (glow in the dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.

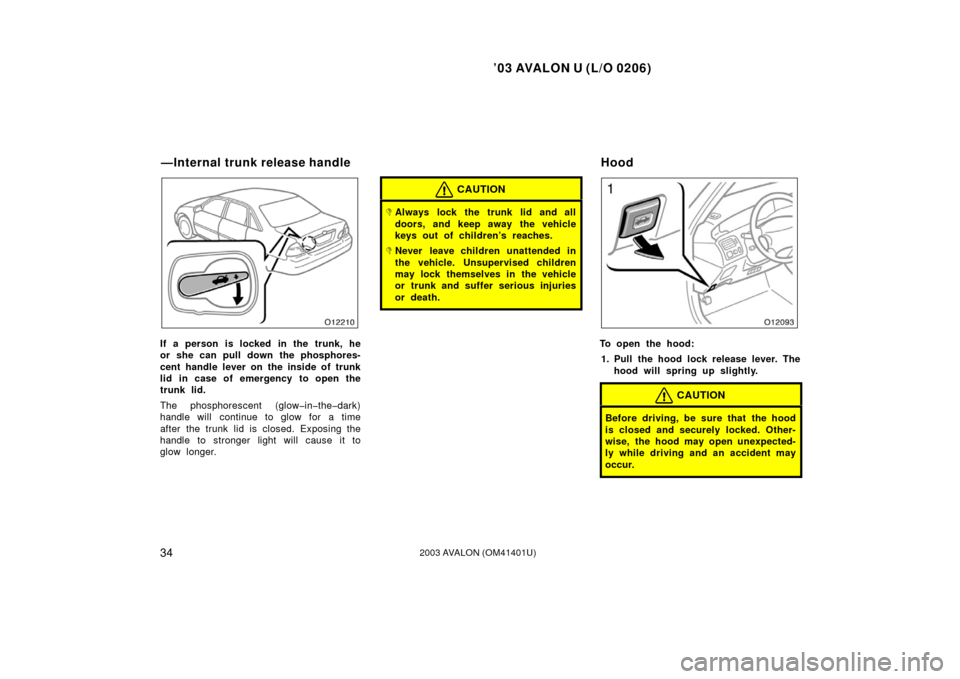

To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
Vehicles with wireless remote control sys-
tem—The trunk lid can be opened with the
wireless remote control transmitter, see
“—Wireless remote control” in this section.
—Internal trunk release handleTr u n k lid
(lock release switch type)—
Page 36 of 315
’03 AVALON U (L/O 0206)
322003 AVALON (OM41401U)
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

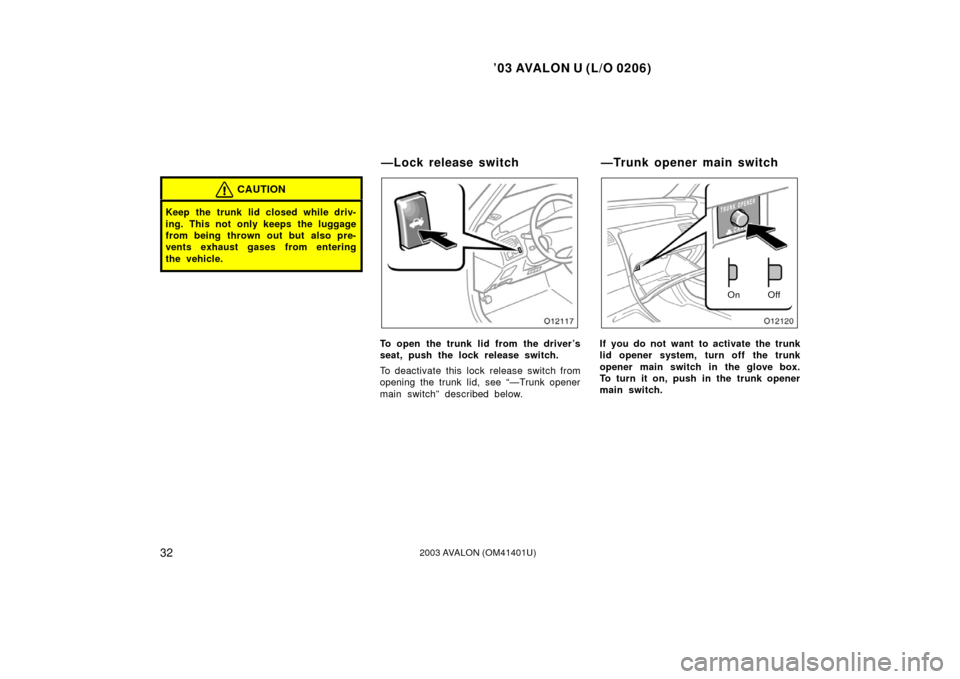

To open the trunk lid from the driver’s
seat, push the lock release switch.
To deactivate this lock release switch from
opening the trunk lid, see “—Trunk opener
main switch” described below.
On Off
If you do not want to activate the trunk
lid opener system, turn off the trunk
opener main switch in the glove box.
To turn it on, push in the trunk opener
main switch.
—Lock release switch —Trunk opener main switch
Page 37 of 315
’03 AVALON U (L/O 0206)
332003 AVALON (OM41401U)
This system helps protect things locked
in the trunk by safeguarding the trunk
opener main switch from unwanted ac-
cess.

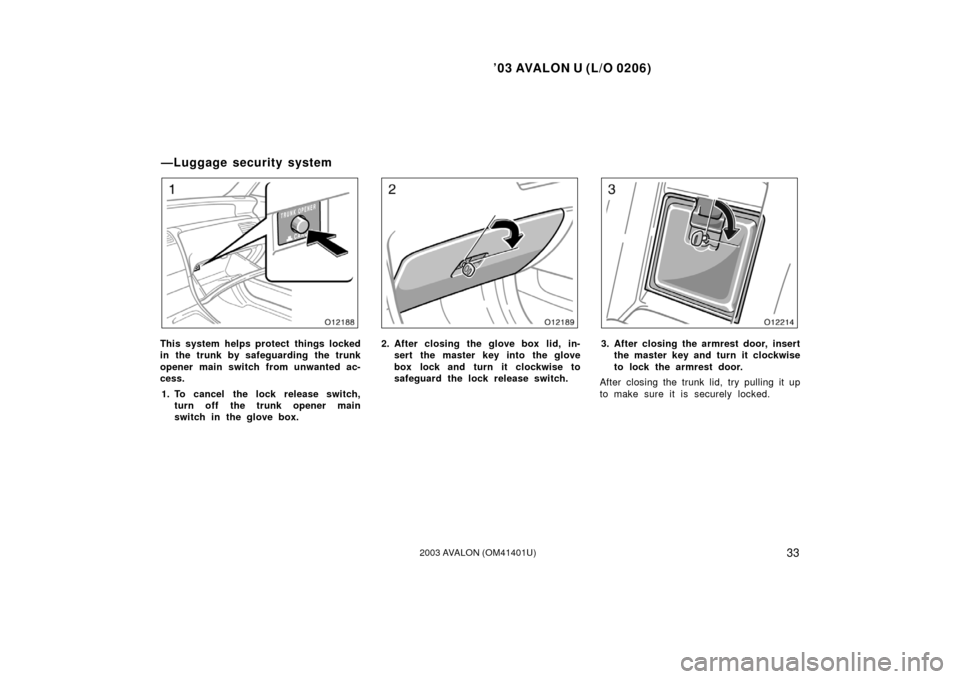

1. To cancel the lock release switch,
turn off the trunk opener main
switch in the glove box.2. After closing the glove box lid, in-
sert the master key into the glove
box lock and turn it clockwise to
safeguard the lock release switch.3. After closing the armrest door, insert
the master key and turn it clockwise
to lock the armrest door.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
—Luggage security system
Page 38 of 315
’03 AVALON U (L/O 0206)
342003 AVALON (OM41401U)
If a person is locked in the trunk, he
or she can pull down the phosphores-
cent handle lever on the inside of trunk
lid in case of emergency to open the
trunk lid.
The phosphorescent (glow in the dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
—Internal trunk release handle Hood
Page 39 of 315
’03 AVALON U (L/O 0206)
352003 AVALON (OM41401U)

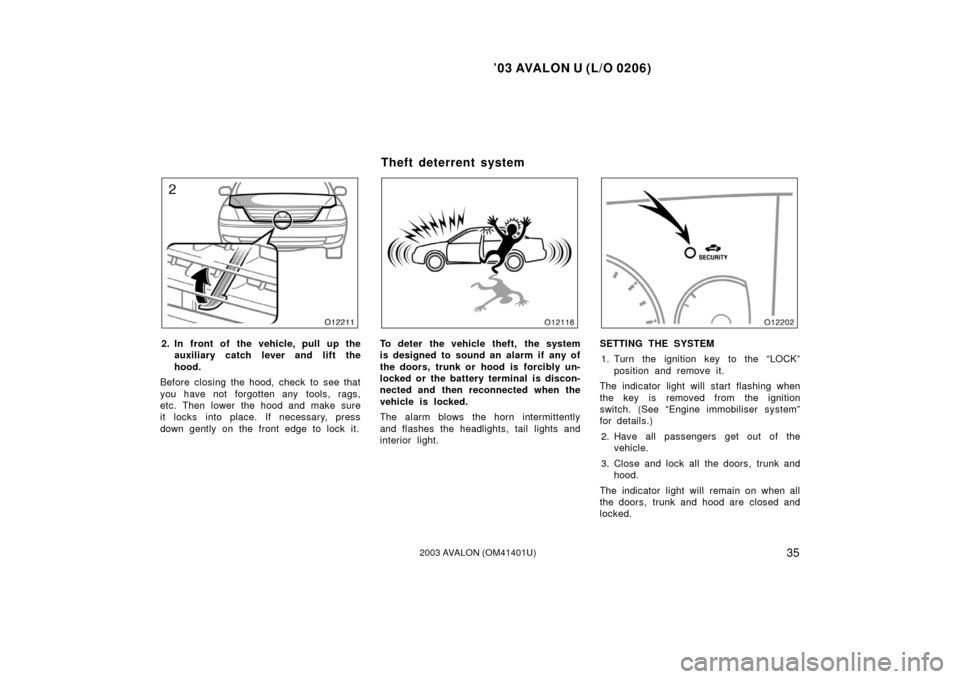

2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.To deter the vehicle theft, the system
is designed to sound an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
interior light.SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will remain on when all
the doors, trunk and hood are closed and
locked.
Theft deterrent system
Page 40 of 315
’03 AVALON U (L/O 0206)
362003 AVALON (OM41401U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activating.
If any of the doors is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key or wireless
remote control transmitter.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
