TOYOTA AVALON 2004 XX30 / 3.G Navigation Manual

AVALON_Navi_U (L/O 0408)
93
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
4. You can set the speed as your de-
sire by operating the select and
scroll lever of the navigation control-
ler. Select the item by moving the
lever vertically, and move the lever
horizontally to set the speed.
If you select the
“Default” switch, the
default speed is set at each item.
5. After you finish setting the desired
speeds, select the
“OK” switch on
the right side of the screen.
6. The “Setup” screen will be dis-
played. Select the
“On” switch of
“Estimated travel time”.
Selected switch is highlighted in green.
INFORMATION
The displayed time to the destina-
tion is the approximate driving time
calculated based on the speeds you
selected and your actual position
along the guidance route.
The time shown may vary greatly
depending on your progress along
the route (which may be affected by
road conditions such as traffic
jams, construction work, etc.).
Up to 99 hours 59 minutes can be
displayed.
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
3. Select the “Adjust” switch. The
“Adjust time zone” screen appears
on the display.
Adjust time zone

AVALON_Navi_U (L/O 0408)
94
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
4. Select your desired time zone.
Selected switch is highlighted in green.
Daylight saving time: Select the
“On”
switch on the screen and then select
or to set the day light saving time.
5. Select the
“OK” switch on the
screen and the “Setup” screen will
be displayed.1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Choose the “km” or “miles”
switch of “Distance” to select your
desired units.
Selected switch is highlighted in green.
4. Select the
“OK” switch.
Distance

AVALON_Navi_U (L/O 0408)
95
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Select the “On” switch of “Notify
seasonal restrict” and select the
“OK” switch.
The restricted road icon and the message
may appear on the screen.1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
Notify seasonal restrict Voice guide in all modes

AVALON_Navi_U (L/O 0408)
96
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

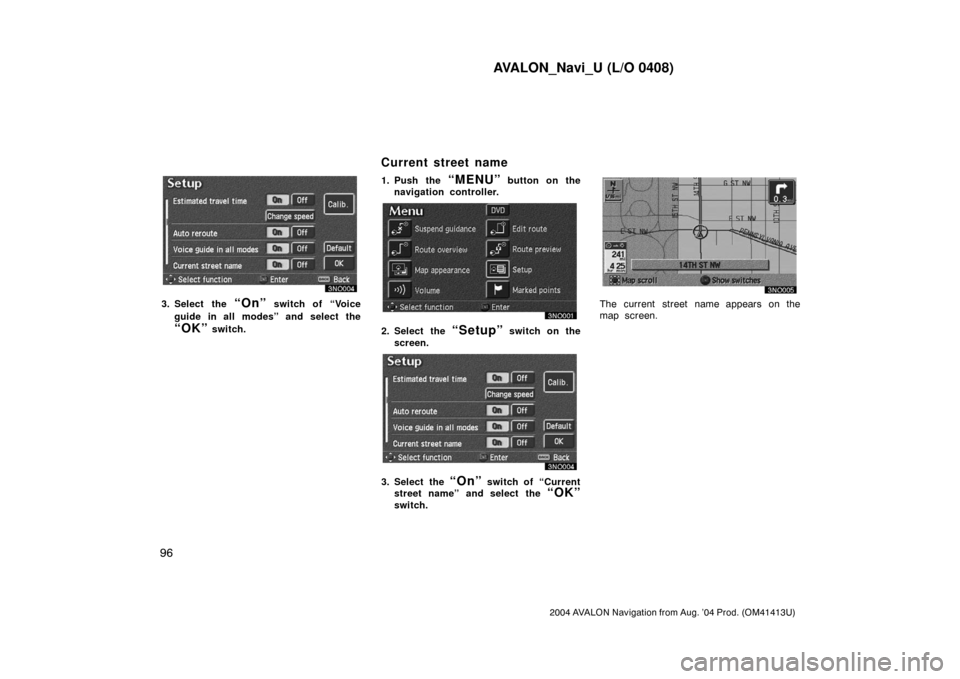

3. Select the “On” switch of “Voice
guide in all modes” and select the
“OK” switch.1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Select the “On” switch of “Current
street name” and select the
“OK”
switch.
The current street name appears on the
map screen.
Current street name

AVALON_Navi_U (L/O 0408)
97
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

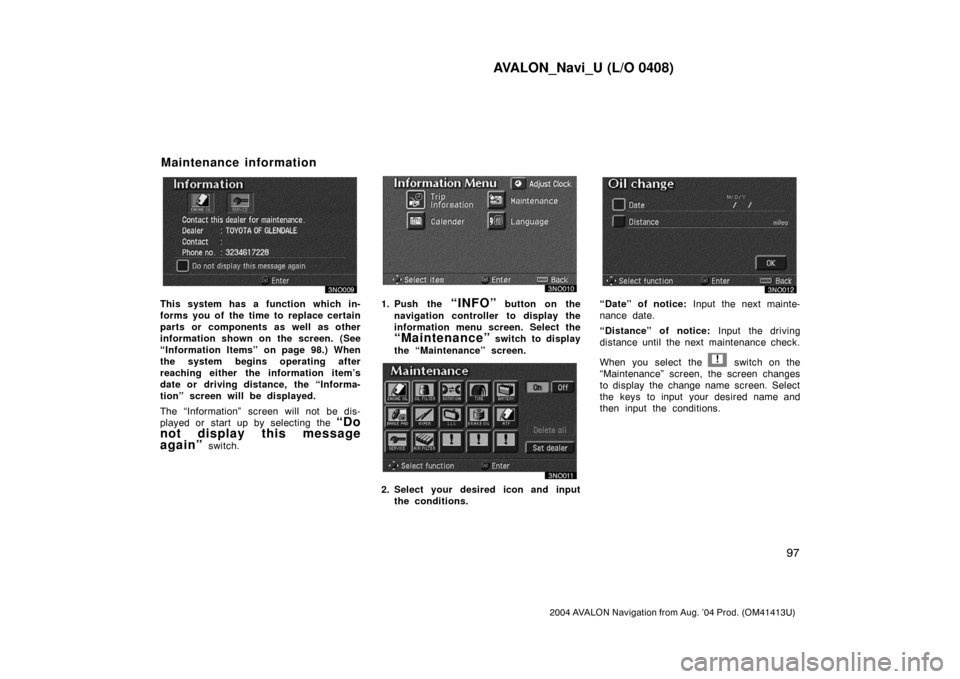

This system has a function which in-
forms you of the time to replace certain
parts or components as well as other
information shown on the screen. (See
“Information Items” on page 98.) When
the system begins operating after
reaching either the information item’s
date or driving distance, the “Informa-
tion” screen will be displayed.
The “Information” screen will not be dis-
played or start up by selecting the
“Do
not display this message
again”
switch.
1. Push the “INFO” button on the
navigation controller to display the
information menu screen. Select the
“Maintenance” switch to display
the “Maintenance” screen.
2. Select your desired icon and input
the conditions.
“Date” of notice: Input the next mainte-
nance date.
“Distance” of notice: Input the driving
distance until the next maintenance check.
When you select the
! switch on the
“Maintenance” screen, the screen changes
to display the change name screen. Select
the keys to input your desired name and
then input the conditions.
Maintenance information

AVALON_Navi_U (L/O 0408)
98
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
After you input that information, select the
“OK” switch. The screen then returns to
the “Maintenance” screen. The icon’s color
will change to green after the date or driv-
ing distance is inputted. The icon’s color
will change to orange when your Toyota
needs to be serviced. The following
switches appear on the screen.
“Delete all”: Cancel all conditions which
have been inputted.
“Reset all”: Reset all items which satisfy
either condition.
Select the
“Off” switch at the top of the
“Maintenance” screen, and the information
screen will no longer be displayed.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Owner ’s
Manual Supplement” or “Scheduled
Maintenance”.
Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been inputted and the ac-
tual date and driving distance.
Information items
Scheduled maintenance
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake lining
Replace wiper blades
Replace engine coolant
Replace brake fluid
Replace ATF
Replace air filter
Personal

AVALON_Navi_U (L/O 0408)
99
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

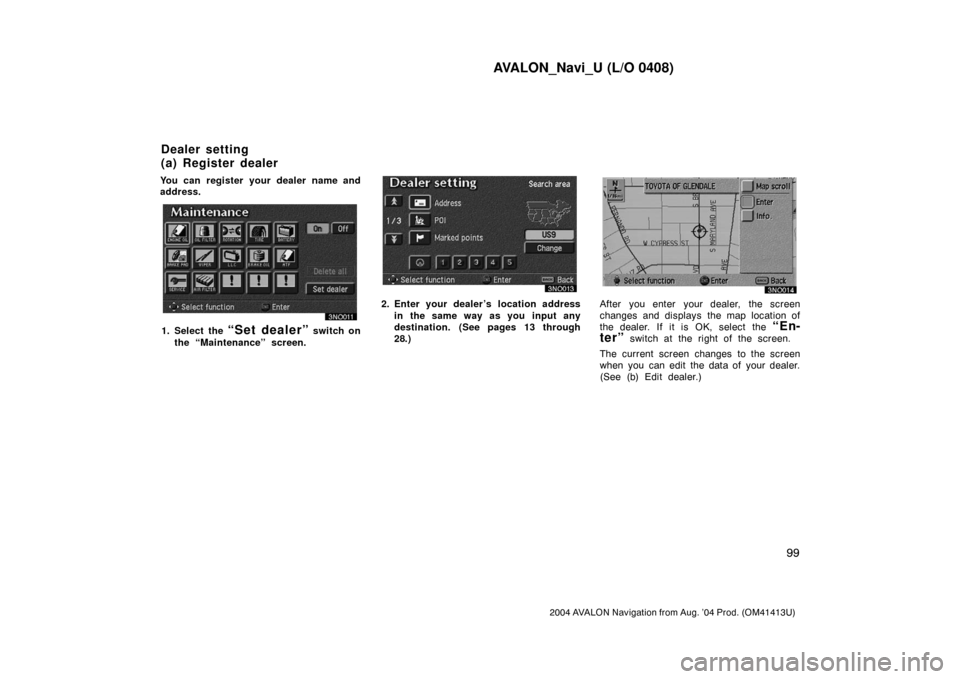

You can register your dealer name and
address.
1. Select the “Set dealer” switch on
the “Maintenance” screen.
2. Enter your dealer ’s location address
in the same way as you input any
destination. (See pages 13 through
28.)After you enter your dealer, the screen
changes and displays the map location of
the dealer. If it is OK, select the
“En-
ter”
switch at the right of the screen.
The current screen changes to the screen
when you can edit the data of your dealer.
(See (b) Edit dealer.)
Dealer setting
(a) Register dealer

AVALON_Navi_U (L/O 0408)
100
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

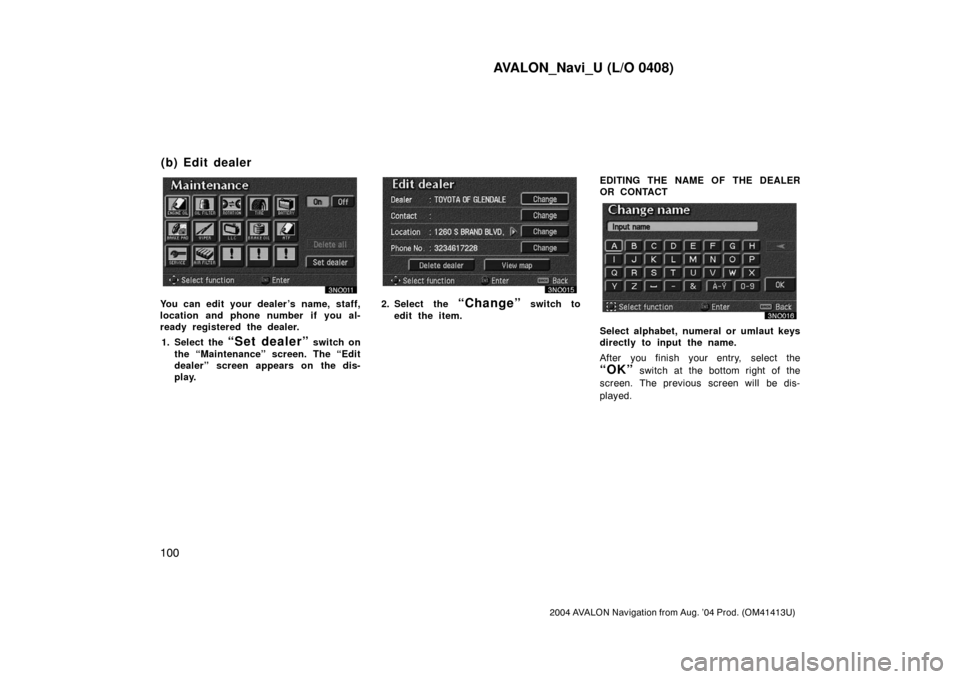

You can edit your dealer’s name, staff,
location and phone number if you al-
ready registered the dealer.
1. Select the
“Set dealer” switch on
the “Maintenance” screen. The “Edit
dealer” screen appears on the dis-
play.
2. Select the “Change” switch to
edit the item.EDITING THE NAME OF THE DEALER
OR CONTACT
Select alphabet, numeral or umlaut keys
directly to input the name.
After you finish your entry, select the
“OK” switch at the bottom right of the
screen. The previous screen will be dis-
played.
(b) Edit dealer

AVALON_Navi_U (L/O 0408)
101
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

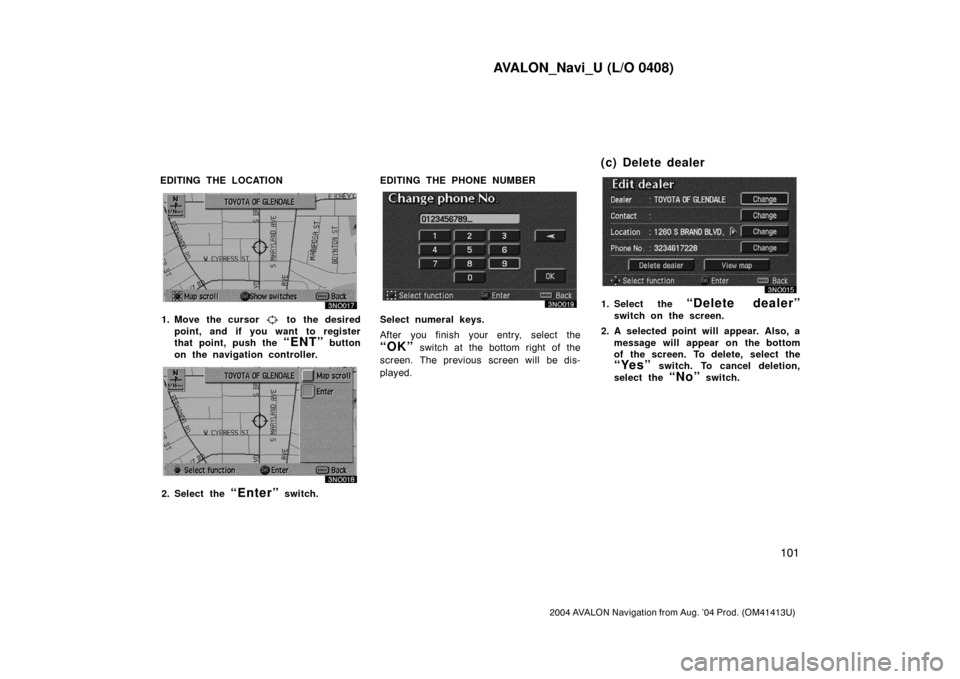

EDITING THE LOCATION
1. Move the cursor to the desired
point, and if you want to register
that point, push the
“ENT” button
on the navigation controller.
2. Select the “Enter” switch.EDITING THE PHONE NUMBER
Select numeral keys.
After you finish your entry, select the
“OK” switch at the bottom right of the
screen. The previous screen will be dis-
played.
1. Select the “Delete dealer”
switch on the screen.
2. A selected point will appear. Also, a
message will appear on the bottom
of the screen. To delete, select the
“Yes” switch. To cancel deletion,
select the
“No” switch.
(c) Delete dealer

AVALON_Navi_U (L/O 0408)
102
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

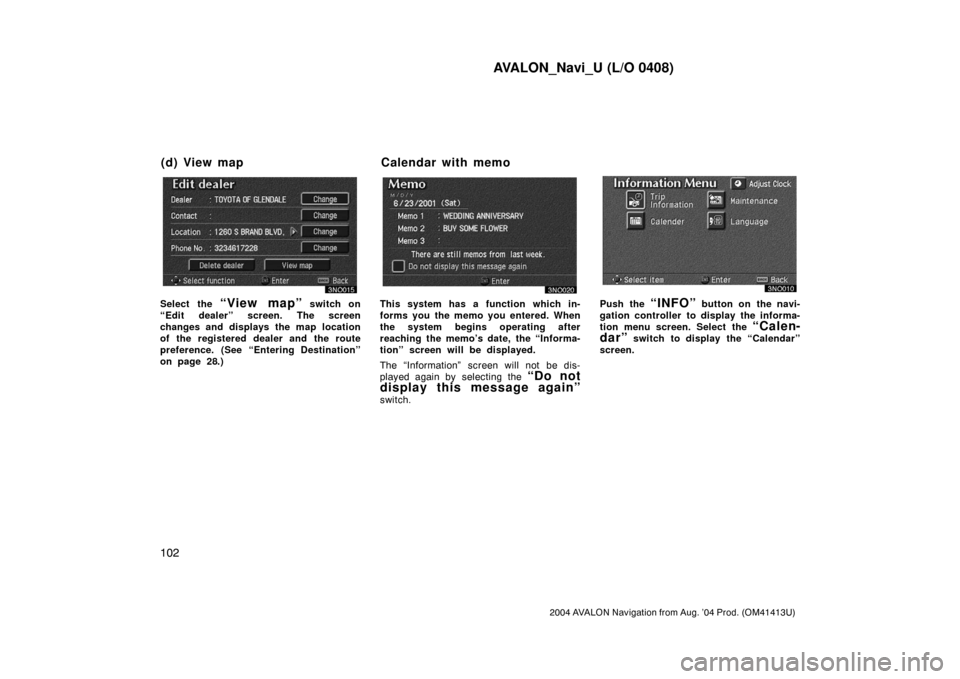

Select the “View map” switch on
“Edit dealer” screen. The screen
changes and displays the map location
of the registered dealer and the route
preference. (See “Entering Destination”
on page 28.)This system has a function which in-
forms you the memo you entered. When
the system begins operating after
reaching the memo’s date, the “Informa-
tion” screen will be displayed.
The “Information” screen will not be dis-
played again by selecting the
“Do not
display this message again”
switch.
Push the “INFO” button on the navi-
gation controller to display the informa-
tion menu screen. Select the
“Calen-
dar”
switch to display the “Calendar”
screen.
(d) View map Calendar with memo
