Foreword
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this
manual stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives
satellite signals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other
vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is
designed to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO based on
NAVTEQ maps, GDT maps and infoUSA POIs. The calculated routes are neither the shortest routes nor routes without traffic conges-
tion. Your own personal local knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 50 point of interest categories to allow you to easily select destinations such as
restaurants and hotels. If a destination is not in the database, you can enter the street address or a major intersection close to it and
the system will route you there. The system will provide both a visual map and audio instructions. The audio instructions will announce
the distance and direction to go when you are approaching a fork or intersection. These voice instructions will help you keep your eyes
on the road and are timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform
properly. The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or
other circumstances. For more information on the limitations of the system, refer to pages 49 through 51.
 2004 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.

AVALON_Navi_U (L/O 0408)
ii
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.

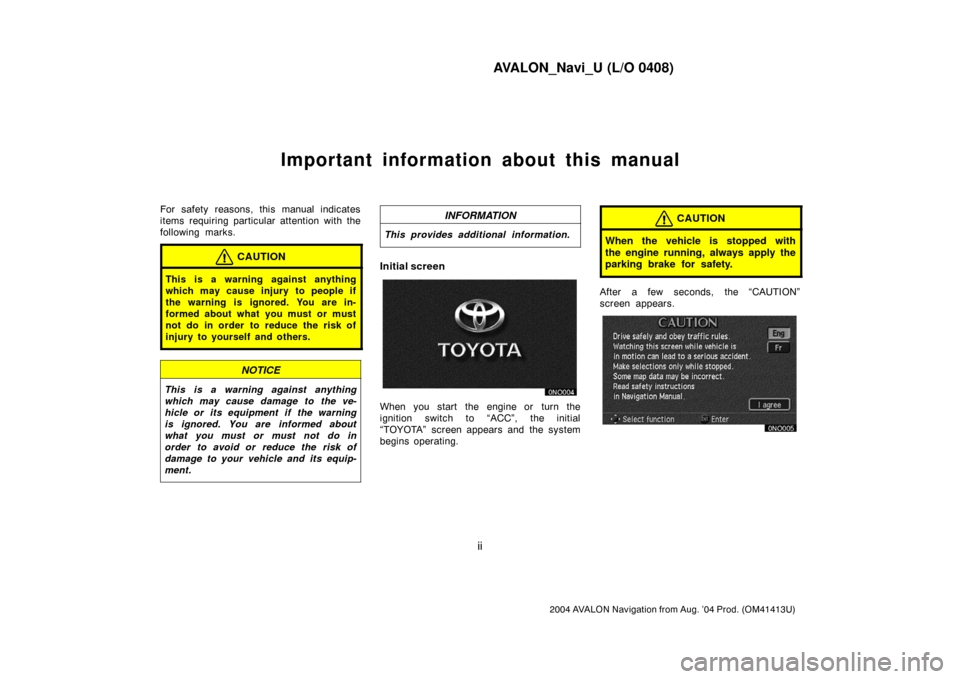

Initial screen
When you start the engine or turn the
ignition switch to “ACC”, the initial
“TOYOTA” screen appears and the system
begins operating.
CAUTION
When the vehicle is stopped with
the engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen appears.

AVALON_Navi_U (L/O 0408)
iii
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

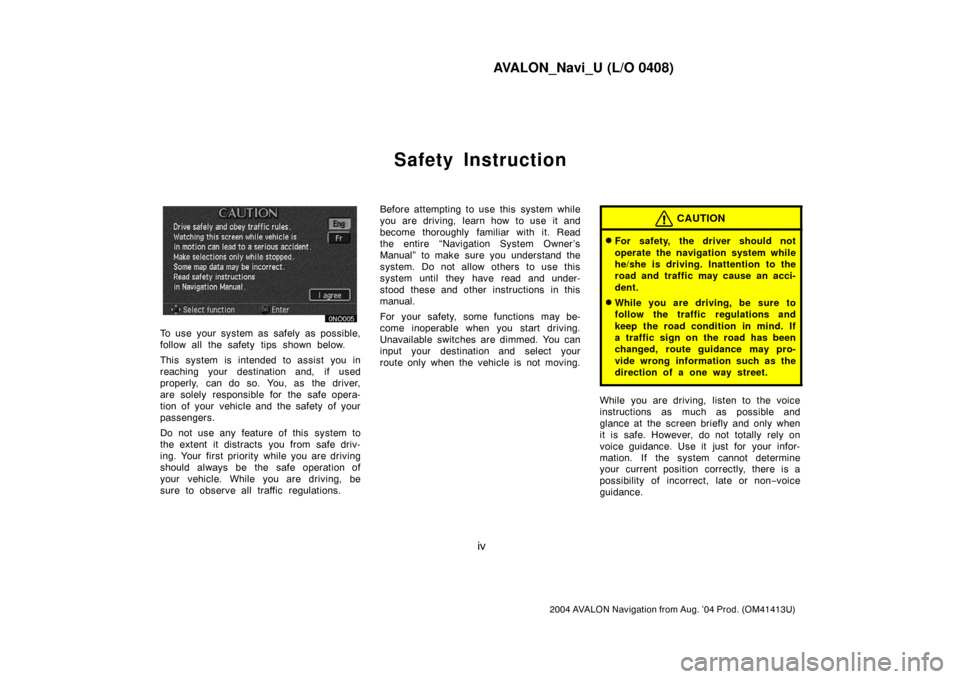

Please read it and follow the instruc-
tions.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen
by pushing the
“MAP/VOICE”,
“MENU” or “DEST” button on the
navigation controller.
When you push the
“ENT” button on
the navigation controller to indicate “I
agree” on the display, the next screen
appears.
On this screen, you can select the lan-
guage shown on the screen. Select your
desired switch on the screen.
“Eng”:English
“Fr”:French
You can also select the language by the
following procedure.

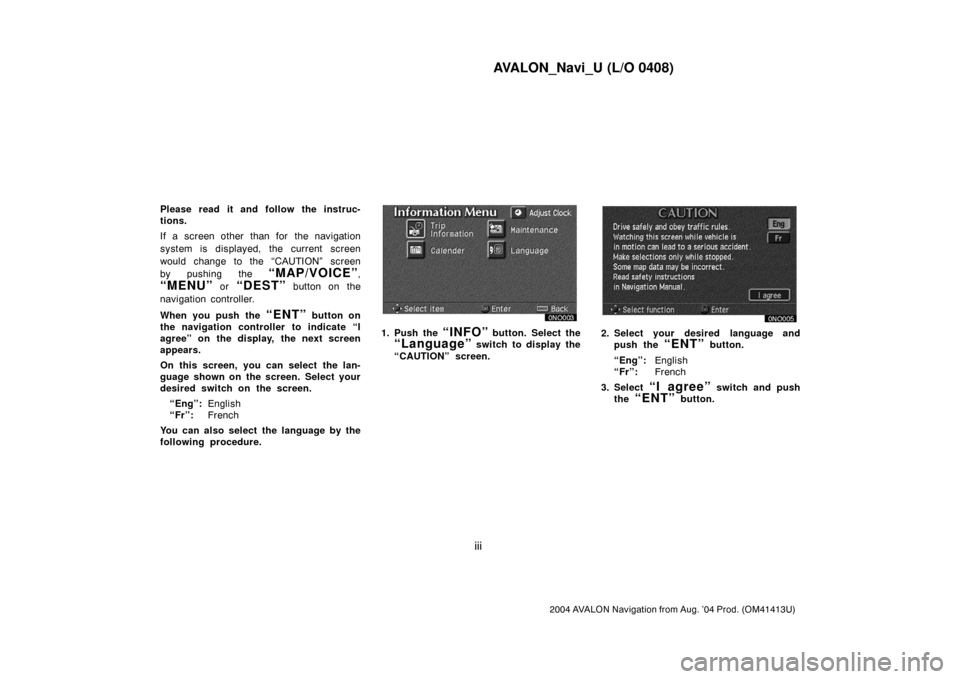

1. Push the “INFO” button. Select the
“Language” switch to display the
“CAUTION” screen.2. Select your desired language and
push the
“ENT” button.
“Eng”:English
“Fr”:French
3. Select
“I agree” switch and push
the
“ENT” button.

AVALON_Navi_U (L/O 0408)
iv
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
Safety Instruction
To use your system as safely as possible,
follow all the safety tips shown below.
This system is intended to assist you in
reaching your destination and, if used
properly, can do so. You, as the driver,
are solely responsible for the safe opera-
tion of your vehicle and the safety of your
passengers.
Do not use any feature of this system to
the extent it distracts you from safe driv-
ing. Your first priority while you are driving
should always be the safe operation of
your vehicle. While you are driving, be
sure to observe all traffic regulations.Before attempting to use this system while
you are driving, learn how to use it and
become thoroughly familiar with it. Read
the entire “Navigation System Owner ’s
Manual” to make sure you understand the
system. Do not allow others to use this
system until they have read and under-
stood these and other instructions in this
manual.
For your safety, some functions may be-
come inoperable when you start driving.
Unavailable switches are dimmed. You can
input your destination and select your
route only when the vehicle is not moving.
CAUTION
For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an acci-
dent.
While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind. If
a traffic sign on the road has been
changed, route guidance may pro-
vide wrong information such as the
direction of a one way street.
While you are driving, listen to the voice
instructions as much as possible and
glance at the screen briefly and only when
it is safe. However, do not totally rely on
voice guidance. Use it just for your infor-
mation. If the system cannot determine
your current position correctly, there is a
possibility of incorrect, late or non−voice
guidance.

AVALON_Navi_U (L/O 0408)
v
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street
closures, etc.) frequently change. There-
fore, before you follow any instruction
from the system, look to see whether you
can comply with the instruction safely and
legally.
This system cannot warn you about such
things as the safety of an area, condition
of streets, and availability of emergency
services. If you are unsure about the
safety of an area, do not drive into it.
Under no circumstances is this system
a substitute for the driver’s personal
judgement.
Use this system only in locations where
it is legal to do so. Some countries/prov-
inces may have laws prohibiting video
screens within sight of the driver.

AVALON_Navi_U (L/O 0408)
vi
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

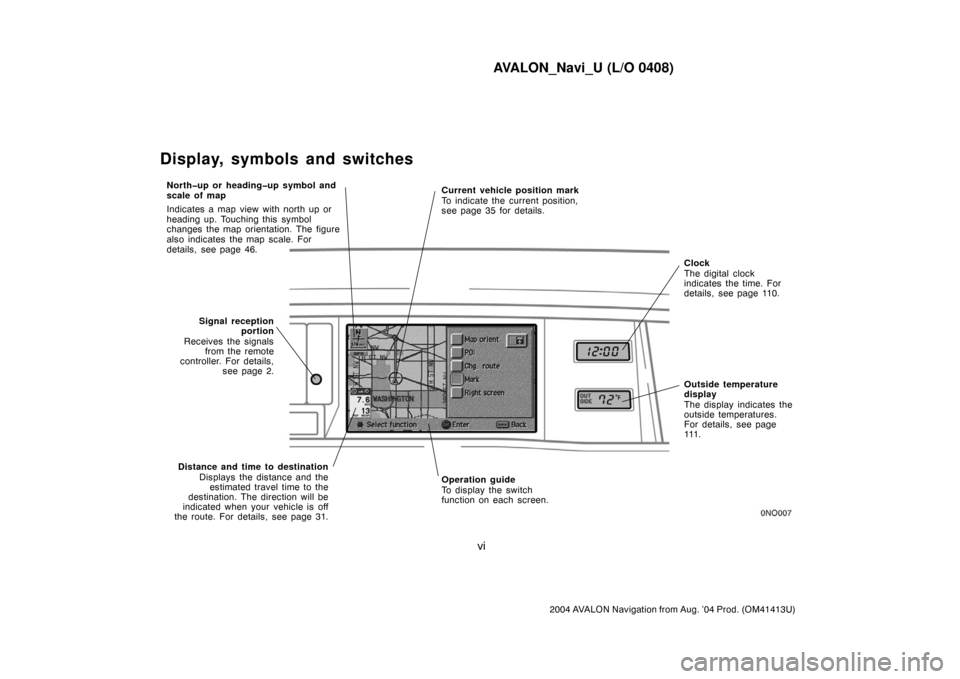

Display, symbols and switches
Northup or headingup symbol and
scale of map
Indicates a map view with north up or
heading up. Touching this symbol
changes the map orientation. The figure
also indicates the map scale. For
details, see page 46.
Clock
The digital clock
indicates the time. For
details, see page 110.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. The direction will be
indicated when your vehicle is off
the route. For details, see page 31.
Operation guide
To display the switch
function on each screen. Current vehicle position mark
To indicate the current position,
see page 35 for details.
Signal reception
portion
Receives the signals
from the remote
controller. For details,
see page 2.
Outside temperature
display
The display indicates the
outside temperatures.
For details, see page
111.

AVALON_Navi_U (L/O 0408)
vii
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
Changing the map
directionNZ02622
When the dual screen is displayed, the
left screen can be switched to “North−
up”/“Heading−up”.
Display of Point of
Interest
NZ02623
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For
details, see page 42.
Changing the route
guidance
NZ02624
When you select this switch, the “Change
route” screen will appear. For details, see
page 31.
Quick Registration
of marked point
NZ02625
To register the current vehicle position as
a marked point. For details, see page 71.
Changing the map
direction and Point
of Interest display
on the right screenNZ02626
When the map display is shown on the
dual screens, select this to call out the
editing menu (screen) on the right screen.
Headingup symbol
and scale of map
On the map, the vehicle travel direction is
up. The red arrow indicates the north.
INFORMATION
The display may be tinged in purple
due to the reflection of sunlight, but
this is not a malfunction.
The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be de-
leted. Also, the display may take
time to change.

AVALON_Navi_U (L/O 0408)
viii
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
Controller and buttons
“MAP/VOICE” button
Push this button to
repeat a guidance
voice, cancel the map
scroll and start a
guidance. For details,
see page 35.
“MENU” button
Push this button to
display the menu
screen. This screen
allows you to make
adjustments or
correct settings of
various options and
functions.
Zoom in/out button
These buttons
magnify or reduce the
map scale. For
details, see page 46.
“OFF” button
Push this button
when finishing the
navigation system.
“DISP” button
Push this button to
display screen. For
details, see page 113.“DEST” button
Push this button to display the destination
screen. For details, see page 9.
“ENT” button/select and scroll lever
In case of selecting the function and letters
or moving cursor, press down the lever to
one direction out of 8 directions. In case of
deciding the function after selecting it on the
screen, push down on the lever as a button.
Numeric keypad
Push these buttons to
input letters and numbers.
For details, see page 6.
“INFO” button
Push this button to
display the
maintenance screen.
For details, see page
97.
“PUSH” button
Push this button to
remove the controller.
For details, see page
2.
Signal output
portion
Transmit the signals
to signal reception
portion. For details.
see page 2.
Power plug
Bucket type front
seats only—The
vehicle battery power
is supplied when the
controller is fixed in
its original position.
Battery cover
To replace the
batteries, see page 2.
SURFACE BACKSIDE
“BACK” button
Push this button when
to call out the screen
just before.

AVALON_Navi_U (L/O 0408)
1
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Your navigation system2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to move the cursor9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input Explains 11 ways to input your destination9 . . . . . . .
Explains 11 ways to input your destination
Entering destination28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Guidance screen33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map appearance33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position display35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registration of your home39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displaying points of interest42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn list45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scrolling47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Orientation of the map47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation system49 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates52 . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

AVALON_Navi_U (L/O 0408)
2
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
1NO103
With bucket type front seat
1NO093
With bench type front seat
Your navigation system can be operated
by the navigation controller when the
ignition switch is in the “ACC” or “ON”
position.
With bucket type front seat—The controller
is located beside the automatic transmis-
sion selector lever.
With bench type front seat—The controller
is located on the front armrest.
To turn on the system—Push the
“MAP/VOICE”, “MENU”, “DEST”
or “INFO” button.
To turn off the system—Push the
“OFF” button.
NOTICE
To prevent the battery from being dis-
charged, do not leave the navigation
system on longer than necessary
when the engine is not running.
1NO101
paste
Your navigation system
