The controller can be removed from its
original position, and be used as a
wireless remote controller. To use it as
a remote controller, direct the signal
output portion of the controller to the
signal reception portion of the display.
CAUTION
If dropped, the navigation controller
may interfere with the accelerator and
brake pedals. To prevent this, keep
the controller in its original position
while driving.
NOTICE
Observe the following, otherwise the
navigation controller may be dam-
aged.
Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.
Do not drop or knock the controller
hard against other objects.
Do not sit or place heavy objects
on the controller.
Do not modify or disassemble.
1NO104
TO REMOVE THE CONTROLLER
1. Push the “PUSH” button.
2. Lift up the rear edge of the controller,
and pull it to backward.
1NO105
TO FIT THE CONTROLLER IN PLACE
1. Insert the front edge of the controller.
2. Push down the rear edge of the con-
troller until it is fixed.

AVALON_Navi_U (L/O 0408)
4
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
REPLACING CONTROLLER BATTERY
For replacement of the batteries, use 2
AAA batteries.
WIth bucket type front seat only—While
the controller is fixed in its original posi-
tion, the power source is supplied from
the vehicle. As long as you use the con-
troller in this position, the controller can
be used without batteries.
NOTICE
When replacing the batteries, use
new batteries of the same manufac-
turer.
Dispose of used batteries according
to the local laws.
Replace the batteries by the following pro-
cedures:
1NO097
1. Remove the cover of the controller as
shown.
1NO098
2. Put in new batteries as shown. Install
the cover.
After replacing battery, check that the con-
troller operates properly. If the controller
still does not operate properly, contact
your Toyota dealer.

AVALON_Navi_U (L/O 0408)
5
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
NOTICE
Make sure the positive side and
negative side of the battery should
be faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
To input letters and/or numbers, move
the select and scroll lever to the 8 di-
rections, and when the letter or number
you wish to input is lit up, push the
“ENT” button. A beep sound is heard,
and the letter or number is input. Re-
peat this procedure to input the name
or number, etc.
You can also input letters and numbers
with numeric keypad of the controller. For
details, see “—Inputting with numeric key-
pad” on page 6 in this Section.
If you type a wrong letter, delete it with
the
switch. Selecting the switch
erases one letter.Selecting the
“List” switch on the
screen, the screen will be changed to dis-
play the database items that match the
name or address that you have entered
on the screen. The number of matching
items is shown to the right side of the
screen. If the matching item is more than
9,999, the system displays “” on
the screen.

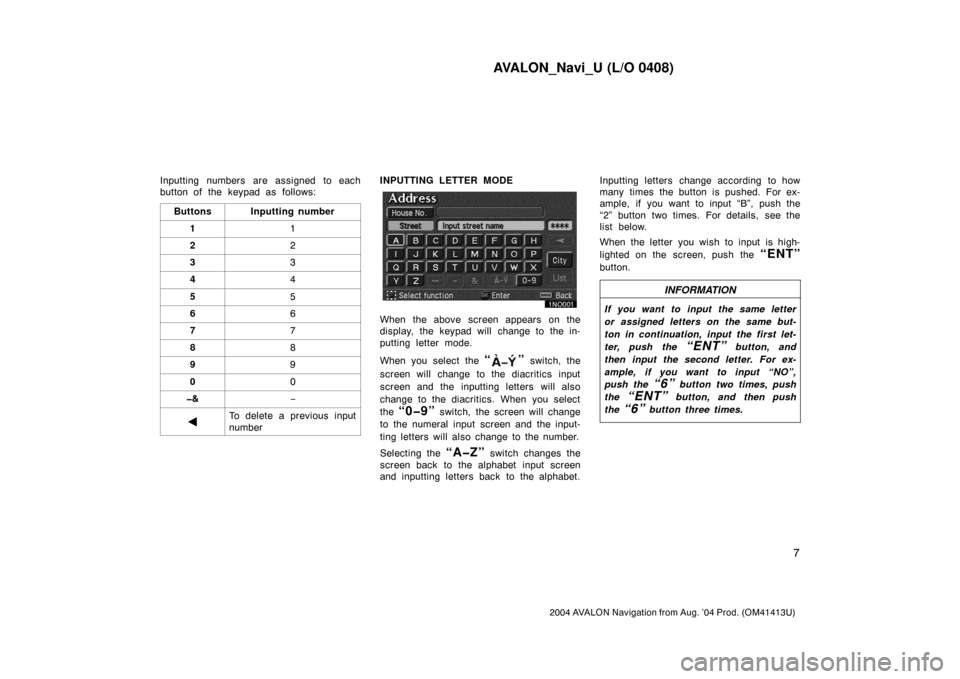

Selecting the
“” switch to display
the diacritics input screen, the
“09”
switch to display the numeral input
screen.
Selecting the “AZ” switch changes the
screen back to the alphabet input screen.
Inputting letters and
numbers—

AVALON_Navi_U (L/O 0408)
6
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
When a list is displayed, you can scroll
the list by using select and scroll lever.
This expresses a displayed
screen position.
If a or a appears to the right
or left of the item name, the
complete name is too long for
the display. Select the or
switch, and the name will scroll
to the end or beginning of its
name.

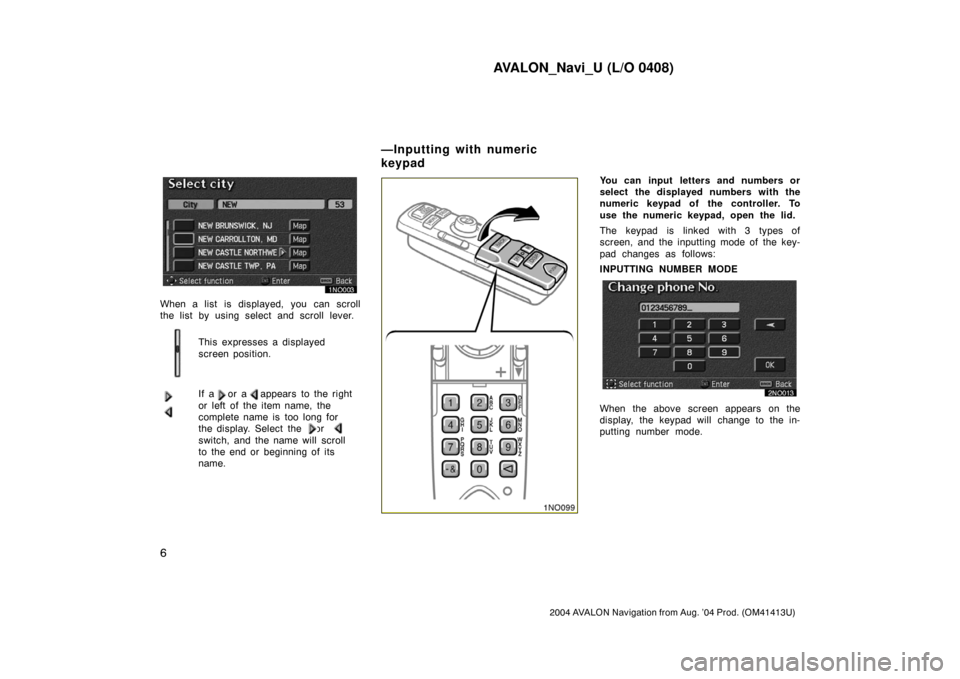

1NO099
You can input letters and numbers or
select the displayed numbers with the
numeric keypad of the controller. To
use the numeric keypad, open the lid.
The keypad is linked with 3 types of
screen, and the inputting mode of the key-
pad changes as follows:
INPUTTING NUMBER MODE
When the above screen appears on the
display, the keypad will change to the in-
putting number mode.
—Inputting with numeric
keypad

AVALON_Navi_U (L/O 0408)
7
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
Inputting numbers are assigned to each
button of the keypad as follows:
Buttons
Inputting number
11
22
33
44
55
66
77
88
99
00
&−
To delete a previous input
number
INPUTTING LETTER MODE
When the above screen appears on the
display, the keypad will change to the in-
putting letter mode.
When you select the
“” switch, the
screen will change to the diacritics input
screen and the inputting letters will also
change to the diacritics. When you select
the
“09” switch, the screen will change
to the numeral input screen and the input-
ting letters will also change to the number.
Selecting the
“AZ” switch changes the
screen back to the alphabet input screen
and inputting letters back to the alphabet.Inputting letters change according to how
many times the button is pushed. For ex-
ample, if you want to input “B”, push the
“2” button two times. For details, see the
list below.
When the letter you wish to input is high-
lighted on the screen, push the
“ENT”
button.
INFORMATION
If you want to input the same letter
or assigned letters on the same but-
ton in continuation, input the first let-
ter, push the
“ENT” button, and
then input the second letter. For ex-
ample, if you want to input “NO”,
push the
“6” button two times, push
the
“ENT” button, and then push
the
“6” button three times.

AVALON_Navi_U (L/O 0408)
8
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
SELECTING PRESET NUMBER MODE
When the above screen appears on the
display, you can select a number with the
“1” through “5” buttons.
Inputting letters are assigned to each button of the keypad as follows:
ÀÁÂÃÄÅÆÇ
ÑÒÓÔÕÖØ
WXYZ
!  ”  #  $  &
 ’  (  )
∗  +
 ,  −  .  /  :
 <  ?
ButtonsInputting letters
Alphabet Diacritics Number
1
2
3
4
5
6
7
8
9
0—
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
——
ÈÉÊË
ÌÍÎÏ
—
—
ÙÚÛÜ
—1
3
4
5
7
8
9
0 2
6
&——
To delete the previous input letter

AVALON_Navi_U (L/O 0408)
9
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
1. Move the cursor to the desired
point by operating the select and
scroll lever. When you release the

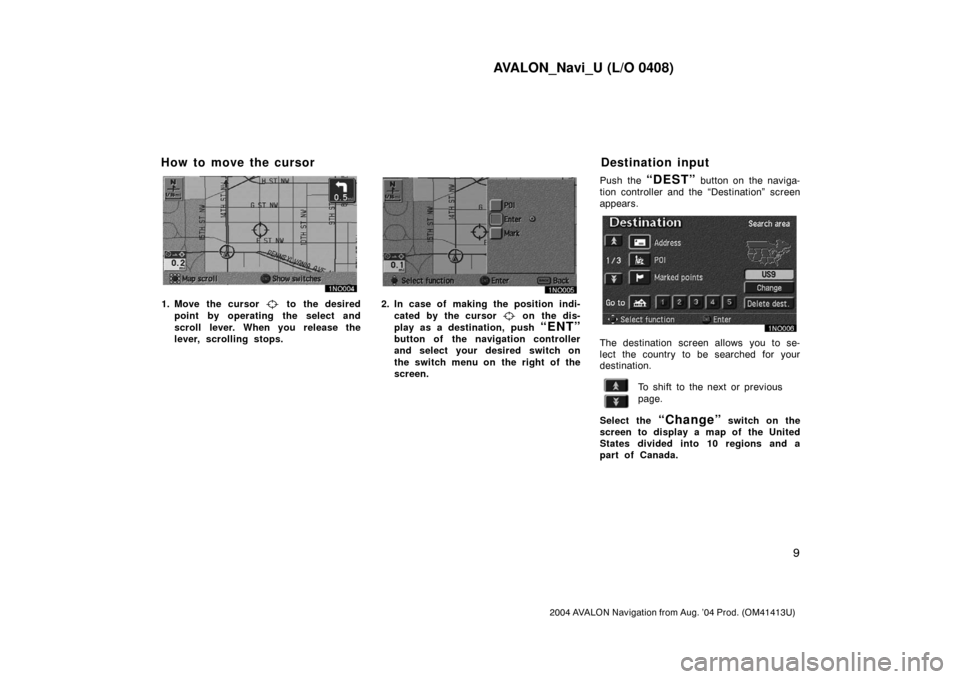

lever, scrolling stops.2. In case of making the position indi-
cated by the cursor
on the dis-
play as a destination, push
“ENT”
button of the navigation controller
and select your desired switch on
the switch menu on the right of the
screen.Push the
“DEST” button on the naviga-
tion controller and the “Destination” screen
appears.

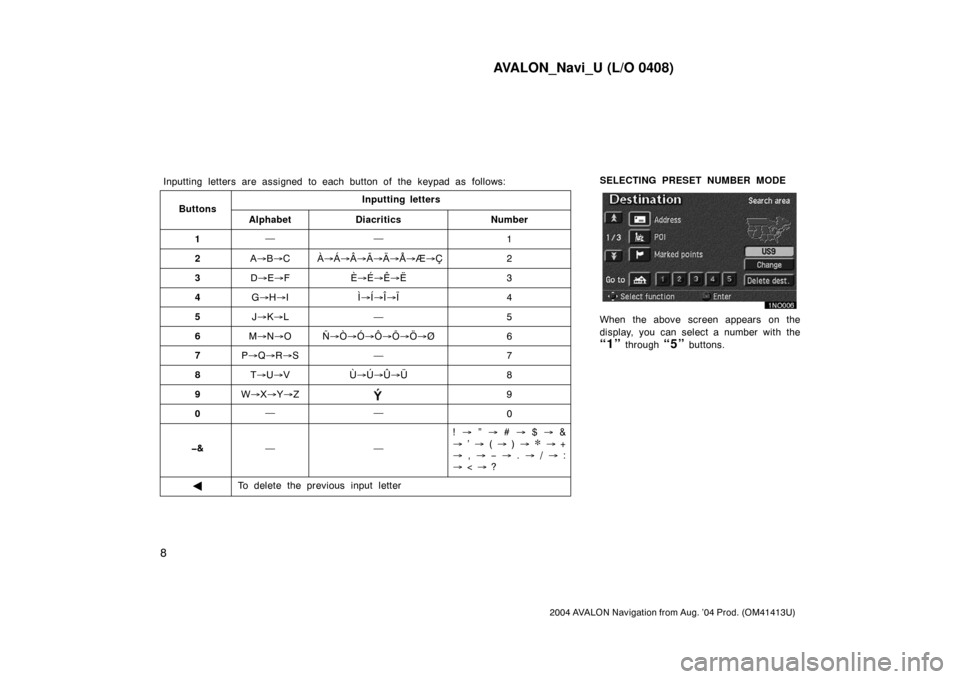

The destination screen allows you to se-
lect the country to be searched for your
destination.
To shift to the next or previous
page.
Select the “Change” switch on the
screen to display a map of the United
States divided into 10 regions and a
part of Canada.
How to move the cursor Destination input

AVALON_Navi_U (L/O 0408)
10
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)

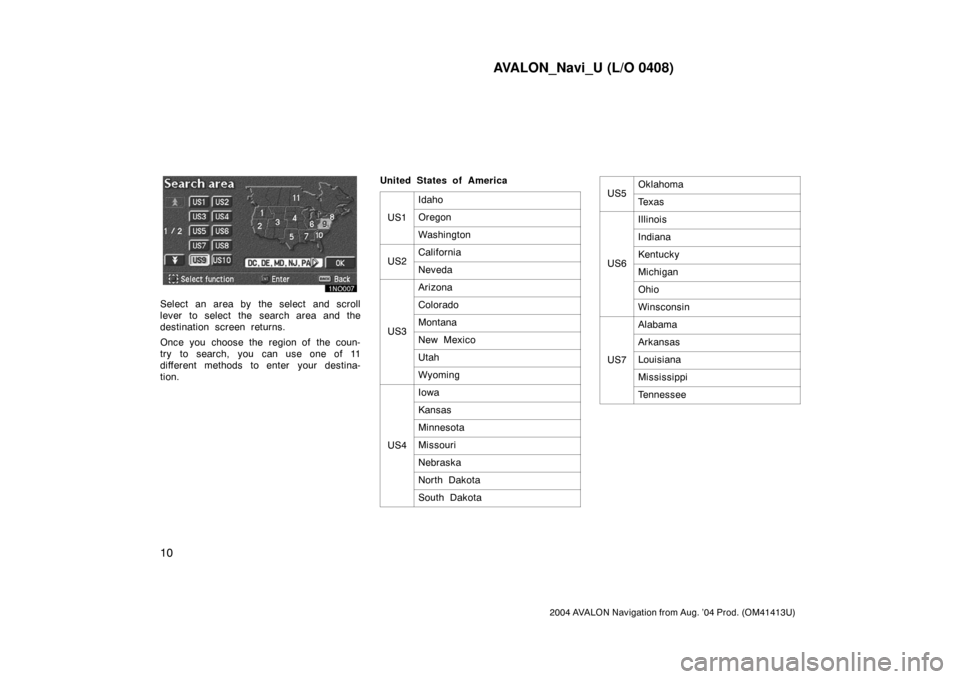

Select an area by the select and scroll
lever to select the search area and the
destination screen returns.
Once you choose the region of the coun-
try to search, you can use one of 11
different methods to enter your destina-
tion.United States of America
US1
Idaho
Oregon
Washington
US2California
Neveda
US3
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
US4
Iowa
Kansas
Minnesota
Missouri
Nebraska
North Dakota
South Dakota
US5Oklahoma
Te x a s
US6
Illinois
Indiana
Kentucky
Michigan
Ohio
Winsconsin
US7
Alabama
Arkansas
Louisiana
Mississippi
Tennessee

AVALON_Navi_U (L/O 0408)
11
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
US8
Connecticut
Maine
Massachisetts
New Hampshire
New Jersey
New York
Rhode Island
Vermont
US9
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
Washington, D.C.
West Virginia
US10
Florida
Georgia
North Carolina
South Carolina
CANADA
CAN
Alberta
British Columbia
Manitoba
New Brunswick
Newfoundland and Labrador
Nova Scotia
Ontario
Prince Edward Island
Québec
Saskatchewan
Yukon Territory
You can find your destination using vari-
ous methods. See pages 13 through 28
for the detailed steps.
1. By Address: You can input the house
number and the street address by us-
ing the input keys. See page 13 for the
detailed steps.2. By POI (Point of Interest): You can
select one of the many points of inter-
est that have been already stored in
the system’s database. There are 54
categories to choose from including
restaurants, hotels and so on. See
page 16 for the detailed steps.
3. By Marked Points: You can select
your own favorite destinations as
“Marked points”. The system allows
you to store up 100 marked points.
See page 22 for the detailed steps.
4. By Previous Destination: You can se-
lect a destination from any of the last
20 previously set destinations. See
page 23 for the detailed steps.
5. By Emergency: You can select one of
the three points of emergency service
points that have been already stored in
the system’s database. See page 23
for the detailed steps.
6. By Intersection: You can enter the
names of two intersecting streets. This
is helpful if you do not know the spe-
cific street address of your destination
but know the general vicinity. See page
24 for the detailed steps.

AVALON_Navi_U (L/O 0408)
12
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
7. By Previous Starting Point: You can
enter a point where the system has
started to guide last time. See page 27
for the detailed steps.
8. By Freeway Ent./Exit: You can enter
the name of the freeway (interstate)
entrance or exit. See page 25 for the
detailed steps.
9. By Map Selection: You can select a
destination simply by selecting the
location on the displayed map. See
page 27 for the detailed steps.
10. By Preset Destination (
—
switches on the “Destination”
screen): You can choose the destina-
tion by selecting one of the preset des-
tination switch. In this case, it is nec-
essary to register your desired
destination beforehand. See page 28
for the detailed steps.
11 . B y H o m e (
switch on the “Des-
tination” screen): You can select your
own home without entering the address
each time. In this case, it is necessary
to register your home beforehand. See
page 27 for the detailed steps.
INFORMATION
When inputting the destination, the
response to the switch may be slow.
“Points of interest” registration is
made based on the NAVTEQ
“Standard POI Inclusion List” and
infoUSA POI data.
If there is no point registered,
switches such as “Marked point”,
“Home”, “Previous destination” or
“Previous starting point” are
dimmed and not available.
The route for returning may not be
the same as that for going.
The route guidance to the destina-
tion may not be the shortest route
or a route without traffic conges-
tion.
Route guidance may not be avail-
able if there is no road data for the
specified location.
When setting the destination, you
should use the map on a scale of
one half mile or smaller.
To select an “Address”, “Point of
interest”, “Freeway Ent./Exit” or “In-
tersection” in a different region, a
search area’s change is necessary.
CAUTION
While you are driving, be sure to fol-
low traffic regulations and keep the
road condition in mind. If a traffic
sign on the road has been changed,
the route guidance may provide
wrong information.
