RETURNING TO THE RETRACTED
POSITION

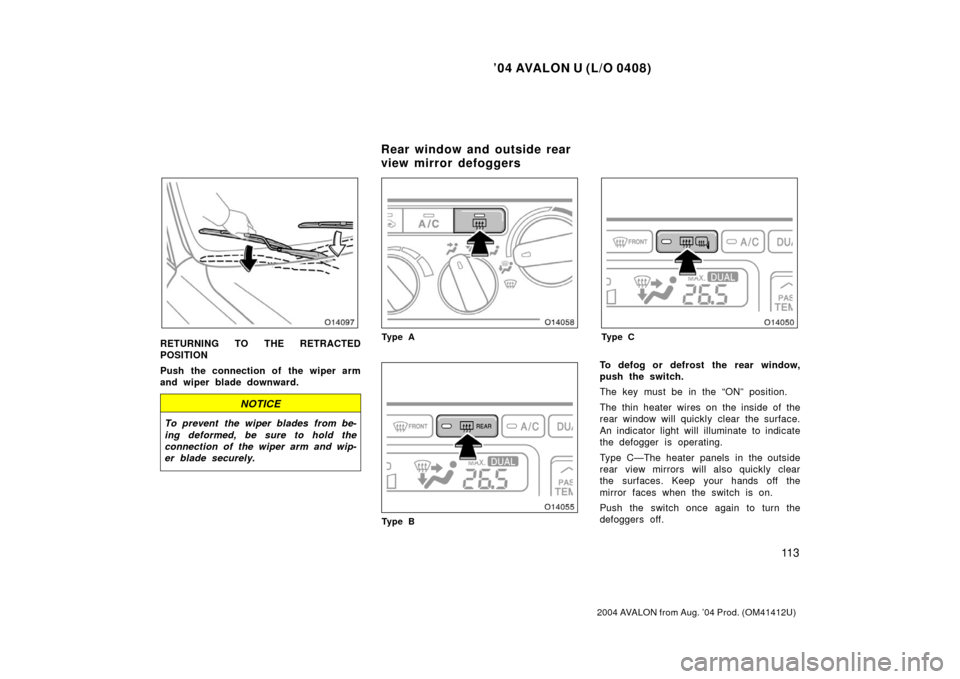

Push the connection of the wiper arm
and wiper blade downward.
NOTICE
To prevent the wiper blades from be-
ing deformed, be sure to hold the
connection of the wiper arm and wip-
er blade securely.
Ty p e A
Ty p e B
Ty p e C
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Type C—The heater panels in the outside
rear view mirrors will also quickly clear
the surfaces. Keep your hands off the
mirror faces when the switch is on.
Push the switch once again to turn the
defoggers off.
Rear window and outside rear
view mirror defoggers

’04 AVALON U (L/O 0408)
11 4
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
CAUTION
Type C—Since the mirror surfaces
can get hot, do not touch them when
the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stopandgo driving. The defoggers are
not designed for drying rain water or for
melting snow.
On some models, if the outside rear view
mirrors are heavily coated with ice, use a
spray deicer before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.

’04 AVALON U (L/O 0408)
11 5
2004 AVALON from Aug. ’04 Prod. (OM41412U)

’04 AVALON U (L/O 0408)
11 6
2004 AVALON from Aug. ’04 Prod. (OM41412U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 120
. . . . . . . . . . . . . .
SECTION 1 6

’04 AVALON U (L/O 0408)
11 7
2004 AVALON from Aug. ’04 Prod. (OM41412U)

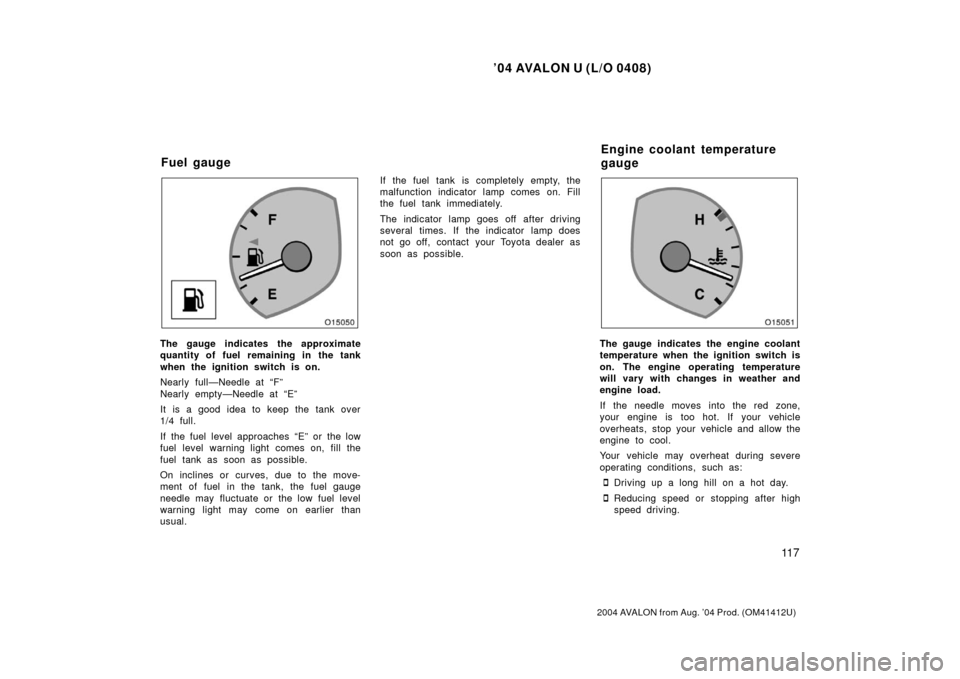

The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

’04 AVALON U (L/O 0408)
11 8
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Idling for a long period with the air
conditioning on in stopandgo traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE

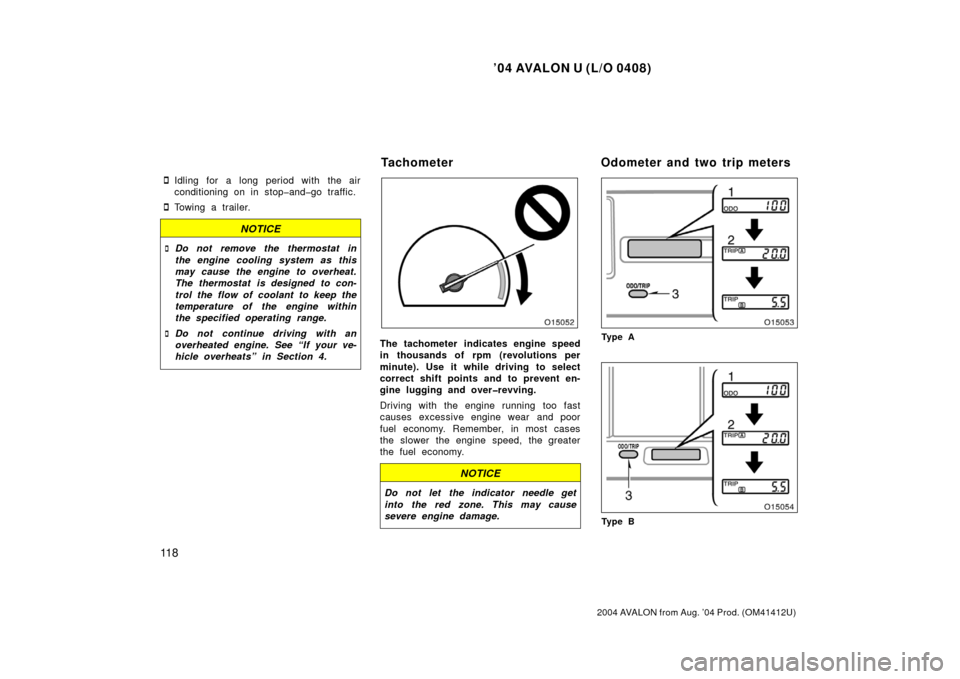

Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Ty p e A
Ty p e B
Tachometer Odometer and two trip meters

’04 AVALON U (L/O 0408)
11 9
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Ty p e C
This meter displays the odometer and
two trip meters when the ignition
switch is on.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. “ODO/TRIP” button—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the button. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the button until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.

’04 AVALON U (L/O 0408)
120
2004 AVALON from Aug. ’04 Prod. (OM41412U)
If the indicator or buzzer comes on...Do this.
(a)orIf parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front outside passenger ’s seat belt.
(d)Stop and check.
(e)Stop and check.
(f)Take vehicle to Toyota dealer.
(g)Fill up tank.
Service reminder indicators and warning buzzers

’04 AVALON U (L/O 0408)
121
2004 AVALON from Aug. ’04 Prod. (OM41412U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all doors.
(j)Replace bulb.
(k)Take vehicle to Toyota dealer immediately.
(l)Take vehicle to Toyota dealer.
(m)Add washer fluid.
(n)Key reminder buzzerRemove key.

’04 AVALON U (L/O 0408)
122
2004 AVALON from Aug. ’04 Prod. (OM41412U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light keep flashing and the buzz-
er sounds for about 4 to 8 seconds.
(c) Front Outside Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front outside passenger ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front outside passen-
ger seat and does not fasten the seat
belt. Unless the front outside passenger
fastens the belt, the light stays on. This
light reminds you to buckle up the front
outside passenger ’s seat belt.
If luggage or other load is placed on the
front outside passenger seat, depending
on its weight and how it is placed on the
seat, builtin sensors in the seat cushion
may detect the pressure, causing the re-
minder light to come on.
