Front outside passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats
CAUTION
SRS side airbags are installed in the
outboard side of the driver’s and
front passenger seats. Observe the
following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbag system to in-
flate accidentally, resulting in death
or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
—Seat adjustment precautions

’04 AVALON U (L/O 0408)
44
2004 AVALON from Aug. ’04 Prod. (OM41412U)

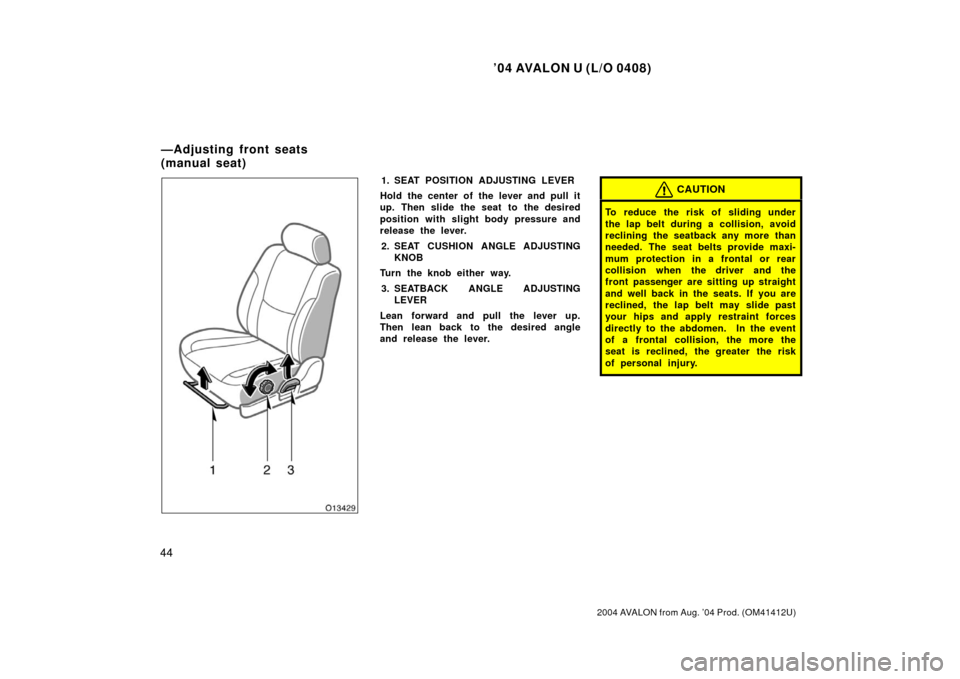

1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
—Adjusting front seats
(manual seat)

’04 AVALON U (L/O 0408)
45
2004 AVALON from Aug. ’04 Prod. (OM41412U)
1. SEAT POSITION AND SEAT CUSHIONANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORT ADJUSTING SWITCH
Push the switch on either side.
The amount of lumbar support will change
while the switch is pushed.
—Adjusting front seats (power
seat)

’04 AVALON U (L/O 0408)
46
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The micro computer can memorize the
position of the driver’s seat and outside
rear view mirror. Two different driving
position profiles can be entered into
computer ’s memory.
Recording a driving position in the
computer’s memory can only be done
when the ignition key is in the “ON”
position and the automatic transmission
selector lever is in the “P” position.
SETTING THE DRIVING POSITION1. Adjust the driver ’s seat and outside rear view mirror to the desired posi-
tion.
2. While pushing the “SET” button, push button “1” or “2” until the sig-
nal beeps.
The beep sound means that the positions
are recorded in the computer ’s memory.
By repeating these two steps and pressing
the remaining button, the driving position
for another driver can be recorded.
To set a new memorized position, select
the desired position and perform step 2.
The previous memory will be erased and
a new position will be set. To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
Driving position memory
system

’04 AVALON U (L/O 0408)
47
2004 AVALON from Aug. ’04 Prod. (OM41412U)
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, the
driving position will be automatically
adjusted to the position recorded for
that button.CONDITIONS FOR MEMORIZED
POSITION ACTIVATION
Ignition key “ON” and shift lever in “P”
position
All parts of the memorized positions
can be activated. However, if the brake
pedal is being depressed, the seat
position will not change.
Key not in ignition switch and within 30
seconds of opening driver ’s door
The memorized position can be acti-
vated.
If any driving position memory switch is
pushed while one of the memorized driv-
ing position profiles is being activated, the
operation will stop.
To reactivate the system, push the desired
button (“1” or “2”) again.
The driving position memory control sys-
tem cannot be operated while the vehicle
is moving.
If the vehicle’s battery is disconnected,
the computer’s memory will be erased and
the memorized position will have to be set
again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

’04 AVALON U (L/O 0408)
48
2004 AVALON from Aug. ’04 Prod. (OM41412U)

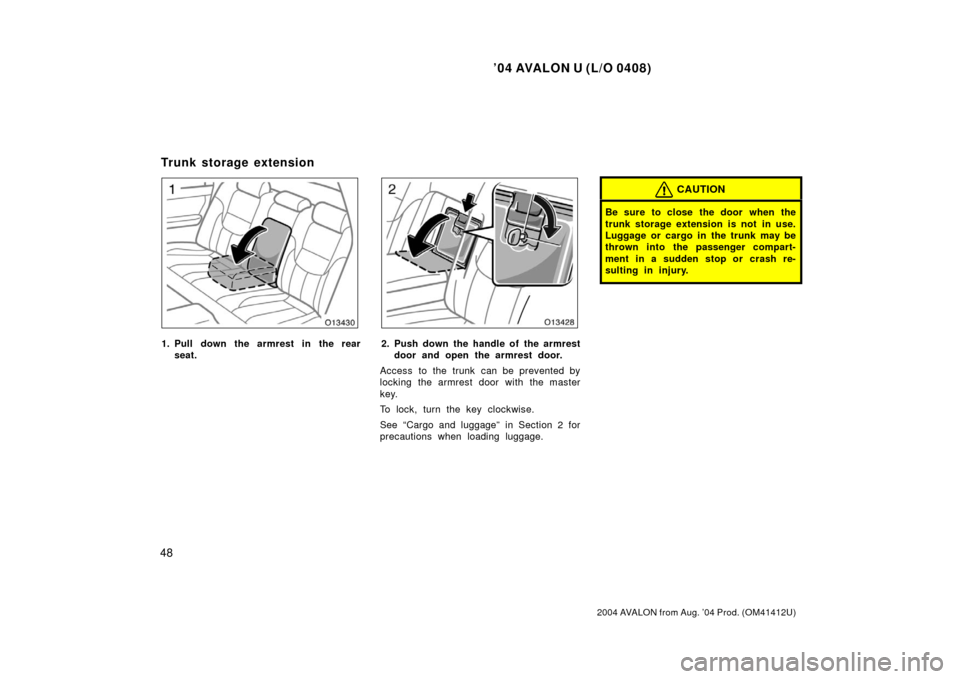

1. Pull down the armrest in the rearseat.2. Push down the handle of the armrestdoor and open the armrest door.
Access to the trunk can be prevented by
locking the armrest door with the master
key.
To lock, turn the key clockwise.
See “Cargo and luggage” in Section 2 for
precautions when loading luggage.
CAUTION
Be sure to close the door when the
trunk storage extension is not in use.
Luggage or cargo in the trunk may be
thrown into the passenger compart-
ment in a sudden stop or crash re-
sulting in injury.
Trunk storage extension

’04 AVALON U (L/O 0408)
49
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Front
Rear

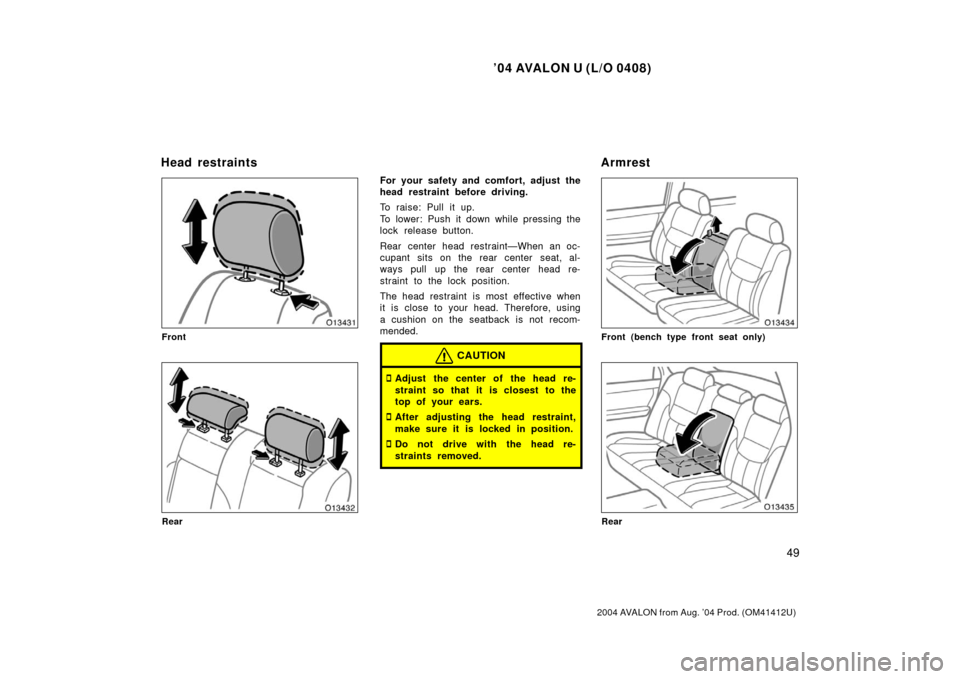

For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Rear center head restraint—When an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Front (bench type front seat only)
Rear
Head restraintsArmrest

’04 AVALON U (L/O 0408)
50
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Front—To use the armrest, pull up the
strap and pull down the armrest as
shown above.
Rear—To use the armrest, pull it down
as shown above.
For driver
For front outside passenger

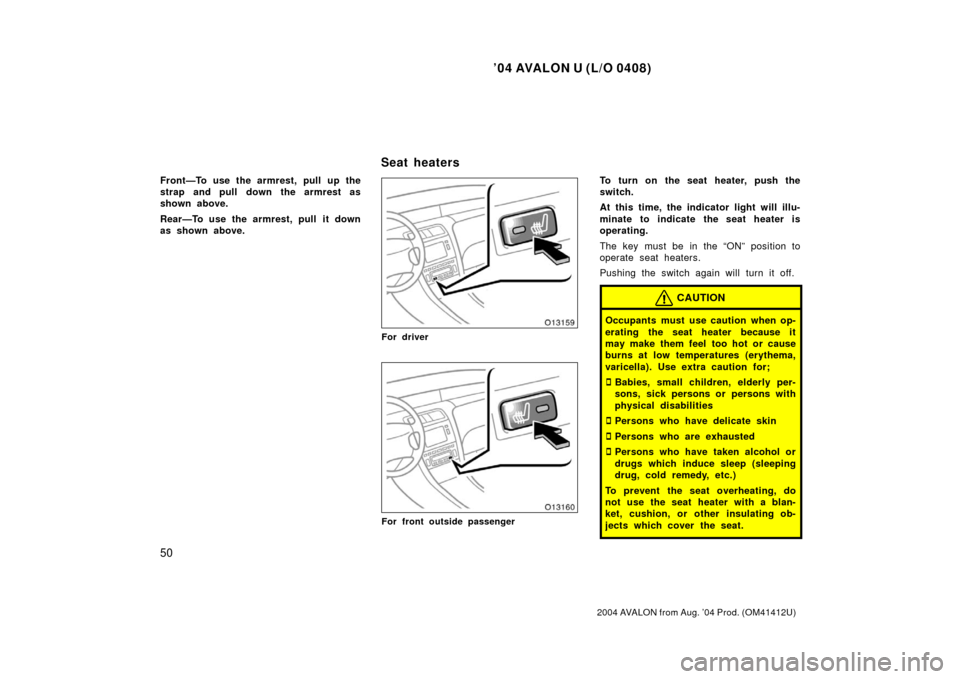

To turn on the seat heater, push the
switch.
At this time, the indicator light will illu-
minate to indicate the seat heater is
operating.
The key must be in the “ON” position to
operate seat heaters.
Pushing the switch again will turn it off.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

’04 AVALON U (L/O 0408)
51
2004 AVALON from Aug. ’04 Prod. (OM41412U)
NOTICE
Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharge, turn the switch off when
the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts—
—Seat belt precautions

’04 AVALON U (L/O 0408)
52
2004 AVALON from Aug. ’04 Prod. (OM41412U)
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen. In the event of a
frontal collision, the more the seat
is reclined, the greater the risk of
personal injury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belt—they may se-
verely weaken the belts. (See
“Cleaning the interior” in Section
5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Fastening front outside and
rear seat belts (3point type)
