TOYOTA AVALON 2006 XX30 / 3.G Workshop Manual

’06 AVALON_U (L/O 0508)
43

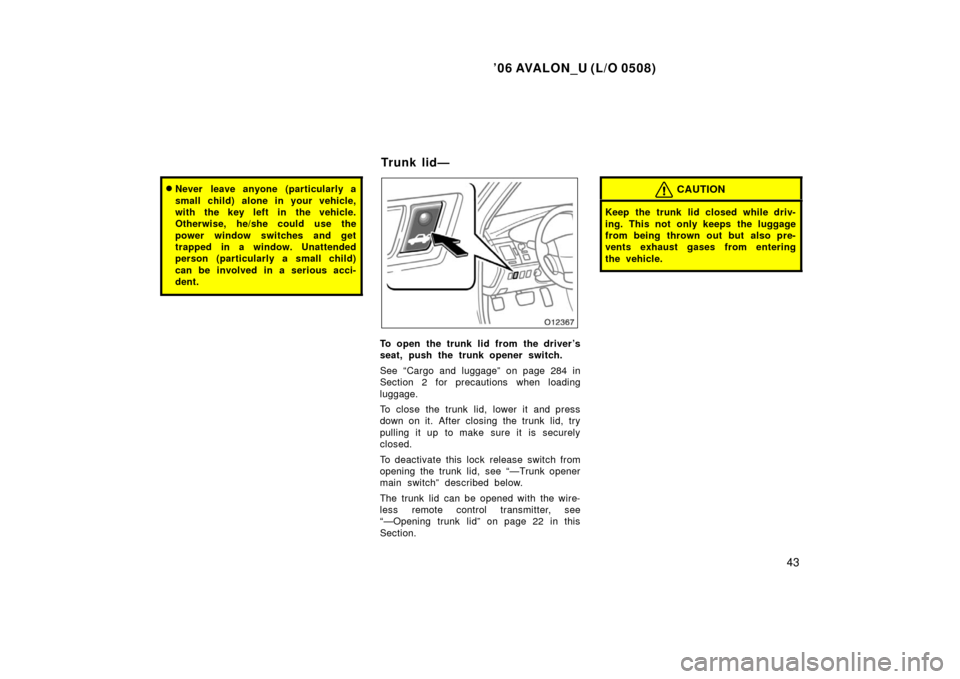

Never leave anyone (particularly a
small child) alone in your vehicle,
with the key left in the vehicle.
Otherwise, he/she could use the
power window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious acci-
dent.
To open the trunk lid from the driver’s
seat, push the trunk opener switch.
See “Cargo and luggage” on page 284 in
Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
To deactivate this lock release switch from
opening the trunk lid, see “—Trunk opener
main switch” described below.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 22 in this
Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Trunk lid—

’06 AVALON_U (L/O 0508)
44
OPENING TRUNK WITH SMART KEY
SYSTEM

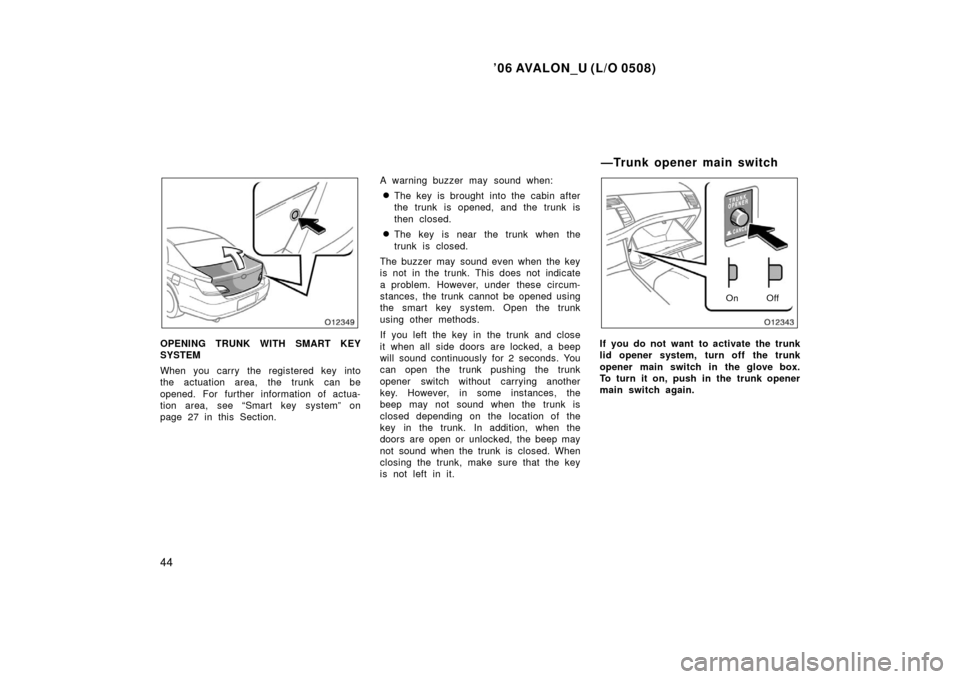

When you carry the registered key into
the actuation area, the trunk can be
opened. For further information of actua-
tion area, see “Smart key system” on
page 27 in this Section.A warning buzzer may sound when:
The key is brought into the cabin after
the trunk is opened, and the trunk is
then closed.
The key is near the trunk when the
trunk is closed.
The buzzer may sound even when the key
is not in the trunk. This does not indicate
a problem. However, under these circum-
stances, the trunk cannot be opened using
the smart key system. Open the trunk
using other methods.
If you left the key in the trunk and close
it when all side doors are locked, a beep
will sound continuously for 2 seconds. You
can open the trunk pushing the trunk
opener switch without carrying another
key. However, in some instances, the
beep may not sound when the trunk is
closed depending on the location of the
key in the trunk. In addition, when the
doors are open or unlocked, the beep may
not sound when the trunk is closed. When
closing the trunk, make sure that the key
is not left in it.
On Off
If you do not want to activate the trunk
lid opener system, turn off the trunk
opener main switch in the glove box.
To turn it on, push in the trunk opener
main switch again.
—Trunk opener main switch

’06 AVALON_U (L/O 0508)
45

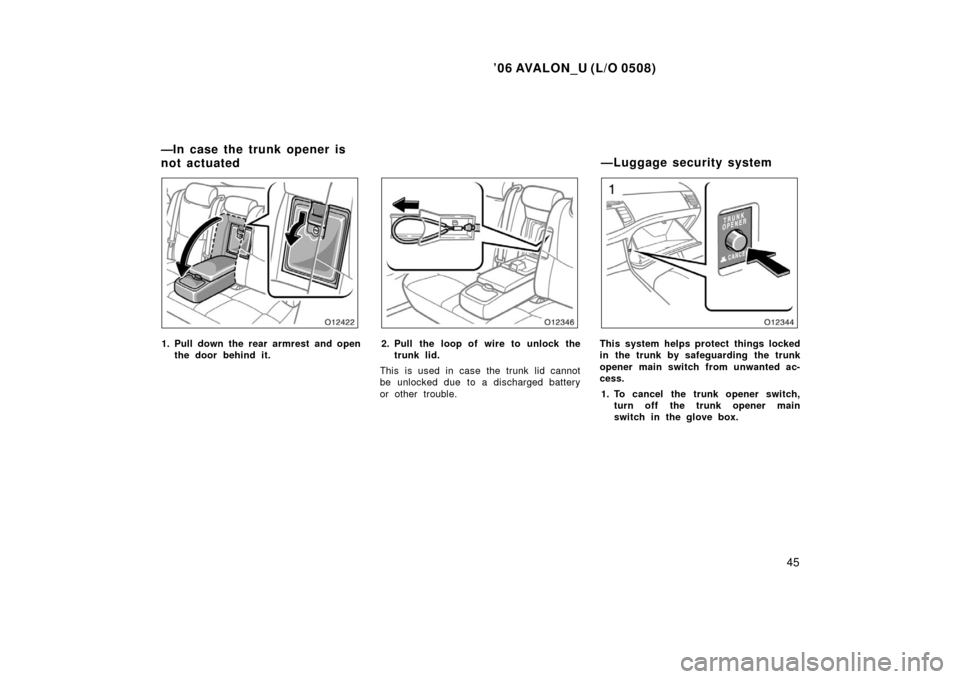

1. Pull down the rear armrest and openthe door behind it.2. Pull the loop of wire to unlock thetrunk lid.
This is used in case the trunk lid cannot
be unlocked due to a discharged battery
or other trouble.This system helps protect things locked
in the trunk by safeguarding the trunk
opener main switch from unwanted ac-
cess. 1. To cancel the trunk opener switch, turn off the trunk opener main
switch in the glove box.
—In case the trunk opener is
not actuated —Luggage security system

’06 AVALON_U (L/O 0508)
46

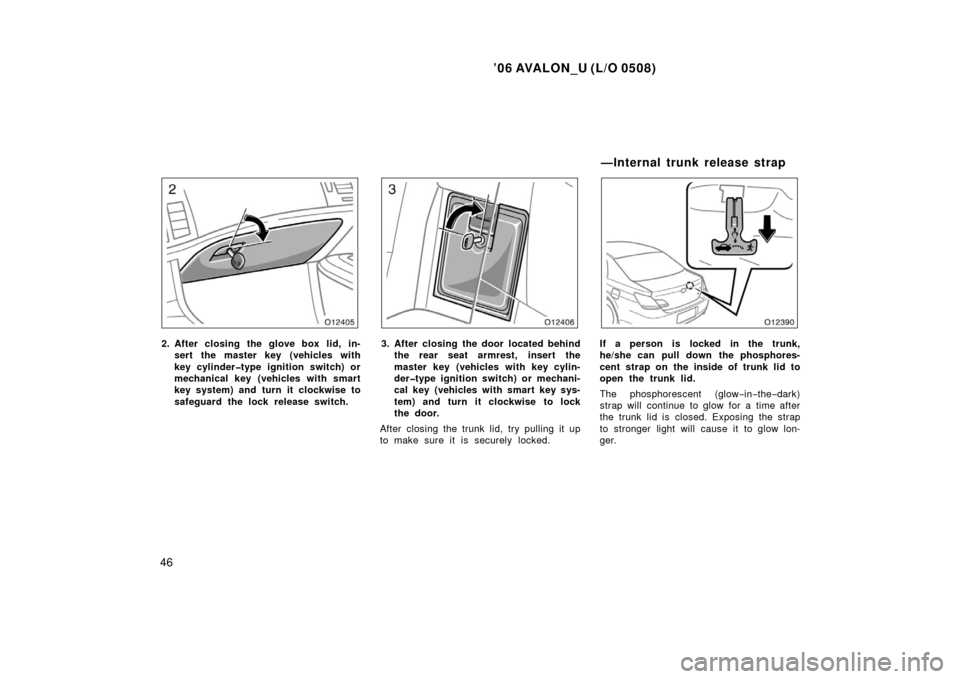

2. After closing the glove box lid, in-sert the master key (vehicles with
key cylindertype ignition switch) or
mechanical key (vehicles with smart
key system) and turn it clockwise to
safeguard the lock release switch.3. After closing the door located behindthe rear seat armrest, insert the
master key (vehicles with key cylin-
dertype ignition switch) or mechani-
cal key (vehicles with smart key sys-
tem) and turn it clockwise to lock
the door.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent strap on the inside of trunk lid to
open the trunk lid.
The phosphorescent (glow −in −the −dark)
strap will continue to glow for a time after
the trunk lid is closed. Exposing the strap
to stronger light will cause it to glow lon-
ger.
—Internal trunk release strap

’06 AVALON_U (L/O 0508)
47

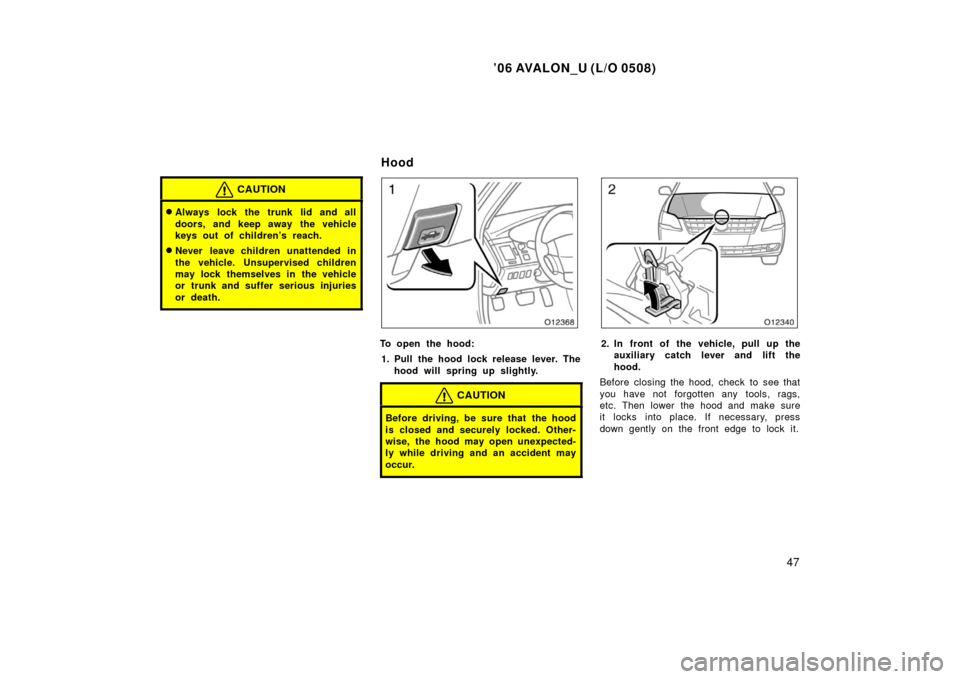

CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Hood

’06 AVALON_U (L/O 0508)
48

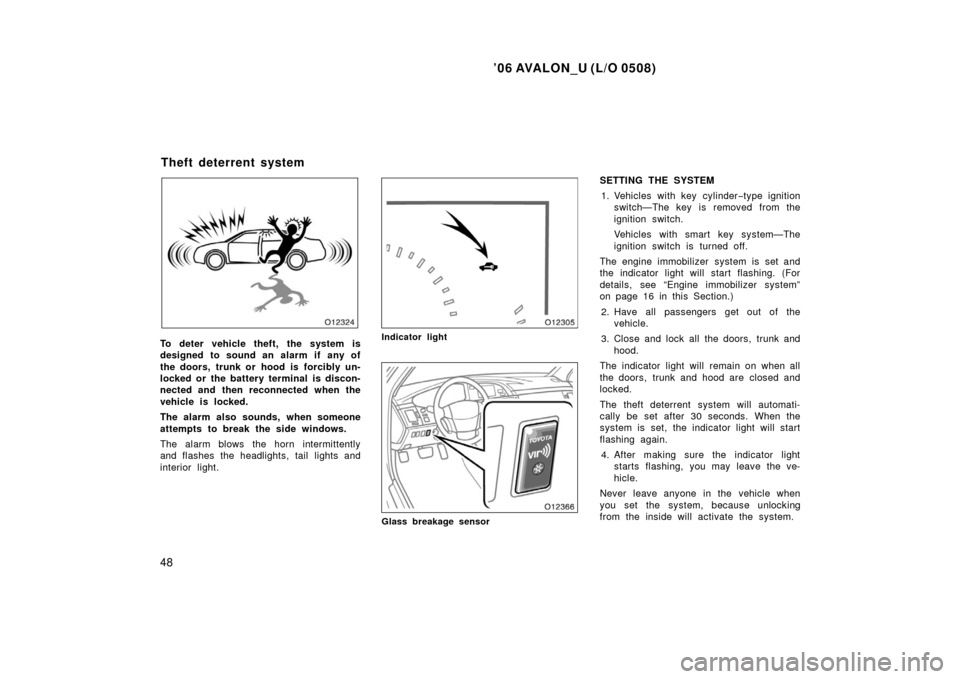

To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm also sounds, when someone
attempts to break the side windows.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
interior light.Indicator light
Glass breakage sensor
SETTING THE SYSTEM1. Vehicles with key cylinder −type ignition
switch—The key is removed from the
ignition switch.
Vehicles with smart key system—The
ignition switch is turned off.
The engine immobilizer system is set and
the indicator light will start flashing. (For
details, see “Engine immobilizer system”
on page 16 in this Section.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will remain on when all
the doors, trunk and hood are closed and
locked.
The theft deterrent system will automati-
cally be set after 30 seconds. When the
system is set, the indicator light will start
flashing again. 4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
Theft deterrent system

’06 AVALON_U (L/O 0508)
49
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key, wireless remote control
or entry function of the smart key sys-
tem.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
Vehicles with the glass breakage sensor—
The side windows are tapped or bro-
ken.
The indicator light will come on when the
system is activated.
All the doors will be automatically locked
again when the following two conditions
are met:
If any of the doors is unlocked without
the key, wireless remote control or
entry function of the smart key system.
If the key is not in the ignition switch
(vehicles with key cylinder −type ignition
switch) or the ignition switch is set to
off (vehicles with smart key system). After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Set the ignition switch to ON.
Unlock any of the doors with the key
or wireless remote control.
Open the trunk with the wireless re-
mote control or entry function of the
smart key system.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key, wireless remote control or entry
function of the smart key system. Be
sure to wait until the indicator light
starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.

’06 AVALON_U (L/O 0508)
50

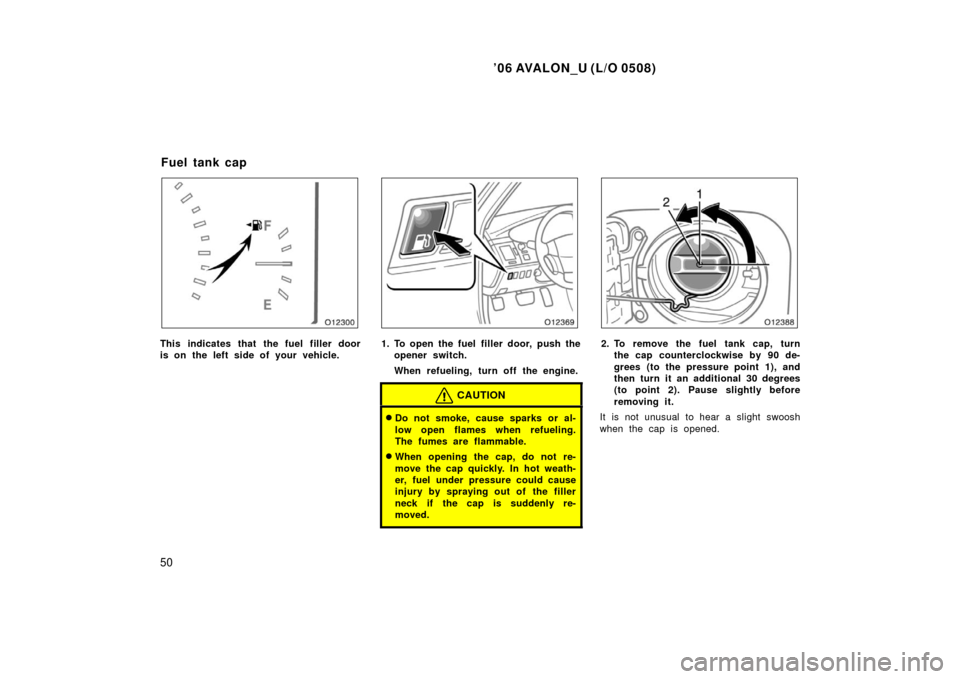

This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, push theopener switch.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.
Fuel tank cap

’06 AVALON_U (L/O 0508)
51

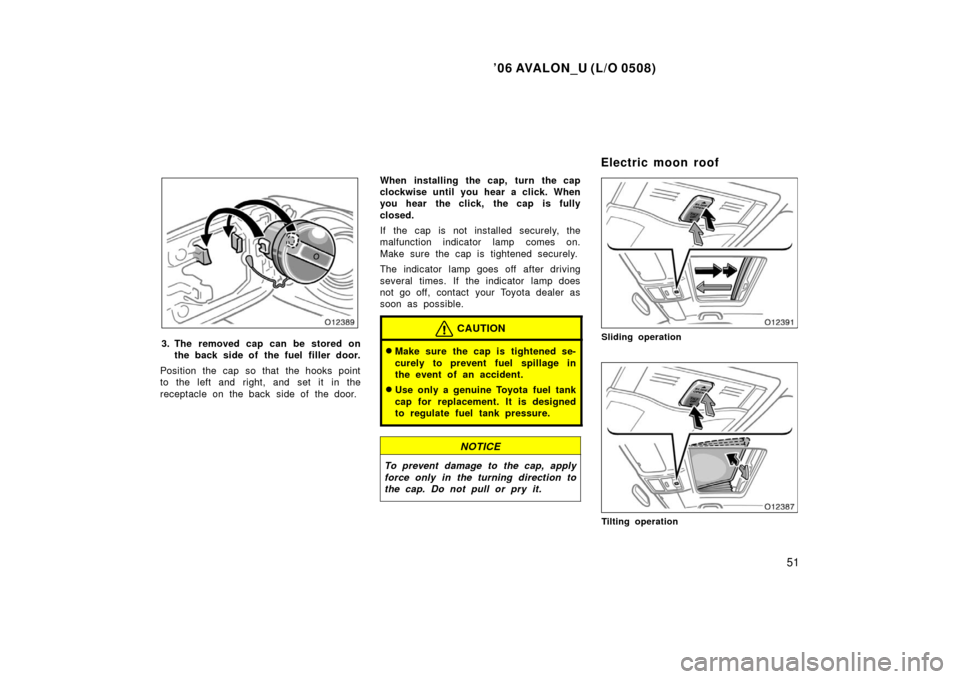

3. The removed cap can be stored onthe back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door. When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp
illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
Sliding operation
Tilting operation
Electric moon roof

’06 AVALON_U (L/O 0508)
52
To operate the moon roof, use the
switch between the personal lights.
The moon roof works when the ignition
switch is set at ON.
The sunshade can be opened or closed
by hand.
Sliding operation—
To open: Push and hold the switch for 1
second on the “SLIDE OPEN” side.
The roof will open and stop partway 50
mm (2.0 in.) from the fully opened posi-
tion. When you push the “SLIDE OPEN”
side again, the moon roof will open fully.
To stop the roof partway, push the switch
on either the “SLIDE OPEN” or “TILT UP”
side briefly.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
50 mm (2.0 in.) from the fully opened
position.
The sunshade will be opened together with
the roof.
To close: Push and hold the switch for 1
second on the “TILT UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.Tilting operation—
To tilt up: Push and hold the switch for
1 second on the “TILT UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.
To tilt down: Push and hold the switch for
1 second on the “SLIDE OPEN” side.
The roof will fully tilt down automatically.
To stop the roof partway, push the switch
on either the “SLIDE OPEN” or “TILT UP”
side briefly.
Key off operation:
If both front doors are
closed, the moon roof works for 43 sec-
onds even after the ignition switch is
turned off. It stops working when either
door is opened.
Jam protection function:
If something gets caught between the
moon roof and frame during closing opera-
tion, the moon roof stops and opens half
way.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught. If the moon roof does not operate auto-
matically or the jam protection function
does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push and
hold the switch on the “TILT UP” side until
the moon roof tilts all the way up and
then tilts down a little automatically.
Make sure that the moon roof opens and
closes automatically. If the moon roof can-
not be operated properly, have it checked
by your Toyota dealer.
