’06 AVALON_U (L/O 0508)
63

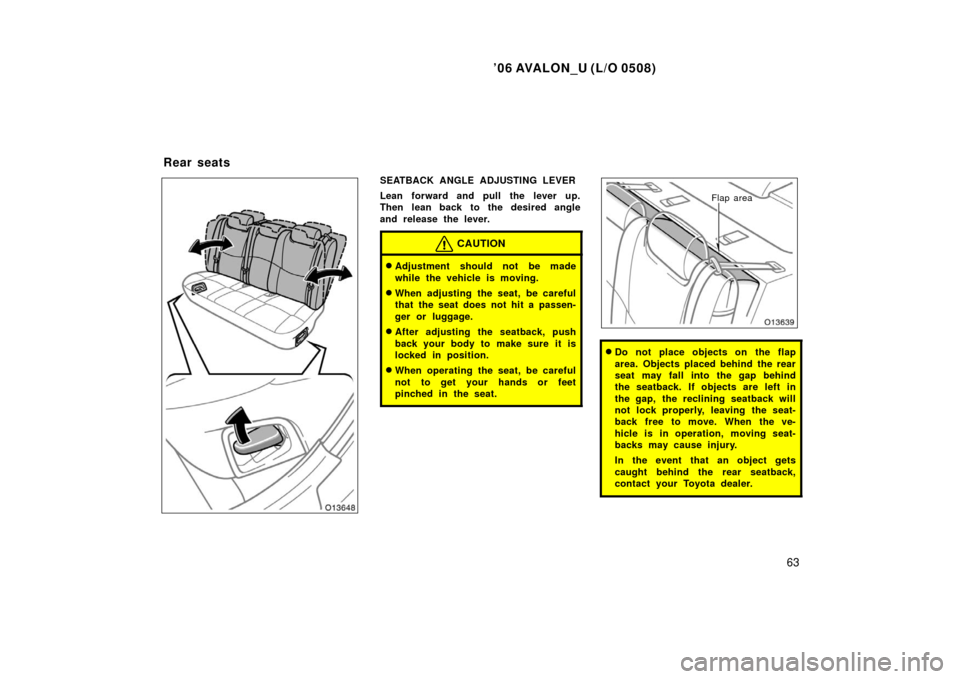

SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When operating the seat, be careful
not to get your hands or feet
pinched in the seat.
Flap area
Do not place objects on the flap
area. Objects placed behind the rear
seat may fall into the gap behind
the seatback. If objects are left in
the gap, the reclining seatback will
not lock properly, leaving the seat-
back free to move. When the ve-
hicle is in operation, moving seat-
backs may cause injury.
In the event that an object gets
caught behind the rear seatback,
contact your Toyota dealer.
Rear seats

’06 AVALON_U (L/O 0508)
64

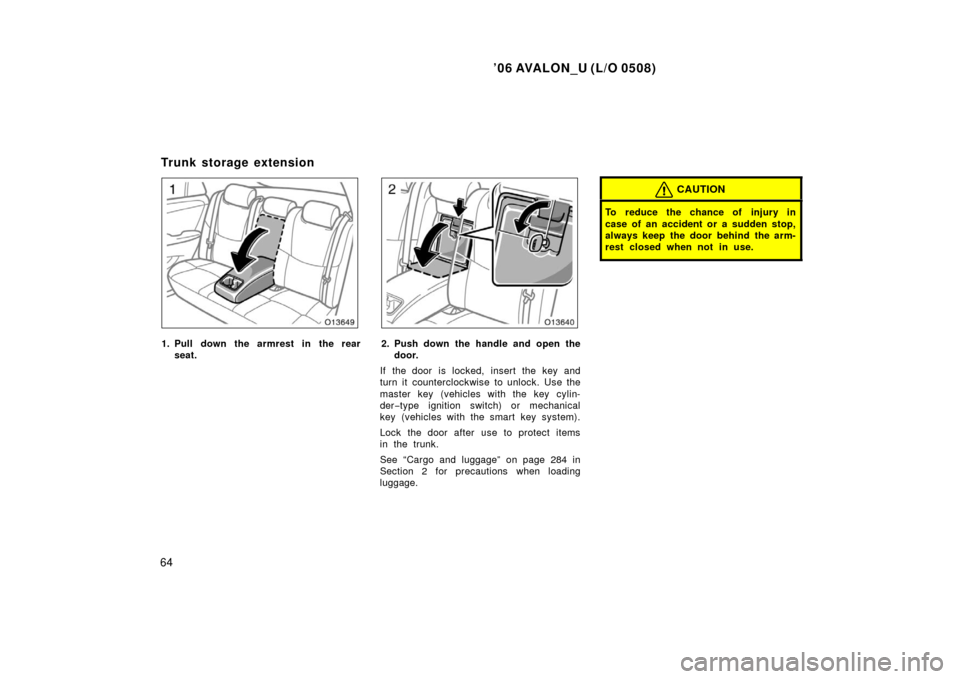

1. Pull down the armrest in the rearseat.2. Push down the handle and open thedoor.
If the door is locked, insert the key and
turn it counterclockwise to unlock. Use the
master key (vehicles with the key cylin-
der −type ignition switch) or mechanical
key (vehicles with the smart key system).
Lock the door after use to protect items
in the trunk.
See “Cargo and luggage” on page 284 in
Section 2 for precautions when loading
luggage.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the door behind the arm-
rest closed when not in use.
Trunk storage extension

’06 AVALON_U (L/O 0508)
65

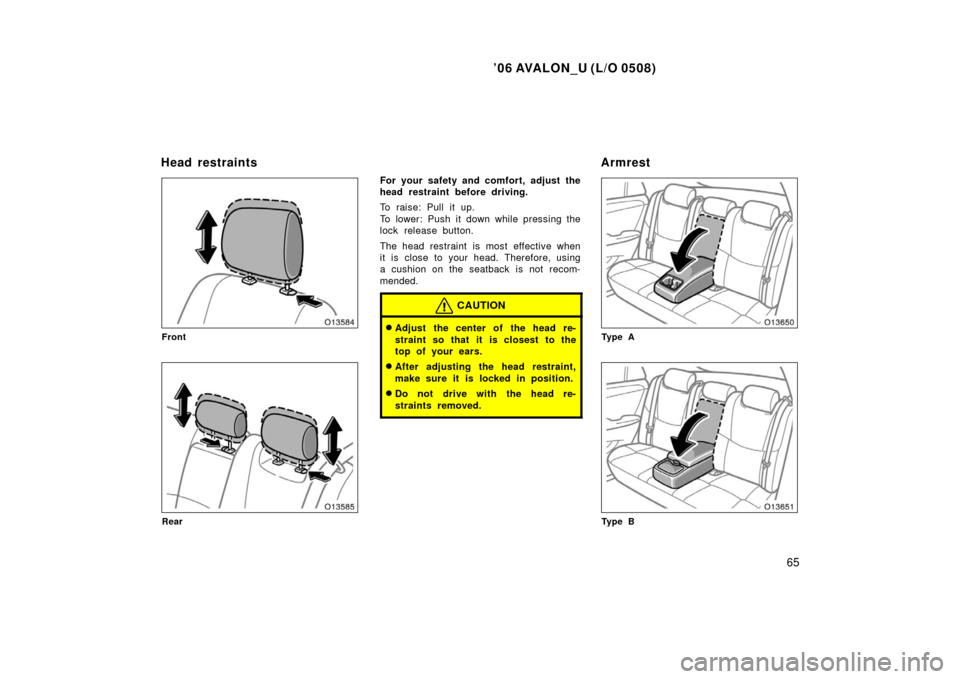

Front
Rear
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Ty p e A
Ty p e B
Head restraintsArmrest

’06 AVALON_U (L/O 0508)
66
To use the armrest, pull it down as
shown above.
With seat ventilator
Without seat ventilator
The front seat heater has two switches:
one marked “L” (for driver’s seat) and
the other marked “R” (for front passen-
ger’s seat).
To turn on the seat heater, push the
knob to pop it out and turn the knob
clockwise.
At this time, the indicator light will illumi-
nate to indicate the seat heater is operat-
ing.
The ignition switch must be set at ON to
operate seat heaters.
With seat ventilator: Three setting levels
are available.
To disable this function, turn the knob to
the center position. The indicator light
goes off.
Without seat ventilator: To adjust tempera-
ture, turn the knob.
To disable this function, turn the knob to
the leftmost position. The indicator light
goes off.
Push the knob into the recessed position
when not in use.
Seat ventilators/heaters—
—Seat heater

’06 AVALON_U (L/O 0508)
67
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 Before cleaning the seats, fully
wring out the towel that will be
used. Water entering the seats may
cause the seat ventilation/heating
system to malfunction.
 To prevent the battery from being
discharge, turn the switch off when
the engine is not running.
The front seat ventilator has two
switches: one marked “L” (for driver ’s
seat) and the other marked “R” (for
front passenger ’s seat).
To turn on the seat ventilator, push the
knob to pop it out and then turn the
knob counterclockwise.
At this time, the indicator light will illumi-
nate to indicate the seat ventilator is oper-
ating.
The ignition switch must be set at ON to
activate seat ventilators.
Three setting levels are available.
To disable this function, turn the knob to
the center position. The indicator light
goes off.
—Seat ventilator

’06 AVALON_U (L/O 0508)
68
Push the knob into the recessed position
when not in use.
NOTICE
Do not put unevenly weighted ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the seat
ventilation/heating system or seat
surface.
 Before cleaning the seats, fully
wring out the towel that will be
used. Water entering the seats may
cause the seat ventilation/heating
system to malfunction.
 To prevent the battery from being
discharged, turn the switches off
when the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 98 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts—
—Seat belt precautions

’06 AVALON_U (L/O 0508)
69

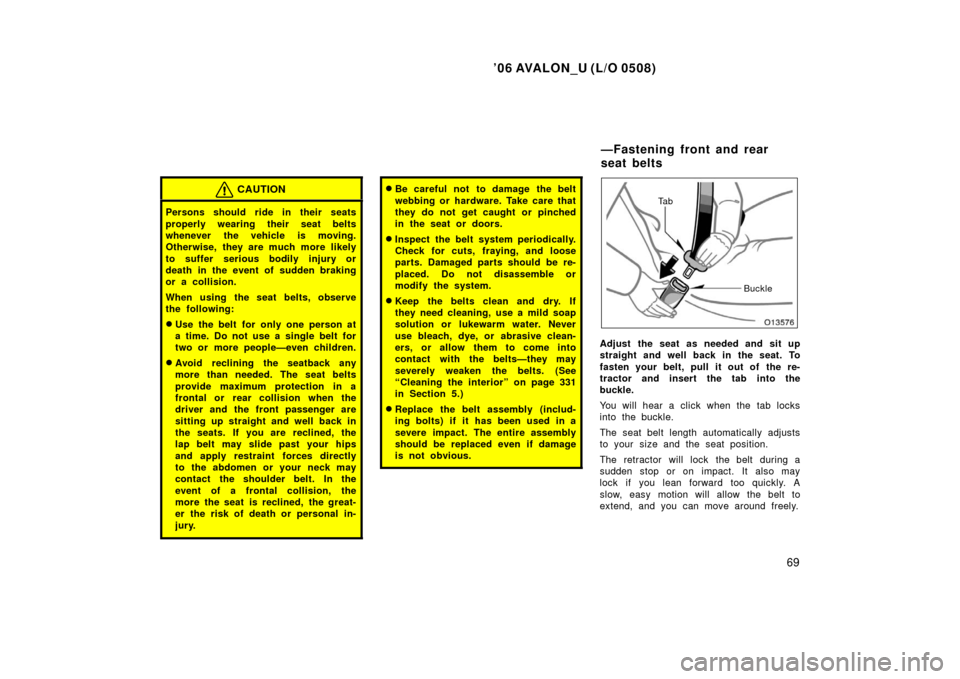

CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 331
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Fastening front and rear
seat belts

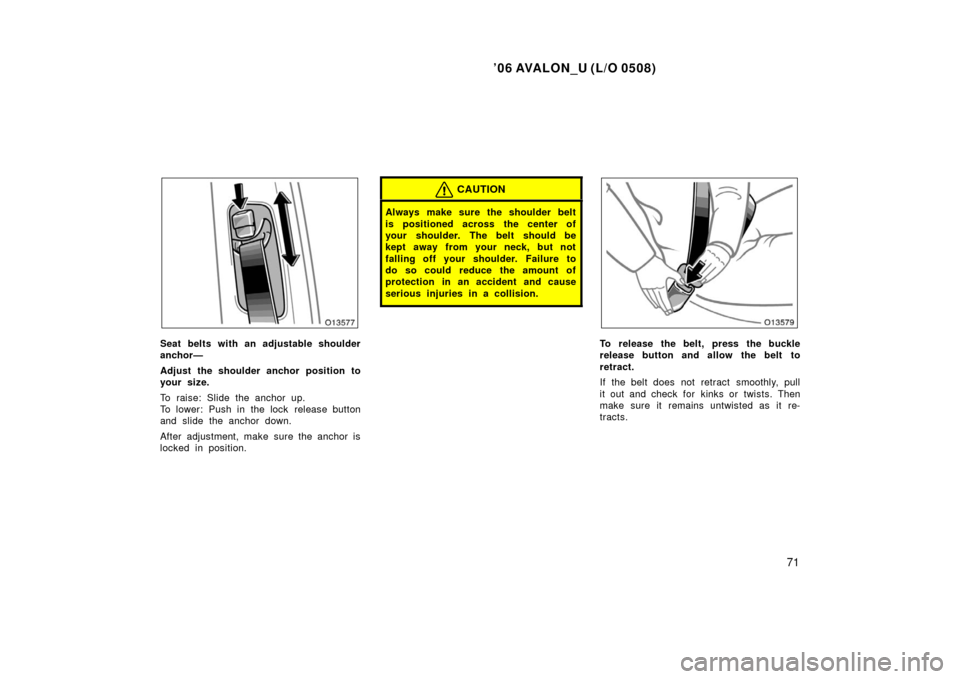

’06 AVALON_U (L/O 0508)
70
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 98 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.

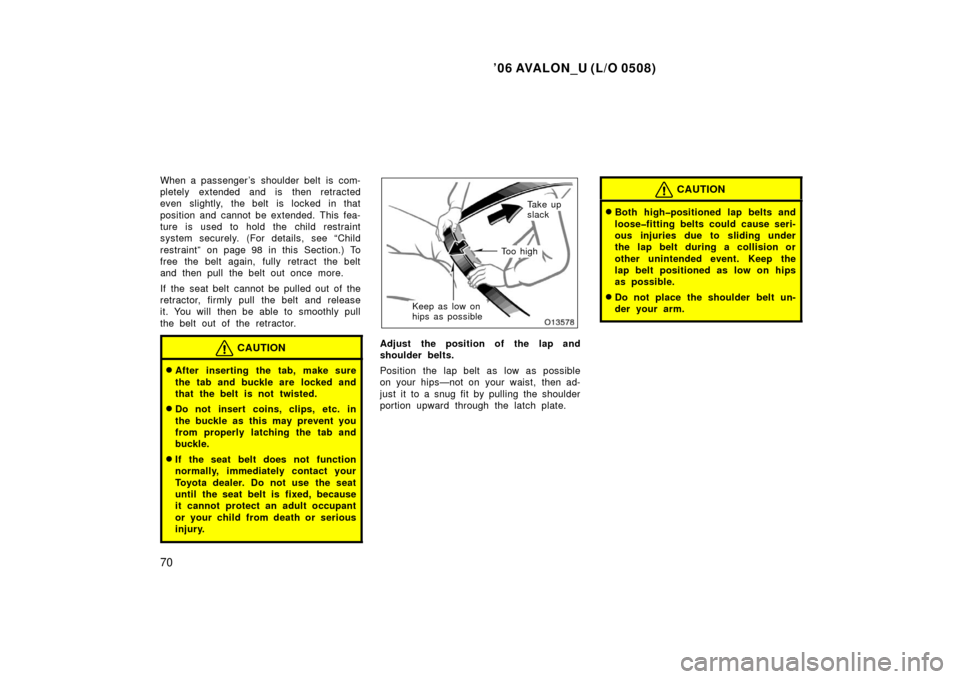

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
Keep as low on
hips as possibleTa k e u p
slack
To o h i g h
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.

’06 AVALON_U (L/O 0508)
71
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.

’06 AVALON_U (L/O 0508)
72

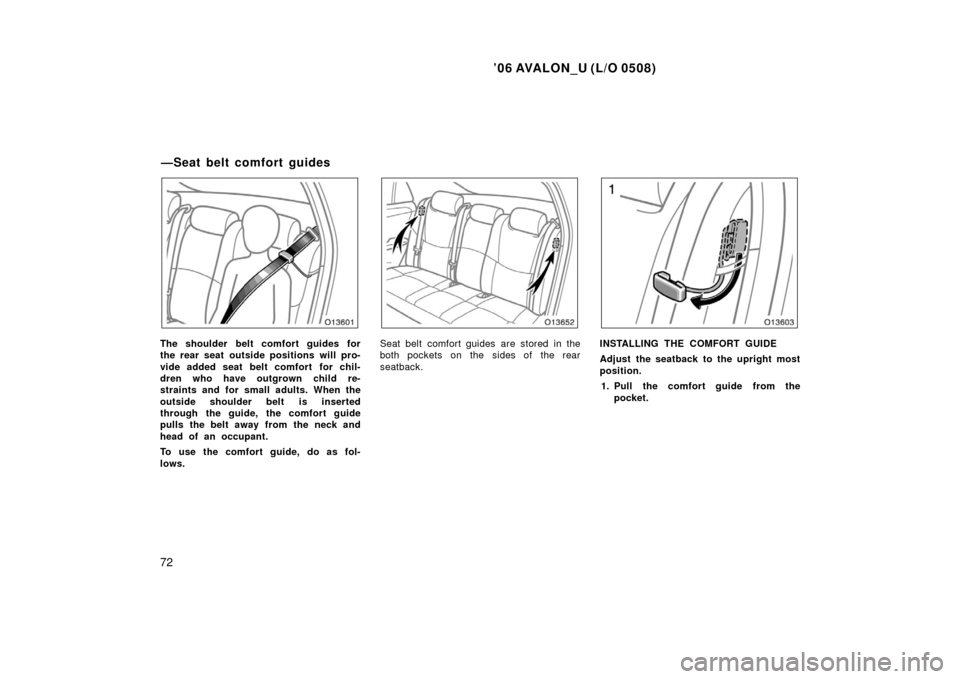

The shoulder belt comfort guides for
the rear seat outside positions will pro-
vide added seat belt comfort for chil-
dren who have outgrown child re-
straints and for small adults. When the
outside shoulder belt is inserted
through the guide, the comfort guide
pulls the belt away from the neck and
head of an occupant.
To use the comfort guide, do as fol-
lows.Seat belt comfort guides are stored in the
both pockets on the sides of the rear
seatback.INSTALLING THE COMFORT GUIDE
Adjust the seatback to the upright most
position.1. Pull the comfort guide from the pocket.
—Seat belt comfort guides
