TURN SIGNALS

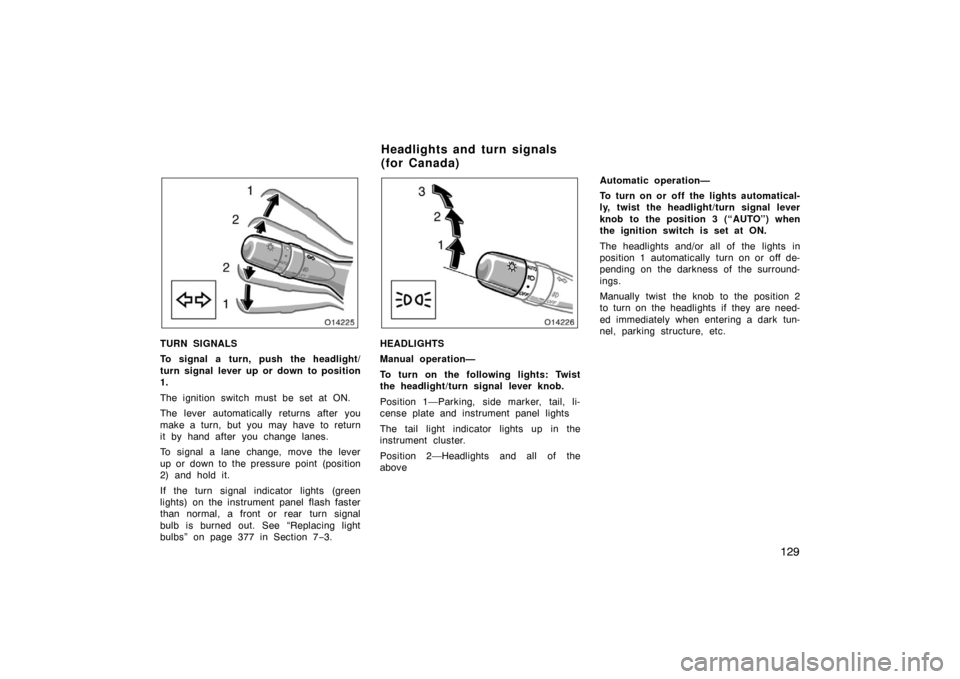

To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The ignition switch must be set at ON.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 377 in Section 7−3.HEADLIGHTS
Manual operation—
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, side marker, tail, li-
cense plate and instrument panel lights
The tail light indicator lights up in the
instrument cluster.
Position 2—Headlights and all of the
above Automatic operation—
To turn on or off the lights automatical-
ly, twist the headlight/turn signal lever
knob to the position 3 (“AUTO”) when
the ignition switch is set at ON.
The headlights and/or all of the lights in
position 1 automatically turn on or off de-
pending on the darkness of the surround-
ings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
Headlights and turn signals
(for Canada)

132
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The ignition switch must be set at ON.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 377 in Section 7−3.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Emergency flashers

353
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 377 in
Section 7 −3.)
Tools:
Screwdriver

371
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing the wiper blades 375
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 375
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Checking the headlight aim 376
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

377

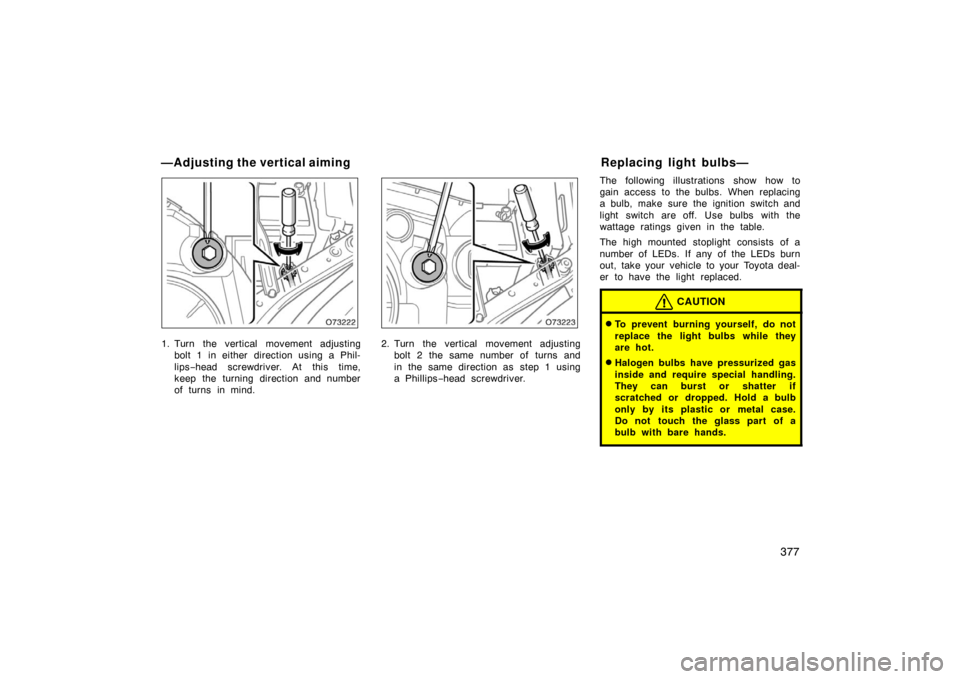

1. Turn the vertical movement adjustingbolt 1 in either direction using a Phil-
lips −head screwdriver. At this time,
keep the turning direction and number
of turns in mind.2. Turn the vertical movement adjusting bolt 2 the same number of turns and
in the same direction as step 1 using
a Phillips −head screwdriver. The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The high mounted stoplight consists of a
number of LEDs. If any of the LEDs burn
out, take your vehicle to your Toyota deal-
er to have the light replaced.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
—Adjusting the vertical aiming
Replacing light bulbs—

378
Vehicles with discharge headlights—
Do not touch the highintensity dis-
charge headlight’s high voltage
socket when the headlights are
turned on. An extremely high volt-
age of 20000 V will be discharged
and could result in serious injury or
death by electric shock.
Do not attempt to take apart or re-
pair the low beam headlight bulbs,
connectors, power supply circuits,
or related components. Doing so
could result in electric shock and
serious injury or death. Call your
Toyota dealer for headlight repair or
servicing, including replacement of
bulbs and bulb disposal.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(low) Discharge
bulbs
Halogen bulbs
D2R
900635
51A
B
Headlights
(high)900560C
Front fog lights900651B
Front turn
signal/parking
lights
3457A27/7D
Front side
marker lightsW5W5E
Rear turn signal
lights46921D
Stop/tail lights744321/5E
Rear side
marker lights1943.8E
Tail lights1943.8E
Back −up lights92116E
License plate
lights1943.8E
Interior lightW5W5E

379
Light bulbsBulbNo.WTy p e
Front personal
lightsW5W5E
Rear personal
lightsW5W5E
Vanity lights70651.4F
Glove box light741.2E
Door courtesy
lights1685E
Trunk light28254.8E
A: D2R discharge bulbs
B: HB4 halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs If either the left or right headlights,
front fog, front turn signal/parking,
front side marker, tail or backup light-
s, or LED
∗ type high mounted stoplight
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the headlights,
front fog, front turn signal/parking,
front side marker, tail or backup
light bulbs by yourself. You may dam-
age the vehicle.
∗: Light −emitting Diode

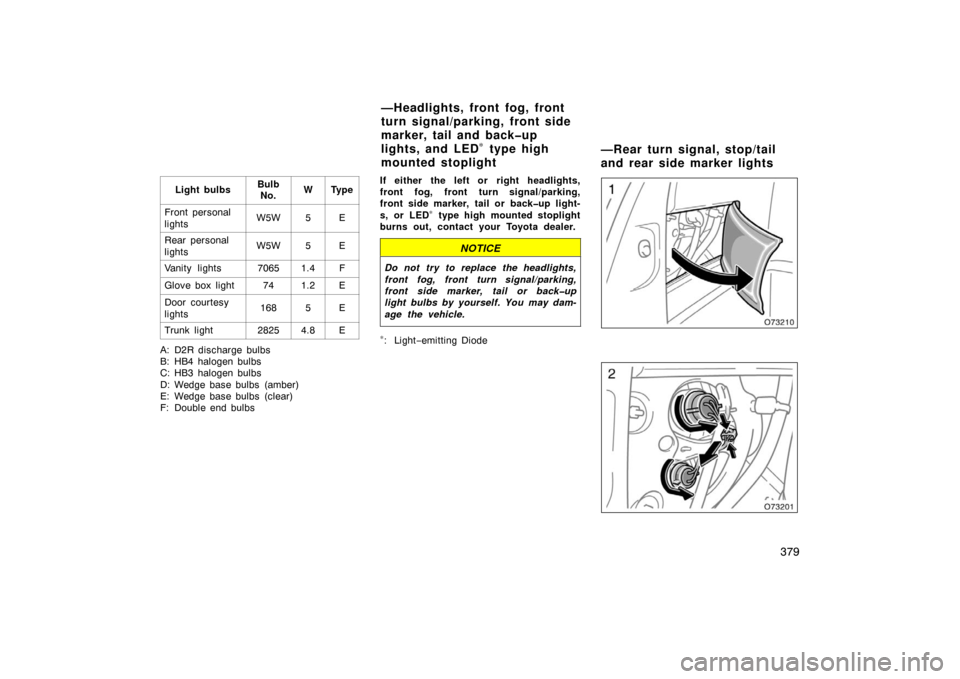

—Headlights, front fog, front
turn signal/parking, front side
marker, tail and backup
lights, and LED
∗ type high
mounted stoplight —Rear turn signal, stop/tail
and rear side marker lights
