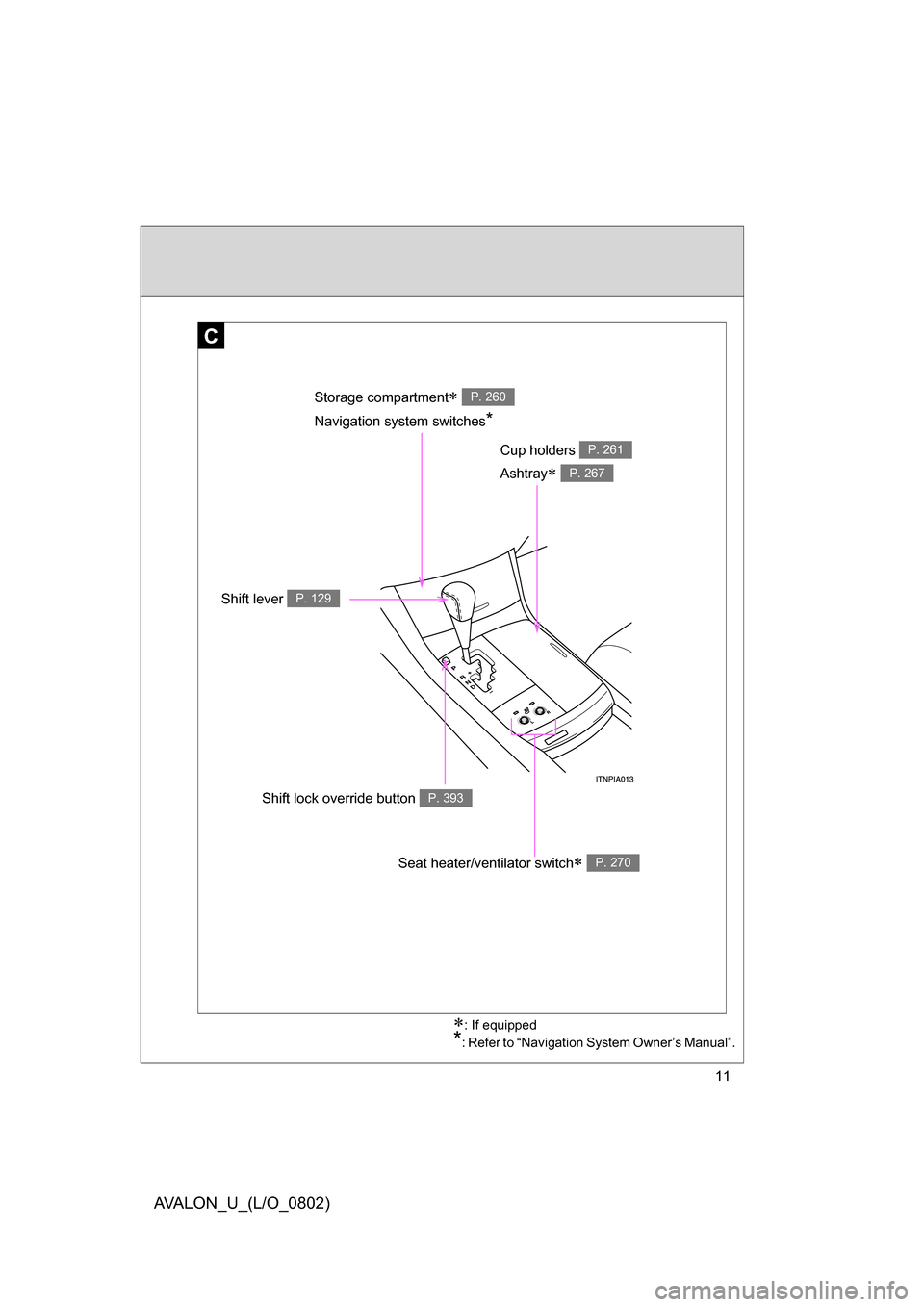

Page 11 of 452
11
AVALON_U_(L/O_0802)
C
Cup holders P. 261
Navigation system switches*
Ashtray P. 267
Seat heater/ventilator switch P. 270
Shift lock override button P. 393
Shift lever P. 129
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Storage compartment P. 260
Page 12 of 452
12
AVALON_U_(L/O_0802)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 143
P. 133
P. 145
Gauges and meters P. 135
Windshield wipers and
washer switch
P. 146
Trunk opener main switch P. 44
Glove box P. 256
Telescopic lock release
lever
P. 61
Parking brake pedal
P. 134
Tilt lock release lever
P. 61
Driving position
memory switches
P. 50
Tire pressure warning
system
P. 323
Page 13 of 452
13
AVALON_U_(L/O_0802)
Audio remote control switches P. 217
Engine switch (vehicles without
smart key system)
P. 126
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
A
B
Telephone switch P. 224
“ENGINE START STOP” switch
(vehicles with smart key system)
P. 122
Climate remote control
switches
P. 185
Talk switch* P. 224
Distance switch P. 154
Cruise control switch P. 149, 152
Page 14 of 452
14
AVALON_U_(L/O_0802)
C
Pictorial indexInstrument panel
Center display P. 141
Emergency flashers Clock
P. 265
Air conditioning
system
P. 178
Audio system
P. 188
Navigation system*
Rear window and outside rear
view mirror defoggers
P. 187
Air conditioning
system
P. 178
Page 15 of 452
15
AVALON_U_(L/O_0802)
D
Rear sunshade switchP. 273
Glass breakage sensorP. 77
Fuel filler door opener P. 72
Trunk openerP. 44
Outside rear view mirror switches P. 64
: If equipped
*: Refer to “Navigation System Owner’s Manual”.

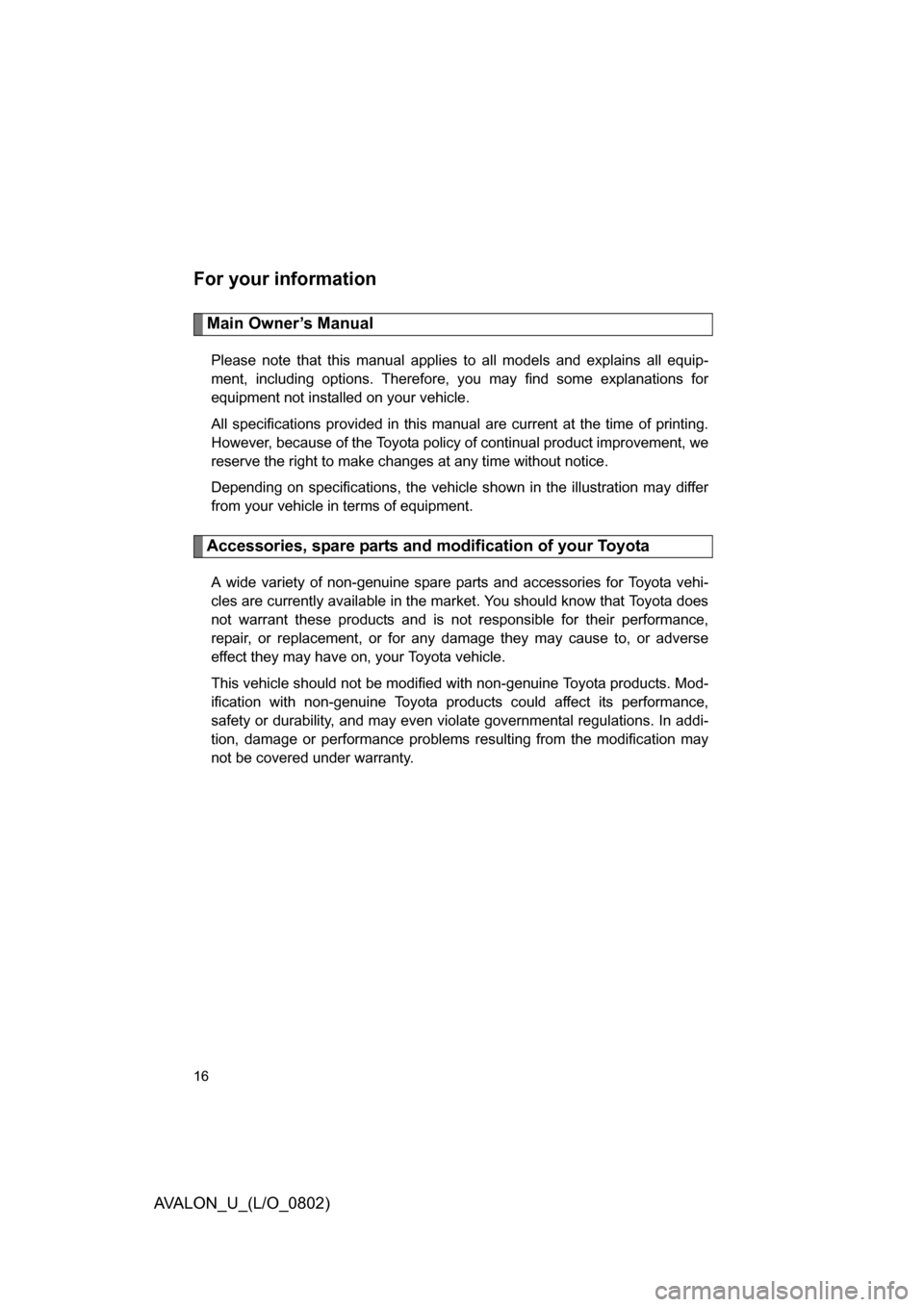

Page 16 of 452
16
AVALON_U_(L/O_0802)
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Mod-
ification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the modification may
not be covered under warranty.

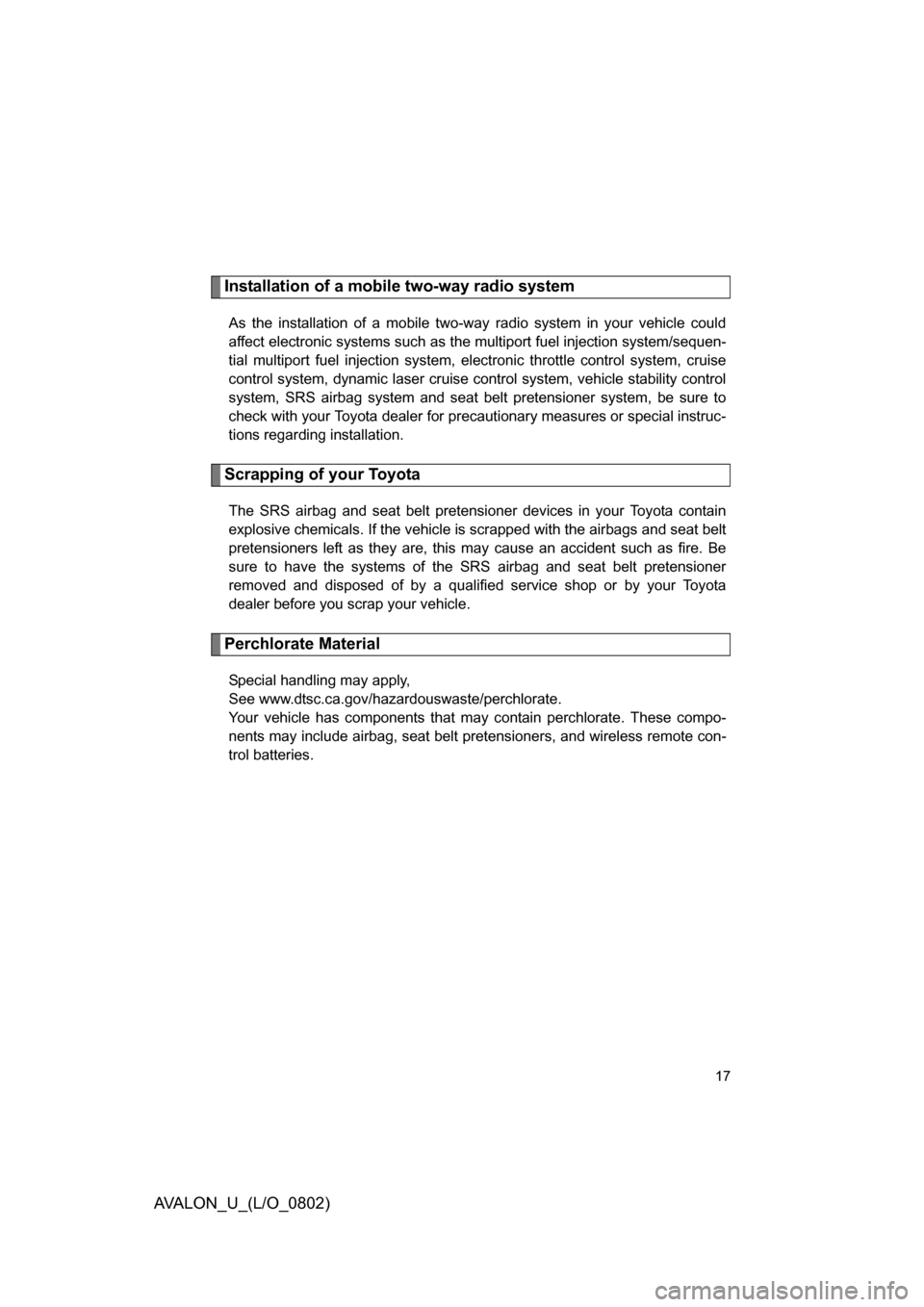

Page 17 of 452
17
AVALON_U_(L/O_0802)
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could
affect electronic systems such as the multiport fuel injection system/sequen-
tial multiport fuel injection system, electronic throttle control system, cruise
control system, dynamic laser cruise control system, vehicle stability control
system, SRS airbag system and seat belt pretensioner system, be sure to
check with your Toyota dealer for precautionary measures or special instruc-
tions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Page 18 of 452
18
AVALON_U_(L/O_0802)
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that will hurt or kill you,
your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precautions regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
When left unattended, children may be able to start the vehicle or shift the
vehicle into neutral. There is also a danger that children may injure them-
selves by playing with the cigarette lighter, the windows, the moon roof, or
other features of the vehicle. In addition, heat build-up or extremely cold
temperatures inside the vehicle can be fatal to children.
Page 19 of 452
19
AVALON_U_(L/O_0802)
Symbols used throughout this manual
Cautions & Notices
Safety symbol
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.Throughout this manual, you will also see the symbol of a circle with
a slash through it. This means “Do not”, “Do not do this”, or “Do not
let this happen”.

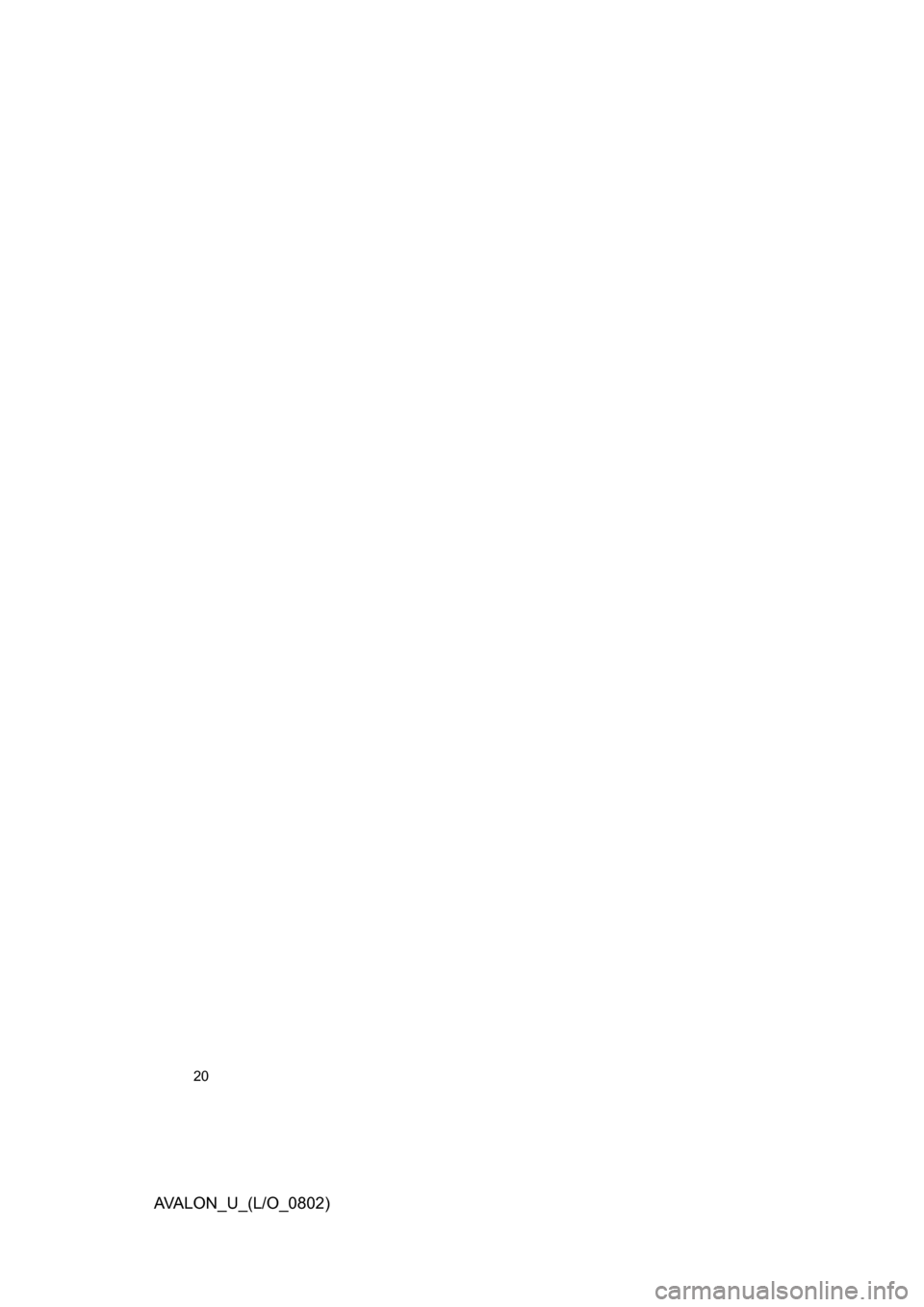

Page 20 of 452
