41
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_(L/O_0802)
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down rear door
switches to lock the rear doors.
Automatic door locking and unlocking systemsThe following functions can be set or canceled:
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking function Shifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing function All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch or the engine
switch off.
Page 42 of 452
42 1-2. Opening, closing and locking the doors and trunk
AVALON_U_(L/O_0802)■
Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Close all the doors and switch the “ENGINE START STOP”
switch or the engine switch to ON mode. (Perform step 2
within 10 seconds.) Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for about 5
seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set or can-
celed are shown as follows.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever positionSwitch position
Shift position linked door lock-
ing function “P”
Shift position linked door
unlocking function
Speed linked door locking func-
tion “N”
Driver’s door linked door unlock-
ing function
Page 43 of 452
43
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_(L/O_0802)
■
Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 429)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the front door while driving.
● Set the rear door child-protector when children are seated in the rear seat.
Page 44 of 452
44
1-2. Opening, closing and locking the doors and trunk
AVALON_U_(L/O_0802)

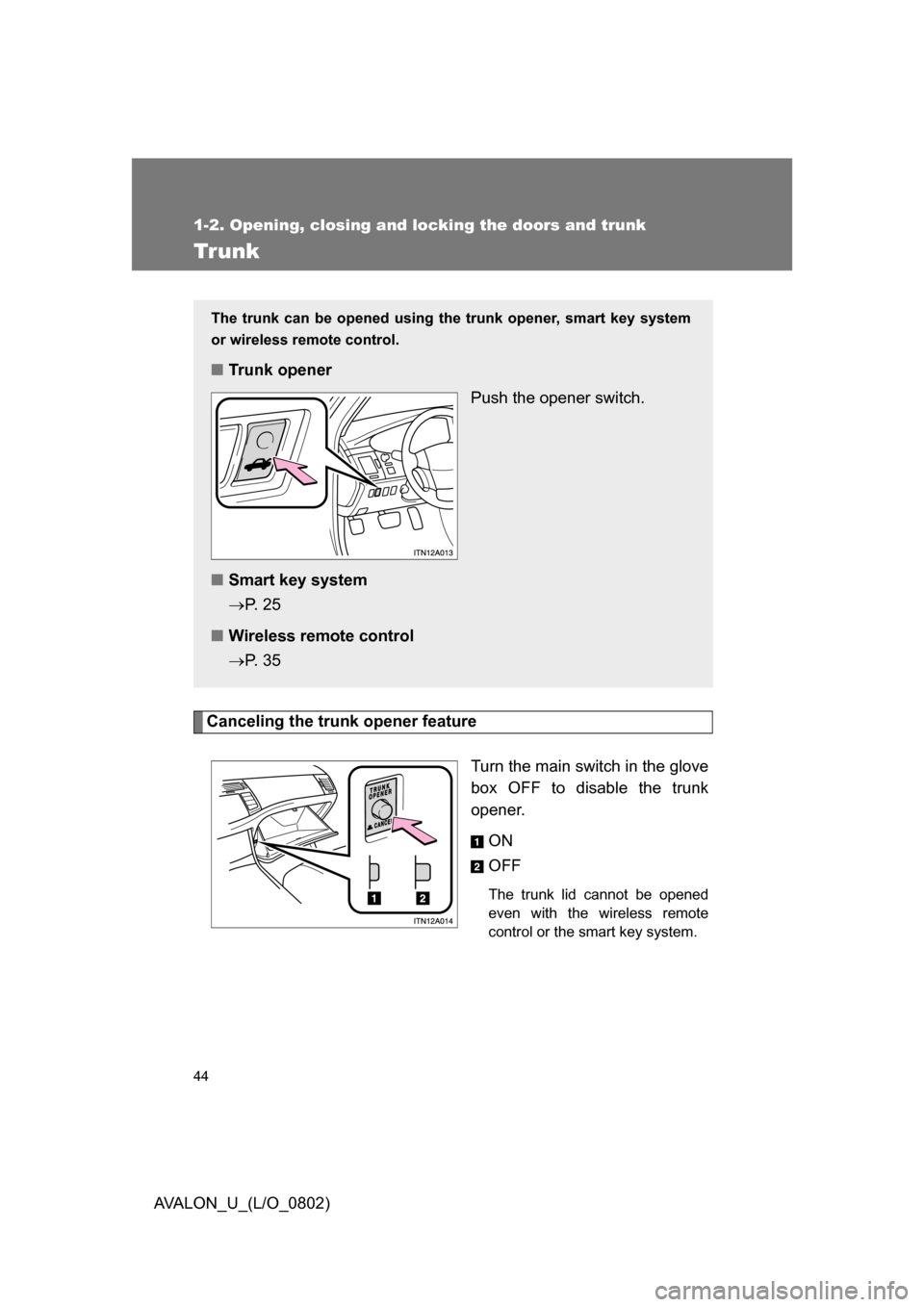

Trunk
Canceling the trunk opener featureTurn the main switch in the glove
box OFF to disable the trunk
opener.ON
OFF
The trunk lid cannot be opened
even with the wireless remote
control or the smart key system.
The trunk can be opened using the trunk opener, smart key system
or wireless remote control.
■Trunk opener
Push the opener switch.
■ Smart key system
P. 2 5
■ Wireless remote control
P. 3 5
Page 45 of 452
45
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_(L/O_0802)
■
Internal trunk release lever
■ When keeping items in the trunk
Turn off the main switch and lock the glove box and trunk storage extension
door.
The trunk lid can be opened using a loop of wire near the trunk storage
extension door even with the main switch in the glove box turned off.
CAUTION
■ While driving
Keep the trunk lid closed.
This not only keeps personal belongings from being thrown out, but also pre-
vents exhaust gases from entering the vehicle.
■ When children are in the vehicle
Never leave children unattended in the vehicle as they may lock themselves
in the vehicle or trunk, which could cause the child to overheat or suffocate,
resulting in death or serious injury.
The trunk lid can be opened by pulling
down on the glow-in-the-dark lever
located on the inside of trunk lid.
The lever will continue to glow for some
time after the trunk lid is closed.
Page 46 of 452
46
AVALON_U_(L/O_0802)
1-3. Adjustable components (seats, steering wheel, mirrors)
Front seats
Manual seat
Seatback angle lever
Seat position lever
Page 47 of 452
47
1-3. Adjustable components (seat
s, steering wheel, mirrors)
1
Before driving
AVALON_U_(L/O_0802)
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
■ When adjusting the front passenge r’s seat from the driver’s seat
Wait until a passenger is seated or have gotten off the front passenger’s seat
before operating the switch to avoid injuring the passenger.
Power seat
Seat leg support switch
*
Seat position fore/aft switchSeat cushion (front) angle
switch
*
Vertical height switch*
Seatback angle switch
Lumbar support switch
*
*
: if equipped
Page 48 of 452
48
1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U_(L/O_0802)
Rear seats
■ Keep the flap area clear
To adjust the seat back angle, pull the lock release lever.
Do not place objects on the flap area. If
objects are left in the gap, the reclining
seatback will not lock properly, and may
move unexpectedly.
Flap area
Page 49 of 452
49
1-3. Adjustable components (seat
s, steering wheel, mirrors)
1
Before driving
AVALON_U_(L/O_0802)
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
Page 50 of 452
50
1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U_(L/O_0802)
Driving position memor y system (if equipped)
Your preferred driving position (the position of the driver’s seat and
outside rear view mirrors) can be entered into the computer’s mem-
ory and recalled with the touch of a button. It is also possible to set
this function to activate automati cally when the doors are unlocked.
Two different driving positions can be entered into memory.
■ Entering a position to memory
Check that the shift lever is set in “P”.
Switch to ON mode.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions. While pushing the “SET” but-
ton, push button “1” or “2” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3
