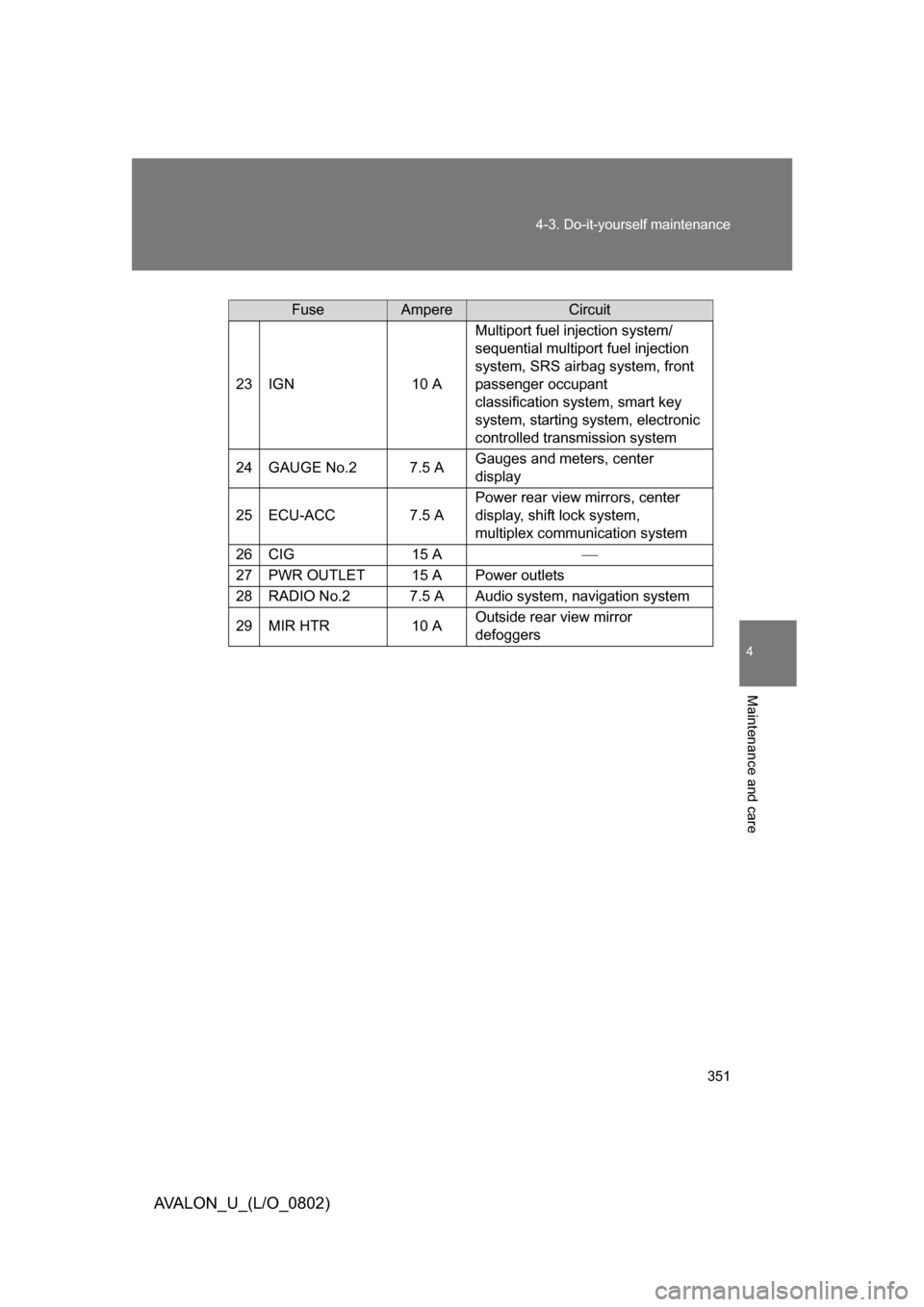

FuseAmpereCircuit
23IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, front
passenger occupant

classification system, smart key
system, starting system, electronic
controlled transmission system
24GAUGE No.27.5 AGauges and meters, center 
display
25ECU-ACC7.5 A
Power rear view mirrors, center
display, shift lock system, 
multiplex communication system
26CIG15 A
27PWR OUTLET15 APower outlets
28RADIO No.27.5 AAudio system, navigation system
29MIR HTR10 AOutside rear view mirror 
defoggers

352 4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)

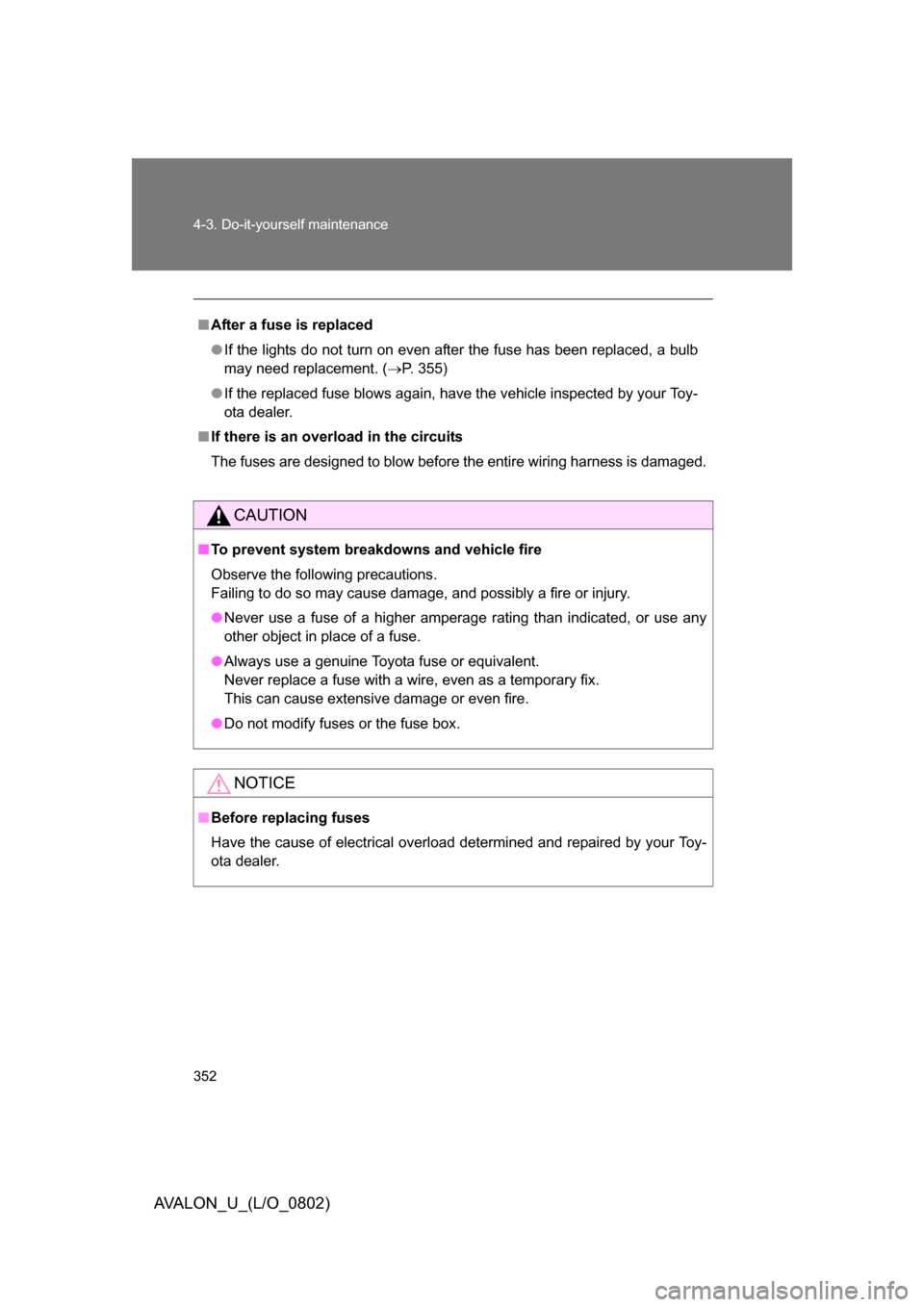

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 355)
● If the replaced fuse blows again, have the vehicle inspected by your Toy-
ota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions. 
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent. 
Never replace a fuse with a wire, even as a temporary fix. 
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer.

353
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVALON_U_(L/O_0802)

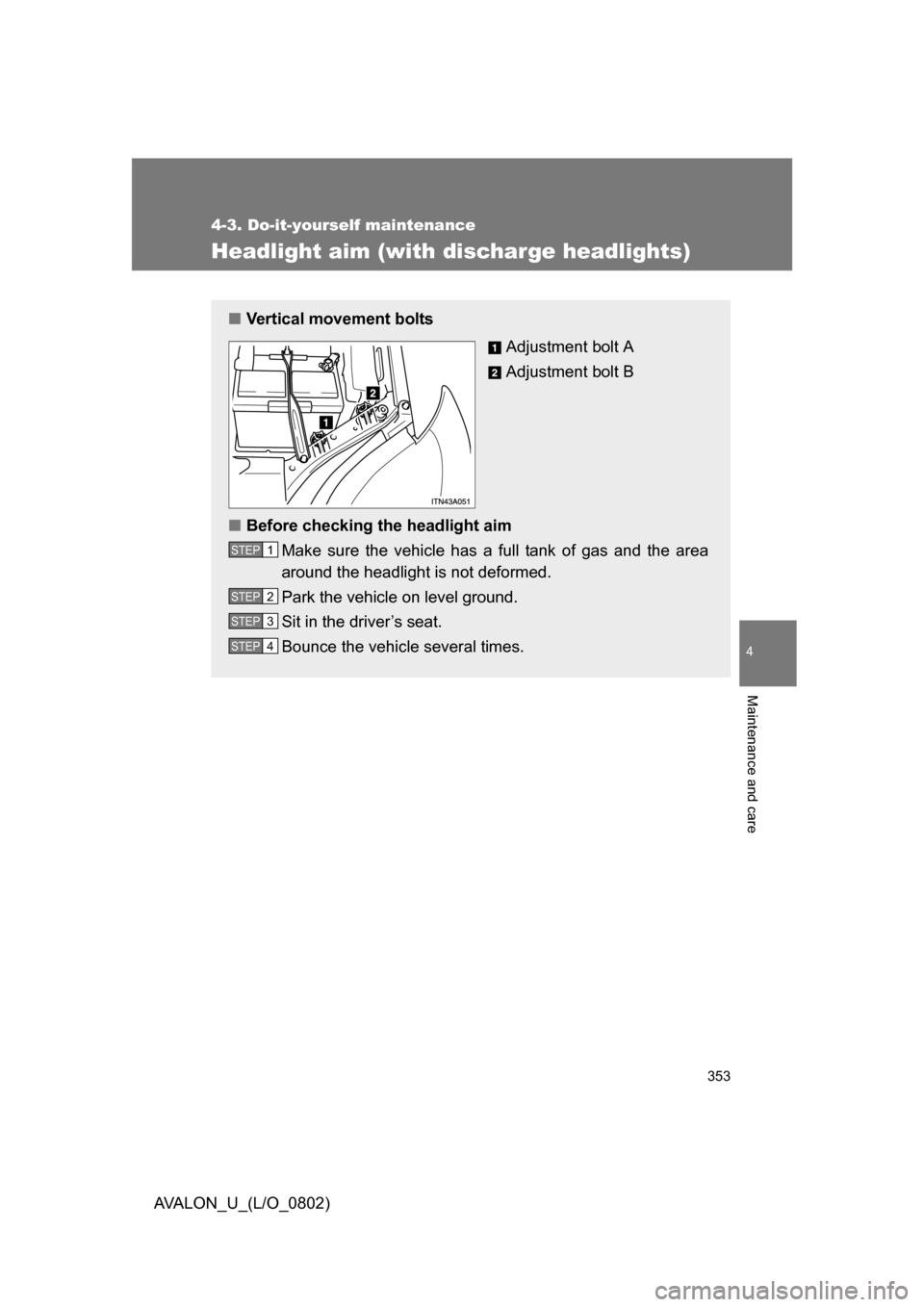

Headlight aim (with discharge headlights)
■Vertical movement bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

354 4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)

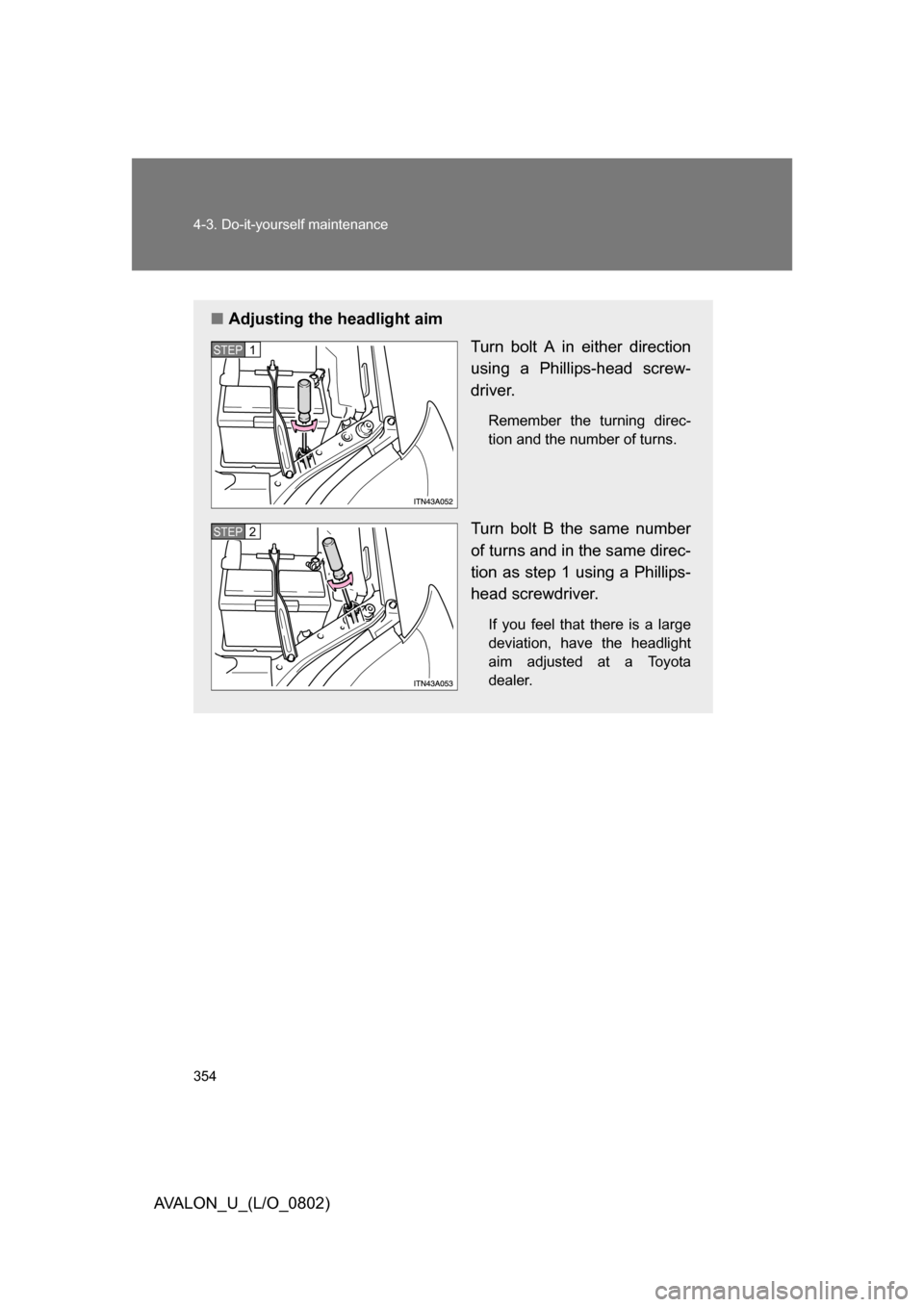

■Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direc-
tion and the number of turns.
Turn bolt B the same number
of turns and in the same direc-
tion as step 1 using a Phillips-
head screwdriver.
If you feel that there is a large
deviation, have the headlight
aim adjusted at a Toyota
dealer.
STEP1
STEP2

355
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVALON_U_(L/O_0802)

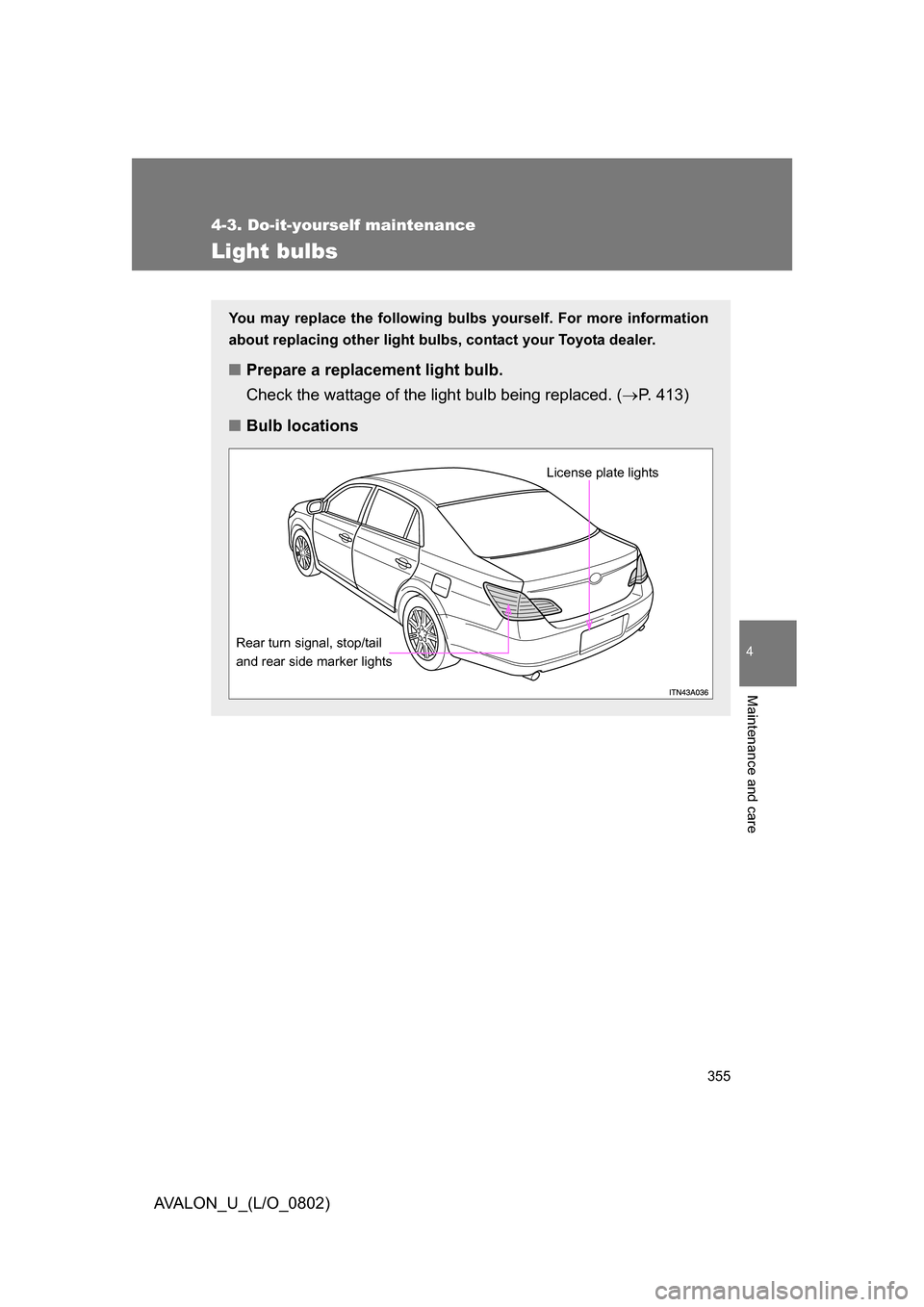

Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs, contact your Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 413)
■ Bulb locations
Rear turn signal, stop/tail 
and rear side marker lights License plate lights

356 4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)

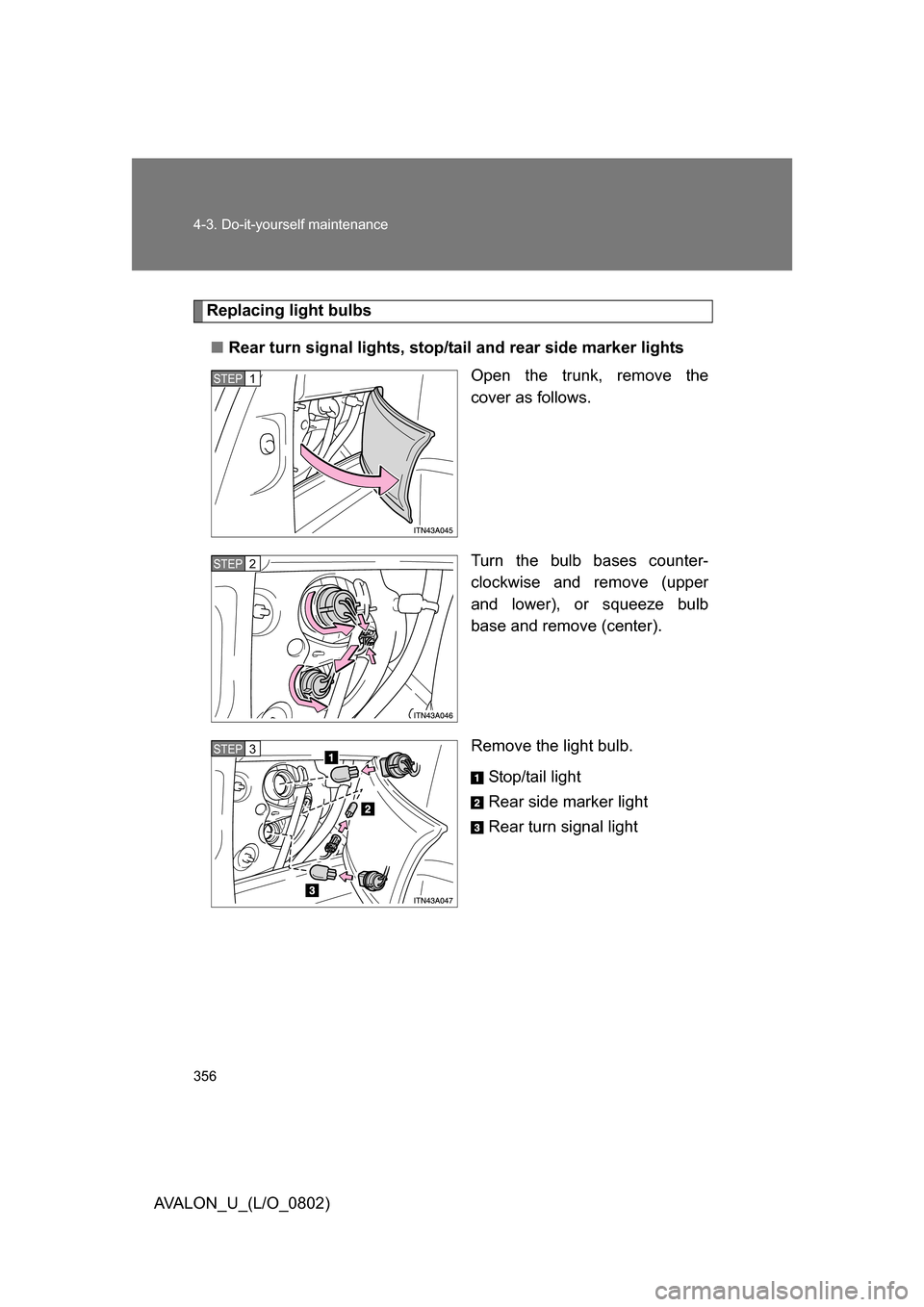

Replacing light bulbs■ Rear turn signal lights, stop/ta il and rear side marker lights
Open the trunk, remove the
cover as follows.
Turn the bulb bases counter-
clockwise and remove (upper
and lower), or squeeze bulb
base and remove (center).
Remove the light bulb.
Stop/tail light
Rear side marker light
Rear turn signal light
STEP1
STEP2
STEP3

4
Maintenance and care
357
4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)
■

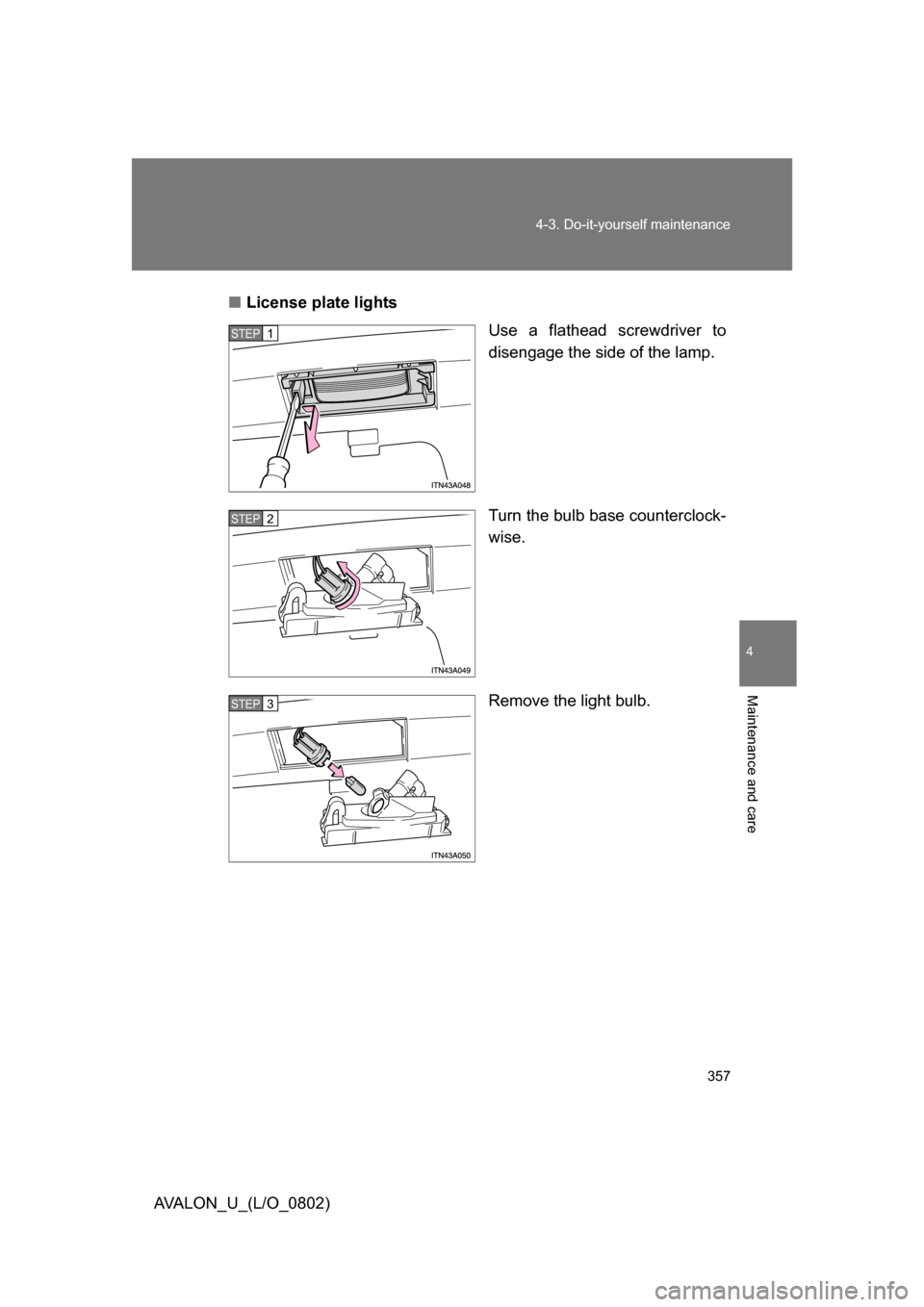

License plate lights
Use a flathead screwdriver to
disengage the side of the lamp.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

358 4-3. Do-it-yourself maintenance

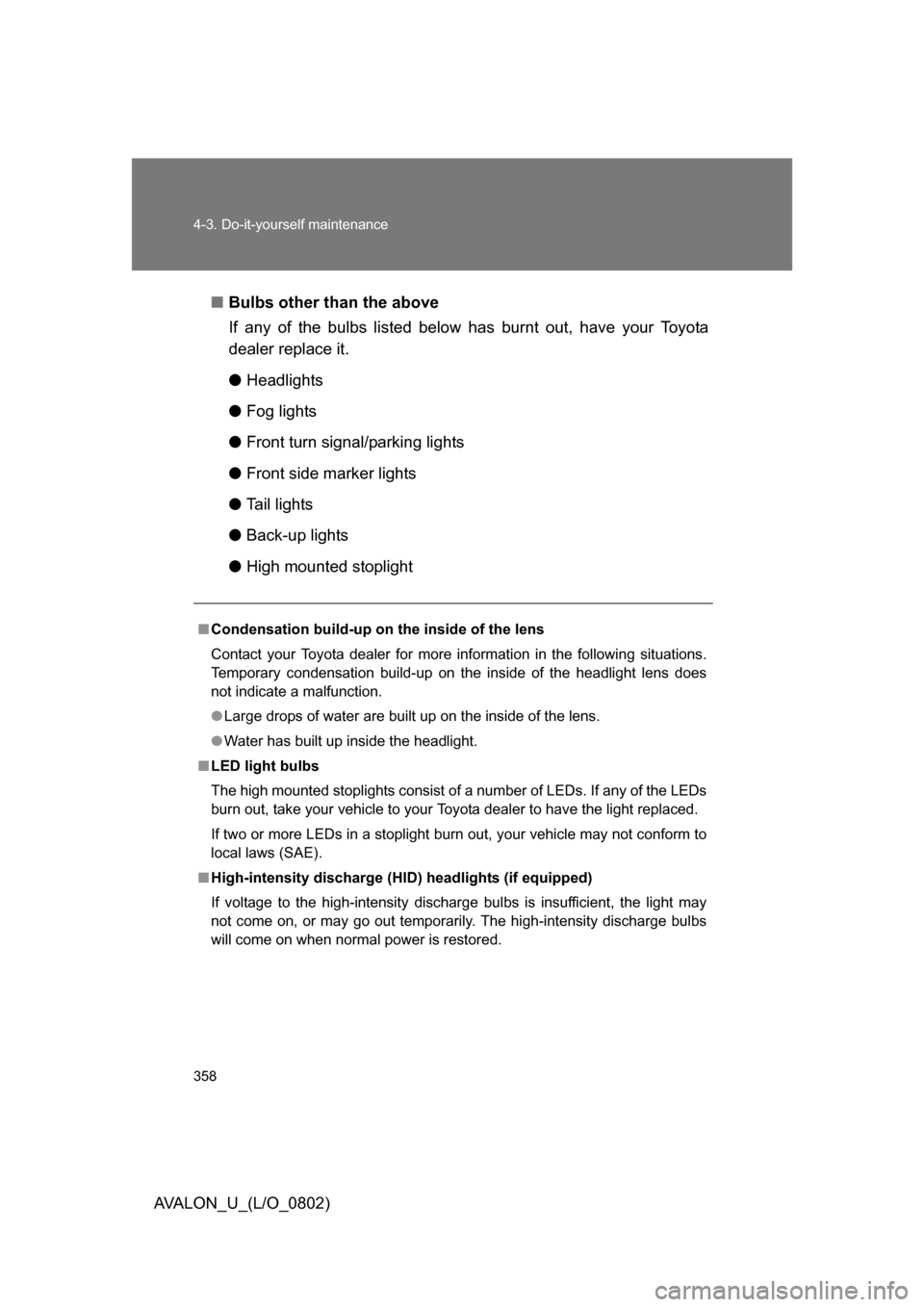

AVALON_U_(L/O_0802)■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlights
● Fog lights
● Front turn signal/parking lights
● Front side marker lights
● Tail lights
● Back-up lights
● High mounted stoplight
■Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The high mounted stoplights consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
If two or more LEDs in a stoplight bur n out, your vehicle may not conform to
local laws (SAE).
■ High-intensity discharge (HID) headlights (if equipped)
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.

4
Maintenance and care
359
4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)

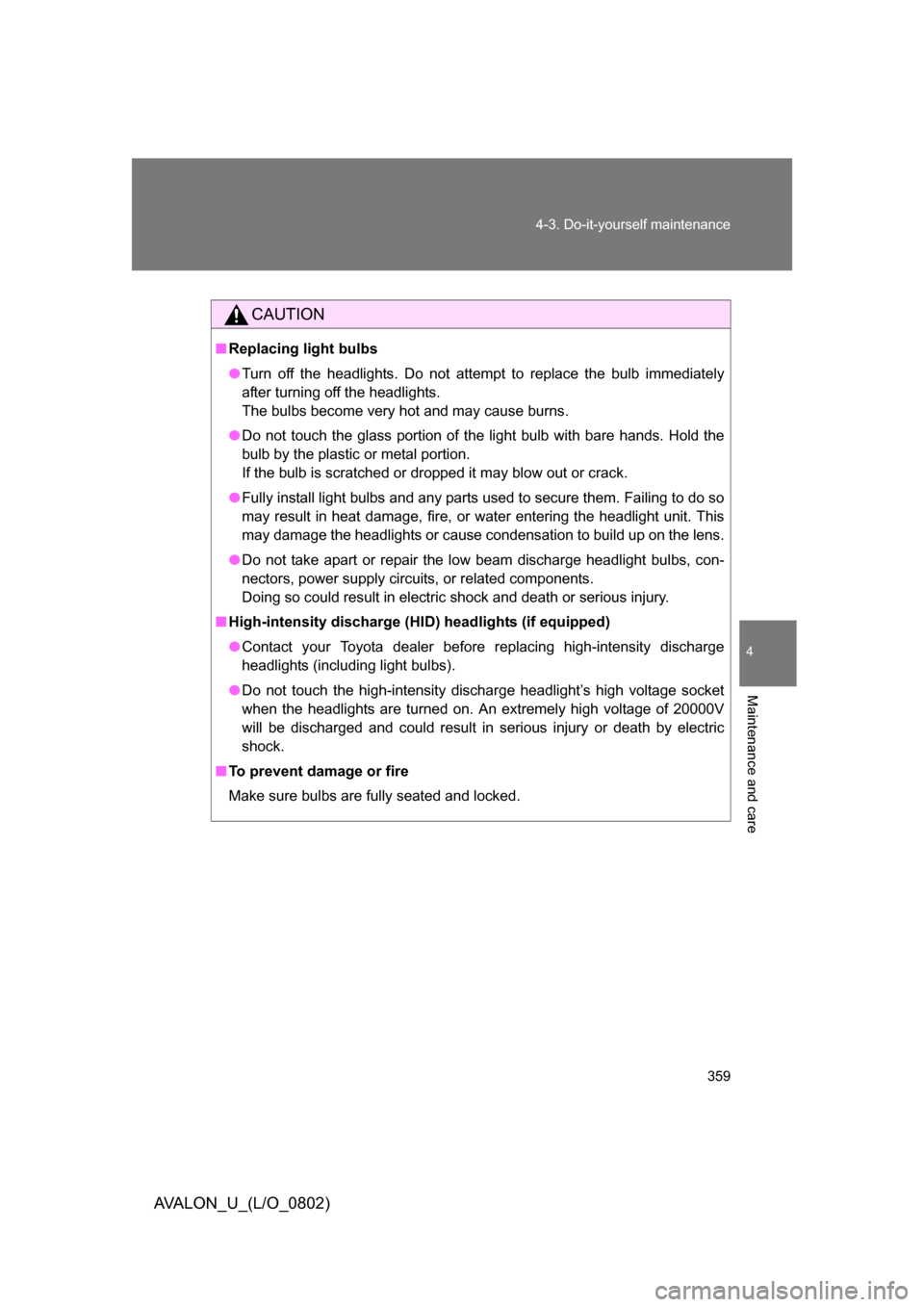

CAUTION
■
Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights. 
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion. 
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not take apart or repair the low beam discharge headlight bulbs, con-
nectors, power supply circuits, or related components. 
Doing so could result in electric shock and death or serious injury.
■ High-intensity discharge (H ID) headlights (if equipped)
● Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in serious injury or death by electric
shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

360 4-3. Do-it-yourself maintenance
