display TOYOTA AVALON 2010 XX30 / 3.G Navigation Manual

MORE ADVANCED FUNCTIONS
11 4
This system has a function which in-
forms you of the time to replace certain
parts or components as well as other
information shown on the screen. (See
“Information items” on page 116.)
When the system begins operating af-
ter reaching either the information
item’s date or driving distance, the “In-
formation” screen will be displayed.
The “Information” screen will not be dis-
played or start up by selecting the
“Do
not display this message again”
switch.
1. Push the “INFO” button on the
navigation controller.
2. Select the “Maintenance” switch
to display the “Maintenance” screen.
Maintenance information

MORE ADVANCED FUNCTIONS
11 5

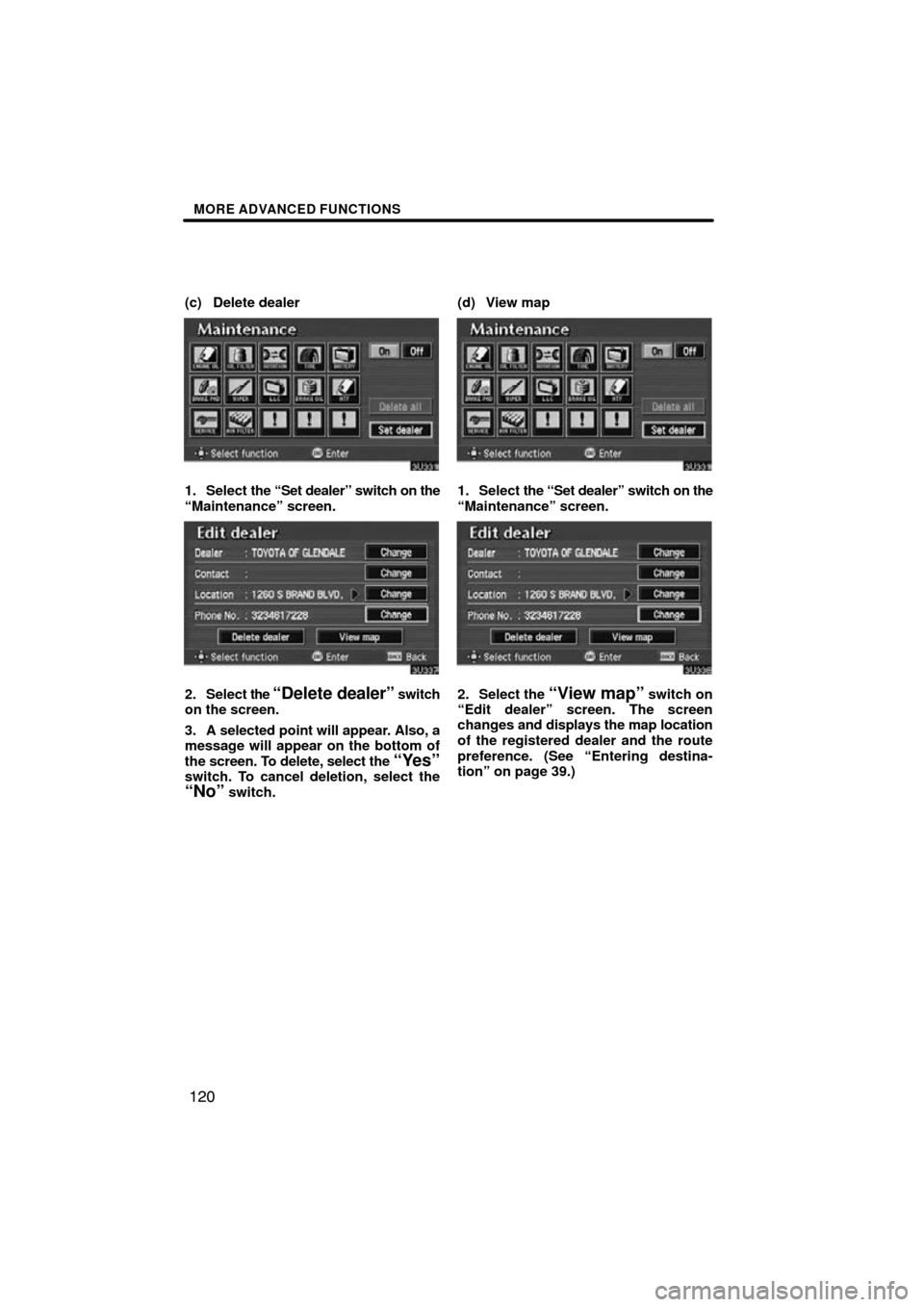

3. Select your desired icon and input
the conditions.
“Date” of notice: Input the next mainte-
nance date.
“Distance” of notice: Input the driving
distance until the next maintenance check.
When you select the
! switch on the
“Maintenance” screen, the screen
changes to display the change name
screen. Select the keys to input your de-
sired name and then input the conditions. After you input that information, select the
“OK” switch. The screen then returns to
the “Maintenance” screen. The icon’s color
will change to green after the date or driv-
ing distance is inputted. The icon’s color
will change to orange when your Toyota
needs to be serviced. The following
switches appear on the screen.
“Delete all”: Cancel all conditions which
have been inputted.
“Reset all”: Reset all items which satisfy
either condition.
Select the
“Off” switch at the top of the
“Maintenance” screen, and the informa-
tion screen will no longer be displayed.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Own-
er’s Manual Supplement” or
“Scheduled Maintenance”.
 Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been inputted and the
actual date and driving distance.

MORE ADVANCED FUNCTIONS
11 7
1. Push the “INFO” button on the
navigation controller.
2. Select the “Maintenance” switch
to display the “Maintenance” screen. (a) Register dealer
You can register your dealer’s name,
staff, location and phone number.
1. Select
the “Set dealer” switch on
the “Maintenance” screen.
2. Enter your dealer’s location ad-
dress in the same way as you input any
destination. (See pages 22 through 38.)
After you enter your dealer, the screen
changes and displays the map location of
the dealer. If it is OK, select the
“Enter”switch at the right of the screen.
The current screen changes to the screen
when you can edit the data of your dealer.
(See “(b) Edit dealer” on page 118.)
Dealer setting

MORE ADVANCED FUNCTIONS
11 8
(b) Edit dealer
You can edit your dealer’s name, staff,
location and phone number if you al-
ready registered the dealer.
1. Select the
“Set dealer” switch on
the “Maintenance” screen. The “Edit
dealer” screen appears on the display.
2. Select the “Change” switch to
edit the item. EDITING THE NAME OF THE DEALER
OR CONTACT
Select alphabet, numeral or umlaut
keys directly to input the name.
After you finish your entry, select the
“OK” switch at the bottom right of the
screen. The previous screen will be dis-
played.

MORE ADVANCED FUNCTIONS
120
(c) Delete dealer
1. Select the “Set dealer” switch on the
“Maintenance” screen.
2. Select the “Delete dealer” switch
on the screen.
3. A selected point will appear. Also, a
message will appear on the bottom of
the screen. To delete, select the
“Yes”switch. To cancel deletion, select the“No” switch. (d) View map
1. Select
the “Set dealer” switch on the
“Maintenance” screen.
2. Select the “View map” switch on
“Edit dealer” screen. The screen
changes and displays the map location
of the registered dealer and the route
preference. (See “Entering destina-
tion” on page 39.)

MORE ADVANCED FUNCTIONS
121

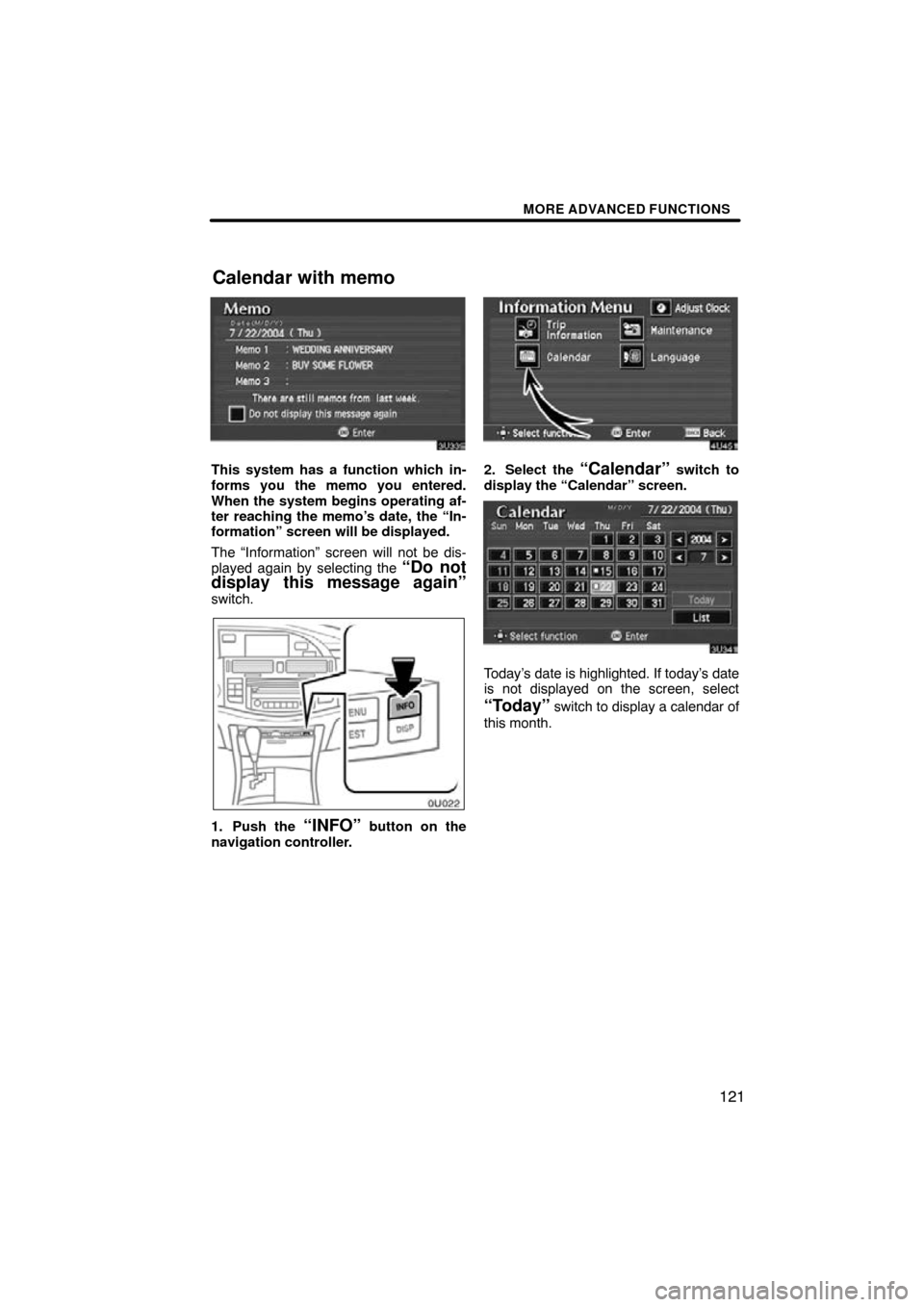

This system has a function which in-
forms you the memo you entered.
When the system begins operating af-
ter reaching the memo’s date, the “In-
formation” screen will be displayed.
The “Information” screen will not be dis-
played again by selecting the
“Do not
display this message again”
switch.
1. Push the “INFO” button on the
navigation controller.
2. Select the “Calendar” switch to
display the “Calendar” screen.
Today’s date is highlighted. If today’s date
is not displayed on the screen, select
“Today” switch to display a calendar of
this month.
Calendar with memo

MORE ADVANCED FUNCTIONS
122

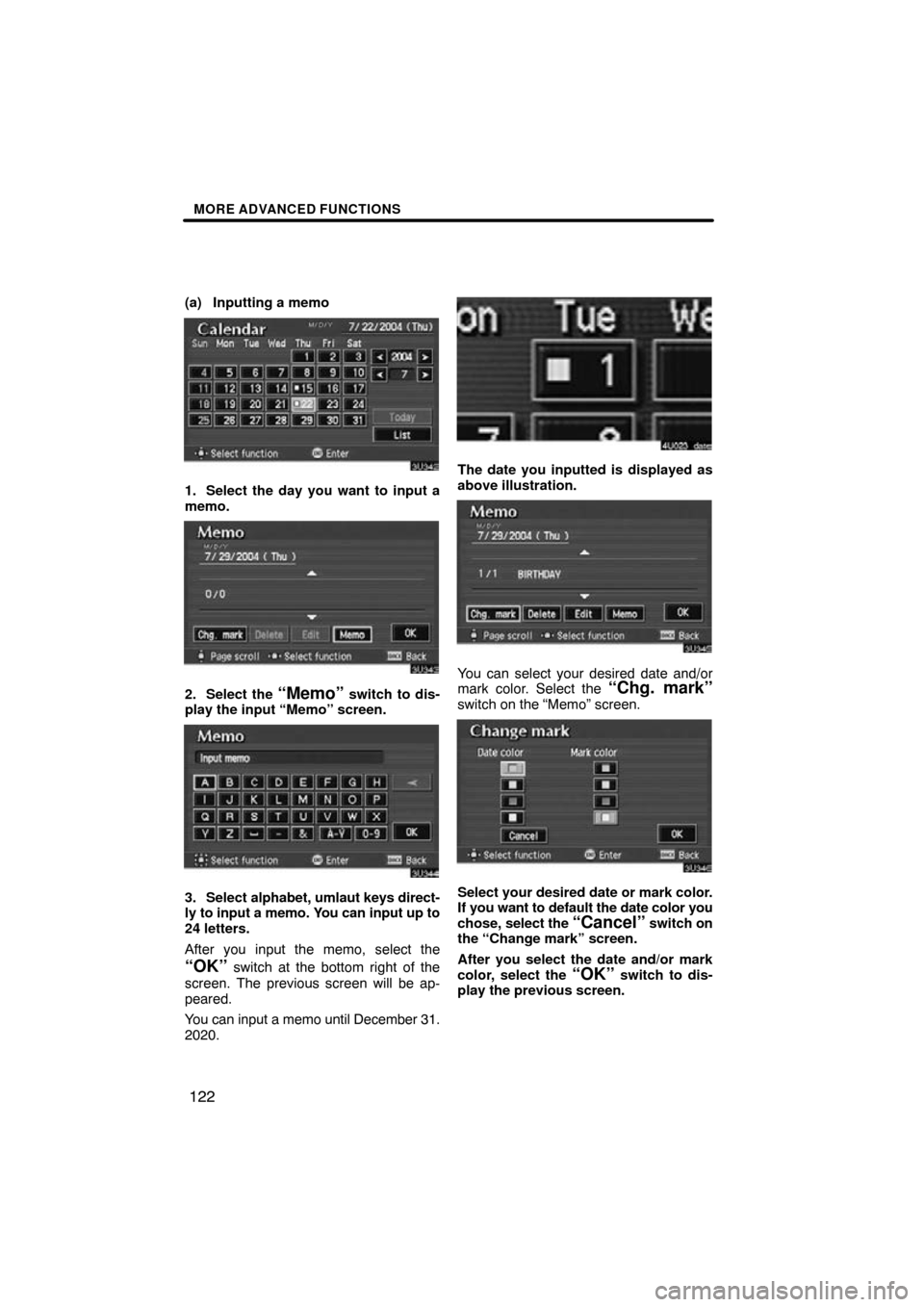

(a) Inputting a memo
1. Select the day you want to input a
memo.
2. Select the “Memo” switch to dis-
play the input “Memo” screen.
3. Select alphabet, umlaut keys direct-
ly to input a memo. You can input up to
24 letters.
After you input the memo, select the
“OK” switch at the bottom right of the
screen. The previous screen will be ap-
peared.
You can input a memo until December 31.
2020.
The date you inputted is displayed as
above illustration.
You can select your desired date and/or
mark color. Select the “Chg. mark”switch on the “Memo” screen.
Select your desired date or mark color.
If you want to default the date color you
chose, select the
“Cancel” switch on
the “Change mark” screen.
After you select the date and/or mark
color, select the
“OK” switch to dis-
play the previous screen.

MORE ADVANCED FUNCTIONS
123

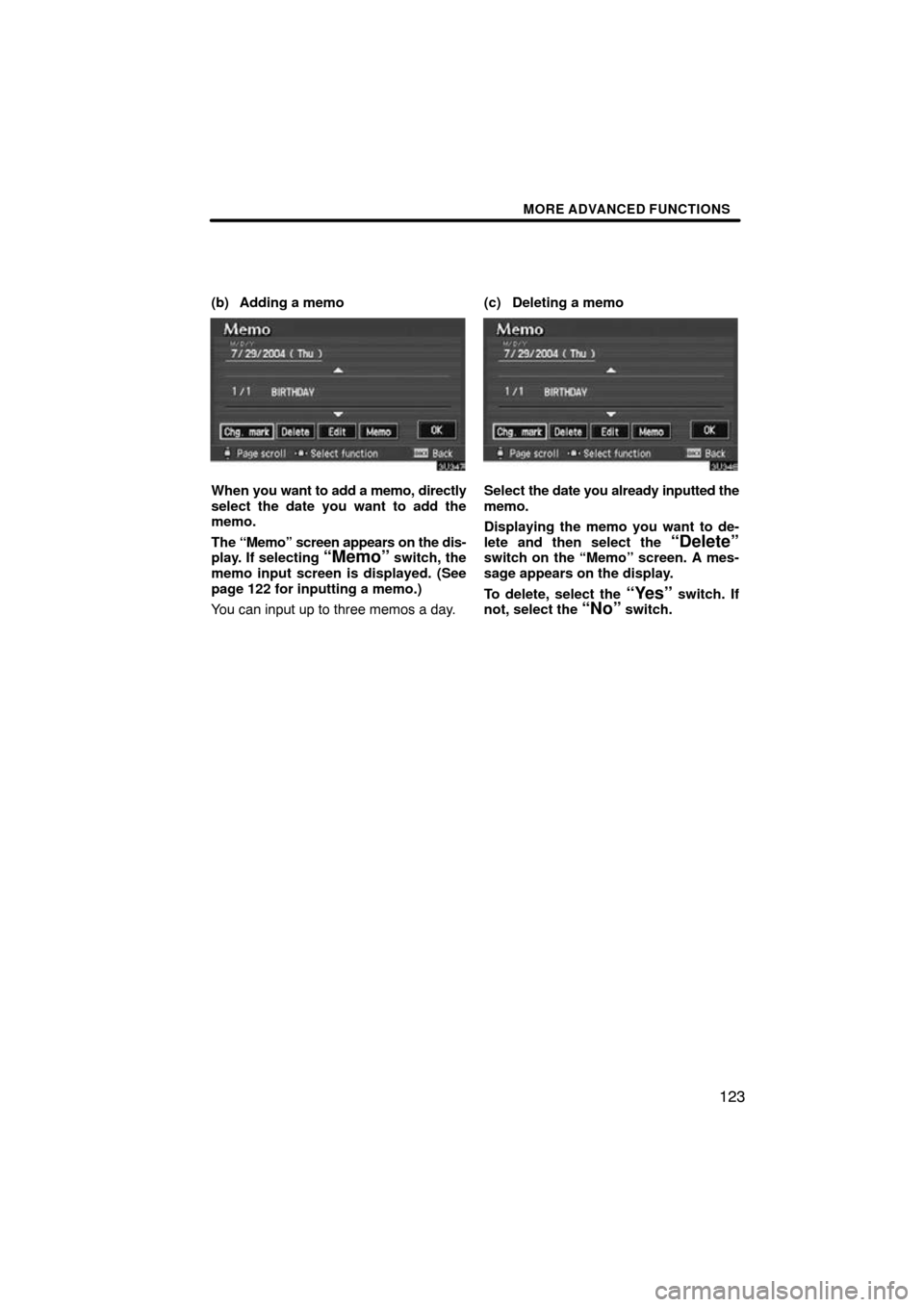

(b) Adding a memo
When you want to add a memo, directly
select the date you want to add the
memo.
The “Memo” screen appears on the dis-
play. If selecting
“Memo” switch, the
memo input screen is displayed. (See
page 122 for inputting a memo.)
You can input up to three memos a day. (c) Deleting a memo
Select
the date you already inputted the
memo.
Displaying the memo you want to de-
lete and then select the
“Delete”switch on the “Memo” screen. A mes-
sage appears on the display.
To delete, select the
“Yes” switch. If
not, select the “No” switch.

MORE ADVANCED FUNCTIONS
124

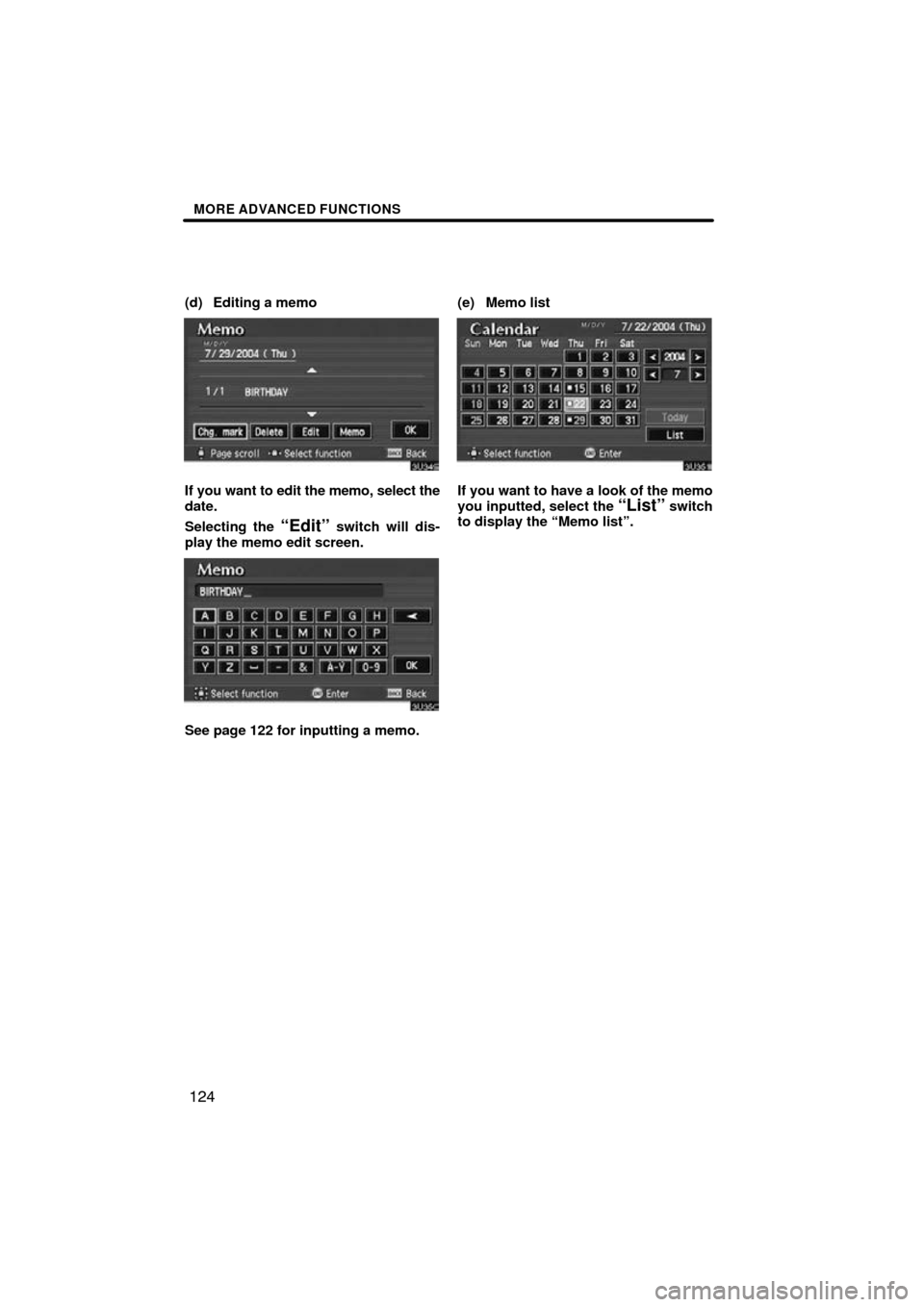

(d) Editing a memo
If you want to edit the memo, select the
date.
Selecting the
“Edit” switch will dis-
play the memo edit screen.
See page 122 for inputting a memo. (e) Memo list
If you want to have a look of the memo
you inputted, select the “List” switch
to display the “Memo list”.

MORE ADVANCED FUNCTIONS
125

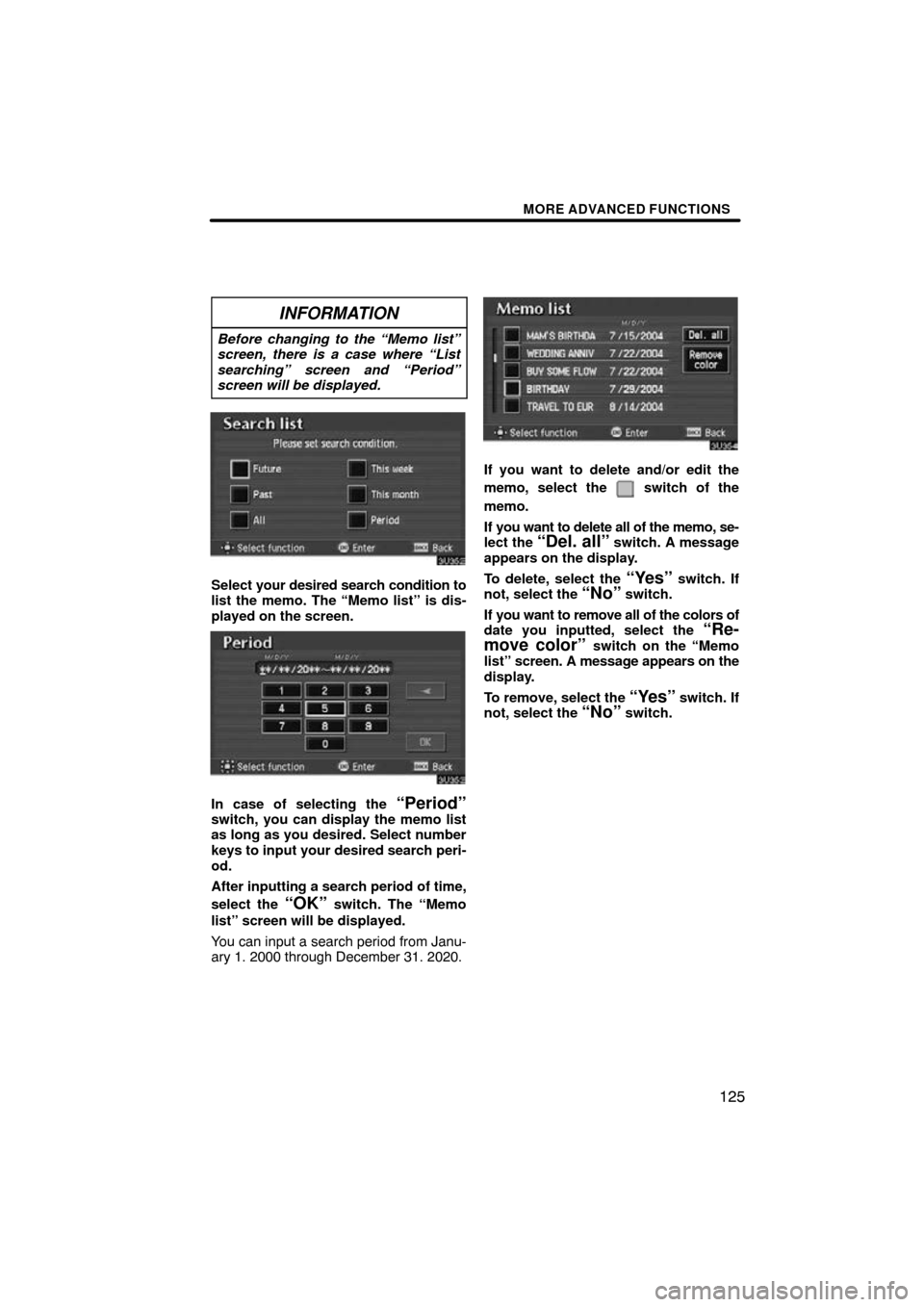

INFORMATION
Before changing to the “Memo list”
screen, there is a case where “List
searching” screen and “Period”
screen will be displayed.
Select your desired search condition to
list the memo. The “Memo list” is dis-
played on the screen.
In case of selecting the “Period”switch, you can display the memo list
as long as you desired. Select number
keys to input your desired search peri-
od.
After inputting a search period of time,
select the
“OK” switch. The “Memo
list” screen will be displayed.
You can input a search period from Janu-
ary 1. 2000 through December 31. 2020.
If you want to delete and/or edit the
memo, select the
switch of the
memo.
If you want to delete all of the memo, se-
lect the
“Del. all” switch. A message
appears on the display.
To delete, select the
“Yes” switch. If
not, select the “No” switch.
If you want to remove all of the colors of
date you inputted, select the
“Re-
move color” switch on the “Memo
list” screen. A message appears on the
display.
To remove, select the
“Yes” switch. If
not, select the “No” switch.
