TOYOTA AVALON 2011 XX30 / 3.G Navigation Manual

TELEPHONE AND INFORMATION
131

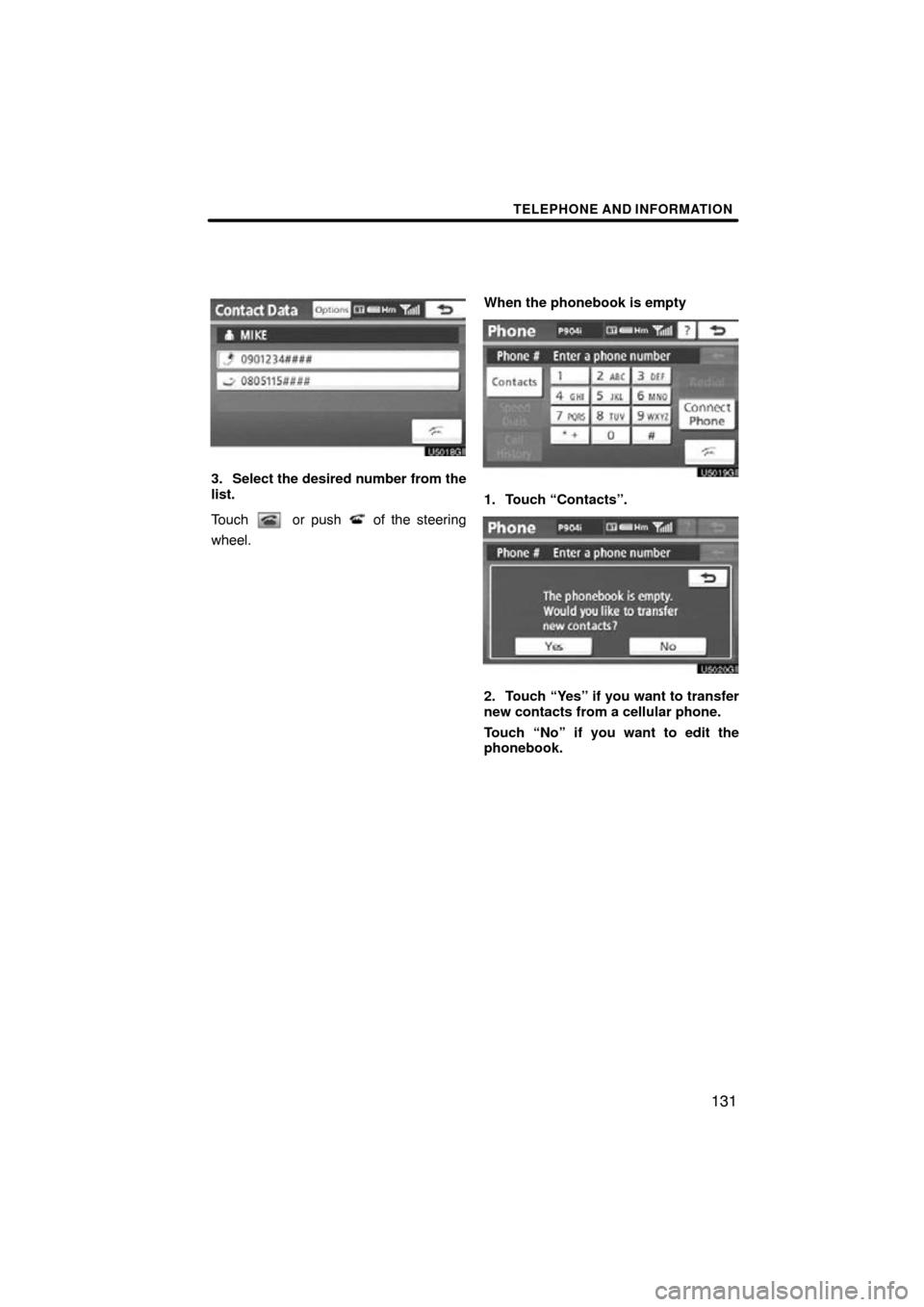

3. Select the desired number from the
list.
Touch
or push of the steering
wheel. When the phonebook is empty
1. Touch “Contacts”.
2. Touch “Yes” if you want to transfer
new contacts from a cellular phone.
Touch “No” if you want to edit the
phonebook.

TELEPHONE AND INFORMATION
132

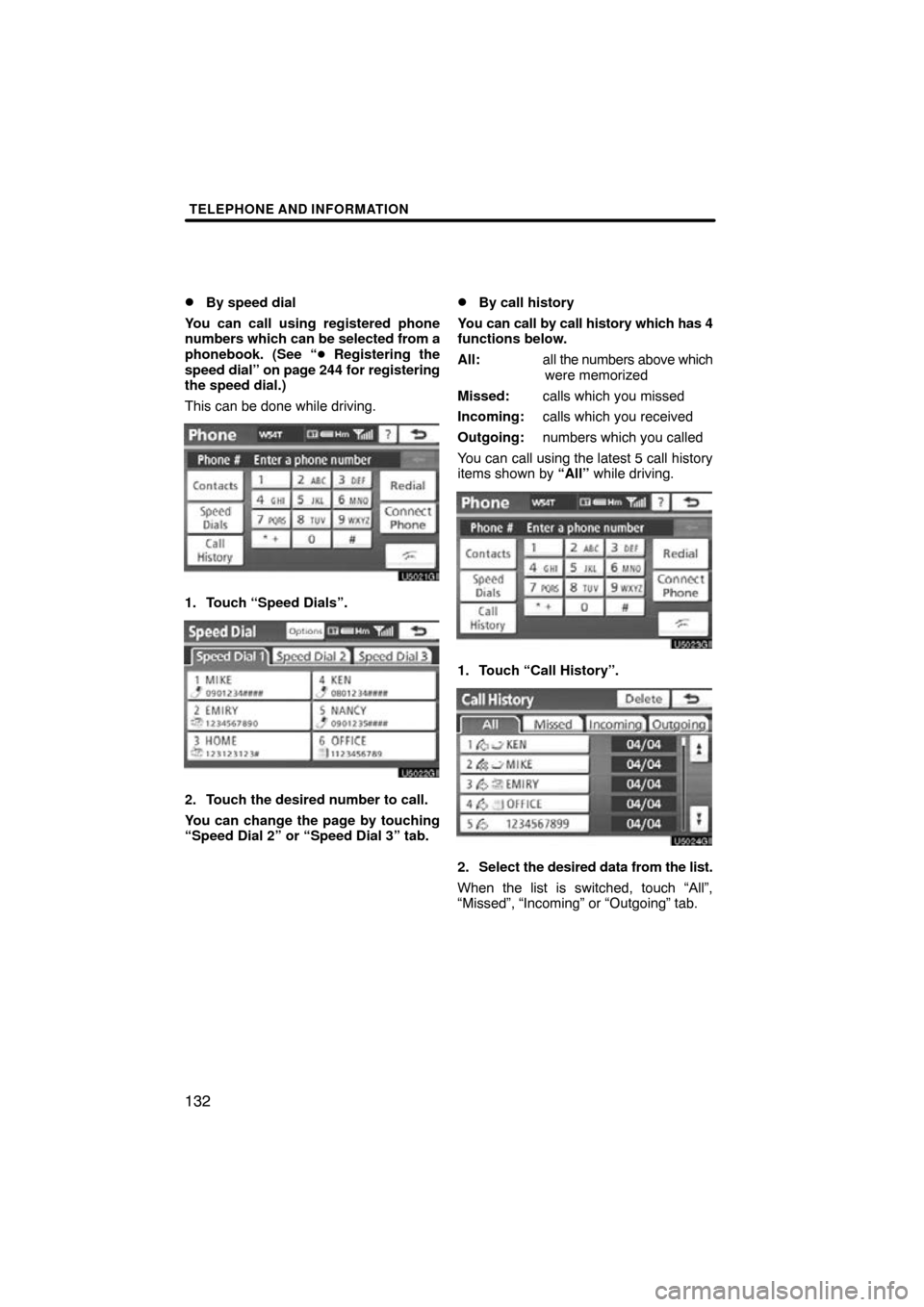

By speed dial
You can call using registered phone
numbers which can be selected from a
phonebook. (See “ Registering the
speed dial” on page 244 for registering
the speed dial.)
This can be done while driving.
1. Touch “Speed Dials”.
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3” tab.
By call history
You can call by call history which has 4
functions below.
All: all the numbers above which
were memorized
Missed: calls which you missed
Incoming: calls which you received
Outgoing: numbers which you called
You can call using the latest 5 call history
items shown by “All” while driving.
1. Touch “Call History”.
2. Select the desired data from the list.
When the list is switched, touch “All”,
“Missed”, “Incoming” or “Outgoing” tab.

TELEPHONE AND INFORMATION
133

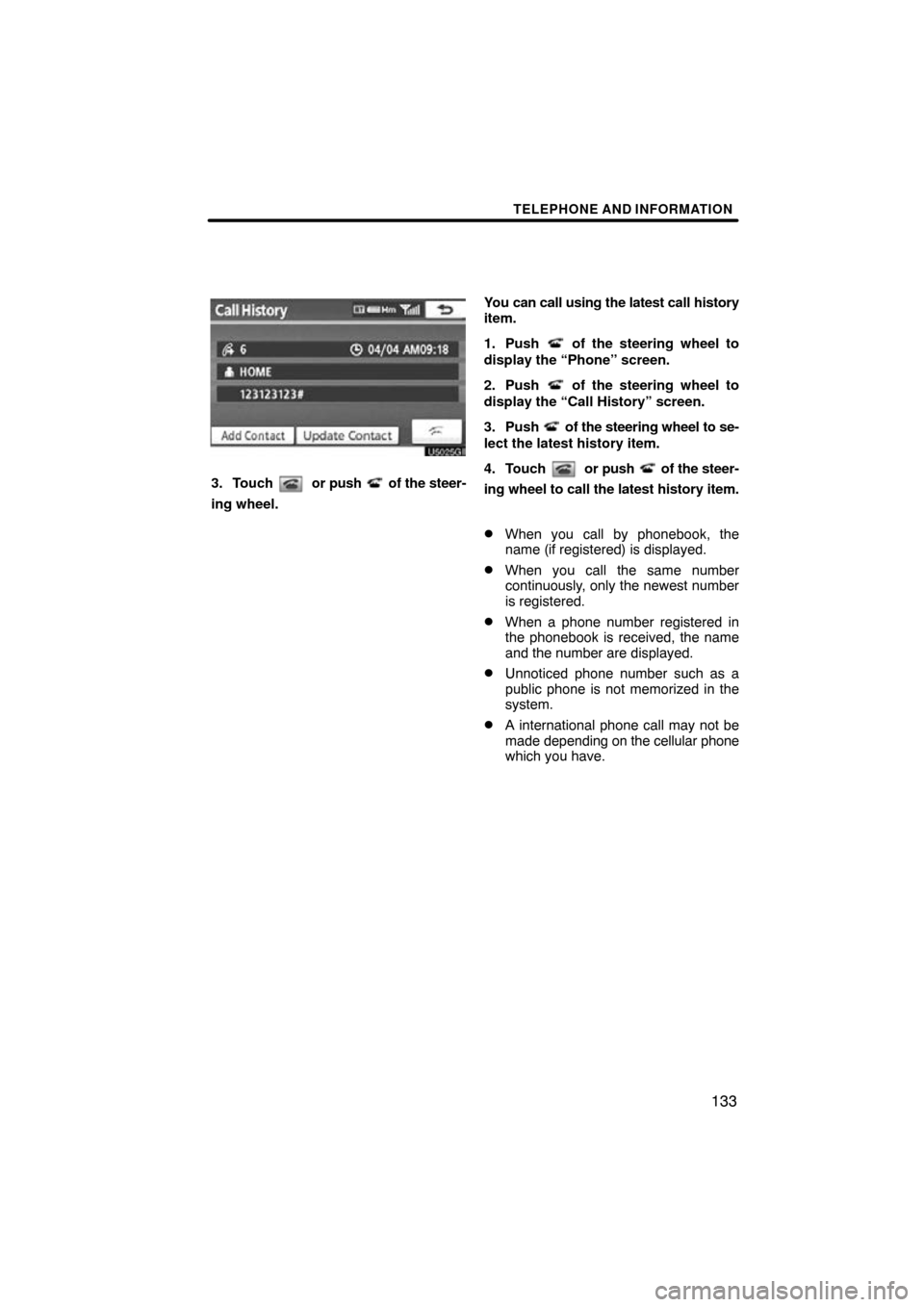

3. Touch or push of the steer-
ing wheel. You can call using the latest call history
item.
1. Push
of the steering wheel to
display the “Phone” screen.
2. Push
of the steering wheel to
display the “Call History” screen.
3. Push
of the steering wheel to se-
lect the latest history item.
4. Touch
or push of the steer-
ing wheel to call the latest history item.
When you call by phonebook, the
name (if registered) is displayed.
When you call the same number
continuously, only the newest number
is registered.
When a phone number registered in
the phonebook is received, the name
and the number are displayed.
Unnoticed phone number such as a
public phone is not memorized in the
system.
A international phone call may not be
made depending on the cellular phone
which you have.

TELEPHONE AND INFORMATION
134
By voice recognition
You can call by giving a command. (For
the operation and command of voice
recognition, see “Speech command
system” on page 44.)
This can be operated while driving.
The “Dial by Name” operating procedure is
explained here.
Other operating procedures are also simi-
lar. DIALING BY NAME
You can call by giving a voice tag regis-
tered in
the phonebook. For setting the
voice recognition, see “— Setting the
voice tag” on page 251.
When you select “English” of “Language”,
you can call by giving a name registered in
the phonebook.
For setting the voice recognition, see “
Registering the phonebook data” on page
237.
Example: Call MIKE.

TELEPHONE AND INFORMATION
135

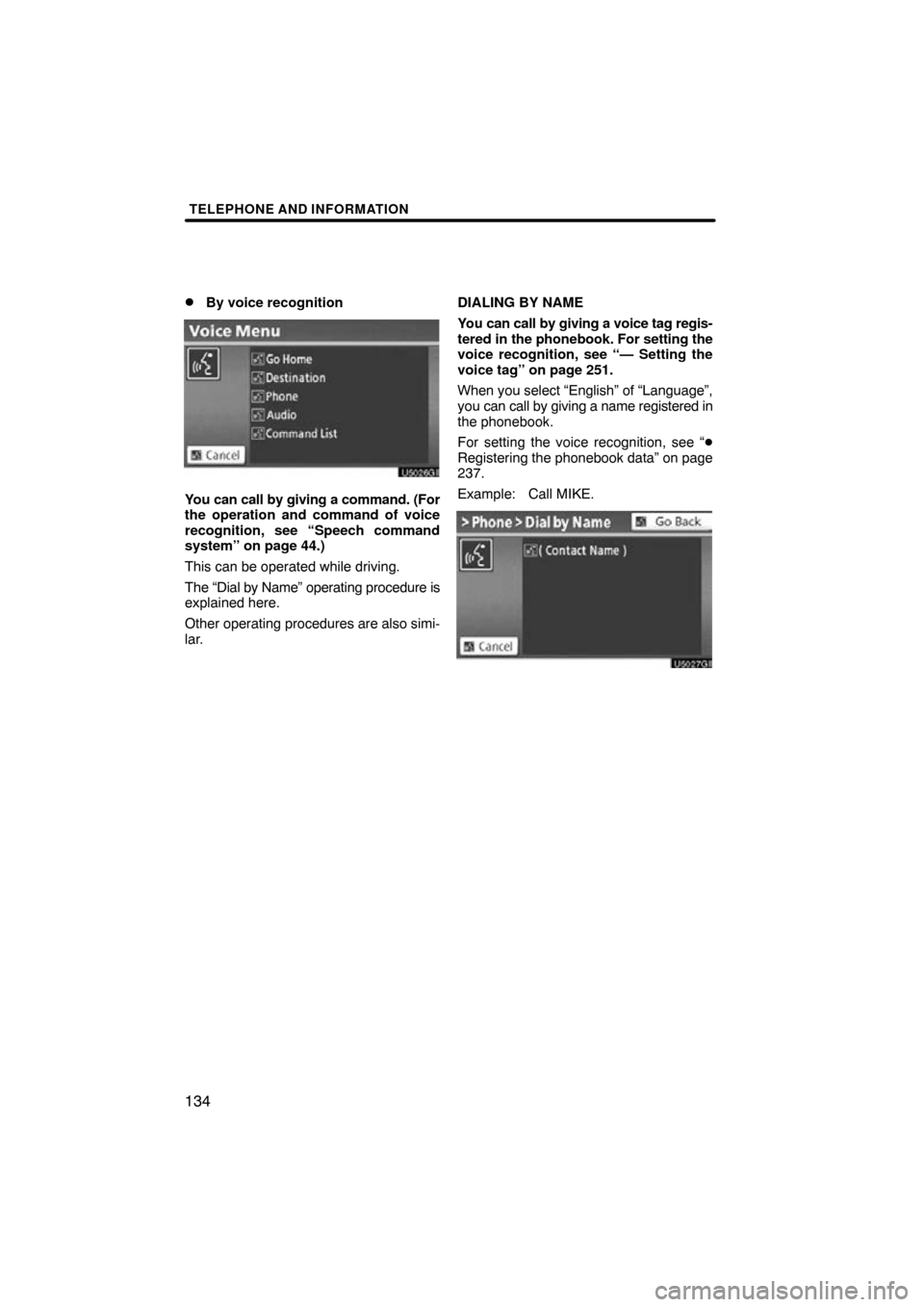

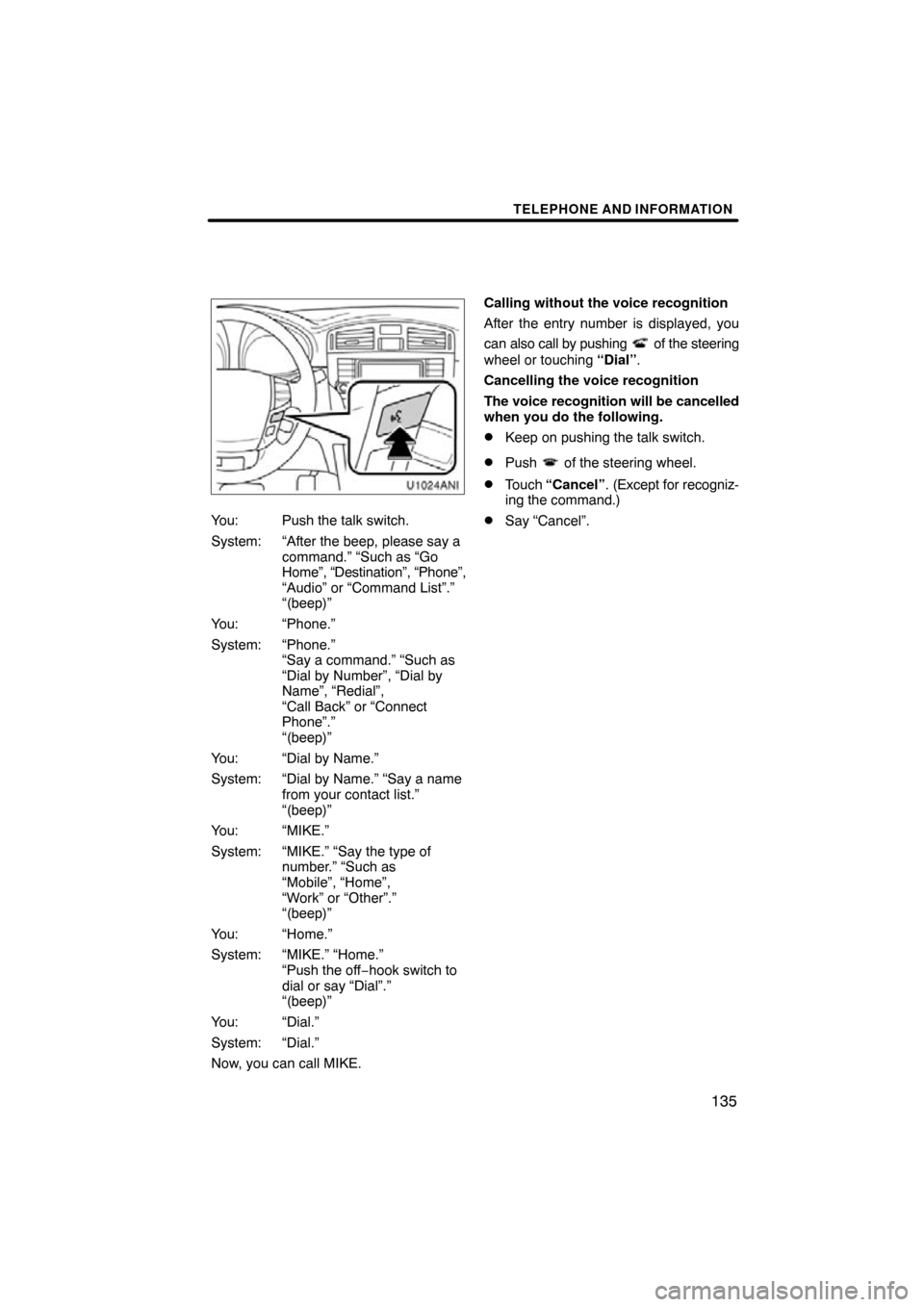

You: Push the talk switch.
System: “After the beep, please say acommand.” “Such as “Go
Home”, “Destination”, “Phone”,
“Audio” or “Command List”.”
“(beep)”
You: “Phone.”
System: “Phone.” “Say a command.” “Such as
“Dial by Number”, “Dial by
Name”, “Redial”,
“Call Back” or “Connect
Phone”.”
“(beep)”
You: “Dial by Name.”
System: “Dial by Name.” “Say a name from your contact list.”
“(beep)”
You: “MIKE.”
System: “MIKE.” “Say the type of number.” “Such as
“Mobile”, “Home”,
“Work” or “Other”.”
“(beep)”
You: “Home.”
System: “MIKE.” “Home.” “Push the off −hook switch to
dial or say “Dial”.”
“(beep)”
You: “Dial.”
System: “Dial.”
Now, you can call MIKE. Calling without the voice recognition
After the entry number is displayed, you
can also call by pushing
of the steering
wheel or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch.
Push of the steering wheel.
Touch “Cancel” . (Except for recogniz-
ing the command.)
Say “Cancel”.

TELEPHONE AND INFORMATION
136

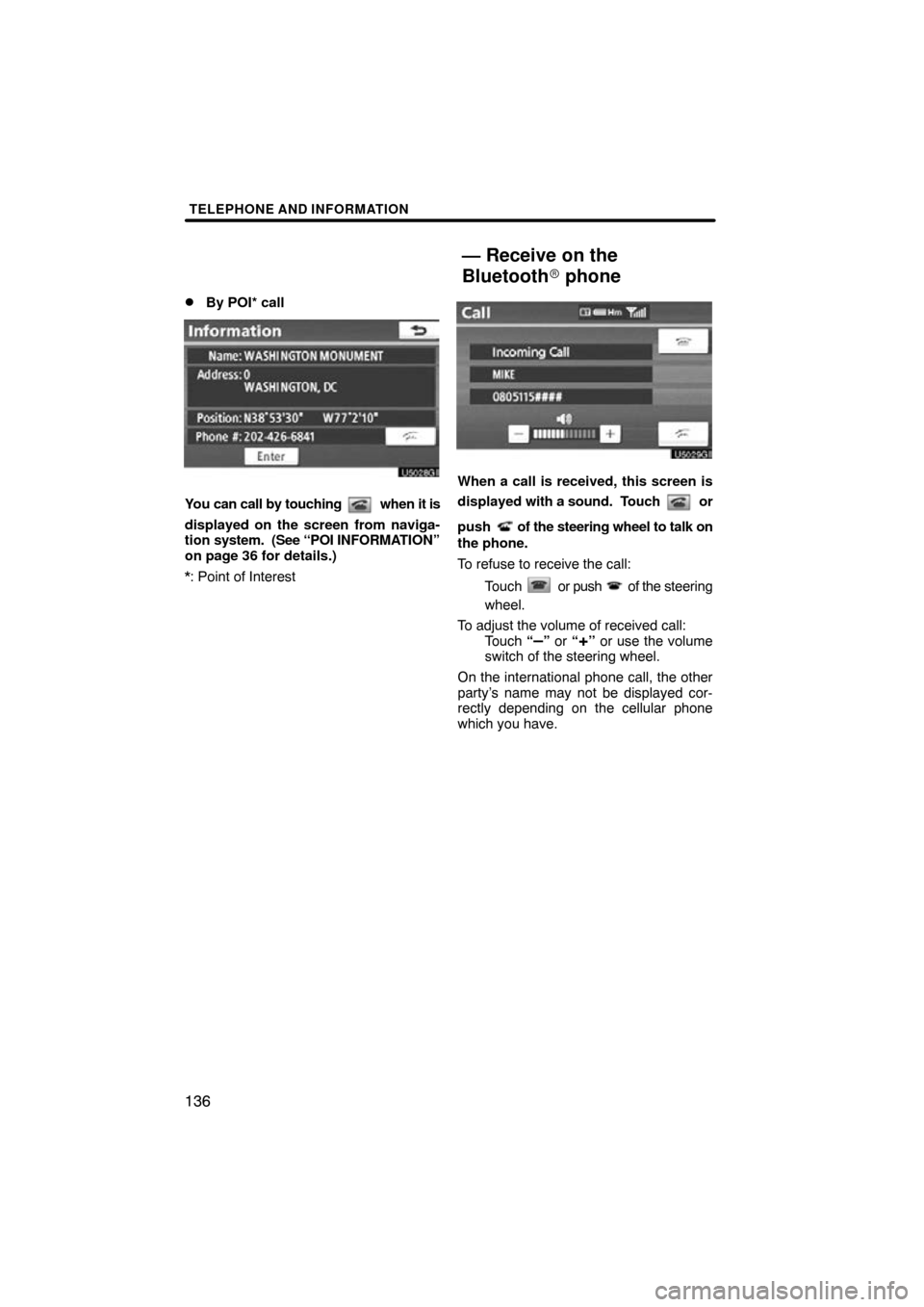

By POI* call
You can call by touching when it is
displayed on the screen from naviga-
tion system. (See “POI INFORMA TION”
on page 36 for details.)
*: Point of Interest
When a call is received, this screen is
displayed with a sound. Touch
or
push
of the steering wheel to talk on
the phone.
To refuse to receive the call:
Touch
or push of the steering
wheel.
To adjust the volume of received call: Touch “
–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
— Receive on the
Bluetooth  phone

TELEPHONE AND INFORMATION
137

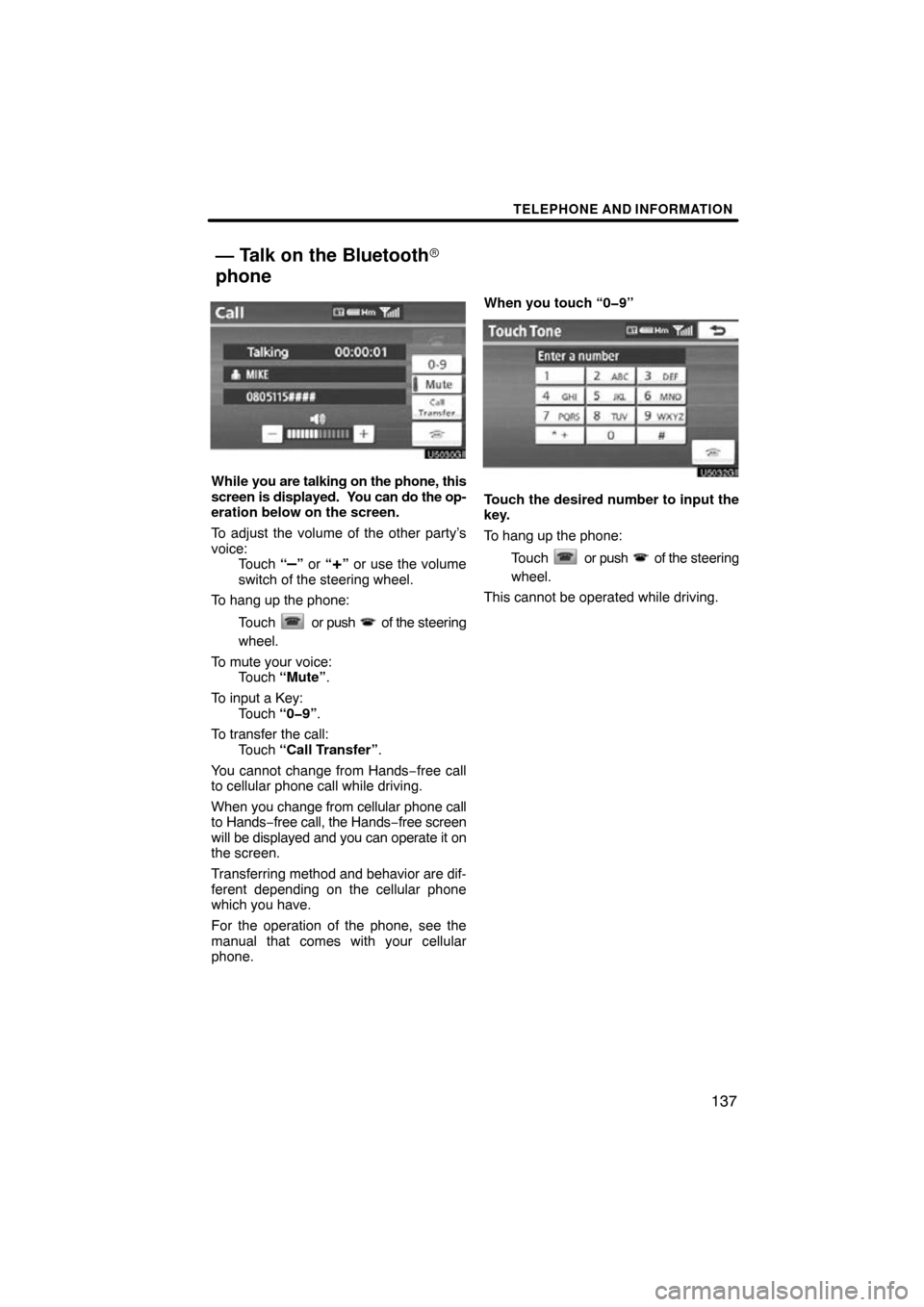

While you are talking on the phone, this
screen is displayed. Y ou can do the op-
eration below on the screen.
To adjust the volume of the other party’s
voice: Touch “
–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push of the steering
wheel.
To mute your voice: Touch “Mute” .
To input a Key: Touch “09” .
To transfer the call: Touch “Call Transfer” .
You cannot change from Hands −free call
to cellular phone call while driving.
When you change from cellular phone call
to Hands −free call, the Hands −free screen
will be displayed and you can operate it on
the screen.
Transferring meth od and behavior are dif-
ferent depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone. When you touch “09”
Touch the desired number to input the
key.
To hang up the phone:
Touch
or push of the steering
wheel.
This cannot be operated while driving.
— Talk on the Bluetooth
phone

TELEPHONE AND INFORMATION
138

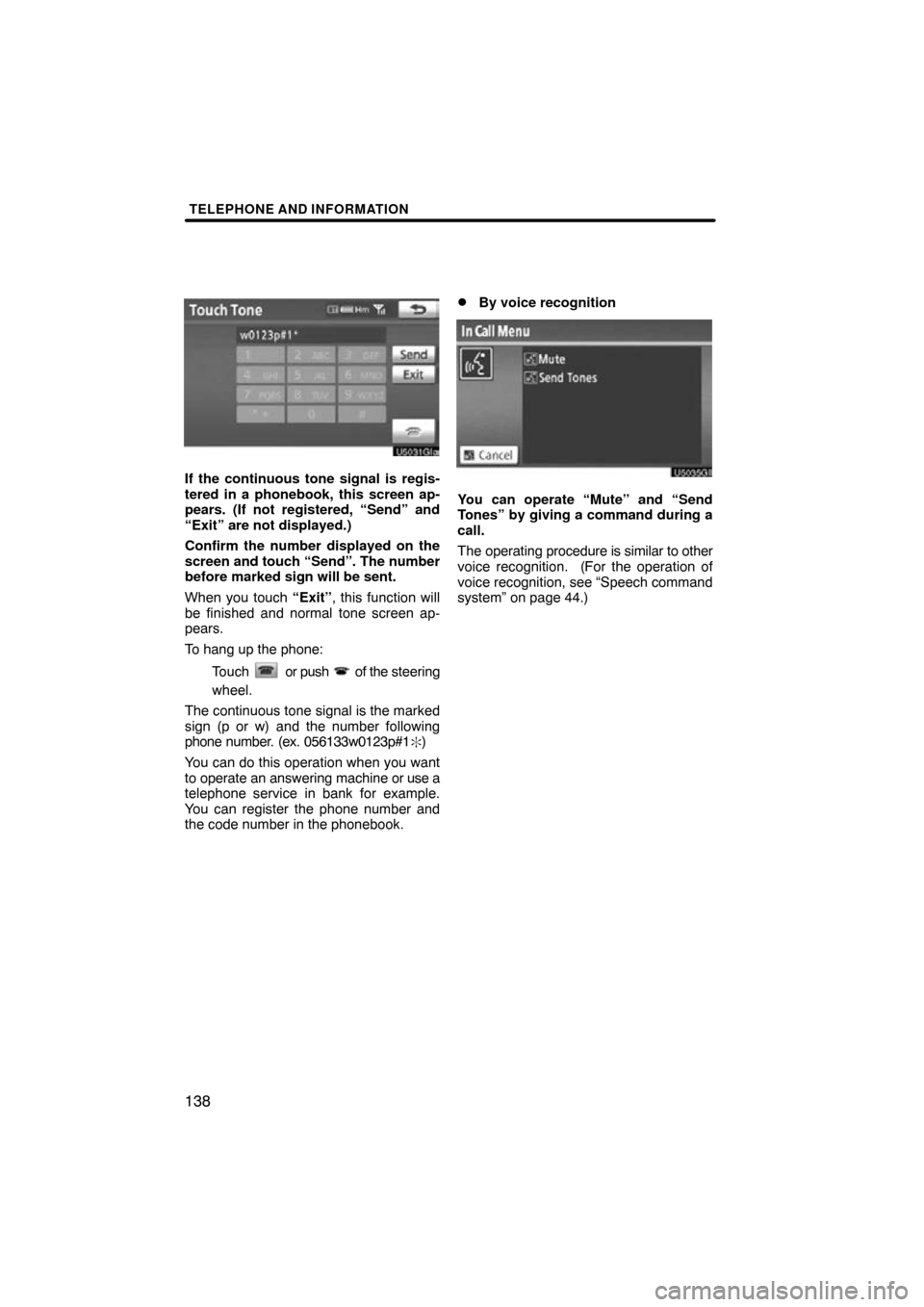

If the continuous tone signal is regis-
tered in a phonebook, this screen ap-
pears. (If not registered, “Send” and
“Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
or push of the steering
wheel.
The continuous tone signal is the marked
sign (p or w) and the number following
phone number. (ex. 056133w0123p#1
)
You can do this operation when you want
to operate an answering machine or use a
telephone service in bank for example.
You can register the phone number and
the code number in the phonebook.
By voice recognition
You can operate “Mute” and “Send
Tones” by giving a command during a
call.
The operating procedure is similar to other
voice recognition. (For the operation of
voice recognition, see “Speech command
system” on page 44.)

TELEPHONE AND INFORMATION
139

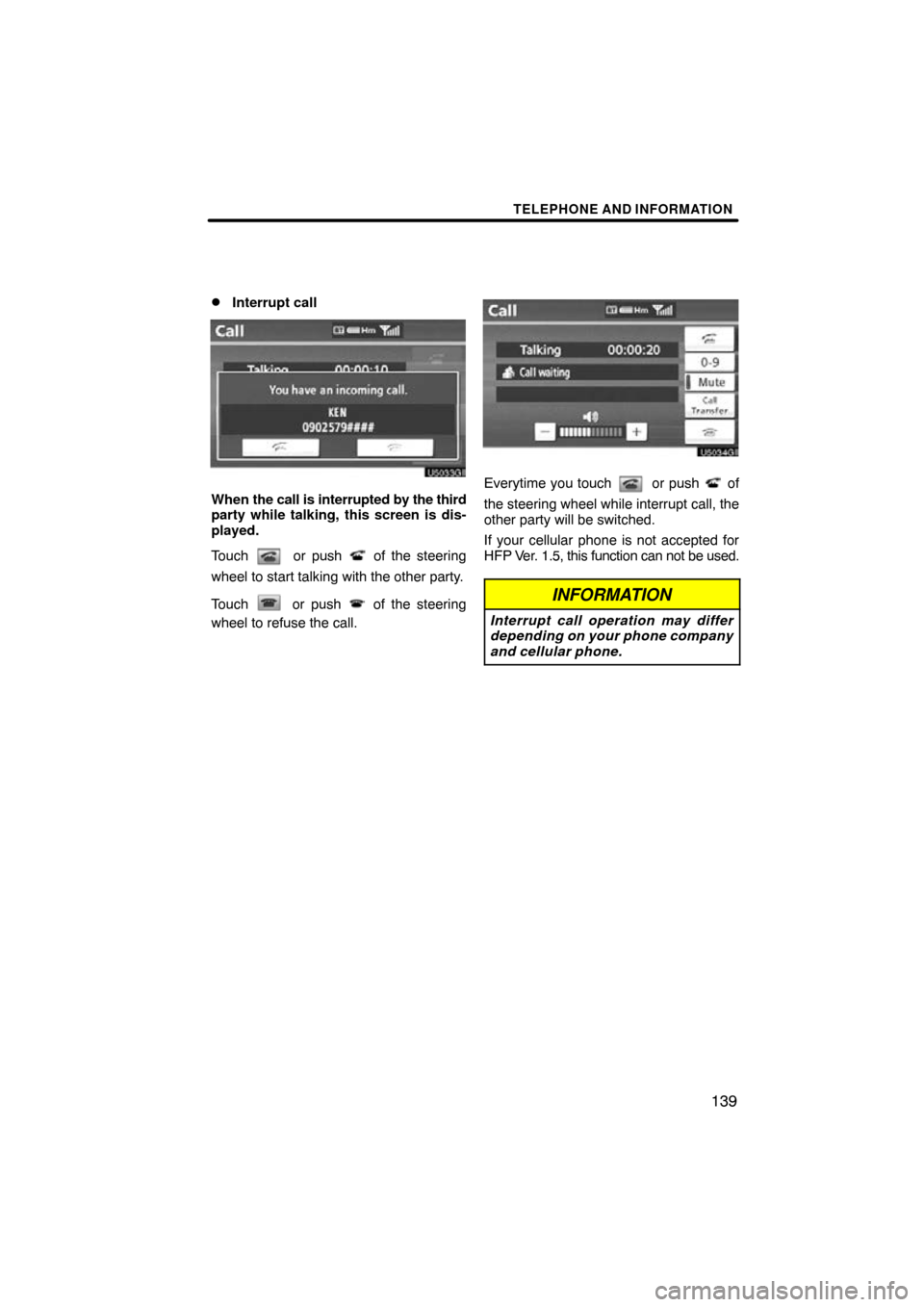

Interrupt call
When
the call is interrupted by the third
party while talking, this screen is dis-
played.
Touch
or push of the steering
wheel to start talking with the other party.
Touch
or push of the steering
wheel to refuse the call.
Everytime you touch or push of
the steering wheel while interrupt call, the
other party will be switched.
If your cellular phone is not accepted for
HFP Ver. 1.5, this function can not be used.
INFORMATION
Interrupt call operation may differ
depending on your phone company
and cellular phone.

TELEPHONE AND INFORMATION
140
To view calendar.
1. Push the “INFO/PHONE” button.
2. Touch “Calendar”.
On this screen, yellow line appear under
the current date.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month will be displayed).
Calendar
