TOYOTA AVALON 2011 XX30 / 3.G Navigation Manual

ROUTE GUIDANCE
91

Selecting POIs to be displayed
Up to 5 categories of icons can be dis-
played on the screen.
Touch the desired Point of Interest
category to display POI location sym-
bols on the map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI
icons are displayed on the map screen.
To turn off the Points of Interest icons on
the map screen, touch “Clear”.
“Other POIs”: If the desired Point of Inter-
est can not be found on the limited choice
screen, touch this button.
“Find Local POI”: When searching for the
nearest Point of Interest, touch this button.
Then choose one of the categories. The
system will list the points within 200 miles
(320 km). (See page 92.) Touch “Other POIs” on the “Select POI
Icons” screen.
When a Point of Interest category is se-
lected from either the limited list or the
complete list, the screen will display sym-
bols of those locations on the map screen.
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching
“OK”, the selected POI
icons are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list
all POI categories.

ROUTE GUIDANCE
92
Select the desired POI categories from
the list.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI
icons are displayed on the map screen.
To return to the POI category selection
screen, touch “More”.
To display the local POI list
Points of Interest that are within 200 miles
(320 km) of the current position will be
listed from among the selected categories.
1. Touch “Find Local POI” on the “Se-
lect POI Icons” screen.
2. Touch the button of the desired
Point of Interest.
The selected Points of Interest are dis-
played on the map screen.

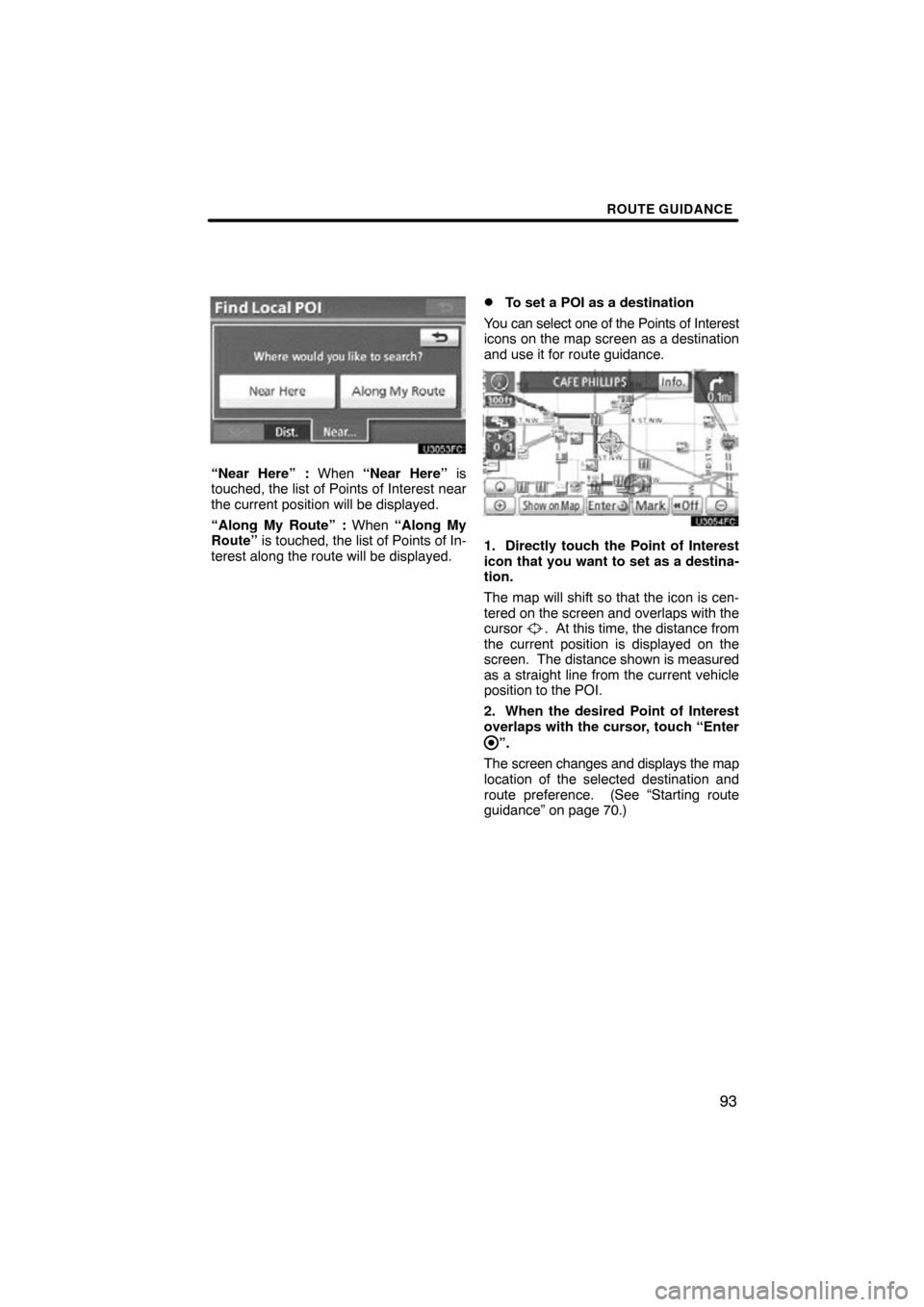

“Near...”: To search for Points of Interest
near the current position or along the
route.

ROUTE GUIDANCE
93
“Near Here” : When “Near Here” is
touched, the list of Points of Interest near
the current position will be displayed.
“Along My Route” : When “Along My
Route” is touched, the list of Points of In-
terest along the route will be displayed.
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination
and use it for route guidance.
1. Directly touch the Point of Interest
icon that you want to set as a destina-
tion.
The map will shift so that the icon is cen-
tered on the screen and overlaps with the
cursor
. At this time, the distance from
the current position is displayed on the
screen. The distance shown is measured
as a straight line from the current vehicle
position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and
route preference. (See
“Starting route
guidance” on page 70.)

ROUTE GUIDANCE
94

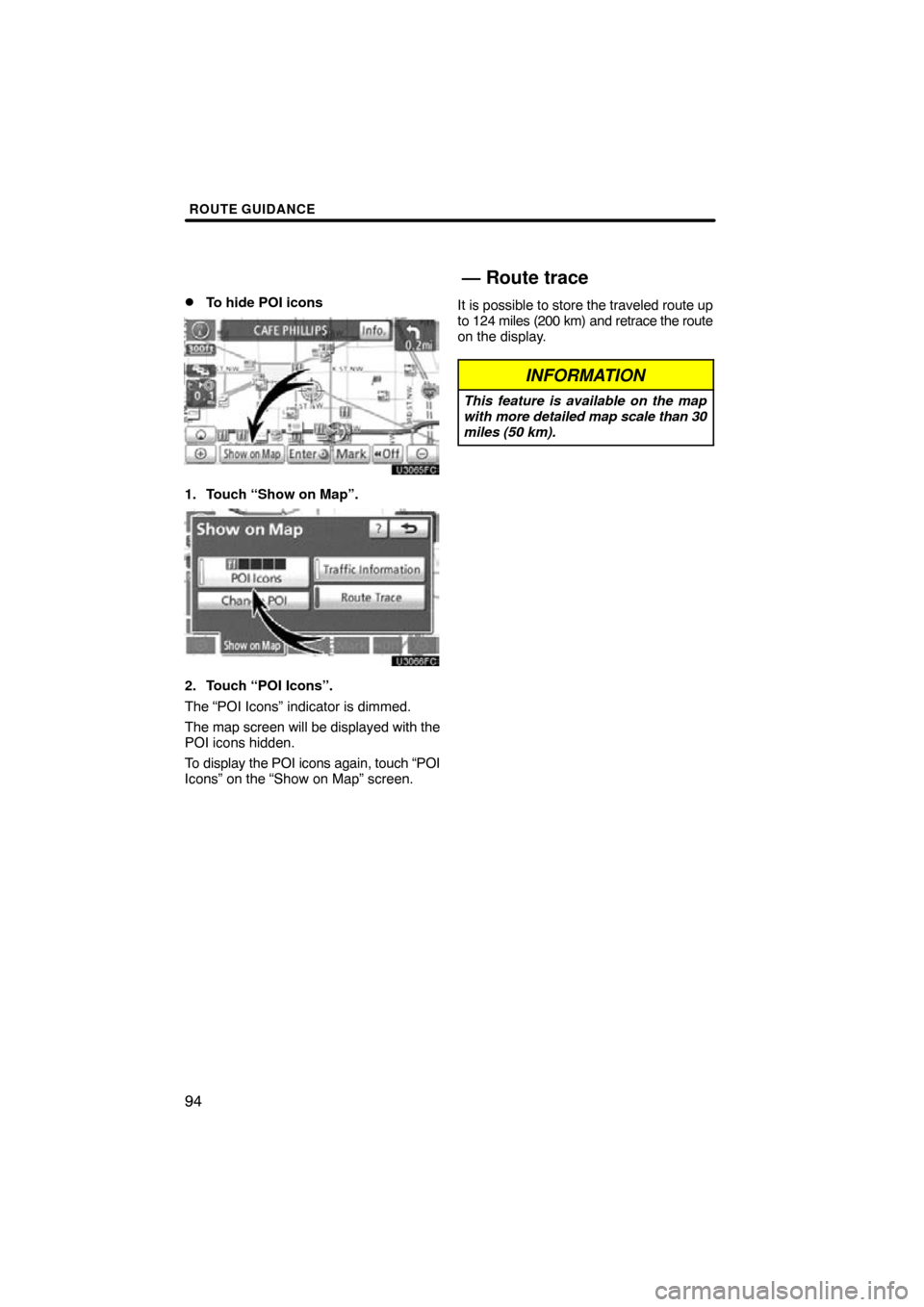

To hide POI icons
1. Touch “Show on Map”.
2. Touch “POI Icons”.
The “POI Icons” indicator is dimmed.
The map screen will be displayed with the
POI icons hidden.
To display the POI icons again, touch “POI
Icons” on the “Show on Map” screen.It is possible to store the traveled route up
to 124 miles (200 km) and retrace the route
on the display.
INFORMATION
This feature is available on the map
with
more detailed map scale than 30
miles (50 km).
— Route trace

ROUTE GUIDANCE
95

To start recording the route trace
1. Touch “Show on Map”.
2. Touch “Route Trace”.
“Route Trace” indicator is highlighted.
To stop recording the route trace
1. Touch “Show on Map”.
2. Touch “Route Trace”. The following
screen will be displayed.
Touching
“Yes” stops recording and the
route trace remains displayed on the
screen.
Touching “No” stops recording and the
route trace is erased.

ROUTE GUIDANCE
96
The XM NavTraffic service that allows the
navigation system to display traffic infor-
mation on the map is available if your satel-
lite radio tuner can receive traffic informa-
tion.
To receive the XM NavTraffic service, a
subscription to the XM Satellite Radio
with NavTraffic is necessary.
The XM  NavTraffic is available in the con-
tiguous 48 U.S. states and some Canadian
cities. For details about the XM  NavTraf-
fic service coverage area, refer to
www.xmradio.com
(U.S.A.) or www.xmra-dio.ca (CANADA).
How to activate the XM  NavTraffic
service
To receive the XM  NavTraffic service,
it is necessary to activate the service.
To activate the service, an extra fee is
required in addition to subscription
fees for the XM  Satellite Radio. For
details about service and activation,
call XM Listener Care Center at
1−800−967−2346 (U.S.A.) or
1−877−438−9677 (CANADA).
Customers should have their radio ID
ready; the radio ID can be found by select-
ing “channel 000” on the radio. For details,
see “(b) Displaying the radio ID” on page
155.
XM  Satellite Radio has the responsibility
for all fees and service, they are subject to
change. The following operations can be per-
formed.
Show XM
 NavTraffic Information
Traffic information is displayed on the map.
(See page 97.)
Auto Avoid Traffic
If any heavy congestion or moderate traffic
has been detected on the guidance route,
it may be possible for you to select another
route offered by the system. (See page
218.)
Traffic Voice Guidance
Traffic information is provided using voice
guidance. (See page 214.)
Show Free Flowing Traffic
Freely flowing traffic is shown by the arrow
on the map. (See page 219.)
INFORMATION
 Traffic voice guidance is available
only in English. To select English,
see “
 Selecting a language” on
page 207.
 When the “Traffic Information” in-
dicator is dimmed, “Auto Avoid
Traffic”, “Traffic Voice Guidance”
and “Show Free Flowing Traffic”
will not operate.
XM NavTraffic

ROUTE GUIDANCE
97

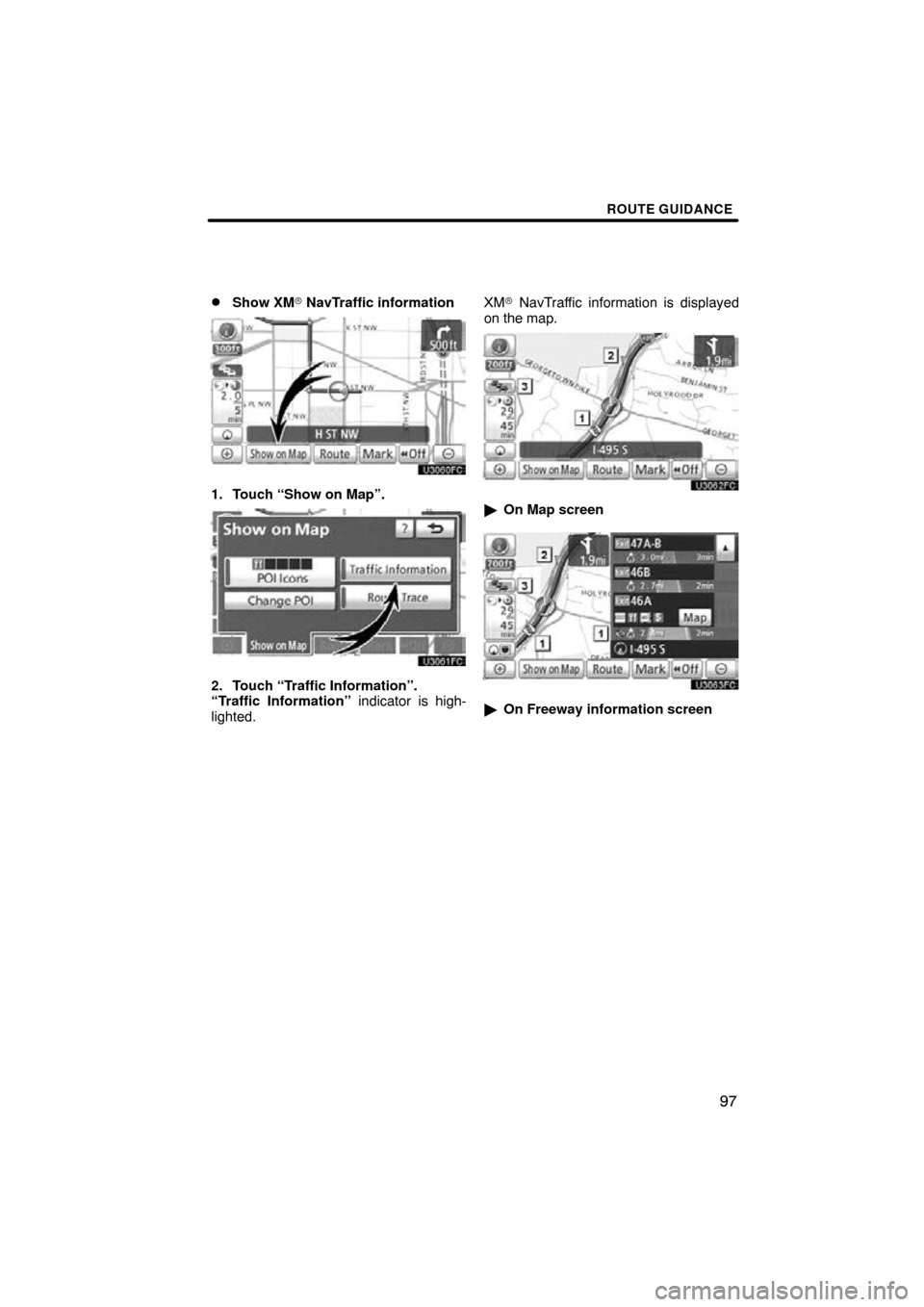

Show XM
 NavTraffic information
1. Touch “Show on Map”.
2. Touch “Traffic Information”.
“Traffic Information” indicator is high-
lighted. XM
 NavTraffic information is displayed
on the map.
 On Map screen
On Freeway information screen

ROUTE GUIDANCE
98
1XM NavTraffic icon
When any traffic information has been
received, the XM  NavTraffic icon will
appear on the map screen. Touching the
XM  NavTraffic icon on the screen will
start voice guidance for the traffic informa-
tion. (See page 38.)
INFORMATION
When the XM NavTraffic icon is
touched, voice guidance for the traf-
fic information will start even if “Off”
for “Traffic Voice Guidance” is se-
lected.
2XM  NavTraffic information arrow
When any XM NavTraffic information has
been received, the XM  NavTraffic infor-
mation arrow will appear on the map
screen. The color of the arrow changes
depending on the traffic information re-
ceived.
“Orange”: Heavy congestion
“Yellow”: Moderate traffic
“Green”: Freely flowing traffic
3XM  NavTraffic indicator
When any XM NavTraffic information has
been received, the XM NavTraffic indica-
tor will appear on the screen. The color of
the indicator changes depending on the
traffic information received.
“White”: Traffic information has been re-
ceived.
“Yellow”: Traffic restriction information on
the guidance route has been received
(touch switch*).
“Orange”: Congestion information on the
guidance route has been received (touch
switch*).
*: Touching the XM NavTraffic indicator
will start voice guidance.

SECTION 4
MY PLACES
99
MY PLACES
My places
Navigation settings 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Home” 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Preset Destinations” 103 . . . . . . . . . . . . . . . . . . .
Setting up the “Address Book” 106 . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Areas to Avoid” 112 . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous destinations 117 . . . . . . . . . . . . . . . . . . . . . . . .

MY PLACES
100
Points or areas on the map can be regis-
tered.
The registered points can be used on the
“Destination” screen. (See “ — Destina-
tion search by Home” on page 52, “ — Des-
tination search by Preset destinations” on
page 52 and “ — Destination search by
“Address Book”” on page 64.)
Registered areas are avoided at the time
of route search.

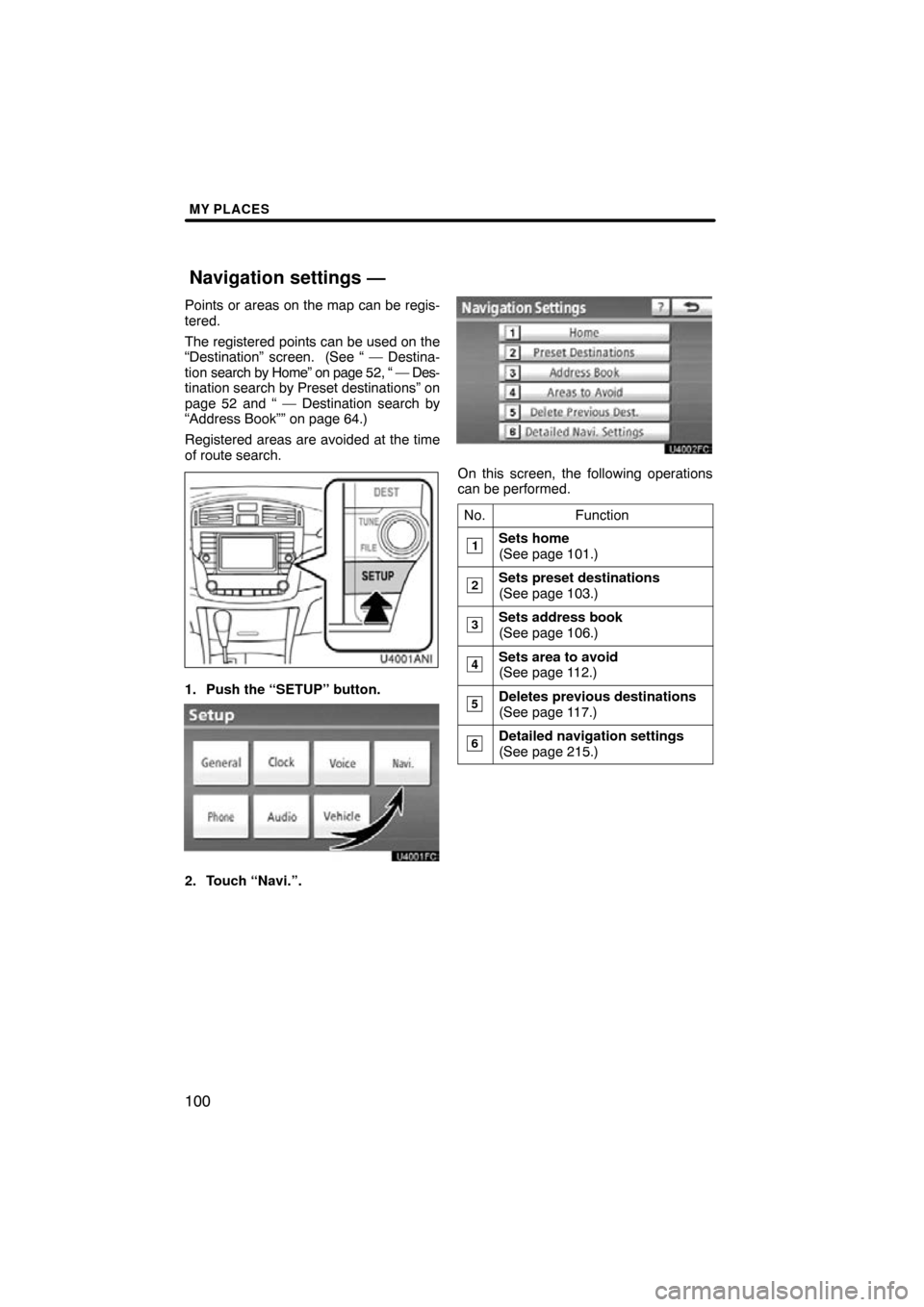

1. Push the “SETUP” button.
2. Touch “Navi.”.
On this screen, the following operations
can be performed.
No.
Function
1Sets home
(See page 101.)
2Sets preset destinations
(See page 103.)
3Sets address book
(See page 106.)
4Sets area to avoid
(See page 112.)
5Deletes previous destinations
(See page 117.)
6Detailed navigation settings
(See page 215.)
Navigation settings —
