TOYOTA AVALON 2011 XX30 / 3.G Navigation Manual

ROUTE GUIDANCE
81
When the vehicle is on the guidance route,
the distance and the estimated travel/arriv-
al time to the destination are displayed.
When the vehicle is not on the guidance
route, the distance and the direction of the
destination are displayed.
When driving on the guidance route and
more than one destination is set, the dis-
tance and the estimated travel/arrival time
from the current position to each destina-
tion are displayed.
1. Touch this button to display the fol-
lowing screen.
2. Touch the number button to display
the desired destination. The distance, the estimated travel time
and the estimated arrival time from the cur-
rent position to the selected destination
are displayed.
Estimated travel time is dis-
played.
Estimated arrival time is dis-
played.
To switch to estimated arrival
time.
To switch to estimated travel time.
Displayed while driving off the
guidance route. The destination
direction is indicated by an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along
the route is displayed. Travel time
and arrival time is calculated based
on the set vehicle speed information.
(See page 217.) However, when the
vehicle is not on the guidance route,
the distance is the linear distance be-
tween the current position and the
destination.
Distance and time to
destination

ROUTE GUIDANCE
82
You can add destinations and search
again for the routes.
1. Touch “Route”.
2. Touch “Add”.
3. Input an additional destination in
the same way as the destination
search. (See “Destination search” on
page 50.)
4. Touch the desired “Add Destination
Here” to determine the arrival order of
the additional destination. When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch “Route”.
2. Touch “Reorder”.
3. Select the desired destination and
press “Move Up” or “Move Down” to
change the arrival order.
4. Touch “OK”.
5. After selecting the destinations,
touch “OK”.
The system searches for the guidance
route again, and displays the entire route.
Setting and deleting
destinations —
— Adding destinations
— Reordering destinations

ROUTE GUIDANCE
83
A set destination can be deleted.
1. Touch “Route”.
2. Touch “Delete”.
When more than one destination is set, a
list will be displayed on the screen.
3. Touch the destination for deletion.
“Select All”: To select all destinations on
the list.
“Unselect All”: To unselect all of the se-
lected destinations.
A message appears to confirm the request
to delete. 4. To delete the destination(s), touch
“Yes”.
If
“Yes” is touched, the data cannot be re-
covered.
If “No” is touched, the previous screen will
return.
The system searches for the guidance
route again, and displays the entire route.
— Deleting destinations

ROUTE GUIDANCE
84
While the route guidance is operating, you
can change the route to detour around a
section of the route where a delay is
caused by road repairs, or an accident,
etc.
1. Touch “Route”.
2. Touch “Detour”.
3. Select the button below to select the
desired detour distance.
“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these buttons to start
the detour process. After detouring, the
system returns to the original guidance
route.
“Whole Route”: By touching this button,
the system will calculate an entire new
route to the destination.
“Around Traffic”: If you touch this button,
the system will search for the route based
on the traffic congestion information re-
ceived from XM NavTraffic. For details,
see “XM NavTraffic” on page 96.
Setting route —
— Detour setting

ROUTE GUIDANCE
85
This picture shows an example of how the
system would guide around a delay
caused by a traffic jam.
1This position indicates the location of
a traffic jam caused by road repairs or
an accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
 When your vehicle is on a freeway,
the detour distance selections are
5, 15, and 25 miles (km).
 The system may not be able to cal-
culate a detour route depending on
the selected distance and sur-
rounding road conditions.
1. Touch “Route”.
2. Touch “Overview”.
The entire route from the current position
to the destination is displayed.
“OK”: To start guidance.
“Turn List”: The following screen displays
the list of the roads up to the destination.
“Preview”: To preview the route.
— Route overview

ROUTE GUIDANCE
86
You can scroll through the list of roads by
touching
or . However, not all
road names in the route may appear on the
list. If a road changes its name without re-
quiring a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The
street names will be displayed in order
from the starting point, along with the dis-
tance to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.
Touch “Map” on the “T urn List” screen.
The point which you choose is displayed
on the map screen.
Route preview
1. Touch “Route”.
2. Touch “Overview”.
3. Touch “Preview”.

ROUTE GUIDANCE
87
:To indicate the next destination.
:To preview the route to the next
destination.
:To preview the route to the next
destination in fast −forward mode.
: To stop the preview.
: To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in
fast−forward mode.
: To indicate the previous destina-
tion or starting point.
To select route type
You can designate the route conditions of
the route to the destination.
1. Touch “Route”.
2. Touch “Preferences”.
3. Touch “Quick”, “Short” or “Alter-
nate” and touch “OK”.
— Route preference

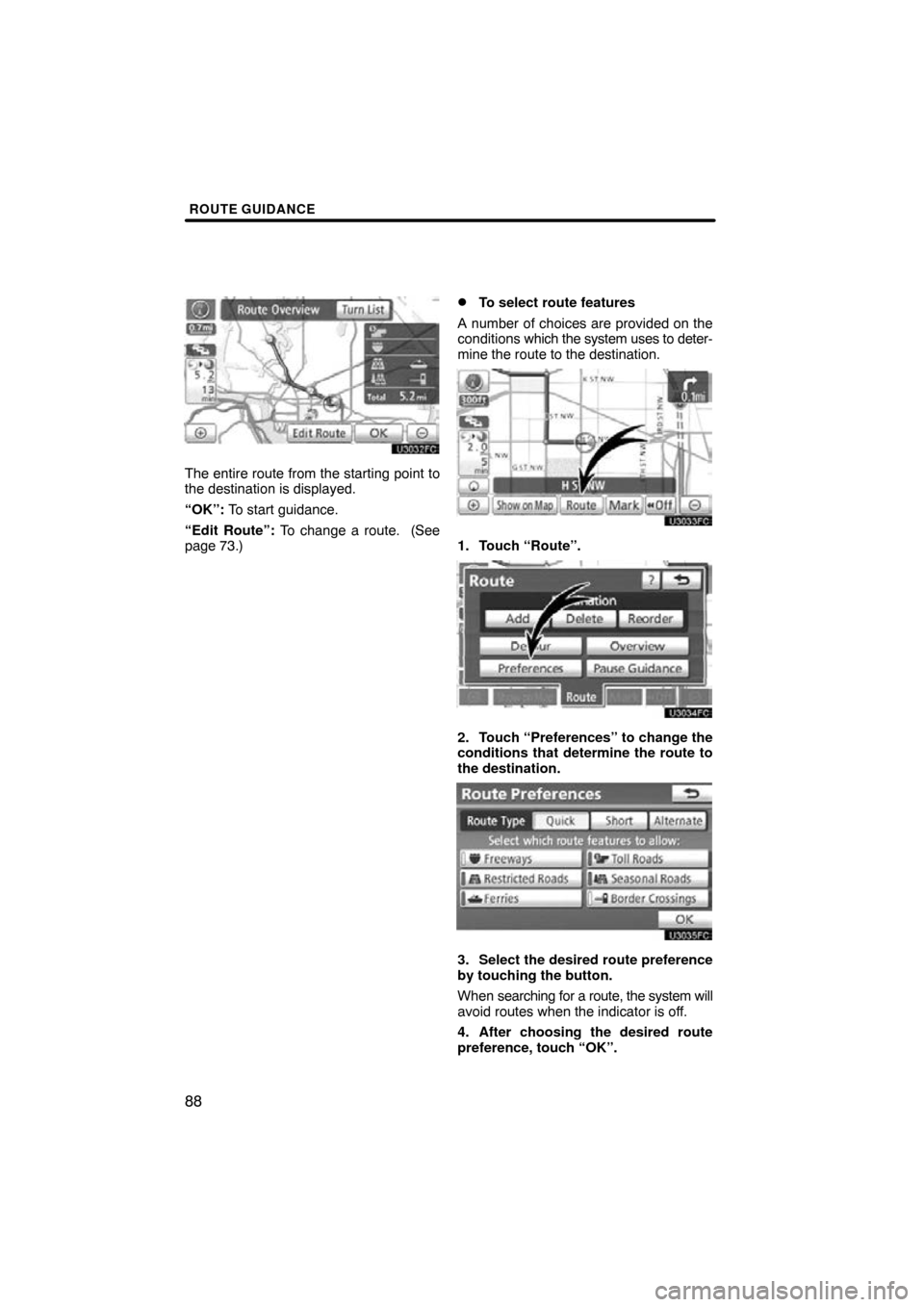

ROUTE GUIDANCE
88
The entire route from the starting point to
the destination is displayed.
“OK”: To start guidance.
“Edit Route”: To change a route. (See
page 73.)
To select route features
A number of choices are provided on the
conditions which the system uses to deter-
mine the route to the destination.
1. Touch “Route”.
2. Touch “Preferences” to change the
conditions that determine the route to
the destination.
3. Select the desired route preference
by touching the button.
When searching for a route, the system will
avoid routes when the indicator is off.
4. After choosing the desired route
preference, touch “OK”.

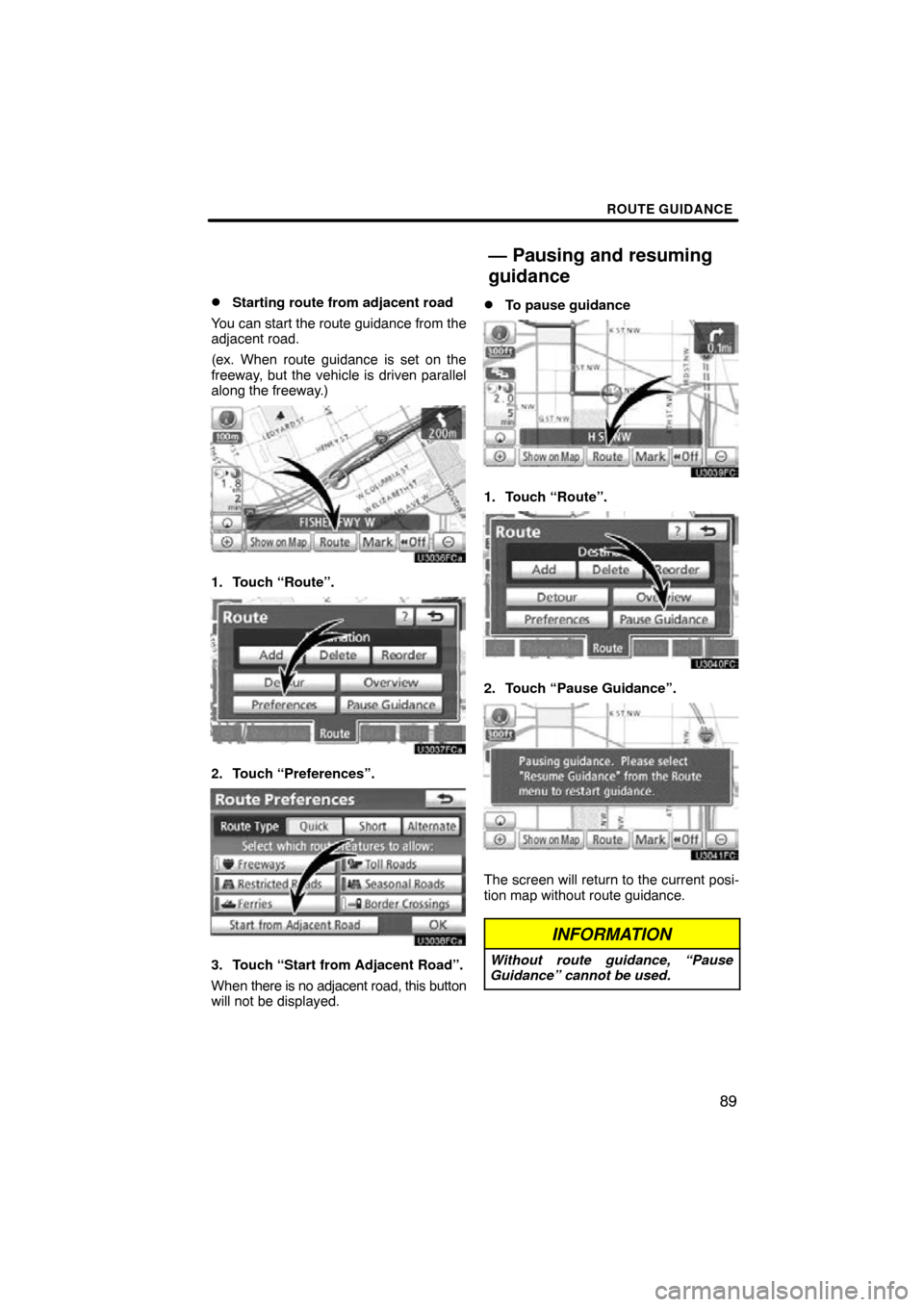

ROUTE GUIDANCE
89

Starting route from adjacent road
You can start the route guidance from the
adjacent road.
(ex. When route guidance is set on the
freeway, but the vehicle is driven parallel
along the freeway.)
1. Touch “Route”.
2. Touch “Preferences”.
3. Touch “Start from Adjacent Road”.
When there is no adjacent road, this button
will not be displayed.
To pause guidance
1. Touch “Route”.
2. Touch “Pause Guidance”.
The screen will return to the current posi-
tion map without route guidance.
INFORMATION
Without route guidance, “Pause
Guidance” cannot be used.
— Pausing and resuming
guidance

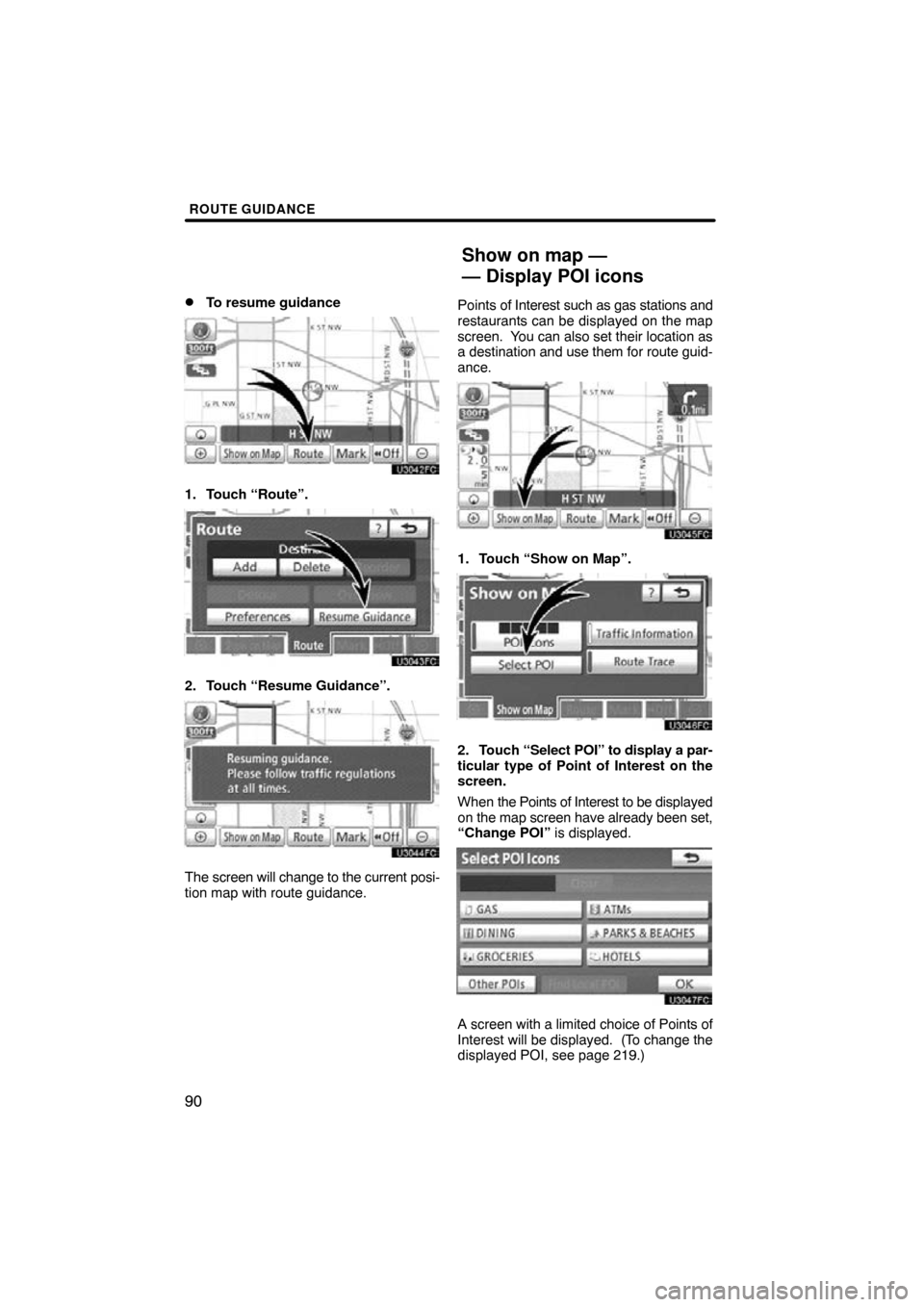

ROUTE GUIDANCE
90
To resume guidance
1. Touch “Route”.
2. Touch “Resume Guidance”.
The screen will change to the current posi-
tion map with route guidance.Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid-
ance.
1. Touch “Show on Map”.
2. Touch
“Select POI” to display a par-
ticular type of Point of Interest on the
screen.
When the Points of Interest to be displayed
on the map screen have already been set,
“Change POI” is displayed.
A screen with a limited choice of Points of
Interest will be displayed. (To change the
displayed POI, see page 219.)
Show on map —
— Display POI icons
