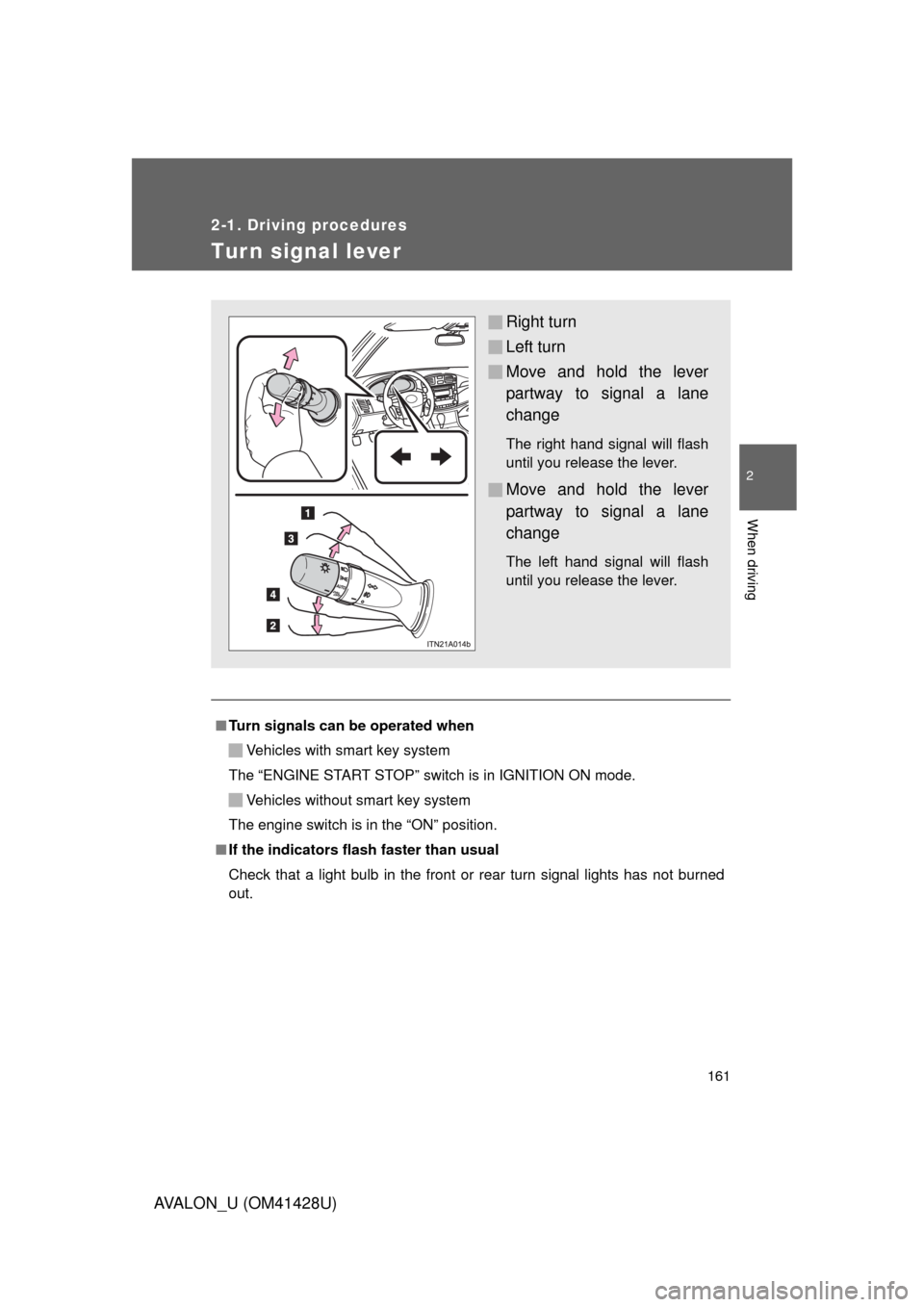

Tur n signal lever
■Turn signals can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change
The left hand signal will flash
until you release the lever.

162
2-1. Driving procedures
AVALON_U (OM41428U)

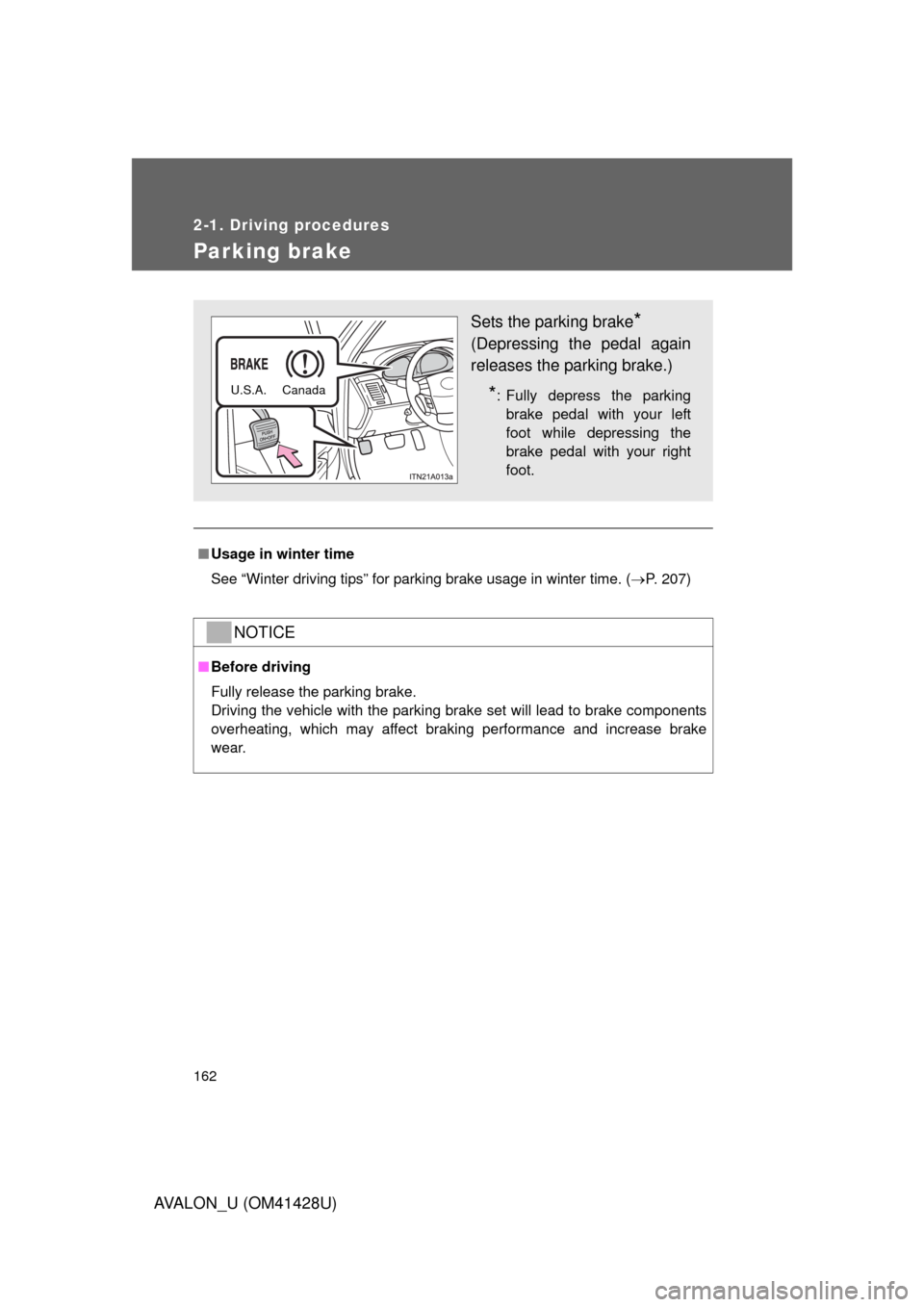

Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 207)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking
brake pedal with your left
foot while depressing the
brake pedal with your right
foot.CanadaU.S.A.

163
2-1. Driving procedures
2
When driving
AVALON_U (OM41428U)

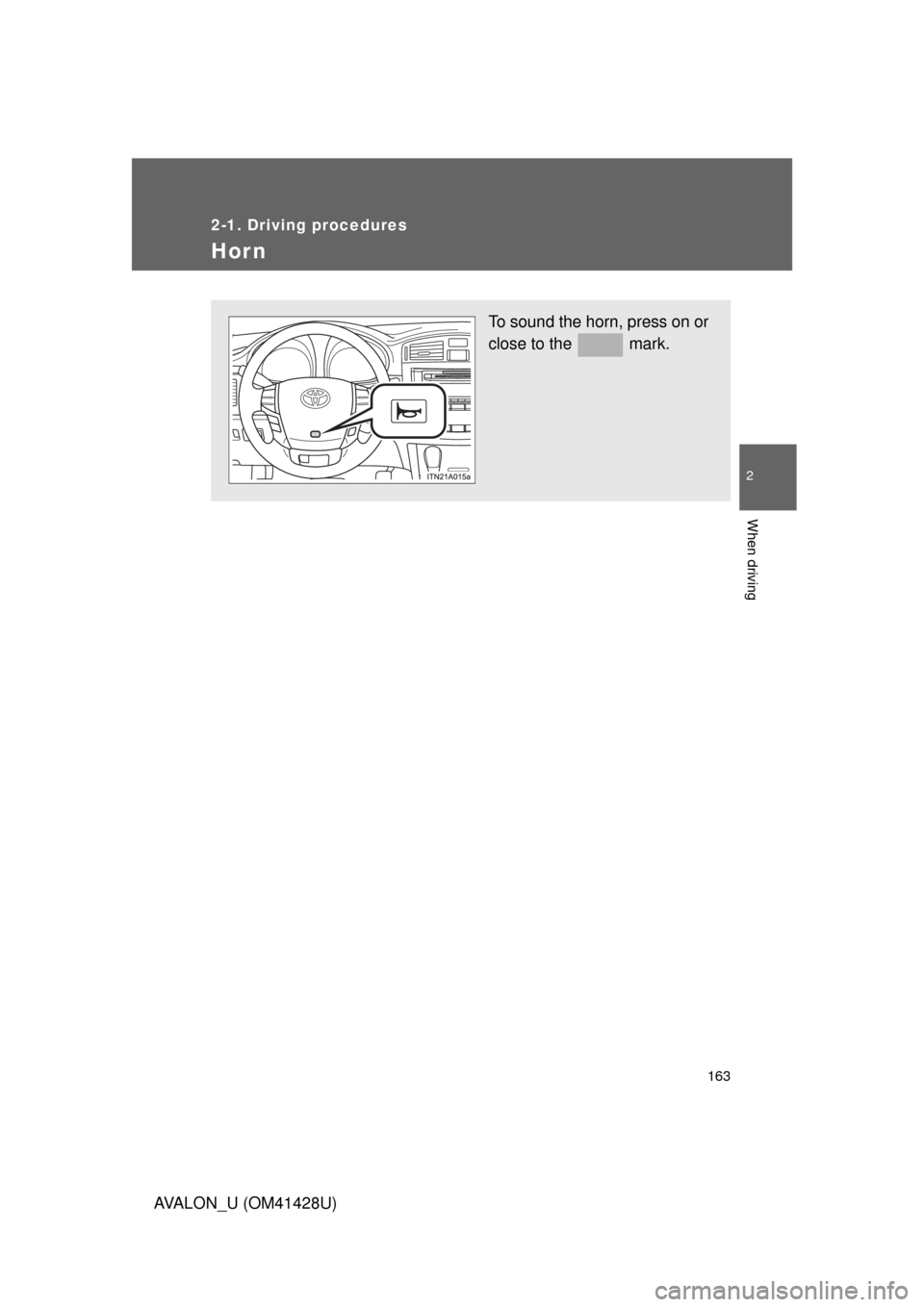

Hor n
To sound the horn, press on or
close to the mark.

164
AVALON_U (OM41428U)
2-2. Instrument cluster

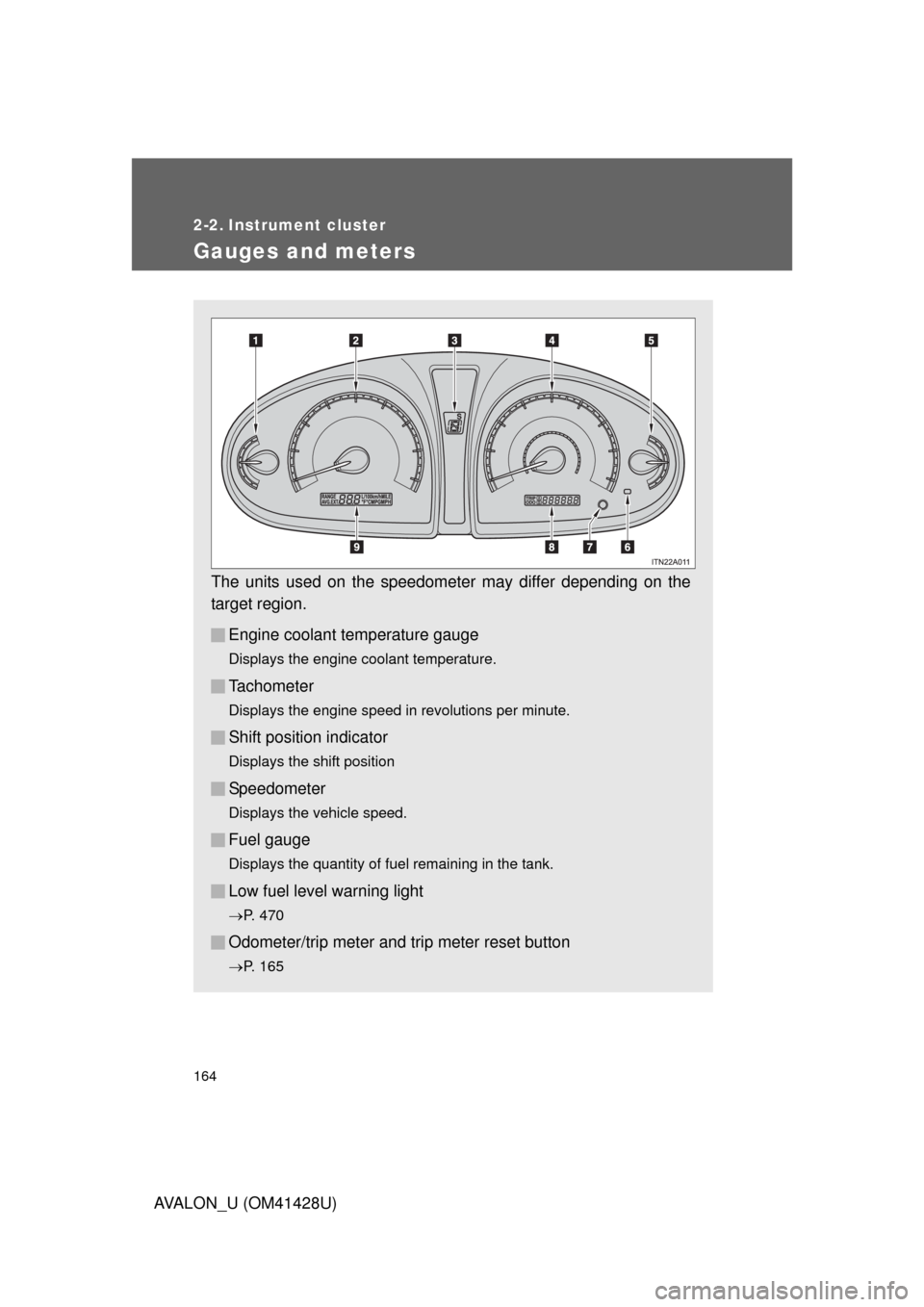

Gauges and meters
The units used on the speedometer may differ depending on the
target region.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Tachometer
Displays the engine speed in revolutions per minute.
Shift position indicator
Displays the shift position
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Low fuel level warning light
P. 470
Odometer/trip meter and trip meter reset button
P. 165

165 2-2. Instrument cluster
2
When driving
AVALON_U (OM41428U)

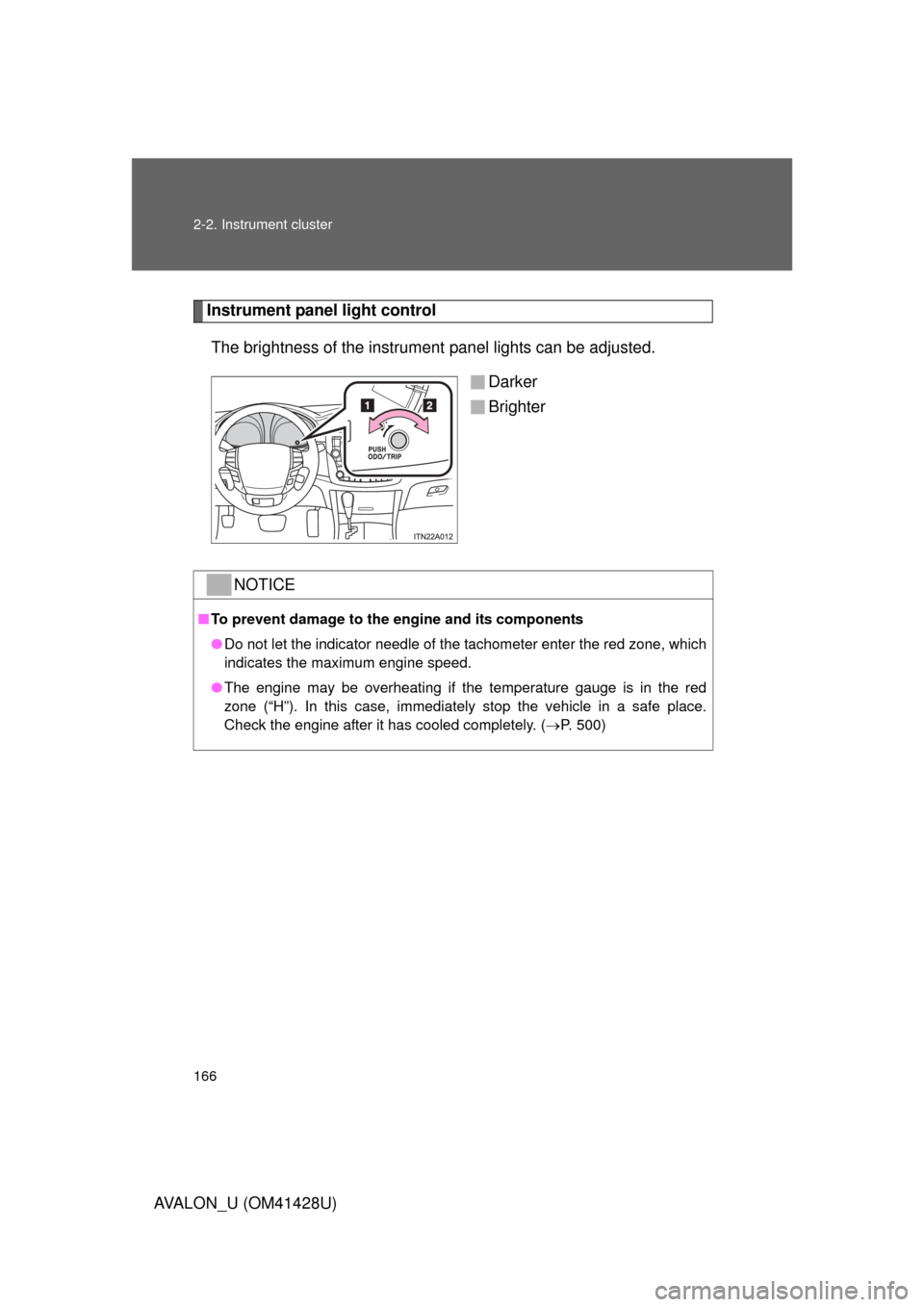

Odometer and trip meter display button
Vehicles with smart key system
Pressing this button switches among odometer and trip meter when
the “ENGINE START STOP” switch is IGNITION ON mode.
Vehicles without smart key system
Pressing this button switches among odometer and trip meter when
the engine switch is in the “ON” position.
Odometer
Trip meter A
Trip meter B
Pushing and holding the button
will reset the trip meter.

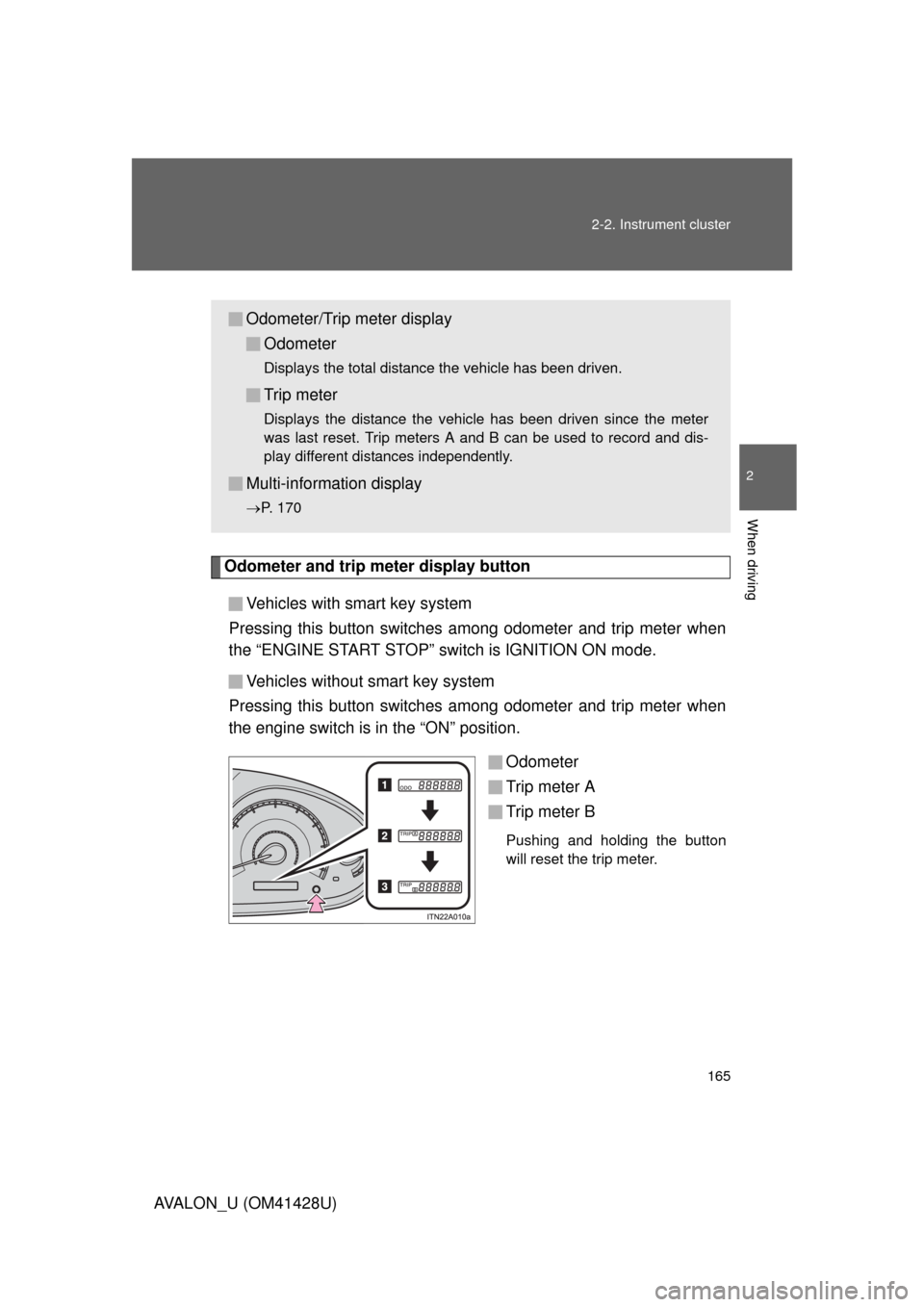

Odometer/Trip meter display
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Multi-information display
P. 170

166 2-2. Instrument cluster
AVALON_U (OM41428U)
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red
zone (“H”). In this case, immediately stop the vehicle in a safe place.
Check the engine after it has cooled completely. (P. 500)

167
2-2. Instrument cluster
2
When driving
AVALON_U (OM41428U)

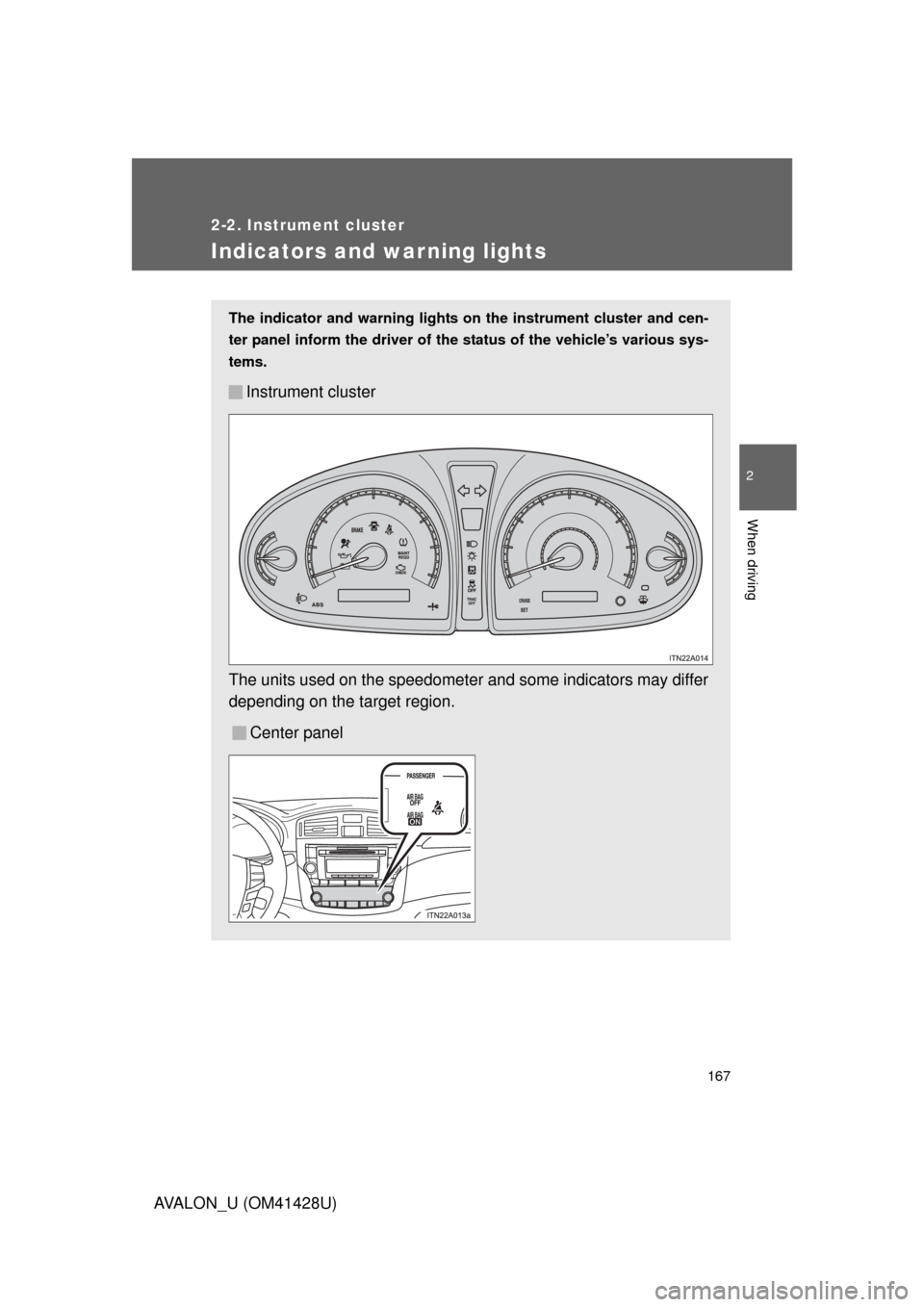

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
The units used on the speedometer and some indicators may differ
depending on the target region.
Center panel

168 2-2. Instrument cluster
AVALON_U (OM41428U)

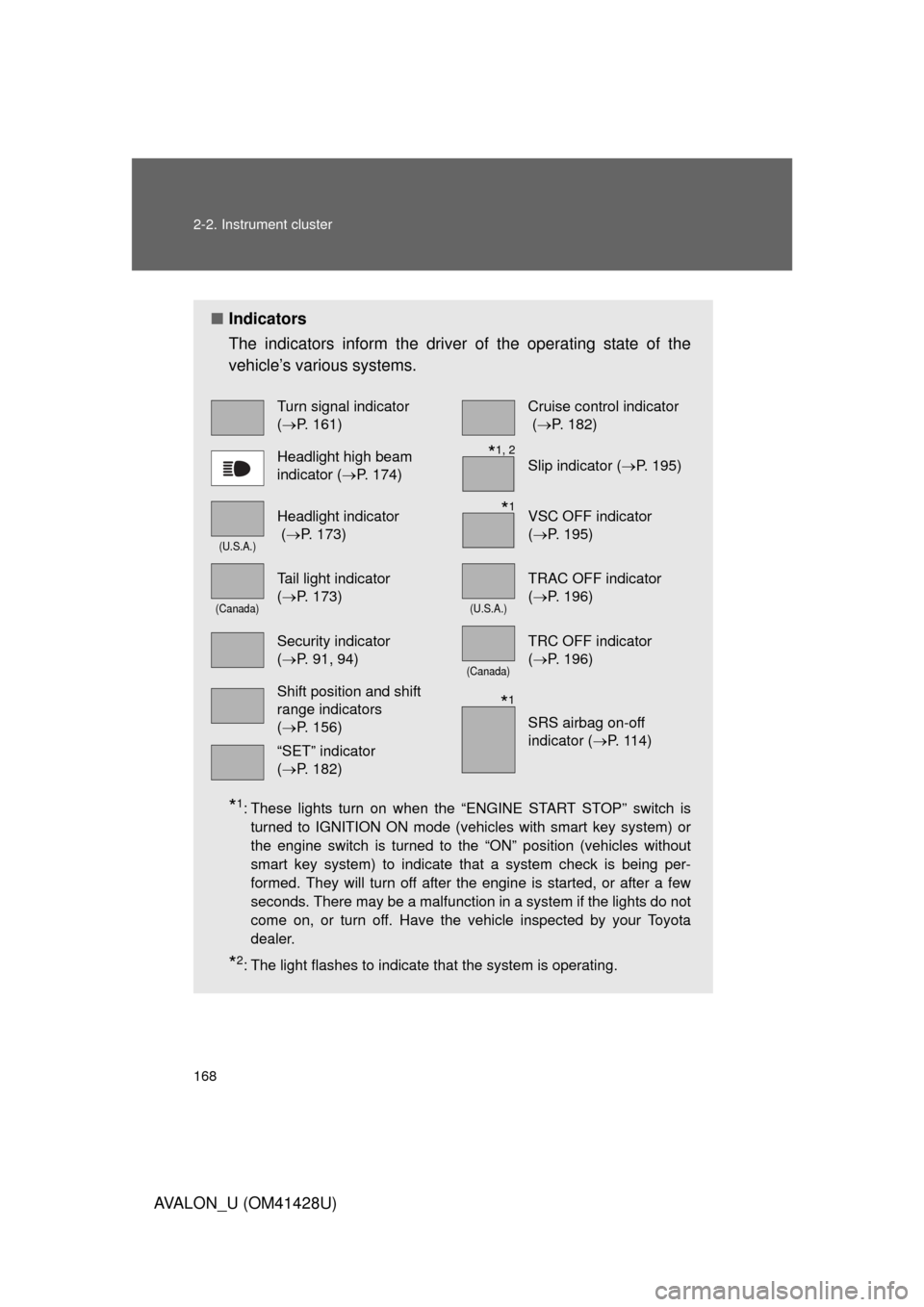

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with smart key system) or
the engine switch is turned to the “ON” position (vehicles without
smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(P. 161)Cruise control indicator
(P. 182)
Headlight high beam
indicator (P. 174)Slip indicator (P. 195)
(U.S.A.)
Headlight indicator
(P. 173)VSC OFF indicator
(P. 195)
(Canada)
Tail light indicator
(P. 173)
(U.S.A.)
TRAC OFF indicator
(P. 196)
Security indicator
(P. 91, 94)
(Canada)
TRC OFF indicator
(P. 196)
Shift position and shift
range indicators
(P. 156)
SRS airbag on-off
indicator (P. 114)
“SET” indicator
(P. 182)
*1, 2
*1
*1

169 2-2. Instrument cluster
2
When driving
AVALON_U (OM41428U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

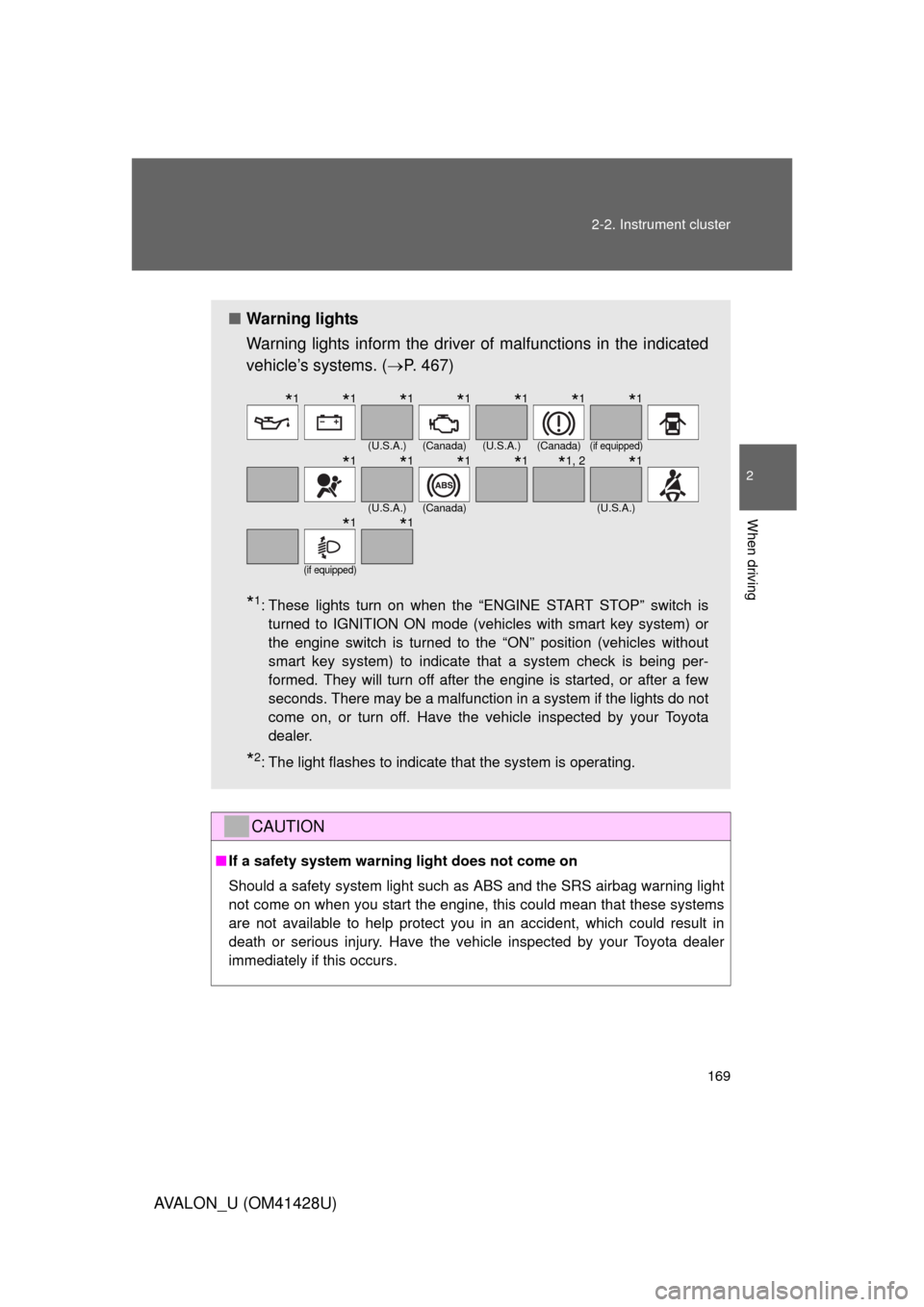

■Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. (P. 467)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with smart key system) or
the engine switch is turned to the “ON” position (vehicles without
smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate that the system is operating.
(U.S.A.)(Canada)(U.S.A.)(Canada)(if equipped)
(U.S.A.)(Canada)(U.S.A.)
(if equipped)
*1*1*1*1*1*1*1
*1*1*1*1*1, 2*1
*1*1

170
2-2. Instrument cluster
AVALON_U (OM41428U)
Multi-information display

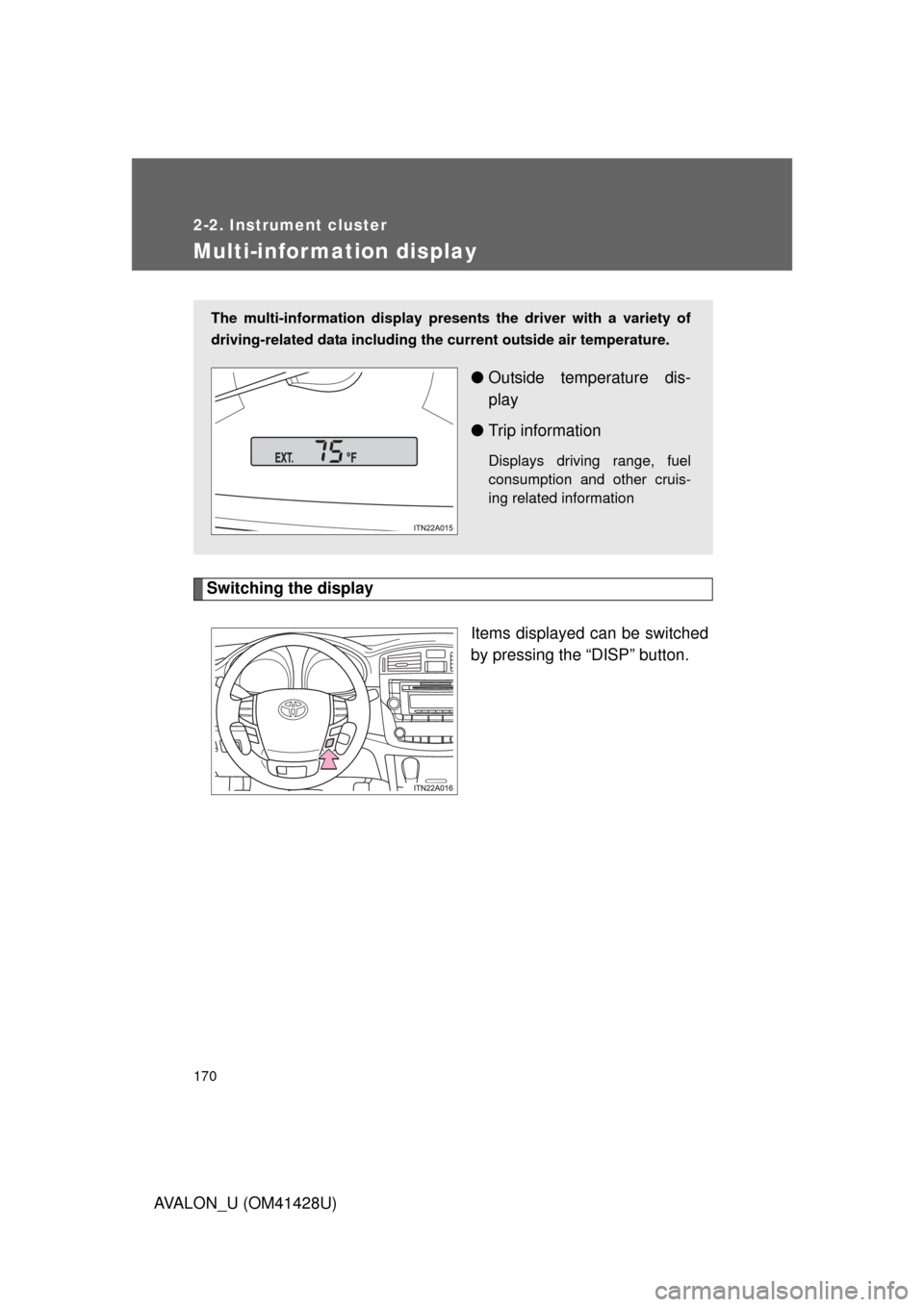

Switching the display
Items displayed can be switched
by pressing the “DISP” button.
The multi-information display presents the driver with a variety of
driving-related data including the current outside air temperature.
●Outside temperature dis-
play
●Trip information
Displays driving range, fuel
consumption and other cruis-
ing related information
