131 1-7. Safety information
1
Before driving
AVALON_U (OM41428U)■Booster seat
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
(P. 65)

132 1-7. Safety information
AVALON_U (OM41428U)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strap
Secure the child restraint using a
seat belt or LATCH anchors, and
lock the head restraint in place at
the lowest position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.

133 1-7. Safety information
1
Before driving
AVALON_U (OM41428U)
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: (P. 68)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be injured or even killed in the event of sudden braking,
sudden swerving or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.

134 1-7. Safety information
AVALON_U (OM41428U)
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
●Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
●Push and pull the child restraint system from side to side and forward to be
sure it is secure.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system
manufacturer.
●Only put a forward-facing child seat on
the front seat when unavoidable. When
installing a forward-facing child restraint
on the front passenger seat, move the
seat as far back as possible even if
“AIR BAG OFF” indicator light is illumi-
nated. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).

135 1-7. Safety information
1
Before driving
AVALON_U (OM41428U)
CAUTION
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child seat.
Make sure the child restraint system is securely attached, or it may cause
death or serious injury to the child or other passengers in the event of a sud-
den stop, sudden swerve or accident.

136 1-7. Safety information
AVALON_U (OM41428U)

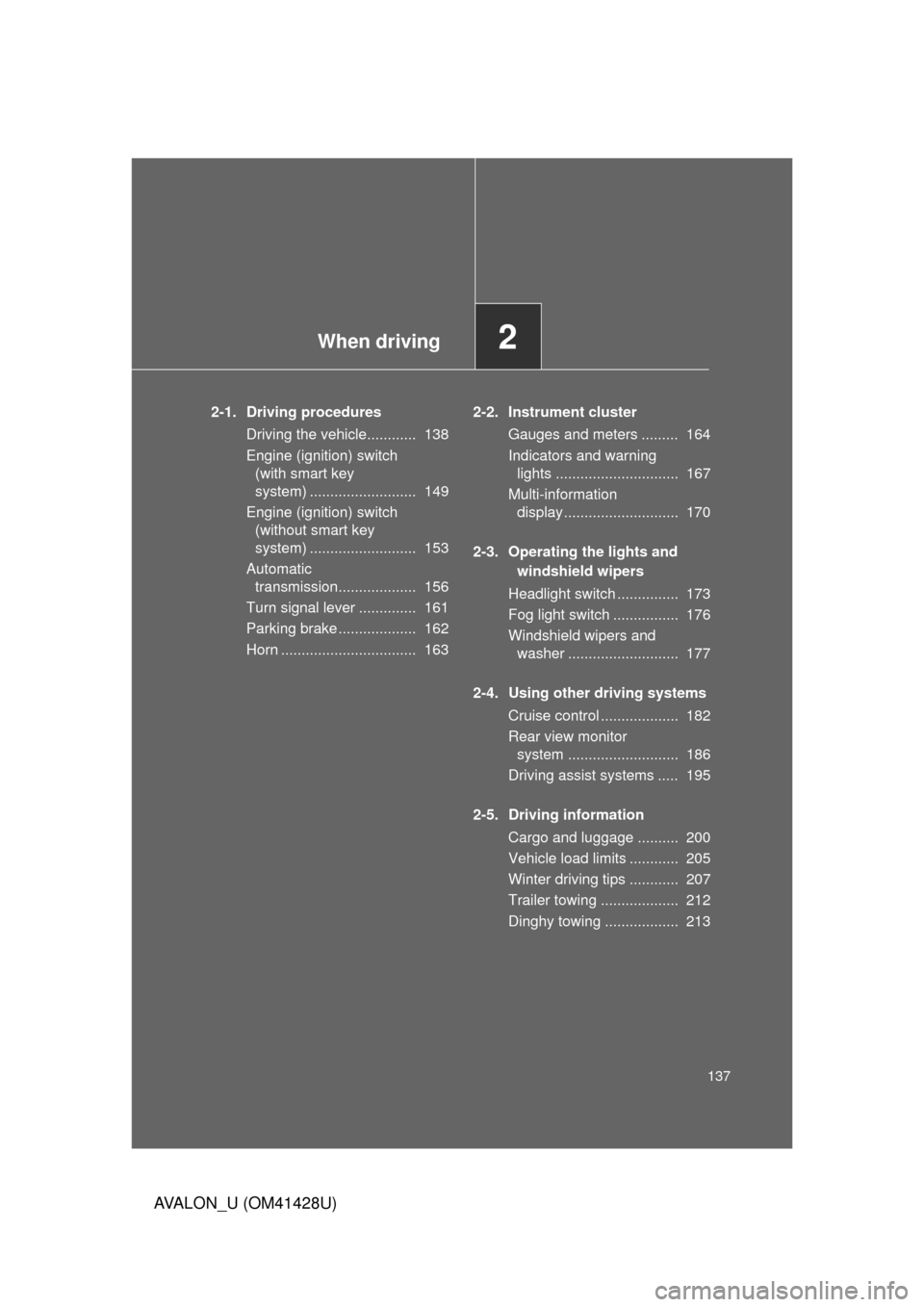

When driving2
137
AVALON_U (OM41428U)
2-1. Driving procedures
Driving the vehicle............ 138
Engine (ignition) switch
(with smart key
system) .......................... 149
Engine (ignition) switch
(without smart key
system) .......................... 153
Automatic
transmission................... 156
Turn signal lever .............. 161
Parking brake ................... 162
Horn ................................. 1632-2. Instrument cluster
Gauges and meters ......... 164
Indicators and warning
lights .............................. 167
Multi-information
display............................ 170
2-3. Operating the lights and
windshield wipers
Headlight switch ............... 173
Fog light switch ................ 176
Windshield wipers and
washer ........................... 177
2-4. Using other driving systems
Cruise control ................... 182
Rear view monitor
system ........................... 186
Driving assist systems ..... 195
2-5. Driving information
Cargo and luggage .......... 200
Vehicle load limits ............ 205
Winter driving tips ............ 207
Trailer towing ................... 212
Dinghy towing .................. 213

138
AVALON_U (OM41428U)
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
■Starting the engine
P. 149, 153
■Driving
With the brake pedal depressed, shift the shift lever to “D”.
(P. 156)
Release the parking brake. (P. 162)
Gradually release the brake pedal and gently push the
accelerator pedal to accelerate the vehicle.
■Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to “P”. (
P. 156)
■Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. (P. 162)
Shift the shift lever to “P”. (P. 156)
Stop the engine.
Lock the door, making sure that you have the key on your
person.

139 2-1. Driving procedures
2
When driving
AVALON_U (OM41428U)
Starting on a steep incline
Firmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be
especially slippery.
●Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
■Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
●For the first 200 miles (300 km):
Avoid sudden stops.
●For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 510)

140 2-1. Driving procedures
AVALON_U (OM41428U)
CAUTION
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine run-
ning. This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident
that could result in death or serious injury.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly, allowing you to depress the brake and accelerator
pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
●Do not let the vehicle roll backwards while the shift lever is in a driving
position, or roll forward while the shift lever is in “R”.
Doing so may cause the engine not to operate or lead to poor brake and
steering performance, resulting in an accident or damage to the vehicle.
