211 2-5. Driving information
2
When driving
AVALON_U (OM41428U)
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Toyota dealers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

212
2-5. Driving information
AVALON_U (OM41428U)

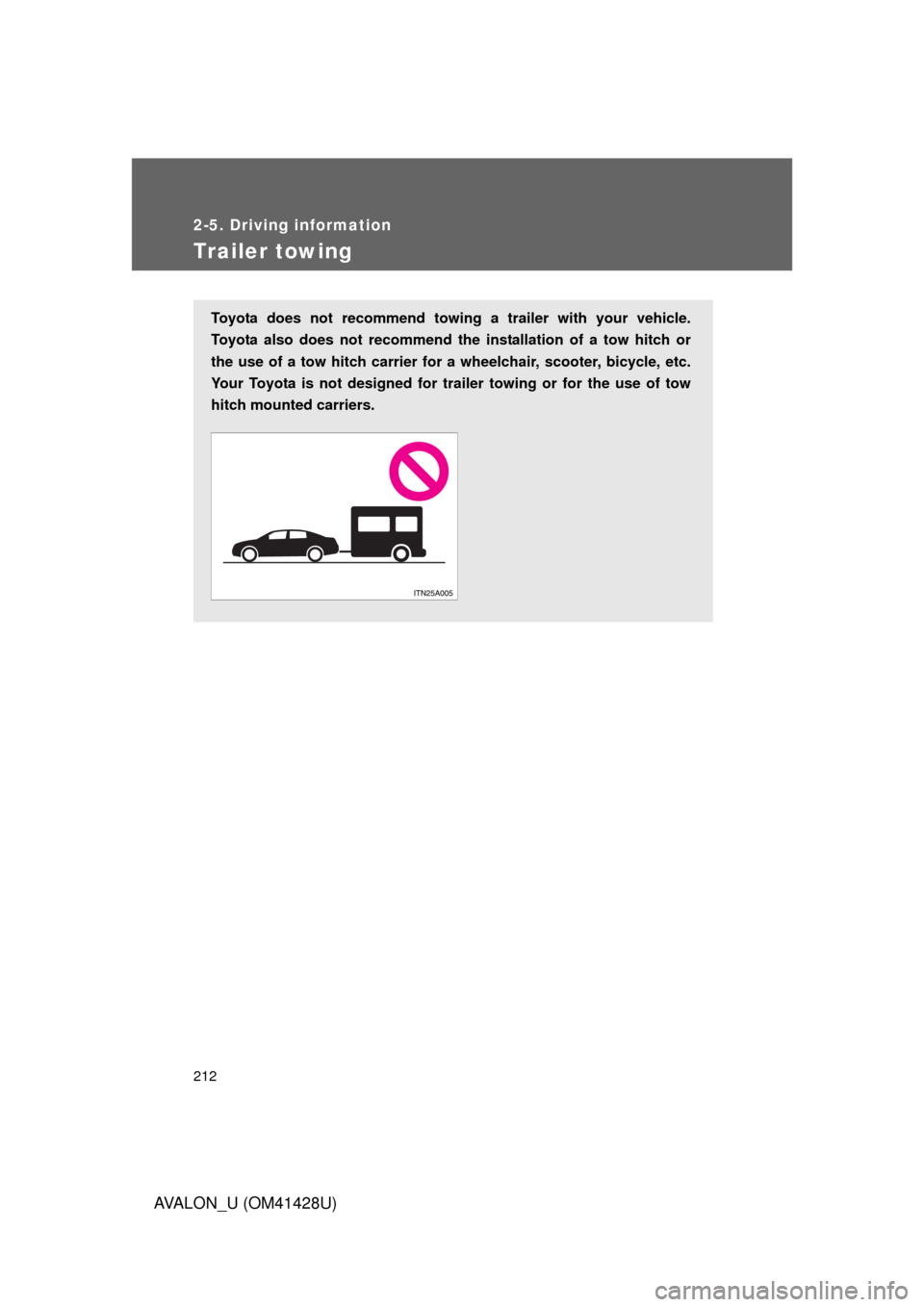

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.

213
2-5. Driving information
2
When driving
AVALON_U (OM41428U)
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

214
AVALON_U (OM41428U)

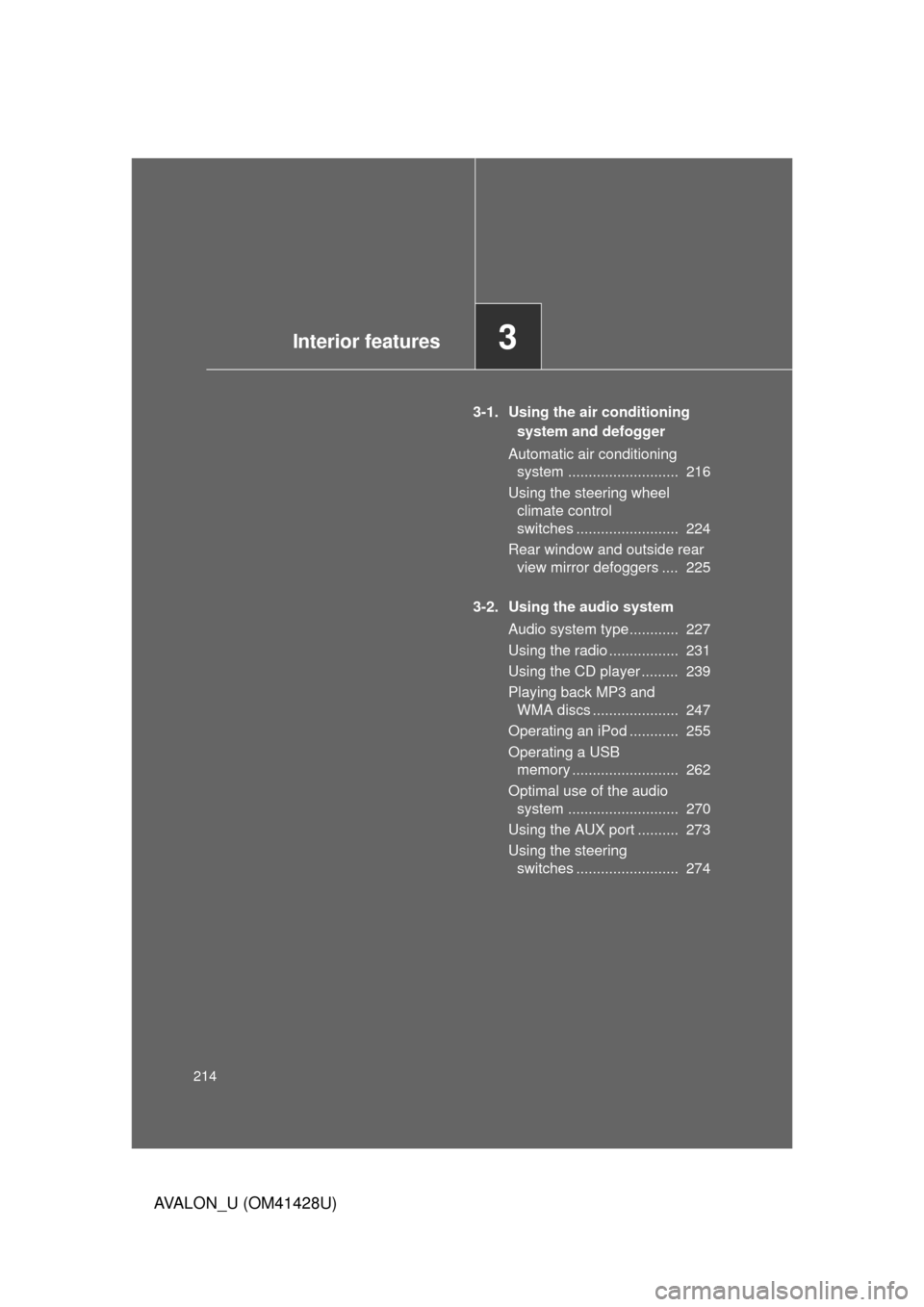

3-1. Using the air conditioning system and defogger
Automatic air conditioning system ........................... 216
Using the steering wheel climate control
switches ......................... 224
Rear window and outside rear view mirror defoggers .... 225
3-2. Using the audio system Audio system type............ 227
Using the radio ................. 231
Using the CD player ......... 239
Playing back MP3 and WMA discs ..................... 247
Operating an iPod ............ 255
Operating a USB memory .......................... 262
Optimal use of the audio system ........................... 270
Using the AUX port .......... 273
Using the steering switches ......................... 274
Interior features3

Interior features3
215
AVALON_U (OM41428U)

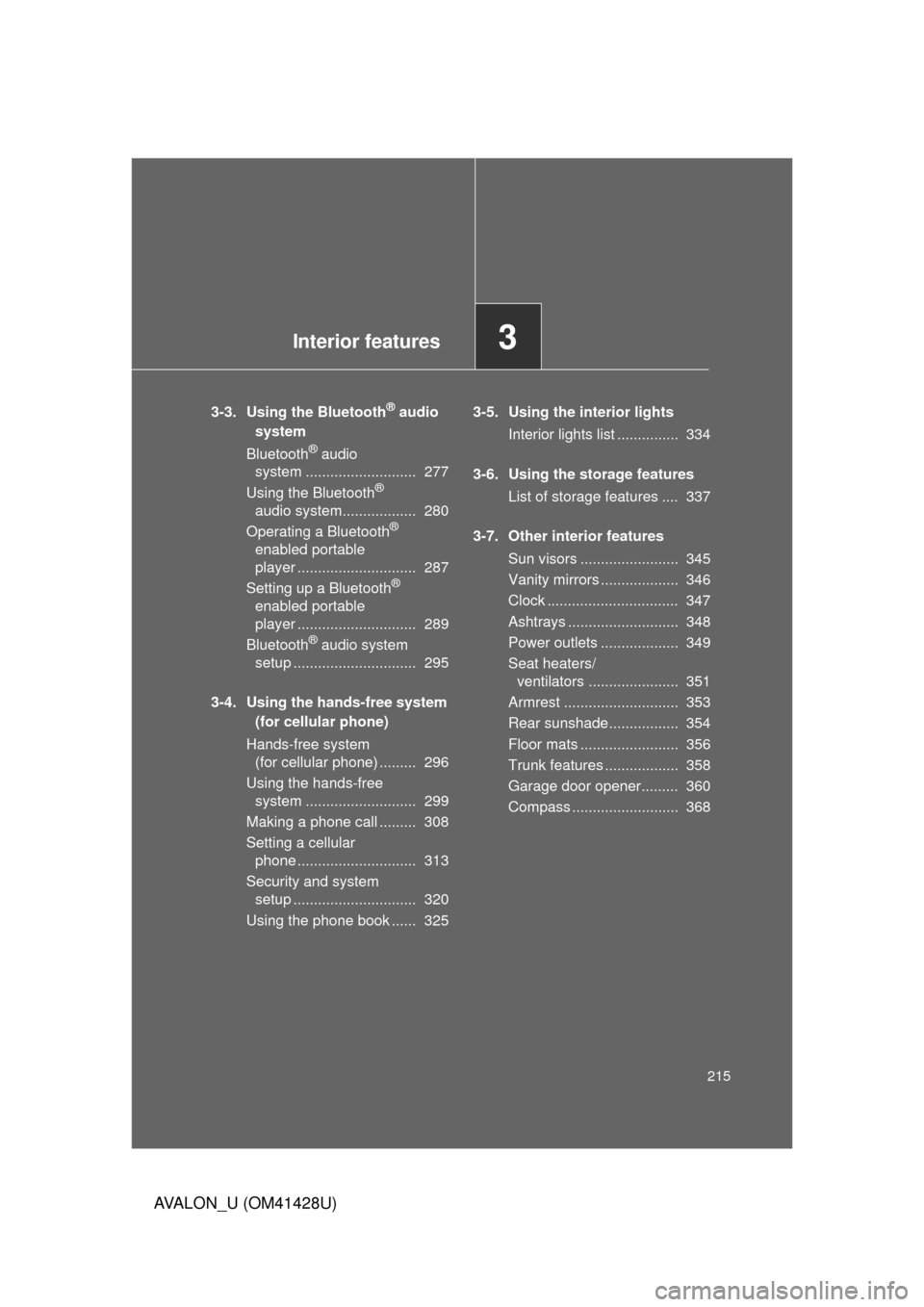

3-3. Using the Bluetooth® audio
system
Bluetooth
® audio
system ........................... 277
Using the Bluetooth
®
audio system.................. 280
Operating a Bluetooth
®
enabled portable
player ............................. 287
Setting up a Bluetooth
®
enabled portable
player ............................. 289
Bluetooth
® audio system
setup .............................. 295
3-4. Using the hands-free system
(for cellular phone)
Hands-free system
(for cellular phone) ......... 296
Using the hands-free
system ........................... 299
Making a phone call ......... 308
Setting a cellular
phone ............................. 313
Security and system
setup .............................. 320
Using the phone book ...... 3253-5. Using the interior lights
Interior lights list ............... 334
3-6. Using the storage features
List of storage features .... 337
3-7. Other interior features
Sun visors ........................ 345
Vanity mirrors ................... 346
Clock ................................ 347
Ashtrays ........................... 348
Power outlets ................... 349
Seat heaters/
ventilators ...................... 351
Armrest ............................ 353
Rear sunshade................. 354
Floor mats ........................ 356
Trunk features .................. 358
Garage door opener......... 360
Compass .......................... 368

216
AVALON_U (OM41428U)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Automatic mode
Off
Driver’s side temperature controlAir conditioning
ON/OFF switch Outside air or recirculated mode
Passenger’s side
temperature controlDual operation
Windshield defogger
Fan speed
Changes the air outlets used

217 3-1. Using the air conditioning system and defogger
3
Interior features
AVALON_U (OM41428U)Turning to the right increase the temperature and turn-
ing to the left decrease the temperature.
The temperature for the driver and passenger seats can be set sep-
arately.
Adjusting the settings
■Adjusting the temperature setting
Turning to the right increase the temperature and turning
to the left decrease the temperature.
Turning to the right (increase) or turning to the left
(decrease) to separately adjust the temperature for the passenger and
driver sides (dual mode). Press to return the driver and passenger
side temperatures to the same setting (simultaneous mode).
The air conditioning system switches between dual and simultaneous
modes each time is pressed.
■Adjusting the fan speed
Press “
” (increase) or “” (decrease) on the .
Press to turn the fan off.

218 3-1. Using the air conditioning system and defogger
AVALON_U (OM41428U)■Changing the air outlets
Press .
The air outlets switch each time
the button is pressed. The air flow
shown on the display indicate the
following.
Air flows to the upper body.
Air flows to the upper body and
feet.

219 3-1. Using the air conditioning system and defogger
3
Interior features
AVALON_U (OM41428U)Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time the button is pressed.

220 3-1. Using the air conditioning system and defogger
AVALON_U (OM41428U)
Defogging the windshield
Press
.
The air conditioning system con-
trol operates automatically.
