TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

221 3-1. Using the air conditioning system and defogger
3
Interior features
AVALON_U (OM41428U)
Adjusting the position of and opening and closing the air outlets
Center outlets
Turn the knob to open or close
the vent
Direct air flow to the left or
right, up or down
Side outlets
Direct air flow to the up or
down
Direct air flow to the left or
right
Rear seat outlets
Direct air flow to the up or
down
Direct air flow to the left or
right

222 3-1. Using the air conditioning system and defogger
AVALON_U (OM41428U)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is
on.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to
in accordance with the temperature setting and the inside temperature.
■Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■Outside temperature approaches 32 F (0 C)
The air conditioning system may not operate even when is pressed.
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator
light continues to flash. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.

223 3-1. Using the air conditioning system and defogger
3
Interior features
AVALON_U (OM41428U)
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the automatic air conditioning system on longer than necessary
when the engine is not running.

224
3-1. Using the air conditioning system and defogger
AVALON_U (OM41428U)
Using the steering wheel climate control switches
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and
fan speed are automatically adjusted according to the tempera-
ture setting.
Press “” to increase the temperature and “” to decrease the
temperature on .
The temperature for the driver and passenger seats can be set
separately.
Adjust the temperature settings
Press “
” to increase the temperature and “” to decrease the tem-
perature on .
Turning off the fan
Press .
Some air conditioning feature can be controlled using the switches
on the steering wheel.
Temperature control
Automatic mode
Off

225
3-1. Using the air conditioning system and defogger
3
Interior features
AVALON_U (OM41428U)

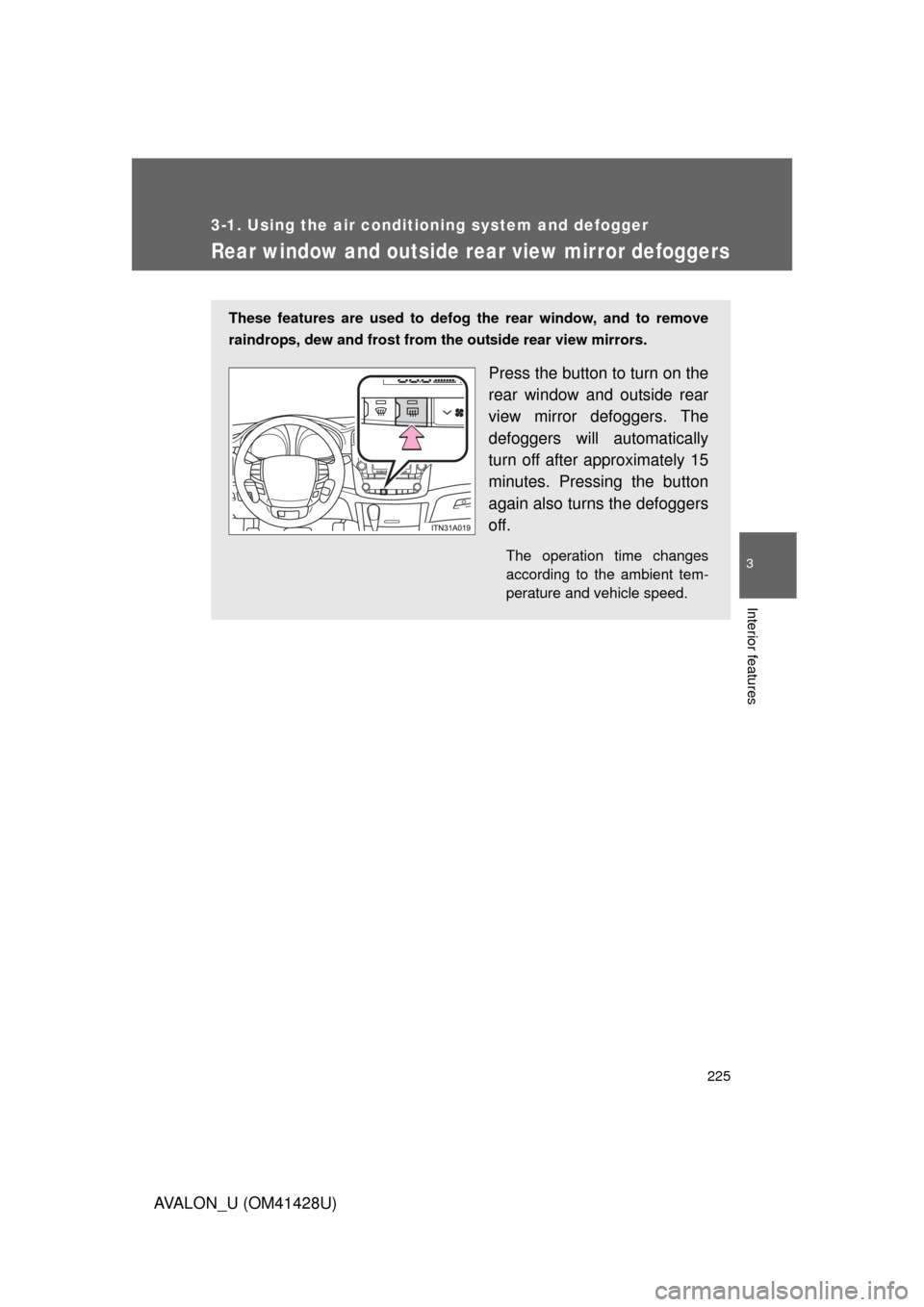

Rear window and outside rear view mirror defoggers
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
Press the button to turn on the
rear window and outside rear
view mirror defoggers. The
defoggers will automatically
turn off after approximately 15
minutes. Pressing the button
again also turns the defoggers
off.
The operation time changes
according to the ambient tem-
perature and vehicle speed.

226 3-1. Using the air conditioning system and defogger
AVALON_U (OM41428U)
■Operating conditions
Vehicles with smart key system
The “ENGINE START STOP” switch must be in IGNITION ON mode.
Vehicles without smart key system
The engine switch must be in the “ON” position.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is not running.

227
3
Interior features
AVALON_U (OM41428U)

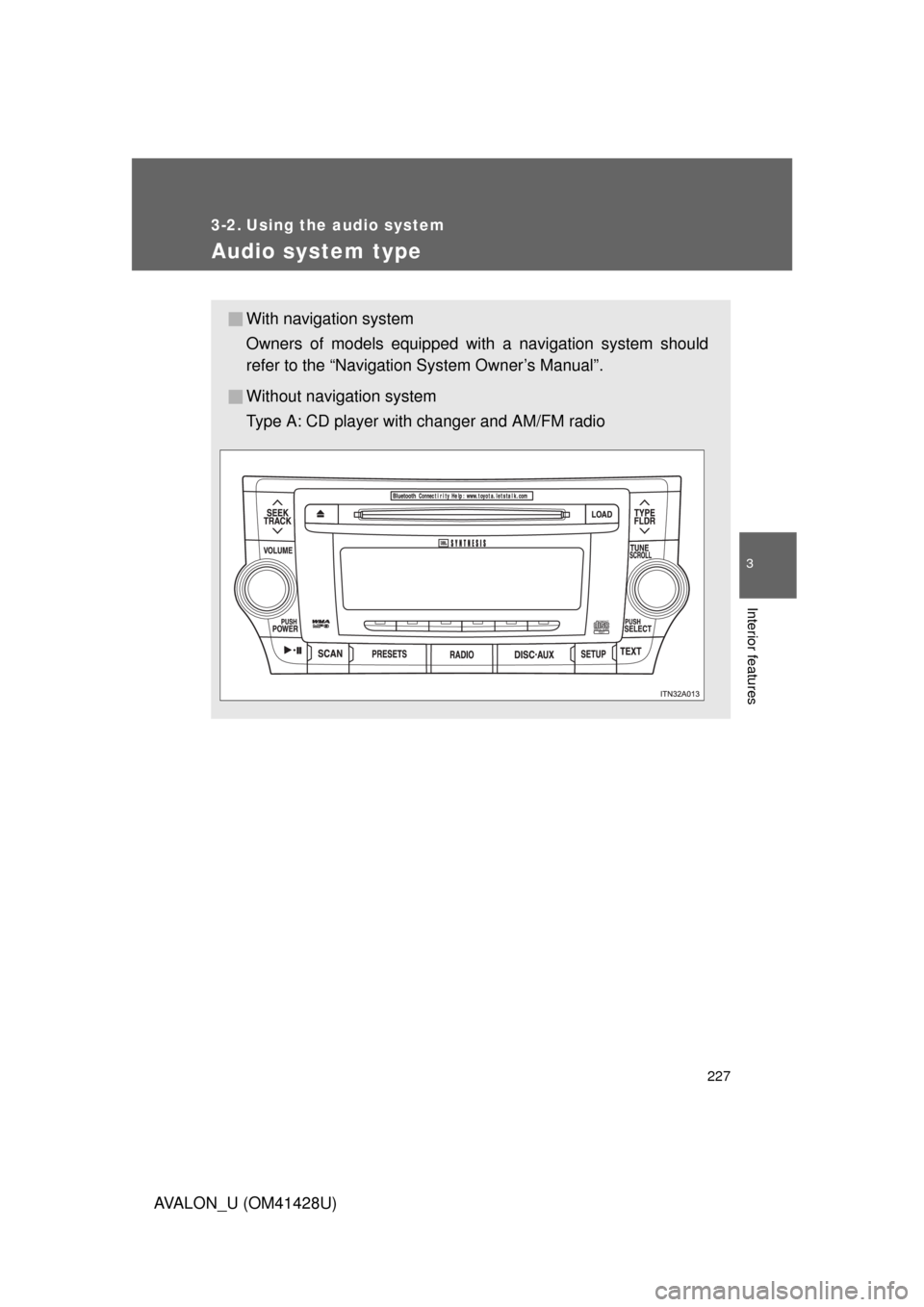

3-2. Using the audio system
Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navigation system
Type A: CD player with changer and AM/FM radio

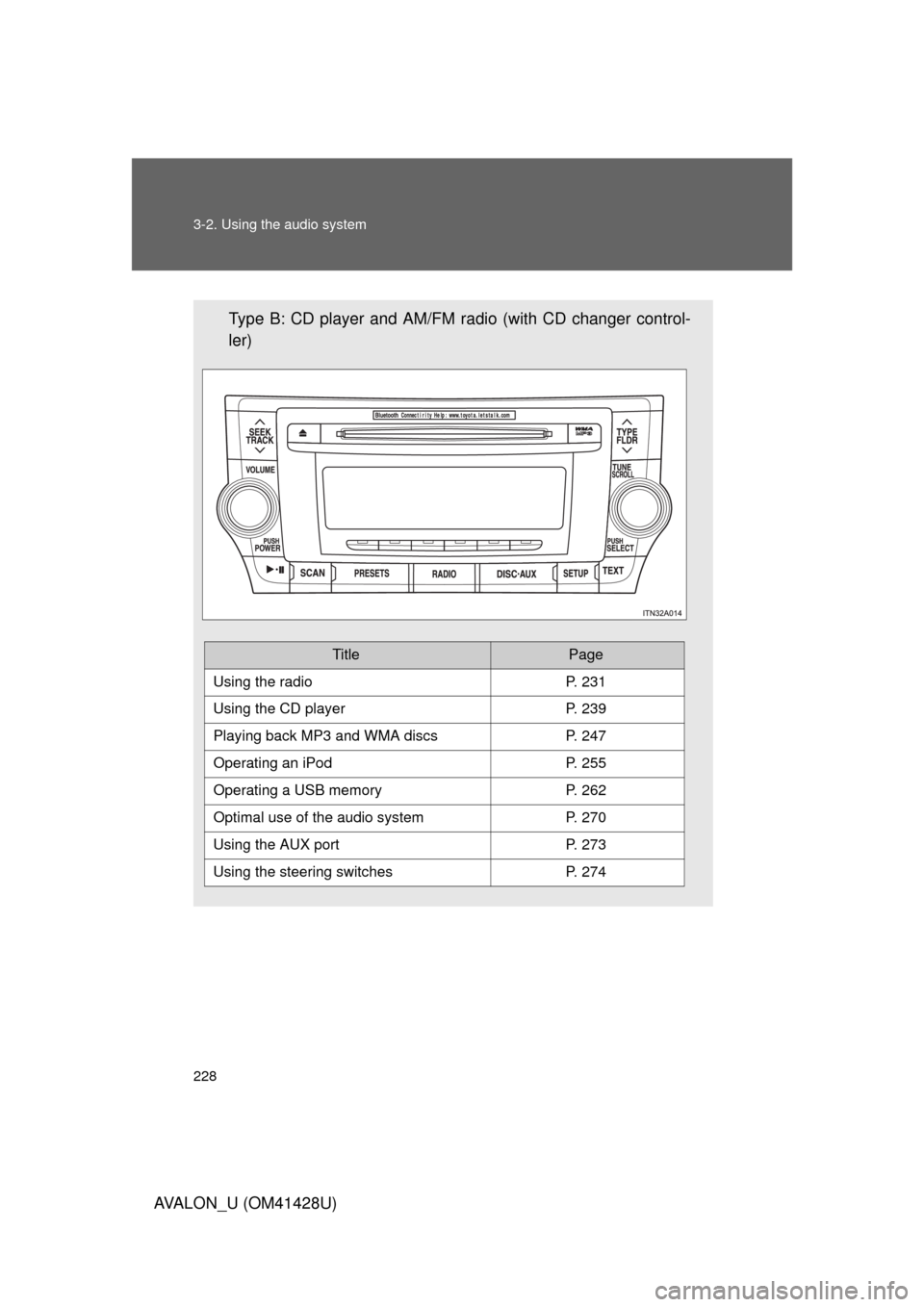

228 3-2. Using the audio system
AVALON_U (OM41428U)
Type B: CD player and AM/FM radio (with CD changer control-
ler)
TitlePage
Using the radioP. 231
Using the CD playerP. 239
Playing back MP3 and WMA discs P. 247
Operating an iPodP. 255
Operating a USB memoryP. 262
Optimal use of the audio systemP. 270
Using the AUX portP. 273
Using the steering switchesP. 274

229 3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)
Language settings
The language used for all voice guidance, voice recognition and mes-
sages may be changed.
Press .
Press that corresponds to “MORE”.
Press that corresponds to “LANG”.
Press that corresponds to the desired language.
For vehicles sold in the U.S.A.
“ENG” (English) or “ESP” (Spanish)
For vehicles sold in Canada
“ENG” (English) or “FRAN” (French)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.

230 3-2. Using the audio system
AVALON_U (OM41428U)
CAUTION
■For vehicles sold in the U.S.A.
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser.
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
