TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

331 3-4. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41428U)
Changing a registered name
Select “Change Name” by using a voice command or .
Select the name to be changed by either of the following
methods.
a. Press the talk switch, say desired name, and select “Con-
firm” by using a voice command or .
b. Press the talk switch, and say “List names”. While the
desired name is being read aloud, press the talk switch,
and select “Confirm” by using a voice command or .
c. Select the desired name by using .
Select “Record Name” with or the talk switch.
Say a new name, and select “Confirm” by using a voice com-
mand or .

332 3-4. Using the hands-free system (for cellular phone)
AVALON_U (OM41428U)
Deleting registered data
Select “Delete Entry” by using a voice command or .
Select the data to be deleted by either of the following meth-
ods, and select “Confirm” by using a voice command or
:
a. Press the talk switch, and say the name of the desired
phone number to be deleted.
b. Press the talk switch, say “List phones”. While the name of
the desired phone number is being read aloud, press the
talk switch.
Deleting speed dials
Select “Delete Speed Dial” by using a voice command or
.
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” by using a voice command or
.

333 3-4. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41428U)
Listing the registered data
Selecting “List names” by using a voice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the talk switch while the desired data is being read aloud
selects the data, and the following function will be available.
●Dialing: “Dial”
●Changing a registered name: “Change Name”
●Deleting an entry: “Delete Entry”
●Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

334
AVALON_U (OM41428U)
3-5. Using the interior lights

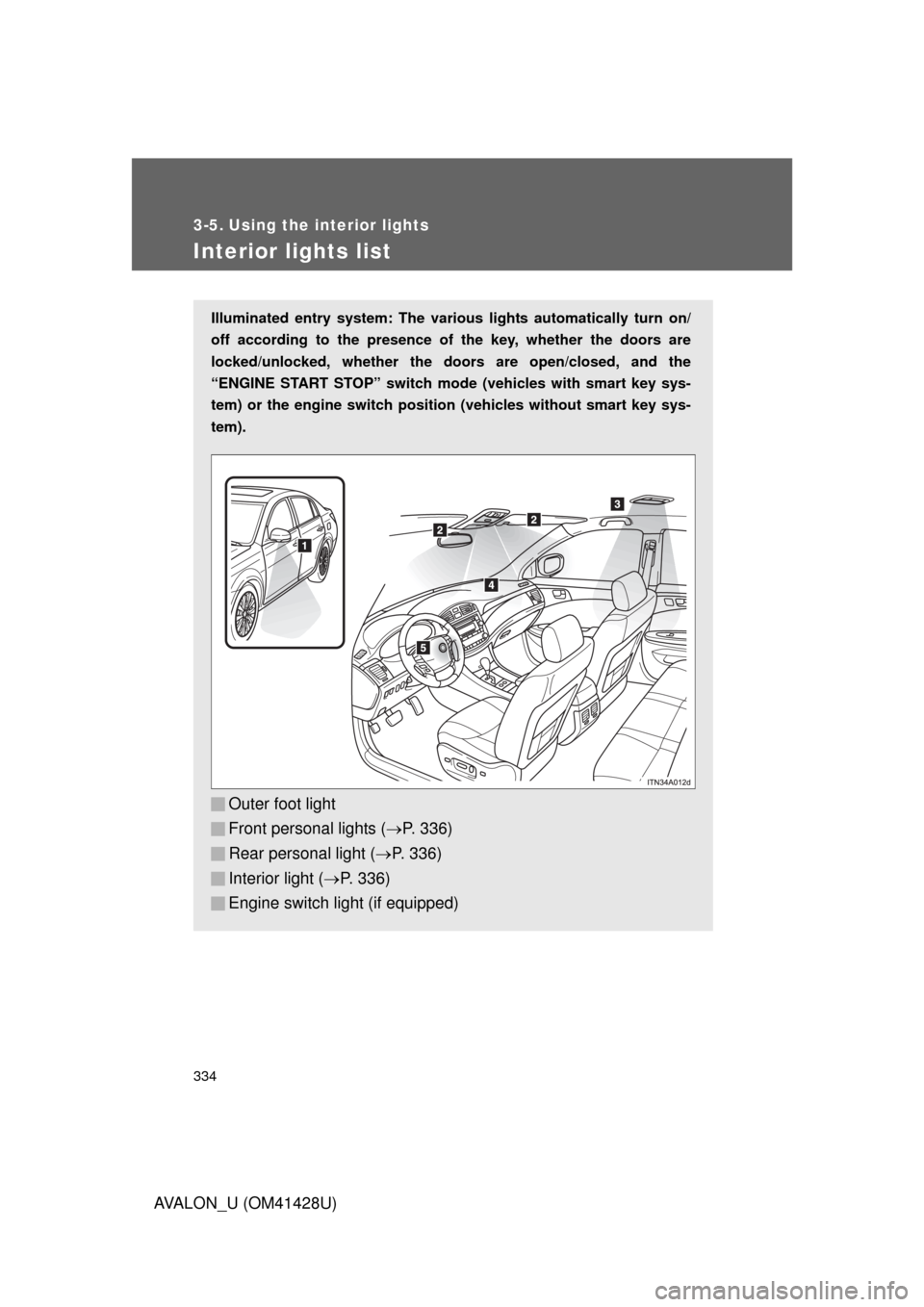

Interior lights list
Illuminated entry system: The various lights automatically turn on/
off according to the presence of the key, whether the doors are
locked/unlocked, whether the doors are open/closed, and the
“ENGINE START STOP” switch mode (vehicles with smart key sys-
tem) or the engine switch position (vehicles without smart key sys-
tem).
Outer foot light
Front personal lights (P. 336)
Rear personal light (P. 336)
Interior light (P. 336)
Engine switch light (if equipped)

335 3-5. Using the interior lights
3
Interior features
AVALON_U (OM41428U)
■To prevent battery discharge
If the interior lights, personal lights and engine switch light (if equipped)
remain on when the door is not fully closed or the interior light switch in
“DOOR” position, the lights will go off automatically after 20 minutes.
■Customization that can be configured at Toyota dealer
Setting (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 532)

336 3-5. Using the interior lights
AVALON_U (OM41428U)
Interior lights
“ON”
“OFF”
“DOOR”
The interior lights are turned on/
off by the illuminated entry sys-
tem.
Personal lights
Front
ON/OFF
Rear
ON/OFF

337
3
Interior features
AVALON_U (OM41428U)
3-6. Using the storage features

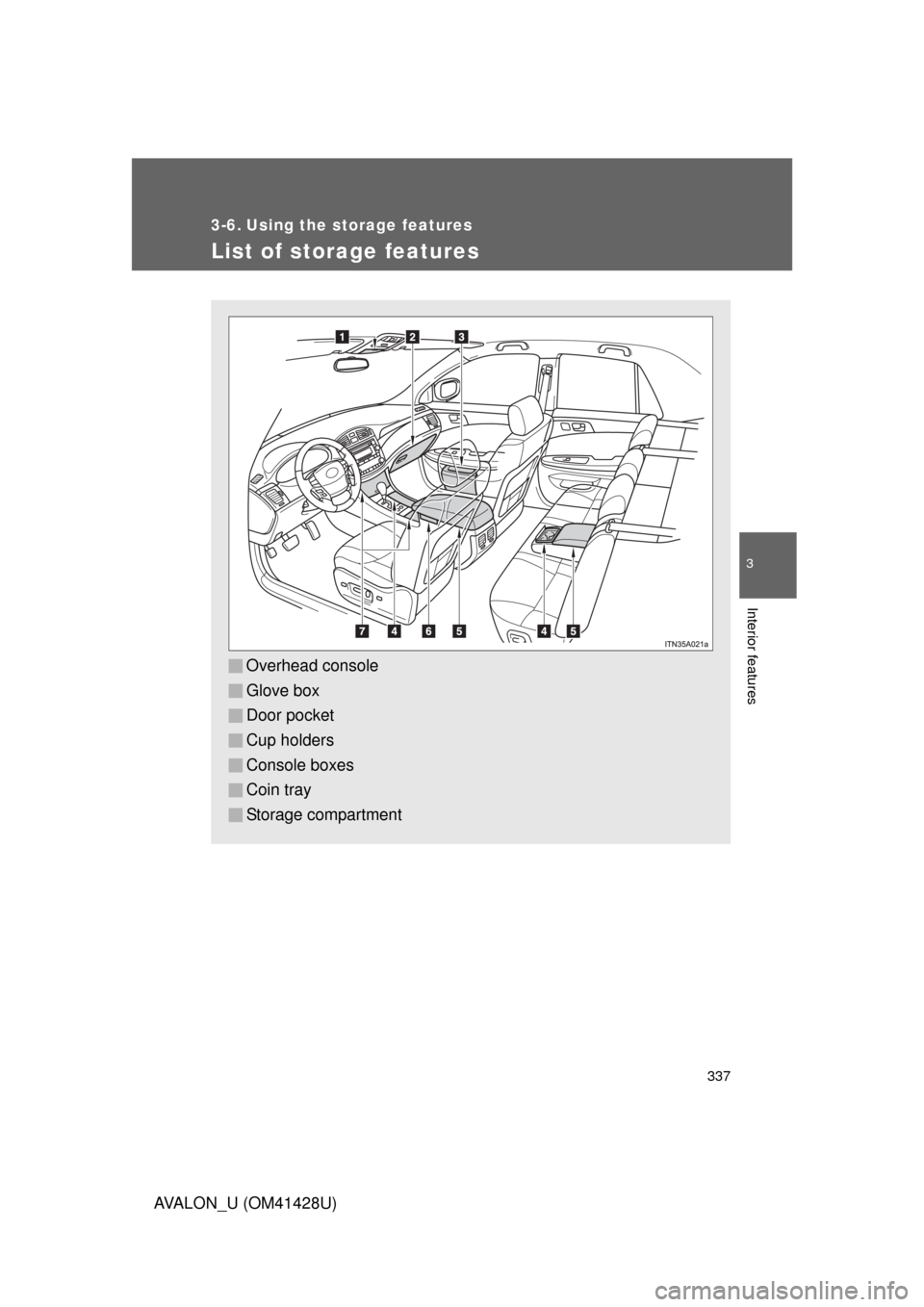

List of storage features
Overhead console
Glove box
Door pocket
Cup holders
Console boxes
Coin tray
Storage compartment

338 3-6. Using the storage features
AVALON_U (OM41428U)
Glove box
Open
Lock with the mechanical key
or the master key
Unlock with the mechanical
key or the master key
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
●Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
■Glove box light
The glove box light turns on when the instrument panel light switch is on.

339 3-6. Using the storage features
3
Interior features
AVALON_U (OM41428U)
Console boxes
Front
Lift the lid while pulling the lever.
Rear
Lift the lid while pulling the lever.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.

340 3-6. Using the storage features
AVALON_U (OM41428U)
■When using the front console box lid as an armrest
■Tray in the front console box
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
If necessary, the console box lid can slide
forward. Pull the lid forward by grasping
the front of the lid.
The tray slides forward/backward and can
be removed.
