TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

351
3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)

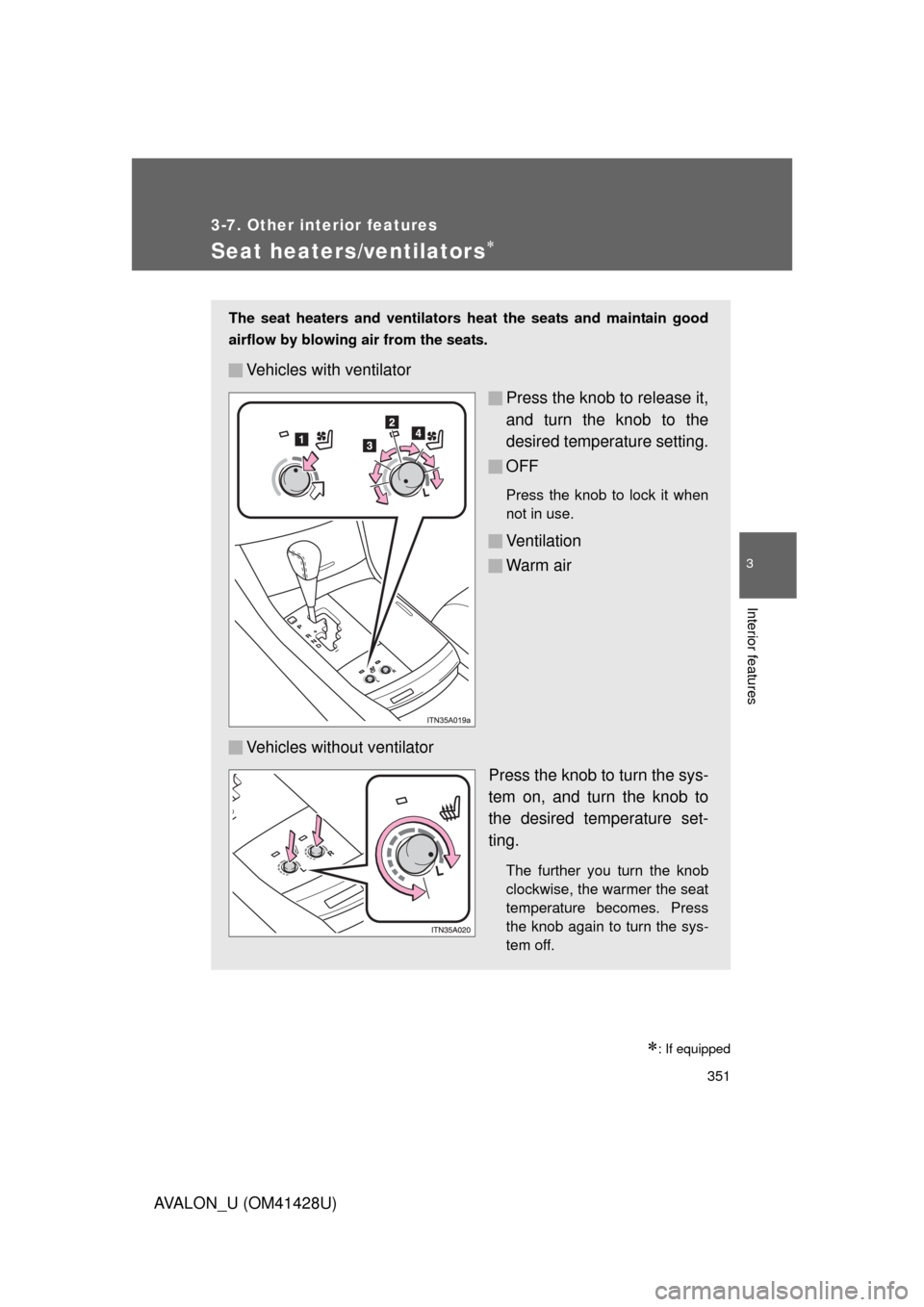

Seat heaters/ventilators
: If equipped
The seat heaters and ventilators heat the seats and maintain good
airflow by blowing air from the seats.
Vehicles with ventilator
Press the knob to release it,
and turn the knob to the
desired temperature setting.
OFF
Press the knob to lock it when
not in use.
Ve n t i l a t i o n
Warm air
Vehicles without ventilator
Press the knob to turn the sys-
tem on, and turn the knob to
the desired temperature set-
ting.
The further you turn the knob
clockwise, the warmer the seat
temperature becomes. Press
the knob again to turn the sys-
tem off.

352 3-7. Other interior features
AVALON_U (OM41428U)
■The seat heaters and ventilators can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater/ventilator damage
Do not put heavy objects on the seat and do not stick sharp objects (nee-
dles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

353
3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.

354
3-7. Other interior features
AVALON_U (OM41428U)
Rear sunshade
: If equipped
■The rear sunshade can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■Reverse operation feature
To ensure adequate rear visibility, the sunshade automatically lowers when
the shift lever is shifted to “R”.
However, the rear sunshade is raised again if any of the following occurs:
●The switch is pressed again.
●The shift lever is shifted out of “R”, and the vehicle reaches a speed of 9
mph (15 km/h).
If the engine is turned off when the rear sunshade has been lowered due to
the reverse operation feature, it will not be raised even when the engine is
turned on again and the vehicle reaches a speed of 9 mph (15 km/h). To
raise the sunshade again, press the switch.
The rear sunshade can be raised and lowered by pressing the switch
shown below.
Raise/lower

355 3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)
■Operating the rear sunshade after turning the “ENGINE START STOP”
switch or the engine switch off
The rear sunshade can be raised and lowered for approximately 1 minute.
■Customization that can be configured at Toyota dealer
Contact your Toyota dealer for further details.
CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the open-
ing. They may get caught, causing injury.
NOTICE
■To prevent battery discharge
Do not operate the rear sunshade when the engine is not running.
■To ensure normal operation of the sunshade
Observe the following precautions.
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing opera-
tions.
●Do not attach items to the rear sunshade.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously over long periods of time.

356
3-7. Other interior features
AVALON_U (OM41428U)
Floor mats
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it
may become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.

357 3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)
CAUTION
■Before driving
●Check that the floor mat is securely
fixed in the right place with all the pro-
vided retaining hooks (clips). Be espe-
cially careful to perform this check after
cleaning the floor.
●With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

358
3-7. Other interior features
AVALON_U (OM41428U)

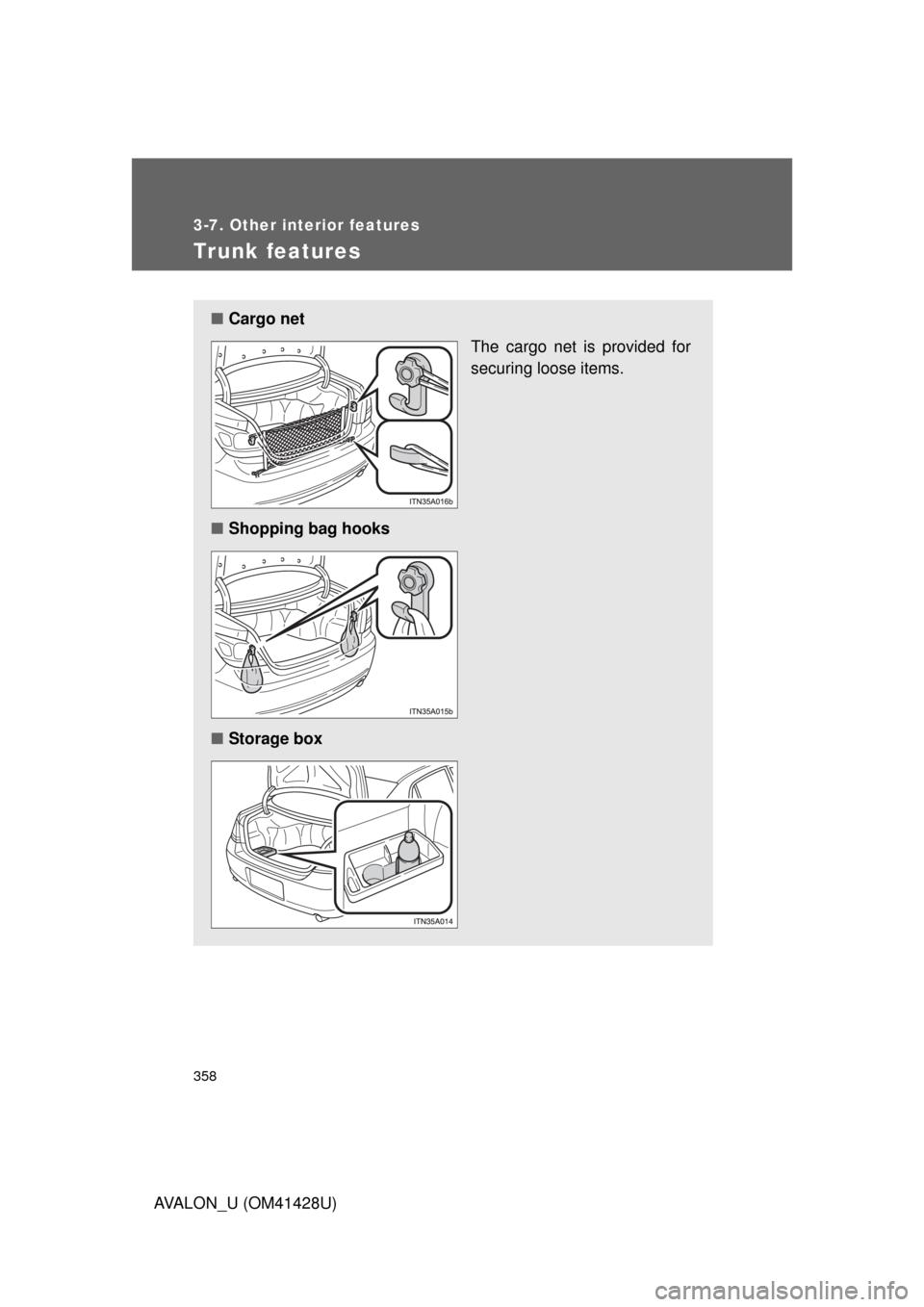

Trunk features
■Cargo net
The cargo net is provided for
securing loose items.
■Shopping bag hooks
■Storage box

359 3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)
Trunk storage extension
Pull down the rear seat center
armrest.
Open (push down the handle)
CAUTION
■While driving
●To avoid injury, always return the cargo hooks to their positions when they
are not in use.
●Always keep the trunk storage extension doors closed to reduce the
chance of injury in case of accident or sudden stop.
NOTICE
■When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk.
The luggage mat may get damaged.

360
3-7. Other interior features
AVALON_U (OM41428U)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems, secu-
rity systems, and other devices.
