TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

4
Maintenance and care
451 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)■Back-up lights
Open the trunk and remove the
trunk panel cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITN43A078
ITN43A079

452 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)■License plate light
Remove the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Remove the light bulb.

4
Maintenance and care
453 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
●Headlights (discharge bulb)
●Side turn signal lights
●Tail lights
●High mounted stoplight
■Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights, tail lights and high mounted stoplights consist of a
number of LEDs. If any of the LEDs burn out, take your vehicle to your
Toyota dealer to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to
local laws (SAE).
■High-intensity discharge (HID) headlights (if equipped)
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.

454 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
●Do not take apart or repair the low beam discharge headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.

4
Maintenance and care
455 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
CAUTION
■High-intensity discharge (HID) headlights (if equipped)
●Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in serious injury or death by electric
shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
●Low beam metal back cover may be
very hot after operation of engine and/
or low beams. To avoid potential burn,
do not touch metal back cover under
these conditions.
When replacing the high beam lights
and parking lights, take care as you will
probably touch the low beam metal
back cover.
ITN43A085

456 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)

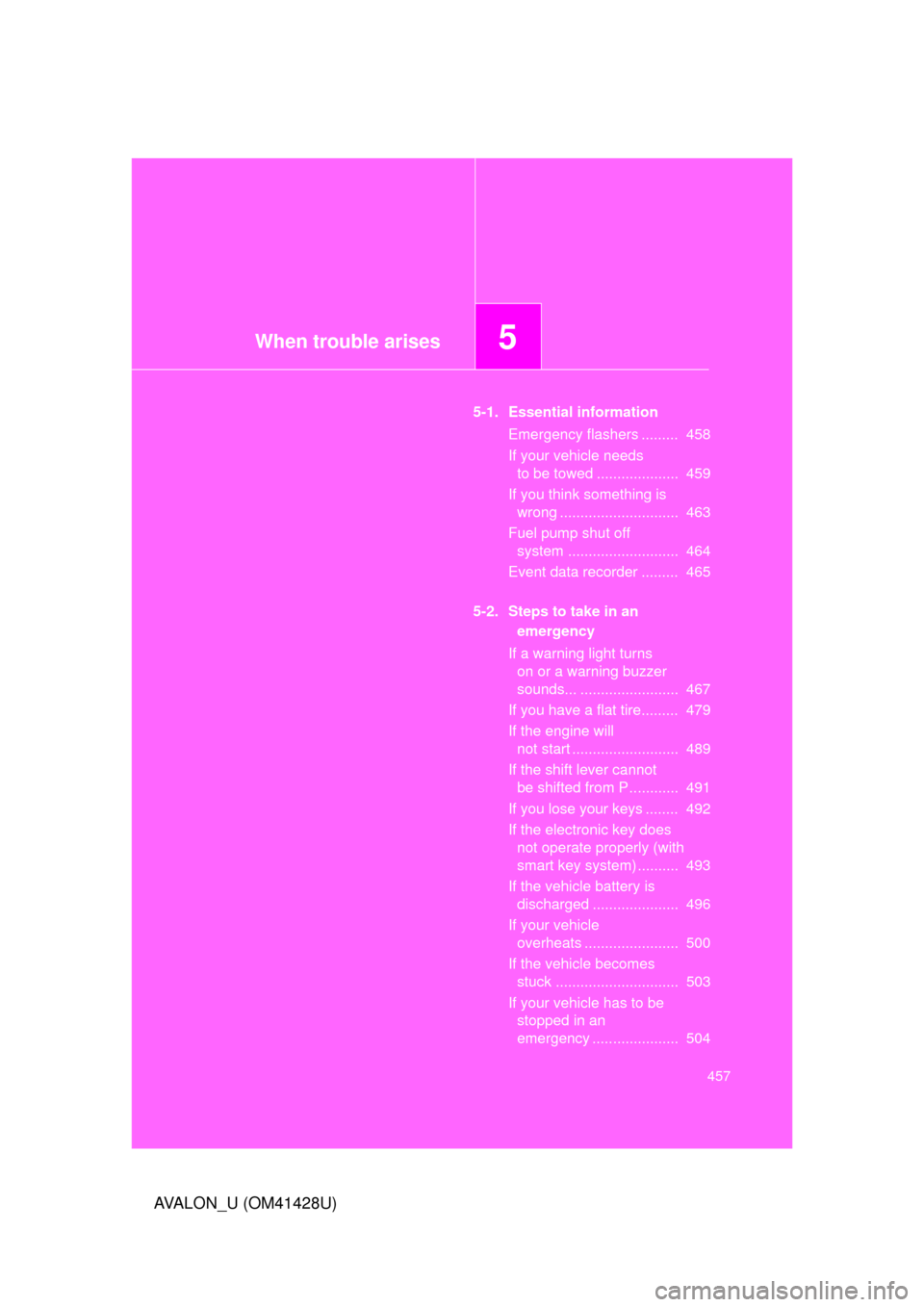

When trouble arises5
457
AVALON_U (OM41428U)
5-1. Essential information
Emergency flashers ......... 458
If your vehicle needs
to be towed .................... 459
If you think something is
wrong ............................. 463
Fuel pump shut off
system ........................... 464
Event data recorder ......... 465
5-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ........................ 467
If you have a flat tire......... 479
If the engine will
not start .......................... 489
If the shift lever cannot
be shifted from P ............ 491
If you lose your keys ........ 492
If the electronic key does
not operate properly (with
smart key system) .......... 493
If the vehicle battery is
discharged ..................... 496
If your vehicle
overheats ....................... 500
If the vehicle becomes
stuck .............................. 503
If your vehicle has to be
stopped in an
emergency ..................... 504

458
AVALON_U (OM41428U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
459
5-1. Essential information
AVALON_U (OM41428U)
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
●The engine is running, but the vehicle will not move.
●The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commercial towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehicle’s rear wheel and axles must be in
good condition. (P. 461)
If they are damaged, use a towing dolly or flat bed truck.

460 5-1. Essential information
AVALON_U (OM41428U)
Towing with a sling-type truck
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.
