TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

5
When trouble arises
461 5-1. Essential information
AVALON_U (OM41428U)
Towing with a wheel lift-type truck
From front
Release the parking brake.
From rear
Use a towing dolly under the
front wheel.
NOTICE
■To prevent causing damage to the transmission
Never tow this vehicle from the rear with the front wheel on the ground.
■To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

462 5-1. Essential information
AVALON_U (OM41428U)
Using a flat bed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be
damaged.

5
When trouble arises
463
5-1. Essential information
AVALON_U (OM41428U)

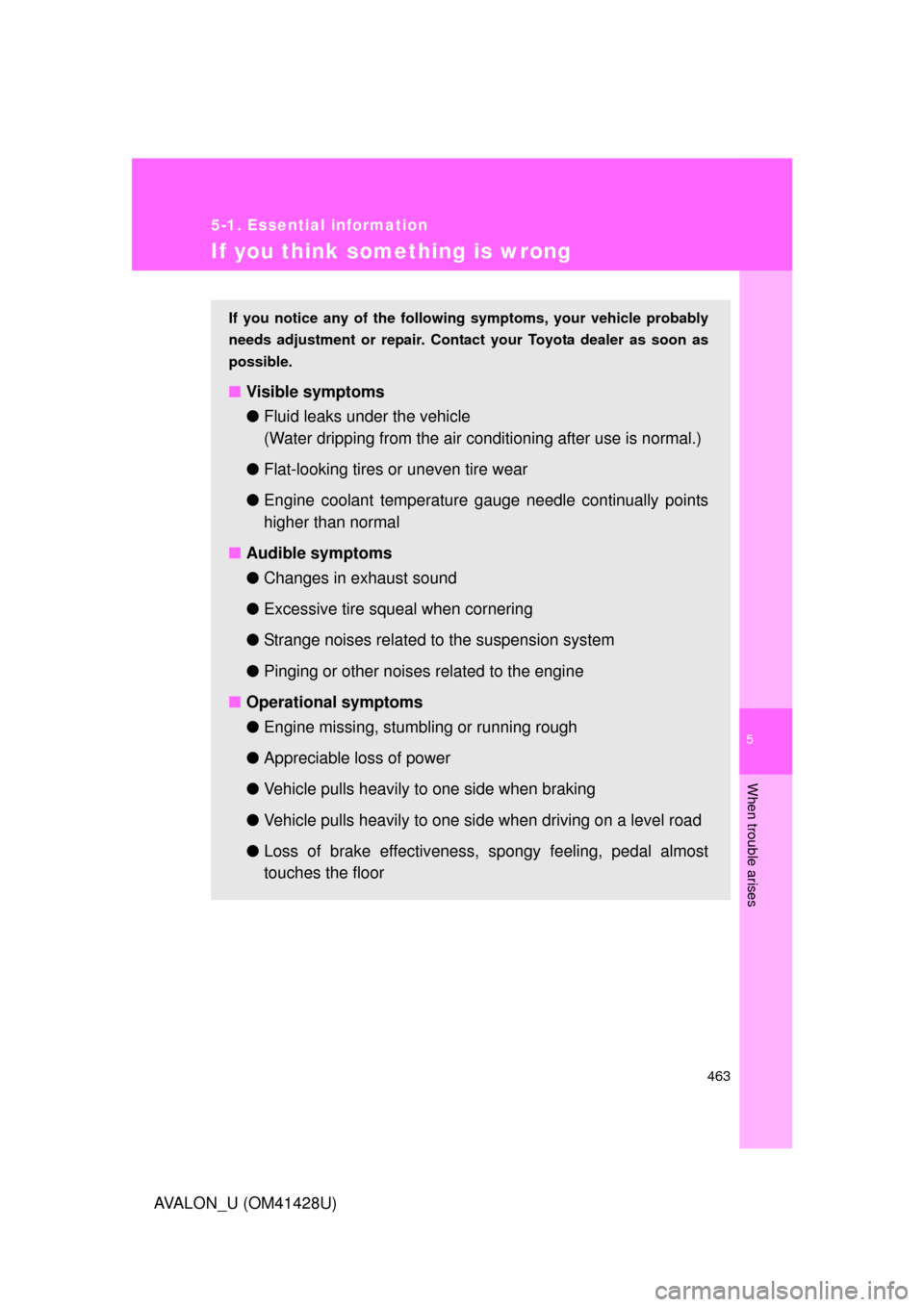

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points
higher than normal
■Audible symptoms
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
■Operational symptoms
●Engine missing, stumbling or running rough
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor

464
5-1. Essential information
AVALON_U (OM41428U)
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch OFF.
Vehicles without smart key system: Turn the engine switch to
the “ACC” or “LOCK” position.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.

5
When trouble arises
465
5-1. Essential information
AVALON_U (OM41428U)
Event data recorder
In a crash or a near car crash event
The SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow-
ing information:
●Engine speed
●Whether the brake pedal was applied or not
●Vehicle speed
●To what extent the accelerator pedal was depressed
●Position of the transmission shift lever
●Whether the driver and front passenger wore seat belts or not
●Driver’s seat position
●Front passenger’s occupant classification
●SRS airbag deployment data
●SRS airbag system diagnostic data
The information above is intended to be used for the purpose of
improving vehicle safety performance. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assist in driving and maintaining
optimal vehicle performance.
Besides storing data useful for troubleshooting, there is a system to
record data in a crash or a near car crash event. This is called an
Event Data Recorder (EDR).

466 5-1. Essential information
AVALON_U (OM41428U)
Disclosure of the data
Toyota will not disclose the data recorded in an EDR to a third party
except when:
●An agreement from the vehicle’s owner (or the leasing company for
a leased vehicle) is obtained
●Officially requested by the police or other authorities
●Used as a defense for Toyota in a law suit
●Ordered by a court
However, if necessary Toyota will:
●Use the data for research on Toyota vehicle safety performance
●Disclose the data to a third party for research purposes without dis-
closing details of the vehicle owner, and only when it is deemed
necessary
●Disclose summarized data cleared of vehicle identification informa-
tion to a non-Toyota organization for research purposes

5
When trouble arises
467
AVALON_U (OM41428U)
5-2. Steps to take in an emergency
If a war ning light tur ns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approxi-
mately 3 mph (5 km/h) or more.
Warning lightWarning light/Details

(U.S.A.)

(Canada)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.

468 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light
Malfunction in the vehicle’s charging system.
Low engine oil pressure warning light
Abnormal level of engine oil pressure.
This warning light may turn on if the level of engine oil
declines. The light should turn off after checking the oil
and adding oil if necessary.
Warning lightWarning light/Details

(U.S.A.)

(Canada)
Malfunction indicator lamp
Malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The transmission control system.

5
When trouble arises
469 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/Details
SRS warning light
Malfunction in:
• The SRS airbag system;
• Front passenger occupant classification system; or
• The seat belt pretensioner system.

(U.S.A.)

(Canada)
ABS warning light
Malfunction in:
• The ABS; or
• The brake assist system.

(if equipped)Automatic headlight leveling system warning light
Malfunction in the automatic headlight leveling system.
Slip indicator light
Malfunction in the VSC system or TRAC or TRC sys-
tem.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
A door or a trunk is not
fully closed.Check that all doors and the
trunk are closed.

470 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Warning lightWarning light/DetailsCorrection procedure
Low fuel level warning
light
Remaining fuel
(Approximately 2.6 gal. [10
L, 2.2 Imp.gal.] or less)Refuel the vehicle.
Driver’s seat belt
reminder light (warning
buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
Front passenger’s seat
belt reminder light
(warning buzzer)
*2
Warns the front passen-
ger to fasten his/her seat
belt.Fasten the seat belt.
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation
pressure.
When the light stays on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system.Have the system checked
by your Toyota dealer.
