TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

531 6-1. Specifications
6
Vehicle specifications
AVALON_U (OM41428U)
Designated seating
capacity, Number of
occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded
vehicle
2 through 4 2 2 in front
5 through 10 32 in front, 1 in second
seat
11 through 15 52 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 72 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

532
AVALON_U (OM41428U)
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Smart key
system
(P. 26)Smart key system ON OFF
Operation signal
(Emergency flashers)ON OFF
Operation signal
(Buzzer)ON OFF
Wireless
remote
control
(P. 38)Unlocking operationDriver’s door
unlocked in 1-
step, all doors
unlocked
in 2-stepAll doors
unlocked
in 1-step
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked60 secondsOFF
30 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by your
Toyota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

533 6-2. Customization
6
Vehicle specifications
AVALON_U (OM41428U)
ItemFunctionDefault settingCustomized
setting
Wireless
remote
control
(P. 38)Operation indicator
(Emergency flashers)ON OFF
Operation indicator
(Buzzer) ON OFF
Trunk unlocking func-
tionON OFF
Trunk unlocking opera-
tionPush and holdPush twice
One short push
Panic function ON OFF
Buzzer sounds when
pushing with any
door not closedON OFF

534 6-2. Customization
AVALON_U (OM41428U)
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomized
setting
Door lock
(
P. 43)Unlocking using a keyDriver’s door
unlocked in 1-
step, all doors
unlocked
in 2-stepAll doors
unlocked
in 1-step
Speed-detecting auto-
matic door lock functionOFF ON
Opening driver’s door
unlocks all doors OFF ON
Shift the shift lever to
“P” unlocks all doorsON OFF
Shift the shift lever to
position other than “P”
locks all doorsON OFF
Automatic
light control
system
(P. 173)Light sensor sensitivity Level 3 Levels 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed60 seconds0 seconds
30 seconds
90 seconds
Daytime running light ON OFF
*

535 6-2. Customization
6
Vehicle specifications
AVALON_U (OM41428U)
ItemFunctionDefault settingCustomized
setting
Windshield
wipers and
washer
(P. 177)Switching operation
when the vehicle is sta-
tionaryON OFF
Time elapsed before
the drip prevention
function operatesVariable
depending on
the vehicle
speed3 seconds
Illumination
(P. 334)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedON OFF
Operation after the
“ENGINE START
STOP” switch or the
engine switch turned
OFFON OFF
Front/rear personal
lights turned on when a
door is openedCorresponding
light onlyAll lights
OFF
Outer foot lights ON OFF
Rear
sunshade
(P. 354)Time elapsed before
the reverse operation
feature activates0.7 seconds0 seconds
0.9 seconds
1.2 seconds

536
AVALON_U (OM41428U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Power window• After reconnecting or changing the
battery
• After changing a fuseP. 8 1
Moon roof P. 85
Engine oil
maintenance data• After changing engine oil P. 398
Tire pressure warning
system• When rotating the tires on vehicles
differing with front and rear tire infla-
tion pressures.
• When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
• When changing the tire size.P. 4 1 1
After reconnecting or performing maintenance on the battery, the fol-
lowing items must be initialized for normal system operation.

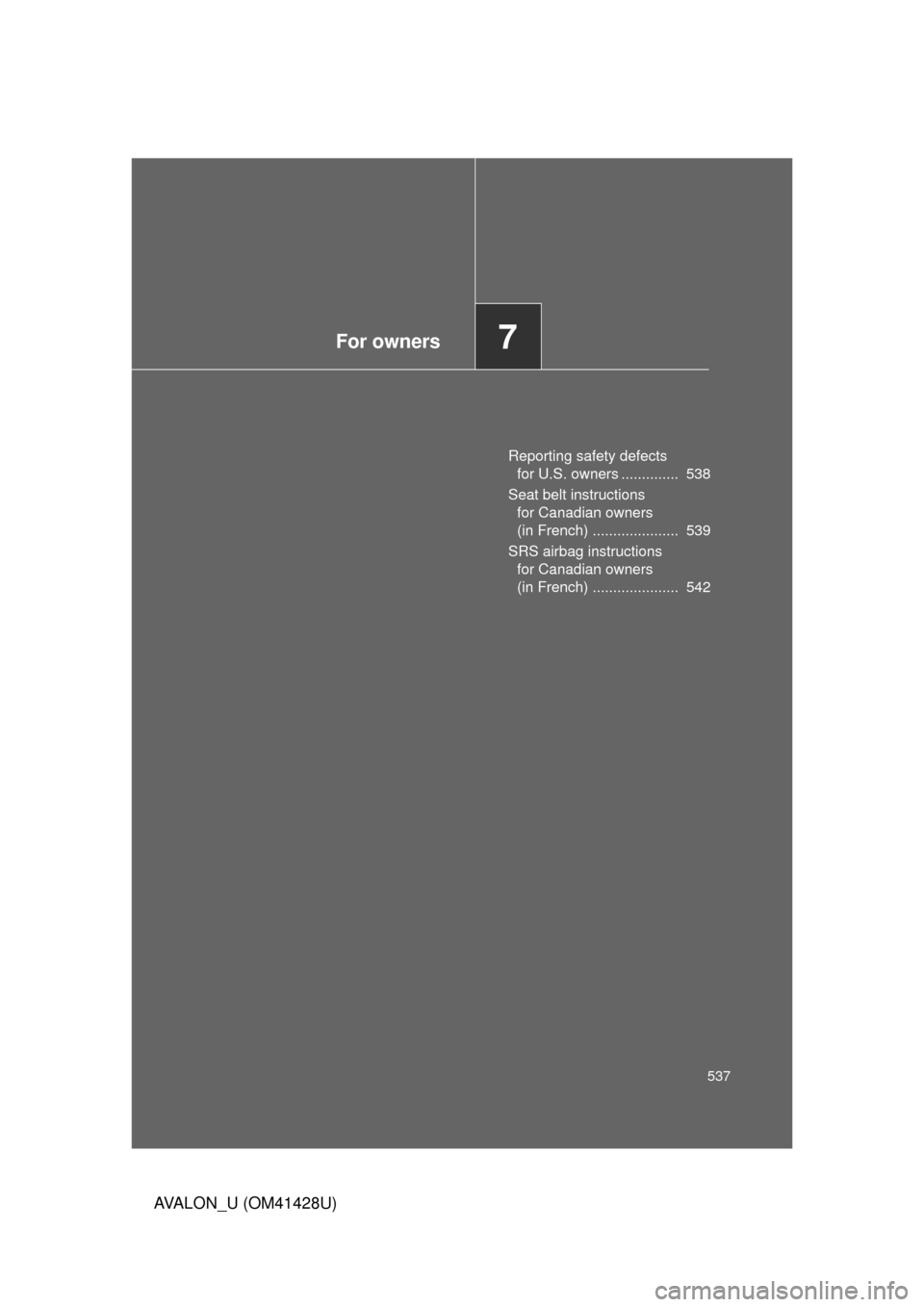

For owners7
537
AVALON_U (OM41428U)
Reporting safety defects
for U.S. owners .............. 538
Seat belt instructions
for Canadian owners
(in French) ..................... 539
SRS airbag instructions
for Canadian owners
(in French) ..................... 542

538
AVALON_U (OM41428U)

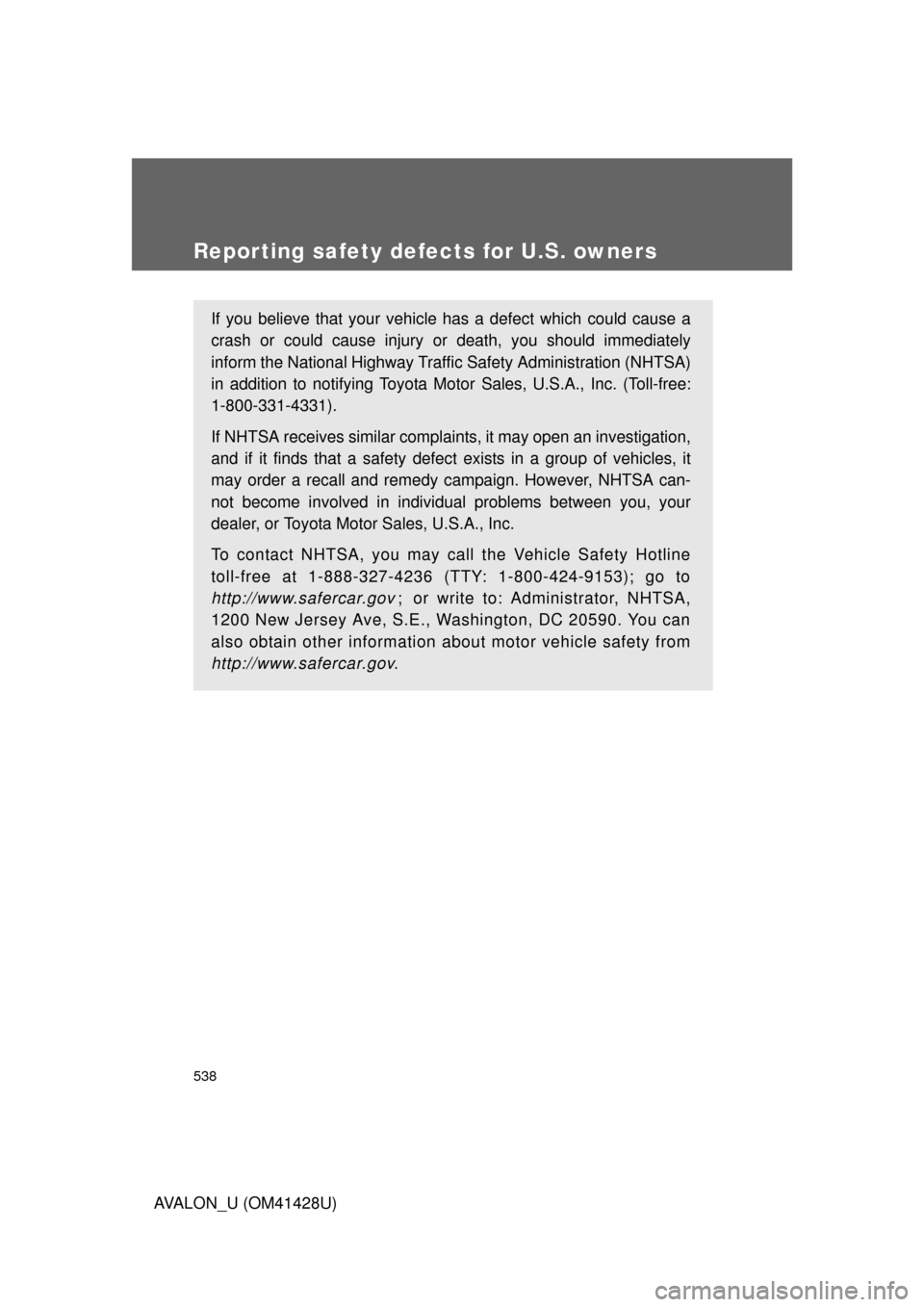

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov.

539
7
AVALON_U (OM41428U)
For owners
Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
