TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

5
When trouble arises
501 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
●Steam is coming from under the hood.
Add coolant if required.
Water can be used in an emer-
gency measure if coolant is
unavailable. (P. 512)
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.

502 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

5
When trouble arises
503
5-2. Steps to take in an emergency
AVALON_U (OM41428U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift
lever in “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the “D” or “R” position and carefully
apply the accelerator to free the vehicle.

504
5-2. Steps to take in an emergency
AVALON_U (OM41428U)

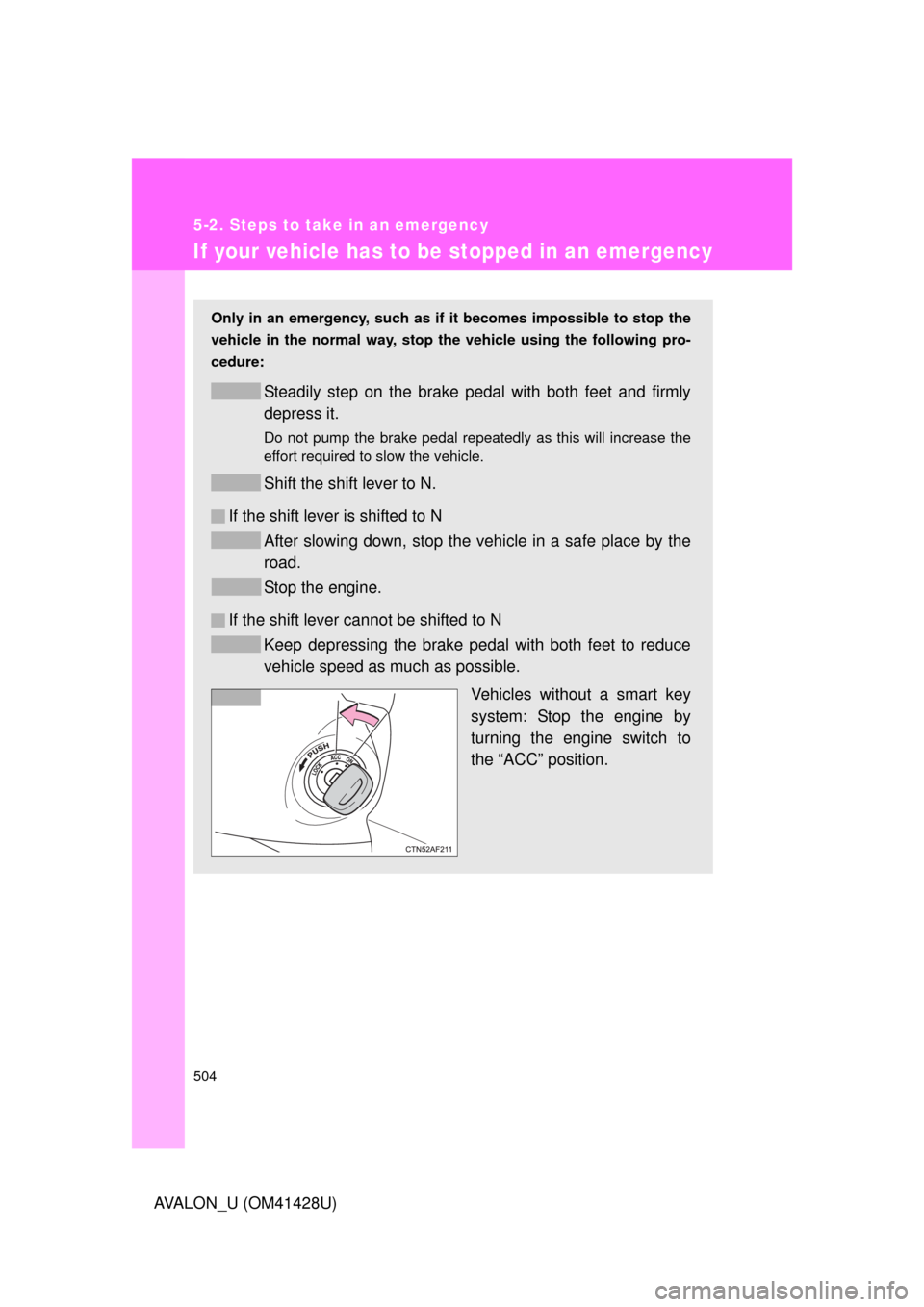

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.

5
When trouble arises
505 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
●Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the “ENGINE START
STOP” switch for 3 consecu-
tive seconds or more, or press
it briefly for 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more
or press briefly for 3 times or more

506 5-2. Steps to take in an emergency
AVALON_U (OM41428U)

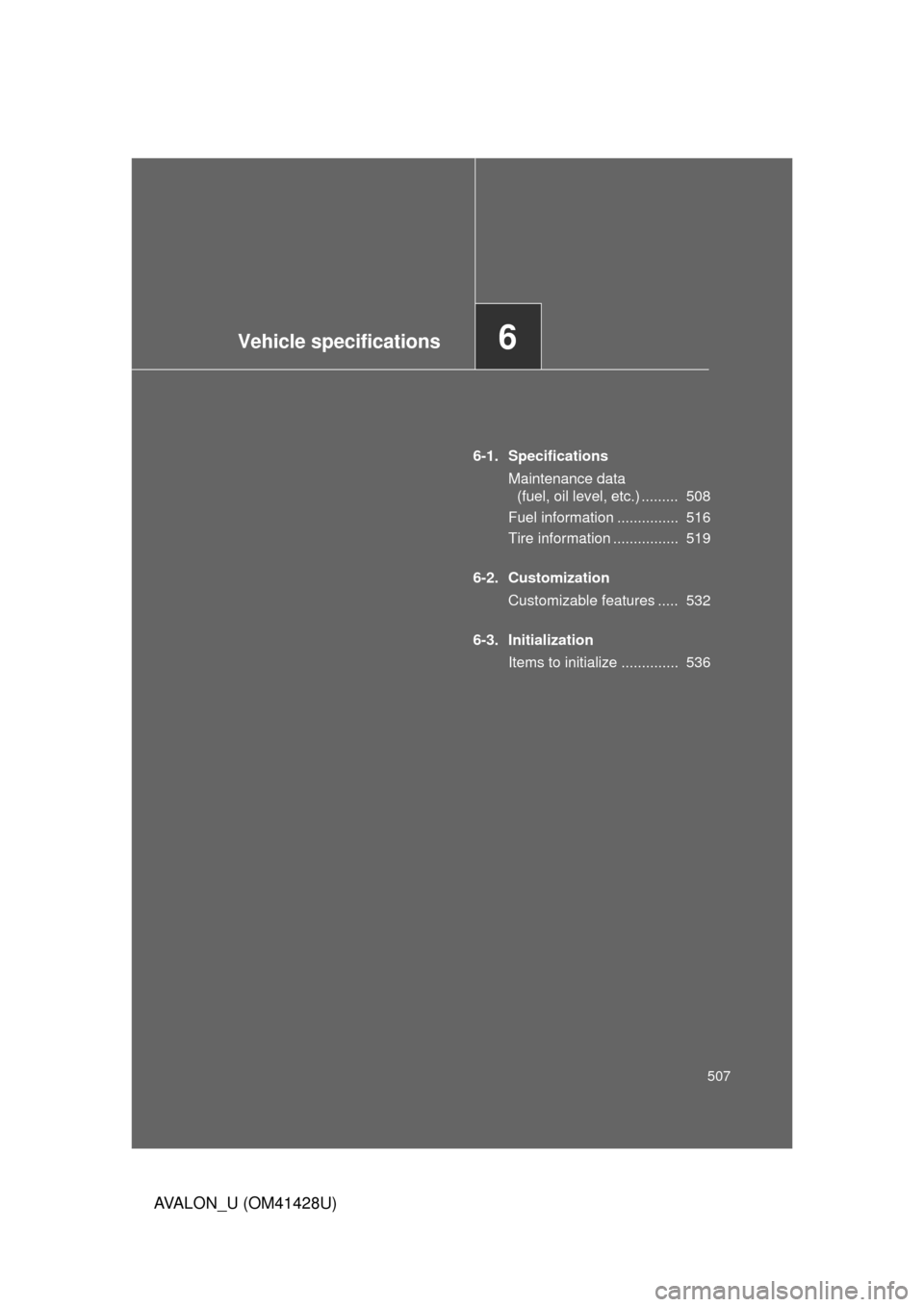

Vehicle specifications6
507
AVALON_U (OM41428U)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.) ......... 508
Fuel information ............... 516
Tire information ................ 519
6-2. Customization
Customizable features ..... 532
6-3. Initialization
Items to initialize .............. 536

508
AVALON_U (OM41428U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length197.6 in. (5020 mm)
Overall width 72.8 in. (1850 mm)
Overall height*58.5 in. (1485 mm)
Wheelbase 111.0 in. (2820 mm)
TreadFront 62.2 in. (1580 mm)
Rear 61.6 in. (1565 mm)
Vehicle capacity weight
(occupants + luggage)870 lb. (395 kg)

509 6-1. Specifications
6
Vehicle specifications
AVALON_U (OM41428U)
Vehicle identification
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
■Engine number
The engine number is stamped
on the engine block as shown.

510 6-1. Specifications
AVALON_U (OM41428U)
Engine
Fuel
Lubrication system
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Model2GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu.in. (3456 cm3)
Drive belt tension Automatic adjustment
Fuel typeUnleaded gasoline only
Octane Rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)18.5 gal. (70 L, 15.4 lmp.gal)
Oil capacity
(Drain and refill —
reference)
with filter
without filter6.4 qt. (6.1 L, 5.4 lmp.qt.)
6.0 qt. (5.7 L, 5.0 lmp.qt.)
