warning TOYOTA AVALON 2011 XX30 / 3.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 8Smart Key system27
Trunk release 8
Air Conditioning/Heating 20Audio 18-19Auto lock functions210Automatic Transmission 10Clock 21Cruise control 15Cup holders 22Door locks 10Garage door opener (HomeLink®)315Lights1& turn signals 13Moonroof 17Multi-information display 17Parking brake 11Power outlets 22Seat adjustments-Front 12Seat adjustments-Rear 12Seat ventilators/Heaters 21Seats-Head restraints 12Steering lock release 11Steering wheel switches 19Sunshade-Rear116Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 11Windows-Power 14
Windshield wipers & washers114
Doors-Child safety locks 23Seat belt comfort guide 24Seat belts 23Seat belts-Shoulder belt anchor 23Spare tire & tools 25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cruise control
Tire Pressure Monitoring (warning) System reset
Tilt lock release lever
Telescopic lock release
Power rearview mirror control
VSC OFF switch
Glass breakage sensor
1
Rear sunshade switch1
Trunk opener
Fuel filler door opener
1If equipped2For details, refer to the “Navigation System Owner’s Manual.”

4
OVERVIEW
Indicator symbols
Instrument cluster
Engine coolant temperature
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Odometer/Trip meter and trip meter reset button
Odometer/Trip meter display
Automatic Transmission shift position indicator
Multi-information display
Charging system warning1
Brake system warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Driver seat belt reminder
(alarm will sound if speed is over 9 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 9 mph)
Low engine oil pressure warning1
Front passenger occupant classification indicator/
Front passenger airbag ON/OFF indicator For details, refer to “Indicators and warning lights,” Section 2-2,
2011
Owner’s Manual.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Vehicle Stability Control OFF indicator1
Cruise control indicator2
Tire Pressure Warning1
Security indicator
Open door warning
Airbag SRS warning1
Low windshield washer fluid level warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
Automatic headlight leveling system warning1
Smart Key system warning1
2If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Traction Control OFF indicator
Cruise control SET indicator
2

24

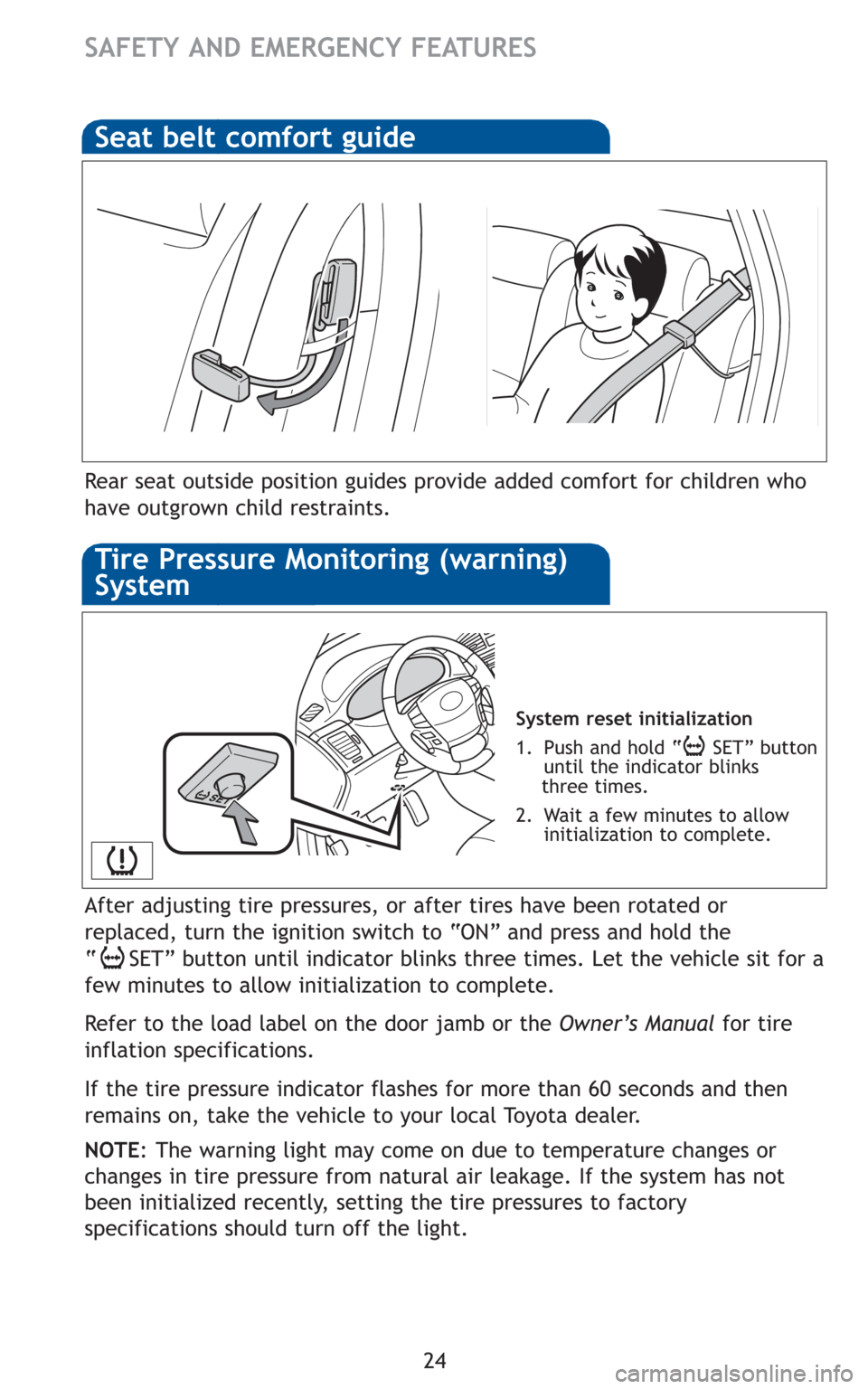

SAFETY AND EMERGENCY FEATURES
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seat belt comfort guide
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the
Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tire Pressure Monitoring (warning)
System
