SETUP
271

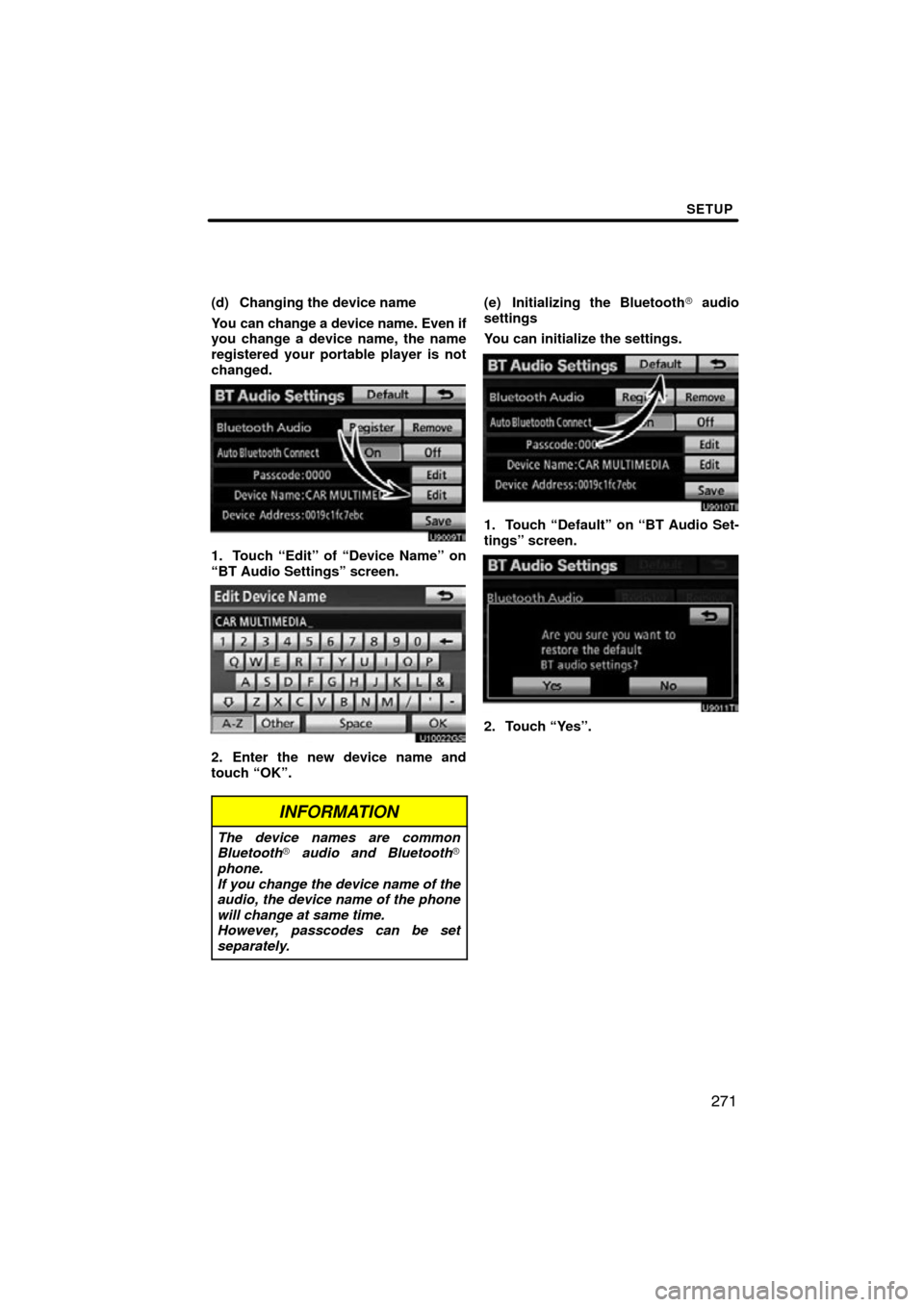

(d) Changing the device name
You can change a device name. Even if
you change a device name, the name
registered your portable player is not
changed.
1. Touch “Edit” of “Device Name” on
“BT Audio Settings” screen.
U10022GS
2. Enter the new device name and
touch “OK”.
INFORMATION
The device names are common
Bluetooth audio and Bluetooth
phone.
If you change the device name of the
audio, the device name of the phone
will change at same time.
However, passcodes can be set
separately.
(e) Initializing the Bluetooth  audio
settings
You can initialize the settings.
1. Touch “Default” on “BT Audio Set-
tings” screen.
2. Touch “Yes”.

SETUP
272

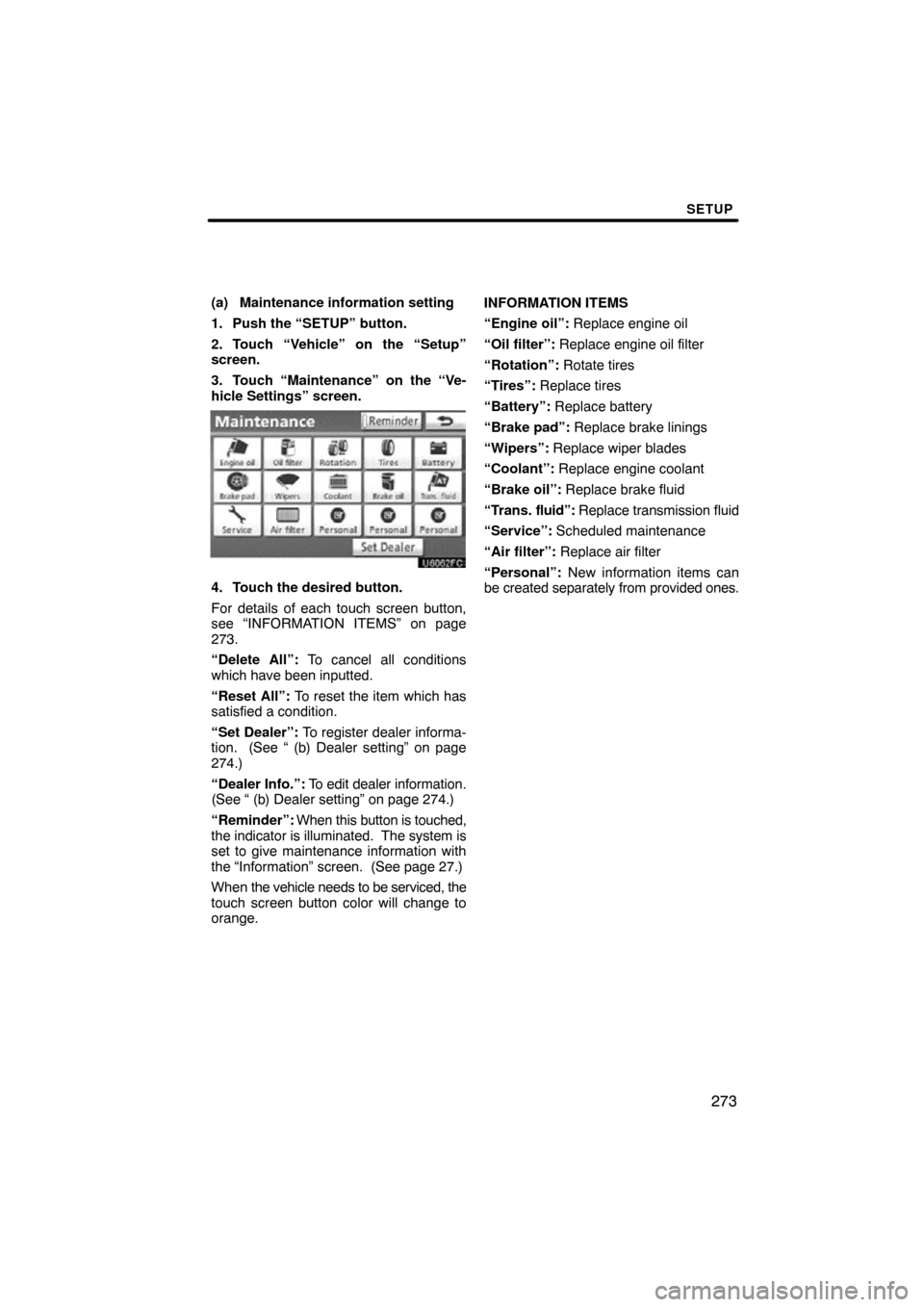

When the navigation system is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 27.)
1. Push the “SETUP” button.
2. Touch “Vehicle”.
3. Touch “Maintenance”.
Setting maintenance information (See
page 273.)
Setting dealer (See page 274.)
Vehicle Settings —
— Maintenance

SETUP
273
(a) Maintenance information setting
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch the desired button.
For details of each touch screen button,
see “INFORMATION ITEMS” on page
273.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register dealer informa-
tion. (See “ (b) Dealer setting” on page
274.)
“Dealer Info.”: To edit dealer information.
(See “ (b) Dealer setting” on page 274.)
“Reminder”: When this button is touched,
the indicator is illuminated. The system is
set to give maintenance information with
the “Information” screen. (See page 27.)
When the vehicle needs to be serviced, the
touch screen button color will change to
orange. INFORMATION ITEMS
“Engine oil”: Replace engine oil
“Oil filter”: Replace engine oil filter
“Rotation”:
Rotate tires
“Tires”: Replace tires
“Battery”: Replace battery
“Brake pad”: Replace brake linings
“Wipers”: Replace wiper blades
“Coolant”: Replace engine coolant
“Brake oil”: Replace brake fluid
“Trans. fluid”: Replace transmission fluid
“Service”: Scheduled maintenance
“Air filter”: Replace air filter
“Personal”: New information items can
be created separately from provided ones.

SETUP
274
5. Input the conditions.
“Date”: The next maintenance date can be
input.
“Distance”: The driving distance until the
next maintenance check can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions.
6. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.
(b) Dealer setting
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch “Set Dealer”.
5. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 50.)
When “Set Dealer” registration is finished,
the “Dealer” screen will be displayed.

SETUP
275
6. Touch “Edit” for the item you want
to change.
“Dealer”: To enter the name of a dealer.
(See page 275.)
“Contact”: To enter the name of a dealer
member. (See page 275.)
“Location”: To set a location. (See page
276.)
“Phone #”: To set a telephone number.
(See page 276.)
“Delete Dealer”: To delete the dealer in-
formation displayed on the screen.
“Enter
”: To set the displayed dealer as
a destination. (See “Starting route guid-
ance” on page 70.)
To edit “Dealer” or “Contact”
1. Touch “Edit” of “Dealer” or “Con-
tact”.
2. Enter the name using the alphanu-
meric keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

SETUP
276
To edit “Location”
1. Touch “Edit” of “Location”.
2. Touch the 8 directional touch
screen button to move the cursor to
the desired point on the map.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Phone #”
(telephone number)
1. Touch “Edit” of “Phone #”.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.

SECTION 9
APPENDIX
277
APPENDIX
Limitations of the navigation system 278 . . . . . . . . . . . . . . . . . . . . .
 Map database information and updates 280
. . . . . . . . . . . . . . . .
Changing the map DVD −ROM 289 . . . . . . . . . . . . . . . . . . . . . . . .

APPENDIX
278
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate posi-
tion may not be shown depending on
the satellite condition, road configura-
tion, vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position, normally using 4 or
more satellites, and in some case 3 satel-
lites. The GPS system has a certain level
of inaccuracy. While the navigation sys-
tem will compensate for this most of the
time, occasional positioning errors of up to
300 feet (100 m) can and should be expec-
ted. Generally, position errors will be cor-
rected within a few seconds.
When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur in
some cases.
NOTICE
The installation of window tinting
may obstruct the GPS signals. Most
window tinting contains some metal-
lic content that will interfere with GPS
signal reception of the antenna in the
instrument panel. We advise against
the use of window tinting on vehicles
equipped with navigation systems.
Limitations of the
navigation system

APPENDIX
279
(a) Accurate current vehicle position
may not be shown in the following
cases:
When driving on a small angled Y−
shaped road.
When driving on a winding road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When motorway and surface streets
run in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the cur-
rent position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning
on a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For information
on setting the current position cal-
ibration, see page 223.
(b) Inappropriate route guidance may
occur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
When turning at an intersection for
which there is no route guidance.
When passing through an intersection
for which there is no route guidance.
During auto reroute, the route guid-
ance may not be available for the next
turn to the right or left.
It may take a long time to operate auto
reroute during high speed driving. In
auto reroute, a detour route may be
shown.
After auto reroute, the route may not be
changed.
An unnecessary U −turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other
reasons.
The road and map data stored in your
navigation system may not be com-
plete or may not be the latest version.

APPENDIX
280
After replacing a tire, implement the op-
eration described in the “TIRE
CHANGE CALIBRATION”. (See page
224.)
This navigation system uses tire turning
data and is designed to work with factory −
specified tires for your vehicle. Installing
tires that are larger or smaller than the orig-
inally equipped diameter may cause inac-
curate display of the vehicle’s position.
The tire pressure also affects the diameter
of the tires so please make sure the tire
pressure of all four tires is correct. This system uses the maps of DENSO.
©
2010 DENSO CORPORATION
© 2009 NAVTEQ. All rights reserved.
© 2010 Tele Atlas North America, Inc.
All rights reserved. This material is pro-
prietary and the subject of copyright
protection and other intellectual prop-
erty rights owned by or licensed to Tele
Atlas North America, Inc. The use of
this material is subject to the terms of
a license agreement. You will be held
liable for any unauthorized copying or
disclosure of this material.
Data by infoUSA Copyright © 2009, All
Rights Reserved.
© 2009 VISA Corporation
Copyright © CoStar Realty Information
Inc.
The Bullseye Design is a registered
trademark of Target Brands, Inc.
The building footprints and related car-
tographic information in this product
comes with MAPMASTER digital ma-
terials.
